Acura TLX 2015 Owner's Manual

100
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models with full color display
On the right: Models without full color display
Message
*1
Condition
Explanation
●Appears when you attempt to start the engine with
the transmission not in
(P
.
●To start the engine, the vehicle must be in
(P
.
●Appears when you try to change the gear position
after the position has automatically been changed
to
(P
with the driver’s door open and the driver’s
seat belt unfastened.
●Press the park button If you leave the vehicle.
●Appears when you change to
(N
, and press the
ENGINE START/STOP button within five seconds.
●Appears when the vehicle is stopped with the
driver’s seat belt unfastened and there is a chance
that the vehicle may roll unintentionally.
●The gear position remains in
(N
for 15 minutes,
then automatically switches to (P
.
2 If you want to keep the
(N
position in
ACCESSORY P. 334
●Press the
(P
button before release the brake pedal
when idling, parking or exiting the vehicle.
2 Shift Operation P. 332
●Appears when the engine stops without the shift
lever in
(P
, and does not restart automatically.
●Appears if you open the hood while Auto Idle Stop
activates.
●If you want to set the power mode to ON, move the
shift lever to
(P
.
●If you want to start the engine, follow the normal
procedure.
2Starting the Engine P. 322
Models with electronic gear selector
Models with Auto Idle Stop
Models with Auto Idle Stop

101
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
* Not available on all models*1:On the left: Models with full color display
On the right: Models without full color display
Message
*1
Condition
Explanation
●Appears when you try to change the gear position
without depressing the brake pedal.
●Depress the brake pedal, then select a shift button.
●Appears when you try to change the gear position
without releasing your foot off the accelerator
pedal.
●Release your foot off the accelerator pedal, then
select a shift button.
●Appears when the
(P
button is pressed while the
vehicle is moving.
●Appears if you change the gear position to
(R
while
the vehicle is moving forward, or to
(D
while the
vehicle is reversing.
●Make sure that the vehicle comes to a stop before
operating the select button.
—
●Appears if there is a problem with the e-
pretensioner system
*.
●Have your vehicle checked by a dealer.
●Appears when you set the power mode to ON
without fastening the driver’s seat belt.●Appears when you change the gear position after (P
has been automatically selected with the driver’s
door open, the driver’s seat belt unfastened, then
the brake pedal is released.
●Fasten the seat belt properly before you start to
drive.
2 Shift Operation P. 332
Models with electronic gear selector

102
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models with full color display
On the right: Models without full color display
Message
*1
Condition
Explanation
●Appears if any door or the trunk is not completely
closed.●The beeper sounds and the message appears if any
door or the trunk is opened while driving.
●Goes off when all doors and the trunk are closed.
●Appears when the hood is opened.
●Close the hood.

103
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models without full color display
Message
*1
Condition
Explanation
●Appears if you press the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P
.
●Press the ENGINE START/STOP button twice after
moving the shift lever to
(P
.
●Appears when you try change to the shift position
other than
(P
with the driver’s door open.
●Moving the shift lever to
(P
If you leave the vehicle.
Models with shift lever

104
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models with full color display
On the right: Models without full color display
Message
*1
Condition
Explanation
●Appears if there is a problem with the radiator
system.
●Drive slowly to prevent overheating and have your
vehicle checked by a dealer as soon as possible.
●Appears when pressing the IDS button.
u Press again to change the next mode.
2 Integrated Dynamics System (IDS) P. 346
●Appears when there is a problem with the
headlights.
●Appears while driving - The low beam headlights
may not be on. When conditions allow you to drive
safely, have your vehicle checked by a dealer as
soon as possible.
●Appears if the automatic brake hold system is
automatically canceled while it is in operation.
●Immediately depress the brake pedal.

105
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models without full color display
Message
*1
Condition
Explanation
●Appears when the automatic brake hold system is
turned off.
2Automatic Brake Hold P. 400
●Appears when the automatic brake hold system
button is pressed without wearing the driver’s seat
belt.
●Fasten the driver’s seat belt.
2Automatic Brake Hold P. 400
●Appears when the automatic brake hold system
button is pressed without depressing the brake
pedal while the automatic brake hold system is in
operation.
●Press the automatic brake hold system button with
the brake pedal depressed.
2Automatic Brake Hold P. 400
●Appears when the parking brake is applied
automatically while it is in operation.
2Automatic Brake Hold P. 400
2 Parking Brake P. 396

106
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
Message
Condition
Explanation
●Appears if there is a problem with the parking sensor
system.
●Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by a
dealer.
Models with parking sensor system

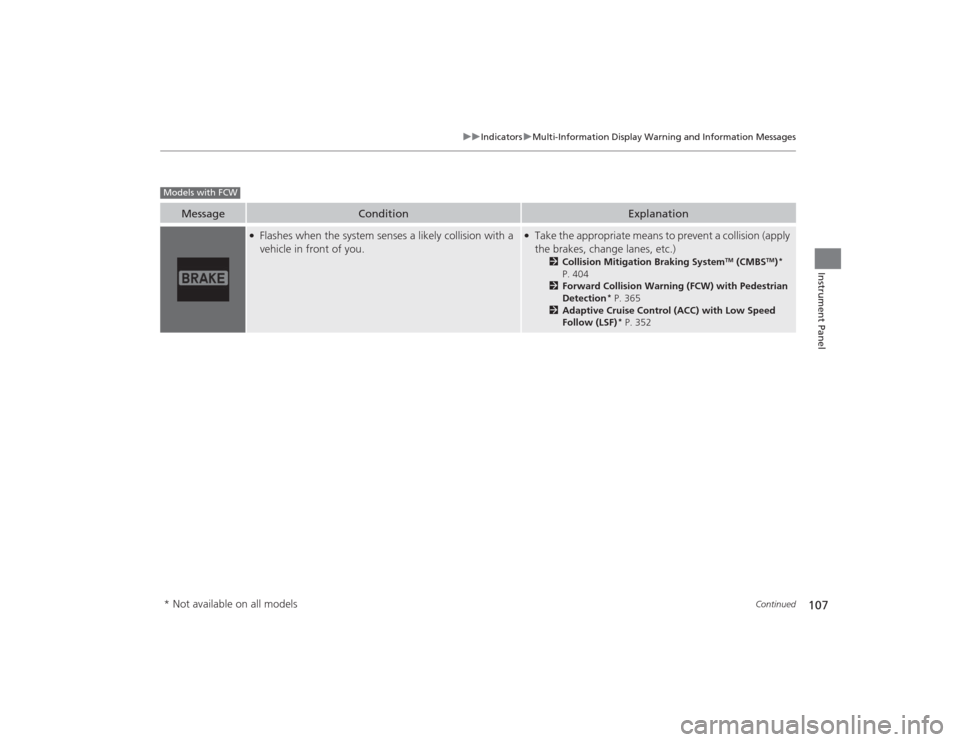

107
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
Message
Condition
Explanation
●Flashes when the system senses a likely collision with a
vehicle in front of you.
●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking System
TM (CMBS
TM)*
P. 404
2 Forward Collision Warning (FCW) with Pedestrian
Detection
* P. 365
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 352
Models with FCW* Not available on all models

108
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
Message
Condition
Explanation
●Appears when ACC with LSF has been automatically
canceled.
●You can resume the set speed after the condition that
caused ACC with LSF to cancel improves. Press the RES/
+/ SET/– switch up.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 352
●Appears if anything covers the radar sensor cover and
prevents the sensor from detecting a vehicle in front.●May appear when driving in bad weather (rain, snow,
fog, etc.)
●When the radar sensor gets dirty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth.●Have your vehicle checked by a dealer if the message
does not disappear even after you clean the sensor cover.
Models with ACC with LSF* Not available on all models

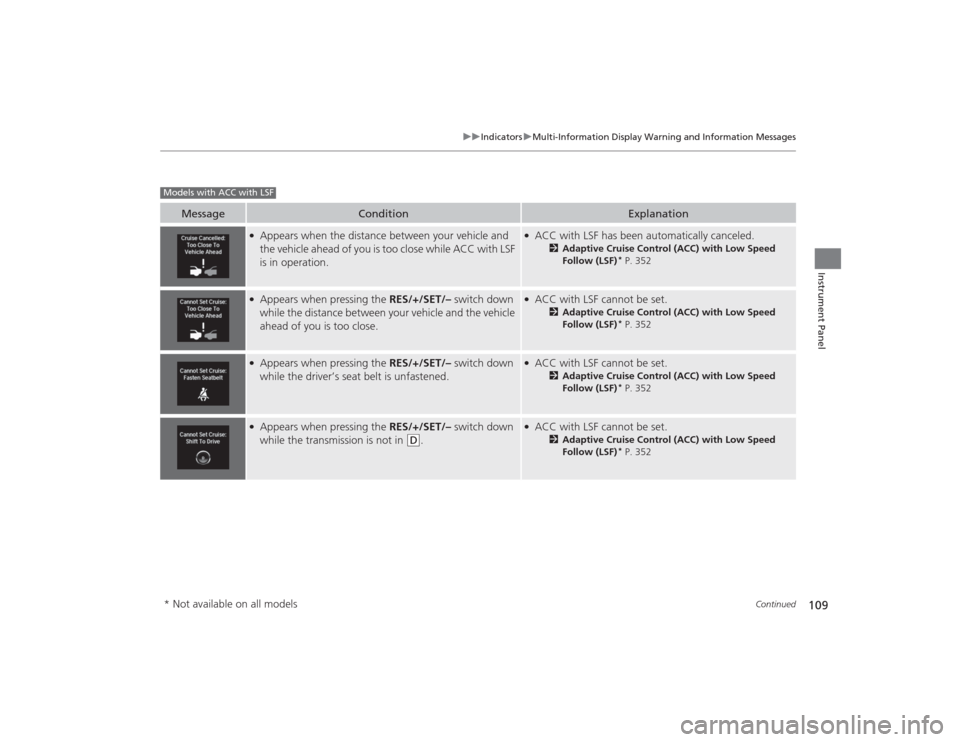

109
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
Message
Condition
Explanation
●Appears when the distance between your vehicle and
the vehicle ahead of you is too close while ACC with LSF
is in operation.
●ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 352
●Appears when pressing the RES/+/SET/– switch down
while the distance between your vehicle and the vehicle
ahead of you is too close.
●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 352
●Appears when pressing the RES/+/SET/– switch down
while the driver’s seat belt is unfastened.
●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 352
●Appears when pressing the RES/+/SET/– switch down
while the transmission is not in
(D
.
●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 352
Models with ACC with LSF* Not available on all models
