Acura TLX 2016 Owner's Manual

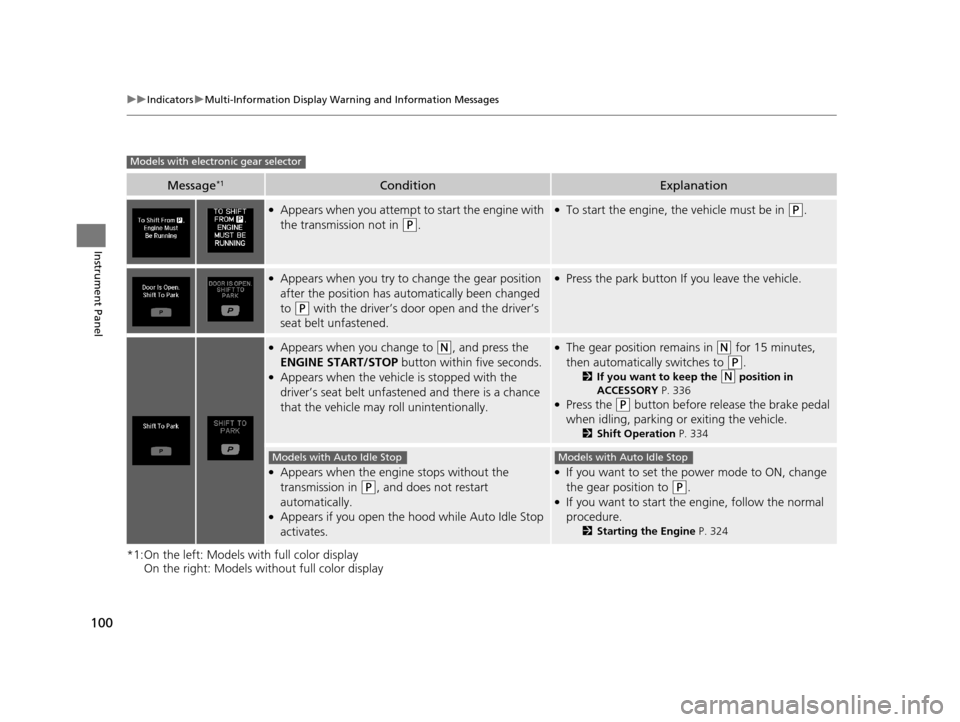

100
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when you attempt to start the engine with
the transmission not in
(P.
●To start the engine, the vehicle must be in (P.
●Appears when you try to change the gear position
after the position has au tomatically been changed
to
(P with the driver’s door open and the driver’s
seat belt unfastened.
●Press the park button If you leave the vehicle.
●Appears when you change to (N, and press the
ENGINE START/STOP button within five seconds.
●Appears when the vehicle is stopped with the
driver’s seat belt unfastened and there is a chance
that the vehicle may roll unintentionally.
●The gear position remains in (N for 15 minutes,
then automatically switches to
(P.
2 If you want to keep the (N position in
ACCESSORY P. 336
●Press the (P button before release the brake pedal
when idling, parking or exiting the vehicle.
2 Shift Operation P. 334
●Appears when the engine stops without the
transmission in
(P, and does not restart
automatically.
●Appears if you open the ho od while Auto Idle Stop
activates.
●If you want to set the power mode to ON, change
the gear position to
(P.●If you want to start the engine, follow the normal
procedure.
2 Starting the Engine P. 324
Models with electronic gear selector
Models with Auto Idle StopModels with Auto Idle Stop
16 ACURA TLX-31TZ36100.book 100 ページ ２０１５年８月２６日　水曜日　午後１時５４分

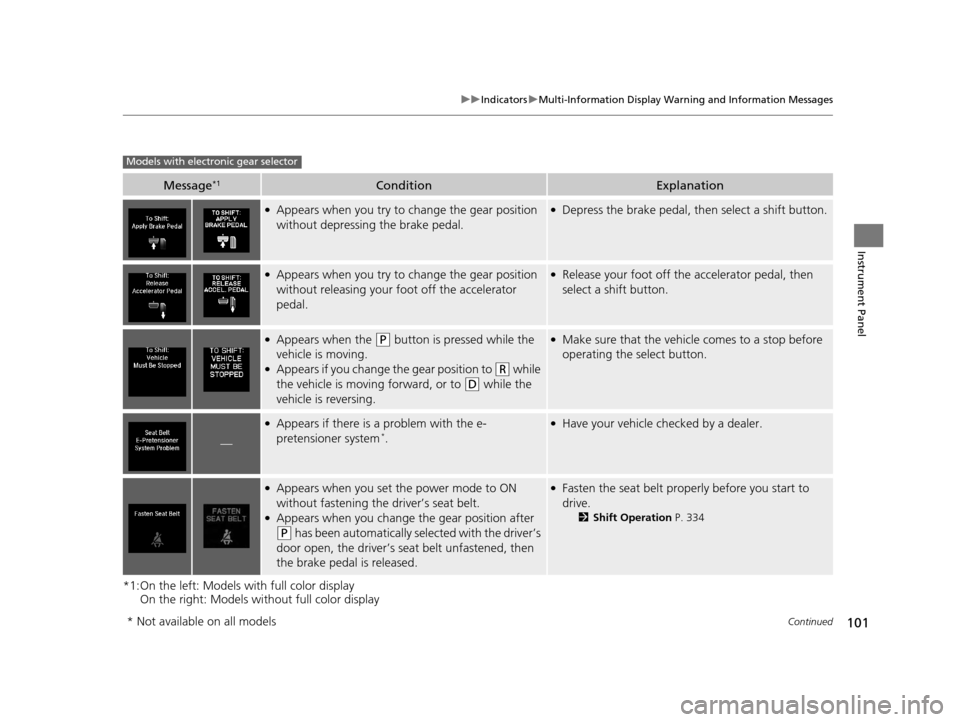

101
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when you try to change the gear position
without depressing the brake pedal.●Depress the brake pedal, then select a shift button.
●Appears when you try to change the gear position
without releasing your foot off the accelerator
pedal.●Release your foot off the accelerator pedal, then
select a shift button.
●Appears when the (P button is pressed while the
vehicle is moving.
●Appears if you change the gear position to (R while
the vehicle is moving forward, or to
(D while the
vehicle is reversing.
●Make sure that the vehicle comes to a stop before
operating the select button.
—
●Appears if there is a problem with the e-
pretensioner system*.
●Have your vehicle ch ecked by a dealer.
●Appears when you set the power mode to ON
without fastening the driver’s seat belt.
●Appears when you change the gear position after
(P has been automatically selected with the driver’s
door open, the driver’s s eat belt unfastened, then
the brake pedal is released.
●Fasten the seat belt properly before you start to
drive.
2 Shift Operation P. 334
Models with electronic gear selector
* Not available on all models
16 ACURA TLX-31TZ36100.book 101 ページ ２０１５年８月２６日　水曜日　午後１時５４分

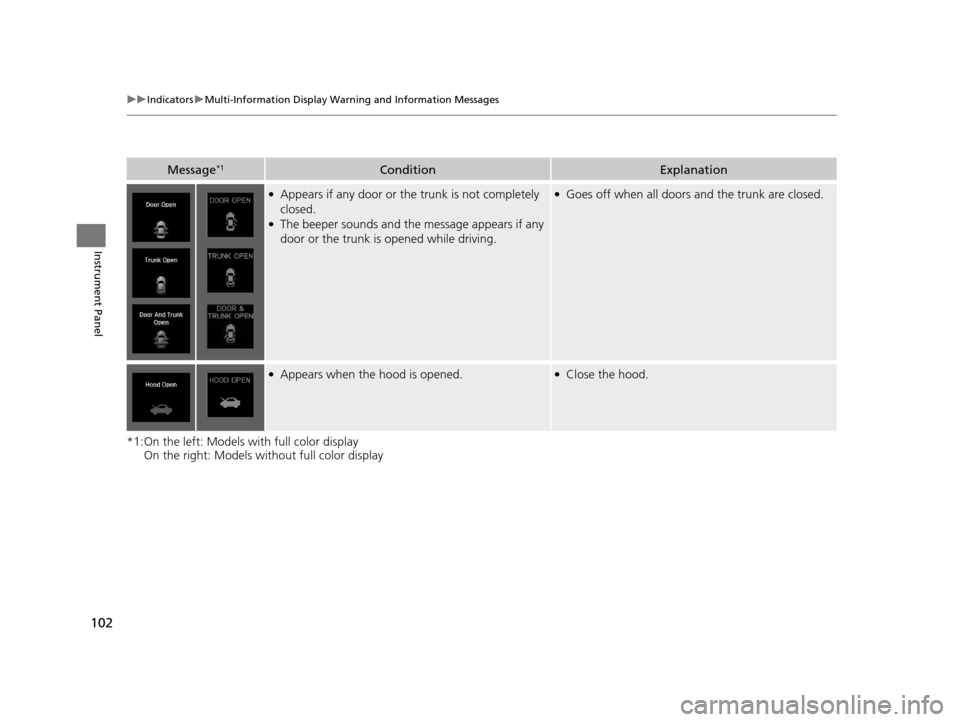

102
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears if any door or the trunk is not completely
closed.
●The beeper sounds and the message appears if any
door or the trunk is opened while driving.
●Goes off when all doors and the trunk are closed.
●Appears when the hood is opened.●Close the hood.
16 ACURA TLX-31TZ36100.book 102 ページ ２０１５年８月２６日　水曜日　午後１時５４分

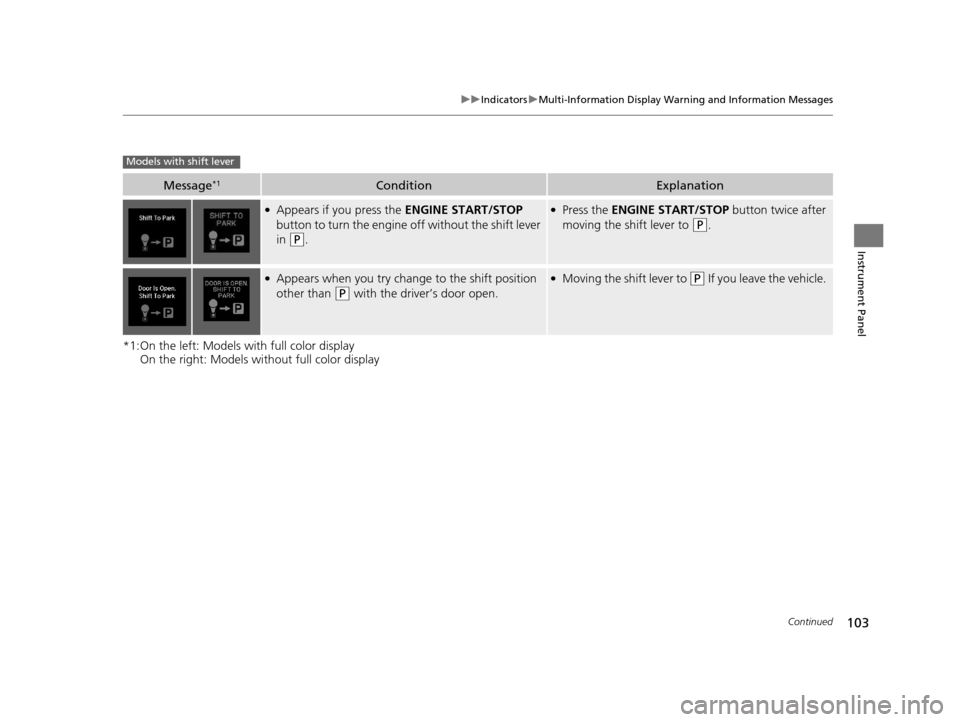

103
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears if you press the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
●Press the ENGINE START/STOP button twice after
moving the shift lever to
(P.
●Appears when you try change to the shift position
other than
(P with the driver’s door open.
●Moving the shift lever to (P If you leave the vehicle.
Models with shift lever
16 ACURA TLX-31TZ36100.book 103 ページ ２０１５年８月２６日　水曜日　午後１時５４分

104
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears if there is a problem with the radiator
system.●Drive slowly to prevent overheating and have your
vehicle checked by a deal er as soon as possible.
●Appears when pressing the IDS button.
u Press again to change the next mode.
2 Integrated Dynamics System (IDS) P. 348
●Appears when there is a problem with the
headlights.●Appears while driving - The low beam headlights
may not be on. When conditions allow you to drive
safely, have your vehicle checked by a dealer as
soon as possible.
●Appears if the automatic brake hold system is
automatically canceled while it is in operation.●Immediately depress the brake pedal.
16 ACURA TLX-31TZ36100.book 104 ページ ２０１５年８月２６日　水曜日　午後１時５４分

105
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models with full color display
On the right: Models wi thout full color display
Message*1ConditionExplanation
●Appears when the automa tic brake hold system is
turned off.
2 Automatic Brake Hold P. 405
●Appears when the automatic brake hold system
button is pressed without w earing the driver’s seat
belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 405
●Appears when the automatic brake hold system
button is pressed without depressing the brake
pedal while the automatic br ake hold system is in
operation.●Press the automatic brake hold system button with
the brake pedal depressed.
2 Automatic Brake Hold P. 405
●Appears when the parking brake is applied
automatically while it is in operation.
2Automatic Brake Hold P. 405
2 Parking Brake P. 401
16 ACURA TLX-31TZ36100.book 105 ページ ２０１５年８月２６日　水曜日　午後１時５４分

106
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if there is a problem with the parking sensor
system.●Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by a
dealer.
Models with parking sensor system
16 ACURA TLX-31TZ36100.book 106 ページ ２０１５年８月２６日　水曜日　午後１時５４分

107
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Flashes when the system sens es a likely collision with a
vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)*
P. 409
2 Forward Collision Warning (FCW) with Pedestrian
Detection
* P. 368
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 355
Models with FCW
* Not available on all models
16 ACURA TLX-31TZ36100.book 107 ページ ２０１５年８月２６日　水曜日　午後１時５４分

108
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when ACC with LSF has been automatically
canceled.●You can resume the set speed after the condition that
caused ACC with LSF to cancel improves. Press the RES/
+/ SET/– switch up.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 355
●Appears if anything covers the radar sensor cover and
prevents the sensor from detecting a vehicle in front.
●May appear when driving in bad weather (rain, snow,
fog, etc.)
●When the radar sensor gets dirty, stop your vehicle in a
safe place, and wipe off dirt using a soft cloth.
●Have your vehicle checked by a dealer if the message
does not disappear even afte r you clean the sensor cover.
Models with ACC with LSF
* Not available on all models
16 ACURA TLX-31TZ36100.book 108 ページ ２０１５年８月２６日　水曜日　午後１時５４分

109
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the distance between your vehicle and
the vehicle ahead of you is too close while ACC with LSF
is in operation.●ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 355
●Appears when pressing the RES/+/SET/– switch down
while the distance between yo ur vehicle and the vehicle
ahead of you is too close.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 355
●Appears when pressing the RES/+/SET/– switch down
while the driver’s seat belt is unfastened.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 355
●Appears when pressing the RES/+/SET/– switch down
while the transmission is not in
(D.
●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 355
Models with ACC with LSF
* Not available on all models
