trailer Acura TLX 2019 Owner's Manual

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 29
For Safe Driving P. 30 Seat Belts P. 34 Airbags P. 41
2Instrument Panel P. 71
Indicators P. 72 Gauges and Multi-Information Display P. 113
2Controls P. 131
Clock P. 132 Locking and Unlocking the Doors P. 133
Moonroof P. 157
Adjusting the Seats P. 180
2 Features P. 213
Audio System P. 214 Audio System Basic Operation P. 219
Customized Features P. 292 HomeLink® Universal Transceiver P. 314
2 Driving P. 355
Before Driving P. 356 Towing a Trailer P. 361
Multi-View Rear Camera* P. 456 Surround View Camera System* P. 458
2 Maintenance P. 463
Before Performing Maintenance P. 464 Maintenance MinderTM P. 467
Checking and Maintaining Wiper Blades P. 491
Climate Control System Maintenance P. 506
2Handling the Unexpected P. 515
Tools P. 516 If a Tire Goes Flat P. 517
Overheating P. 545 Indicator, Coming On/Blinking P. 547
When You Cannot Open the Trunk P. 560
2 Information P. 563
Specifications P. 564 Identification Numbers P. 566
Emissions Testing P. 570 Warranty Coverages P. 572
19 ACURA TLX-31TZ36400.book 2 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

355
Driving
This chapter discusses driving and refueling.
Before Driving................................... 356
Towing a Trailer ................................ 361
When Driving
Starting the Engine .......................... 362
Precautions While Driving................. 369
Automatic Transmission
*................. 370
Dual Clutch Transmission*............... 370
Shifting ............................................ 371
Shifting ............................................ 378
Auto Idle Stop
*................................ 382
Integrated Dynamics System............. 387
Models with electronic gear selector
Models with shift lever
Front Sensor Camera ....................... 388
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ......................... 390
Road Departure Mitigation (RDM) System ... 404Lane Keeping Assist System (LKAS) .. 409Vehicle Stability Assist® (VSA®), aka Electronic
Stability Control (ESC), System ............... 417
Agile Handling Assist ....................... 419
Precision All-Wheel SteerTM (P-AWS ®)
System*......................................... 419
Blind spot inform ation (BSI) System*.... 420
Super Handling-All Wheel DriveTM (SH-
AWD® )*......................................... 423 Tire Pressure Monitoring System (TPMS)
with Tire Fill Assist.......................... 424
Tire Pressure Monitoring System (TPMS) -
Required Federal Expl anation ........... 426
Braking .............................................. 428
Parking Your Vehicle ........................ 445
Multi-View Rear Camera
*................ 456
Surround View Camera System*..... 458
Refueling ........................................... 459
Fuel Economy and CO
2 Emissions .... 462
* Not available on all models
19 ACURA TLX-31TZ36400.book 355 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

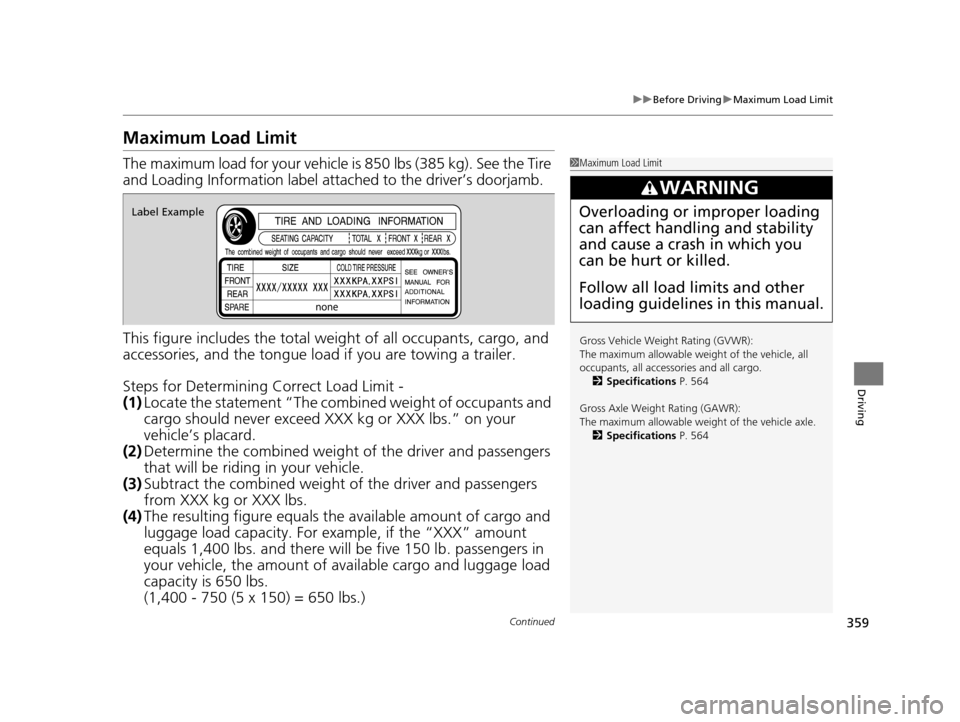

359
uuBefore Driving uMaximum Load Limit
Continued
Driving
Maximum Load Limit
The maximum load for your vehicle is 850 lbs (385 kg). See the Tire
and Loading Information label atta ched to the driver’s doorjamb.
This figure includes the total weig ht of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer.
Steps for Determining Correct Load Limit -
(1) Locate the statement “The comb ined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your
vehicle’s placard.
(2) Determine the combined weight of the driver and passengers
that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers
from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and
luggage load capacity. For example, if the “XXX” amount
equals 1,400 lbs. and there will be five 150 lb. passengers in
your vehicle, the am ount of available cargo and luggage load
capacity is 650 lbs.
(1,400 - 750 (5 x 150) = 650 lbs.)1 Maximum Load Limit
Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all accesso ries and all cargo.
2 Specifications P. 564
Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle. 2 Specifications P. 564
3WARNING
Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.
Follow all load limits and other
loading guidelines in this manual.Label Example
19 ACURA TLX-31TZ36400.book 359 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

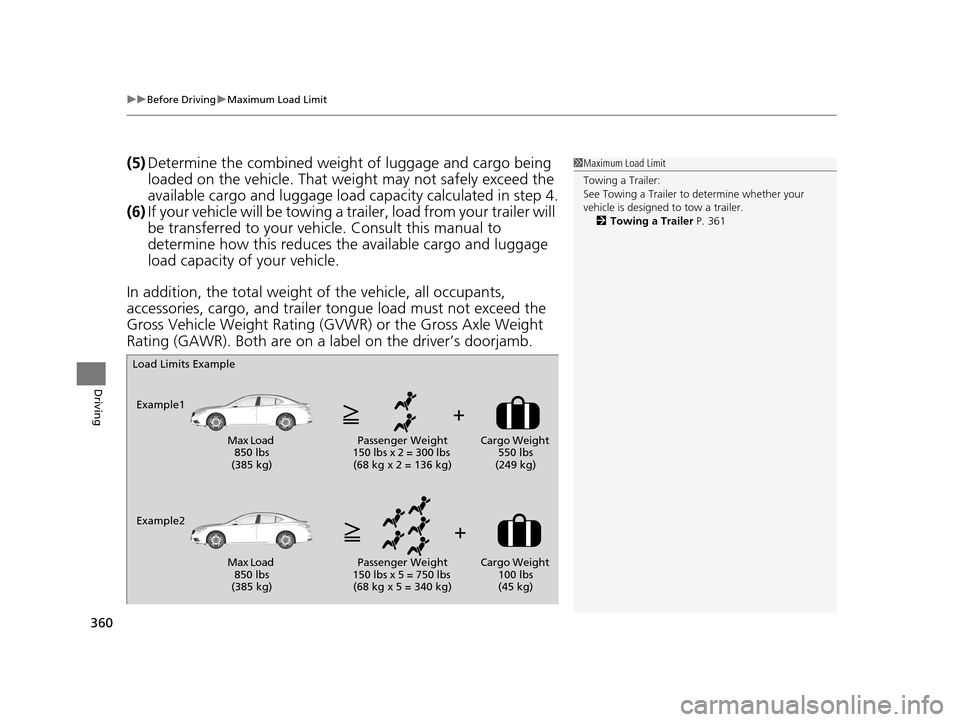

uuBefore Driving uMaximum Load Limit
360
Driving
(5) Determine the combined weight of luggage and cargo being
loaded on the vehicle. That we ight may not safely exceed the
available cargo and luggage load capacity calculated in step 4.
(6) If your vehicle will be towing a tra iler, load from your trailer will
be transferred to your vehicl e. Consult this manual to
determine how this reduces the available cargo and luggage
load capacity of your vehicle.
In addition, the total weight of the vehicle, all occupants,
accessories, cargo, and trailer tongue load must not exceed the
Gross Vehicle Weight Rating (GVW R) or the Gross Axle Weight
Rating (GAWR). Both are on a label on the driver’s doorjamb.1 Maximum Load Limit
Towing a Trailer:
See Towing a Trailer to determine whether your
vehicle is designed to tow a trailer.
2 Towing a Trailer P. 361
Load Limits Example
Example1 Max Load 850 lbs
(385 kg) Passenger Weight
150 lbs x 2 = 300 lbs (68 kg x 2 = 136 kg) Cargo Weight
550 lbs
(249 kg)
Example2 Max Load 850 lbs
(385 kg) Passenger Weight
150 lbs x 5 = 750 lbs (68 kg x 5 = 340 kg) Cargo Weight
100 lbs
(45 kg)
19 ACURA TLX-31TZ36400.book 360 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

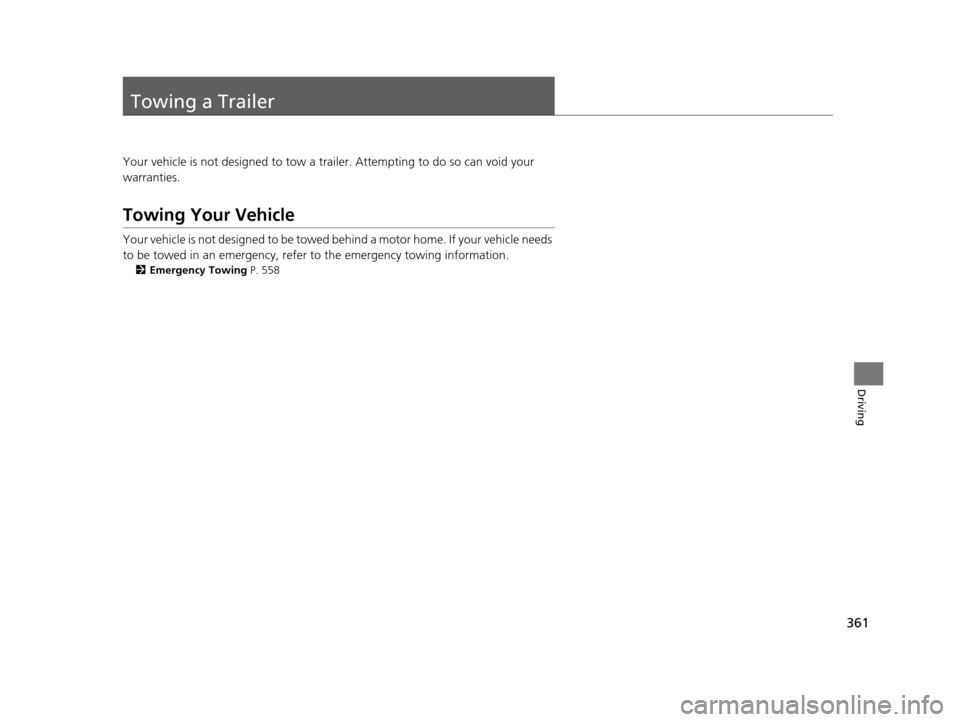

361
Driving
Towing a Trailer
Your vehicle is not designed to tow a trailer. Attempting to do so can void your
warranties.
Towing Your Vehicle
Your vehicle is not designed to be towed behind a motor home. If your vehicle needs
to be towed in an emergency, refer to the emergency towing information.
2Emergency Towing P. 558
19 ACURA TLX-31TZ36400.book 361 ページ ２０１８年２月１６日　金曜日　午後１２時２２分

584
Index
SH-AWD® (Super Handling-All Wheel
DriveTM) .................................................... 423
SH-AWD ® Torque Distribution Monitor .. 119
Shift Button......................................... 18, 371
Shift Lever ........................................... 20, 378
Shift Lever Position Indicator ................... 379
Shifting (Transmission) ......... 18, 20, 371, 378
Shoulder Anchor ......................................... 38
Side Airbags ................................................ 50
Side Curtain Airbags ................................... 52
SiriusXM ® Radio ........................................ 233
Snow Tires ................................................. 501
Spare Tire (Optional) ........................ 530, 565
Spark Plugs ................................................ 564
Specifications ............................................ 564
Specified Fuel .................................... 459, 564
SPORT (Sport mode) Indicator ................... 85
Sport Mode ............................................... 387
Sport+ Mode ............................................. 387
SRS Airbags (Airbags) ................................. 44
Starting Assist Brake Function ................. 386
Starting the Engine .................................. 362
Does Not Start ......................................... 537
Engine Switch Buzzer............................... 160
Jump Starting .......................................... 540
Remote Engine Start ................................ 365
Steering Wheel ......................................... 176
Adjusting ................................................. 176
Stopping .................................................... 445
Summer Tires ............................................ 501 Super Handling-All Wheel Drive
TM
(SH-AWD® ).............................................. 423
Indicator.................................................... 88
Supplemental Restraint System (SRS) ........ 44
Surround View Camera System ............... 458
Switches (Around the Steering Wheel) ............................................. 4, 5, 158
System Message Indicator .......................... 81
T
Temperature Gauge................................. 113
Temperature Sensor ................................. 212
Temporary Tire Repair Kit ....................... 518
Text Message .................................... 346, 348
Time (Setting) ........................................... 132
Tire Fill Assist ............................................ 424
Tire Pressure Monitoring System (TPMS)
with Tire Fill Assist .................................. 424
Indicator............................................ 81, 551
Tire Fill Assist ........................................... 424
Tire Repair Kit ........................................... 517
Tires ........................................................... 493
Air Pressure ..................................... 494, 565
Chains..................................................... 501
Checking and Maintaining ...................... 493
Flat Tire (Puncture) .......................... 517, 530
Inspection ............................................... 493
Labeling .................................................. 494
Puncture (Flat Tire) .......................... 517, 530
Regulations ............................................. 496 Rotation.................................................. 500
Spare (Optional) .............................. 530, 565
Summer .................................................. 501
Temporary Tire Repair Kit ........................ 518
Wear Indicators....................................... 498
Winter .................................................... 501
Tools ......................................................... 516
Towing a Trailer ....................................... 361
Towing Your Vehicle ............................... 361
Emergency .............................................. 558
TPMS (Tire Pressure Monitoring System)
with Tire Fill Assist ................................. 424
Indicator ........................................... 81, 551
Tire Fill Assist .......................................... 424
Transmission ......................... 18, 20, 371, 378
Automatic................................. 18, 370, 371
Dual Clutch............................... 20, 370, 378
Fluid ....................................................... 484
Gear Position Indicator ...................... 75, 372
Number .................................................. 566
Sequential Mode..................................... 376
Sequential Shift Mode............................. 380
Shift Lever Position Indicator ................... 379
TRIP Button .............................................. 116
Trip Meter ................................................ 117
Troubleshooting ...................................... 515
Blown Fuse ..................... 553, 554, 555, 556
Brake Pedal Vibrates ................................. 25
Buzzer Sounds When Opening Door ......... 26
Emergency Towing ................................. 558
Engine Won’t Start ................................. 537
19 ACURA TLX-31TZ36400.book 584 ページ ２０１８年２月１６日　金曜日　午後１２時２２分
