CD player Acura TLX 2020 Owner's Manual

267
Features

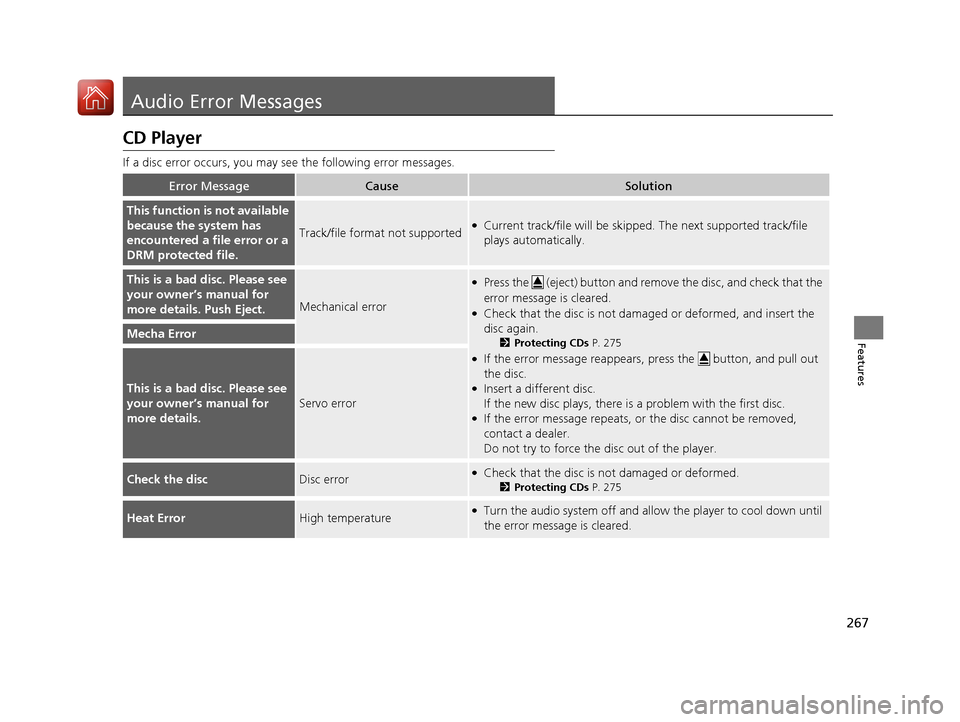

Audio Error Messages
CD Player
If a disc error occurs, you may see the following error messages.
Error MessageCauseSolution
This function is not available
because the system has
encountered a file error or a
DRM protected file.
Track/file format not supported●Current track/file will be skipped. The next supported track/file
plays automatically.
This is a bad disc. Please see
your owner’s manual for
more details. Push Eject.
Mechanical error
●Press the (eject) button and remo ve the disc, and check that the
error message is cleared.
●Check that the disc is not dama ged or deformed, and insert the
disc again.
2 Protecting CDs P. 275
●If the error message reappears, press the button, and pull out
the disc.
●Insert a different disc.
If the new disc plays, there is a problem with the first disc.
●If the error message repeats, or the disc cannot be removed,
contact a dealer.
Do not try to force the disc out of the player.
Mecha Error
This is a bad disc. Please see
your owner’s manual for
more details.
Servo error
Check the discDisc error●Check that the disc is not damaged or deformed.
2Protecting CDs P. 275
Heat ErrorHigh temperature●Turn the audio system off and allo w the player to cool down until
the error message is cleared.
20 ACURA TLX-31TZ36500.book 267 ページ ２０１９年２月７日　木曜日　午後２時２分

275
uuGeneral Information on the Audio System uRecommended CDs
Features
Recommended CDs
• Use only high-quality CD-R or CD-RW discs labeled for audio use.
• Use only CD-R or CD-RW discs on wh ich the recordings are closed.
• Play only standard round-shaped CDs.
• Some software files may not allow for audio play or text data display.
• Some versions of MP3, WMA or AAC formats may be unsupported.
■Protecting CDs
Follow these precautions when handling or storing CDs:
• Store a CD in its case when it is not being played.
• When wiping a CD, use a soft clean cloth from the center to the outside edge.
• Handle a CD by its edge. Never touch either surface.
• Never insert foreign obje cts into the CD player.
• Keep CDs out of direct sunlight and extreme heat.
• Do not place stabilizer rings or labels on the CD.
• Avoid fingerprints, liquids, and felt-tip pens on the CD.
1Recommended CDs
A Dual-disc cannot play on th is audio unit. If recorded
under certain conditions, a CD-R or CD-RW may not
play either.
■CDs with MP3, WMA or AAC files
The CD packages or jackets should have one of these marks.
1 Protecting CDs
NOTICE
Do not insert a damaged CD. It may be stuck inside
and damage the audio unit.
Examples:
●Damaged CDs Bubbled/
Wrinkled
With Label/
Sticker Using
Printer Label
Kit
Sealed With Plastic Ring●Poor quality
CDs
Chipped/
Cracked Warped Burrs
●Small CDs
3-inch
(8-cm)
CD
●Bubbled, wrinkled, labeled, and
excessively thick CDs
20 ACURA TLX-31TZ36500.book 275 ページ ２０１９年２月７日　木曜日　午後２時２分

276
uuGeneral Information on the Audio System uCompatible iPod, iPhone, and USB Flash Drives
Features
Compatible iPod, iPhone, and USB Flash Drives
• A USB flash drive of 256 MB or higher is recommended.
• Some digital audio players may not be compatible.
• Some USB flash drives (e.g., a device with security lockout) may not work.
• Some software files may not allow for audio play or text data display.
• Some versions of MP3, WMA, or AAC formats may be unsupported.
■iPod and iPhone Model Compatibility
Model
iPod (5th generation)
iPod classic 80GB/160GB (launch in 2007)
iPod classic 120GB (launch in 2008)
iPod classic 160GB (launch in 2009)
iPod nano (1st to 7th generation) released between 2005 and 2012
iPod touch (1st to 5th generation) released between 2007 and 2012
iPhone 3G/iPhone 3GS/iPhone 4/iPhone 4s/i Phone 5/iPhone 5c/iPhone 5s/iPhone 6/
iPhone 6s/iPhone 7
■USB Flash Drives
1 iPod and iPhone Model Compatibility
This system may not work with all software versions
of these devices.
1USB Flash Drives
Files on the USB flash drive are played in their stored
order. This order may be different from the order
displayed on your PC or device.
20 ACURA TLX-31TZ36500.book 276 ページ ２０１９年２月７日　木曜日　午後２時２分

579
Index
B
BatteryCharging (Battery)................................... 505
Charging System Indicator ................ 75, 549
Jump Starting ......................................... 542
Maintenance (Checking the Battery) ....... 504
Belts (Seat) .................................................. 34
Beverage Holders ..................................... 195
Blind spot information System ................ 421
Bluetooth ® Audio ..................................... 255
Bluetooth ® HandsFreeLink ®.................... 317
Booster Seats (For Children) ...................... 68
Brake System ............................................ 429
Anti-lock Brake System (ABS) .................. 435
Automatic Brake Hold ............................. 433
Brake Assist System................................. 436
Fluid ....................................................... 487
Foot Brake .............................................. 432
Parking Brake.......................................... 429
Brake System (Amber) Indicator ................................................... 72
Brake System (Red)
Indicator ........................................... 72, 550
Brightness Control (Instrument Panel) ... 172
Built-in Key ............................................... 134
Bulb Replacement .................................... 488
Back-Up Lights ........................................ 491
Brake/Taillights........................................ 490
Brake/Taillights and Rear Side Marker
Lights .................................................... 490
Fog Lights ............................................... 488 Front Side Marker/Parking Lights ............. 488
Headlights ............................................... 488
High-Mount Brake Light .......................... 492
Puddle Lights ........................................... 492
Rear License Plate Lights .......................... 492
Rear Turn Signal Lights ............................ 489
Side Turn Signal/Em
ergency Indicator
Lights .................................................... 488
Bulb Specifications ................................... 566
C
Carbon Monoxide Gas ................................ 69
Carrying Cargo .................................. 357, 359
CD Player ................................................... 244
Center Pocket ........................................... 194
Certification Label .................................... 568
Changing Bulbs ......................................... 488
Charging System Indicator ................. 75, 549
Child Safety ................................................. 56
Childproof Door Locks ............................. 147
Child Seat .................................................... 56
Booster Seats ............................................. 68
Child Seat for Infants ................................. 58
Child Seat for Small Children ..................... 59
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 63
Larger Children .......................................... 67
Rear-facing Child Seat ............................... 58
Selecting a Child Seat ................................ 60
Using a Tether ........................................... 65 Childproof Door Locks
............................. 147
Cleaning the Exterior ............................... 511
Cleaning the Interior ................................ 509
Client Service Information ....................... 576
Climate Control System ............................ 205
Changing the Mode ................................ 208
Defrosting the Windshield and Windows ............................................... 211
Dust and Pollen Filter............................... 508
Sensors ................................................... 212
Synchronized Mode................................. 209
Using Automatic Climate Control ............ 205
Clock .......................................................... 132
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 437
Coat Hooks ............................................... 200
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 437
Compact Spare Tire (Optional) ........ 532, 567
Compass .................................................... 352
Console Compartment ............................. 193
Controls ..................................................... 131
Coolant (Engine) ...................................... 484
Adding to the Radiator ............................ 485
Adding to the Reserve Tank..................... 484
Overheating ............................................ 547
Creeping (Automatic Transmission) ........ 370
Creeping (Dual Clutch Transmission) ...... 370
Cross Traffic Monitor ............................... 452
Cup Holders .............................................. 195
Customized Features ........................ 120, 292
