Acura TSX 2007 Owner's Manual

µµ
µ
µ
The ignition switch has four
positions: LOCK (0), ACCESSORY
(I), ON (II), and START (III).
You can insert or
remove the key only in this position.
To turn the key, you must push the
key in slightly. If your vehicle has an
automatic transmission, the shift
lever must also be in Park. If
the front wheels are turned, the
anti -theft lock may make it diffi cult
to turn the key. Firmly turn the
steering wheel to the left or right as
you turn the key.
You can
operate the audio system and the
accessory power sockets in this
position.
Use this position
only to start the engine. The switch
returns to the ON (II) position when
you let go of the key.
This
is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch from the
ACCESSORY (I) to the ON (II)
position.
You will hear a reminder beeper if
you leave the key in the ignition switch
in the LOCK (0) or the
ACCESSORY (I) position and open
thedriver’sdoor.Removethekeyto
turn of f the beeper.
You will also see a ‘‘REMOVE KEY’’
message on the multi-inf ormation
display (see page ).
If your vehicle has an automatic
transmission, the shif t lever must be
in Park bef ore you can remove the
key f rom the ignition switch. 79
LOCK (0) A CCESSORY (I)
ST A RT (III) ON (II)
Ignition Switch
128
Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control of the
vehicle.
Remove the key from the
ignition switch only when
parked.

Each front door has a master door
lock switch. Either switch locks and
unlocks all doors. On the driver’s
door, push the top of the master
door lock switch to lock all doors.
Push the bottom to unlock them.
Each
door has a lock tab on the top.
Push the tab down to lock the door
and pull it up to unlock. All
doors can be locked from the
outsidebyusingthekeyinthe
driver’s door. To unlock only the
driver’s door or all doors (depending
on the ‘‘DOOR LOCK MODE’’
setting), insert the key, turn the key,
and release it. The remaining doors
unlock when you turn the key a
second time within a few seconds.
To change this setting, see page .
Youcanopenorclosethewindows
by using the key in the driver’s door
(see page ).
To lock the passenger’s door when
getting out of the vehicle, push the
lock tab down and close the door. To
lock the driver’s door, remove the
key f rom the ignition switch and
push the lock tab down or push the
top of the master switch, then close
the door. 149
111
CONT INUED
Power Door L ocks
Door L ocks
Inst rument s and Cont rols
129
LOCK TAB
MASTER DOOR LOCK SWITCH
Unlock
Lock
DRIVER’S DOOR

On the f ront passenger’s door, push
the master door lock switch down to
lock the all doors, and up to unlock
them.The childproof door locks are
designed to prevent children seated
in the rear f rom accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position, the door
cannot be opened f rom inside
regardless of the position of the lock
tab. To open the door, pull the lock
tab up, and use the outside door
handle.
With the driver’s door open and the
key in the ignition, both master door
lock switches are disabled. If you try
to lock an open driver’s door by
pushing in the lock tab, all doors will
unlock when you close the driver’s
door.
L ockout Prevent ionChildproof Door L ocks
Door L ocks, Childproof Door L ocks
130
MASTER DOOR LOCK SWITCH
Unlock
Lock Unlock
Lock
FRONT PASSENGER’S DOOR

µ
µ Pressthisbuttononce
to unlock the driver’s door or all the
doors (depending on the ‘‘DOOR
LOCK MODE’’ setting). Press it
twice to unlock the other doors.
Some exterior lights will flash twice
each time you press the button.
The ceiling light (if the ceiling light
switch is in the Door Activated
position) will come on when you
press the UNLOCK button. If you do
not open any doors within 30
seconds (or whatever setting the
‘‘INTERIOR LIGHT DIMMING
TIME’’issetto),thelightfadesout.
If you relock the doors with the
remote transmitter before 30
seconds have elapsed, the light will
go off immediatel y.
To change the ‘‘DOOR LOCK
MODE’’ setting, see page .
When
the key is in the ignition
switch, the functions of each button
are disabled.
Press this button once to
lock all doors. Some exterior lights
will flash. When you push LOCK
twice within 5 seconds, you will hear
a horn (depending on the ‘‘KEYLESS
LOCK ACKNOWLEDGEMENT’’
setting) to verify that the doors are
locked and the security system has
set. The Lock button will not work this
way if any door is not fully
closed.
You can open and close all power
windows from outside the vehicle
with the key. With the remote
transmitter, you can open the
windows. Refer to Power Windows
on page .
To
change the ‘‘KEYLESS LOCK
ACKNOWLEDGEMENT’’ setting,
see page .
149113
111
CONT INUED
UNL OCK
LOCK
Remote Transmitter
Inst rument s and Cont rols
131
PANIC
BUTTON TRUNK
RELEASE
BUTTON LOCK
BUTTON
UNLOCK
BUTTON

µµ
To
change the ‘‘INTERIOR LIGHT
DIMMING TIME,’’ see page .
If you unlock the doors with the
remote transmitter, but do not open
anydoorswithin30seconds,the
doors automatically relock and the
security system sets. To change this
setting, refer to ‘‘SECURITY
RELOCK TIMER’’ on page .
Each remote transmitter also
activates the Driving Position
Memory System and changes the
‘‘MEMORY POSITION LINK’’
setting according to that remote (see
page ).
Pressthisbuttonfor
about 1 second to attract attention;
thehornwillsoundandtheexterior
lights will f lash f or about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position.
Pressthisbuttonfor
about 1 second to open the trunk.
You cannot open the trunk if the key
is in the ignition switch.
142
106
115 Recalling a Memorized Driving
Position
PA NIC
TRUNK
Remote Transmitter
132
DRIVER 1 REMOTE DRIVER 2 REMOTE

Avoid dropping or thro wing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.
To turn it back on, repeat this
procedure. The LED will come on
for 1 second to indicate the feature
has been turned on.
The
driving position memory
activated (Driver 1, Driver 2) is
shownonthebackofeach
transmitter. Make sure you store
your desired driving position in the
memory that is activated by the
transmitter you normally carry.
You can turn off this system
activation. Press and hold the LOCK
and UNLOCK buttons at the same
time. The LED in the remote
transmitter will blink twice. Then
release the buttons. Doing this also
cancels the ‘‘MEMORY POSITION
LI NK’’ setting for that remote and
restores the default settings.
Any
of these actions will stop the
system’s automatic seat adjustment:
Pressing either memory button or
the MEMO button on the driver’s
door.
Pressing any of the seat
adjustment switches.
Shifting out of Park (A/T), or into
reverse (M/T).
When
you open the driver’s door
after unlocking it with the remote
transmitter, you will hear a beep
(depending on the ‘‘KEYLESS
LOCK ACKNOWLEDGEMENT’’
setting see page ). The driver’s
seat will move to the positions stored
inthememorylocation
corresponding with the remote in
use. You will hear two beeps when
the seat stops moving.
If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
Battery type: CR2025
113
CONT INUED
Remote Transmitter Care
Replacing the Transmitter Battery
Remote Transmitter
Inst rument s and Cont rols
133

µ

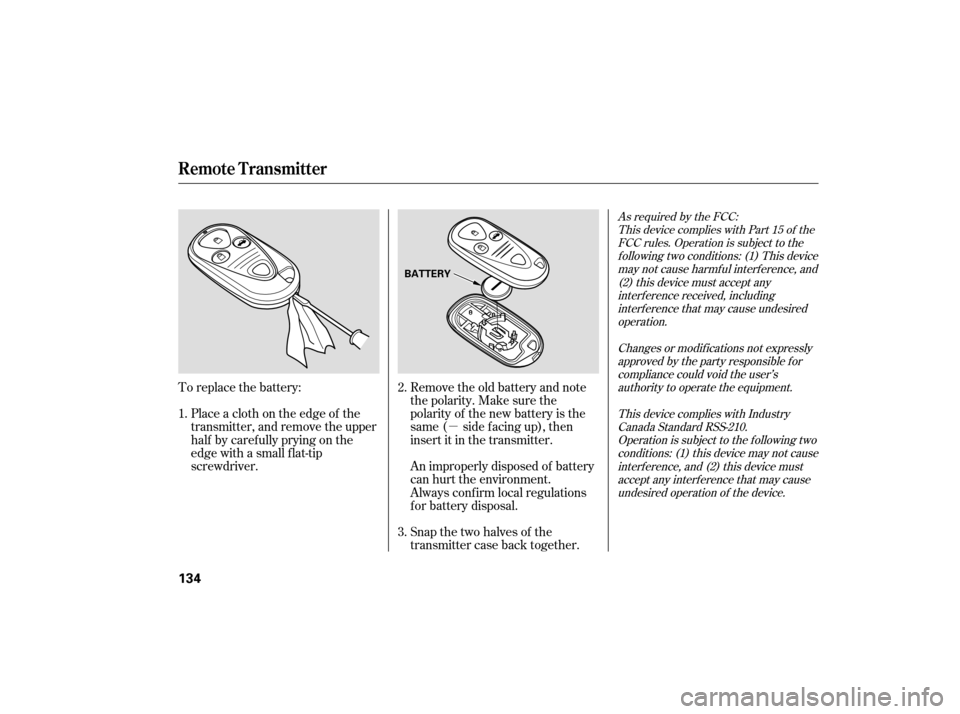

To replace the battery:
Place a cloth on the edge of the
transmitter, and remove the upper
half by caref ully prying on the
edge with a small f lat-tip
screwdriver. Remove the old battery and note
the polarity. Make sure the
polarity of the new battery is the
same ( side f acing up), then
insert it in the transmitter.
Snapthetwohalvesof the
transmitter case back together. An improperly disposed of battery
can hurt the environment.
Always conf irm local regulations
for battery disposal.
1.
2.
3.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Remote Transmitter
134
BATTERY

To close the trunk, press down on
the trunk lid.
See page for cargo loading and
weight limit information. Keep the
trunk lid closed at all times while
driving to avoid damaging the lid,
and to prevent exhaust gas from
getting into the interior. See
on page . To
protect items in the trunk when
you need to give the key to some one
else:
Give the person the valet key.
Youcanopenthetrunkinanyof
three
ways:
Pull up on the trunk release lever
located to the left of the driver’s
seat. Lockthetrunkreleaseleverwith
the
master key. Also make sure
the rear seat is not f olded down
(see page ).
If the doors are unlocked, press
thetrunkreleaseswitchonthe
trunk lid. Press and hold the trunk release
button on the remote transmitter. 1.
2.
140
55
239
Carbon
Monoxide Hazard
Trunk
Inst rument s and Cont rols
135
Pull
MASTER KEY
TRUNK RELEASE LEVER TRUNK RELEASE SWITCH

As a safety feature, your vehicle has
a release lever on the trunk latch so
the trunk can be opened from the
inside. To
open the trunk, push the release
lever to the left.
Parents should decide if their
children should be shown how to use
this feature.
For more information about child
saf ety, see page .
To protect items in the trunk, you
can disable the trunk-release switch
on the trunk lid by turning of f the
trunk main switch in the glove box
and locking the glove box. Make
sure the rear seat is not f olded down.
If you need to give the key to
someone else, give them the valet
key.
40
Emergency T runk Opener
T runk Main Switch
Trunk
136
TRUNK RELEASE LEVER

In the HI setting, the heater turns off
when the seat gets warm, and turns
back on after the seat’s temperature
drops.
In the LO setting, the heater runs
continuously. It does not cycle with
temperature changes.
Follow these precautions whenever
you use the seat heaters:If the engine is lef t idling f or an
extended period, do not use the
seat heaters even on the LO
setting. It can weaken the battery,
causing hard starting. Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current f rom the
battery.
Both f ront seats are equipped with
seat heaters. The passenger seat is
only heated in the seat bottom
because of the side airbag of f system. The ignition switch must be in the
ON (II) position to use them. Push
the front of the switch, HI, to rapidly
heat up the seat. After the seat
reaches a comf ortable temperature,
select LO by pushing the back of the
switch. This will keep the seat warm.
Seat Heaters
Inst rument s and Cont rols
137
SEAT HEATER SWITCHES
Passenger’s
Seat
Driver’s
Seat
HEATERS
