Acura TSX 2011 Owner's Manual

Adjusting the Seats
Adjusting the Seat Positions
120Controls
The firmness of the seat-back can be
adjusted.
To make it firmer:
Pull the lever backward.
To make it less firm:
Push the lever forward.
Adjusting the Driver's Seat Lumbar Support

Adjusting the Seats
Adjusting the Seat Positions
121
Continued
Controls
Maintain a Proper Sitting Position
After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safely parked and the engine
is off.
Sitting improperly can increase the chance of injury during a crash. For example,
if an occupant slouches, lies down, turns sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.
In addition, an occupant who is out of position in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by
an inflating front airbag.
WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor. Maintain a Proper Sitting Position

Adjusting the Seats
Adjusting the Seat Positions
122Controls
Active Head Restraints
The driver’s and front passenger’s seats have active head restraints. In a rear
impact, an occupant properly secured by a seat belt will be pushed against the
seat-back and the head restraint will move forward. This reduces the distance
between the restraint and the occupant’s head, which helps reduce the likelihood
of whiplash and injuries to the neck and upper spine.
Active Head Restraints
In order for the active head restraints to operate
properly:
Do not hang any items on the head restraints, or tfrom the restraint legs.
Do not place any object between an occupant tand the seat-back.
Install each restraint in its proper location. tAfter a collision, the activated restraint should
return to its normal position. If the restraint does
not return to its normal position, or in the event of
a severe collision, have the vehicle inspected by a
dealer.

Adjusting the Seats
Rear Seats
123
Controls
Rear Seats
Folding Down the Rear Seats
2. Pull the release lever in the trunk to release
the lock.
Folding Down the Rear Seats
The rear seat-backs can be folded down to
accommodate bulkier items in the trunk.
Never drive with a seat-back folded down and the
trunk lid open.
Carbon Monoxide Hazard


P. 6 0
To lock a seat-back upright, push it backwards until
it locks.
When returning a seat-back to it’s original position,
push it firmly back. Also, make sure all rear shoulder
belts are positioned in front of the seat-back, and
the center shoulder belt is re-positioned in the
guide.
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause
the weight sensors in the front passenger seat to
work improperly.
Passenger Airbag Off Indicator


P. 4 5
Also make sure all items in the trunk or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
1. Remove the center shoulder belt from the
guide.3. Fold the seat-back down.
If the rear head restraints get caught on the
front seat-backs, remove the head restraints.
Removing and Reinstalling the Head
Restrants P.119
Guide
Center Shoulder BeltRelease Lever

Adjusting the Seats
Armrest
124Controls
Armrest
Using the Front Seat Armrest
The console lid can be used as an armrest.
To a d j u s t :
Push the release lever and slide the armrest
to a desired position. Release the lever to lock
the position.
Using the Rear Seat Armrest
Pull down the armrest in the center seat-
back.

125
Interior Lights/Interior Convenience Items
Controls
Interior Lights
ON
The interior lights come on regardless of
whether the doors are open or closed. Door activated
The interior lights come on in the following
situations:
When any of the doors are opened. t
You unlock the driver's door. t
You remove the key from the ignition t
switch. OFF
The interior lights remain off regardless of
whether the doors are open or closed.
Interior Light Switches
In the door activated position, the interior lights
fade out and go off about 30 seconds after the
doors are closed.
The lights go off after 30 seconds in the following
situations:
When you unlock the driver's door but do not topen it.
When you remove the key from the ignition tswitch but do not open a door.
You can change the interior lights dimming time.
Customized Features


P. 8 0
The interior lights go off immediately in the
following situations:
When you lock the driver's door.
tWhen you close the driver's door with the key in tthe ignition switch.
When you turn the ignition switch to ON t
II.
If you leave any of the doors open without the key
in the ignition switch, the interior lights go off after
about 15 minutes.
Interior Light Switches Map Lights
The map lights can be turned on and off by
pressing the lenses.
Map Lights
When the ceiling light switch is in the door activated
position and any door is open, the map light will
not go off when you press the lens.
FrontRear
On
On
Door Activated PositionDoor Activated Position
Off
Off

Interior Lights/Interior Convenience Items
Interior Convenience Items
126Controls
Interior Convenience Items
Glove Box
Pull the handle to open the glove box. You
can lock the glove box with the master key.
Glove Box
The glove box light comes on when the parking
lights are on.
WARNING
An open glove box can cause serious
injury to your passenger in a crash, even if
the passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Detachable shelf
The shelf in the glove box is detachable.
To remove it, disengage the tabs.
ShelfGlove Box
To L o c k

Interior Lights/Interior Convenience Items
Interior Convenience Items
127
Continued
Controls
Console Compartment
Pull the handle to open the console
compartment.
To use the console lid as an armrest, slide it
to the desired position while pulling up the
release lever.
You can keep beverage bottles and cans cool
with the air conditioning system.
1. Turn the dial counterclockwise to open the
air vent in the console compartment.
2. Turn on the climate control system and
adjust the temperature to cool.
3. Set the mode control
or
.
The cool air is diverted through the air
vent.
Console Compartment
Use only resealable containers or keep unopened
cans in the console compartment.
Spilled liquids can damage the upholstery and
electrical components in the console compartment.
When the heater begins to divert warm air, the
airflow into the console compartment is shut off.
Close
Open

Interior Lights/Interior Convenience Items
Interior Convenience Items
128Controls
Beverage Holders
Front seat beverage holders
Press the raised detent to open the lid. To
close the lid, push it down until it latches. Rear seat beverage holders
Fold the armrest down to use the rear seat
beverage holders.
Beverage Holders NOTICE Spilled liquids can damage the upholstery,
carpeting, and electrical components in the interior.
Be careful when you are using the beverage holders.
Hot liquid can scald you.
Push

Interior Lights/Interior Convenience Items
Interior Convenience Items
129
Continued
Controls

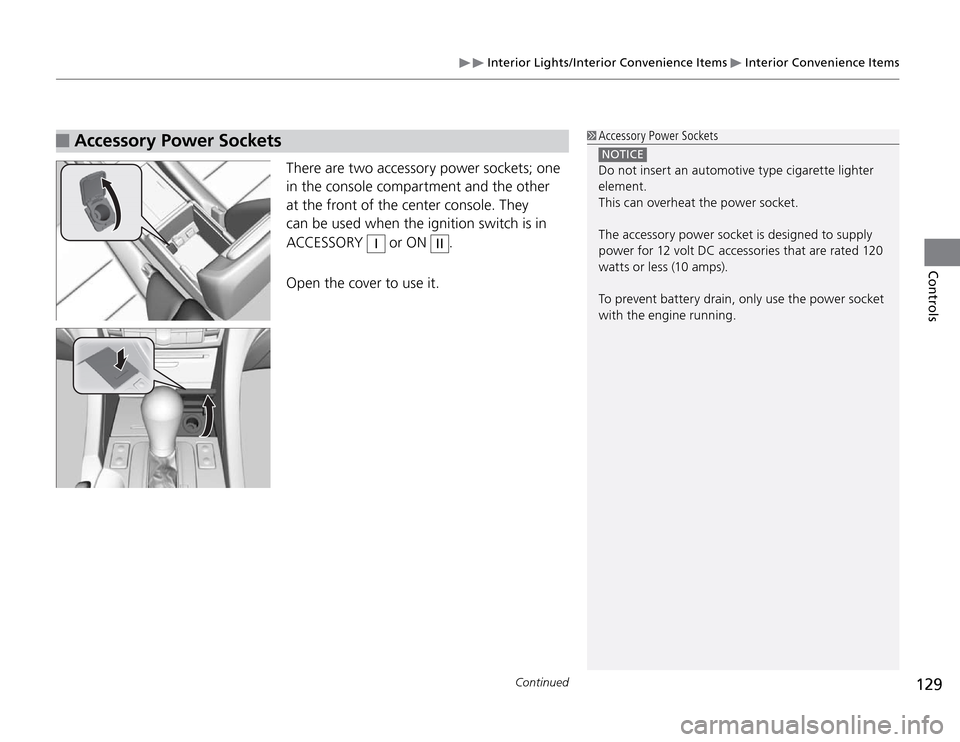

Accessory Power Sockets
There are two accessory power sockets; one
in the console compartment and the other
at the front of the center console. They
can be used when the ignition switch is in
ACCESSORY
I or ON
II
.
Open the cover to use it.
Accessory Power Sockets NOTICE Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket is designed to supply
power for 12 volt DC accessories that are rated 120
watts or less (10 amps).
To prevent battery drain, only use the power socket
with the engine running.
