Checking and Maintaining Tires
Tire and Loading Information Label
260Maintenance
Tire and Loading Information LabelThe label attached to the driver’s doorjamb provides necessary tire and
loading information.
124
3
Label
Example









 
  
Tire SizeFollowing is an example of tire size with
an explanation of what each component
means.
P225/50 R17 93V
P: Vehicle type (P indicates passenger
vehicle).
225: Tire width in millimeters.
50: Aspect ratio (the tire’s section height
as a percentage of its width).
R: Tire construction code (R indicates
radial).
17: Rim diameter in inches.
93: Load index (a numerical code
associated with the maximum load the
tire can carry).
V: Speed symbol (an alphabetical code
indicating the maximum speed rating).
Tire Labeling
The tires that came on your vehicle have
a number of markings. Those you should
be aware of are described below.
Tire Size
Whenever tires are replaced, they should be replaced with tires of the
same size.
Tire and Loading Information LabelThe tire and loading information label
attached to the driver’s doorjamb
contains:1 The number of people your vehicle can
carry.2 The total weight your vehicle can carry.
Do not exceed this weight.3 The original tire sizes for front, rear and
spare.4 The proper cold tire pressure for front,
rear and spare.

Checking and Maintaining Tires
Tire Labeling
261
Maintenance
Tire Identification Number (TIN)
The tire identification number (TIN) is a group of numbers and letters that
look like the example in the side column. TIN is located on the sidewall of
the tire.
Glossary of Tire Terminology
Cold Tire Pressure – The tire air pressure when the vehicle has been
parked for at least three hours or driven less than 1 mile (1.6 km).
Load Rating – Means the maximum load that a tire is rated to carry for a
given inflation pressure.
Maximum Inflation Pressure – The maximum tire air pressure that the
tire can hold.
Maximum Load Rating – Means the load rating for a tire at the
maximum permissible inflation pressure for that tire.
Recommended Inflation Pressure – The cold tire inflation pressure
recommended by the manufacturer.
Treadwear Indicators (TWI) – Means the projections within the principal
grooves designed to give a visual indication of the degrees of wear of the
tread.
Tire Identification Number (TIN)DOT B97R FW6X 2209
DOT: This indicates that the tire meets all
requirements of the U.S. Department of
Transportation.
B97R: Manufacturer’s identification mark.
FW6X: Tire type code.
2209: Date of manufacture.
Ye a r
Week

Checking and Maintaining Tires
DOT Tire Quality Grading (U.S. Vehicles)
262Maintenance
DOT Tire Quality Grading (U.S. Vehicles)The tires on your vehicle meet all U.S. Federal Safety Requirements. All
tires are also graded for treadwear, traction, and temperature performance
according to Department of Transportation (DOT) standards. The following
explains these gradings.
Uniform Tire Quality Grading
Quality grades can be found where applicable on the tire sidewall between
tread shoulder and maximum section width.
Treadwear
The treadwear grade is a comparative rating based on the wear rate of the
tire when tested under controlled conditions on a specified government
test course. For example, a tire graded 150 would wear one and one-half
(1 1/2) times as well on the government course as a tire graded 100. The
relative performance of tires depends upon the actual conditions of their
use, however, and may depart significantly from the norm due to variations
in driving habits, service practices and differences in road characteristics
and climate.
Uniform Tire Quality GradingFor example:
Treadwear 200
Traction AA
Temperature A
All passenger car tires must conform to
Federal Safety Requirements in addition
to these grades.

Checking and Maintaining Tires
DOT Tire Quality Grading (U.S. Vehicles)
263
Maintenance

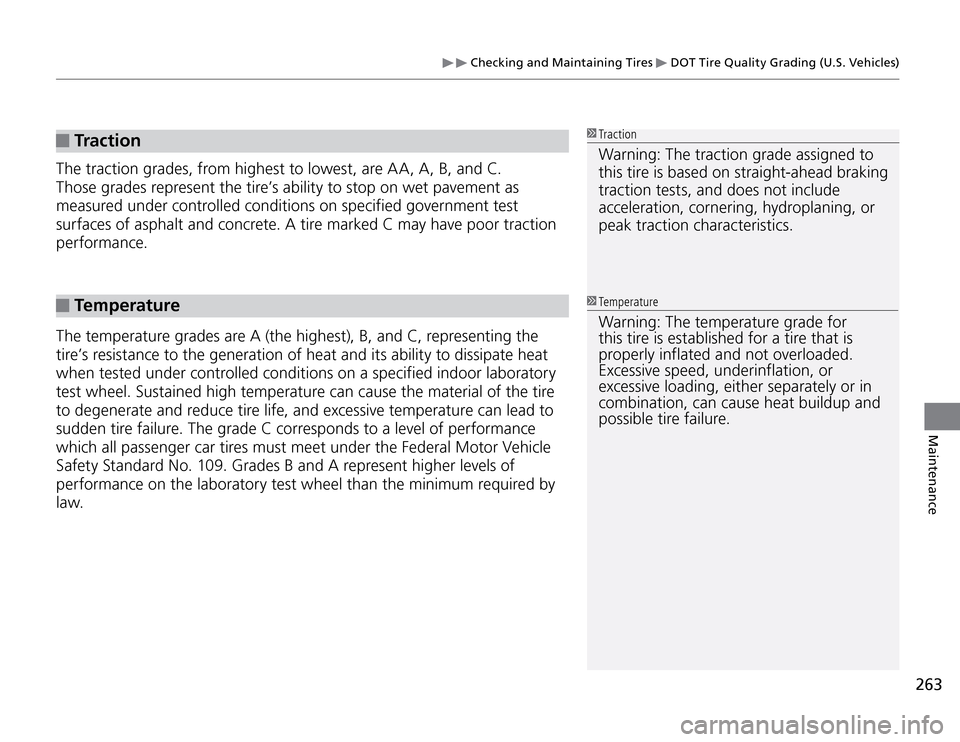

Traction
The traction grades, from highest to lowest, are AA, A, B, and C.
Those grades represent the tire’s ability to stop on wet pavement as
measured under controlled conditions on specified government test
surfaces of asphalt and concrete. A tire marked C may have poor traction
performance.
Temperature
The temperature grades are A (the highest), B, and C, representing the
tire’s resistance to the generation of heat and its ability to dissipate heat
when tested under controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the material of the tire
to degenerate and reduce tire life, and excessive temperature can lead to
sudden tire failure. The grade C corresponds to a level of performance
which all passenger car tires must meet under the Federal Motor Vehicle
Safety Standard No. 109. Grades B and A represent higher levels of
performance on the laboratory test wheel than the minimum required by
law.
Trac tionWarning: The traction grade assigned to
this tire is based on straight-ahead braking
traction tests, and does not include
acceleration, cornering, hydroplaning, or
peak traction characteristics. TemperatureWarning: The temperature grade for
this tire is established for a tire that is
properly inflated and not overloaded.
Excessive speed, underinflation, or
excessive loading, either separately or in
combination, can cause heat buildup and
possible tire failure.

Checking and Maintaining Tires
Wear Indicators
264Maintenance
Tire Service LifeThe life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even when the tires are not in use).
In addition to regular inspections and inflation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach
five years old. All tires, including the spare, should be removed from service after
10 years from the date of manufacture, regardless of their condition or state of
wear.
Checking TiresHigh speed driving
We recommend that you do not drive faster than
the posted speed limits and conditions allow. If you
drive at sustained high speeds (over 118 mph or
190 km/h), adjust the tire pressures as shown below
to avoid excessive heat build up and sudden tire
failure. 6-cylinder models Tire Size P235/45R18 94V
Pressure 35 psi (240 kPa, 2.4 kgf/cm
2)
4-cylinder models Tire Size P225/50R17 93V
Pressure 35 psi (240 kPa, 2.4 kgf/cm
2)
If you do not, excessive heat can build up and cause
sudden tire failure.
The groove where the wear indicator is
located is 1/16 inch (1.6 mm) shallower than
elsewhere on the tire. If the tread has worn
so that the indicator is exposed, replace the
tire. Worn out tires have poor traction on
wet roads.
Wear Indicators
Example of a
Wear Indicator mark

Checking and Maintaining Tires
Tire and Wheel Replacement
265
Maintenance
Tire and Wheel Replacement
Tire and Wheel Replacement
Replace your tires with radials of the same size, load range, speed rating, and
maximum cold tire pressure rating (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause the ABS and VSA
® (vehicle stability assist)
system to work incorrectly.
It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.
If you replace a wheel, only use TPMS specified wheels approved for your vehicle.
Make sure that the wheel’s specifications match those of the original wheels.
WARNING
Installing improper tires on your vehicle
can affect handling and stability. This can
cause a crash in which you can be seriously
hurt or killed.
Always use the size and type of tires
recommended in this owner’s manual.

Checking and Maintaining Tires
Tire Rotation
266Maintenance
Tire RotationRotating tires according to the maintenance messages on the multi-information
display helps to distribute wear more evenly and increase tire life.
Tires without rotation marks
Rotate the tires as shown here.
Rotate the tires as shown here. Tires with rotation marks
Tire Rotation
Tires with directional tread patterns should only
be rotated front to back (not from one side to the
other).
Directional tires should be mounted with the
rotation indication mark facing forward, as shown
below.FRONT
Direction Mark
When the tires are rotated, make sure the air
pressures are checked. Front
Front

Checking and Maintaining Tires
Winter Tires
267
Maintenance
Winter TiresIf driving on snowy or frozen roads, mount all season marked ”M+S” tires, snow
tires, or tire chains; reduce speed; and maintain sufficient distance between
vehicles when driving.
Be particularly careful when operating the steering wheel or brakes to prevent
skidding.
Use tire chains, snow tires, or all season tires when necessary or according to the
law.
When mounting, refer to the following points.
For winter tires:
Select the size and load ranges that are the same as the original tires. t
Mount the tires to all four wheels. t
For tire chains:
Install them on the front tires only. Because your vehicle has limited tire t
clearance, Acura strongly recommends using the chains listed below:
4-cylinder models Cable-type: SCC Radial Chain SC1034 6-cylinder models Cable-type: SCC Radial Chain SC1038 Follow the chain manufacturer’s instruction when installing. Mount them as t
tightly as you can.
Check that the chains do not touch the brake lines or suspension. t
Drive slowly. t
Winter Tires NOTICE Traction devices that are the wrong size or
improperly installed can damage your vehicle's
brake lines, suspension, body, and wheels. Stop
driving if they are hitting any part of the vehicle.
When tire chains are mounted, follow the chain
manufacturer's instructions regarding vehicle
operational limits.
WARNING
Using the wrong chains, or not properly
installing chains, can damage the brake
lines and cause a crash in which you can
be seriously injured or killed.
Follow all instructions in this owner's
manual regarding the selection and use of
tire chains.

Battery
268Maintenance
Checking the Battery
Check the battery condition monthly. Look
at the test indicator window and check the
terminals for corrosion.
If your vehicle's battery is disconnected or goes dead:
The audio system is disabled. t
Entering the audio security code

P.14 0
The clock resets. t
Setting the Clock

P. 8 8
The navigation system is disabled. A PIN code will be required. t
Refer to the navigation system manual

Charging the BatteryDisconnect both battery cables to prevent damaging your vehicle's electrical
system. Always disconnect the negative (-) cable first, and reconnect it last.
BatteryWARNING: Battery post, terminals, and
related accessories contain lead and lead
compounds.
Wash your hands after handling.The test indicator's color information is on the
battery.
When you find corrosion, clean the battery terminals
by applying a baking powder and water solution.
Rinse the terminals with water. Cloth/towel dry
the battery. Coat the terminals with grease to help
prevent future corrosion.
WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.
Wear protective clothing and a face
shield, or have a skilled technician do any
battery maintenance.
Test Indicator Window

269
Remote Transmitter Care
Maintenance
Replacing the Battery NOTICE An improperly disposed of battery can hurt the
environment. Always confirm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
Replacing the BatteryIf the indicator does not come on when the button is pushed, replace the battery.
Battery type: CR1616
1. Unscrew the cover with a small Phillips-
head screwdriver. Push a button to pry
open the transmitter.2. Open the keypad.
Wrap the small flat-tip screwdriver
with a cloth to prevent scratching the
transmitter.
3. Make sure to replace the battery with the
correct polarity.
Keypad
Screw
Battery
