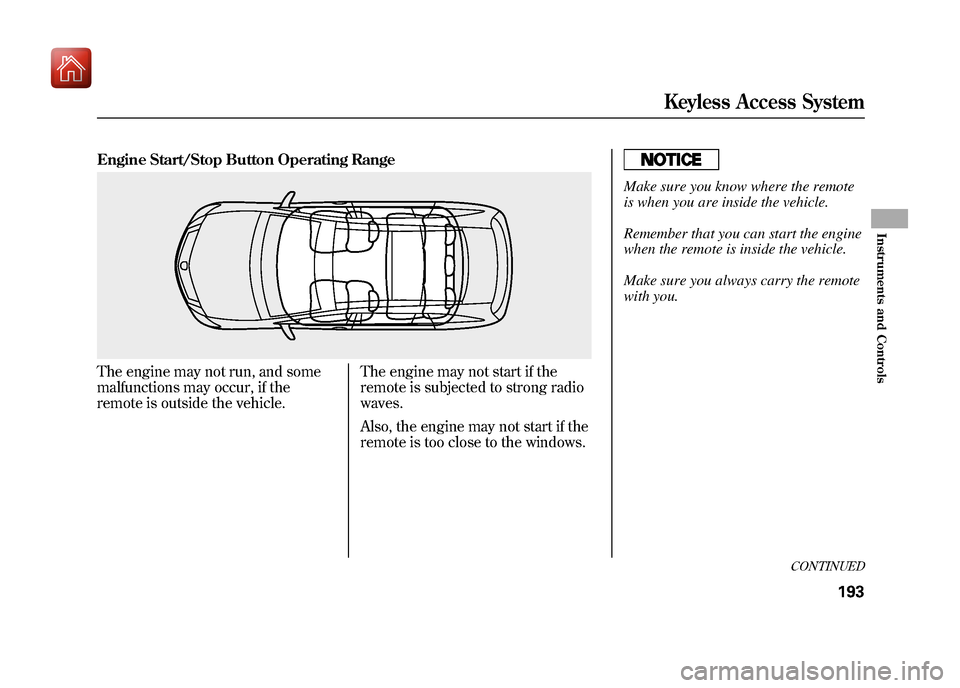

Engine Start/Stop Button Operating RangeThe engine may not run, and some
malfunctions may occur, if the
remote is outside the vehicle.The engine may not start if the
remote is subjected to strong radio
waves.
Also, the engine may not start if the
remote is too close to the windows.
Make sure you know where the remote
is when you are inside the vehicle.
Remember that you can start the engine
when the remote is inside the vehicle.
Make sure you always carry the remote
with you.
CONTINUED
Keyless Access System
193
Instruments and Controls
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

The climate control system in your
vehicle provides a comfortable driving
environment in all weather conditions.
The standard audio system has many
features. This section describes those
features and how to use them.
Your vehicle has an anti-theft audio
system that requires a code number to
enable it.
Climate Control System
..................
220
Audio System
................................
228
Audio System (Models without Navigation System)
....................
229
Playing the AM/FM Radio (Models
without navigation system)
..........
230
Playing the XM
®Radio (Models
without navigation system)
..........
238
Playing Discs (Models without navigation system)
.....................
244
Disc Changer Error Message (Models without navigationsystem)
.................................
254 Playing an iPod
®(Models without
navigation system)
.....................
255
iPod
®Error Messages (Models
without navigation system)
..........
263
Playing a USB Flash Memory Device
(Models without navigationsystem)
.................................
264
USB Flash Memory Device Error
Messages (Models withoutnavigation system)
.................
271
Bluetooth
®Audio System (Models
without navigation system)
..........
272
Audio System (Models with navigation system)
.....................
277
Playing the AM/FM Radio (Models with navigation system)
..............
278
Playing the XM
®Radio (Models with
navigation system)
.....................
291
Playing a Disc (Models with navigation system)
.....................
300
Disc Player Error Messages (Models with navigation system)
..............
311
Playing Hard Disc Drive (HDD)
Audio (Models with navigationsystem)
.................................
312
Playing an iPod
®(Models with
navigation system)
.....................
340 iPod
®Error Messages (Models with
navigation system)
.....................
348
Playing a USB Flash Memory Device (Models with navigationsystem)
.................................
349
USB Flash Memory Device Error Messages (Models with navigationsystem)
.................................
359
Bluetooth
®Audio System (Models
with navigation system)
..............
360
Protecting Your Discs
.....................
365
FM/AM Radio Reception
................
369
Auxiliary Input Jack
........................
371
Remote Audio Controls
...................
371
Radio Theft Protection
....................
374
Setting the Clock
...........................
375
Security System
.............................
378
Cruise Control
...............................
379
Adaptive Cruise Control (ACC)
........
382
HomeLink
®Universal Transceiver
....
396
Bluetooth
®HandsFreeLink
®(Models
without navigation system)..........
399
Bluetooth
®HandsFreeLink
®(Models
with navigation system)..............
416
AcuraLink
®(U.S. models only)
.........
435
Rearview Mirror with Rearview
Camera Display
.........................
451
Features
219
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Speed-sensitive VolumeCompensation (SVC)The SVC mode controls the volume
based on vehicle speed. The faster
you go, the louder the audio volume
becomes. As you slow down, the
audio volume decreases.
The SVC has four modes: SVC OFF,
SVC LOW, SVC MID, and SVC
HIGH. Turn the selector knob to
adjust the setting to your liking. If
you feel the sound is too loud,
choose low. If you feel the sound is
too quiet, choose high. Audio System Lighting
You can use the instrument panel
brightness control buttons (＋
or－)
to adjust the illumination of the audio
system (see page 144).
Playing the AM/FM Radio (Models without navigation system)
237
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

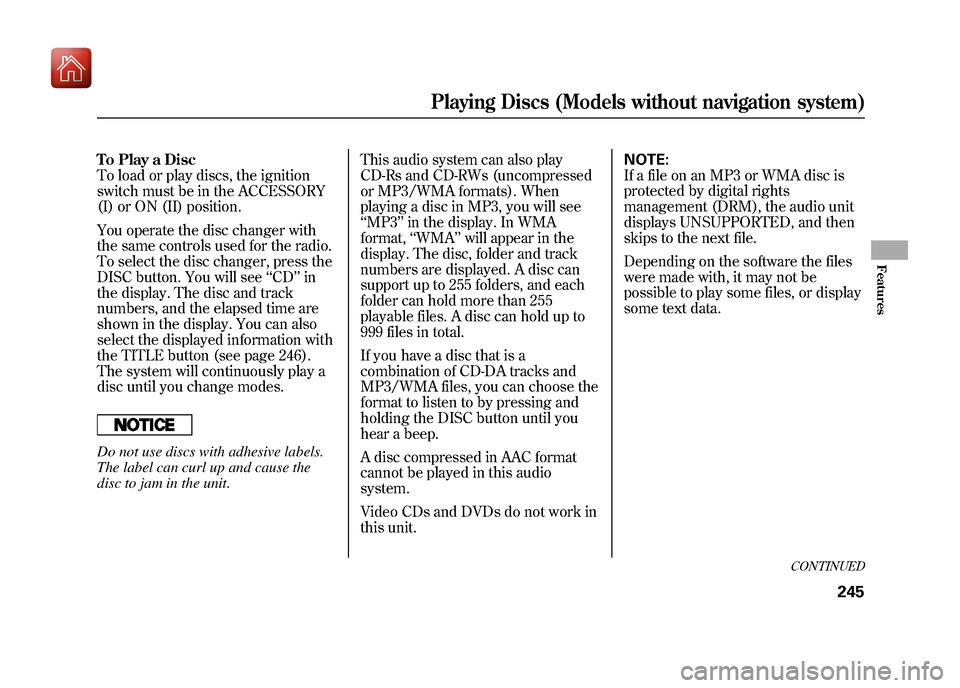

To Play a Disc
To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
You operate the disc changer with
the same controls used for the radio.
To select the disc changer, press the
DISC button. You will see‘‘CD ’’in
the display. The disc and track
numbers, and the elapsed time are
shown in the display. You can also
select the displayed information with
the TITLE button (see page 246).
The system will continuously play a
disc until you change modes.Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit. This audio system can also play
CD-Rs and CD-RWs (uncompressed
or MP3/WMA formats). When
playing a disc in MP3, you will see
‘‘
MP3 ’’in the display. In WMA
format, ‘‘WMA’’ will appear in the
display. The disc, folder and track
numbers are displayed. A disc can
support up to 255 folders, and each
folder can hold more than 255
playable files. A disc can hold up to
999 files in total.
If you have a disc that is a
combination of CD-DA tracks and
MP3/WMA files, you can choose the
format to listen to by pressing and
holding the DISC button until you
hear a beep.
A disc compressed in AAC format
cannot be played in this audio
system.
Video CDs and DVDs do not work in
this unit. NOTE:
If a file on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays UNSUPPORTED, and then
skips to the next file.
Depending on the software the files
were made with, it may not be
possible to play some files, or display
some text data.
CONTINUED
Playing Discs (Models without navigation system)
245
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

FADER/BALANCE－These
modes adjust the strength of the
sound coming from each speaker.
Fader adjusts the front-to-back
strength, while balance adjusts the
side-to-side strength. To adjust fader
and balance, select FADER or
BALANCE, then press ENTER on
the interface selector. The current
setting is shown on the screen. Turn
the interface dial or VOL/
knob to
the desired level, and enter your
selection by pressing ENTER on the
interface selector. To equalize the
fader or balance, turn the interface
dial or VOL/
knob until the marks
on the sound grid come to the center
of the adjustment bar.
If the fader adjustment is set to F9
(maximum front level), the
subwoofer is turned off.
If the fader is set to R9 (maximum
rear level), the center speaker is off. CENTER
－Adjusts the strength of
sound from the center speaker.
SUBWOOFER －To adjust the
strength of the sound from the
subwoofer speaker, select it and
press ENTER on the interface
selector. Turn the interface dial to
the desired level, and enter your
selection by pressing ENTER on the
interface selector.
Speed-sensitive Volume Compensation (SVC)The SVC mode controls the volume
based on vehicle speed. The faster
you go, the louder the audio volume
becomes. As you slow down, the
audio volume decreases.
The SVC has four modes: OFF,
LOW, MID, and HIGH. To change
the SVC mode, select SVC, then
press ENTER on the interface
selector. The current setting is
shown on the screen. Turn the
interface dial to the desired level, and
enter your selection by pressing
ENTER on the interface selector. If
you feel the sound is too loud,
choose low. If you feel the sound is
too quiet, choose high.
CONTINUED
Playing the AM/FM Radio (Models with navigation system)
289
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

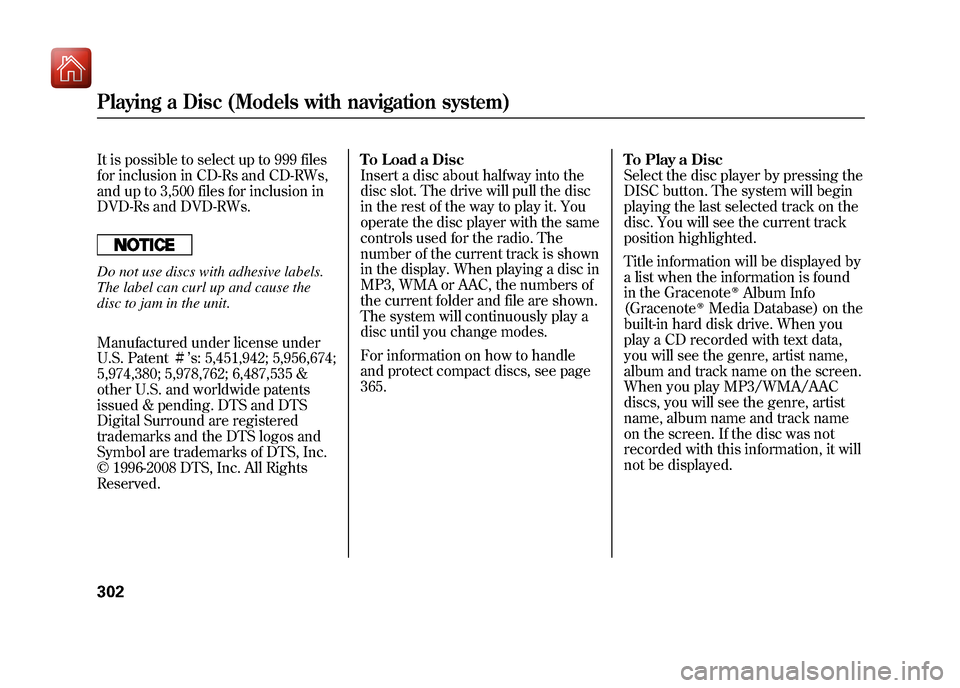

It is possible to select up to 999 files
for inclusion in CD-Rs and CD-RWs,
and up to 3,500 files for inclusion in
DVD-Rs and DVD-RWs.Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
Manufactured under license under
U.S. Patentꭨ’s: 5,451,942; 5,956,674;
5,974,380; 5,978,762; 6,487,535 &
other U.S. and worldwide patents
issued & pending. DTS and DTS
Digital Surround are registered
trademarks and the DTS logos and
Symbol are trademarks of DTS, Inc.
© 1996-2008 DTS, Inc. All Rights
Reserved. To Load a Disc
Insert a disc about halfway into the
disc slot. The drive will pull the disc
in the rest of the way to play it. You
operate the disc player with the same
controls used for the radio. The
number of the current track is shown
in the display. When playing a disc in
MP3, WMA or AAC, the numbers of
the current folder and file are shown.
The system will continuously play a
disc until you change modes.
For information on how to handle
and protect compact discs, see page
365.
To Play a Disc
Select the disc player by pressing the
DISC button. The system will begin
playing the last selected track on the
disc. You will see the current track
position highlighted.
Title information will be displayed by
a list when the information is found
in the Gracenote
ꭂAlbum Info
(Gracenote
ꭂMedia Database) on the
built-in hard disk drive. When you
play a CD recorded with text data,
you will see the genre, artist name,
album and track name on the screen.
When you play MP3/WMA/AAC
discs, you will see the genre, artist
name, album name and track name
on the screen. If the disc was not
recorded with this information, it will
not be displayed.
Playing a Disc (Models with navigation system)30209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

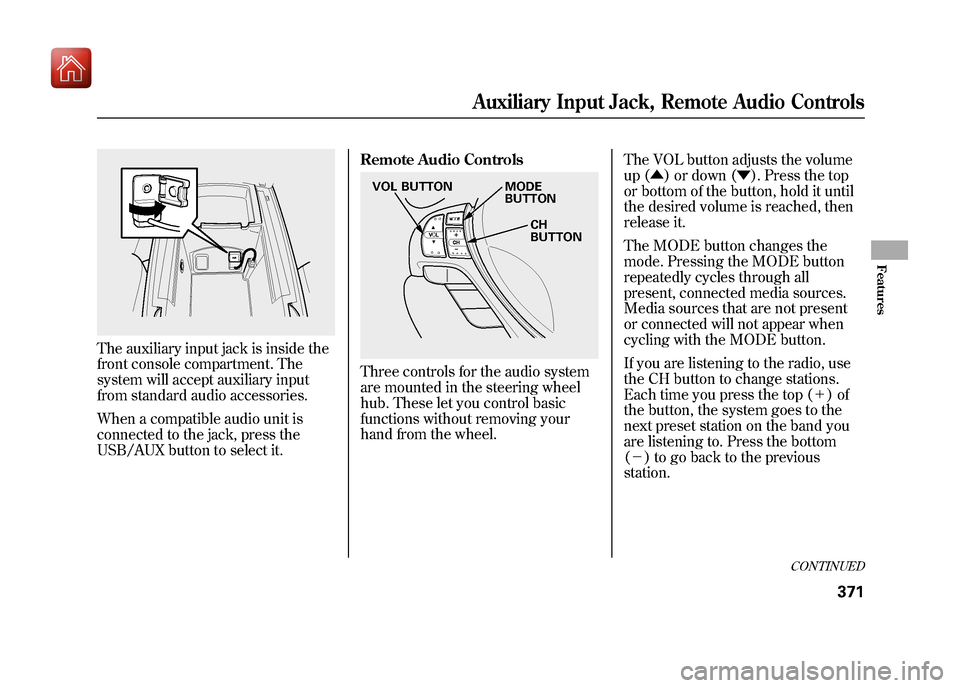

The auxiliary input jack is inside the
front console compartment. The
system will accept auxiliary input
from standard audio accessories.
When a compatible audio unit is
connected to the jack, press the
USB/AUX button to select it.Remote Audio Controls
Three controls for the audio system
are mounted in the steering wheel
hub. These let you control basic
functions without removing your
hand from the wheel.
The VOL button adjusts the volume
up (▲
) or down (▼ ). Press the top
or bottom of the button, hold it until
the desired volume is reached, then
release it.
The MODE button changes the
mode. Pressing the MODE button
repeatedly cycles through all
present, connected media sources.
Media sources that are not present
or connected will not appear when
cycling with the MODE button.
If you are listening to the radio, use
the CH button to change stations.
Each time you press the top (＋ )of
the button, the system goes to the
next preset station on the band you
are listening to. Press the bottom
(－ ) to go back to the previous
station.
MODE
BUTTON
CH
BUTTON
VOL BUTTON
CONTINUED
Auxiliary Input Jack, Remote Audio Controls
371
Features
09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

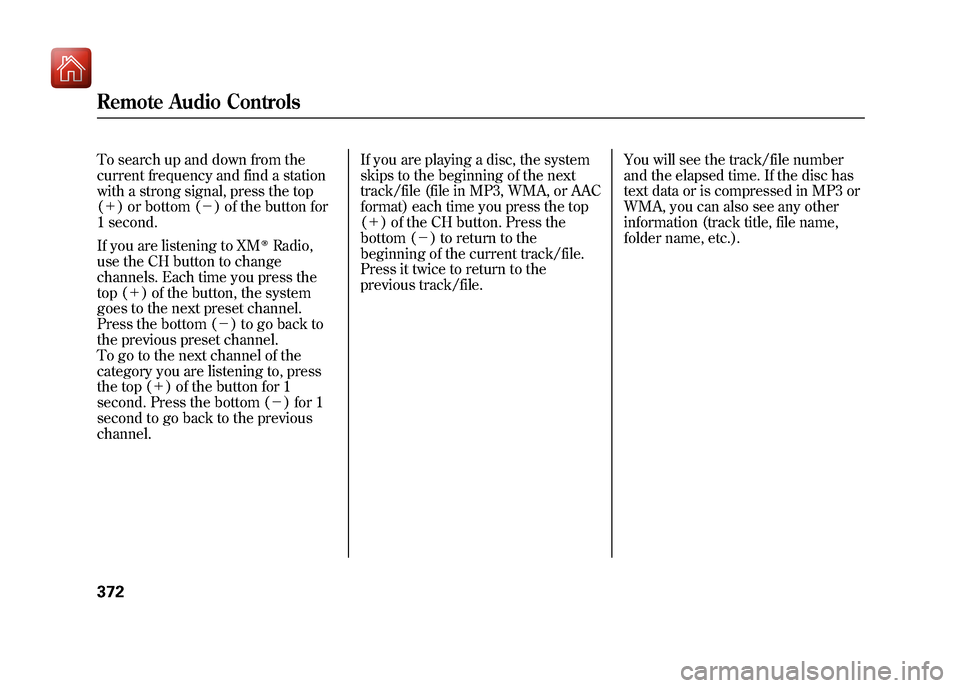

To search up and down from the
current frequency and find a station
with a strong signal, press the top
(＋) or bottom (－ ) of the button for
1 second.
If you are listening to XM
ꭂRadio,
use the CH button to change
channels. Each time you press the
top (＋ ) of the button, the system
goes to the next preset channel.
Press the bottom (－ ) to go back to
the previous preset channel.
To go to the next channel of the
category you are listening to, press
the top (＋ ) of the button for 1
second. Press the bottom (－ ) for 1
second to go back to the previous
channel. If you are playing a disc, the system
skips to the beginning of the next
track/file (file in MP3, WMA, or AAC
format) each time you press the top
(＋
) of the CH button. Press the
bottom (－ ) to return to the
beginning of the current track/file.
Press it twice to return to the
previous track/file. You will see the track/file number
and the elapsed time. If the disc has
text data or is compressed in MP3 or
WMA, you can also see any other
information (track title, file name,
folder name, etc.).
Remote Audio Controls37209/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

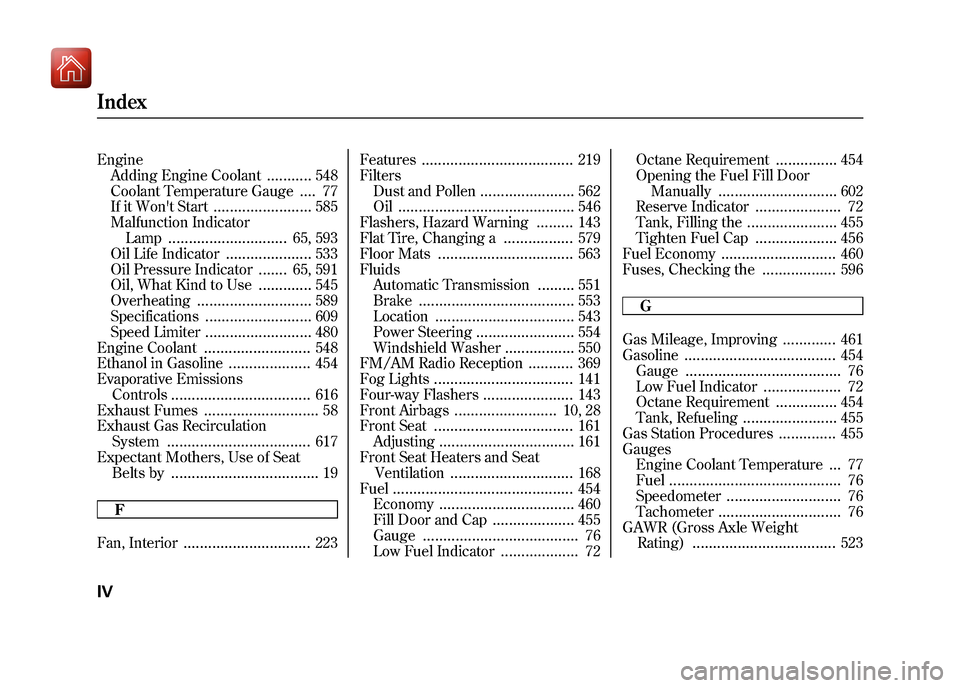

EngineAdding Engine Coolant
...........
548
Coolant Temperature Gauge
....
77
If it Won't Start
........................
585
Malfunction Indicator Lamp
.............................
65, 593
Oil Life Indicator
.....................
533
Oil Pressure Indicator
.......
65, 591
Oil, What Kind to Use
.............
545
Overheating
............................
589
Specifications
..........................
609
Speed Limiter
..........................
480
Engine Coolant
..........................
548
Ethanol in Gasoline
....................
454
Evaporative Emissions Controls
..................................
616
Exhaust Fumes
............................
58
Exhaust Gas Recirculation System
...................................
617
Expectant Mothers, Use of Seat Belts by
....................................
19
F
Fan, Interior
...............................
223 Features
.....................................
219
Filters Dust and Pollen
.......................
562
Oil
...........................................
546
Flashers, Hazard Warning
.........
143
Flat Tire, Changing a
.................
579
Floor Mats
.................................
563
Fluids Automatic Transmission
.........
551
Brake
......................................
553
Location
..................................
543
Power Steering
........................
554
Windshield Washer
.................
550
FM/AM Radio Reception
...........
369
Fog Lights
..................................
141
Four-way Flashers
......................
143
Front Airbags
.........................
10, 28
Front Seat
..................................
161
Adjusting
.................................
161
Front Seat Heaters and Seat Ventilation
..............................
168
Fuel
............................................
454
Economy
.................................
460
Fill Door and Cap
....................
455
Gauge
......................................
76
Low Fuel Indicator
...................
72 Octane Requirement
...............
454
Opening the Fuel Fill Door Manually
.............................
602
Reserve Indicator
.....................
72
Tank, Filling the
......................
455
Tighten Fuel Cap
....................
456
Fuel Economy
............................
460
Fuses, Checking the
..................
596
G
Gas Mileage, Improving
.............
461
Gasoline
.....................................
454
Gauge
......................................
76
Low Fuel Indicator
...................
72
Octane Requirement
...............
454
Tank, Refueling
.......................
455
Gas Station Procedures
..............
455
Gauges Engine Coolant Temperature...
77
Fuel
..........................................
76
Speedometer
............................
76
Tachometer
..............................
76
GAWR (Gross Axle Weight Rating)
...................................
523
IndexIV09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu

Power Seat Adjustments
............
161
Power Socket Locations
.............
217
Power Steering Fluid
.................
554
Power Windows
.........................
171
Pregnancy, Using Seat Belts
........
19
Preparing to Drive
......................
472
Proper Seat Belt Usage
................
16
Protecting Adults and Teens
........
12
Additional Safety Precautions
...
20
Advice for Pregnant Women
....
19
Protecting Children
......................
39
General Guidelines
..................
39
Protecting Infants
.....................
44
Protecting Larger Children
......
54
Protecting Small Children
........
45
Using Child Seats with Tethers
.................................
53
Using LATCH
..........................
49
R
Radiator Overheating
.................
589
Radio/CD Sound System
...........
228
Radio/Disc Sound System
............................
230, 278 Radio Theft Protection
...............
374
Readiness Codes
........................
619
Rear Lights, Bulb Replacement
...........................
558
Rear Seat Heaters (Canadian models)
..................................
170
Rearview Mirror
.........................
177
Rearview Mirror with Rearview Camera Display
......................
451
Rear Window Defogger
..............
143
Reclining the Seat Backs
............
161
Refueling
....................................
455
Reminder Indicators
.....................
64
Remote Audio Controls
..............
371
Remote Transmitter
...................
157
Replacement Information Dust and Pollen Filter
.............
562
Engine Oil and Filter
...............
546
Fuses
......................................
595
Light Bulbs
.............................
555
Schedule
.................................
542
Spark Plugs
.............................
609
Timing Belt
.............................
554
Tires
.......................................
570
Wiper Blades
..........................
564 Replacing Seat Belts After a
Crash
........................................
25
Reporting Safety Defects (U.S. only)
.......................................
624
Reserve Tank, Engine Coolant
............................
459, 548
Restraint, Child
............................
39
Reverse Gear Position
................
479
Rotation, Tire
.............................
570
S
Safety Belts
..............................
9, 21
Safety Defects, Reporting (U.S.
only)
.......................................
624
Safety Features
..............................
8
Airbags
...............................
10, 26
Door Locks
..............................
12
Head Restraints
........................
15
Seat Belts
........................
9, 16, 21
Seats & Seat-Backs
..............
14, 15
Safety Labels, Location of
.............
59
Safety Messages
..........................
iii
Seat Belt e-pretensioners
..............
24
IndexVIII09/10/28 17:15:37 10 ACURA ZDX KA KC New North America Own 50 31SZN600 enu
