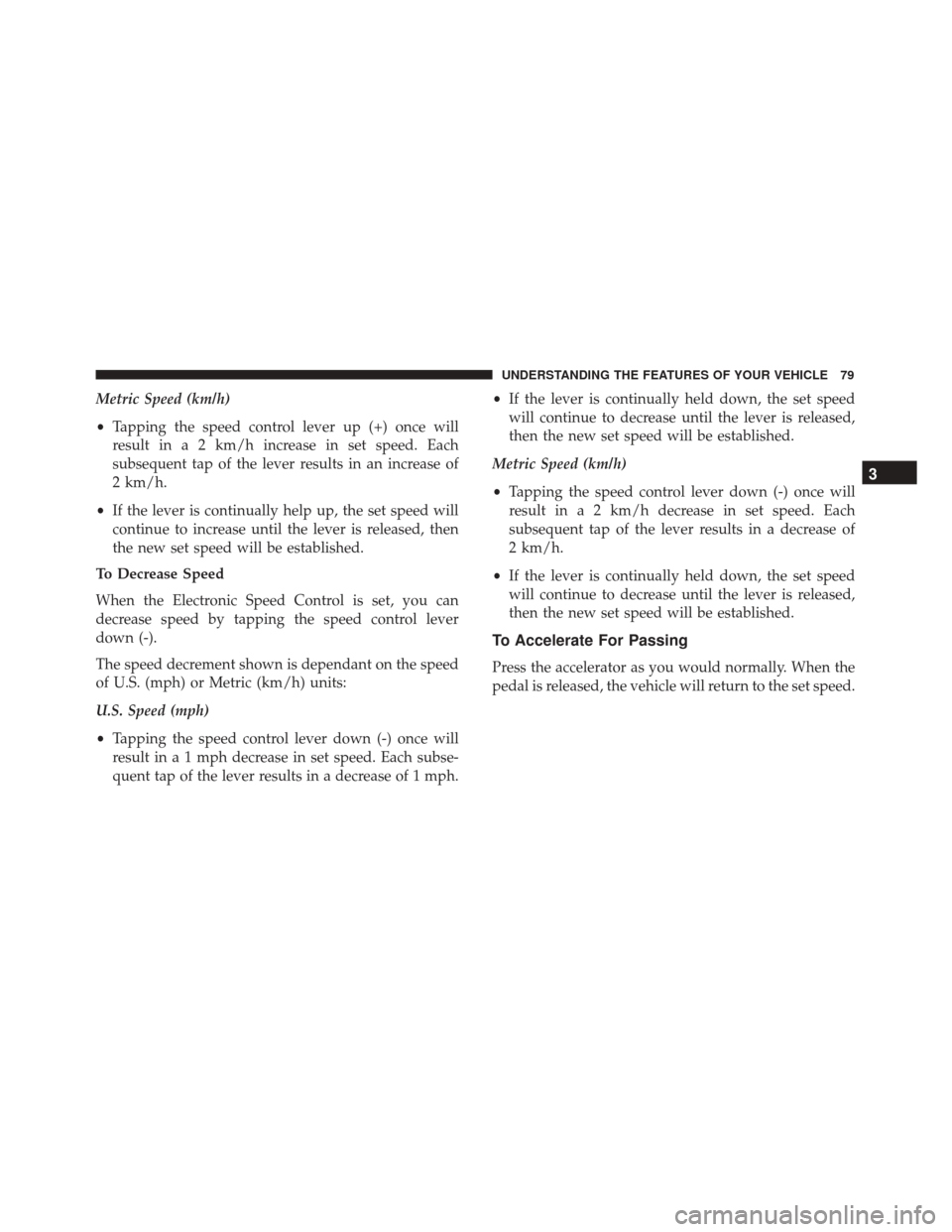

Metric Speed (km/h)
•Tapping the speed control lever up (+) once will
result in a 2 km/h increase in set speed. Each
subsequent tap of the lever results in an increase of
2 km/h.
• If the lever is continually help up, the set speed will
continue to increase until the lever is released, then
the new set speed will be established.
To Decrease Speed
When the Electronic Speed Control is set, you can
decrease speed by tapping the speed control lever
down (-).
The speed decrement shown is dependant on the speed
of U.S. (mph) or Metric (km/h) units:
U.S. Speed (mph)
• Tapping the speed control lever down (-) once will
result in a 1 mph decrease in set speed. Each subse-
quent tap of the lever results in a decrease of 1 mph. •
If the lever is continually held down, the set speed
will continue to decrease until the lever is released,
then the new set speed will be established.
Metric Speed (km/h)
• Tapping the speed control lever down (-) once will
result in a 2 km/h decrease in set speed. Each
subsequent tap of the lever results in a decrease of
2 km/h.
• If the lever is continually held down, the set speed
will continue to decrease until the lever is released,
then the new set speed will be established.
To Accelerate For Passing
Press the accelerator as you would normally. When the
pedal is released, the vehicle will return to the set speed.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79

PARKING SENSORS — IF EQUIPPED
They are located in the rear bumper and their function
is to detect the presence of any obstacles near the rear
part of the vehicle; they consequently inform the driver,
through an intermittent acoustic signal.
Activation/Deactivation
The sensors are automatically activated when reverse
gear is engaged. As the obstacle behind the vehicle gets
closer, the acoustic signal becomes more frequent.
Acoustic Signal
When reverse gear is engaged and there is an obstacle
behind the vehicle, an acoustic signal is emitted which
varies according to the distance of the bumper from the
obstacle.
The frequency of the acoustic signal:
•Increases as the distance between vehicle and ob-
stacle decreases, culminating in a continuous acous-
tic signal when the distance is less than approxi-
mately 12 in (30 cm).
• Decreases if the distance from the obstacle increases,
until the signal ceases entirely.
• Remains constant if the distance between vehicle and
obstacle remains unchanged; if this situation con-
cerns the side sensors, the signal will stop after
approximately 3 seconds, for example, in the event of
manoeuvres along a wall.
If several obstacles are detected by the sensors, only the
nearest one is considered.
Parking Sensors
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Indications On Display — If Equipped
When the sensors are activated, the screen appears on
the instrument cluster display.
Obstacle presence and distance information is therefore
provided both by the acoustic signal and the instrument
cluster display.
The system indicates a detected obstacle by displaying
an arc in one or more positions according to the distance
of the obstacle and its position in relation to the vehicle.If an obstacle is detected in the rear central area, the
instrument cluster display shows all the arcs in the rear
central area, up to the one that corresponds to the
position of the obstacle itself.
The signal is similar for obstacles in the rear left or right
area.
The arc that corresponds to the position of the obstacle
will flash.
The color on the instrument cluster display depends on
the distance from and position of the obstacle.
The vehicle is close to the obstacle when the instrument
cluster display shows a single constant arc and emits a
continuous sound.
If there are several obstacles, the closest one is indi-
cated.
Fault Indication
Parking sensor failures, if any, will be indicated when
reverse is engaged by the switching on of the
warn-
ing light in the instrument cluster display.
Parking Sensors Screen
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81

General Warnings
When parking, take the utmost care over obstacles that
may be above or under the sensor.
Under certain circumstances, objects close to the vehicle
are not detected by the system and could therefore
cause damage to the vehicle or be damaged themselves.
Some conditions may influence the performance of the
parking sensors:
•The presence of ice, snow, mud or multiple layers of
paint on the sensor surface may cause reduced
sensitivity of the sensor itself and therefore reduce
the system performance.
• Mechanical interference (e.g washing the vehicle,
rain, strong wind, hail) may cause the sensor to
detect a non-existent obstacle (“echo interference”).
• The presence of ultrasonic systems (e.g. pneumatic
brake systems of trucks or pneumatic drills) near the
vehicle could alter the signals sent by the sensor.
•
The variation in sensor position, caused by variation in
ride (due to suspension component wear), changing tires, overloaded vehicle, or tuning that lowers the
vehicle, for example, may affect parking sensor system
performance.
NOTE:
The sensor must be free from mud, dirt snow or
ice in order for the system to operate correctly. Be
careful not to scratch or damage the sensors while
cleaning them. Avoid using dry, rough or hard cloths.
The sensors must be washed using clean water, with the
addition of car shampoo if necessary. When using
special washing equipment such as high pressure jets or
steam cleaning, clean the sensors very quickly keeping
the jet more than 4 in (10 cm) away. Also, do not apply
stickers to the sensors.
WARNING!
Drivers must be careful when backing up even when
using the Parking Sensor system. Always check care-
fully behind your vehicle, and be sure to check for
pedestrians, animals, other vehicles, obstructions, or
blind spots before backing up. You are responsible
for the safety of your surroundings and must con-
tinue to pay attention while backing up. Failure to do
so can result in serious injury or death.
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
•The Parking Sensor system is only a parking aid
and it is unable to recognize every obstacle,
including small obstacles. Parking curbs might be
temporarily detected or not detected at all. Ob-
stacles located above or below the sensors will
not be detected when they are in close proximity
• The vehicle must be driven slowly when using
the Parking Sensor system in order to be able to
stop in time when an obstacle is detected. It is
recommended that the driver looks over his/her
shoulder when using the Parking Sensor system.
POWER OUTLETS
Your vehicle is equipped with a 12 Volt (13 Amp) power
outlet that can be used to power cellular phones, small
electronics and other low powered electrical accesso-
ries. The power outlet is located on the central tunnel,
between the two cup holders. It only operates with the
ignition key at MAR/ON.
Front Power Outlet
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83

WARNING!
To avoid serious injury or death:
•Only devices designed for use in this type of
outlet should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
• Close the lid when not in use and while driving
the vehicle.
• If this outlet is mishandled, it may cause an
electric shock and failure.
CAUTION!
• Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not
in use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent the engine from starting.
• Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the
battery even more quickly. Only use these inter-
mittently and with greater caution.
• After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
CAUTION!
• Do not exceed the maximum power of 180 Watts
(15 Amps) at 12 Volts. If the 180 Watts (15 Amps)
power rating is exceeded, the fuse protecting the
system will need to be replaced.
(Continued)

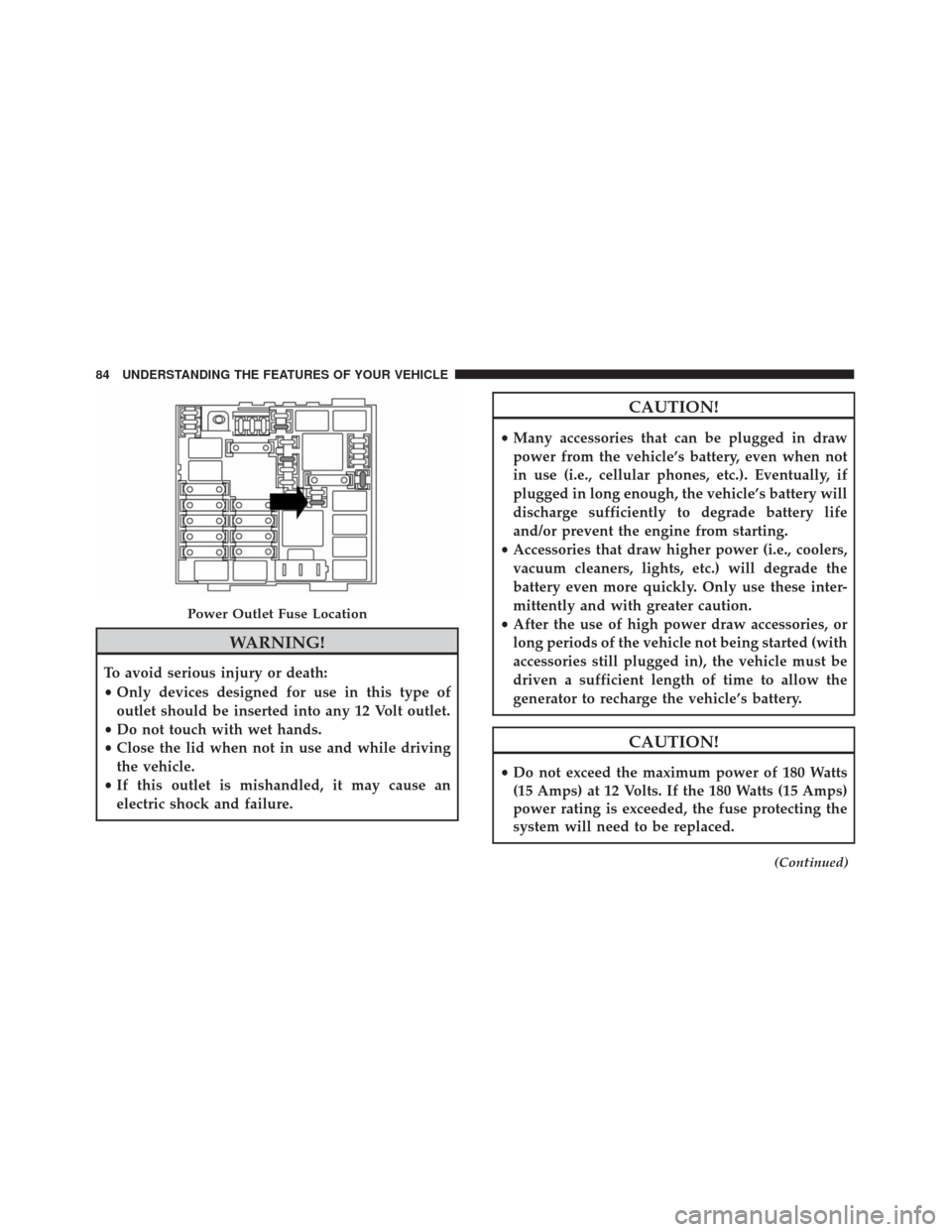

Power Outlet Fuse Location
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!(Continued)

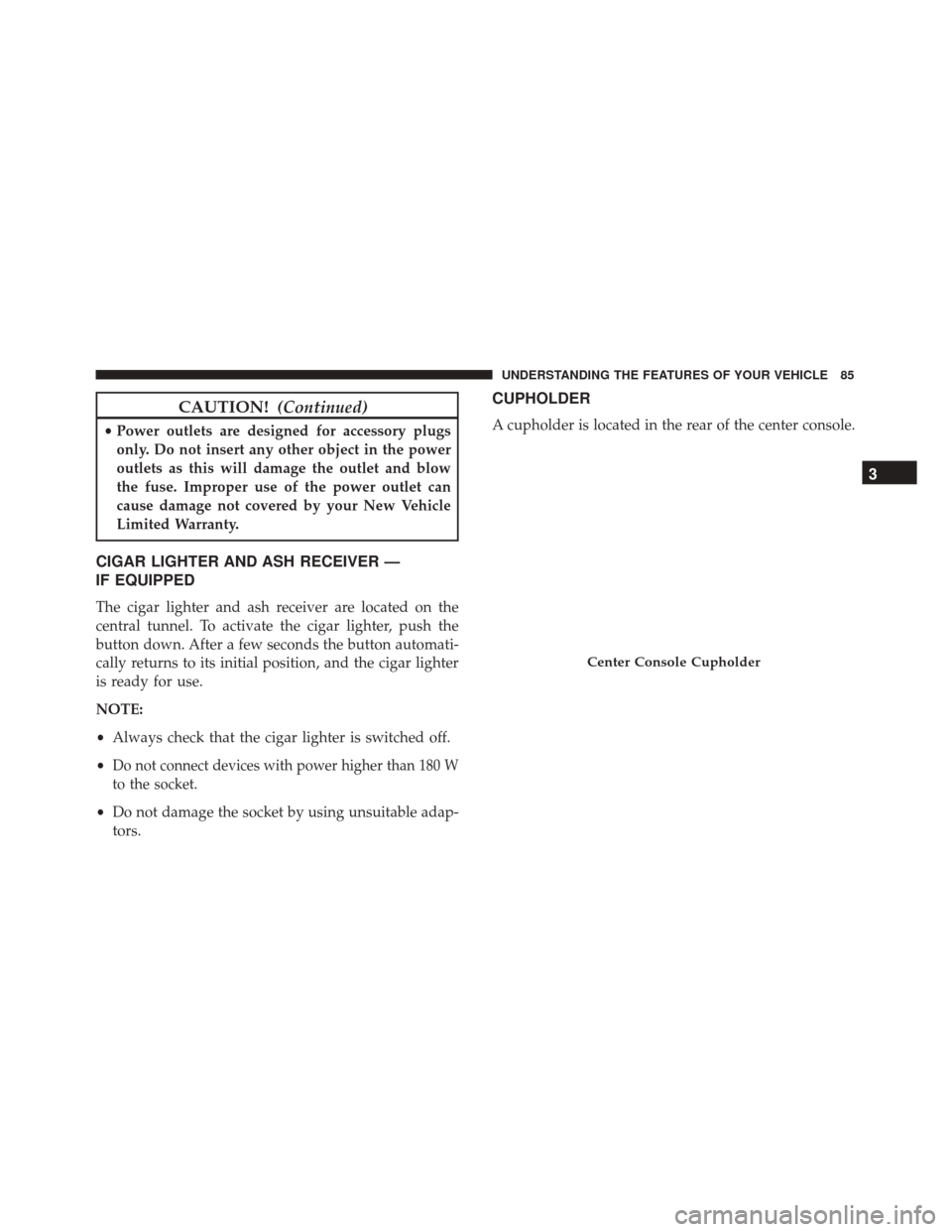

•Power outlets are designed for accessory plugs
only. Do not insert any other object in the power
outlets as this will damage the outlet and blow
the fuse. Improper use of the power outlet can
cause damage not covered by your New Vehicle
Limited Warranty.
CIGAR LIGHTER AND ASH RECEIVER —
IF EQUIPPED
The cigar lighter and ash receiver are located on the
central tunnel. To activate the cigar lighter, push the
button down. After a few seconds the button automati-
cally returns to its initial position, and the cigar lighter
is ready for use.
NOTE:
• Always check that the cigar lighter is switched off.
•
Do not connect devices with power higher than 180 W
to the socket.
• Do not damage the socket by using unsuitable adap-
tors.
CUPHOLDER
A cupholder is located in the rear of the center console.
Center Console Cupholder
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85

STORAGE
Seatback Storage
Located in the back of both the driver and passenger
front seats are pockets that can be used for storage.
Console Features
There is a cargo pouch storage area located between the
driver and passengers seat.
Drivers Side Seatback Storage
Cargo Pouch Storage Location
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

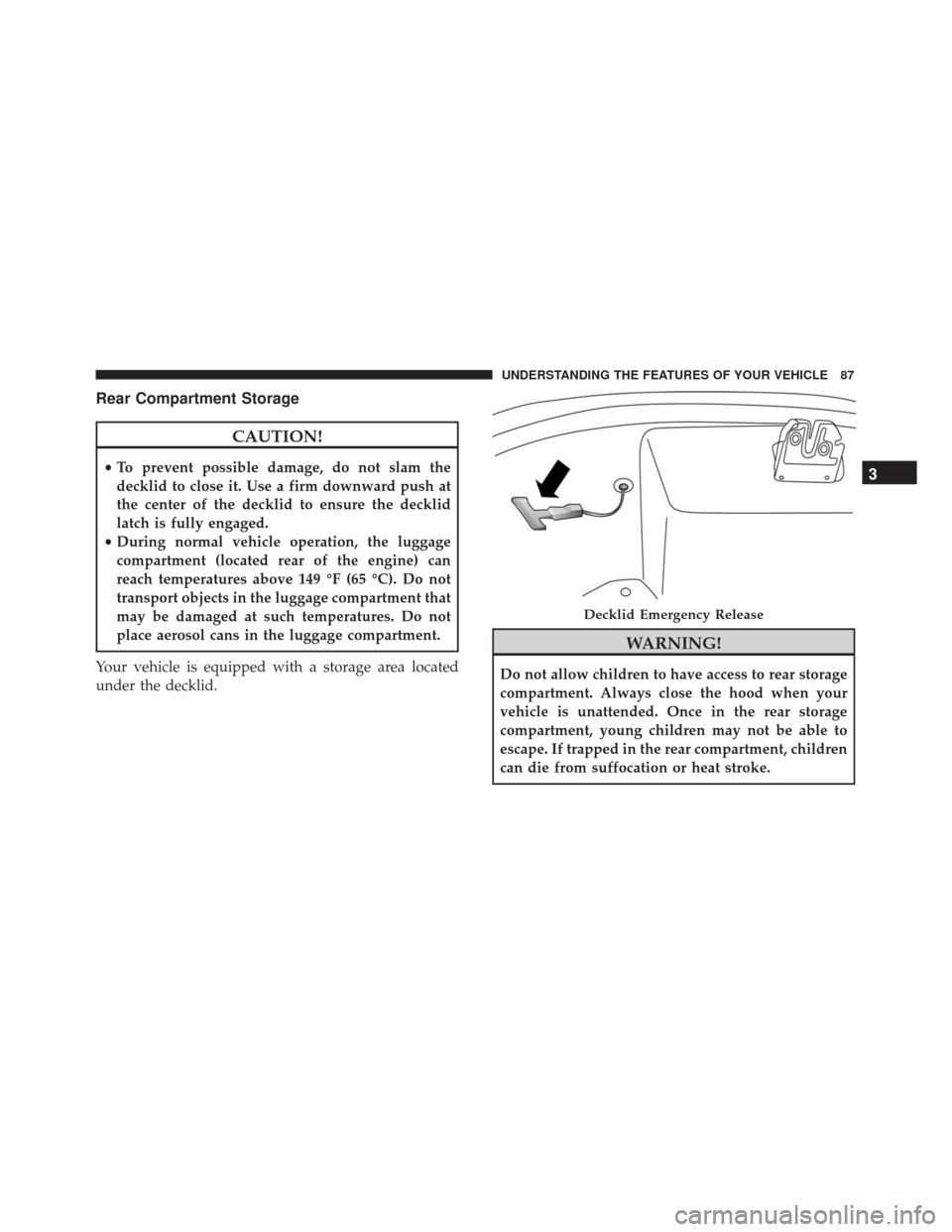

Rear Compartment Storage
CAUTION!
•To prevent possible damage, do not slam the
decklid to close it. Use a firm downward push at
the center of the decklid to ensure the decklid
latch is fully engaged.
• During normal vehicle operation, the luggage
compartment (located rear of the engine) can
reach temperatures above 149 °F (65 °C). Do not
transport objects in the luggage compartment that
may be damaged at such temperatures. Do not
place aerosol cans in the luggage compartment.
Your vehicle is equipped with a storage area located
under the decklid.
WARNING!
Do not allow children to have access to rear storage
compartment. Always close the hood when your
vehicle is unattended. Once in the rear storage
compartment, young children may not be able to
escape. If trapped in the rear compartment, children
can die from suffocation or heat stroke.
Decklid Emergency Release
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

As a security measure, an internal decklid emergency
release lever is built into the rear compartment storage
latching mechanism. In a event of a person trapped
inside the storage compartment, the decklid can be
simply opened by pulling on the phosphorescent
handle attached to the decklid latching mechanism.WARNING!
•The maximum load limit for the luggage compart-
ment (located rear of the engine), in addition to
the kits provided, is 33 lbs. (15kg). Do not exceed
the maximum permitted load in the luggage com-
partment. When accessing the rear luggage com-
partment, do not come into contact with engine,
or other components, that may be hot and could
burn you if touched.
• Access the luggage compartment only with the
vehicle stationary. Before exiting the vehicle, you
should always place the vehicle into FIRST gear
or REVERSE, apply the parking brake, and re-
move the key from the ignition. Never leave the
key fob in the vehicle or in a location accessible to
children.
• The decklid may drop suddenly, causing serious
injury, if the supporting rod is not positioned
correctly.
• The decklid must always be closed properly, and
the lock engaged, while the vehicle is in motions.
Rear Compartment Light
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
