steering AUDI A4 2000 B5 / 1.G APB Engine Cooling System Components

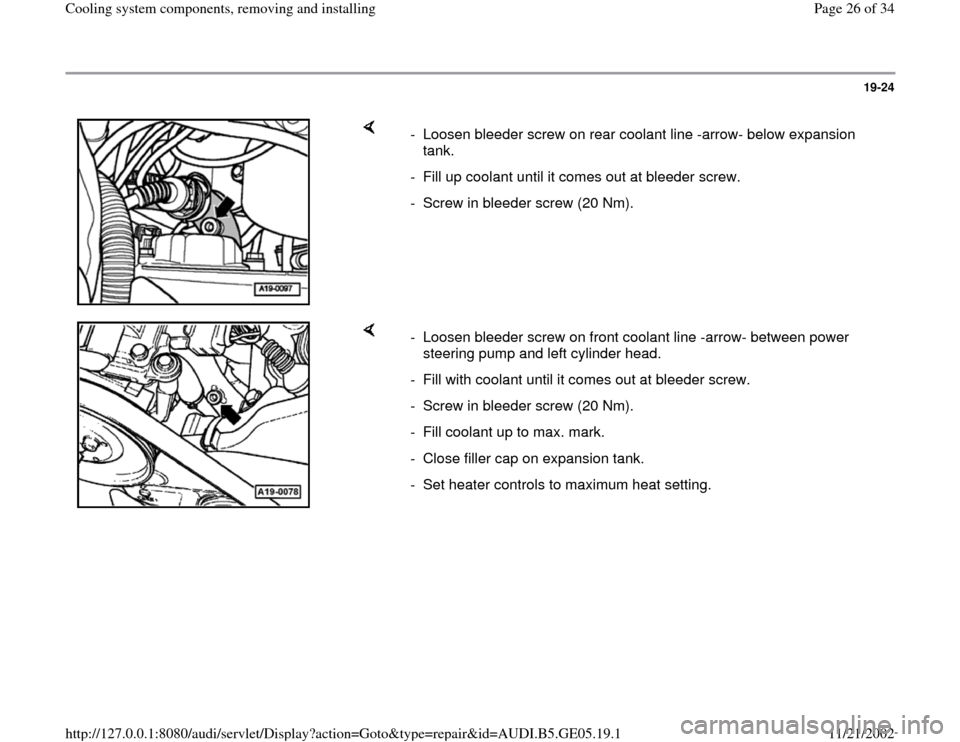

19-24


- Loosen bleeder screw on rear coolant line -arrow- below expansion
tank.
- Fill up coolant until it comes out at bleeder screw.
- Screw in bleeder screw (20 Nm).

- Loosen bleeder screw on front coolant line -arrow- between power
steering pump and left cylinder head.
- Fill with coolant until it comes out at bleeder screw.
- Screw in bleeder screw (20 Nm).
- Fill coolant up to max. mark.
- Close filler cap on expansion tank.
- Set heater controls to maximum heat setting.
Pa
ge 26 of 34 Coolin
g system com
ponents, removin
g and installin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.19.1

19-27


Vehicles with air conditioner
WARNING!
Do not open the air conditioner refrigerant circuit.
Note:
To prevent damage to the condenser and refrigerant lines and hoses,
ensure that the lines and hoses are not stretched, kinked or bent. - Unbolt pressurizing fan and detach cooling lines for power steering
hydraulic fluid -arrows-.

- Detach air cowls from radiator -4- (left and right).
- Remove securing bolts -1- and -2- for condenser.
- Unplug connector -3- from air conditioner pressure switch -F129.
- Lift condenser up out of its bracket, turn it towards side and secure to
right-hand front wheel with wire.
Pa
ge 29 of 34 Coolin
g system com
ponents, removin
g and installin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.19.1
