N ,....,
N
0 J:
'SI: ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
-The high beam works only when the head­
lights are on. The indicator light
II in the
instrument cluster ill uminates when the
high beams are on.
- The
headlight flasher works only as long as
you hold the lever -even if there are no
lights turned on. The indicator light
II in
the instrument cluster illum inates when you
use the head light flasher .
A WARNING
Do not use the high beam o r headlight
flasher if you know t hat these could blind
on coming traffic.
High beam assist
A ppl ies to vehicles : wit h high bea m ass ist
-
The high beam assist automatically switches
the high beams on or off, depending on the
surroundings and traffic conditions.
F ig. 4 3 Tu rn signa l an d h igh beam lever: Turning on
and off t he h igh beam ass ist
Activating high beam a ssist
Requirement : The light sw itch must be in the
AUTO position, the low beam headlights must
be on and the high beam assist must be
sw itched on in the Infotainment~
page 47.
.. Press the lever forwards (Din order to acti-
vate the high beam ass ist. The indicator
light
IIJ turns on in the inst rument cluste r
display and the high beams switch on or off
automati ca lly. The indica to r ligh t
Iii turns
on if the high be ams were switched on.
Switching the high beams on /off
manually
R equi rement : Hig h beam ass ist is activated.
Clear v is ion 49
If the high beams d id not swi tch on/off auto ­
matically when expected, you may instead
switch them on/off manually:
.. To swi tch the high beams on manually, press
the lever forwa rds (D. The indicato r light
Bl
turns on.
.. To switch the high beams off manually, pull
the lever backwards @. The high beam as­
sist is deactivated .
Operating the headlight fla sher
.. To operate the flashe rs while the high beam
assist is active and the high beams are
sw itched off, pull the lever into posit ion @.
The high beam assist will remain active.
Messag es in the instrument cluster
di splay
Headlight ass ist: System fault
Drive to your authorized A udi dealer immedi­
ate ly to have the ma lfunction corrected. Yo u
can still switch the high beams on or off man­
u ally.
Headlight assi st: Unavailable . No camera
view
T he came ra v iew is b locked, for example by a
sticker o r debr is.
The sensor is loca ted between the inter io r
r earvi ew mirror and the w indshield . There­
fo re, do not p lace a ny s tick ers i n this a rea on
t h e windsh ie ld.
Service setting
There is a different sensit iv ity sett ing for serv­
ic ing . T hi s sett ing can be activated by pressing
and holding the b utton on the int erio r r ear­
view m irror for more tha n 18 seconds. The
L E D next to the button blinks th ree times.
If
yo u have accidentally se lec ted this service
function, the origi nal sensitivity will be auto­
matically restored the next t ime yo u sw itch
the ignit ion on.
IJ>,

50 Clear vis ion
& WARNING
H igh beam assist is only intended to assist
the driver. The driver is still responsible for controlling the headlights and sw itching
th e high beams on and off manually de­
pending on traffic, l ighting and visibility
condi tions. Failure to intervene manually
may lead to ris k of accident . It may be nec­
essary to operate the high beams man ua l­
ly in the following situat ions, e.g .:
- For adverse weather conditions such as
fog, heavy rain, blowing snow or spraying
water .
- On roads where oncoming traffic may be
partia lly obsc ured such as expressways .
-If there are individuals on the road with
no light ing or poor lighting, such as cy ­
cl ists .
- In tight c urves and on steep s lopes .
- In poorly lit areas.
- With strong reflectors su ch as signs.
- If the area of the windshie ld nea r th e
sensor is fogged over, dirty, icy or cov­
ered w ith a st icker.
(D Tips
- The high beam ass ist is active above a
speed of approx . 25 mph (40 km/h).
- If afte r activation, your speed falls below
approx . 15 mp h (24 km/h), the high
beams w ill automatically be switched
off.
Interior lights
Front and rear interior lighting
Fi g. 44 Headliner: Front interior lights
F ig. 45 Rear headli ner : Read ing light
Press the app ropriate button ~ fig . 44:
~ -Inter ior light ing on/off
l!l -Door contact switch. The interior lighting
turns on automatically when you u nlock the
vehicle, open a door or switch the ignition off.
The interior light ing turns off several seconds
after you close the doors, when you lock the
vehicle or when you switch the ignition on.
When a doo r is open, the light turns off after
a few min utes.
~ -Read ing lights on/off
~ - Switching the rear reading lights on/off
from the cockpit .
I REAR MODEi* -Switching the rear readi ng
li ghts on/off from the cockpit : press the
I REAR MODE ! button and then th e appropriate
button ~ in the cockpit.
Ambience lighting
Applies to veh icles: w it h amb ience l ig h ting
You can select a color profile and brightness
for the ambie nce lighting in various areas of
the ve hicle, called zones.
Turning ambience lighting on
.. Select in the MMI: ICAR ! function button >
Car systems control button > Vehicle set·
tings > Interior light ing > On .
Adjusting /turning off the brightness
• Sele ct in the MM I: ICARI fu nction button >
Car sy stems control b utton > V ehicle set­
ting s> Inte rior light ing > Brightness .

.. Turn the knob to the desired vehicle area
and press the knob . The bar that appears in­
dicates the selected brightness .
.. To increase or reduce the brightness, turn
the knob and press it.
S electing a color profile*
.. Se lect in the MMI:
!CAR ! function b utton >
Ca r sys tems control button > Vehi cle se t­
tings
> In terior light ing > Colo r profile .
The amb ience lig hti ng turns on when the
function is activated in the MMI and when you
turn the headlights on whi le the ignition is
switched on.
Adjusting the b rightness
You can ad just the brightness for the four
zones Front top , Fr ont f ootwell , Rear top and
Rear footwell or for All area s at the same
time.
Selecting a color pr ofile
You ca n select from the Ivory, Polar and Ru­
b y/ Polar color profiles .
(I) Tips
The settings are automati cally sto red and
a ssigne d to the remote con tro l key that is
in use.
Instrument illumination
You can adjust the brightness of the instru­
ment and display illumina tion as well as the
Head-up Display*.
F ig. 46 Instrument illum ination
.,. Press the knob to release it.
Clear vi sion 51
.. Turn the knob toward" -" or "+" to reduce or
i ncrease the brightness .
.. Press the knob aga in to return it to its origi­
nal position.
(D Tips
The instrument illumination (for dials and needles) lights on when the ignition is
switched on and the vehicle lights are
turned off. As the daylight fades, t he illu­
mination of the dials li kewise d ims a uto­
matically and w ill go out completely when
the outs ide light is very low. Th is feature is
meant to rem ind you to sw itch on the
headligh ts when ou tside ligh t conditions
b ecome poor .
Vision
Sun visors
Fig. 4 7 Sun visor
E )
-' @
The sun visors for the driver and passenger
can be re leased from their brackets and
turned toward the doors
c> fig. 47@. They
can a lso be moved back and forth lengthwise
in th is position .
The mirror light switches on when the cover
over the vanity m irror @opens.
There is a shade between the dr iver's and pas­
senger's s un v isors that can be used to cover
the gap above the rearview mirror.

52 Clear vision
Sun shade
Fig. 48 Cockp it : Sun shade switc h
Fig. 49 Rear door: S un shade button
Extending/retracting the rear window
shade*
~ To extend or retract the sun shade from the
cockpit,
press the r.t.l button in the center
console
c> fig . 48 .
~ To extend or retract the sun shade from the
rear of the vehicle ,
press the rn button in
the door
c> fig. 49.
Extending the rear door sun shades*
~ Close the window in the rear door.
~ To extend th e sun shade from the driver's
seat,
pull the left/r ight rear power window
switch~ in the driver's door .
~ To extend the sun shade from the rear of
the vehicle,
pull the power window sw itch
11:. in the left/right rear door.
Retracting the rear door sun shades*
~ To retract the sun shade from the driver's
seat ,
press the left/ right rear power window
switch~ in the driver's door .
~ To retract the sun shade from the rear of the
vehicle,
press the power window switch~
i n the left/ right rear door. You
can adjust the settings for the rear sun
shade so the shade retracts automatically
when you select the reverse gear. Select:
CAR
function button > Car systems control button
> Vehicle settings > Automatic rear blind >
On. The settings are automatically stored and
ass igned to the remote control key. The sun
shade extends again as soon as the vehicle be­
gins traveling forward at a speed greater than
9 mph (15 km/h), as long as the ignition has
not been sw itched off in the meantime .
_&. WARNING ~
When lowering or raising the sunshade,
make sure there is nothing in its way and
that it has a free path to travel. This could
cause personal injury.
(D Tips
-
- Pressing the button~ several times
consecutively can trigger the overload
protection. The sun shade can only be ex­
tended/retracted again after a brief wait­
ing period.
- The rear window sun shade only func­
tions when the vehicle interio r is warmer
than
14°F (-10°() .
· Vanity mirror in the rear
Applies to vehicles: with vanity mirrors in the rear
Fig. 50 Rear headliner : vani ty mirro r
~ Press the button to fold the mirror open .
The mirror lighting turns on automatically.
~ To change the mirror's ang le, move it for­
ward/back w ith your hand.

Wiper and washer system
Switching the windshield wipers on
Fig. Sl W indshield wiper leve r
Move the windshield wiper lever to the corre­
spond ing pos ition:
@ -Windshie ld w ipers
off
(D -Rain sensor mode. The w indshie ld w ipers
switch on once the vehicle speed exceeds ap­
proximately 2 mph (4 km/h) and it is raining.
The higher the rain sensor sensitivity is set
(switch @to the right), the earlier the w ind­
shield wipers react to moisture on the wind­
shie ld. You can deact ivate rain sensor mode in
the MMI, which w ill then activate intermittent
mode. Select:
ICARI function button > Car sys­
t e m s
control button > Dri ver ass is t > Ra in
s en sor
> Off . In intermittent mode, you can
adjust the interval time using the switch @.
@ -Slow wiping
@-Fast wiping
©-Single wipe. If you hold the lever in this
position longer, the wipers switch from slow
wiping to fast wip ing .
® -Clean the windshield . The wipers wipe
one time after several seconds of driving to
remove water drop lets. You can switch this
function
off by moving the lever to position ®
within 10 seconds after the afterw ipe . The af­
terw ipe f unction is react ivated the next time
you switch the ig nition on.
Cleaning the headlights . The headlight wash­
er system* only functions when the headlights
are on. If you move the lever to position ®,
Clear vi sion 5 3
the headlights and the night vision system
camera* are washed in intervals.
A WARNING
-The rain sensor is only designed to assist
and support the driver.
It remains entire­
ly the driver's responsibility to monitor
outs ide weather cond itions and to man­
ually activate the wipers as soon as rain
or drizzle reduces visibility through the
windshie ld.
- The windsh ield must not be treated w ith
wate r-repellent mate rials. They can in­
crease glare unde r poo r vis ibility condi­
tions such a s wetness, d arkness, or w hen
the sun is low on the hori zon. In addi ­
tion, they can cause the w indshield wip­
ers to chatter.
- Properly f unctioning windshield wiper
blades are req uired for a clear v iew and
safe driving
¢ page 54, Replacing
windshield wiper blades.
(D Note
- In the case of frost, check whether the
windshield wiper blades are frozen to
the windshield. Switching on the wind­
shield wipers can damage the wiper
blades!
- Prior to us ing a car wash, the w indshield
w iper system must be sw itched off ( lever
in posit ion @). T his he lps to prevent un­
intentional switching on and damage to
the windsh ield wiper system.
- Do not use the wipers to clear a frosted
w indow. Us ing the wipers as a conve n­
ient ice scrape r will destroy the wiper
blades.
(D Tips
- The windshield wipers are sw itched off
when the ign it ion is off . Activate the
w indshield wipe rs after the ignition is
switched back o n by movi ng the w ind­
shield wiper lever to any positi on.
- Worn or d irty wi ndshield wipe r blades
result in streaking. This ca n affec t the

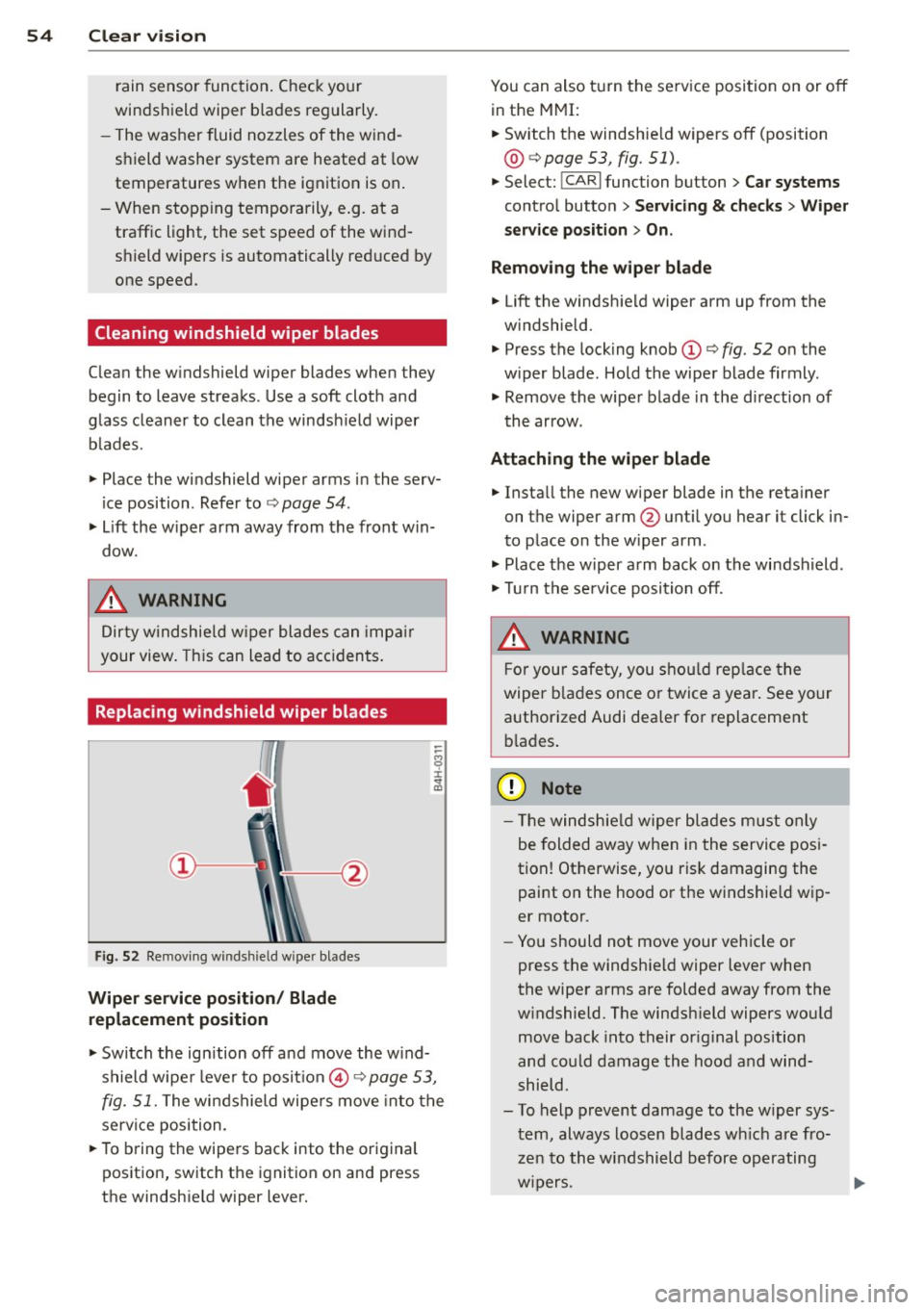

54 Clear vis ion
rain se nsor f unction . Check yo ur
winds hield wiper b lades regularly.
- The washer fluid nozzles of the wind­
sh ield washer system are heated at low
temperatures when the ignition is on .
- When stopping temporarily, e .g . at a
traffic light, the set speed of the wind­
s h ield wipers is automatically red uced by
one speed.
Cleaning w indshield wiper blades
Clean the w indshield wiper blades when they
begin to leave streaks . Use a soft cloth and
g lass cleaner to clean the windsh ield wiper
b lades.
.. Place the windshield wiper arms in the serv­
ice position . Refer to ¢
page 54.
.. Lift the w iper arm away from the front win­
dow.
_& WARNING
Dirty w indshie ld w iper blades can impa ir
your view. Thi5 can lead to acc ident5 .
Replacing windshield wiper blades
Fig. 52 Removi ng w inds hield w ipe r blades
Wiper ser vice position / Blade
replacem ent position
-
.. Switch the ign ition off and move the w ind­
shield wipe r leve r to posi tion @ ¢
page 53,
fig. 51. The windshield wipe rs move into the
service position.
.. To bring the wipe rs back into the original
position, switch the ignition on and press
the windshie ld wiper lever. You can also t
urn the se rv ice position on or off
in the MMI:
.. Switch the windshie ld wipers
off (position
@ ¢page 53, fig. 51) .
.. Select: !CARI function button> Car systems
contro l butto n > Serv icing & checks > Wip er
serv ice position
> On.
R emo ving the wipe r blade
.. Lift the windshield wiper arm up from the
w indshield.
.. Press the locking knob
(D ¢ fig. 52 on the
w iper blade. Hold the wiper blade firmly .
.. Remove the wipe r blade in the d irection of
the arrow .
Attaching the wipe r blade
.. Insta ll the new wiper blade in the reta iner
on the wiper arm @unt il you hear it click in­
to place on the w iper arm .
.. Place the w iper arm back on the windshield .
.. Tu rn the se rvice position
off.
_& WARNING
-
F or your s afety, you shou ld rep lace the
wiper b lades once or twice a yea r. See your
a uthorized Audi dea ler fo r replacement
b lades .
(D Note
- The windsh ie ld wiper b lades m ust only
be folded away when in the service posi­
tion! Otherwise, yo u ris k damaging the
paint on the hood or the windshie ld w ip­
er motor.
- Yo u should not move your vehicle or
press the windshie ld wiper lever when
the wiper arms are folded away from the
windshield. The windsh ield wipers wou ld
move back into their or iginal position
and co uld damage the hood and wind­
shield.
- To help prevent damage to the w iper sys­
tem, always loosen blades w hich are fro­
zen to the windshield before operating
w ipers. .,.

-To help prevent damage to wiper b lades,
do not use gasoline, kerosene, paint
th inner, or other solvents on or near the
wiper blades.
- To he lp prevent damage to the wipe r
arms or other components, do not at ­
tempt to move the wipers by hand.
@ Tips
- Commercial hot waxes applied by auto­
matic car washes affect the cleanability
of the windshield .
- You can also use the service position, for
example, if you want to protect the
windshield from ic ing by using a cover .
- You cannot activate the service pos it ion
whenthehoodisopen.
Mirrors
Adjusting the exterior mirrors
g 0 :i .., m
Fig. 53 Fo rwa rd section of dr ive r's a rm rest: power mir­
r or co ntr ols
Turn the knob to the desired position :
Q/P -In this position, you can adjust the
d river's and front passenger's exter io r mirrors
by turning the knob in the desired direction.
Qlil -The mirrors are heated depending on the
outside temperature .
8 -The exterior mirrors fold in. In the MM I,
you can se lect if the m irrors fold in automat i­
cally when you lock the vehicle ¢ page
34 .
Tilt function for the passenger 's mi rror
T o help you see the curb when backing into a
parking space, the surface of the mirror tilts Clear vi
sion 55
slight ly. The knob must be in the P position
for t his to happen.
You can adjus t the tilted m irror surface by
turning the knob in the desired direction.
When you move out of reverse and into anoth­
er gear, the new mirror position is stored and
ass igned to the key you are using .
The mirror goes back into its orig inal position
once you drive forwa rd faster than 9 mph (15
km/h) or switch the ignition
off.
A WARNING
-Curved (i .e. convex) mirror surfaces in­
crease your field of view. Remember that
veh icles or other objects will appear
smaller and farther away t han when seen
in a flat m irror. If you use th is m irror to
estimate distances of following veh icles
when changing lanes, you could estimate
incor rectly and cause an accident.
(D Note
-If the m irror housing is moved uninten­
tionally (for example, while parking your
veh icle), then yo u must first fold the mir­
ror electrically. Do not readjust the mir­
ror housing man ually . You cou ld damage
the motor which controls the mirror .
-If you wash the vehicle in an automatic
car wash, you must fold the exterior mir ­
rors in to reduce the risk of damage to
the mirrors . Never fold power fo lding ex­
terior mirrors by hand. On ly fold them in
and out using the power controls.
(D Tips
-The exterior m irror sett ings are stored
with the memory function* ¢ page
66.
-If there is a malfunction in the electrical
system, you can sti ll adjust the exterior
mirrors by pressing the edge of the mir­
ror .

56 Clear vis ion
Dimming the mirrors
Fig. 5 4 Automat ic d imming rea rv iew mirror
.. To dim the rearview mirror and both exterior
mirrors, press the @button . The diode @
turns on. The rearview and exter ior mirrors
dim automatically when light sh ines on
them, for example from head lights on ave­
hicle to the rea r.
.&_ WARNING
Electrolyte fl uid can leak from au tomatic
dimmi ng mirrors if the glass is broken.
Electrolyte fl uid can irritate sk in, eyes and
respiratory system.
- Repeated or prolonged exposure to elec ­
t ro lyte can cause irritation to the resp ira­
tory system, especially among people
with asthma or other respiratory cond i­
tions. Get fresh air immediately by leav­
ing the vehicle or, if that is not possible,
open windows and doors all the way .
- If electrolyte gets into the eyes, flush
them thoroughly with large amounts of
clean water for at least 15 m in utes;
med ica l attent ion is recommended.
- If electrolyte contacts sk in, f lush affect­
e d area w ith clean water for at least 15
min utes and then w ash affec ted area
with soap and water; medical at tention
is recommended. Thoroughly wash af­
fected clothing and shoes before reuse.
- If swa llowed and person is conscious,
rinse mouth w it h wate r fo r at leas t 15
minutes. Do not induce vomiting unless
instructed to do so by medical professio ­
nal. Get medical attention immediately.
.
(D Note
Liqu id e lectrolyte leaking from broken mir­
ror glass w ill damage any plastic surfaces
i t comes in contact with. Clean up spilled
electrolyte immediately with clean water
and a sponge .
@ Tips
-Switching off the dimming function of
the inside rear view mirror also deacti­
vates the automatic dimming function of
the exter ior mir ro rs .
- Automatic d imm ing for the mirror on ly
operates properly if the sun shade* for
the rear w indow is not in use or the light
st riking the inside m irror is not hinde red
by ot he r objects.
- The automatic dimming m irrors do not
dim when the interior lighting is tu rned
on or the reve rse gear is selected .
Digital compass
Switching the compass on and off
Applies to vehicles: with digital compass
The compass direction is shown in the rear­
view mirror .
l
Fig. 55 Rearv iew mirro r: Digital compass activated
.. To switch the compass on or off, press and
hold the b utton @ until the compass dis­
p lay in the m irror ¢
fig. 55 appears o r disap­
pea rs.
The dig ital compass on ly works when the igni­
t ion is on . The directions are indicated with
abbrev iat ions:
N (nor th), NE (no rtheast), E
(east) , SE (southeas t), S (so uth), SW (so uth ­
west),
W (west), NW (northwest) .

A WARNING
The digital compass is to be used as a di­
rectional aid only. Even though you may
want to look at it while you are driving, you
must still pay attention to traffic, road and
weather conditions as well as other possi­
ble hazards.
{D) Tips
To prevent inaccurate compass readings, do not bring any remote controls, electri­
cal devices or metallic objects near the
mirror.
Adjusting the magnetic zone
A pplies to vehicles: with d igital compass
The magnetic zone must be adjusted correctly
for the compass to read accurately.
®
Fig. 56 Magnetic zone map
.. Press and hold the button@¢ page 56,
fig. 55
until the number of the magnetic
zone appears in the rearview mirror .
.. Press the button @repeatedly to select the
correct magnetic zone. The selection mode
turns off after a few seconds.
Clear vision 5 7
Calibrating the compass
Applies to vehicles: wit h digita l compass
You must recalibrate the compass if it does
not display the correct direction .
.. Press and hold the button @ until a Cap­
pears in the rearview mirror.
.. Drive in a circle at about 6 mph (10 km/h)
until a direction is displayed in the rearview
mirror.
A WARNING
To avoid endangering yourself and other
drivers, calibrate the compass in an area
where there is no traffic.

58 Seat s a nd s tor ag e
Seats and storage
General recommen­
dations
Why is your seat adjustment so
important?
The safety belts and the airbag system can
only provide maximum protection if the front
seats are correctly adjusted.
There are various ways of adjust ing the front
seats to provide safe and comfortable support
for the driver and the front passenger . Adjust
you r seat prope rly so that :
- you can easily and quick ly reach all the
switches and controls in the instrument
panel
-your body is prope rly supported thus reduc­
ing physical stress and fatigue
- the safety be lts and a irbag system can offer
maximum protection
¢ page 151 .
In the following sec tions, you will see exactly
how you can best adjust you r seats .
There are special regulations and instructions
for insta lling a child seat on the front pas­
senger's seat. Always fo llow the information
regarding ch ild safety provided in
q page 17 4, Child Safety.
A WARNING
Incorrect seating position of the driver and
all other passengers can result in serious
personal in jury.
- Always keep your feet on the floor when
the vehicle is in motion -never p ut your
f eet on top of the instrument panel, out
of the w indow or on top of the seat cush­
ion . Th is app lies especially to the passen­
gers .
If your seating position is incorrect,
yo u increase the r isk of injury in the case
of sudden braking or an acc ident.
If the
a irbag infla tes and the seating positio n
is incorrect, this could result in personal
injury o r even death.
- It is import ant for bo th the driver and
front passenger to keep a distance of at least 10 inches (25 cm) between them­
selves and the steering wheel and/or in­
strument panel. If you're s itting any
closer than th is, the a irbag system can­
not protect you properly . In addition, the
front seats and head restraints must be
adjusted to your body height so that they
can give you max imum protect ion.
- Always try to keep as much distance as
possible between yourself and the steer­
ing wheel o r inst rument pane l.
- Do not adjust the driver's o r front pas­
senger's seat whi le the vehicle is moving.
Your sea t may move unexpected ly, caus­
ing sudden loss of vehicle cont rol and
personal injury . If yo u adjust yo ur seat
while the veh icle is moving, yo u are out
of posit ion.
Driver's seat '
The correct seat position is important for safe
and relaxed driving.
We recommend tha t you adjus t the dr iver's
seat in the fo llowing manner :
.,. Adjust t he seat in fore and aft direction so
t ha t you can eas ily push the peda ls to the
floor w hile keeping your knees sl igh tly bent
q A in Why is your seat adjustment so im­
portant? on page 58.
.. Adjust the backrest so that when you sit
w ith your back against t he backrest, you can
still grasp the top of the steering wheel.
.. Adjust the head restraint so the upper edge
is as even as poss ible with the top of your
head . If that is not poss ible , try to adjust
t he head restraint so that it is as close to
t his pos it ion as possib le
q page 65.
A WARNING
Neve r place any objects in the dr iver's foot ­
well. An object could get into the pedal
a rea and interfere with pedal function . In
case of sudden braking or an acc ident, you
would not be able to brake or accelerate .
