AUDI RS7 SPORTBACK 2016 Repair Manual

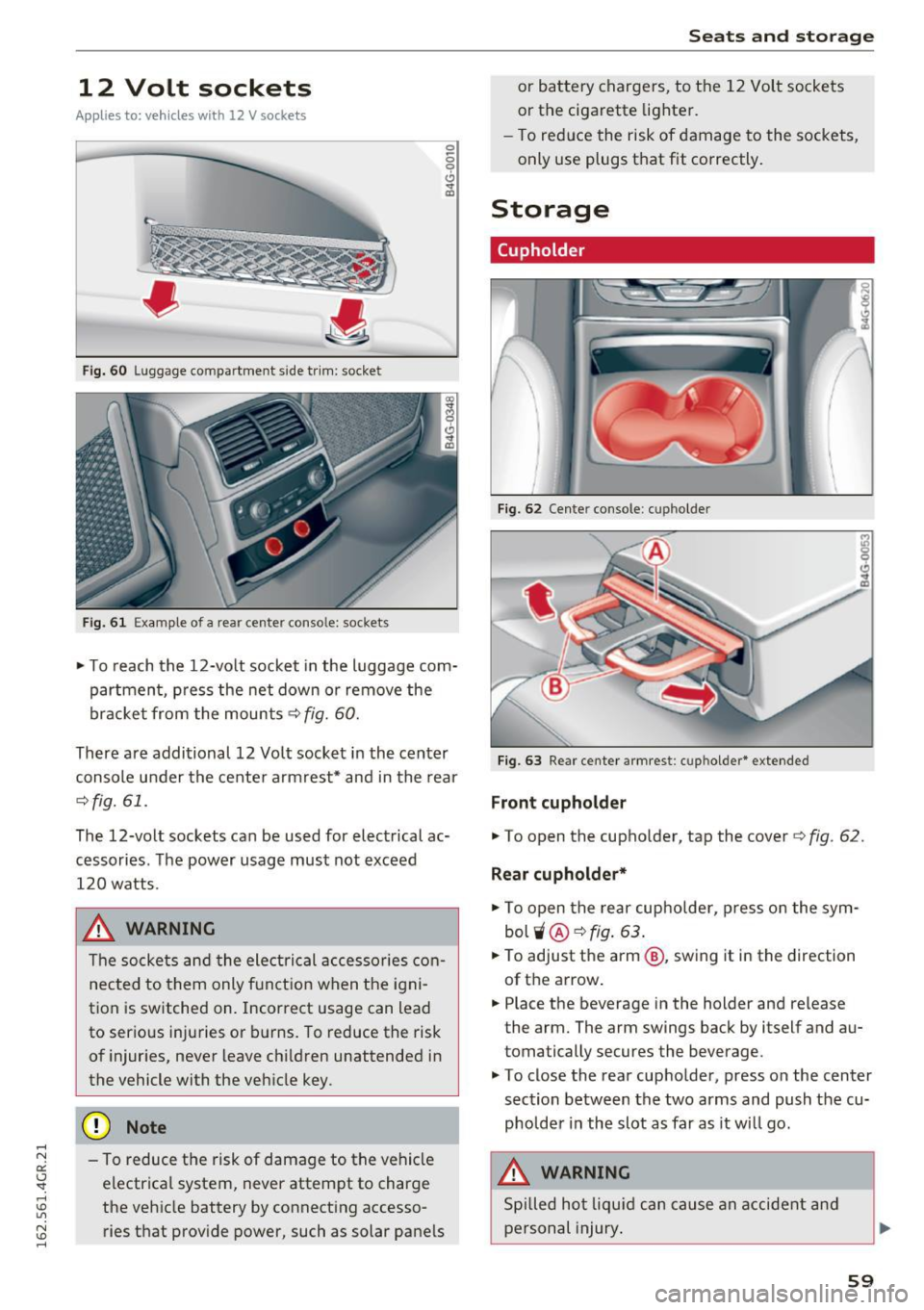

12 Volt sockets
Applies to: veh icles wit h 12 V sockets
Fi g. 60 Luggage compartment side tr im: socket
Fi g. 61 Exa mple of a rear center console: sockets
0 0 9 (!) ., ID
~ To reach the 12-volt socket in the luggage com­
partmen t, press the net down or remove the
bracket from the mounts~
fig. 60.
There are addi tional 12 Vo lt socket in the center
console under the cente r arm rest* and in the rear
¢fig. 61.
The 12-volt sockets can be used for electrical ac­
cessories. The power usage must not exceed
120 watts.
_& WARNING
The socke ts and the ele ctrical accessories con­
nected to them only f unct ion when the igni­
tion is switched on. Incor rect usage can lead
to ser ious injuries or b urns. To reduce the risk
of injur ies, never leave chi ldren unattended in
the vehicle with the veh icle key.
(D Note
- To reduce the risk of damage to the vehicle
electrical system, never attempt to charge
the vehicle battery by connecting accesso­
ries that prov ide power, such as solar panels
Seats and storag e
or battery chargers, to the 12 Volt sockets
or the cigarette lighter.
- To red uce the risk of damage to the sockets,
only use plugs that fit correctly.
Storage
(upholder
I
I

F ig . 62 Center console: cupho lder
F ig. 63 Rear center armrest: cupholder * ex tended
Front cupholder
~ To open the cupho lder, tap the cover Q fig. 62.
Rear cupholde r*
~ To open the rear cupholder, p ress o n the sym ­
bol
'i @ ¢fig . 63.
~ To adjust the arm @, sw ing it in the direction
of t he arrow .
~ Place the beverage in the holder and release
the arm. The arm swings back by itself and au­
tomatically secures the beverage.
~ To close the rear cupholde r, press on the center
section between the two arms and push the cu­
pholder in the slot as far as it w ill go.
_& WARNING
Spilled ho t liqu id can cause an accident and
personal injury .
59

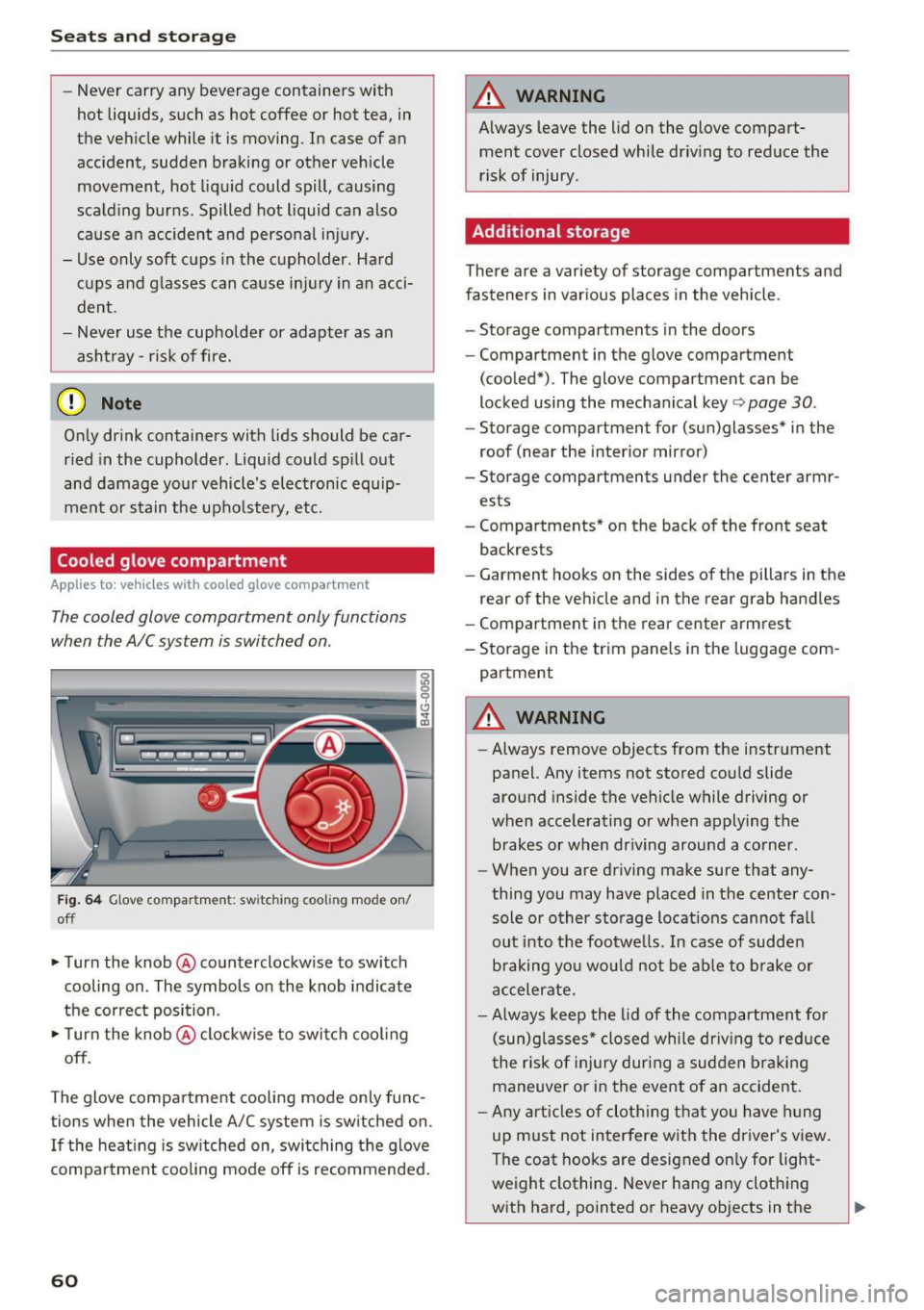

Seats and storage
-Never carry any beverage containers with
hot liquids, such as hot coffee or hot tea, in
the vehicle while it is moving. In case of an
accident, sudden braking or other vehicle movement, hot liquid could spill, causing
scalding burns. Spilled hot liquid can also cause an accident and personal injury .
- Use only soft cups in the cupholder. Hard
cups and glasses can cause injury in an acci­
dent .
- Never use the cupholder or adapter as an
ashtray - risk of fire.
(D Note
Only drink containers with lids should be car­
ried in the cupholder. Liquid could spill out
and damage your vehicle's electronic equip­
ment or stain the upholstery, etc.
Cooled glove compartment
Applies to : ve hicles with coole d glove compar tme nt
The cooled glove compartment only functions
when the AIC system is switched on .
Fig. 64 Glove compar tment: sw itch in g coo ling mode on/
off
• Turn the knob @counterclockwise to switch
cooling on . The symbols on the knob indicate
the correct position.
• Turn the knob @clockwise to switch cooling
off.
The glove compartment cooling mode only func­ tions when the vehicle A/C system is switched on.
If the heating is switched on, switching the glove
compartment cooling mode off is recommended.
60
A WARNING
Always leave the lid on the glove compart­
ment cover closed while driving to reduce the
risk of injury .
Additional storage
There are a variety of storage compartments and
fasteners in various places in the vehicle .
- Storage compartments in the doors
- Compartment in the glove compartment
(cooled*) . The glove compartment can be
locked using the mechanical key
r:::> page 30 .
-Storage compartment for (sun)glasses* in the
roof (near the interior mirror)
- Storage compartments under the center armr­
ests
- Compartments* on the back of the front seat
backrests
- Garment hooks on the sides of the pillars in the
rear of the vehicle and in the rear grab handles
- Compartment in the rear center armrest
- Storage in the trim panels in the luggage com-
partment
A WARNING
- Always remove objects from the instrument
panel. Any items not stored could slide
around inside the vehicle while driving or
when accelerating or when applying the brakes or when driving around a corner.
- When you are driving make sure that any­
thing you may have placed in the center con­
sole or other storage locations cannot fall
out into the footwells . In case of sudden
braking you would not be able to brake or
accelerate.
- Always keep the lid of the compartment for
(sun)glasses* closed while driving to reduce
the risk of injury during a sudden braking
maneuver or in the event of an accident.
- Any articles of clothing that you have hung
up must not interfere with the driver's view.
The coat hooks are designed only for light­
weight clothing. Never hang any clothing
with hard, pointed or heavy objects in the

pockets on the coat hooks. During sudden
braking or in an accident- especially if the
airbag is deployed -these objects could in­
jure any passengers inside the vehicle .
- To reduce the risk of personal injury in an
accident or sudden stop, always keep the
glove compartment closed while driving.
- Read and follow all WARNINGS
q page 155, Important safety instructions
on the side airbag system.
- Hang clothes in such a way that they do not
impair the driver's vision.
- The coat hooks must only be used for light­
weight clothing . Do not leave any heavy or
sharp edged objects in the pockets which
may interfere with the side curtain airbag
deployment and can cause personal injury in
a crash .
- Do not use coat hangers for hanging cloth­
ing on the coat hooks as this can interfere
with proper deployment of the side curtain
airbags in an accident.
- Do not hang heavy objects on the coat
hooks, as they could cause personal injury in
a sudden stop.
CD Note
Objects located on the rear shelf that rub
against the rear window could damage the
heat ing wires for the rear window defogger.

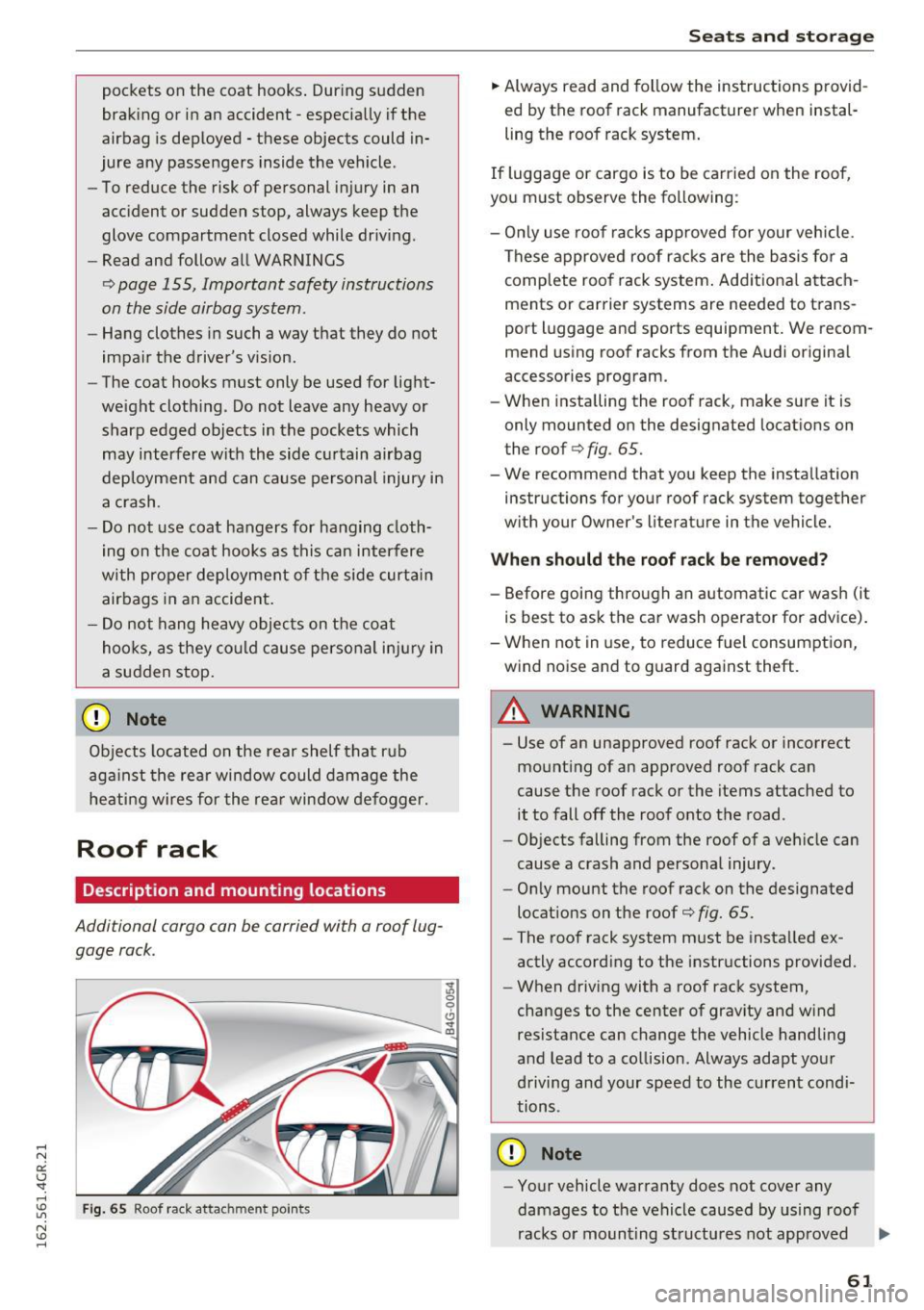

Roof rack
Description and mounting locations
Additional cargo can be carried with a roof lug­
gage rack.
Fig. 65 Roof rack attac hment point s
'J, 0 9 Cl sr CD
Seats and storage
.,. Always read and follow the instructions provid ­
ed by the roof rack manufacturer when instal­
ling the roof rack system.
If luggage or cargo is to be carried on the roof,
you must observe the following :
- Only use roof racks approved for your vehicle.
These approved roof racks are the basis for a
complete roof rack system. Additional attach­
ments or carrier systems are needed to trans­
port luggage and sports equipment. We recom­ mend using roof racks from the Audi original
accessories program.
- When installing the roof rack, make sure it is
only mounted on the designated locations on
the roof
q fig. 65.
- We recommend that you keep the installation instructions for your roof rack system together
with your Owner's literature in the vehicle.
When should the roof rack be removed?
-Before going through an automatic car wash (it
is best to ask the car wash operator for advice).
- When not in use, to reduce fuel consumption,
wind noise and to guard against theft.
_8 WARNING
=
- Use of an unapproved roof rack or incorrect
mounting of an approved roof rack can
cause the roof rack or the items attached to it to fall off the roof onto the road.
- Objects falling from the roof of a vehicle can
cause a crash and personal injury.
- Only mount the roof rack on the designated
locations on the roof¢
fig. 65.
- The roof rack system must be installed ex­
actly according to the instructions provided.
- When driving with a roof rack system,
changes to the center of gravity and wind
resistance can change the vehicle handling
and lead to a collision. Always adapt your
driving and your speed to the current condi­
tions.
CD Note
- Your vehicle warranty does not cover any
damages to the vehicle caused by using roof
racks or mounting structures not approved ..,.
61

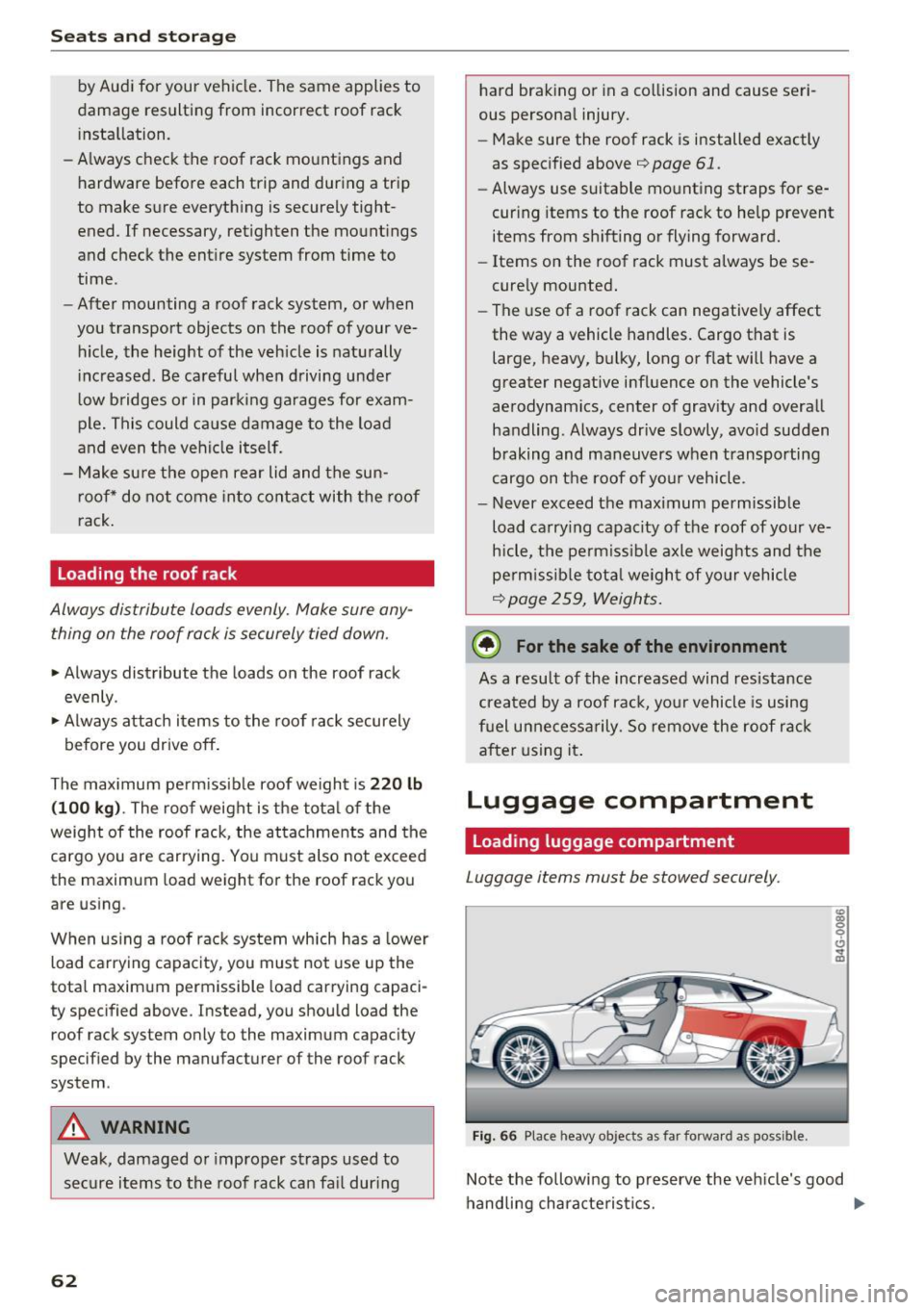

Sea ts and stor age
by Aud i for your vehicle . The same applies to
damage resulting from incorrect roof rack
i nstallation.
- Always check the roof rack mo untings and
hardware before each trip and during a trip
to make sure everyth ing is securely tight ­
ened . If necessary, ret ighten the mo untings
and check the ent ire system from time to
time .
- After mounting a roof rack system, or when
you transport objects on the roof of your ve­ hicle, the height of the veh icle is nat urally
i nc reased . Be careful when d riving under
l ow b ridges or in par king ga rages for exam­
ple. This could ca use damage to the load
and even the vehi cle itself.
- M ake su re the open rear lid and the sun­
r oof* do not come into contac t with the roof
rack .
Loading the roof rack
Always distribute loads evenly. Make sure any­
t hing on the roof rack is securely tied down .
• Always distribute the loads on the roof rack
evenly .
• Always attach i tems to the roof rack securely
before you drive off .
The max imum pe rm iss ib le roof weigh t is
220 lb
( 100 kg ).
The roof weight is the tota l of the
weight of the roof rack , the atta chments and the
cargo you are carrying. You must also not exceed
the maximum load we ight for the roof rack you
are us ing .
When using a roof rack system wh ich has a lower
load carrying capacity, you must not use up the
tota l maximum p erm issible load carry ing capac i­
ty specified above . Instead, you shou ld load the
r oof rack system only to the maximum capac ity
specified by the manufacturer of the roof rack
system .
.,&. WARNING
Weak, damaged o r improper straps used to
secure items to the roof rack ca n fa il dur ing
62
hard brak ing or in a collision and cause seri ­
ous persona l injury.
- Make sure the roof rack is installed exactly
as specified above
c> page 61 .
-Always use suitable mo unting straps for se­
cur ing items to the roof rack to he lp prevent
items from shifting or flying forward.
- Items on the roof rack must always be se ­
curely mounted .
- The use of a roof rack can negative ly affect
the way a vehicle handles . Cargo that is
large, heavy, b ulky, long or flat will have a
greater negative influence on the vehicle 's
aerodynamics, center o f grav ity and overall
handling . Always drive slowly, avo id sudden
braking and maneuvers when transporting
cargo on t he roof of your vehicle.
- Never exceed the maximum permissib le
load ca rry ing capacity of the roof of yo ur ve­
hicle, t he pe rm iss ible axle weights and the
pe rm issib le tota l we igh t of yo ur vehicle
~ page 259, Weights.
@ For the sake of the environment
As a resu lt of the increased wind resistance
crea ted by a roof ra ck, yo ur vehicle is using
f u el u nnecessa rily . S o remove the roof r ack
a fte r using it .
Luggage compartment
Loading luggage compartment
Luggage items must be stowed securely.
Fig. 66 Place heavy objects as far forwa rd a s po ssib le.
Note the following to p reserve the veh icle's good
handling chara cte ris tics. ..,.

.. Distribute the load as evenly as possible .
.. Place heavy objects as far forward as possib le
¢ fig. 66 .
.. Secure luggage items with the cargo net* or
with non-elastic retaining straps to the tie­
down r ings*
¢ page 64.
A WARNING
-loose objects in the luggage compartment
can slide about s udden ly and alter the vehi­
cle's handling characte ristics.
- loose objects in the passenger compa rt­
ment can fly forward during abrupt mane u­
vers or ac ciden ts a nd injure oc cupants.
- Always store objects in the luggage com­
partment and use sui table straps, particu­
larly with heavy objects.
- When you transport heavy objects, always
remember that a change in the cente r of
grav ity may result in a change in the ve hi­
cle's handling characteristics .
- Follow a ll warnings
¢ page 118, Driving
safety.
@ Tips
The tire pressure must be adjusted to the load
- see the t ire pressu re sticker lo cated on the
driver's s ide B-pillar.

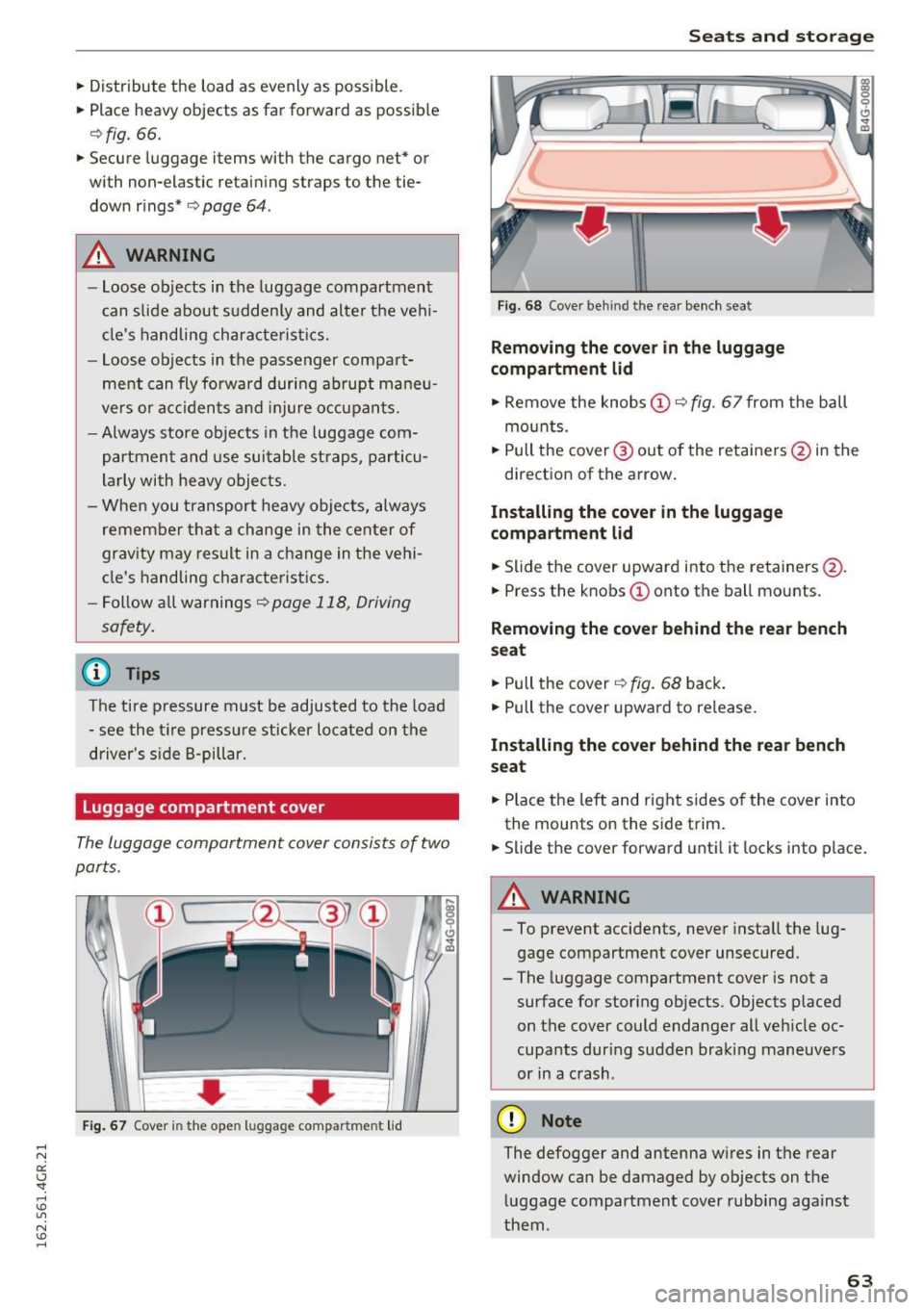

Luggage compartment cover
The luggage compartment cover consists of two
parts.
• • Fig. 67 Cove r in the ope n lu gg age compartme nt lid
Seats and storag e
Fig. 68 Cover beh in d th e rear be nch sea t
Removing the cover in th e luggage
compartment lid
.,. Remove the knobs (D ¢ fig. 67 from the ball
mounts .
.. Pull the cover @ out of the retainers @in the
direction of the arrow.
Installing the cover in the luggage
compartment lid
.,. Slide the cover upward into the retainers @.
.. Press the knobs
Removing the cover behind the rear bench
seat
.. Pull the cover ¢ fig. 68 back.
.. Pull the cover upward to release.
Installing the cove r behind the rea r bench
se at
.. Place the left and right sides of the cover into
the mounts on the side trim.
.. Slide the cover forward until it locks into place .
A WARNING -~·
- To prevent accidents, never install the lug-
gage compartment cover unsecured.
- The luggage compartment cover is not a surface for stor ing objects . Objects p laced
on the cover could endanger all veh icle oc­
cupants dur ing sudden braking maneuvers
or in a crash .
(D Note
The defogger and antenna w ires in the rear
window can be damaged by objects on the luggage compartment cover rubbing against
them .
63

Seats and storage

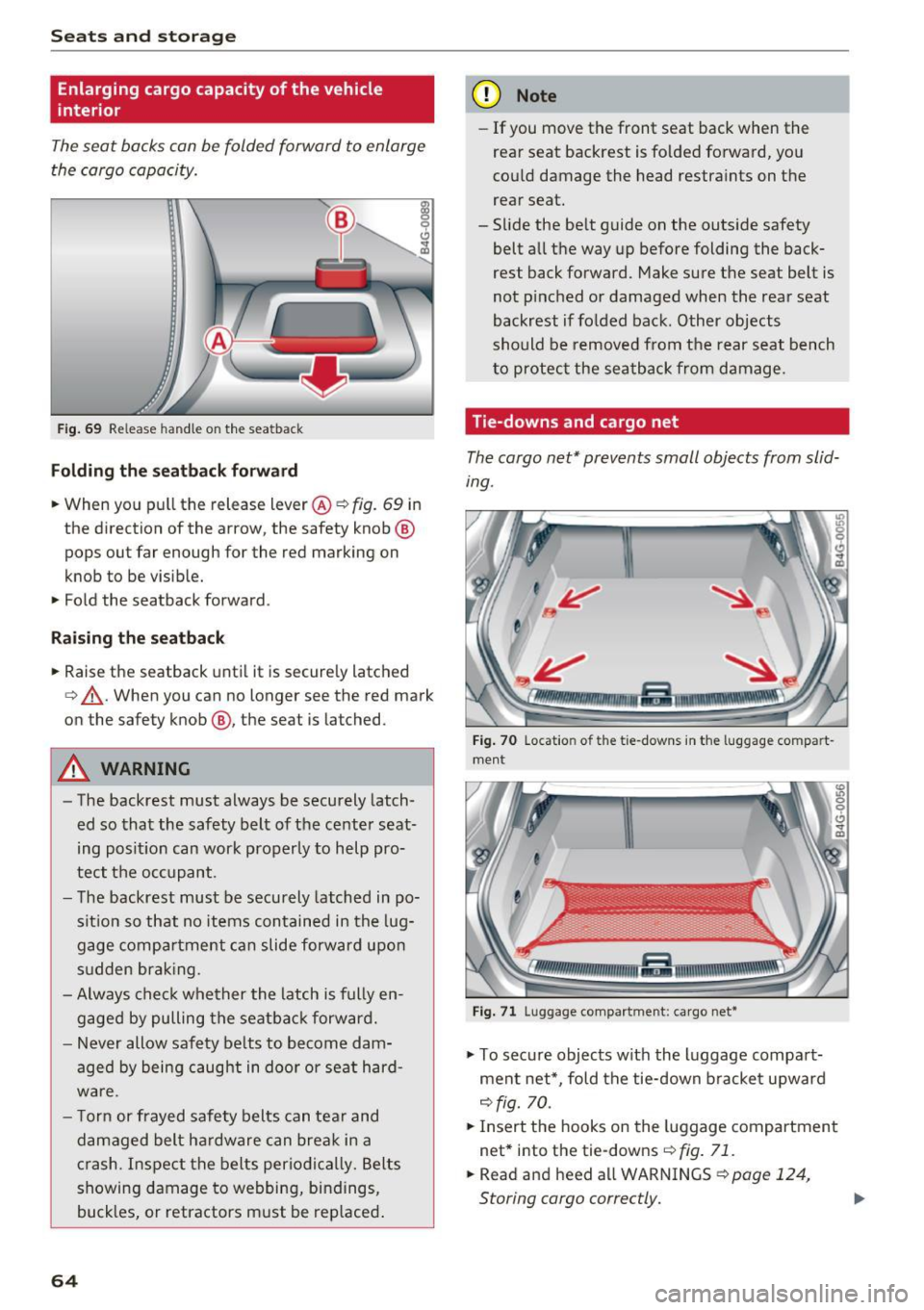

Enlarging cargo capacity of the vehicle
interior
The seat backs can be folded forward to enlarge
the cargo capacity.
Fig. 69 Release h andle on the seatback
Folding the seatback forward
.,. When you pull the release lever@¢ fig. 69 in
the direction of the arrow, the safety knob @
pops out far enough for the red marking on
knob to be visib le.
• Fold the seatback forward.
Raising the seatback
• Raise the seatback until it is securely latched
¢ &, .When you can no longer see the red mark
on the safety knob@, the seat is latched.
A WARNING
-The backrest must always be securely latch­
ed so that the safety belt of the center seat­
ing position can work properly to help pro­
tect the occupant.
- The backrest must be securely latched in po­
sition so that no items contained in the lug­
gage compartment can slide forward upon
sudden braking.
- Always check whether the latch is fully en­
gaged by pulling the seatback forward.
- Never allow safety belts to become dam­
aged by being caught in door or seat hard­
ware.
- Torn or frayed safety belts can tear and
damaged belt hardware can break in a
crash. Inspect the belts periodically. Belts
showing damage to webbing, bindings,
buckles, or retractors must be replaced.
64
(D Note
- If you move the front seat back when the
rear seat backrest is folded forward, you
could damage the head restraints on the
rear seat.
- Slide the belt guide on the outside safety
belt all the way up before folding the back­
rest back forward. Make sure the seat belt is
not pinched or damaged when the rear seat
backrest if folded back. Other objects
should be removed from the rear seat bench
to protect the seatback from damage .
Tie-downs and cargo net
The cargo net* prevents small objects from slid­
ing .
Fig. 70 Locat ion of the tie -downs in the lugg age compart ­
ment
Fig. 71 Lugg age compa rtment: cargo net*
• To secure objects with the luggage compart­
ment net*, fold the tie-down bracket upward
¢ fig. 70 .
• Insert the hooks on the luggage compartment
net* into the tie-downs ¢
fig. 71.
• Read and heed all WARNINGS ¢ page 124,
Storing cargo correctly. ..,.

,&_ WARNING
Weak, damaged or improper straps used to
secure items to tie-downs can fail during hard
braking or in a collision and cause serious per·
sonal injury.
- Always use suitab le retaining straps and
properly secure items to the tie -downs in
the luggage compartment to help prevent
items from shifting or flying forward.
- Never attach a child seat tether strap to a
t ie-down.
- For strength-related reasons, the mounting
hooks can on ly be used to secure objects
we ighing up to 10 lb. (5 kg). Heavier objects
will not be adequately secured -there is a
r isk of inj ury.

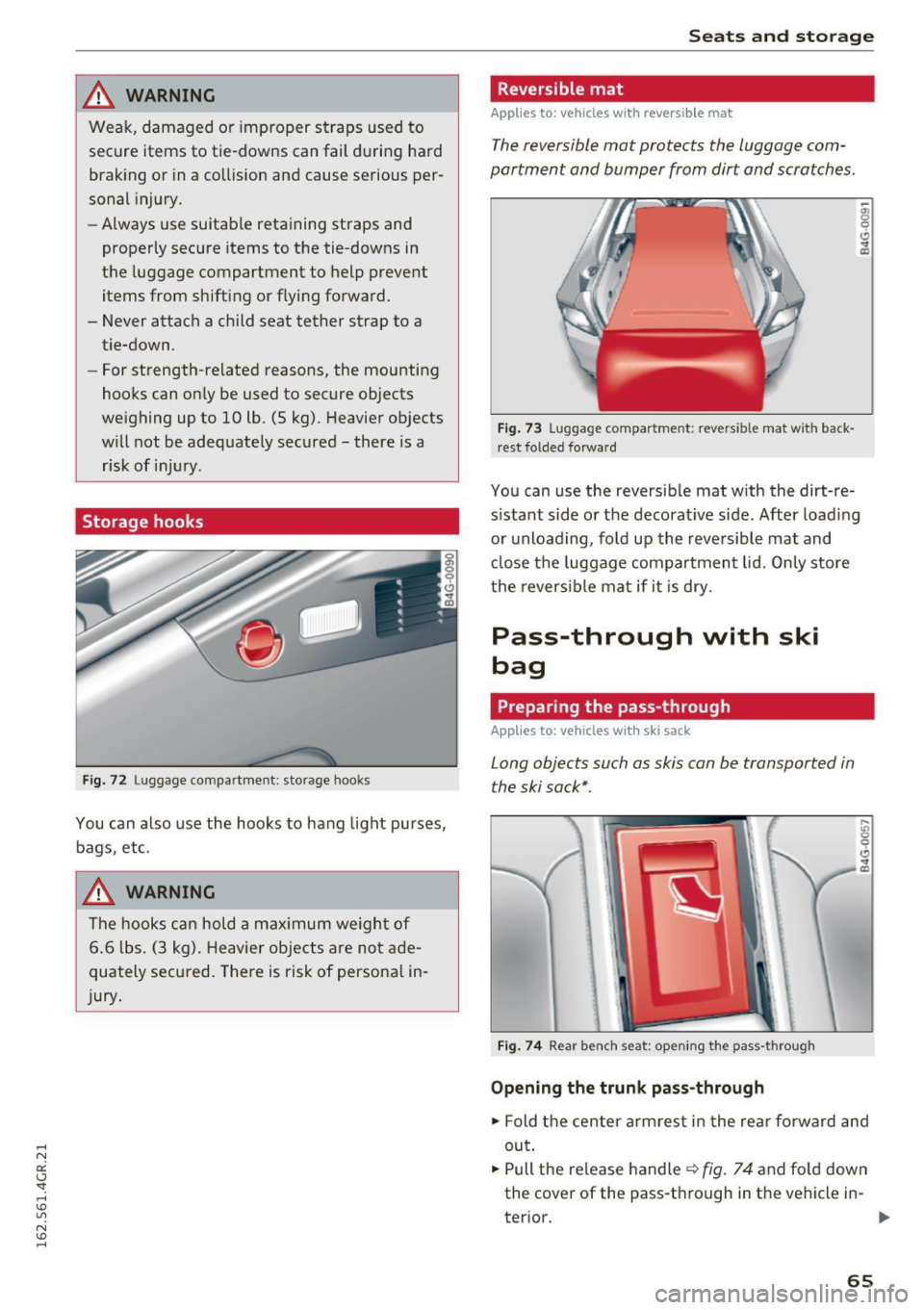

Storage hooks
Fig. 72 Luggage compartment: storage hooks
You can also use the hooks to hang light purses,
bags, etc.
& WARNING
-
-
Th e ho oks can hold a max imum weight of
6 .6 lbs. (3 kg). Heavier objects are not ade­
quately secu red. There is risk of personal in ­
Jury .
Seats and storag e
Reversible mat
Applies to: veh icles w ith revers ib le m at
The reversible mat protects the luggage com·
partment and bumper from dirt and scratches .
Fig. 73 Luggage compartment: reversible mat with back­
rest folded forward
You can use the reversib le mat w ith the dirt-re­
s istant side or the decorat ive side. After loading
or unloading , fold up the reve rsible mat and
cl ose the luggage compartment lid. Only store
the reversible mat if it is dry.
Pass-through with ski
bag
Preparing the pass -through
Applies to : veh icles w it h sk i sack
Long objects such as skis can be transported in
the ski sack* .
Fig . 74 Rear bench seat : open ing the pass-through
Opening the trunk pass -through
.,. Fold the center a rm res t in the rear forward and
out .
.,. Pull the release handle¢
fig. 74 and fold down
the cover of the pass-through in the vehicle in-
terior. .,,.
65

Sea ts and stor age
.,. Open the rear lid .
.,. Push the ski sack* through the opening from
the luggage compartment .
.,. Secure the ski sack¢
page 66 .
Closi ng th e trunk pass-th rough
.,. Open the rear lid .
.,. Remove the ski sack from the trunk pass­
through .
.,. Push the pass-through cover up inside the vehi­
cle until it latches.
.,. Raise the center armrest in the vehicle again.
.,. Close the rear lid.
A WARNING
Objects must only be transported in the sk i
sack since the ski sack can be sec ured. Individ­
ual objects cannot be secured. There is a risk
o f i njury .
@ Tips
You can also open the pass-through from the
luggage compartment. Push the release but­
ton down and push the cover forw ard.

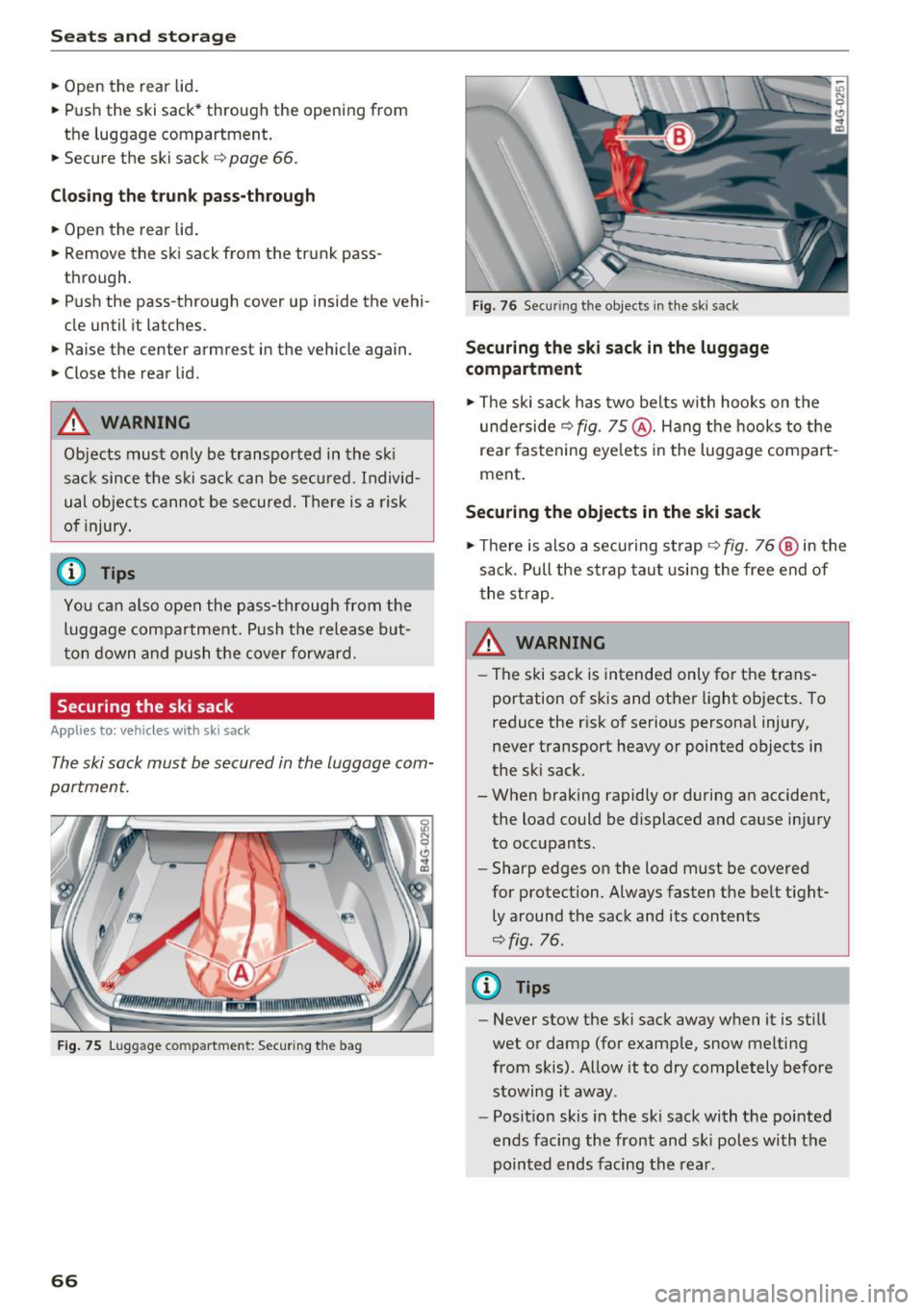

Securing the ski sack
A pp lies to: ve hicles w ith sk i sack
The ski sack must be secured in the luggage com­
partment.
F ig . 75 Luggage compa rtment: Secur ing t he bag
66
Fig. 76 Secur ing the objects in t he ski sack
Securing the ski sack in the luggag e
compartment
.,. The ski sac k has two be lts with hooks on the
unde rside
~ fig. 75 @. Hang the hooks to the
rear fastening eye lets in the luggage compart­
ment .
Securing the objects in the ski sack
.,. There is also a securing st rap ~ fig . 76 @ in the
sack. Pu ll the strap tau t using the free end of
the strap .
A WARNING
-The ski sack is intended only for the trans­
portation of skis and other light objects. To
reduce the r isk of serious personal injury,
never transport heavy or pointed objects in
the sk i sack.
- When braking rapidly or during an accident,
the load could be displaced and cause injury
to occupants.
- Sharp edges on the load must be covered
for protection . Always fasten the be lt t ight­
ly around the sack and its contents
~fig. 76 .
(D Tips
-Never stow the ski sack away when it is sti ll
wet or damp (for example, snow melting
from skis) . Allow it to dry completely before
stowing it away.
- Posit ion skis in the ski sack with the pointed
ends facing the front and sk i poles with the
pointed ends facing the rear.
-

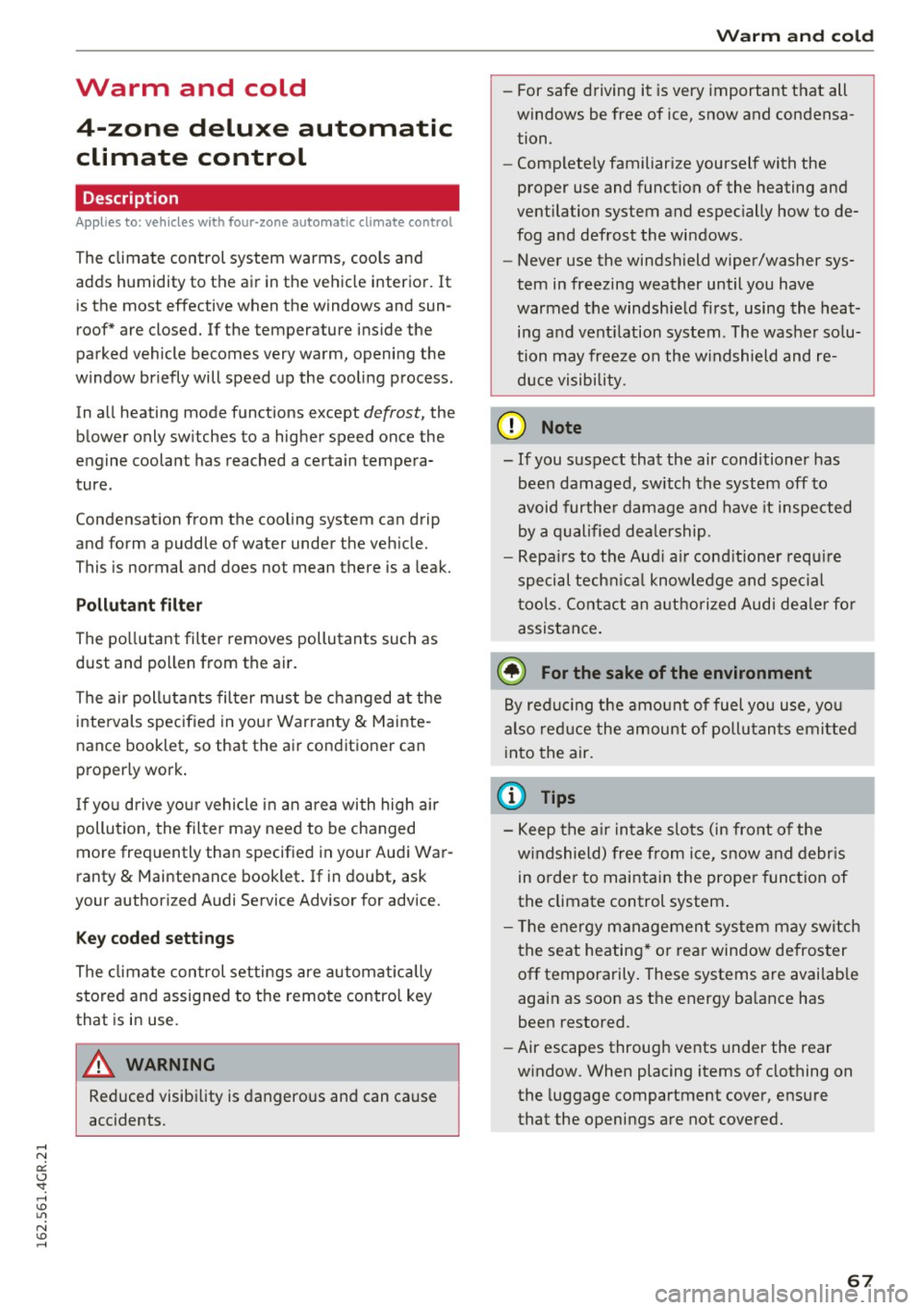

Warm and cold 4-zone deluxe automatic
climate control
Description
A pplies to: ve hicles with four -zone auto matic clim ate con trol
The climate control system warms, cools and
adds humidity to the air in the vehicle interior. It
is the most effective when the windows and sun­
roof* are closed. If the temperature ins ide the
parked vehicle becomes very warm, opening the
window briefly will speed up the cooling process.
In a ll heating mode functions except
defrost, the
b lower only sw itches to a higher speed once the
engine coolant has reached a certain tempera­
ture.
Condensation from the cooling system can drip
and form a puddle of water under the veh icle.
This is normal and does not mean there is a leak.
Pollutant filt er
The po llutant filter removes pollutants such as
dust and pollen from the air.
The air poll utants filter must be changed a t the
intervals specified in you r Warranty
& Mainte­
nance booklet, so that the air conditioner can
properly work .
I f yo u drive you r vehicle in a n area with high air
pollu tion, the fil ter may need to be changed
more frequently than specified in your Audi War­
ranty & Maintenance booklet . If in doubt, ask
your author ized Audi Service Advisor for advice.
Key coded settings
The clima te con trol settings are autom atically
stored and assigned to the remo te control key
that is in use.
A WARNING
Reduced visibi lity is dangerous and can ca use
accidents.
Warm and c old
- For safe driving it is very important t hat all
windows be free of ice, snow and condensa­
tion.
- Complete ly familiar ize yourself with the
proper use and function of the heating and
ventilation system and especially how to de­
fog and defrost the windows .
- Never use the windshield wiper/washer sys­
tem in freezing weather until you have
warmed the windshield fi rst, using the heat­
i n g and vent ilation system . The was he r so lu­
tion may freeze on the w indshield and re­
duce visibili ty.
(D Note
- If you suspect that the air conditioner has
been damaged, sw itch the system off to
avoid furthe r damage and have it inspected
by a qualified dea lership.
- Repa irs to the Aud i a ir cond itione r requ ire
special techn ica l know ledge and s pe ci al
t oo ls. Cont act an a uthorized Audi de aler fo r
assistance .
@ For the sake of the environment
By red ucing t he amo unt of fuel you use, yo u
also red uce the amount of pollu tan ts emitte d
i nto the air.
(D Tips
- K eep the air intake s lots (in fro nt of the
w indshield) free from i ce , sn ow and debr is
in orde r to maint ain the proper func tion of
the climate control system .
- Th e energy m anagemen t sys tem may switch
t he seat heating* or rear window defros ter
off temporarily. These systems are availab le
agai n as soon as t he energy ba lance has
been restored.
- Air escapes through vents under the rear
w indow . When placing items of clothing on
the luggage compartment cover, ensure
that the openings are not covered.
67

Warm and cold
Operating
Applies to: vehicles with 4-zone deluxe automatic climate control

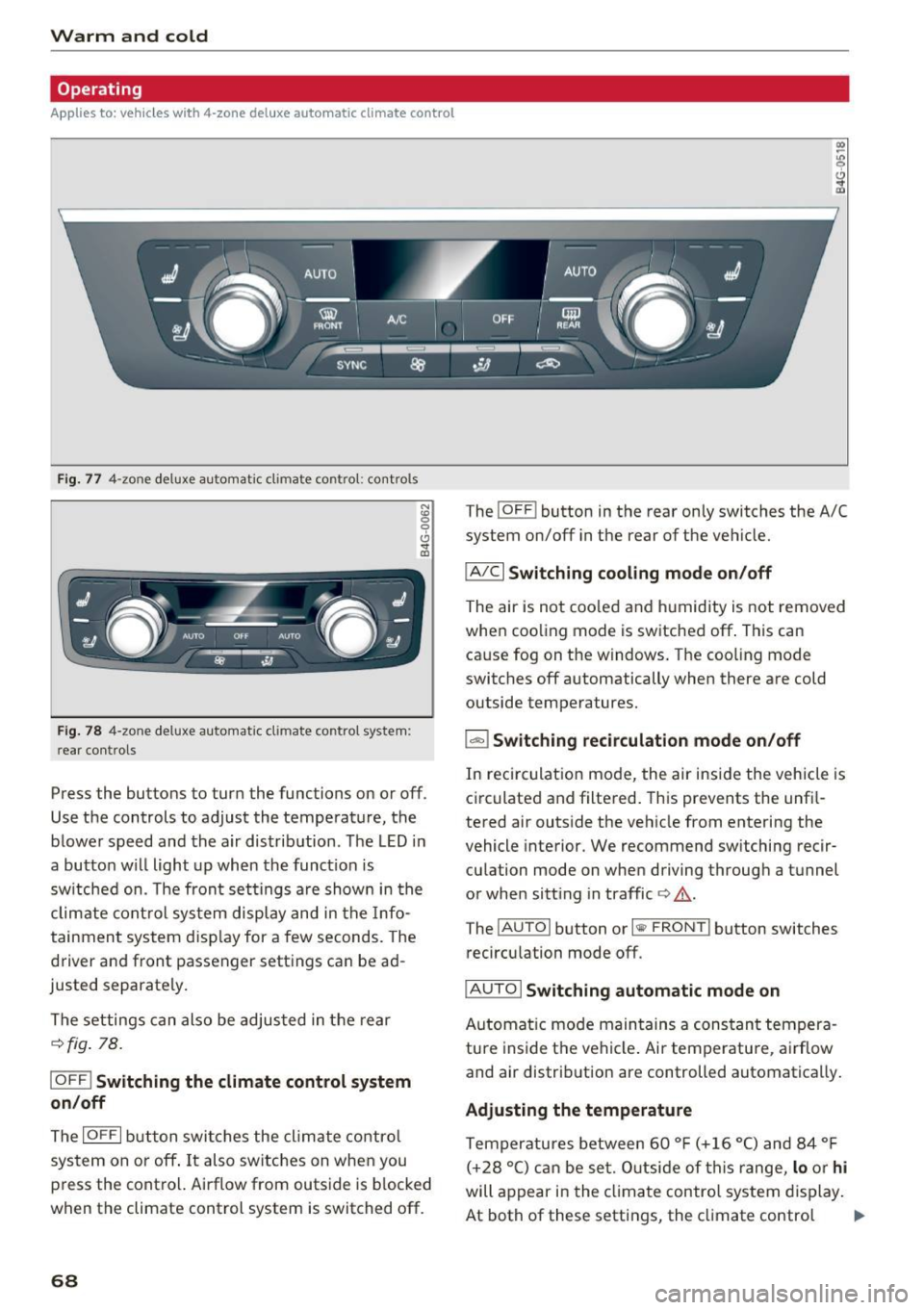

Fig . 77 4-zone deluxe a utomat ic climate contro l: cont rols
F ig. 78 4-zone deluxe automat ic climate contro l syste m:
rear controls
N :g
9 CJ
" lD
Press the buttons to turn the functions on or off.
Use the controls to adjust the temperature, the
b lower speed and the a ir distribution . The LED in
a butto n wi ll light up when the funct ion is
sw itched on. The front settings a re shown in the
clim ate cont rol sys tem display and in the Info ­
tainment system disp lay for a few seconds. The
driver and front passenger settings can be ad ­
justed separately.
The settings can also be adjus ted in the rear
¢fig . 78.
IOFF ! Switching the climate control syst em
on /off
The I OFF I b utton swi tc h es the clima te contro l
system on or off . It also switches on whe n you
p ress the control. Airflow from outside is b locked
when the climate control system is switched off.
68
The ! O FF ! button in the rear only switches the A/C
system on/off in the rear of the ve hicle.
IA/C l Switching cooling mode on /off
The air is not coo led and h umid ity is not removed
when coo ling mode is switched off . This can
cause fog on the windows. The coo ling mode
switches off automatically when there are cold outside temperatures.
l ""-'I Switching recirculation mode on /off
In recirculat ion mode, the air inside the vehicle is
c irculated and filtered. This prevents the unf il­
tered air outs ide the ve hicle from entering the
vehicle interior. We recommend sw itching recir­
cu lation mode on when driving throug h a tunnel
or when sitt ing in traffic ¢,&. .
The
! AUTOI button or l lllP FRONT ! button switches
recircu lation mode off.
IAUTO I Switching automatic mode on
Automat ic mo de main tains a constan t tempera­
ture inside t he vehi cle. Ai r temperatu re, a irflow
and air distrib ution are controlled automatically.
Adjusting the temperature
Temperatures between 60 ° F (+ 16 °C) and 84 ° F
( + 28 °C) c an be se t. O utsi de of t his range,
lo o r hi
will appear in the cl imate control system display .
At both of these settings, the cl imate contro l
1111-
