The setting is stored for the remote control cur-
rently in use.

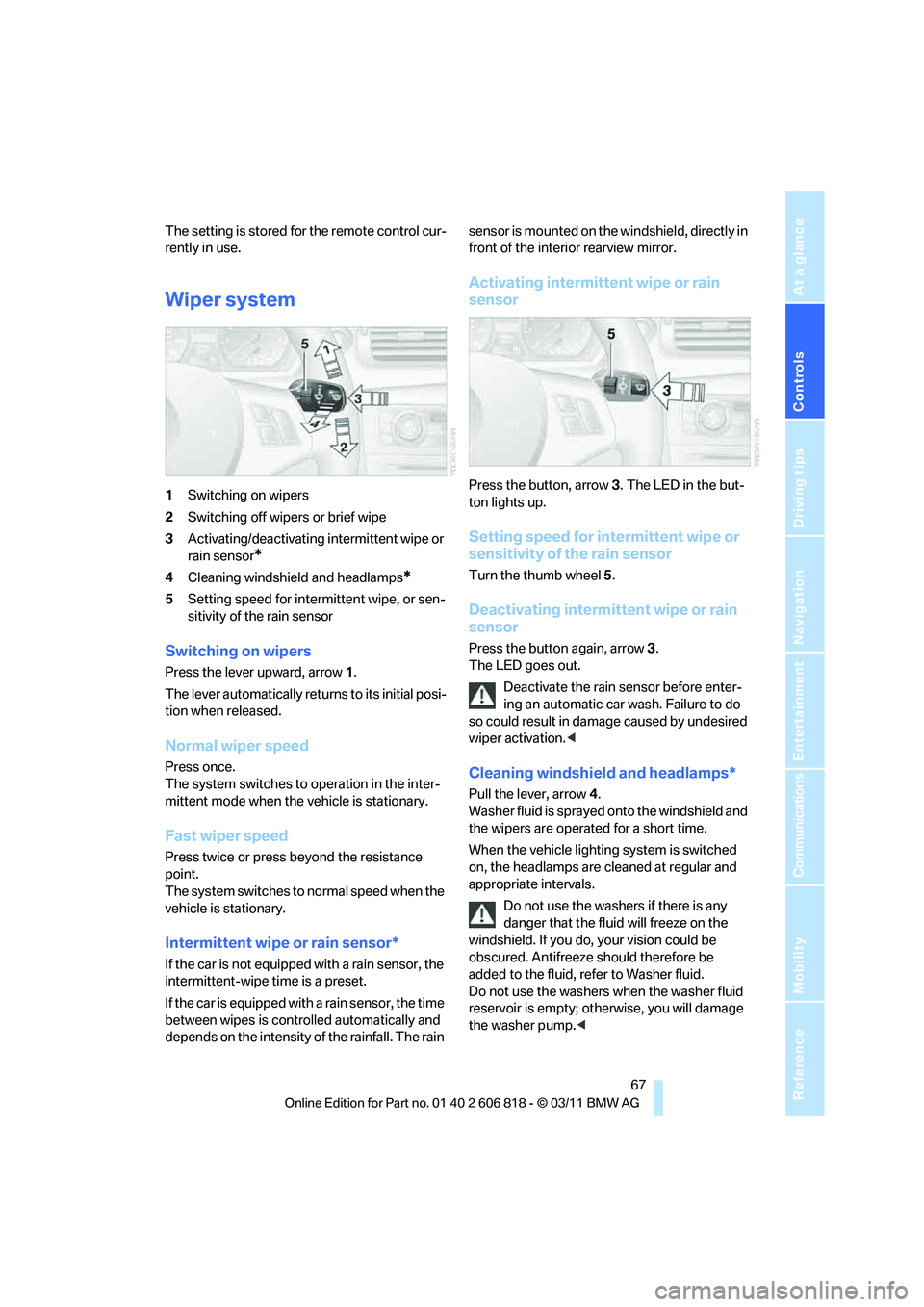

Wiper system
1Switching on wipers
2Switching off wipers or brief wipe
3Activating/deactivating intermittent wipe or
rain sensor
*
4Cleaning windshield and headlamps*
5Setting speed for intermittent wipe, or sen-
sitivity of the rain sensor
Switching on wipers
Press the lever upward, arrow 1.
The lever automatically returns to its initial posi-
tion when released.
Normal wiper speed
Press once.
The system switches to operation in the inter-
mittent mode when the vehicle is stationary.
Fast wiper speed
Press twice or press beyond the resistance
point.
The system switches to normal speed when the
vehicle is stationary.
Intermittent wipe or rain sensor*
If the car is not equipped with a rain sensor, the
intermittent-wipe time is a preset.
If the car is equipped with a rain sensor, the time
between wipes is controlled automatically and
depends on the intensity of the rainfall. The rain sensor is mounted on the windshield, directly in
front of the interior rearview mirror.
Activating intermittent wipe or rain
sensor
Press the button, arrow3. The LED in the but-
ton lights up.
Setting speed for intermittent wipe or
sensitivity of the rain sensor
Turn the thumb wheel5.
Deactivating intermittent wipe or rain
sensor
Press the button again, arrow3.
The LED goes out.
Deactivate the rain sensor before enter-
ing an automatic car wash. Failure to do
so could result in damage caused by undesired
wiper activation.<
Cleaning windshield and headlamps*
Pull the lever, arrow 4.
Washer fluid is sprayed onto the windshield and
the wipers are operated for a short time.
When the vehicle lighting system is switched
on, the headlamps are cleaned at regular and
appropriate intervals.
Do not use the washers if there is any
danger that the fluid will freeze on the
windshield. If you do, your vision could be
obscured. Antifreeze should therefore be
added to the fluid, refer to Washer fluid.
Do not use the washers when the washer fluid
reservoir is empty; otherwise, you will damage
the washer pump.<

Reference 267
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

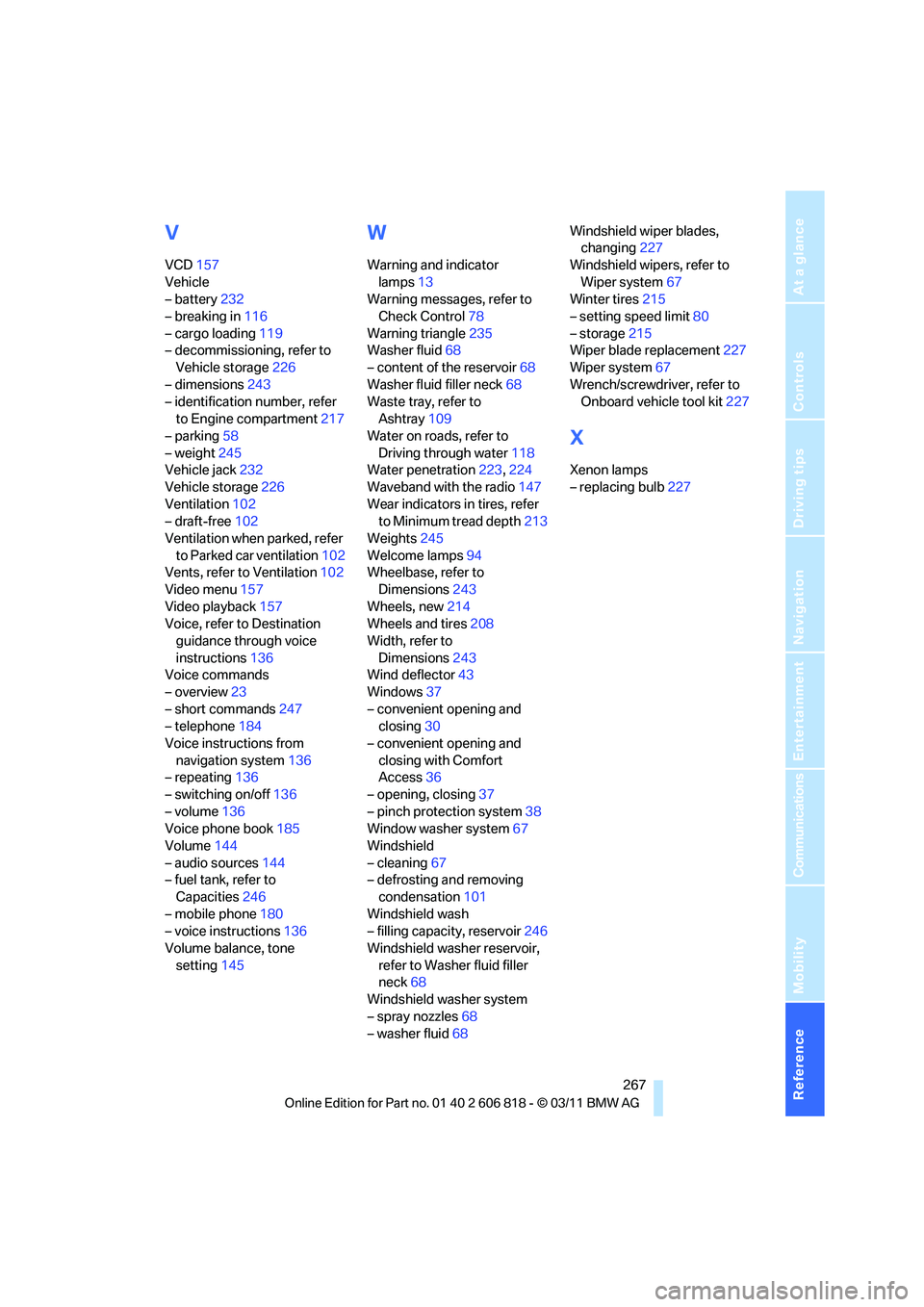

V
VCD157
Vehicle
– battery232
– breaking in116
– cargo loading119
– decommissioning, refer to
Vehicle storage226
– dimensions243
– identification number, refer
to Engine compartment217
– parking58
– weight245
Vehicle jack232
Vehicle storage226
Ventilation102
– draft-free102
Ventilation when parked, refer
to Parked car ventilation102
Vents, refer to Ventilation102
Video menu157
Video playback157
Voice, refer to Destination
guidance through voice
instructions136
Voice commands
– overview23
– short commands247
– telephone184
Voice instructions from
navigation system136
– repeating136
– switching on/off136
– volume136
Voice phone book185
Volume144
– audio sources144
– fuel tank, refer to
Capacities246
– mobile phone180
– voice instructions136
Volume balance, tone
setting145
W
Warning and indicator
lamps13
Warning messages, refer to
Check Control78
Warning triangle235
Washer fluid68
– content of the reservoir68
Washer fluid filler neck68
Waste tray, refer to
Ashtray109
Water on roads, refer to
Driving through water118
Water penetration223,224
Waveband with the radio147
Wear indicators in tires, refer
to Minimum tread depth213
Weights245
Welcome lamps94
Wheelbase, refer to
Dimensions243
Wheels, new214
Wheels and tires208
Width, refer to
Dimensions243
Wind deflector43
Windows37
– convenient opening and
closing30
– convenient opening and
closing with Comfort
Access36
– opening, closing37
– pinch protection system38
Window washer system67
Windshield
– cleaning67
– defrosting and removing
condensation101
Windshield wash
– filling capacity, reservoir246
Windshield washer reservoir,
refer to Washer fluid filler
neck68
Windshield washer system
– spray nozzles68
– washer fluid68Windshield wiper blades,
changing227
Windshield wipers, refer to
Wiper system67
Winter tires215
– setting speed limit80
– storage215
Wiper blade replacement227
Wiper system67
Wrench/screwdriver, refer to
Onboard vehicle tool kit227
X
Xenon lamps
– replacing bulb227
