BMW M3 1998 E36 Electrical Troubleshooting Manual
Manufacturer: BMW, Model Year: 1998, Model line: M3, Model: BMW M3 1998 E36Pages: 386, PDF Size: 4.34 MB
Page 291 of 386
7000.0 COMPONENT LOCATION CHART
;
$%% %%&
COMP. DESCRIPTION LOCATION7100.0 8500.0
A2w . . INSTRUMENT CLUSTER . . . . . . . . . . . . . . . . LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-3
A4 . . . .
CHECK CONTROL MODULE . . . . . . . . . . . . .
below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
00-3
A5 . . . . RELAY MODULE . . . . . . . . . . . . . . . . . . . . . . . . behind glove box
A8 . . . .
CRUISE CONTROL MODULE
(TEMPOMAT) . . . . . . . . . . . . . . . . . . . . . . . .
RH side of dash behind glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
01-2
A12 . .
SUPPLEMENTAL RESTRAINT SYSTEM
CONTROL MODULE . . . . . . . . . . . . . . . . . .
below rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
00-2
A18 . . HIFI AMPLIFIER . . . . . . . . . . . . . . . . . . . . . . . . below RH side of rear seat (Convertible) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02-3
A18 . . HIFI AMPLIFIER . . . . . . . . . . . . . . . . . . . . . . . . in LH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04-1
A35 . . ON–BOARD DISPLAY . . . . . . . . . . . . . . . . . . . center of dash center console
A51 . .
WIPER/WASHER MODULE . . . . . . . . . . . . . .
behind glove box (glove box removed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
01-1
A52 . . SLIP CONTROL MODULE (ABS/ASC) . . . . . behind glove box (glove box removed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-3
A56 . .
TILT/SLIDE SUNROOF CONTROL
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . .
under roof center panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
04-2
A64 . . WIPER/WASHER MODULE (LOW II) . . . . . . behind glove box (glove box removed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-1
A96 . . CONVERTIBLE TOP CONTROL MODULE . in lower LH C–pillar behind side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02-1
A104 .
BODY ELECTRONICS CONTROL
MODULE (ZKE IV) . . . . . . . . . . . . . . . . . . . .
behind glove box (glove box removed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
01-1
A113 . . SEAT OCCUPANCY DETECTOR . . . . . . . . . under RH front seat
A115 . .
AUTOMATIC CLIMATE CONTROL
MODULE . . . . . . . . . . . . . . . . . . . . . . . . . . . .
behind center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
03-2
A202
ABS CONTROL MODULE/HYDRAULIC
UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment
A835 .
TRANSMITTER MODULE (EWS II) . . . . . . .
RH side of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
04-3
Page 292 of 386
COMPONENT LOCATION CHART
;
$%% %%&
COMP.8500.0 7100.0LOCATION DESCRIPTION
A836 .
ELECTRONIC IMMOBILIZER CONTROL
MODULE (EWS II) . . . . . . . . . . . . . . . . . . . .
RH side of dash behind glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38-3
A6000 ENGINE CONTROL MODULE (DME) . . . . . . rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 00-1
A7000
TRANSMISSION CONTROL MODULE
(EGS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
00-1
A8500
TRANSMISSION CONTROL MODULE
(EGS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
00-1
B1 . . . . RIGHT FRONT SPEED SENSOR – ABS . . . on RH front wheel, above brake caliper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08-3
B2 . . . .
LEFT FRONT SPEED SENSOR – ABS . . . .
on LH front wheel, above brake caliper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
08-3
B3 . . . . RIGHT REAR SPEED SENSOR – ABS . . . . on RH rear wheel, above brake caliper
B4 . . . . LEFT REAR SPEED SENSOR – ABS . . . . . on LH rear wheel, above brake caliper
B6 . . . . FUEL LEVEL SENSOR . . . . . . . . . . . . . . . . . . below LH side of rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-2
B10 . .
VEHICLE SPEED SENSOR . . . . . . . . . . . . . .
under rear of car on differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
08-1
B11 . . . LH HEAT EXCHANGER TEMPERATURE
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . center console
B12 . .
RH HEAT EXCHANGER TEMPERATURE
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . .
center console
B13 . .
OUTSIDE TEMPERATURE SENSOR . . . . . .
rear of engine compartment behind RH fresh air cowl . . . . . . . . . . . . . . . . . . . . . . . . .
15-2
B14 . . EVAPORATOR TEMPERATURE SENSOR . RH side of LH footwell LH side of IHKA Plenum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-1
B16 . . LEFT FRONT BRAKE PAD SENSOR . . . . . . on LH front wheel, above brake caliper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08-3
B17 . . RIGHT REAR BRAKE PAD SENSOR . . . . . . behind RH rear wheel
B18 . .
BRAKE FLUID LEVEL SWITCH . . . . . . . . . . .
rear LH side of engine compartment top of brake fluid reservoir . . . . . . . . . . . . . . . . .
18-3
B21 . .
ON–BOARD COMPUTER TEMPERATURE
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . .
front RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20-1
Page 293 of 386
COMPONENT LOCATION CHART
;
$%% %%&
COMP.8500.0 7100.0LOCATION DESCRIPTION
B25y . FUEL TANK SENSOR II . . . . . . . . . . . . . . . . . top of fuel tank
B72 . .
FUEL TANK PRESSURE SENSOR . . . . . . . .
RH rear wheel well behind trim panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14-1
B78 . . DRIVER’S SIDE IMPACT SENSOR . . . . . . . in lower LH B–pillar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39-2
B79 . . PASSENGER’S SIDE IMPACT SENSOR . . . in lower RH B–pillar
B6203 CRANKSHAFT POSITION/RPM SENSOR . front of engine below . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3
B6204
CAMSHAFT POSITION SENSOR
(CYLINDER IDENTIFICATION) . . . . . . . . .
front of engine below intake manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11-1
B6204
CAMSHAFT POSITION SENSOR
(CYLINDER IDENTIFICATION) . . . . . . . . .
front of engine below intake manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12-2
B6205 INTAKE AIR TEMPERATURE SENSOR . . . front LH side of engine compartment (318is) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-2
B6205
INTAKE AIR TEMPERATURE SENSOR . . .
LH side of engine near oil level stick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36-3
B6207 HOT FILM AIR MASS METER . . . . . . . . . . . . LH side of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
B6209 HALL EFFECT CAMSHAFT SENSOR . . . . . front of engine (318is)
B6217 HOT FILM AIR MASS METER . . . . . . . . . . . . top front of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-2
B6231 OIL PRESSURE SWITCH . . . . . . . . . . . . . . . . front of engine below intake manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
B6231
OIL PRESSURE SWITCH . . . . . . . . . . . . . . . .
front of engine below intake manifold (318is) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17-1
B6232
ENGINE COOLANT TEMPERATURE
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . .
front of engine below intake manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11-3
B6232
ENGINE COOLANT TEMPERATURE
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . .
front of engine below intake manifold (318is) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17-2
B6233 AIR FLOW SENSOR . . . . . . . . . . . . . . . . . . . . LH side of engine compartment right of LH side shock tower
B6236
ENGINE COOLANT TEMPERATURE
SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . .
front of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11-3
B6238 OIL TEMPERATURE SENSOR . . . . . . . . . . . LH side of engine
Page 294 of 386
COMPONENT LOCATION CHART
;
$%% %%&
COMP.8500.0 7100.0LOCATION DESCRIPTION
B6240 KNOCK SENSOR . . . . . . . . . . . . . . . . . . . . . . . top front of engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2
B6256
DUAL TEMPERATURE SENSOR
(COOLANT TEMPERATURE) . . . . . . . . . .
RH front of engine below intake manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11-1
B9508
PRESSURE SWITCH . . . . . . . . . . . . . . . . . . . .
front RH side of engine compartment near RH headlight assembly . . . . . . . . . . . . . .
09-3
B62001
OXYGEN SENSOR (IN FRONT OF
CATALYTIC CONVERTER) . . . . . . . . . . . . .
on catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
37-1
B62002
OXYGEN SENSOR (BEHIND CATALYTIC
CONVERTER) . . . . . . . . . . . . . . . . . . . . . . . .
on catalytic converter (318is) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
37-2
B62101
OXYGEN SENSOR I (IN FRONT OF
CATALYTIC CONVERTER) . . . . . . . . . . . . .
on catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38-2
B62102
OXYGEN SENSOR I (BEHIND CATALYTIC
CONVERTER) . . . . . . . . . . . . . . . . . . . . . . . .
on catalytic converter
B62201
OXYGEN SENSOR II (IN FRONT OF
CATALYTIC CONVERTER) . . . . . . . . . . . . .
on catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38-2
B62202
OXYGEN SENSOR II (BEHIND CATALYTIC
CONVERTER) . . . . . . . . . . . . . . . . . . . . . . . .
on catalytic converter
C101 .
CONTACT RING . . . . . . . . . . . . . . . . . . . . . . . .
top of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24-2
C900 . SUPPRESSION FILTER . . . . . . . . . . . . . . . . . in upper RH C–pillar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33-2
D100 . DATA LINK CONNECTOR . . . . . . . . . . . . . . . . rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05-1
E10 . . REAR DEFOGGER/ANTENNA . . . . . . . . . . . in rear window
E11 . . . LEFT HIGH BEAM LIGHT . . . . . . . . . . . . . . . . near LH headlight assembly
E12 . .
RIGHT HIGH BEAM LIGHT . . . . . . . . . . . . . .
near RH headlight assembly
E13 . . LEFT LOW BEAM LIGHT . . . . . . . . . . . . . . . . near LH headlight assembly
E14 . . RIGHT LOW BEAM LIGHT . . . . . . . . . . . . . . . near RH headlight assembly
Page 295 of 386
COMPONENT LOCATION CHART
;
$%% %%&
COMP.8500.0 7100.0LOCATION DESCRIPTION

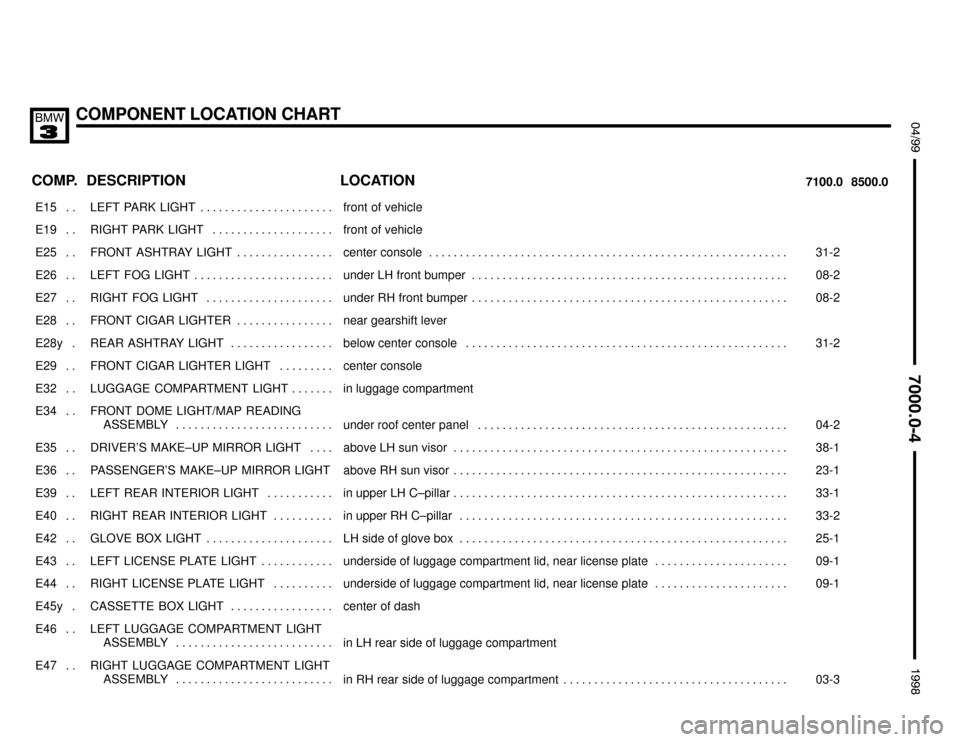

E15 . . LEFT PARK LIGHT . . . . . . . . . . . . . . . . . . . . . . front of vehicle
E19 . .
RIGHT PARK LIGHT . . . . . . . . . . . . . . . . . . . .
front of vehicle
E25 . . FRONT ASHTRAY LIGHT . . . . . . . . . . . . . . . . center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31-2
E26 . . LEFT FOG LIGHT . . . . . . . . . . . . . . . . . . . . . . . under LH front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08-2
E27 . . RIGHT FOG LIGHT . . . . . . . . . . . . . . . . . . . . . under RH front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08-2
E28 . . FRONT CIGAR LIGHTER . . . . . . . . . . . . . . . . near gearshift lever
E28y .
REAR ASHTRAY LIGHT . . . . . . . . . . . . . . . . .
below center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31-2
E29 . . FRONT CIGAR LIGHTER LIGHT . . . . . . . . . center console
E32 . . LUGGAGE COMPARTMENT LIGHT . . . . . . . in luggage compartment
E34 . .
FRONT DOME LIGHT/MAP READING
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . .
under roof center panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
04-2
E35 . . DRIVER’S MAKE–UP MIRROR LIGHT . . . . above LH sun visor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38-1
E36 . . PASSENGER’S MAKE–UP MIRROR LIGHT above RH sun visor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-1
E39 . .
LEFT REAR INTERIOR LIGHT . . . . . . . . . . .
in upper LH C–pillar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33-1
E40 . . RIGHT REAR INTERIOR LIGHT . . . . . . . . . . in upper RH C–pillar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33-2
E42 . . GLOVE BOX LIGHT . . . . . . . . . . . . . . . . . . . . . LH side of glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-1
E43 . . LEFT LICENSE PLATE LIGHT . . . . . . . . . . . . underside of luggage compartment lid, near license plate . . . . . . . . . . . . . . . . . . . . . . 09-1
E44 . .
RIGHT LICENSE PLATE LIGHT . . . . . . . . . .
underside of luggage compartment lid, near license plate . . . . . . . . . . . . . . . . . . . . . .
09-1
E45y . CASSETTE BOX LIGHT . . . . . . . . . . . . . . . . . center of dash
E46 . .
LEFT LUGGAGE COMPARTMENT LIGHT
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . .
in LH rear side of luggage compartment
E47 . .
RIGHT LUGGAGE COMPARTMENT LIGHT
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . .
in RH rear side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
03-3
Page 296 of 386
COMPONENT LOCATION CHART
;
$%% %%&
COMP.8500.0 7100.0LOCATION DESCRIPTION

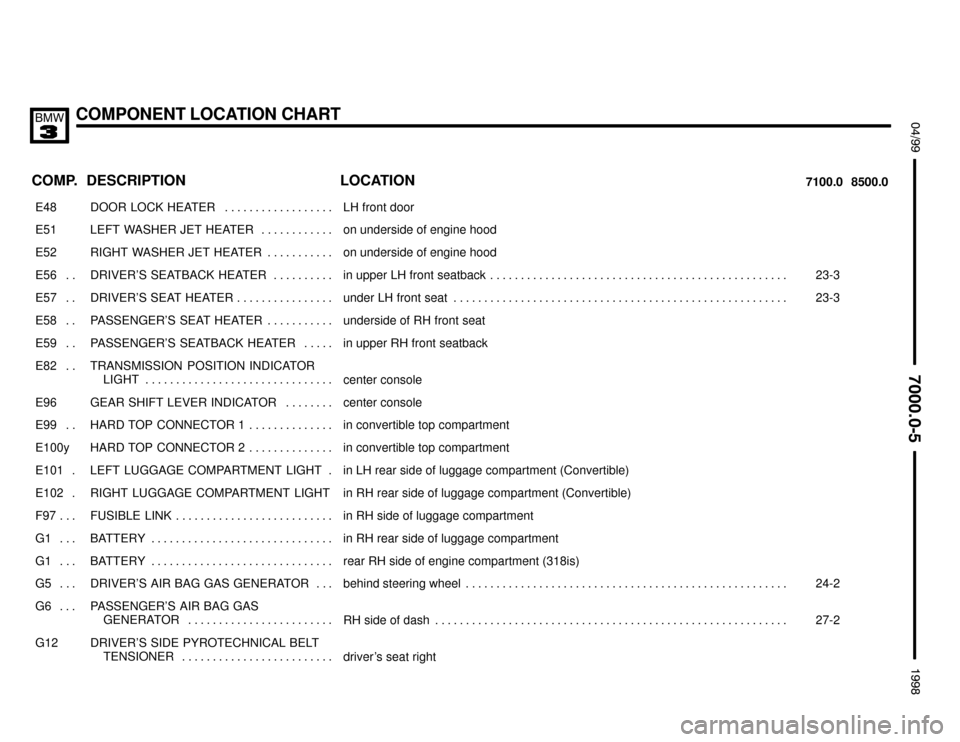

E48 DOOR LOCK HEATER . . . . . . . . . . . . . . . . . . LH front door
E51
LEFT WASHER JET HEATER . . . . . . . . . . . .
on underside of engine hood
E52 RIGHT WASHER JET HEATER . . . . . . . . . . . on underside of engine hood
E56 . . DRIVER’S SEATBACK HEATER . . . . . . . . . . in upper LH front seatback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-3
E57 . . DRIVER’S SEAT HEATER . . . . . . . . . . . . . . . . under LH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-3
E58 . . PASSENGER’S SEAT HEATER . . . . . . . . . . . underside of RH front seat
E59 . .
PASSENGER’S SEATBACK HEATER . . . . .
in upper RH front seatback
E82 . .
TRANSMISSION POSITION INDICATOR
LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
center console
E96 GEAR SHIFT LEVER INDICATOR . . . . . . . . center console
E99 . . HARD TOP CONNECTOR 1 . . . . . . . . . . . . . . in convertible top compartment
E100y HARD TOP CONNECTOR 2 . . . . . . . . . . . . . . in convertible top compartment
E101 . LEFT LUGGAGE COMPARTMENT LIGHT . in LH rear side of luggage compartment (Convertible)
E102 .
RIGHT LUGGAGE COMPARTMENT LIGHT
in RH rear side of luggage compartment (Convertible)
F97 . . . FUSIBLE LINK . . . . . . . . . . . . . . . . . . . . . . . . . . in RH side of luggage compartment
G1 . . . BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . in RH rear side of luggage compartment
G1 . . . BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . rear RH side of engine compartment (318is)
G5 . . .
DRIVER’S AIR BAG GAS GENERATOR . . .
behind steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24-2
G6 . . .
PASSENGER’S AIR BAG GAS
GENERATOR . . . . . . . . . . . . . . . . . . . . . . . .
RH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27-2
G12
DRIVER’S SIDE PYROTECHNICAL BELT
TENSIONER . . . . . . . . . . . . . . . . . . . . . . . . .
driver’s seat right

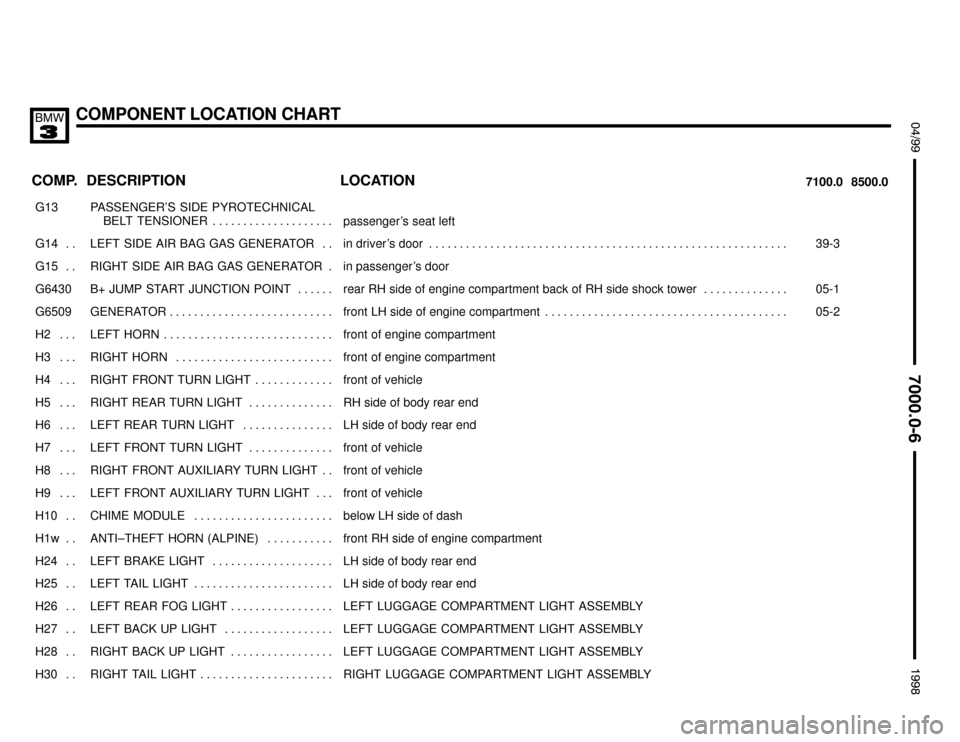

Page 297 of 386
COMPONENT LOCATION CHART
;
$%% %%&
COMP.8500.0 7100.0LOCATION DESCRIPTION
G13
PASSENGER’S SIDE PYROTECHNICAL
BELT TENSIONER . . . . . . . . . . . . . . . . . . . .
passenger’s seat left
G14 . . LEFT SIDE AIR BAG GAS GENERATOR . . in driver’s door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39-3
G15 . .
RIGHT SIDE AIR BAG GAS GENERATOR .
in passenger’s door
G6430
B+ JUMP START JUNCTION POINT . . . . . .
rear RH side of engine compartment back of RH side shock tower . . . . . . . . . . . . . .
05-1
G6509 GENERATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05-2
H2 . . . LEFT HORN . . . . . . . . . . . . . . . . . . . . . . . . . . . . front of engine compartment
H3 . . . RIGHT HORN . . . . . . . . . . . . . . . . . . . . . . . . . . front of engine compartment
H4 . . .
RIGHT FRONT TURN LIGHT . . . . . . . . . . . . .
front of vehicle
H5 . . . RIGHT REAR TURN LIGHT . . . . . . . . . . . . . . RH side of body rear end
H6 . . . LEFT REAR TURN LIGHT . . . . . . . . . . . . . . . LH side of body rear end
H7 . . . LEFT FRONT TURN LIGHT . . . . . . . . . . . . . . front of vehicle
H8 . . . RIGHT FRONT AUXILIARY TURN LIGHT . . front of vehicle
H9 . . .
LEFT FRONT AUXILIARY TURN LIGHT . . .
front of vehicle
H10 . . CHIME MODULE . . . . . . . . . . . . . . . . . . . . . . . below LH side of dash
H1w . . ANTI–THEFT HORN (ALPINE) . . . . . . . . . . . front RH side of engine compartment
H24 . . LEFT BRAKE LIGHT . . . . . . . . . . . . . . . . . . . . LH side of body rear end
H25 . .
LEFT TAIL LIGHT . . . . . . . . . . . . . . . . . . . . . . .
LH side of body rear end
H26 . . LEFT REAR FOG LIGHT . . . . . . . . . . . . . . . . . LEFT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H27 . . LEFT BACK UP LIGHT . . . . . . . . . . . . . . . . . . LEFT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H28 . . RIGHT BACK UP LIGHT . . . . . . . . . . . . . . . . . LEFT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H30 . . RIGHT TAIL LIGHT . . . . . . . . . . . . . . . . . . . . . . RIGHT LUGGAGE COMPARTMENT LIGHT ASSEMBLY

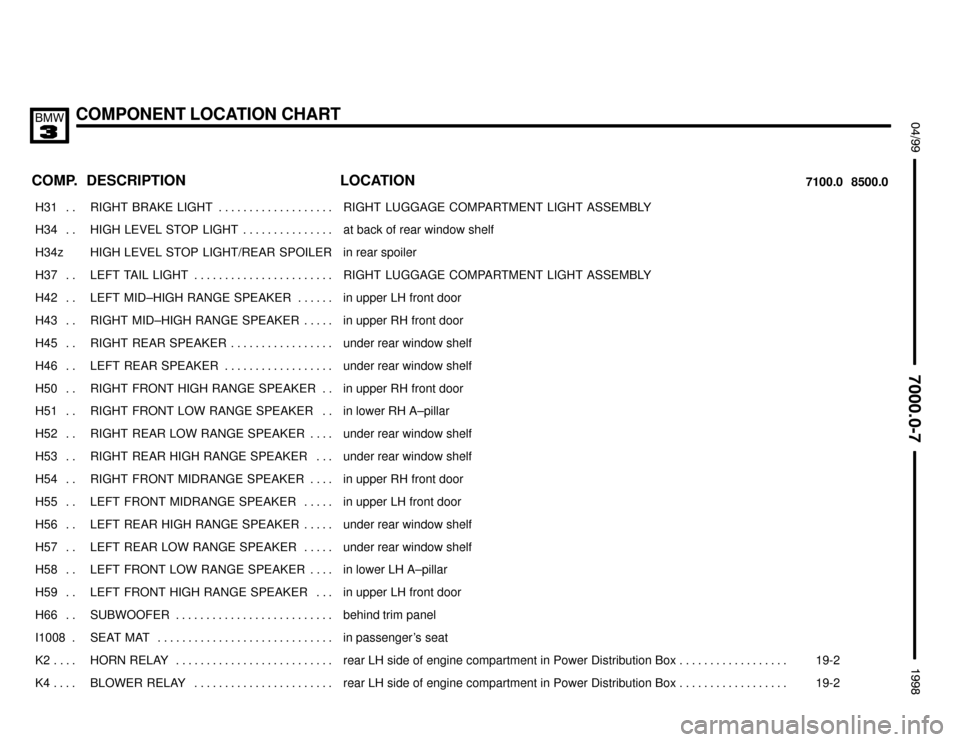

Page 298 of 386
COMPONENT LOCATION CHART
;
$%% %%&
COMP.8500.0 7100.0LOCATION DESCRIPTION
H31 . . RIGHT BRAKE LIGHT . . . . . . . . . . . . . . . . . . . RIGHT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H34 . .
HIGH LEVEL STOP LIGHT . . . . . . . . . . . . . . .
at back of rear window shelf
H34z HIGH LEVEL STOP LIGHT/REAR SPOILER in rear spoiler
H37 . . LEFT TAIL LIGHT . . . . . . . . . . . . . . . . . . . . . . . RIGHT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H42 . . LEFT MID–HIGH RANGE SPEAKER . . . . . . in upper LH front door
H43 . . RIGHT MID–HIGH RANGE SPEAKER . . . . . in upper RH front door
H45 . .
RIGHT REAR SPEAKER . . . . . . . . . . . . . . . . .
under rear window shelf
H46 . . LEFT REAR SPEAKER . . . . . . . . . . . . . . . . . . under rear window shelf
H50 . . RIGHT FRONT HIGH RANGE SPEAKER . . in upper RH front door
H51 . . RIGHT FRONT LOW RANGE SPEAKER . . in lower RH A–pillar
H52 . . RIGHT REAR LOW RANGE SPEAKER . . . . under rear window shelf
H53 . .
RIGHT REAR HIGH RANGE SPEAKER . . .
under rear window shelf
H54 . . RIGHT FRONT MIDRANGE SPEAKER . . . . in upper RH front door
H55 . . LEFT FRONT MIDRANGE SPEAKER . . . . . in upper LH front door
H56 . . LEFT REAR HIGH RANGE SPEAKER . . . . . under rear window shelf
H57 . .
LEFT REAR LOW RANGE SPEAKER . . . . .
under rear window shelf
H58 . . LEFT FRONT LOW RANGE SPEAKER . . . . in lower LH A–pillar
H59 . . LEFT FRONT HIGH RANGE SPEAKER . . . in upper LH front door
H66 . . SUBWOOFER . . . . . . . . . . . . . . . . . . . . . . . . . . behind trim panel
I1008 . SEAT MAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . in passenger’s seat
K2 . . . .
HORN RELAY . . . . . . . . . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
19-2
K4 . . . . BLOWER RELAY . . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-2

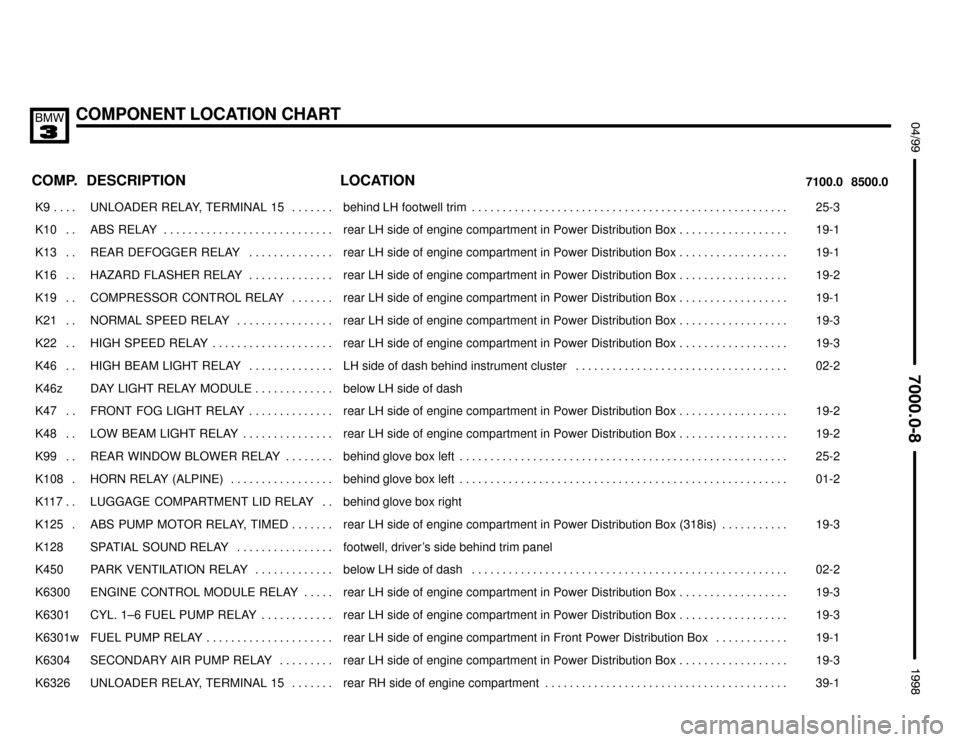

Page 299 of 386
COMPONENT LOCATION CHART
;
$%% %%&
COMP.8500.0 7100.0LOCATION DESCRIPTION
K9 . . . . UNLOADER RELAY, TERMINAL 15 . . . . . . . behind LH footwell trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-3
K10 . .
ABS RELAY . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
19-1
K13 . . REAR DEFOGGER RELAY . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-1
K16 . . HAZARD FLASHER RELAY . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-2
K19 . . COMPRESSOR CONTROL RELAY . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-1
K21 . . NORMAL SPEED RELAY . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-3
K22 . .
HIGH SPEED RELAY . . . . . . . . . . . . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
19-3
K46 . . HIGH BEAM LIGHT RELAY . . . . . . . . . . . . . . LH side of dash behind instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02-2
K46z DAY LIGHT RELAY MODULE . . . . . . . . . . . . . below LH side of dash
K47 . . FRONT FOG LIGHT RELAY . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-2
K48 . . LOW BEAM LIGHT RELAY . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-2
K99 . .
REAR WINDOW BLOWER RELAY . . . . . . . .
behind glove box left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
25-2
K108 . HORN RELAY (ALPINE) . . . . . . . . . . . . . . . . . behind glove box left . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-2
K117 . . LUGGAGE COMPARTMENT LID RELAY . . behind glove box right
K125 . ABS PUMP MOTOR RELAY, TIMED . . . . . . . rear LH side of engine compartment in Power Distribution Box (318is) . . . . . . . . . . . 19-3
K128
SPATIAL SOUND RELAY . . . . . . . . . . . . . . . .
footwell, driver’s side behind trim panel
K450 PARK VENTILATION RELAY . . . . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 02-2
K6300 ENGINE CONTROL MODULE RELAY . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-3
K6301 CYL. 1–6 FUEL PUMP RELAY . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . . 19-3
K6301w FUEL PUMP RELAY . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Front Power Distribution Box . . . . . . . . . . . . 19-1
K6304
SECONDARY AIR PUMP RELAY . . . . . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . . . . . . . . .
19-3
K6326 UNLOADER RELAY, TERMINAL 15 . . . . . . . rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39-1

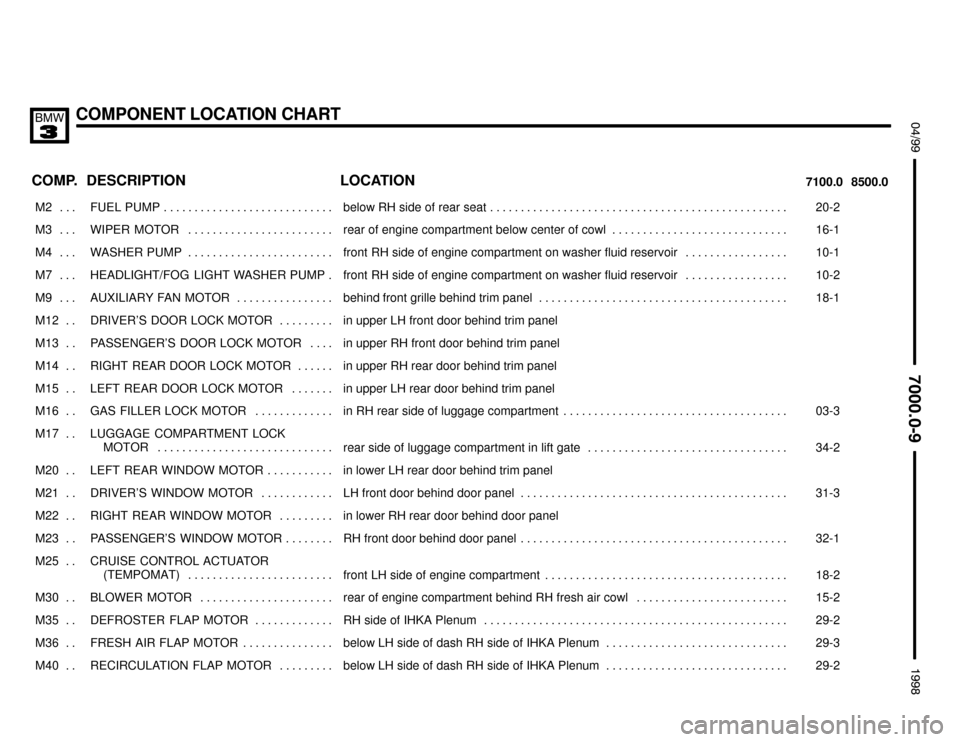

Page 300 of 386
COMPONENT LOCATION CHART
;
$%% %%&
COMP.8500.0 7100.0LOCATION DESCRIPTION
M2 . . . FUEL PUMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . below RH side of rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-2
M3 . . .
WIPER MOTOR . . . . . . . . . . . . . . . . . . . . . . . .
rear of engine compartment below center of cowl . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16-1
M4 . . . WASHER PUMP . . . . . . . . . . . . . . . . . . . . . . . . front RH side of engine compartment on washer fluid reservoir . . . . . . . . . . . . . . . . . 10-1
M7 . . . HEADLIGHT/FOG LIGHT WASHER PUMP . front RH side of engine compartment on washer fluid reservoir . . . . . . . . . . . . . . . . . 10-2
M9 . . . AUXILIARY FAN MOTOR . . . . . . . . . . . . . . . . behind front grille behind trim panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-1
M12 . . DRIVER’S DOOR LOCK MOTOR . . . . . . . . . in upper LH front door behind trim panel
M13 . .
PASSENGER’S DOOR LOCK MOTOR . . . .
in upper RH front door behind trim panel
M14 . . RIGHT REAR DOOR LOCK MOTOR . . . . . . in upper RH rear door behind trim panel
M15 . . LEFT REAR DOOR LOCK MOTOR . . . . . . . in upper LH rear door behind trim panel
M16 . . GAS FILLER LOCK MOTOR . . . . . . . . . . . . . in RH rear side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03-3
M17 . .
LUGGAGE COMPARTMENT LOCK
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
rear side of luggage compartment in lift gate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34-2
M20 . . LEFT REAR WINDOW MOTOR . . . . . . . . . . . in lower LH rear door behind trim panel
M21 . .
DRIVER’S WINDOW MOTOR . . . . . . . . . . . .
LH front door behind door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31-3
M22 . . RIGHT REAR WINDOW MOTOR . . . . . . . . . in lower RH rear door behind door panel
M23 . . PASSENGER’S WINDOW MOTOR . . . . . . . . RH front door behind door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-1
M25 . .
CRUISE CONTROL ACTUATOR
(TEMPOMAT) . . . . . . . . . . . . . . . . . . . . . . . .
front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18-2
M30 . . BLOWER MOTOR . . . . . . . . . . . . . . . . . . . . . . rear of engine compartment behind RH fresh air cowl . . . . . . . . . . . . . . . . . . . . . . . . . 15-2
M35 . .
DEFROSTER FLAP MOTOR . . . . . . . . . . . . .
RH side of IHKA Plenum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29-2
M36 . .
FRESH AIR FLAP MOTOR . . . . . . . . . . . . . . .
below LH side of dash RH side of IHKA Plenum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29-3
M40 . . RECIRCULATION FLAP MOTOR . . . . . . . . . below LH side of dash RH side of IHKA Plenum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-2
