BUICK PARK AVENUE 1994 Owners Manual

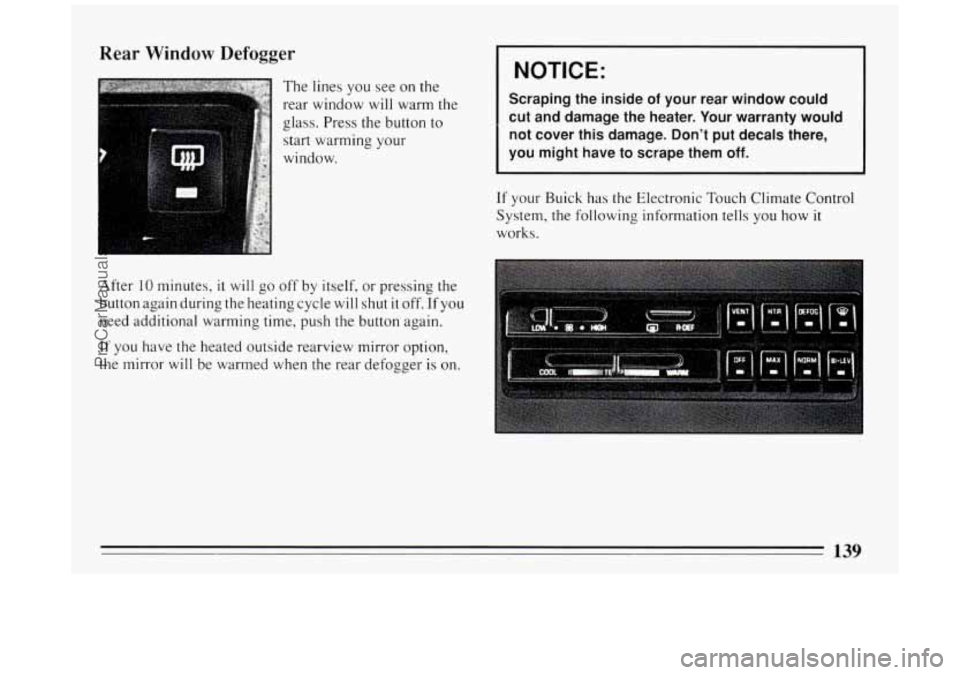

Rear Window Defogger
The lines you see on the
rear window will warm the
glass. Press the button to
start warming your
window.
NOTICE:
Scraping the inside of your rear window could
cut and damage the heater. Your warranty would
not cover this damage. Don’t put decals there,
you might have to scrape them
off.
If your Buick has the Electronic Touch Climate Control
System, the following information tells you how
it
works.
After
10 minutes, it will go off by itself, or pressing the
button again during the heating cycle will shut
it off. If you
need additional warming time, push the button again.
If you have the heated outside rearview mirror option,
the mirror
will be warmed when the rear defogger is on.
139
ProCarManuals.com

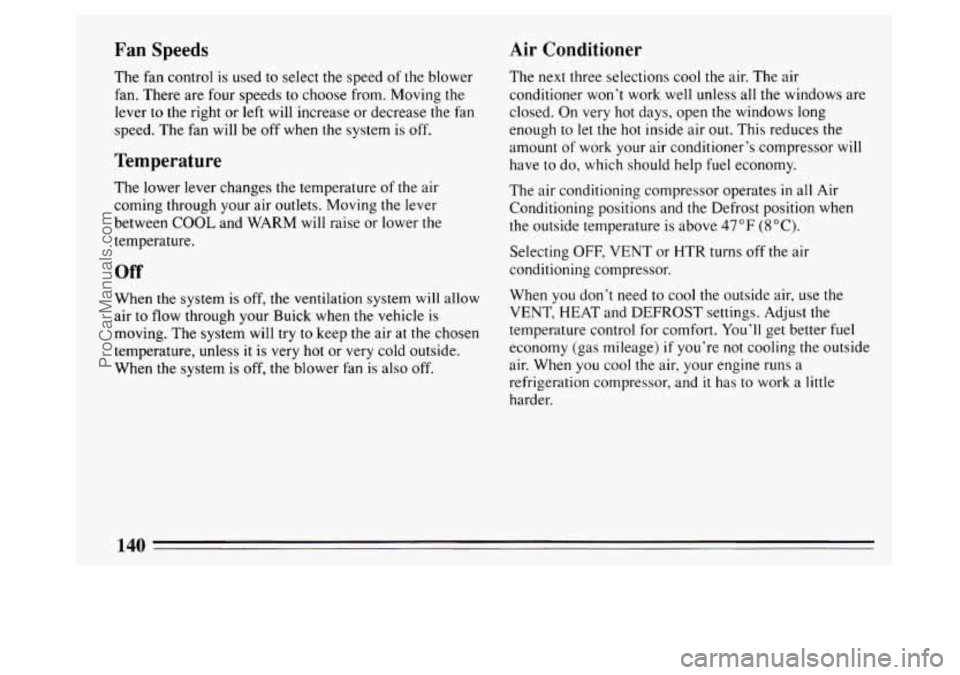

Fan Speeds Air Conditioner
The fan control is used
to select the speed of the blower
fan. There are four speeds to choose from. Moving the
lever to the right or
left will increase or decrease the fan
speed. The fan will be off when the system is
off.
Temperature
The lower lever changes the temperature of the air
coming through your air outlets. Moving the lever
between
COOL and WARM will raise or lower the
temperature.
Off
When the system is off, the ventilation system will allow
air to
flow through your Buick when the vehicle is
moving. The system will try to keep the air at the chosen
temperature, unless
it is very hot or very cold outside.
When the system is off, the blower fan is also off. The
next three selections cool the air. The air
conditioner won’t work well unless all the windows are
closed. On very hot days, open the windows long
enough to let the hot inside air out. This reduces the
amount of work your air conditioner’s compressor
will
have to do, which should help fuel economy.
The air conditioning compressor operates
in all Air
Conditioning positions and
the Defrost position when
the outside temperature
is above 47°F (SOC).
Selecting OFF, VENT or HTR turns off the air
conditioning compressor.
When you don’t need to cool the outside air, use the
VENT, HEAT and DEFROST settings. Adjust the
temperature control for comfort. You’ll get better fuel
economy (gas mileage)
if you’re not cooling the outside
air. When you cool the air, your engine runs a
refrigeration compressor, and
it has to work a little
harder.
140
ProCarManuals.com

Max Vent
This setting provides maximum cooling with the least
amount
of work. MAX recirculates much of the air
inside
your vehicle so it maximizes your air
conditioner’s performance and fuel economy. Air is
directed through
the instrument panel outlets.
Norm
Use NORM for normal cooling on hot days. This setting
cools outside air and directs
it through the instrument
panel outlets.
Bi-Level
This setting is designed for use on sunny days when the
air is only moderately warm or cool. On days like these,
the sun may adequately warm your upper body, but your
lower body may not be warm enough.
The Bi-level setting directs vehicle air
in two ways.
Cool air
is directed toward your upper body through
instrument panel outlets, while slightly warmed air is
directed through the heater outlet at your feet. For
mild outside temperatures when little heating or
cooling is needed, use the VENT setting. Air
will flow
through the instrument panel outlets. ,Use the air outlets
to turn
on, adjust and turn off the air flow. Adjust the
temperature lever to the desired temperature.
Heater
When outside temperatures are cold, pressing the HTR
setting and adjusting the temperature lever
will send
warm air through
the floor outlets and some through the
defroster vents.
Defrost
The DEFROST setting directs most of the air flow
toward the windshield. Use defrost when you want
to
remove fog or ice from the windshield. When it’s 42°F
(6°C) or warmer, you’ll get cooled air.
ProCarManuals.com

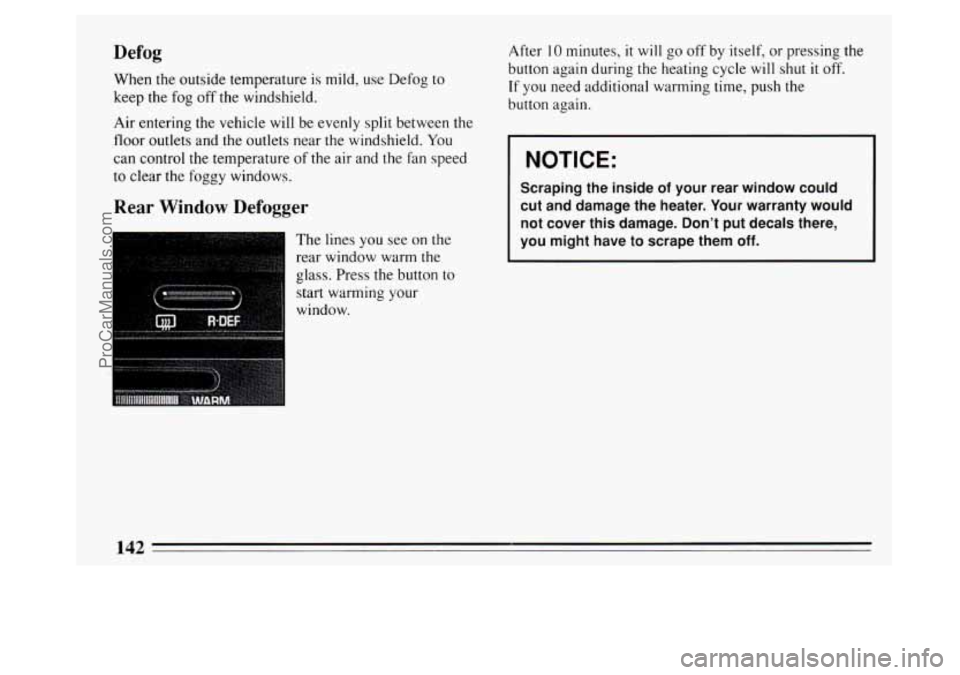

Defog
When the outside temperature is mild, use Defog to
keep the
fog off the windshield.
Air entering the vehicle will be evenly split between the
floor outlets and the outlets near
the windshield. You
can control the temperature of the air and the fan speed
to clear the foggy windows.
Rear Window Defogger
The lines you see on the
rear window warm the
glass. Press the button to start warming your
window. After
10 minutes, it will go off by
itself, or pressing the
button again during the heating cycle
will shut it off.
If you need additional warming time, push the
button again.
I NOTICE:
Scraping the inside of your rear window could
cut and damage the heater.
Your warranty would
not cover this damage. Don’t put decals there,
you might have to scrape them
off.
142
ProCarManuals.com

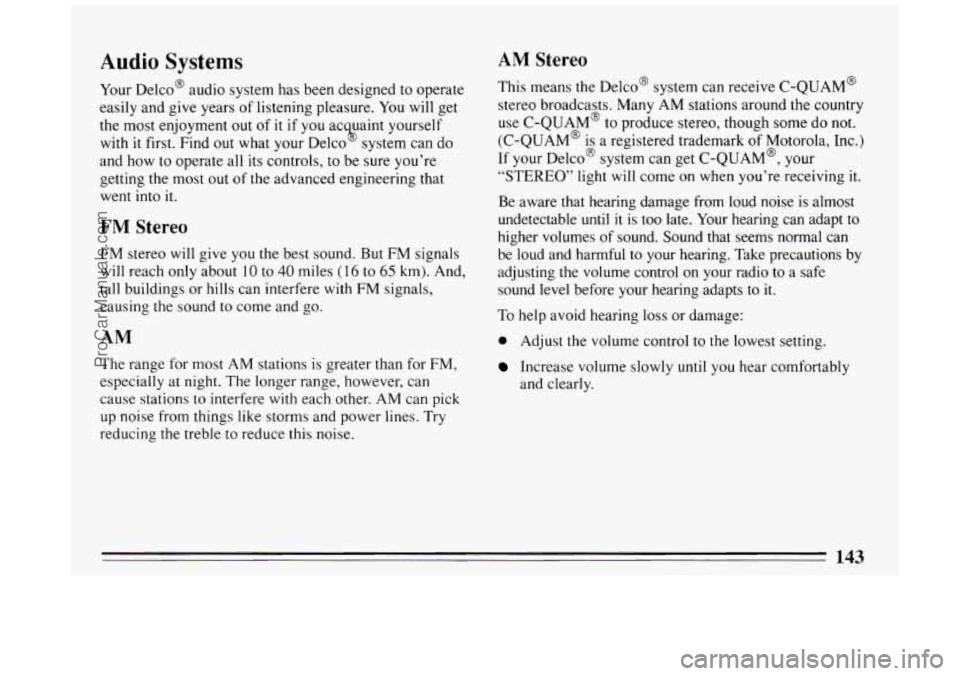

Audio Systems
Your Delco@ audio system has been designed to operate
easily and give years of listening pleasure.
You will get
the most enjoyment
out of it if you ac uaint yourself
with
it first. Find out what your Delco system can do
and how to operate all its controls, to be sure you’re
getting the most out
of the advanced engineering that
went into
it.
73
AM Stereo
FM Stereo
FM stereo will give you the best sound. But FM signals
will reach only about
10 to 40 miles ( 16 to 65 km). And,
tall buildings or hills can interfere with FM signals,
causing the sound to come and go.
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range, however, can
cause stations to interfere with each other. AM can pick
up noise
from things like storms and power lines. Try
reducing the treble to reduce this noise. This
means the Delco@ system can receive C-QUAM@
stereo broadcasts. Many AM stations around the country
use C-QUAM@
to produce stereo, though some do not.
(C-QUAM@ is a registered trademark of Motorola, Inc.)
If your Delco@ system can get C-QUAM@, your
“STEREO” light will come on when you’re receiving
it.
Be aware that hearing damage from loud noise is almost
undetectable
until it is too late. Your hearing can adapt to
higher volumes of sound. Sound that seems normal can
be loud and harmful to your hearing. Take precautions by
adjusting the volume control on your radio to a safe
sound level before your hearing adapts to
it.
To help avoid hearing loss or damage:
0 Adjust the volume control to the lowest setting.
Increase volume slowly until you hear comfortably
and clearly.
143
ProCarManuals.com

NOTICE:
Before you add any sound equipment to your
vehicle
-- like a tape player, CB radio, mobile
telephone or two-way radio
-- be sure you can
add what you want. If you can,
it’s very important
to
do it properly. Added sound equipment may
interfere with the operation of your vehicle’s
engine, Delco@ radio or other systems, and even
damage them. And, your vehicle’s systems may
interfere with the operation of sound equipment
that has been added improperly.
So, before adding sound equipment, check with
your dealer and be sure
to check Federal rules
covering mobile radio and telephone units.
144
.
ProCarManuals.com

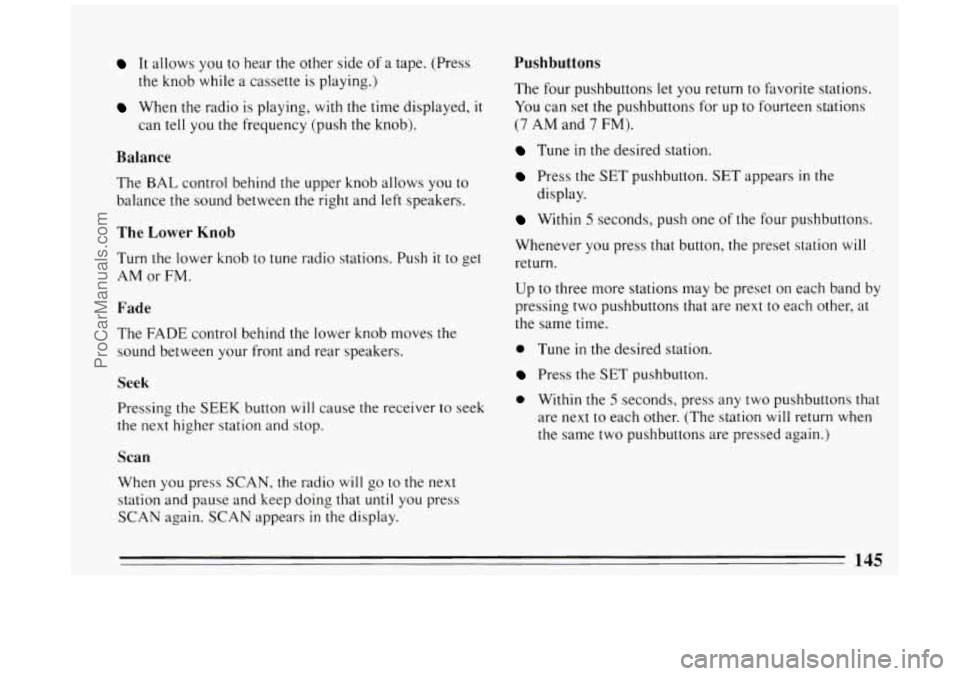

It allows you to hear the other side of a tape. (Press
the knob while a cassette is playing.)
When the radio is playing, with the time displayed, it
can tell you the frequency (push the knob).
Balance
The BAL control behind the upper knob allows you to
balance the sound between the right and
left speakers.
The Lower Knob
Turn the lower knob to tune radio stations. Push it to get
AM or FM.
Fade
The FADE control behind the lower knob moves the
sound between your front and rear speakers.
Seek
Pressing the SEEK button will cause the receiver to seek
the
next higher station and stop.
Scan
When you press SCAN, the radio will go to the next
station and pause and keep doing that
until you press
SCAN again.
SCAN appears in the display.
Pushbuttons
The four pushbuttons let you return to favorite stations.
You can set the pushbuttons for up to fourteen stations
(7 AM and 7 FM).
Tune in the desired station.
Press the SET pushbutton. SET appears in the
display.
Within 5 seconds, push one of the four pushbuttons.
Whenever you press that button, the preset station will
return.
Up to three more stations may be preset on each band by
pressing two pushbuttons that are
next to each other, at
the same time.
0 Tune in the desired station.
Press the SET pushbutton.
0 Within the 5 seconds, press any two pushbuttons that
are next to each other. (The station will return when
the same two pushbuttons are pressed again.)
145
ProCarManuals.com

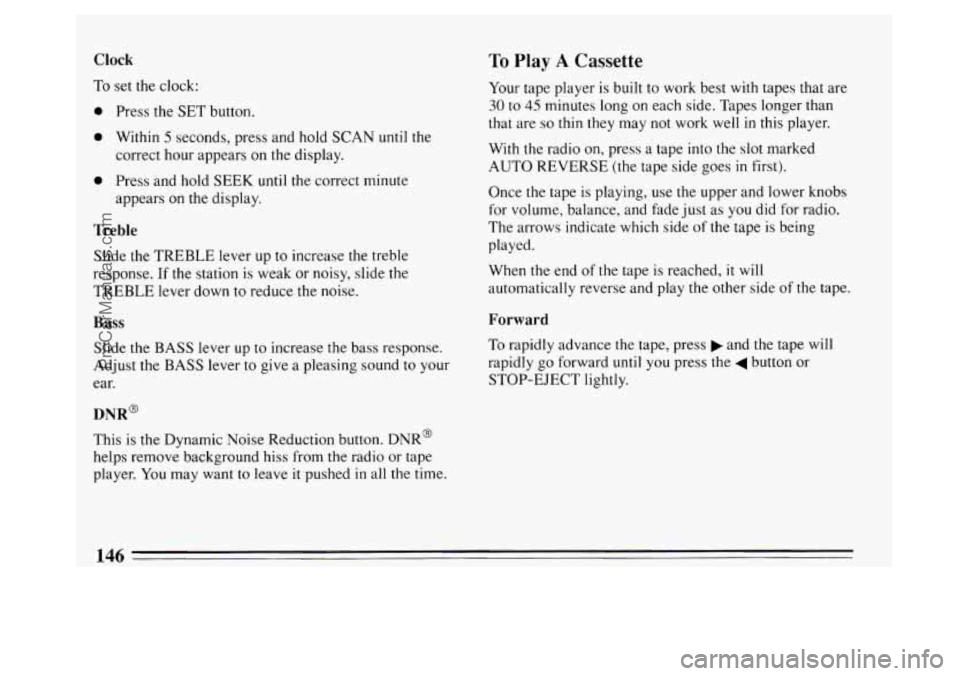

Clock To Play A Cassette
To set the clock:
0 Press the SET button.
0 Within 5 seconds, press and hold SCAN until the
correct hour appears on the display.
0 Press and hold SEEK until the correct minute
appears on the display.
Treble
Slide the TREBLE lever up to increase the treble
response.
If the station is weak or noisy, slide the
TREBLE lever down to reduce the noise.
Bass
Slide the BASS lever up to increase the bass response.
Adjust the BASS lever to give a pleasing sound to your
ear.
DNR@
This is the Dynamic Noise Reduction button. DNR@
helps remove background hiss from the radio or tape
player.
You may want to leave it pushed in all the time.
Your tape player is built to work best with tapes that are
30 to 45 minutes long on each side. Tapes longer than
that are
so thin they may not work well in this player.
With the radio on, press a tape into the slot marked
AUTO REVERSE (the tape side goes in first).
Once
the tape is playing, use the upper and lower knobs
for volume, balance, and fade just as you did for radio.
The arrows indicate which side
of the tape is being
played.
When the end
of the tape is reached, it will
automatically reverse and play the other side
of the tape.
Forward
To rapidly advance the tape, press and the tape will
rapidly
go forward until you press the 4 button or
STOP-EJECT lightly.
146
ProCarManuals.com

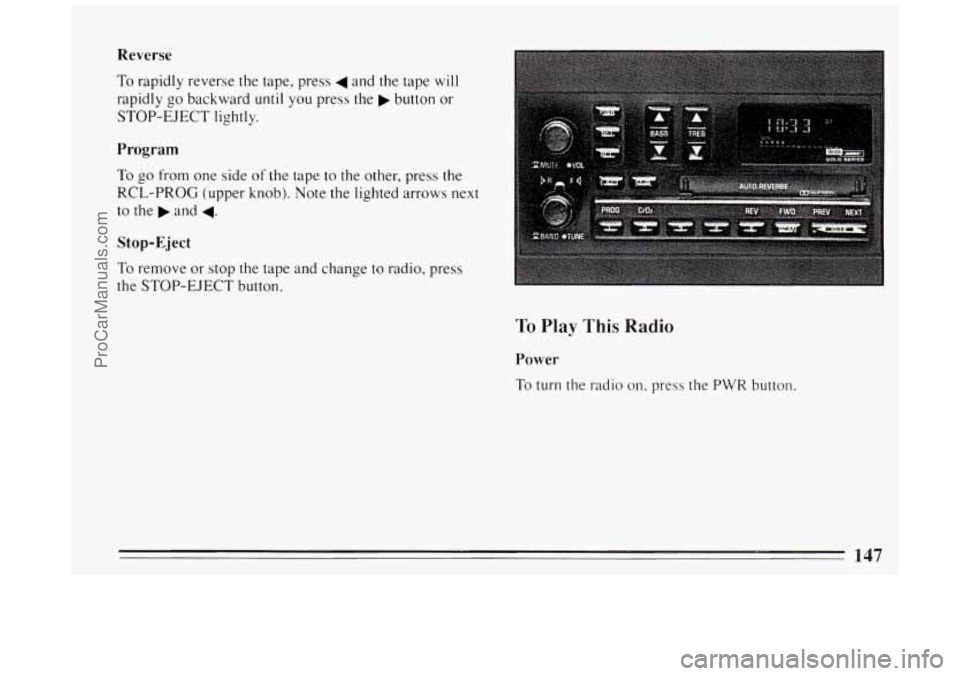

Reverse
To rapidly reverse the tape, press 4 and the tape will
rapidly go backward until you press the b button or
STOP-EJECT lightly.
Program
To go from one side of the tape to the other, press the
RCL-PROG (upper knob). Note the lighted arrows next
to the
b and 4.
Stop-Eject
To remove or stop the tape and change to radio, press
the STOP-EJECT button.
To Play This Radio
Power
To turn the radio on, press the PWR button.
ProCarManuals.com

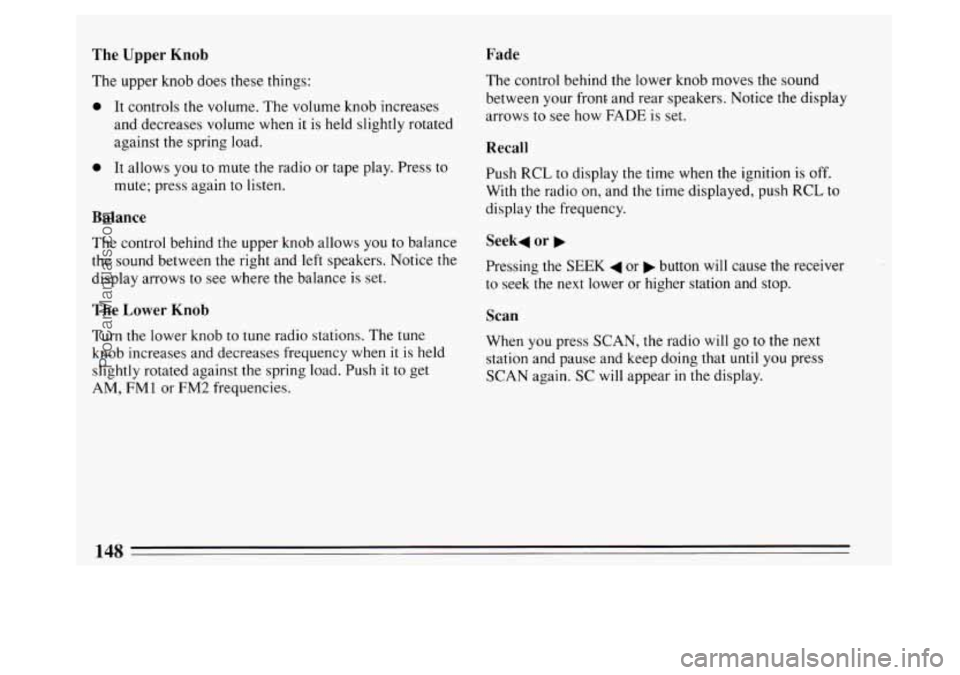

The Upper Knob
The upper knob does these things:
0 It controls the volume. The volume knob increases
and decreases volume when
it is held slightly rotated
against the spring load.
Fade
0 It allows you to mute the radio or tape play. Press to
mute; press again to listen.
Balance
The control behind the upper knob allows you to balance
the sound between the right and left speakers. Notice the
display arrows to see where the balance is set.
The Lower Knob
Turn the lower knob to tune radio stations. The tune
knob increases and decreases frequency when it
is held
slightly rotated against the spring load. Push it to get
AM,
FM 1 or FM2 frequencies. The control
behind the lower knob moves the sound
between your front and rear speakers. Notice the display
arrows to see how FADE is set.
Recall
Push RCL to display the time when the ignition is off.
With the radio on, and the time displayed, push RCL to
display the frequency.
Seek4 or b
Pressing the SEEK 4 or b button will cause the receiver
to seek the next lower or higher station and stop.
Scan
When you press SCAN, the radio will go to the next
station and pause and keep doing that
until you press
SCAN again. SC will appear in the display.
148
ProCarManuals.com
