Page 5 of 490

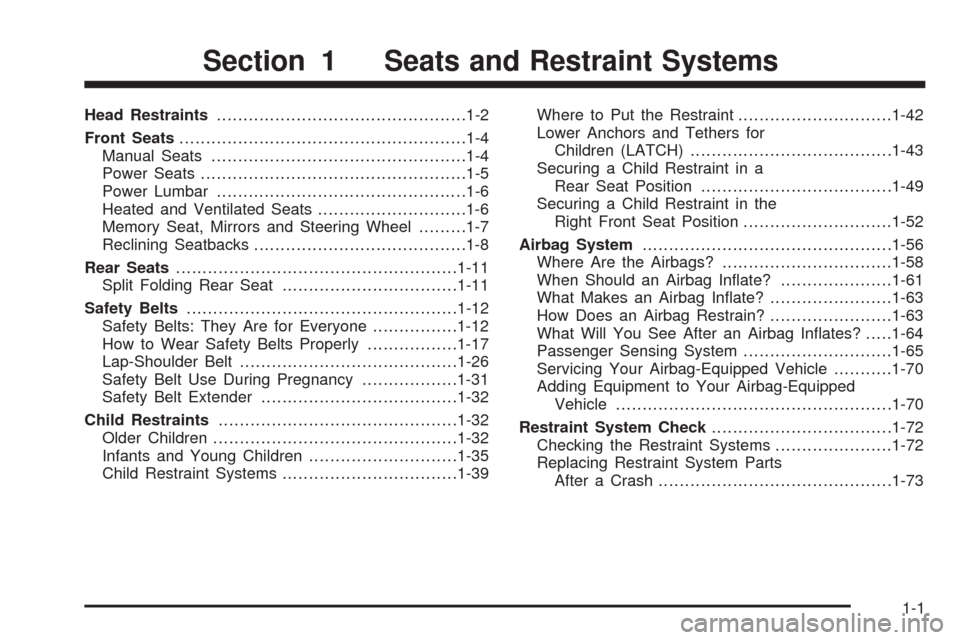

Head Restraints...............................................1-2
Front Seats......................................................1-4
Manual Seats................................................1-4
Power Seats..................................................1-5
Power Lumbar ...............................................1-6
Heated and Ventilated Seats............................1-6
Memory Seat, Mirrors and Steering Wheel.........1-7
Reclining Seatbacks........................................1-8
Rear Seats.....................................................1-11
Split Folding Rear Seat.................................1-11
Safety Belts...................................................1-12
Safety Belts: They Are for Everyone................1-12
How to Wear Safety Belts Properly.................1-17
Lap-Shoulder Belt.........................................1-26
Safety Belt Use During Pregnancy..................1-31
Safety Belt Extender.....................................1-32
Child Restraints.............................................1-32
Older Children..............................................1-32
Infants and Young Children............................1-35
Child Restraint Systems.................................1-39Where to Put the Restraint.............................1-42
Lower Anchors and Tethers for
Children (LATCH)......................................1-43
Securing a Child Restraint in a
Rear Seat Position....................................1-49
Securing a Child Restraint in the
Right Front Seat Position............................1-52
Airbag System...............................................1-56
Where Are the Airbags?................................1-58
When Should an Airbag In ate?.....................1-61
What Makes an Airbag In ate?.......................1-63
How Does an Airbag Restrain?.......................1-63
What Will You See After an Airbag In ates?.....1-64
Passenger Sensing System............................1-65
Servicing Your Airbag-Equipped Vehicle...........1-70
Adding Equipment to Your Airbag-Equipped
Vehicle...................................................
.1-70
Restraint System Check..................................1-72
Checking the Restraint Systems......................1-72
Replacing Restraint System Parts
After a Crash............................................1-73
Section 1 Seats and Restraint Systems
1-1
Page 11 of 490
Memory Seat, Mirrors and Steering
Wheel
On vehicles with the memory package the controls
are located on the driver door. This feature is used to
program and recall memory settings for the driver’s seat,
outside mirror, and the steering wheel position if the
vehicle has the power tilt wheel and telescopic steering
feature.
1:Saves the seating position for driver 1.
2:Saves the seating position for driver 2.
S:Recalls the easy exit position.
To save your positions in memory:
1. Adjust the driver’s seat, seatback recliner and
lumbar, both outside mirrors, and the steering
wheel to a comfortable position.
2. Press and hold button 1 until two beeps sound
through the driver’s side front speaker to let you
know that the position has been stored.
3. Repeat the procedure for a second driver using
button 2.To recall your memory positions, the vehicle must
be in PARK (P). Press and release either button 1 or
button 2. A single beep will sound. The seat, outside
mirrors, and steering wheel will move to the position
previously stored for the identi ed driver.
If you use the remote keyless entry transmitter to enter
your vehicle and the remote recall memory feature
is on, automatic seat and mirror movement occur.
On vehicles with the Keyless Access System, automatic
adjustment occurs when the driver door is opened.
See “MEMORY SEAT RECALL” underDIC Vehicle
Customization on page 3-69for more information.
To stop recall movement of the memory feature at any
time, press one of the power seat controls, memory
buttons, power tilt wheel control, or power mirror
buttons.
If something has blocked the driver’s seat or the
steering column while recalling a memory position, the
recall may stop. Remove the obstruction, then press the
appropriate control for the area that is not recalling for
two seconds. Try recalling the memory position again by
pressing the appropriate memory button. If the memory
position is still not recalling, see your dealer for service.
1-7
Page 12 of 490
Easy Exit Recall
S
:With the vehicle in PARK (P), press the exit button
to recall the exit position.
A single beep sounds. The driver’s seat moves back,
and if the vehicle has the power tilt wheel and telescopic
steering feature, it moves up and forward.
If the easy exit seat feature is on in the DIC, automatic
seat and power telescopic steering column movement
occurs when the key is removed from the ignition.
On vehicles with the Keyless Access System, automatic
adjustment occurs when the ignition is turned to OFF
or ACC/ACCESSORY and the driver door is opened.
See “EASY EXIT RECALL” underDIC Vehicle
Customization on page 3-69for more information.
For more programming information, seeDIC Vehicle
Customization on page 3-69.
Reclining Seatbacks
Manual Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
1-8
Page 60 of 490

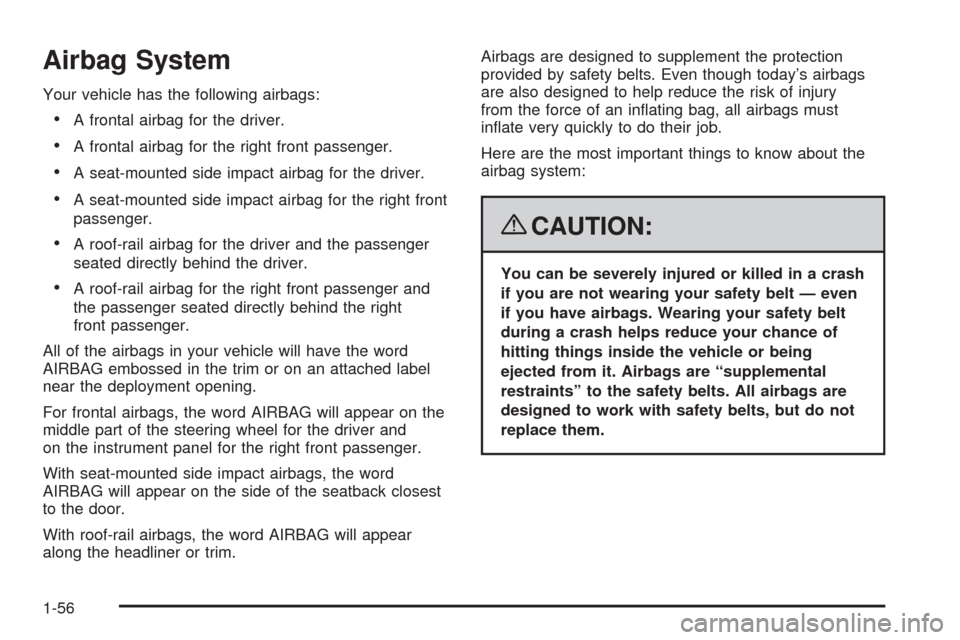

Airbag System
Your vehicle has the following airbags:
A frontal airbag for the driver.
A frontal airbag for the right front passenger.
A seat-mounted side impact airbag for the driver.
A seat-mounted side impact airbag for the right front
passenger.
A roof-rail airbag for the driver and the passenger
seated directly behind the driver.
A roof-rail airbag for the right front passenger and
the passenger seated directly behind the right
front passenger.
All of the airbags in your vehicle will have the word
AIRBAG embossed in the trim or on an attached label
near the deployment opening.
For frontal airbags, the word AIRBAG will appear on the
middle part of the steering wheel for the driver and
on the instrument panel for the right front passenger.
With seat-mounted side impact airbags, the word
AIRBAG will appear on the side of the seatback closest
to the door.
With roof-rail airbags, the word AIRBAG will appear
along the headliner or trim.Airbags are designed to supplement the protection
provided by safety belts. Even though today’s airbags
are also designed to help reduce the risk of injury
from the force of an in ating bag, all airbags must
in ate very quickly to do their job.
Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash
if you are not wearing your safety belt — even
if you have airbags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being
ejected from it. Airbags are “supplemental
restraints” to the safety belts. All airbags are
designed to work with safety belts, but do not
replace them.
1-56
Page 62 of 490
{CAUTION:
Airbags plus lap-shoulder belts offer the best
protection for adults, but not for young children
and infants. Neither the vehicle’s safety belt
system nor its airbag system is designed for
them. Young children and infants need the
protection that a child restraint system can
provide. Always secure children properly in
your vehicle. To read how, seeOlder Children
on page 1-32orInfants and Young Children on
page 1-35.
There is an airbag
readiness light on the
instrument panel cluster,
which shows the airbag
symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-34
for more information.
Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.
1-58
Page 64 of 490

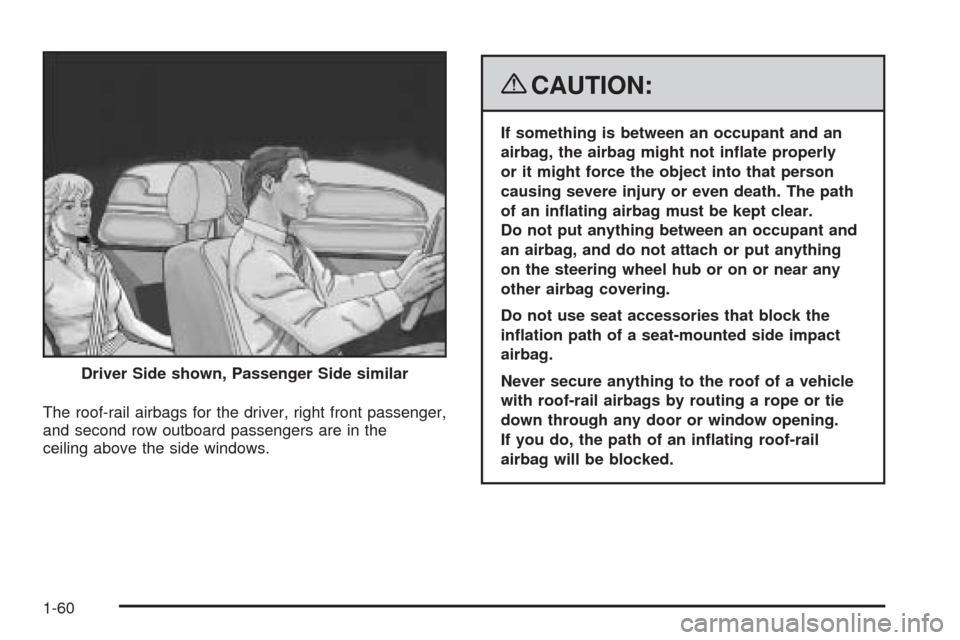

The roof-rail airbags for the driver, right front passenger,
and second row outboard passengers are in the
ceiling above the side windows.
{CAUTION:
If something is between an occupant and an
airbag, the airbag might not in ate properly
or it might force the object into that person
causing severe injury or even death. The path
of an in ating airbag must be kept clear.
Do not put anything between an occupant and
an airbag, and do not attach or put anything
on the steering wheel hub or on or near any
other airbag covering.
Do not use seat accessories that block the
in ation path of a seat-mounted side impact
airbag.
Never secure anything to the roof of a vehicle
with roof-rail airbags by routing a rope or tie
down through any door or window opening.
If you do, the path of an in ating roof-rail
airbag will be blocked. Driver Side shown, Passenger Side similar
1-60
Page 67 of 490

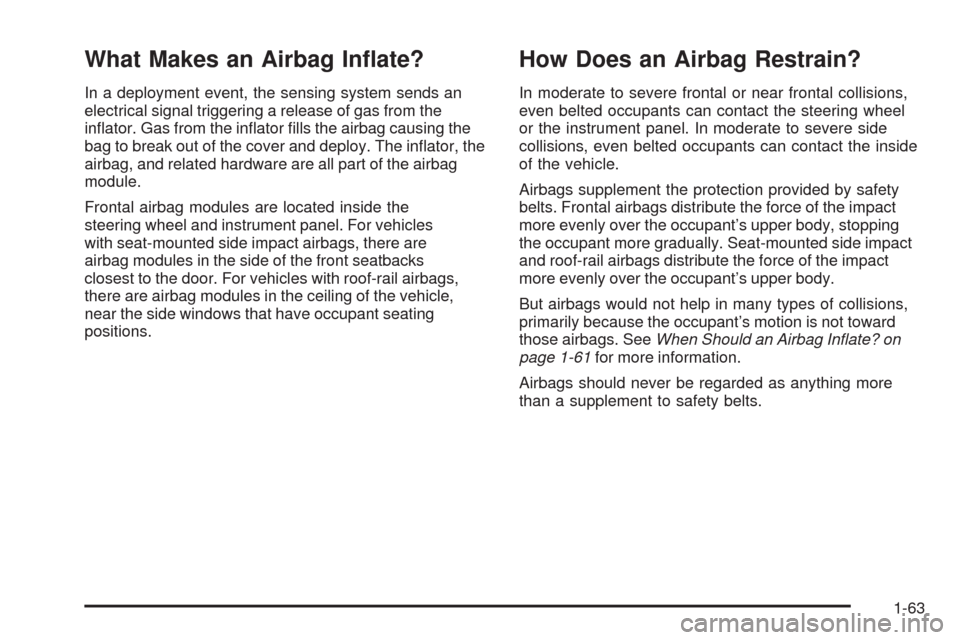

What Makes an Airbag In ate?
In a deployment event, the sensing system sends an
electrical signal triggering a release of gas from the
in ator. Gas from the in ator lls the airbag causing the
bag to break out of the cover and deploy. The in ator, the
airbag, and related hardware are all part of the airbag
module.
Frontal airbag modules are located inside the
steering wheel and instrument panel. For vehicles
with seat-mounted side impact airbags, there are
airbag modules in the side of the front seatbacks
closest to the door. For vehicles with roof-rail airbags,
there are airbag modules in the ceiling of the vehicle,
near the side windows that have occupant seating
positions.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel
or the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle.
Airbags supplement the protection provided by safety
belts. Frontal airbags distribute the force of the impact
more evenly over the occupant’s upper body, stopping
the occupant more gradually. Seat-mounted side impact
and roof-rail airbags distribute the force of the impact
more evenly over the occupant’s upper body.
But airbags would not help in many types of collisions,
primarily because the occupant’s motion is not toward
those airbags. SeeWhen Should an Airbag Inflate? on
page 1-61for more information.
Airbags should never be regarded as anything more
than a supplement to safety belts.
1-63
Page 74 of 490

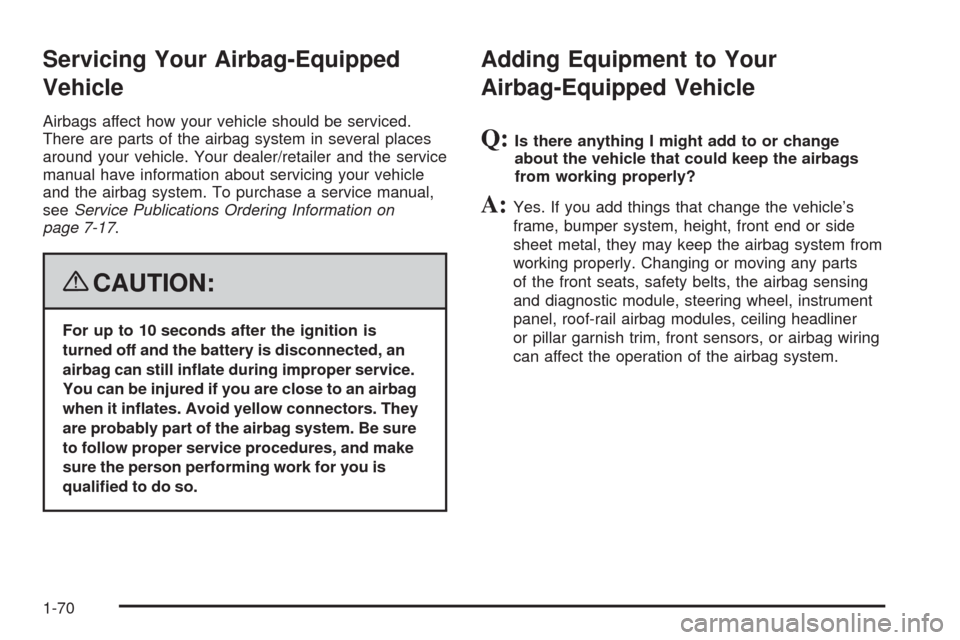

Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be serviced.
There are parts of the airbag system in several places
around your vehicle. Your dealer/retailer and the service
manual have information about servicing your vehicle
and the airbag system. To purchase a service manual,
seeService Publications Ordering Information on
page 7-17.
{CAUTION:
For up to 10 seconds after the ignition is
turned off and the battery is disconnected, an
airbag can still in ate during improper service.
You can be injured if you are close to an airbag
when it in ates. Avoid yellow connectors. They
are probably part of the airbag system. Be sure
to follow proper service procedures, and make
sure the person performing work for you is
quali ed to do so.
Adding Equipment to Your
Airbag-Equipped Vehicle
Q:Is there anything I might add to or change
about the vehicle that could keep the airbags
from working properly?
A:Yes. If you add things that change the vehicle’s
frame, bumper system, height, front end or side
sheet metal, they may keep the airbag system from
working properly. Changing or moving any parts
of the front seats, safety belts, the airbag sensing
and diagnostic module, steering wheel, instrument
panel, roof-rail airbag modules, ceiling headliner
or pillar garnish trim, front sensors, or airbag wiring
can affect the operation of the airbag system.
1-70
Page 89 of 490
Your vehicle comes with
two transmitters.
Q(Lock):Press to lock the doors. The turn signal
indicators will ash. If
Qis pressed twice, the doors
will lock, the turn signal indicators will ash twice,
and the horn will sound once.
You can program your vehicle so the turn signal
indicators will not ash and the horn will not sound
when pressing
Qon the keyless access transmitter.
For more information see″Remote Door Lock″under
DIC Vehicle Customization on page 3-69.
"(Unlock):Press once to unlock the driver’s door.
The turn signal indicators will ash twice.
Press
"twice within ve seconds to unlock all the
doors. If it is dark enough outside, your interior lamps
will come on.
You can program your vehicle so the turn signal
indicators will not ash and the fog lamps and reverse
lamps remain on steady for about 20 seconds when
the keyless access transmitter is used to unlock the
vehicle. See″Remote Door Unlock″underDIC Vehicle
Customization on page 3-69.
If your vehicle has the memory feature you can program
and recall memory settings when you press
"on the
keyless access transmitter. SeeMemory Seat, Mirrors
and Steering Wheel on page 1-7for more information.
/(Remote Start):If your vehicle has this feature,
press
/after pressingQto operate the remote start
feature. SeeRemote Vehicle Start on page 2-16
for additional information. With Remote Start
Shown, Without Similar
2-11
Page 111 of 490
Notice:Using a tool to force the key from its
cylinder could cause damage or break the key.
Use the correct key and turn the key only with
your hand. Make sure the key is all the way in. If it
is and you have a manual transmission vehicle, turn
the steering wheel left and right while you turn
the key hard. If none of this works, then your vehicle
needs service.
A (LOCK/OFF):This is the only position in which the
key can be inserted or removed. This position locks the
ignition and shifter on automatic transmission vehicles,
and the ignition and steering wheel on manual
transmission vehicles.
B (ACC/ACCESSORY):This position lets you use
things like the radio and the windshield wipers when
the engine is off. This position allows you to turn off
the engine.
C (ON/RUN):This position is for driving. It is the
position the ignition switch returns to after the engine
starts, and the key is released.To shift the transmission out of PARK (P), the ignition
key has to be in ACC/ACCESSORY or ON/RUN.
The battery could be drained if the key is left in the
ACC/ACCESSORY or ON/RUN position with the engine
off. The vehicle might not start if the battery is allowed
to drain for an extended period of time.
D (START):This position starts the engine.
Key In the Ignition
Never leave your vehicle with the keys inside, as it is
an easy target for joy riders or thieves. A chime sounds
when the driver’s door is opened while the vehicle is
parked and the key is left in the ignition. Always
remember to remove the key from the ignition and take
it with you. This will lock the ignition and transmission.
Also, always remember to lock the doors.
The battery could be drained if the key is left in the
ignition while your vehicle is parked. The vehicle might
not start after it has been parked for an extended
period of time.
2-33
