Bulb Replacement
For the proper type of replacement bulb, see
ªReplacement Bulbsº in the Index.
For any bulb changing procedure not listed in this
section, contact your dealer's service department.
Halogen Bulbs
CAUTION:
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.

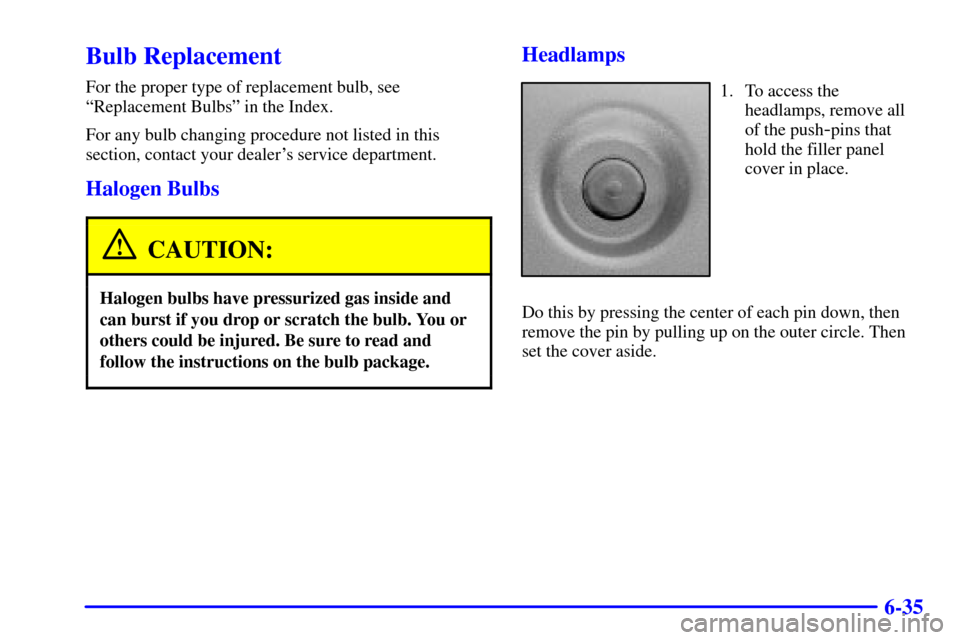

Headlamps
1. To access the
headlamps, remove all
of the push
-pins that
hold the filler panel
cover in place.
Do this by pressing the center of each pin down, then
remove the pin by pulling up on the outer circle. Then
set the cover aside.

6-36

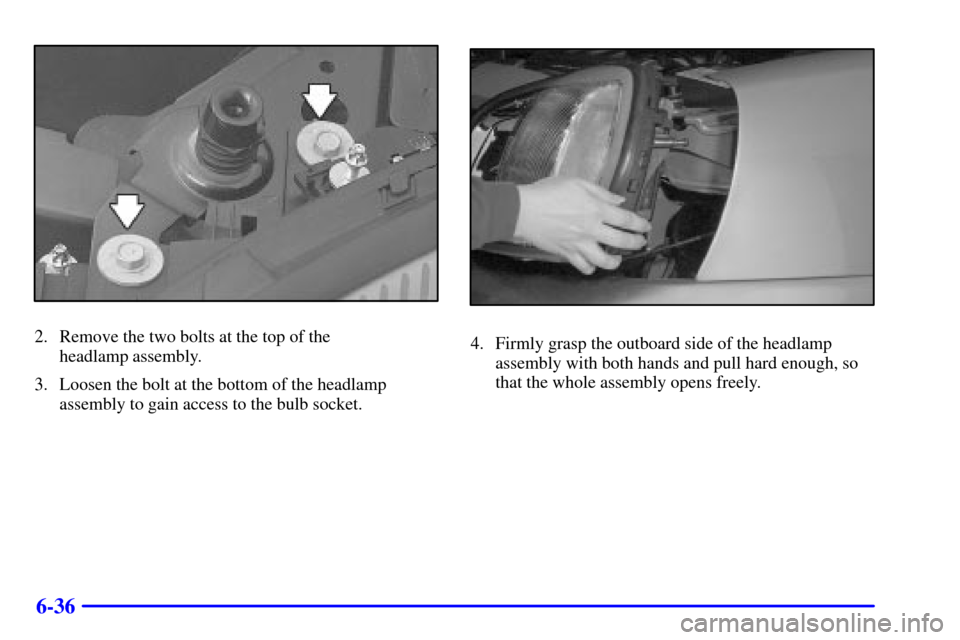

2. Remove the two bolts at the top of the
headlamp assembly.
3. Loosen the bolt at the bottom of the headlamp
assembly to gain access to the bulb socket.4. Firmly grasp the outboard side of the headlamp
assembly with both hands and pull hard enough, so
that the whole assembly opens freely.

6-37

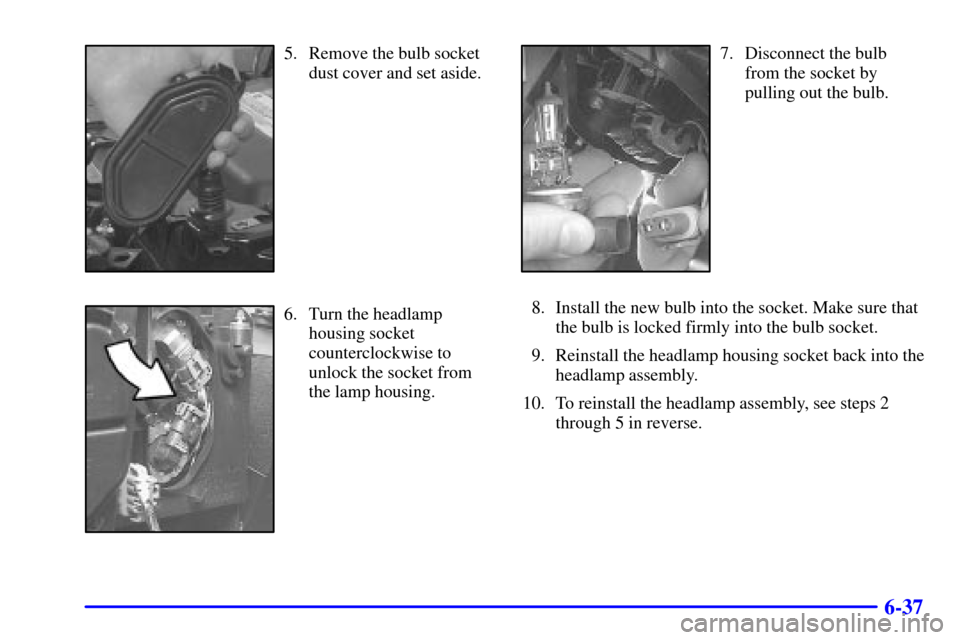

5. Remove the bulb socket
dust cover and set aside.
6. Turn the headlamp
housing socket
counterclockwise to
unlock the socket from
the lamp housing.
7. Disconnect the bulb
from the socket by
pulling out the bulb.
8. Install the new bulb into the socket. Make sure that
the bulb is locked firmly into the bulb socket.
9. Reinstall the headlamp housing socket back into the
headlamp assembly.
10. To reinstall the headlamp assembly, see steps 2
through 5 in reverse.

6-38
To reinstall the filler panel:
1. Place the filler panel in the correct location.
2. Reset each push
-pin by holding each by the outer
circle while pushing up on the pin assembly from
below. The center portion of the push
-pin should
now be above the outer circle.
3. After placing each push
-pin into the opening, press
down on the outer circle until it is seated against the
surface of the filler panel.
4. Lock each push
-pin in place by pressing the center
of each down until they are level with the outer
circles. Use care not to press down so far that the
push
-pin releases again.Headlamp AimingYour vehicle has a visual optical headlamp aiming
system equipped with horizontal aim indicators. The
aim has been pre
-set at the factory and should need
no further adjustment. This is true even though your
horizontal aim indicators may not fall exactly on
the ª0º (zero) marks on their scales.

6-39
If your vehicle is damaged in an accident, the headlamp
aim may be affected. Aim adjustment to the low beam
may be necessary if it is difficult to see lane markers
(for horizontal aim), or if oncoming drivers flash their
high beams at you (for vertical aim). If you believe your
headlamps need to be re
-aimed, we recommend that you
take your vehicle to your dealer for service. However, it
is possible for you to re
-aim your headlamps as
described in the following procedure.
NOTICE:
To make sure your headlamps are aimed
properly, read all the instructions before
beginning. Failure to follow these instructions
could cause damage to headlamp parts.
The vehicle should be properly prepared as follows:

The vehicle should be placed so the headlamps
are 25 ft. (7.6 m) from a light colored wall or other
flat surface.
The vehicle must have all four tires on a perfectly
level surface which is level all the way to the wall or
other flat surface.

The vehicle should be placed so it is perpendicular to
the wall or other flat surface.

The vehicle should not have any snow, ice or mud
attached to it.

The vehicle should be fully assembled and all other
work stopped while headlamp aiming is being done.

Allow the headlamps to warm up for one to
two minutes before beginning.

Tires should be properly inflated.

Start the vehicle to level the suspension.
Headlamp aiming is done with the vehicle low beam
lamps. The high beam lamps will be correctly aimed if
the low beam lamps are aimed properly.
The headlamp aiming devices are under the hood near
the headlamps.

6-40
If you believe your headlamps need horizontal
(left/right) adjustment, follow the horizontal aiming
procedure. If you believe your headlamps need only
vertical (up/down) adjustment, follow only the vertical
aiming procedure.
Adjustment screws can be turned with an E8 Torx


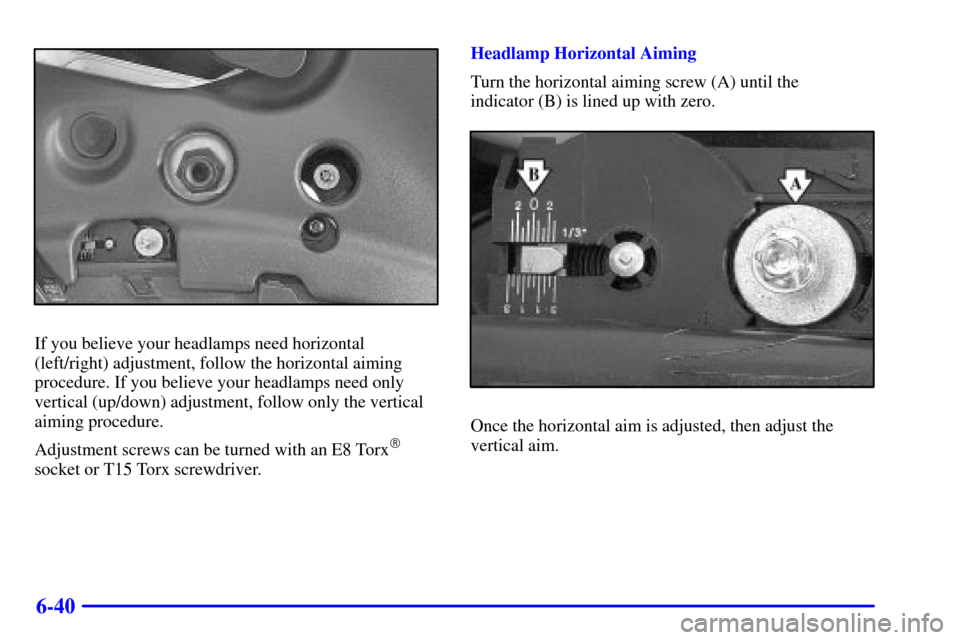

socket or T15 Torx screwdriver.Headlamp Horizontal Aiming
Turn the horizontal aiming screw (A) until the
indicator (B) is lined up with zero.
Once the horizontal aim is adjusted, then adjust the
vertical aim.

6-41
Headlamp Vertical Aiming
1. Find the aim dot on the lens of the lamps.
2. Measure the distance from the ground to the aim dot
on each lamp; if left low beam, subtract two inches.
Record this distance.3. At the wall or other flat surface, measure from the
floor to the recorded distance and draw a horizontal
line the width of the vehicle.

6-42
4. Turn on the low beam headlamps and cover the lamp
not being evaluated. The ambient light should allow

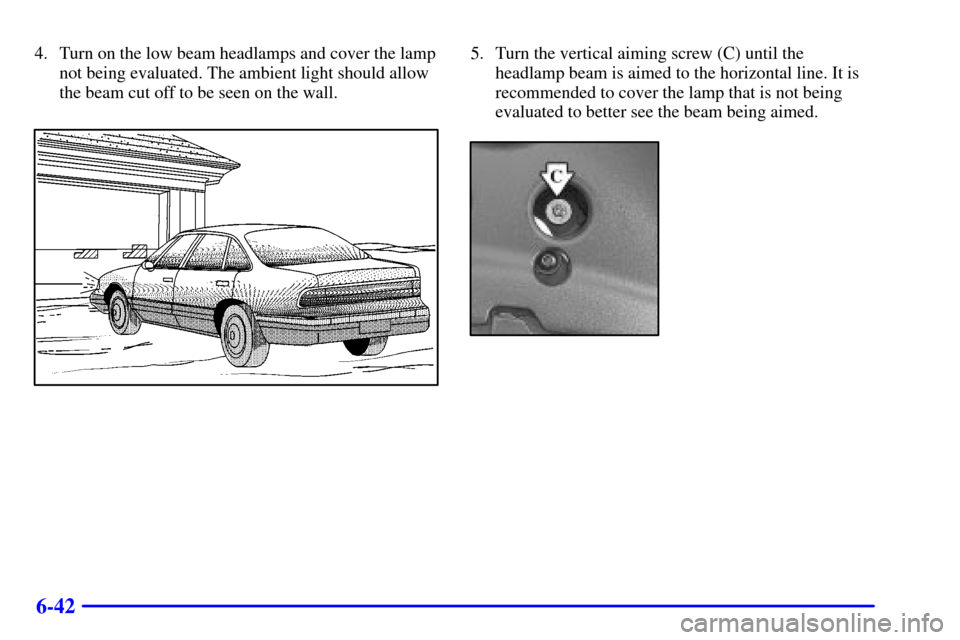

the beam cut off to be seen on the wall.5. Turn the vertical aiming screw (C) until the
headlamp beam is aimed to the horizontal line. It is
recommended to cover the lamp that is not being
evaluated to better see the beam being aimed.

6-43 Front Cornering Lamps
1. Follow Steps 1 through 5 in ªHeadlampsº
described previously.
2. Disconnect the cornering lamp bulb by pulling the
bulb out of the socket. Do not twist or turn the bulb.
3. Replace cornering lamp bulb by pushing the bulb
directly into the socket.
4. Reinstall the cornering lamp housing socket back
into the headlamp assembly.
5. To reinstall headlamp assembly, see Steps 1 through
5 in reverse in ªHeadlampsºdescribed previously.
Front Turn Signal Lamps
1. The turn signal lamps are located beside the
headlamps. To access, lift off the bulb socket dust
cover. (See Step 1 under ªHeadlamps.º)
2. Press the tab down and turn the housing socket
clockwise to unlock the socket from the
lamp housing.

6-52 Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced
carefully at the factory to give you the longest tire life
and best overall performance.
Scheduled wheel alignment and wheel balancing are not
needed. However, if you notice unusual tire wear or
your vehicle pulling one way or the other, the alignment
may need to be reset. If you notice your vehicle
vibrating when driving on a smooth road, your wheels
may need to be rebalanced.
Wheel Replacement
Replace any wheel that is bent, cracked, or badly rusted
or corroded. If wheel nuts keep coming loose, the wheel,
wheel bolts and wheel nuts should be replaced. If the
wheel leaks air, replace it (except some aluminum
wheels, which can sometimes be repaired). See your
dealer if any of these conditions exist.
Your dealer will know the kind of wheel you need.
Each new wheel should have the same load
-carrying
capacity, diameter, width, offset and be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts and wheel nuts for your vehicle.
CAUTION:
Using the wrong replacement wheels, wheel bolts
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and handling of your
vehicle, make your tires lose air and make you
lose control. You could have a collision in which
you or others could be injured. Always use the
correct wheel, wheel bolts and wheel nuts
for replacement.
NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire or tire
chain clearance to the body and chassis.
See ªChanging a Flat Tireº in the Index for
more information.
