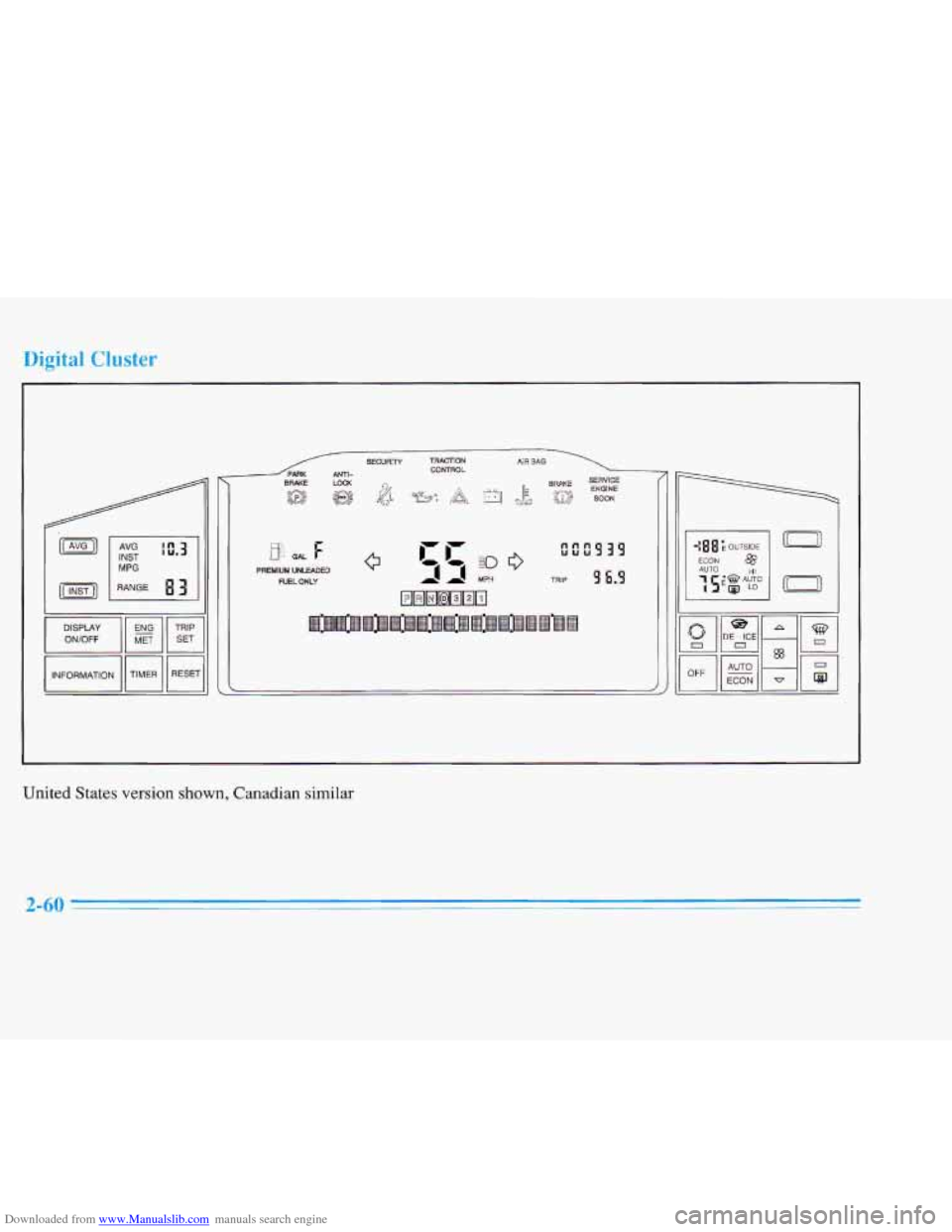

CADILLAC ELDORADO 1996 10.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Digital Cluster
I I MPG PREMIUM UNLEADED NELWLY
United States version shown, Canadian
similar
2-60

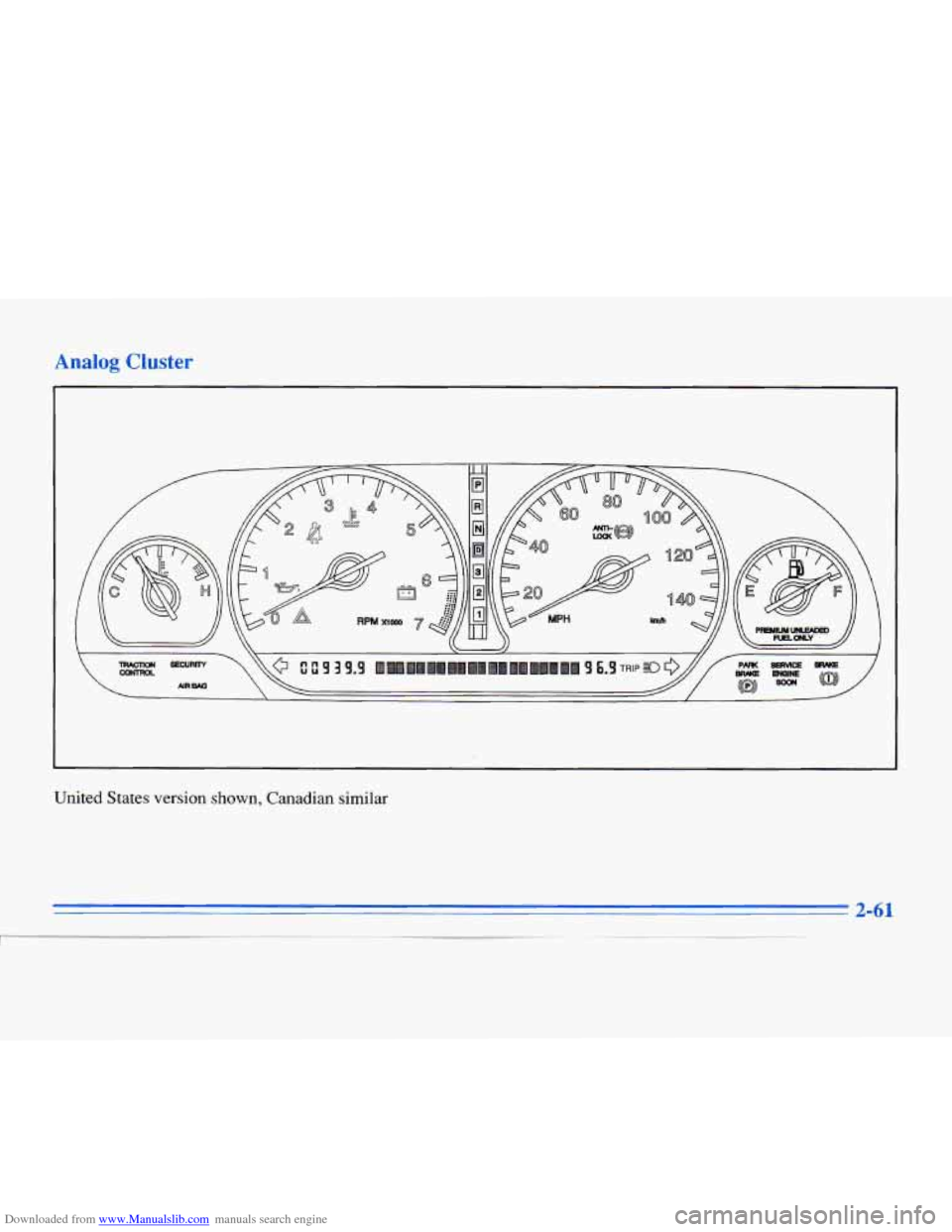

Downloaded from www.Manualslib.com manuals search engine inalog Cluster
I
United States version shown, Canadian similar

Downloaded from www.Manualslib.com manuals search engine i

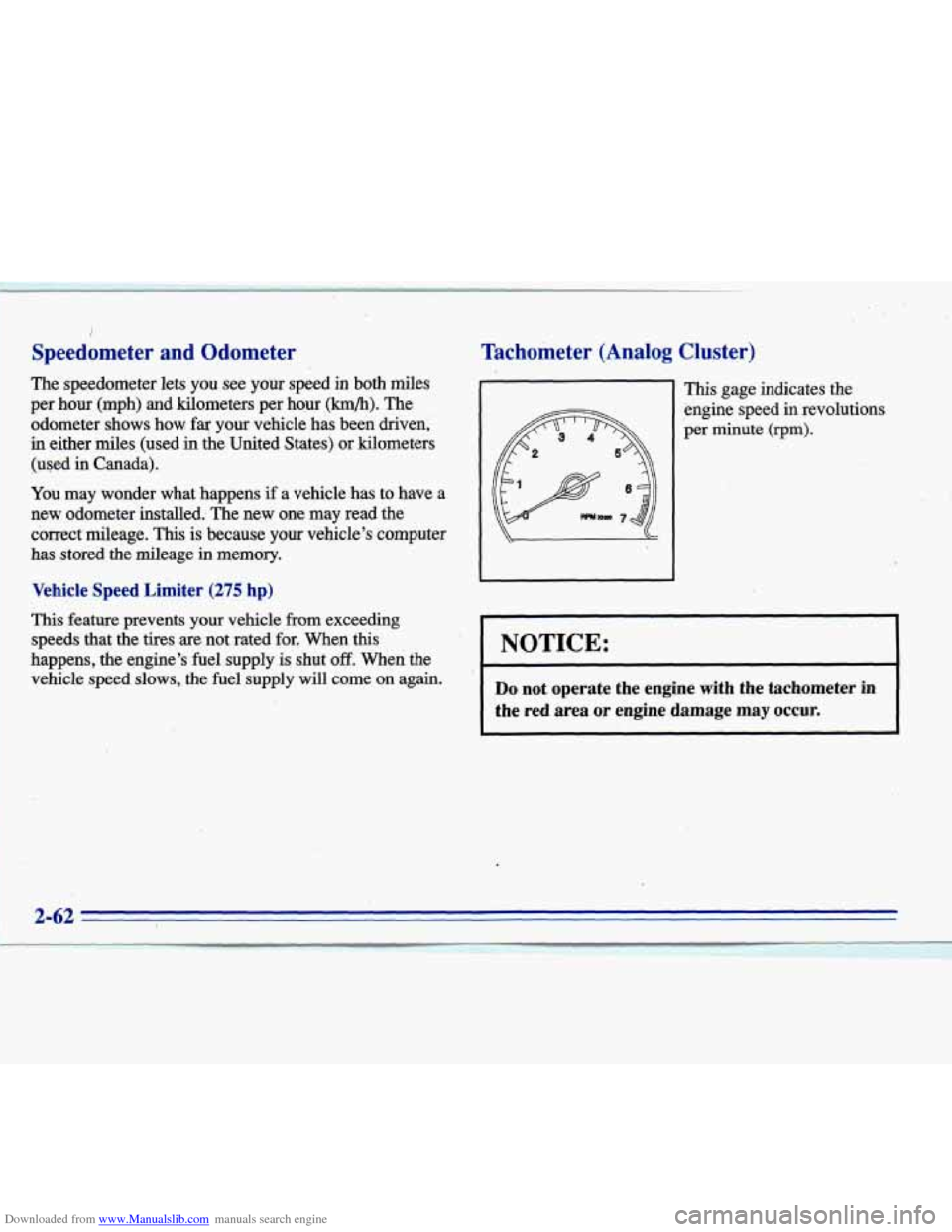

Speedometer and Odometer
.- The speedometer lets you see your speed in both miles
per hour (mph) and kilometers per hour
(km/h). The
odometer shows
how far; your vehicle has been driven,
in either miles (used
in the United States) or kilometers
@Sed
in Canada).
You may wonder what happens if a vehicle has to have a
new odometer installed. The new one may read the
correct mileage.
This is because your vehicle's computer
. has stored the mileage in memory.
Vehicle Speed Limiter (275 hp)
This feature prevents your vehicle from exceeding
speeds that the tires are not rated for. When this
whicle speed slows,
the fuel supply will come on again.
' happens, the engine's fuel supply is shut off. When the
Tachometer (Analog Cluster)
This gage indicates the
engine speed
in revolutions
per minute
(rpm).
I NOTICE:
~~ ~~
Do not operate the engine with the tachometer in
the
red area or engine damage may occur.

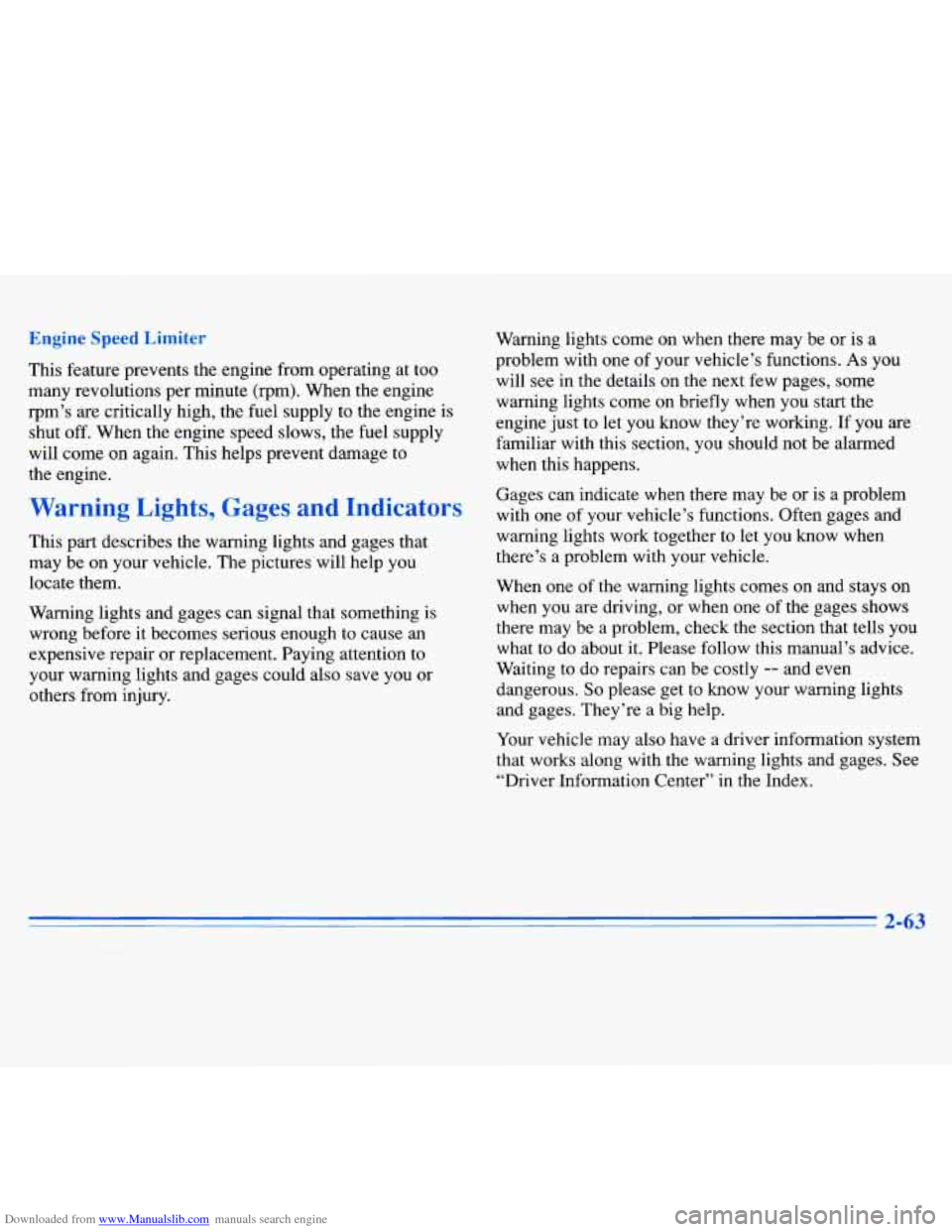

Downloaded from www.Manualslib.com manuals search engine Engine Speed Limiter
This feature prevents the engine from operating at too
many revolutions per minute (rpm). When the engine
rpm’s are critically high, the fuel supply to the engine is
shut
off. When the engine speed slows, the fuel supply
will
come on again. This helps prevent damage to
the engine.
Warning Lights, Gages and Indicators
This part describes the warning lights and gages that
may
be on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause an
expensive repair or replacement. Paying attention to
your warning lights and gages could also save you or
others from injury. Warning
lights come on when there may be or is
a
problem with one of your vehicle’s functions. As you
will see in the details on the next few pages, some
warning lights come on briefly when you start the
engine just to let you know they’re working.
If you are
familiar with this section, you should not be alarmed
when this happens.
Gages can indicate when there may be or is a problem
with one of your vehicle’s functions. Often gages and
warning lights work together to let you know when
there’s a problem with your vehicle.
When one
of the warning lights comes on and stays on
when you are driving, or when one of the gages shows
there may be a problem, check the section that tells you
what to do about it. Please follow this manual’s advice.
Waiting to do repairs can be costly
-- and even
dangerous.
So please get to know your warning lights
and gages. They’re a big help.
Your vehicle may also have a driver information system
that works along with the warning lights and gages. See
“Driver Information Center’’ in the Index.
2-63

Downloaded from www.Manualslib.com manuals search engine Safety Belt Reminder Light
When the key is turned to RUN or START, a chime will
come on for about eight seconds to remind people to
fasten their safety belts, unless the driver’s safety belt is
already buckled.
The safety belt light will
also come on and stay
on
for about 20 seconds, then it
will flash for about 70
seconds. If the driver‘s belt
is already buckled, neither
the chime nor the light will
come
on.
Air Bag Readiness Light
There is an air bag readiness light on the instrument
panel, which shows AIR BAG. The system checks the
air bag’s electrical system for malfunctions. The light
tells you
if there is an electrical problem. The system
check includes the air bag sensors, the air bag modules,
the wiring and the crash sensing and diagnostic module.
For more information on the air bag system, see “Air
Bag”
in the Index.
AIR BAG
You will see this light flash
for a few seconds when you
turn your ignition to RUN
or START. Then the light
should
go out. This means
the system is ready.
If the air bag readiness light doesn’t come on when you
start your vehicle, or stays on, or comes
on when you
are driving, your air bag system may not
work properly.
Have your vehicle serviced right away.
2-64

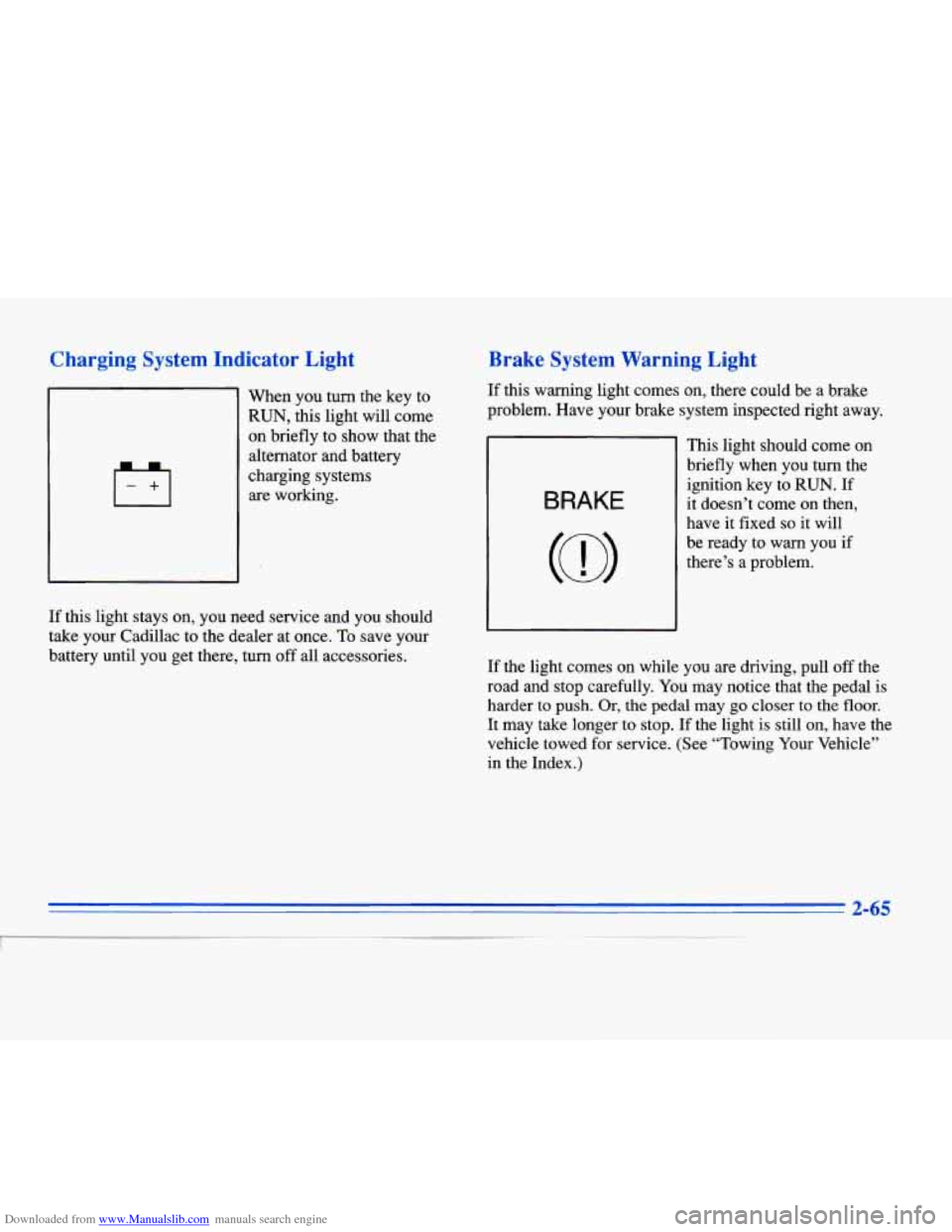

Downloaded from www.Manualslib.com manuals search engine Charging System Indicator Light
When you turn the key to
RUN, this light will come
on briefly to show that the
alternator and battery
charging systems are working.
Brake System Warning Light
If this warning light comes on, there could be a brake
problem. Have your brake system inspected right away.
BRAKE
This light should come on
briefly when you turn the
ignition key to
RUN. If
it doesn’t come on then,
have it fixed
so it will
be ready to warn you if
there’s a problem.
If this light stays on, you need service and you should
take your Cadillac to the dealer at once. To save your
battery until you get there, turn
off all accessories.
If the light comes on while you are driving, pull off the
road and stop carefully.
You may notice that the pedal is
harder
to push. Or, the pedal may go closer to the floor.
It may take longer to stop. If the light is still on, have the
vehicle towed for service. (See “Towing Your Vehicle”
in the Index.)
2-65

Downloaded from www.Manualslib.com manuals search engine t
A CAUTION:
Your brake system may not be working.properly
'if the brake system warning light is on. Driving
with the brake system warning light on can lead
to an accident. If the light is still on after you've
pulled
off the road and stopped carefully, have
the vehicle towed for service.
1
When the ignition is on, the brake-system warning light
will
also come on when you set your parking brake. The
light will. stay
on if your parking brake doesn't release
fully.
If it stays on after your parking brake is fully
released,
it means you have a brake problem.
Parking Brake Indicator Light
PARK
BRAKE
This light come's on when
the parking brake is set, and
it will stay on if the parking
brake does not
fully release. ,.
If you try to drive off with
the parking brake set, this
light
will remain on.
This light should also come on briefly as you start the
vehicle. If it doesn't, have the light fiied so it will be
ready to remind you if the parking brake has not fwlly
released. For more information on how to release
the parking brake, see "Parking
Brake" earlier in
this section.
2-66

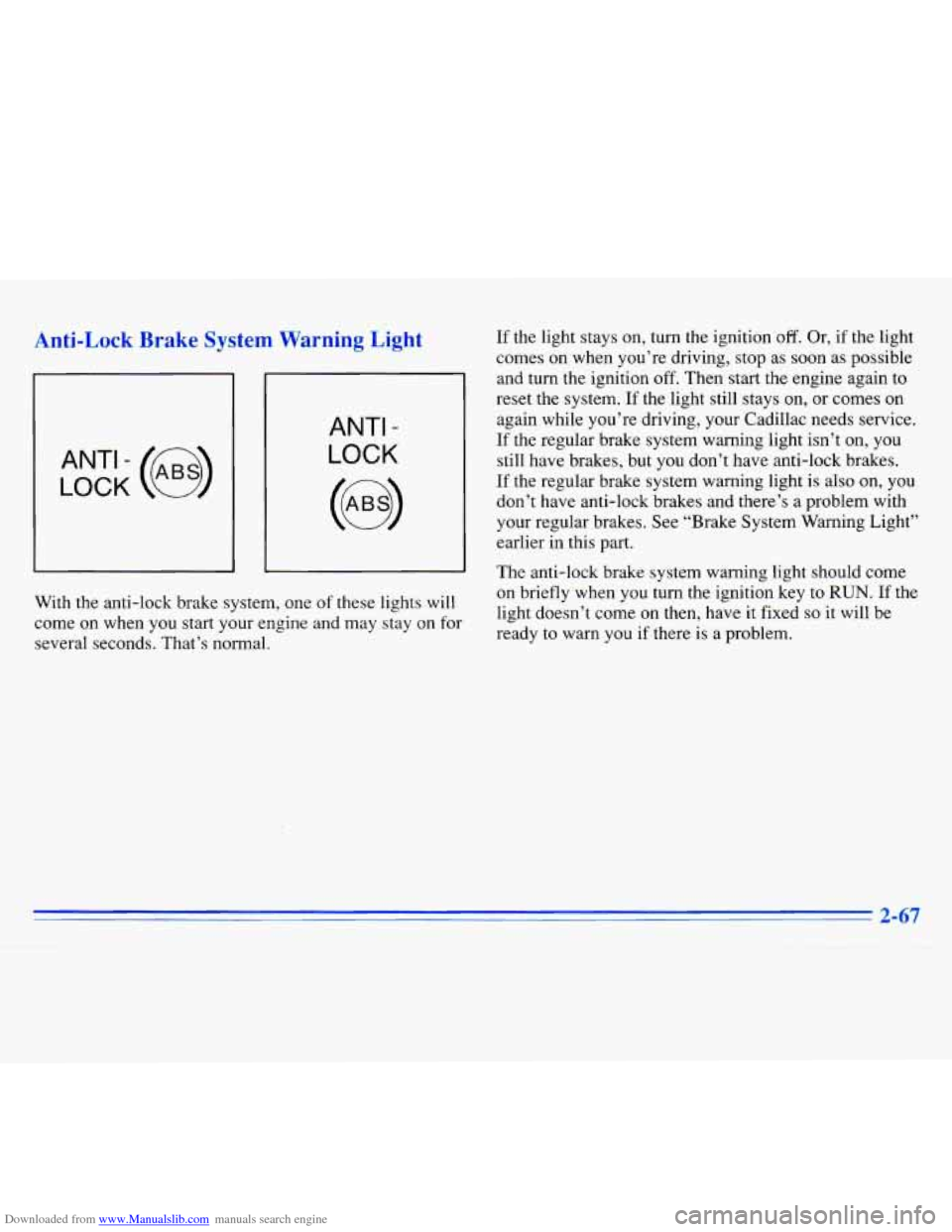

Downloaded from www.Manualslib.com manuals search engine Anti-Lock Brake System Warning Light
LOCK
ANT‘- (@)
ANTI -
LOCK
With the anti-lock brake system, one of these lights will
come on when you start your engine and may stay on for
several seconds. That’s normal. If
the light stays on, turn the ignition
off. Or, if the light
comes on when you’re driving, stop as soon as possible
and turn the ignition off. Then start the engine again to
reset the system.
If the light still stays on, or comes on
again while you’re driving, your Cadillac needs service.
If the regular brake system warning light isn’t on, you
still have brakes, but you don’t have anti-lock brakes.
If the regular brake system warning light is also on, you
don’t have anti-lock brakes and there’s a problem with
your regular brakes. See “Brake System Warning Light’’
earlier in this part.
The anti-lock brake system warning light should come
on briefly when
you turn the ignition key to RUN. If the
light doesn’t come on then, have it fixed
so it will be
ready to warn you if there
is a problem.
2-67
~

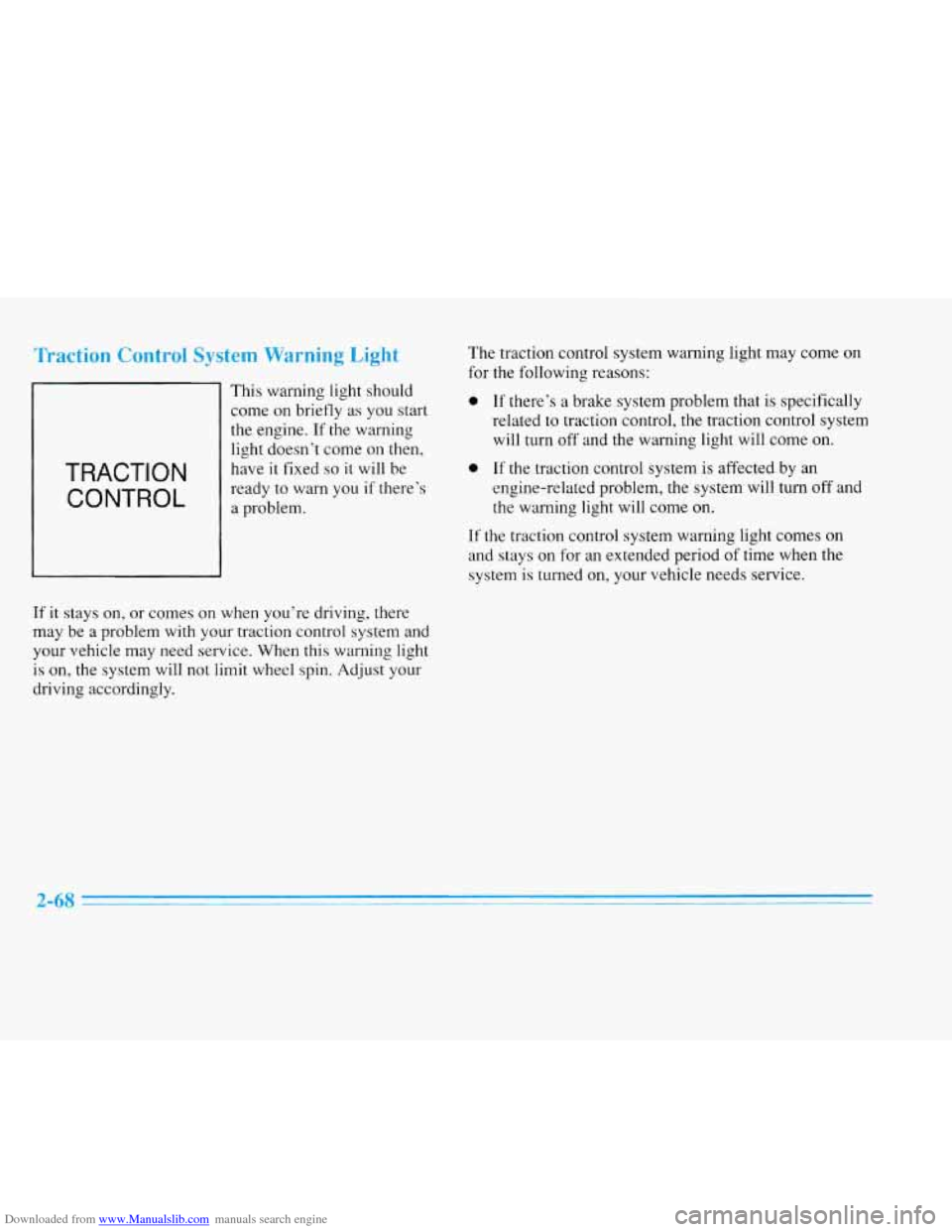

Downloaded from www.Manualslib.com manuals search engine Traction Control System Warning Light
TRACTION
CONTROL
This warning light should
come on briefly as you start
the engine.
If the warning
light doesn’t come on then,
have
it fixed so it will be
ready to warn you
if there’s
a problem.
If it stays on, or comes on when you’re driving, there
may be a problem with your traction control system and
your vehicle may need service. When this warning light
is on, the system will not limit wheel spin. Adjust your
driving accordingly. The
traction control system warning light may come
on
for the following reasons:
0 If’ there’s a brake system problem that is specifically
related to traction control, the traction control system
will turn off and the warning light will come
on.
0 If the traction control system is affected by an
engine-related problem, the system will
turn off and
the warning light will come on.
If the traction control system warning light comes on
and stays on
for an extended period of time when the
system is turned on, your vehicle needs service.
2-68

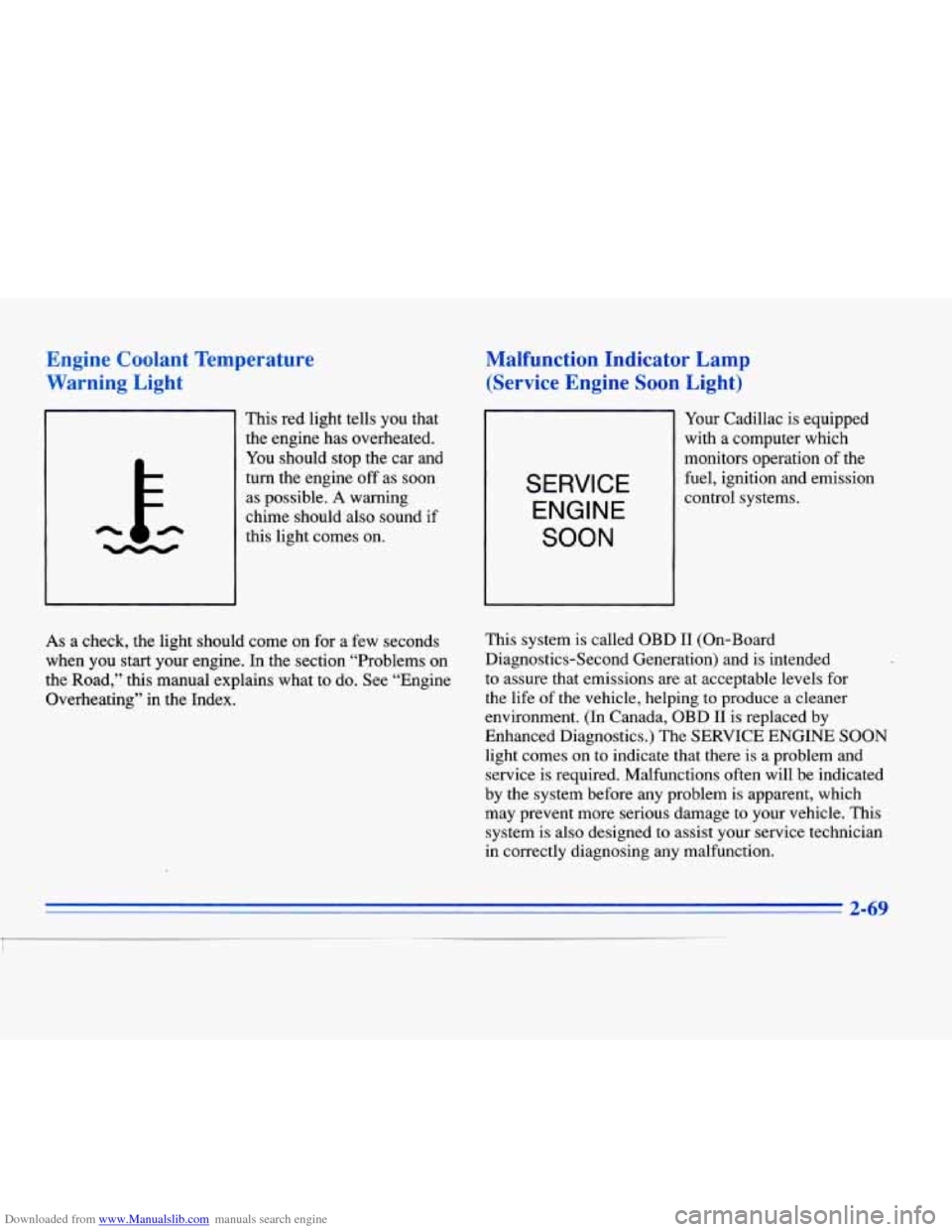

Downloaded from www.Manualslib.com manuals search engine Engine Coolant Temperature
Warning Light Malfunction Indicator Lamp
(Service Engine Soon Light)
This red light tells you that
the engine has overheated.
You should stop the car and
turn the engine
off as soon
as possible.
A warning
chime should also sound if
this light comes on. SERVICE
ENGINE
SOON
Your Cadillac is equipped
i with a computer which
monitors operation
of the
l fuel, ignition and emission
1 control systems.
As a check, the light should come on for a few seconds
when you start your engine.
In the section “Problems on
the Road,” this manual explains what to
do. See “Engine
Overheating”
in the Index. This
system is called
OBD I1 (On-Board
Diagnostics-Second Generation) and is intended
to assure that emissions are at acceptable levels for
the life of the vehicle, helping
to produce a cleaner
environment. (In Canada, OBD
I1 is replaced by
Enhanced Diagnostics.) The SERVICE ENGINE
SOON
light comes on to indicate that there is a problem and
service is required. Malfunctions often will be indicated
by the system before any problem is apparent, which
may prevent more serious damage to your vehicle. This
system is also designed to assist your service technician
in correctly diagnosing any malfunction.
