Page 72 of 352
yellowblue
2-8
Alarm/Panic Mode
The theft
-deterrent system provides a fourth button on
your transmitter. This button is the alarm/panic button.
If you are involved in a panic situation, press this button
and your vehicle's horn will sound and the headlamps
will flash. This will draw needed attention to you and
your vehicle. To turn this feature off, either push the
panic button again or turn the ignition to RUN. The
alarm will stop by itself after two minutes. This feature
will not work if your ignition is on or if the transmitter
is 30 feet (9 m) or more away from your vehicle.
Transmitter Verification
This feature provides feedback to the holder of the
keyless entry transmitter that a command has been
received by the keyless entry receiver. The headlamps
and parking lamps will flash on every lock and unlock
command and the horn will sound only if the LOCK
button is pressed twice within five seconds. This allows
for silent operation of locking and unlocking, unless a
confirming horn chirp is desired. Other options may be
selected for this feature (see ªFeature Customizationº in
the Index).
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to it.
Have each transmitter you intend to match ready for the
next steps. To match transmitters to your vehicle:
1. Turn the ignition to RUN, then to OFF. This will
disarm the theft
-deterrent system.
2. Remove the RADIO fuse (Fuse 17). This fuse is
located in the main fuse block, which is located on
the left side of your main instrument panel. When
the fuse block is open, the radio fuse is located on
the lower right corner of your instrument panel. See
ªFuses and Circuit Breakersº in the Index.
Page 74 of 352
yellowblue
2-10
To replace the battery:
1. Insert a small coin, or flathead screwdriver, to
separate the bottom of the transmitter from the top.
2. Remove the battery and replace it with a new one,
making sure the positive (+) side of the battery is
facing down.
3. Snap the top and bottom together.
4. Test the operation of the transmitter with your
vehicle. If the transmitter does not work, try
synchronizing the transmitter with the receiver.
Resynchronization
Resynchronization may be necessary due to the security
method used by this system. The transmitter does not
send the same signal twice to the receiver. The receiver
will not respond to a signal it has been sent previously.
This prevents anyone from recording and playing back
the signal from the transmitter.
To resynchronize your transmitter, stand close to your
vehicle and simultaneously press and hold the LOCK
and UNLOCK buttons on the transmitter for at least
eight seconds. The door locks should cycle and the
parking lamps and headlamps should flash to confirm
synchronization. If this does not happen, you may need
to replace the battery in your transmitter or match the
transmitter to your vehicle. If the locks still do not cycle,
see your dealer for service.
Page 77 of 352
yellowblue
2-13 Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
If you park in a lot where someone will be watching
your vehicle, it's best to lock it up and take your keys.
But what if you have to leave your ignition key? What if
you have to leave something valuable in your vehicle?
Put your valuables in a storage area, like your
glove box.
Valuables can also be locked in the center floor
console. Make sure that you take the console key
with you.
Take the remote keyless entry system transmitter
with you.
Lock all the doors except the driver's.
Theft-Deterrent System
Your vehicle has a theft-deterrent alarm system. Once
armed, the system will sound the horn and flash the
parking lamps if the vehicle is tampered with.
Opening the doors may activate the alarm. See
ªDisarming the Systemº later in this section for further
information on turning the system off.
Shock Sensor
A shock sensor triggers the alarm when it detects a blow
to your vehicle. It is located in the center floor console.
There are two levels of alarms via the shock sensor: two
horn blasts and the headlamp/parking lamps flash for
non
-threatening blows to the vehicle or a full
two
-minute alarm for harder blows to the vehicle. The
sensitivity can be adjusted if more or less is desired. If
sensitivity is increased too much, it may give false
alarms caused by gusts of wind or other natural events
that may shake the vehicle.
Page 79 of 352
yellowblue
2-15
Remote Keyless Entry Transmitter Locking
If all the doors are closed, locking the vehicle with the
transmitter will immediately arm the system. If any door
is open when the transmitter LOCK button is pressed,
the system goes into an armed wait mode, waiting for
the doors to close. Once they are closed, the system will
arm and the headlamps and parking lamps will flash. If
the tailgate or panel doors are open or ajar at the time
the system is arming, the headlamps and parking lamps
flash once.
Power Door Lock Switch Locking
If any door is open when the power door lock switch is
pressed, the system goes into an armed wait mode,
waiting for the doors, tailgate or panel doors to close.
Once they are closed, the system will arm and the
parking lamps will flash. If a door is closed when the
power lock switch is pressed, the system assumes you
are inside the vehicle, so it will not arm. Locking the
doors by using the manual door locks will not arm
the system.Passive Arming
If the ignition was just turned off and a door was
opened, the system will arm six seconds after the doors,
tailgate or panel doors are closed. If a door is opened
without the ignition being turned on, the system will
wait 30 seconds after the doors, tailgate or panel doors
are closed before arming. This provides time to get into
the vehicle and put the key in the ignition. The parking
lamps will flash when the system arms. Passive arming
is not enabled from the factory.
If the LOCK button on the keyless entry transmitter or
the power door lock switch is pressed, the system will
arm immediately.
Disarming the System
There are two ways to disarm the system:
1. Press the UNLOCK button on the keyless entry
transmitter. If the horn chirps two or three times
when you unlock the vehicle, the alarm sounded in
your absence. Two chirps means that the shock
sensor was set off and three chirps means that a door,
tailgate or the panel doors were opened.
2. Turn the ignition to RUN with the proper key.
For more information on customizing the features
mentioned here, see ªFeature Customizationº in the Index.
Page 82 of 352
yellowblue
2-18 Keyless Entry Verification
This means that when you use the keyless entry
transmitter to lock/unlock your vehicle, your headlamps
and parking lamps will flash briefly when you press
LOCK once. Your horn will sound briefly and your
headlamps and parking lamps will flash briefly when
you press LOCK a second time. Your headlamps
and parking lamps will flash briefly when you
press UNLOCK.
Programming Modes
Your vehicle can be programmed to one of the
following modes.
Mode 1: All Off (The headlamps will not flash and the
horn will not sound to provide you feedback that a
lock/unlock command has been received by the keyless
entry transmitter.)
Mode 2: Horn and Lamps/Lamps (Your horn will sound
briefly and your headlamps and parking lamps will flash
when you press LOCK on the keyless entry transmitter.
Only your headlamps and parking lamps will flash when
you press UNLOCK.)
Mode 3: Horn and Lamps (Your horn will sound briefly
and your headlamps and parking lamps will flash every
time you push LOCK or UNLOCK.)Mode 4: Lamps (Your headlamps and parking lamps
will flash every time you press LOCK or UNLOCK.)
Mode 5: Lamps/Horn and Lamps/Lamps (Your
headlamps and parking lamps will flash upon the first
press on LOCK, your headlamps and parking lamps will
flash and your horn will sound upon the second press on
LOCK and your headlamps and parking lamps will flash
upon any press on UNLOCK.)
Your vehicle comes with this feature set in Mode 5.
To change the mode:
1. Press the UNLOCK button on the keyless
entry transmitter.
2. Count the number of chimes you hear. The number
of chimes tells you which mode your vehicle is
set for.
3. Press the UNLOCK button on the keyless entry
transmitter until you hear the number of chimes that
correspond to the mode selection you want.
The mode you select is now set. You can either exit the
programming mode by following the instructions later in
this section or program the next feature available on
your vehicle.
Page 84 of 352
yellowblue
2-20
Programmable Modes
Your vehicle can be programmed to one of the
following modes.
Mode 1: All Off (No horn chirps or headlamps and
parking lamps will flash.)
Mode 2: Horn and Lamps (Your headlamps and parking
lamps will flash and your horn will chirp twice to verify the
system is armed using any arming method.) Headlamps and
parking lamps only will flash when disarming.
Mode 3: Horn and Lamps/Lamps (If you use the keyless
entry transmitter to arm the system, your headlamps and
parking lamps will flash and your horn will chirp twice
to verify that the system is armed. If you use either the
power door lock switch or passive arming, only your
headlamps and parking lamps will flash for
verification.) The headlamps and parking lamps will
flash only when disarming.
Mode 4: Lamps (When your vehicle arms, only your
headlamps and parking lamps will flash for
verification.) The headlamps and parking lamps will
flash only when disarming.
Your vehicle comes with this feature set in Mode 3.To change the mode:
1. Press the LOCK button on the keyless entry
transmitter.
2. Count the number of chimes you hear. The number
of chimes tells you which mode your vehicle is
set for.
3. Press the LOCK button on the keyless entry
transmitter until you hear the number of chimes that
corresponds to the mode selection you want.
The mode you select is now set. You can either exit the
programming mode by following the instructions later in
this section or program any of the previously mentioned
features on your vehicle.
Leaving Programming Mode
When programming is done, turn the ignition to OFF
and replace the RADIO fuse (Fuse 17).
Page 105 of 352
yellowblue
2-41
There is also a power door lock switch at the rear of the
vehicle which will allow you to lock or unlock all of the
doors. See ªPower Doors Locksº in the Index.
Horn
Press the center of the steering wheel to sound the horn.
Tilt Wheel
A tilt steering wheel allows
you to adjust the steering
wheel before you drive.
You can also raise it to the highest level to give your
legs more room when you enter and exit the vehicle.
To tilt the wheel, hold the steering wheel and pull the
lever. Move the steering wheel to a comfortable level,
then release the lever to lock the wheel in place.
Multifunction Lever
The lever on the left side of the steering column
includes your:
Turn and Lane Change Signals
Headlamp High/Low Beam Changer
Windshield Wipers
Windshield Washer
Cruise Control
Page 106 of 352
yellowblue
2-42 Turn and Lane Change Signals
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal a turn or a lane change.
To signal a turn, move the lever all the way up or down.
When the turn is finished, the lever will return automatically.
An arrow on the instrument
panel will flash in the
direction of the turn or
lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
If you move the lever all the way up or down and the
arrow flashes at twice the normal rate, a signal bulb may
be burned out and other drivers may not see your
turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don't go on at all when you
signal a turn, check for burned
-out bulbs and a blown
fuse (see ªFusesº in the Index).
Headlamp High/Low-Beam Changer
To change the headlamps from low beam to high or high
to low, pull the turn signal lever all the way toward you.
Then release it.
When the high beams are
on, this light on the
instrument panel also will
be on.
Windshield Wipers
You operate the windshield wipers by turning the
control with the wiper symbol on it located on the
multifunction lever.
For a single wiping cycle, turn the control to MIST.
Hold it there until the wipers start, then let go. The
wipers will stop after one cycle. If you want more
cycles, hold the control on MIST longer.
You can set the wiper speed for a long or short delay
between wipes. This can be very useful in light rain or
snow. Turn the control to choose the delay time. The
closer to LOW, the shorter the delay.
Page 111 of 352
yellowblue
2-47

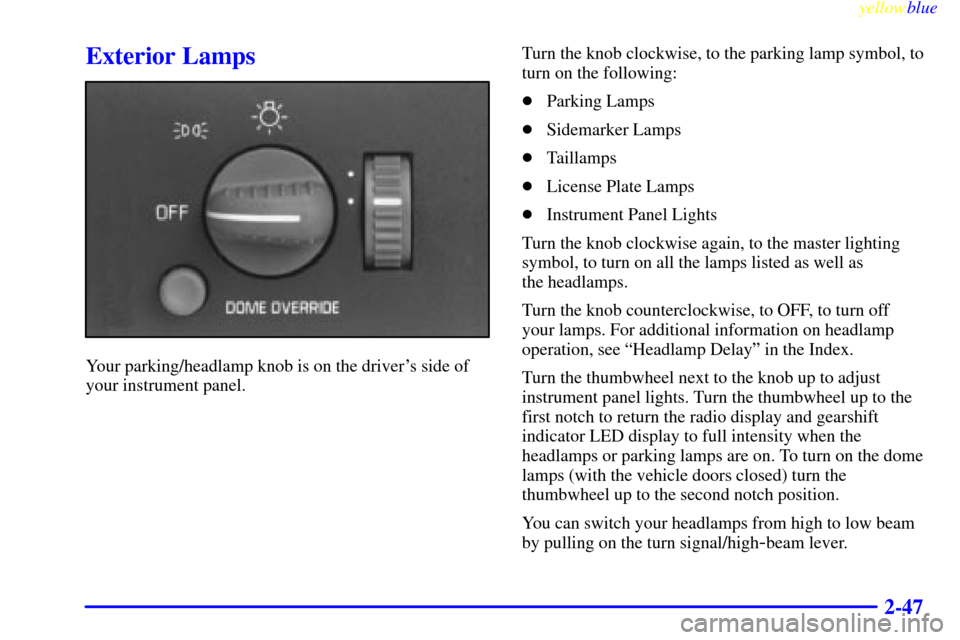

Exterior Lamps
Your parking/headlamp knob is on the driver's side of
your instrument panel.Turn the knob clockwise, to the parking lamp symbol, to
turn on the following:
Parking Lamps
Sidemarker Lamps
Taillamps
License Plate Lamps
Instrument Panel Lights
Turn the knob clockwise again, to the master lighting
symbol, to turn on all the lamps listed as well as
the headlamps.
Turn the knob counterclockwise, to OFF, to turn off
your lamps. For additional information on headlamp
operation, see ªHeadlamp Delayº in the Index.
Turn the thumbwheel next to the knob up to adjust
instrument panel lights. Turn the thumbwheel up to the
first notch to return the radio display and gearshift
indicator LED display to full intensity when the
headlamps or parking lamps are on. To turn on the dome
lamps (with the vehicle doors closed) turn the
thumbwheel up to the second notch position.
You can switch your headlamps from high to low beam
by pulling on the turn signal/high
-beam lever.
Page 112 of 352
yellowblue
2-48 Automatic Headlamp System
When it is dark enough outside, your automatic
headlamp system will turn on your headlamps at the
normal brightness along with other lamps such as the
taillamps, sidemarker, parking lamps and the instrument
panel lights.
To idle your vehicle with the automatic headlamp
system off, set the parking brake while the ignition is
off. Then start the vehicle. The automatic headlamp
system will stay off until you release the parking brake.
The headlamp switch can always be used to turn on the
regular lamps. As with any vehicle, you should turn on
the regular headlamp system when you need it.
Headlamps-On Reminder
A chime will sound when your headlamps are turned on
and your ignition is in OFF, LOCK or ACCESSORY.
Daytime Running Lamps
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the day.
DRL can be helpful in many different driving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset.The DRL system will make your headlamps come on at
a reduced brightness when:
the ignition is on,
the headlamp switch is off,
the parking brake is released and
it is bright enough outside and the automatic
headlamps are off.
When the DRL are on, only your headlamps will be on.
The taillamps, sidemarker and other lamps won't be on.
Your instrument panel won't be lit up either.
When it begins to get dark, your DRL will turn off.
Your headlamps will come on automatically.
When it begins to get bright, the regular lamps will go
off, and your headlamps will change to the reduced
brightness of DRL.
To idle your vehicle with the DRL off, set the parking
brake. The DRL will stay off until you release the
parking brake.
As with any vehicle, you should turn on the regular
headlamp system when you need it.
