relay CADILLAC LYRIC 2023 Owners Manual

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22

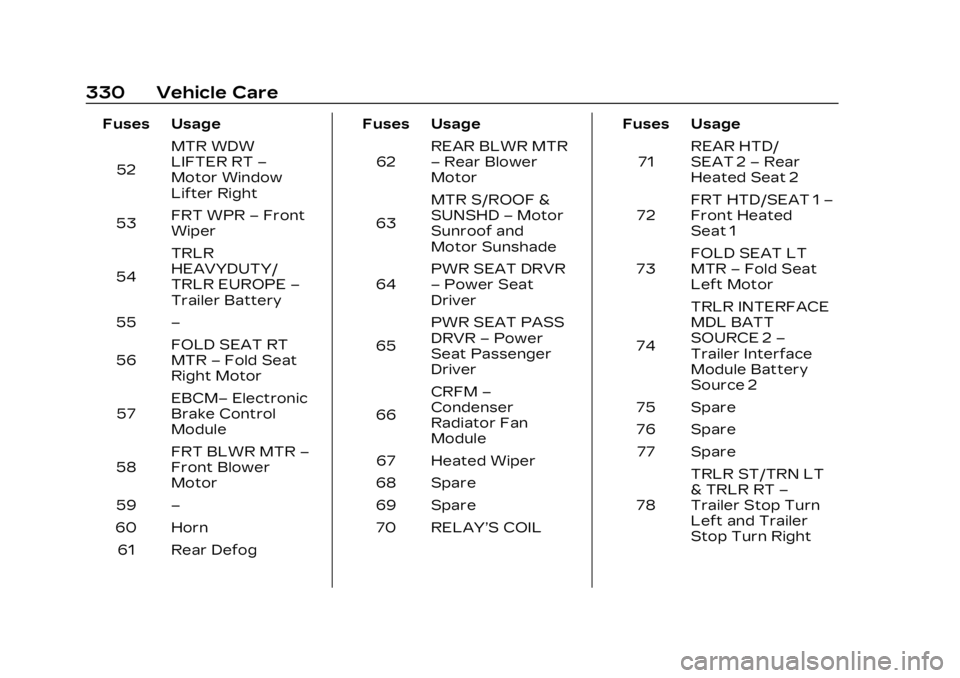

330 Vehicle Care
Fuses Usage52 MTR WDW
LIFTER RT
–
Motor Window
Lifter Right
53 FRT WPR
–Front
Wiper
54 TRLR
HEAVYDUTY/
TRLR EUROPE
–
Trailer Battery
55 –
56 FOLD SEAT RT
MTR
–Fold Seat
Right Motor
57 EBCM–
Electronic
Brake Control
Module
58 FRT BLWR MTR
–
Front Blower
Motor
59 –
60 Horn 61 Rear Defog Fuses Usage
62 REAR BLWR MTR
–
Rear Blower
Motor
63 MTR S/ROOF &
SUNSHD
–Motor
Sunroof and
Motor Sunshade
64 PWR SEAT DRVR
–
Power Seat
Driver
65 PWR SEAT PASS
DRVR
–Power
Seat Passenger
Driver
66 CRFM
–
Condenser
Radiator Fan
Module
67 Heated Wiper
68 Spare
69 Spare
70 RELAY’S COIL Fuses Usage
71 REAR HTD/
SEAT 2
–Rear
Heated Seat 2
72 FRT HTD/SEAT 1
–
Front Heated
Seat 1
73 FOLD SEAT LT
MTR
–Fold Seat
Left Motor
74 TRLR INTERFACE
MDL BATT
SOURCE 2
–
Trailer Interface
Module Battery
Source 2
75 Spare
76 Spare 77 Spare
78 TRLR ST/TRN LT
& TRLR RT
–
Trailer Stop Turn
Left and Trailer
Stop Turn Right

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
OnStar 401
PressQto connect to an
Advisor to:
.Verify account information
or update contact
information.
.Get driving directions.
.Receive a Diagnostic check
of the vehicle's key
operating systems.
.Receive Roadside Service.
.Manage Wi-Fi Settings,
if equipped.
Press
>to get a priority
connection to an OnStar
Advisor available 24/7 to:
.Get help for an emergency.
.Be a Good Samaritan or
respond to an AMBER Alert.
.Get assistance in severe
weather or other crisis
situations and find
evacuation routes.
OnStar Services
Emergency
Emergency Services require
an active safety and security
plan. With Automatic Crash
Response, built-in sensors can
automatically alert a specially
trained OnStar Advisor who is
immediately connected in to
the vehicle to help.
Press
>for a priority
connection to an OnStar
Advisor who can contact
emergency service providers,
direct them to your exact
location, and relay important
information.
With OnStar Crisis Assist,
specially trained Advisors are
available 24 hours a day,
7 days a week, to provide a
central point of contact,
assistance, and information
during a crisis. With Roadside Service,
Advisors can locate a nearby
service provider to help with a
flat tire or a battery jump.
Security
If equipped, OnStar provides
these services:
.With Stolen Vehicle
Assistance, OnStar Advisors
can use GPS to pinpoint the
vehicle and help authorities
quickly recover it.
.With Remote Ignition Block,
if equipped, OnStar can
block the vehicle from being
restarted.
.With Stolen Vehicle
Slowdown, if equipped,
OnStar can work with law
enforcement to gradually
slow the vehicle down.
Theft Alarm Notification
If equipped, if the doors are
locked and the vehicle alarm
sounds, a notification by text,
e-mail, or phone call will be
sent. If the vehicle is stolen, an
