Downloaded from www.Manualslib.com manuals search engine The electronics and computerization which were
pioneered by Cadillac in the
’70s came of age in the
’80s with Digital Fuel Injection and On-Board
Diagnostics
in 1980, four wheel Anti-lock Brakes on
1986 models and Traction Control in the fall of 1989.
The 1992 Seville
STS was the first car ever to win all
three major automotive awards: Car
of the Year, Motor
Trend; Ten Best List,
Car & Driver; Car of the Year,
Automobile Magazine.
. .. . .. . .. .I,..,,. ~ :;- ~ .,.,........ .... .. . ,,.._ ._
.. . , , . . . .. . . . .:: ..iliiii-’ ... ... .,. . . . .. . . ... . . . .. , . ., ,
The year 1993 saw the introduction of the Northstar
system. The state
of the art system includes the 32 valve,
dual overhead camshaft, Northstar
4.6 liter V8 engine,
4TSO-E electronically controlled automatic transaxle,
road sensing suspension, speed sensitive steering,
anti-lock brakes and traction control. For more than
nine decades Cadillac has been a leader in
quality and technical innovation.
Now more than ever,
Cadillac is “Creating a Higher Standard.”
X
Page 12 of 354
Downloaded from www.Manualslib.com manuals search engine c

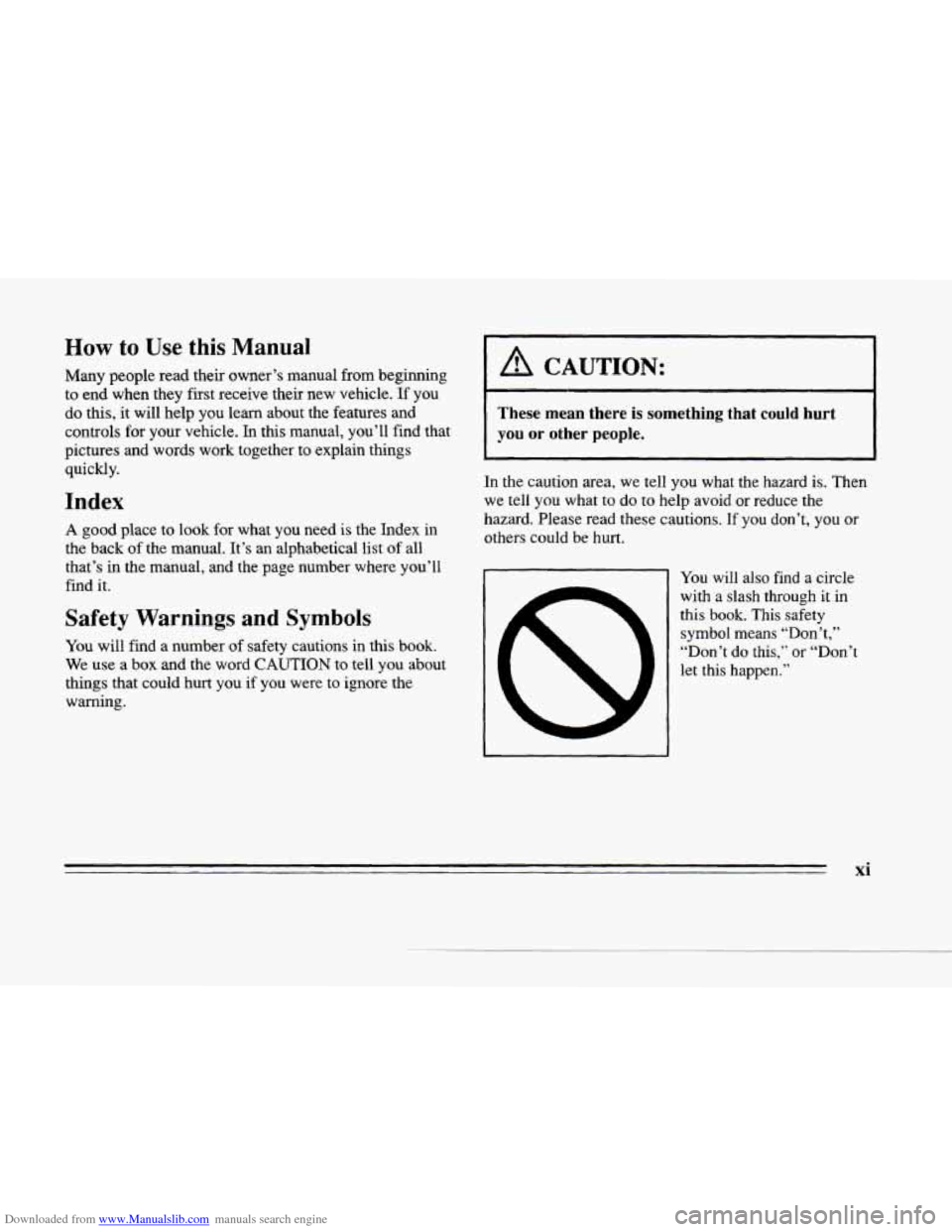

How to Use this Manual
Many people read their owner’s manual from beginning
to end when they first receive their new vehicle. If you
do this, it will help you learn about the features
and
controls for your vehicle. In this manual, you’ll find that
pictures and words work together to explain things
quickly.
Index
A good place to look for what you need is the Index in
the back
of the manual. It’s an alphabetical list of all
that’s in the manual, and the page number where you’ll
find it.
Safety Warnings and Symbols
You will find a number of safety cautions in this book.
We use a box and the word
CAUTION to tell you about
things that could hurt you if you were
to ignore the
warning.
A CAUTION:
These mean there is something that could hurt
you or other people.
In the caution area, we tell you what the hazard is. Then
we tell
you what to do to help avoid or reduce the
hazard. Please read these cautions. If
you don’t, you or
others could be hurt.
You will also find a circle
with
a slash through it in
this book. This safety
symbol means “Don’t,”
“Don’t do this,” or “Don’t
let this happen.”
xi
Page 13 of 354

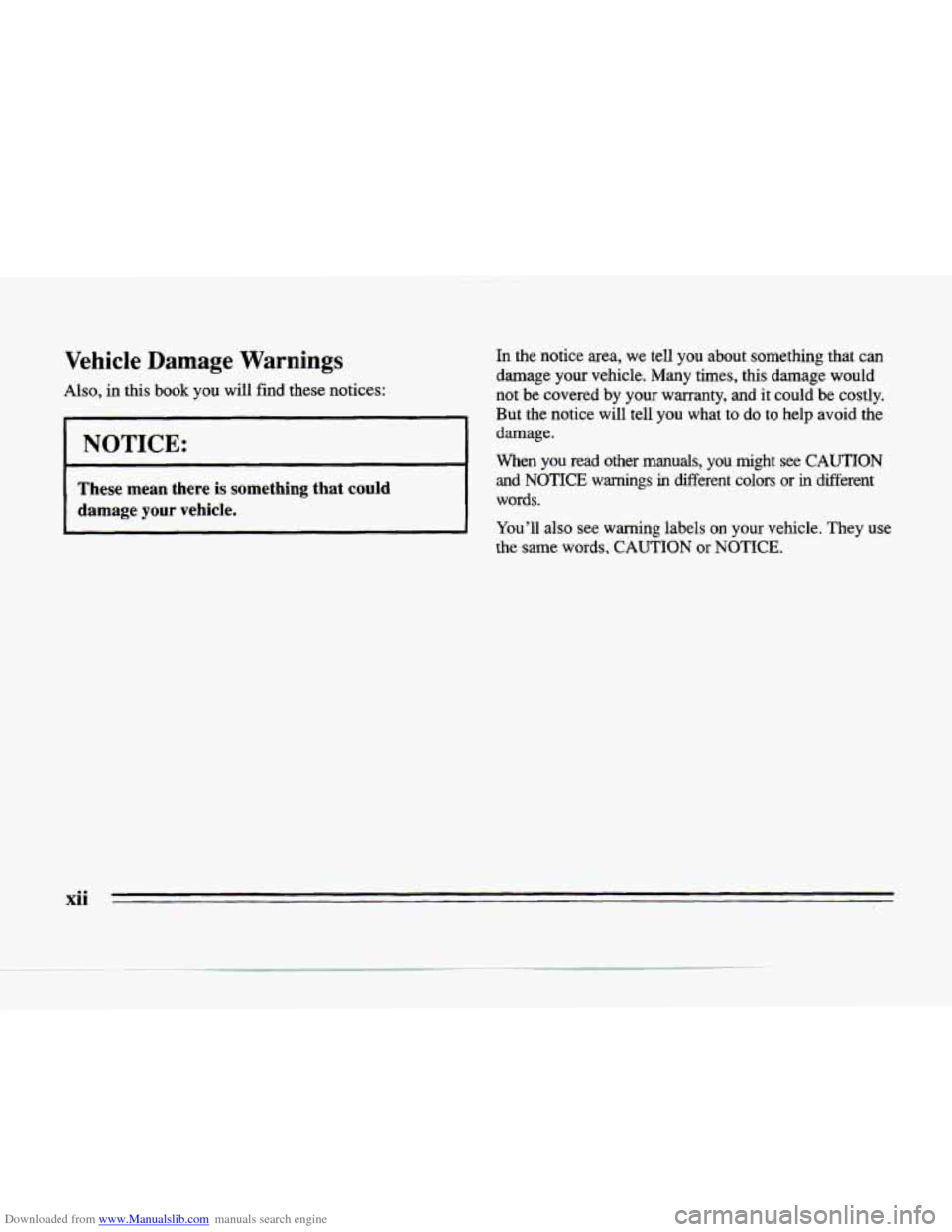

Downloaded from www.Manualslib.com manuals search engine Vehicle Damage Warnings
Also, in this book you will find these notices:
I NOTICE:
These mean there is something that could
damage your vehicle.
In the notice area, we tell you about something that can
darnage your vehicle. Many times, this damage would
not be covered by your warranty, and
it could be costly.
But the notice will tell you what to do to help avoid the
damage.
When you read other manuals, you might see
CAUTION
and NOTICE wamings in different colors or in different
words.
You’ll also see warning labels on your vehicle. They use
the same words, CAUTION
or NOTICE.
L
Page 14 of 354
Downloaded from www.Manualslib.com manuals search engine e
e
c
Vehicle Symbols
These are some of the symbols you will find on your vehicle.
For example,
these symbols
are used
on an
original battery:
POSSIBLE A
CAUTION
INJURY
PROTECT
EYES BY
SHIELDING
CAUSTIC
BURNS AVOID
SPARKS
OR
FLAMES
SPARK
OR ,111,
COULD FLAME
EXPLODE BAllERY
These symbols
are important
for you and
your passengers
whenever your
vehicle
is
driven:
DOOR LOCK
UNLOCK
FASTEN SEAT
BELTS
POWER
WINDOW
These symbols have
to do with
your lights:
SIGNALS e
TURN
RUNNING
0
DAYTIME -
LAMPS -**
FOG LAMPS # 0
These symbols are on
some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD DEFROSTER
WINDOW
DEFOGGER
VENTILATING FAN
These symbols
are used on
warning and
indicator lights:
COOLANT -
TEMP -
CHARGING I-1
BATTERY
SYSTEM
BRAKE
(a)
COOLANT a
ENGINE OIL w,
PRESSURE
ANTI-LOCK
(,)
BRAKES
Here are some
other symbols
you may see:
FUSE
LlGl ITER D
HORN k3
SPEAKER
k
FUEL B
xiii
Page 15 of 354

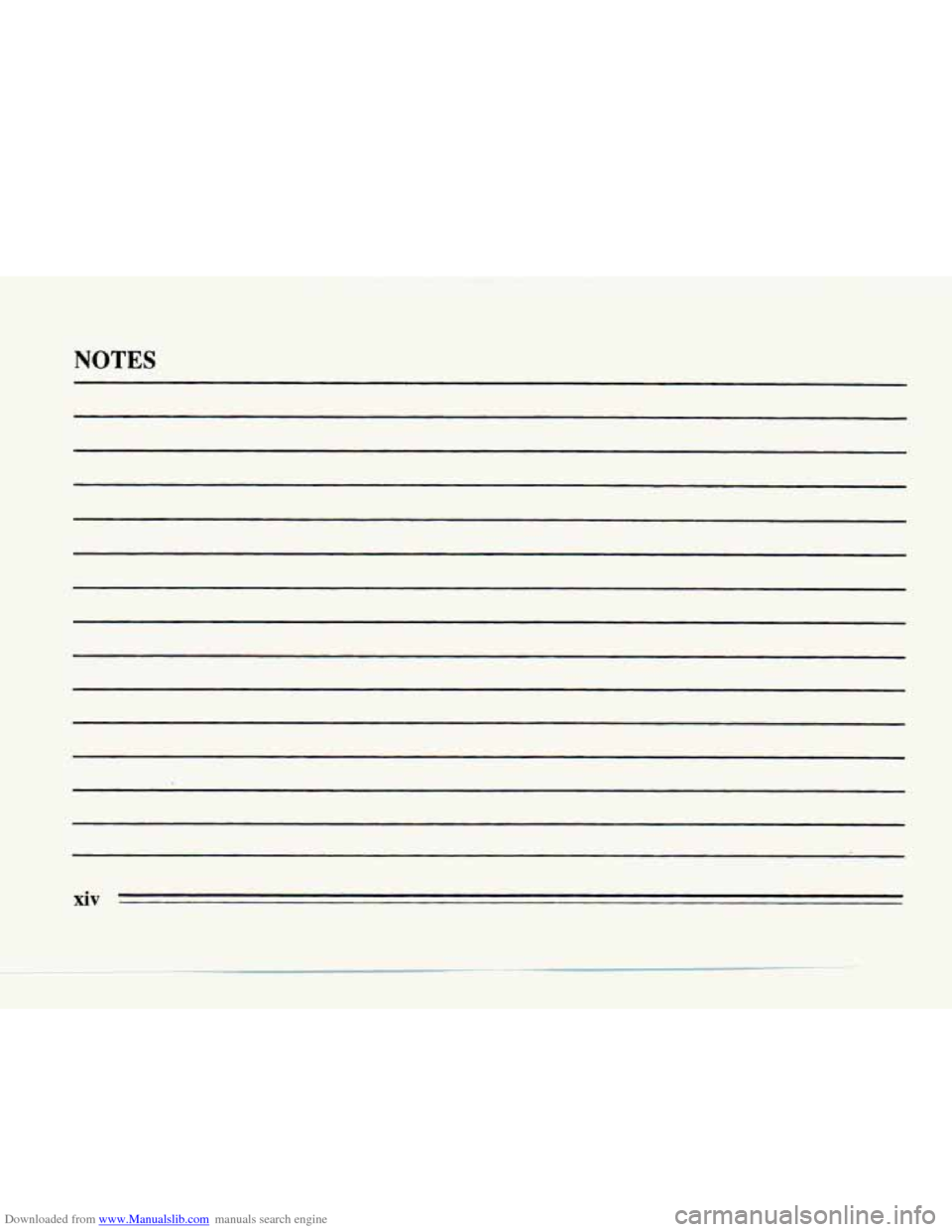

Downloaded from www.Manualslib.com manuals search engine NOTES
xiv
Page 16 of 354
Downloaded from www.Manualslib.com manuals search engine 1
,-"' -a4

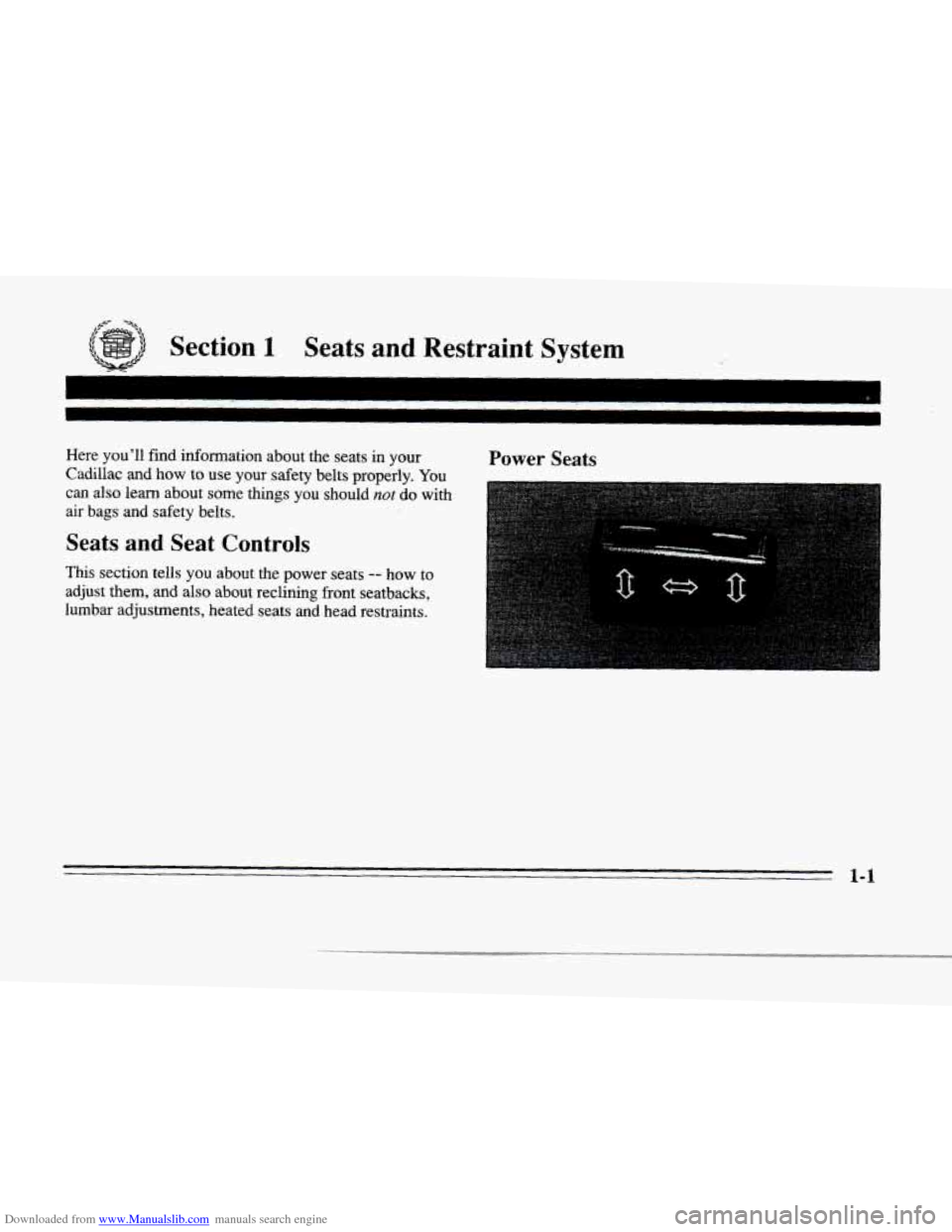

ction 1 Seats and Restraint System
Here you'll find information about the seats in your
Cadillac and
how to use your safety belts properly. You
can also learn about some things you should not do with
air bags and safety belts.
Seats and Seat Controls
This section tells you about the power seats -- how to
adjust them, and also about reclining front seatbacks,
lumbar adjustments, heated seats and head restraints.
Power Seats
1-1
Page 17 of 354

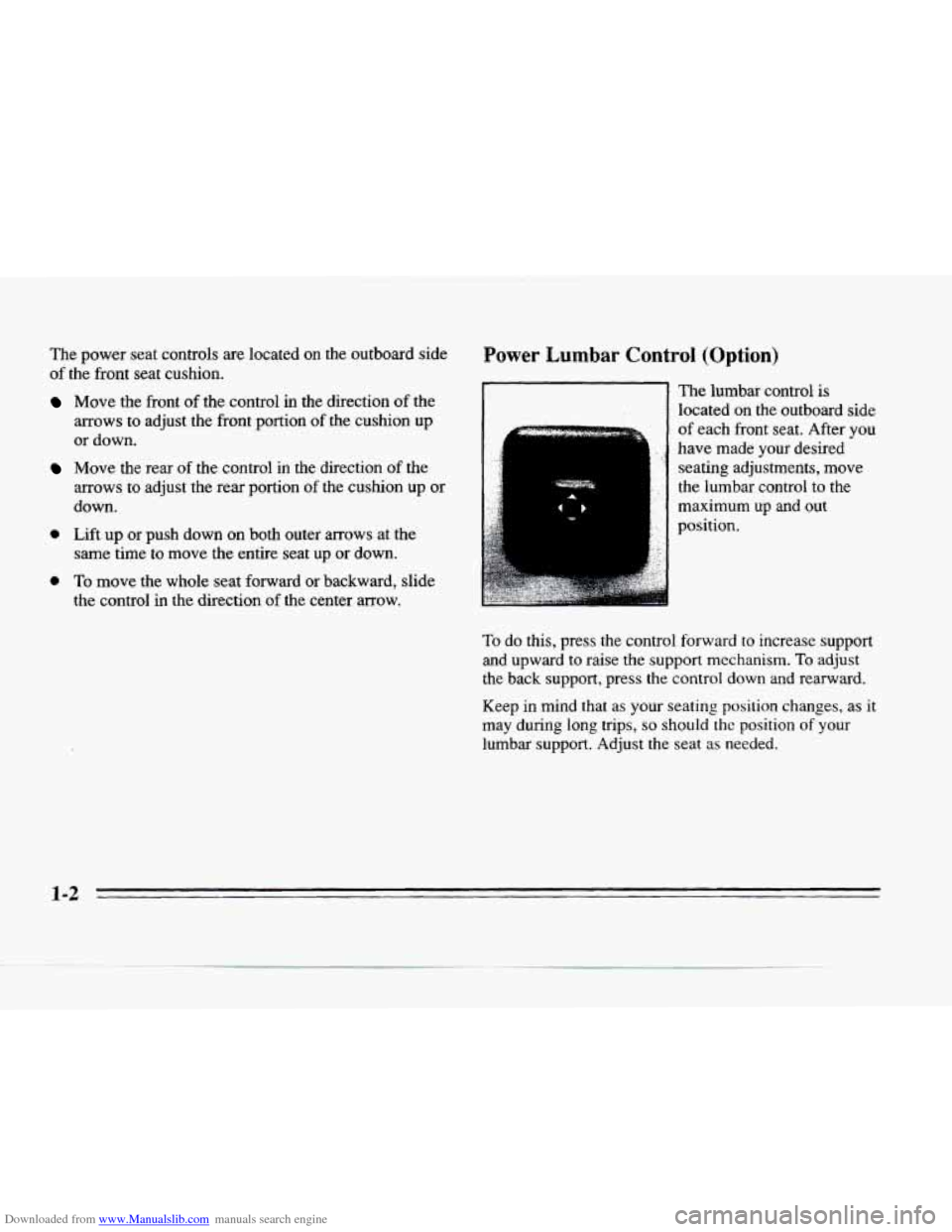

Downloaded from www.Manualslib.com manuals search engine The power seat controls are located on the outboard side
of the front seat cushion.
rower Lumbar Control (Option)
Move the front of the control in the direction of the
arrows to adjust the front portion of the cushion up
or down.
Move the rear of the control in the direction of the
arrows to adjust the rear portion of the cushion up or
down.
0 Lift up or push down on both outer arrows at the
same time to move the entire seat up or down.
0 To move the whole seat forward or backward, slide
the control in the direction
of the center arrow.
~ The lumbar control is
1 located on the outboard side
~ of each front seat. After you
have made your desired
seating adjustments, move
the lumbar control to the
maximum
up and out
position.
To do this, press the control forward to increase support
and upward to raise the support mechanism. To adjust
the back support, press the
control down and rearward.
Keep in mind
that as your seating position changes, as it
may during long trips, so should the position of your
lumbar support. Adjust the seat as needed.
1-2
L
Page 18 of 354
Downloaded from www.Manualslib.com manuals search engine L
#--

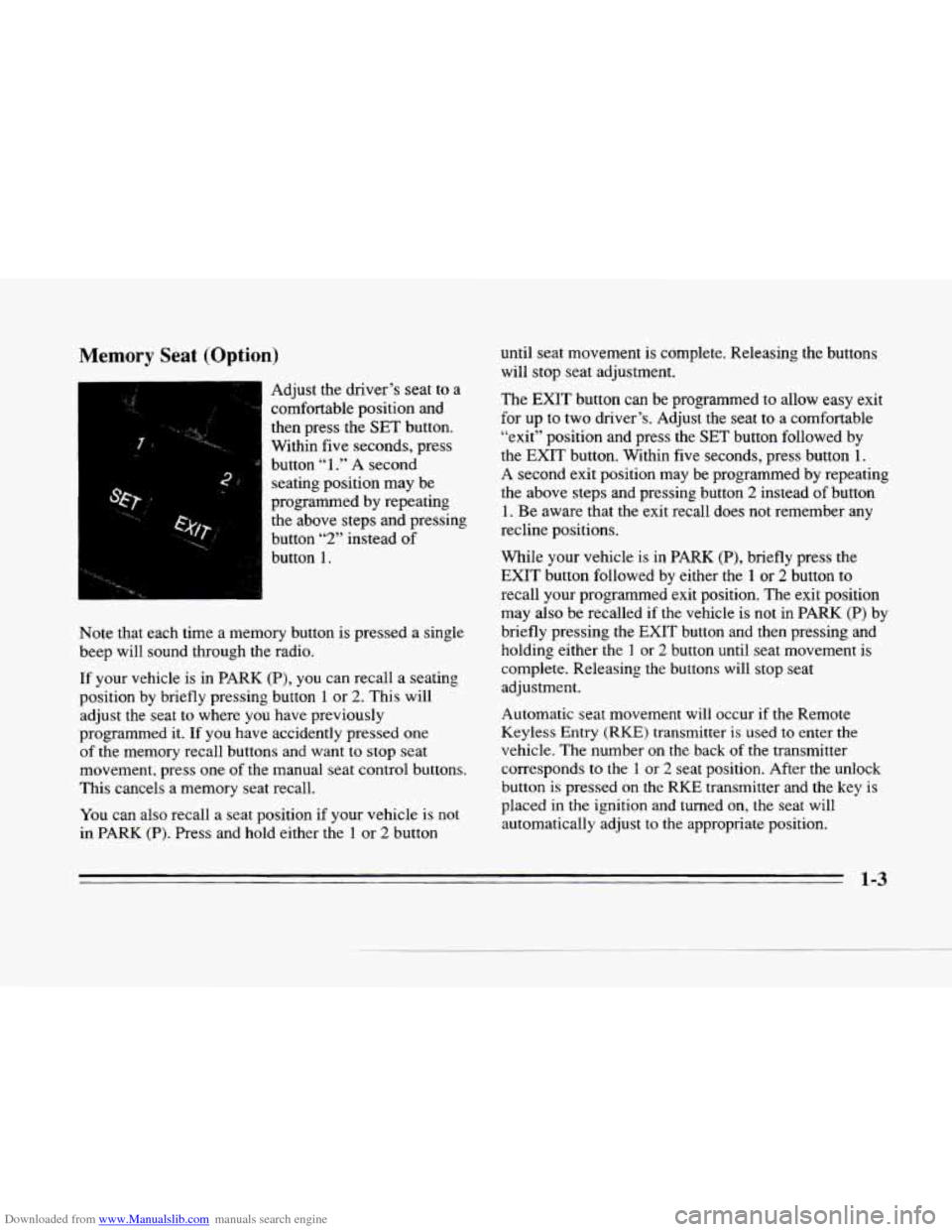

Memory Seat (Option)
Adjust the driver’s seat to a
comfortable position and
then press the
SET button.
Within five seconds, press
button
“1 .” A second
seating position may be
programmed by repeating
the above steps and pressing
button
“2” instead of
Note that each time a memory button is pressed a single
beep will sound through the radio.
If your vehicle is in PARK (P), you can recall a seating
position by briefly pressing button
1 or 2. This will
adjust
the seat to where you have previously
programmed it.
If you have accidently pressed one
of the memory recall buttons and want to stop seat
movement, press one
of the manual seat control buttons.
This cancels a memory seat recall.
c
c
You can also recall a seat position if your vehicle is not
in PARK
(P). Press and hold either the 1 or 2 button until seat movement
is complete.
Releasing the buttons
will stop seat adjustment.
The
EXIT button can be programmed to allow easy exit
for up to two driver’s. Adjust the seat to a comfortable
“exit” position and press the SET button followed by
the EXIT button. Within five seconds, press button
1.
A second exit position may be programmed by repeating
the above steps and pressing button
2 instead of button
1. Be aware that the exit recall does not remember any
recline positions.
While your vehicle is in PARK
(P), briefly press the
EXIT button followed by either the
1 or 2 button to
recall your programmed exit position. The exit position
may also be recalled
if the vehicle is not in PARK (P) by
briefly pressing the
EXIT button and then pressing and
holding either the
1 or 2 button until seat movement is
complete. Releasing the buttons will stop seat
adjustment.
Automatic seat movement will occur if the Remote
Keyless Entry
(RKE) transmitter is used to enter the
vehicle. The number on the back
of the transmitter
corresponds to the
1 or 2 seat position. After the unlock
button is pressed on the RKE transmitter and the key is
placed in
the ignition and turned on, the seat will
automatically adjust to the appropriate position.
1-3
Page 19 of 354

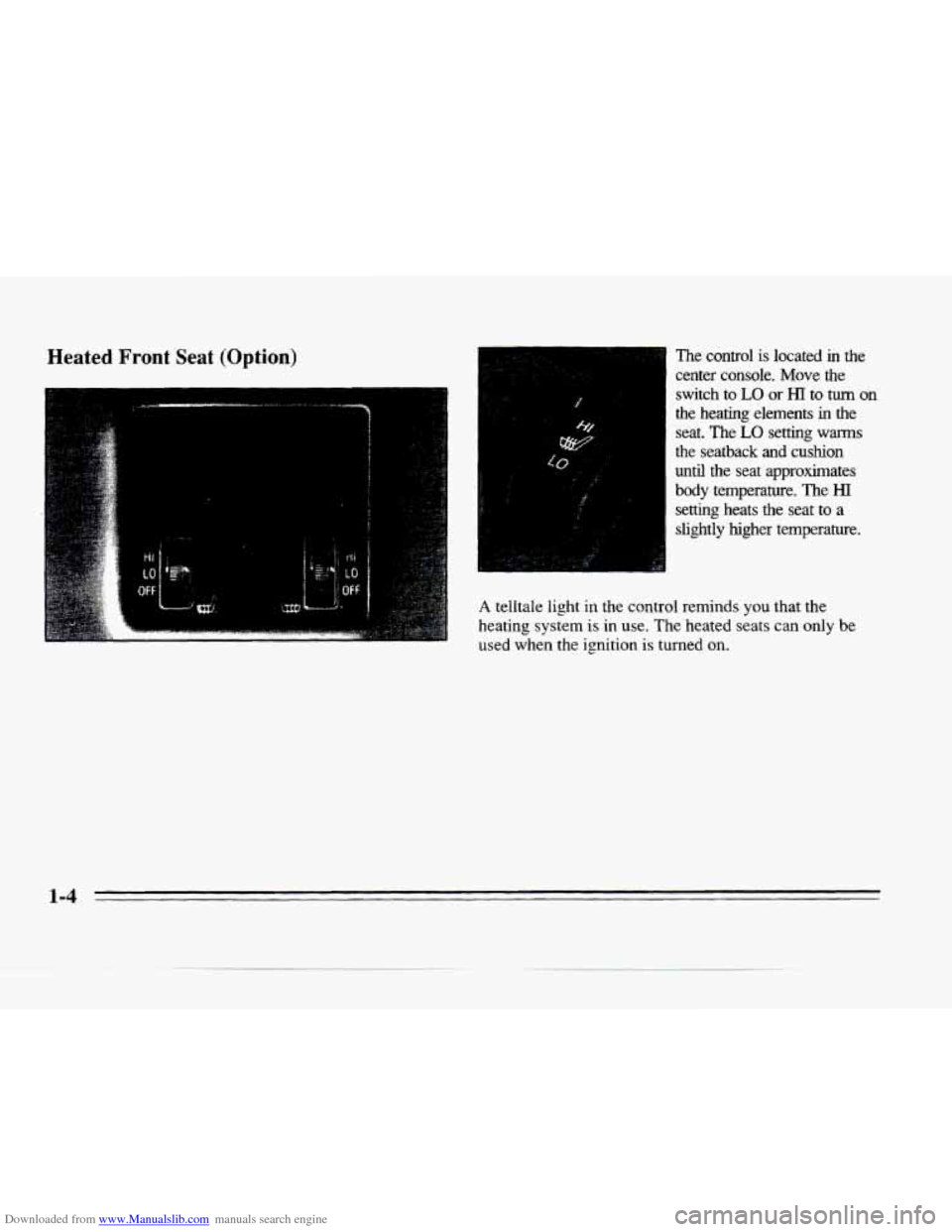

Downloaded from www.Manualslib.com manuals search engine Heated Front Seat (Option)
. .x ,,
The control is located in the
center console. Move the
switch to
LO or HI to turn on
the heating elements in the
seat. The
LO setting warms
the seatback and cushion
until the seat approximates
body temperature. The
HI
setting heats the seat to a
slightly higher temperature.
A telltale light in the control reminds you that the
heating system is in use.
The heated seats can only be
used when the ignition is turned on.
1-4
Page 20 of 354

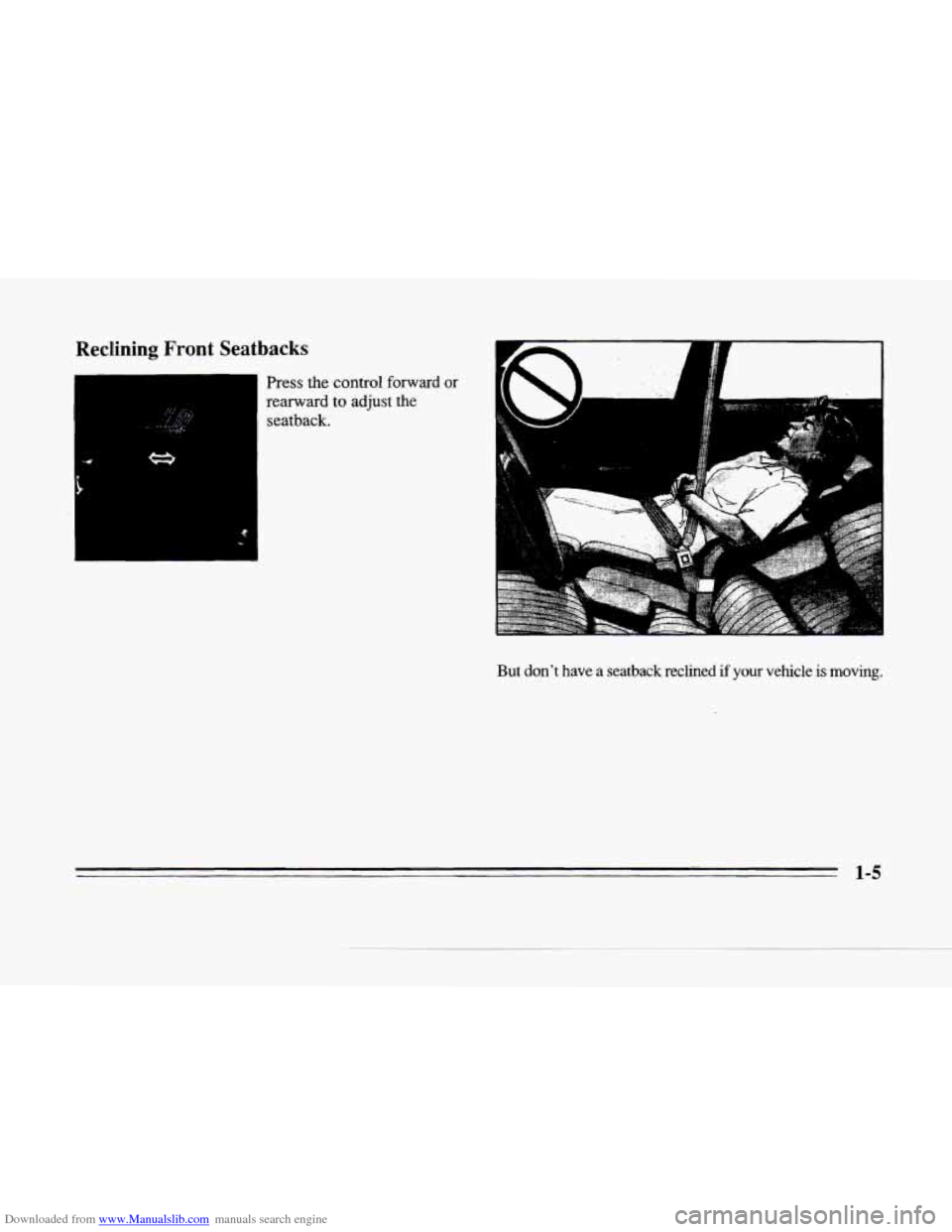

Downloaded from www.Manualslib.com manuals search engine Reclining Front Seatbacks
-1 Press the control forward or
1,
r
3-
c
But don't have a seatback reclined if your vehicle is moving.
1-5
