CHECK BRAKE FLUID
This message will display if the ignition is on to inform
the driver that the brake uid level is low. Have the
brake system serviced by your GM dealer as soon as
possible. SeeBrake System Warning Light on page 3-64
for more information.
CHECK COOLANT LEVEL
This message will display when there is a low level of
engine coolant. Have the cooling system serviced
by your GM dealer as soon as possible. SeeEngine
Coolant on page 5-22for more information.
CHECK GAS CAP
When this message displays, the gas cap has not been
fully tightened. You should recheck the gas cap to
ensure that it is on and tightened properly.
CHECK OIL LEVEL
This message will display when the oil level is low.
SeeEngine Oil on page 5-15for more information on
checking your engine oil.
CHECK TIRE PRESSURE
This symbol appears
with the CHECK TIRE
PRESSURE message.
If your vehicle is equipped with a tire pressure monitor,
this message will display when one or more of the
vehicle’s tires are low or high. SeeDIC Controls and
Displays on page 3-74for information on checking your
vehicle’s tire pressures.
3-81

CHECK WASHER FLUID
This symbol appears with
the CHECK WASHER
FLUID message.
When this message displays, it means that your vehicle
is low on windshield washer uid. You should rell
the tank as soon as possible. SeeWindshield Washer
Fluid on page 5-32for more information.
CLEAN RADAR
When this message displays, it means that the Adaptive
Cruise Control system is disabled because the radar
is blocked and cannot detect vehicles in your path.
It may also activate during heavy rain or due to road
spray. To clean the system, see “Cleaning the System”
underAdaptive Cruise Control on page 3-20.
DRIVER DOOR AJAR
This symbol appears with
the DRIVER DOOR AJAR
message.
When this message displays, it means that the driver’s
door was not closed completely. You should make
sure that the driver’s door is closed completely.
ENGINE COOLANT HOT IDLE ENGINE
This symbol appears with
the ENGINE COOLANT
HOT IDLE ENGINE
message.
This message will display when the engine coolant
temperature is too hot. Stop and allow the vehicle to idle
until it cools down. SeeEngine Coolant Temperature
Warning Light on page 3-67.
3-82

SeeOverheated Engine Protection Operating Mode on
page 5-26for information on driving to a safe place
in an emergency.
Notice:If you drive your vehicle while the engine is
overheating, severe engine damage may occur. If
an overheat warning appears on the instrument
panel cluster and/or DIC, stop the vehicle as soon
as possible. Do not increase the engine speed above
normal idling speed. SeeEngine Overheating on
page 5-24for more information.
ENGINE HOT – AC (Air Conditioning)
OFF
This message will display when the engine coolant
becomes hotter than the normal operating temperature.
SeeEngine Coolant Temperature Gage on page 3-67.
To avoid added strain on a hot engine, the air
conditioning compressor is automatically turned off.
When the coolant temperature returns to normal, the air
conditioning compressor will turn back on. You can
continue to drive your vehicle.
If this message continues to appear, have the system
repaired by your GM dealer as soon as possible to avoid
damage to your engine.
ENGINE OVERHEATED STOP ENGINE
This message will display when the engine has
overheated. Immediately look for a safe place to pull
your vehicle over and turn the engine off right away to
avoid severe engine damage. SeeEngine Overheating
on page 5-24andOverheated Engine Protection
Operating Mode on page 5-26. A chime will also sound
when this message is displayed.
Notice:If you drive your vehicle while the engine is
overheating, severe engine damage may occur. If
an overheat warning appears on the instrument
panel cluster and/or DIC, stop the vehicle as soon
as possible. Do not increase the engine speed above
normal idling speed. SeeEngine Overheating on
page 5-24for more information.
ENGINE POWER REDUCED
This message informs you that the engine power is
being reduced to protect the engine from damage. There
could be several malfunctions that might cause this
message. Have your vehicle serviced by your GM dealer
as soon as possible.
3-83

FUEL LEVEL LOW
This symbol appears with
the FUEL LEVEL LOW
message.
When this message displays, it means that your vehicle
is low on fuel. You should rell the tank as soon as
possible. A single chime will sound when this message
is displayed.
HOOD AJAR
This symbol appears with
the HOOD AJAR message.
When this message displays, it means that the hood
was not closed completely. You should make sure that
the hood is completely closed.
ICE POSSIBLE
This message will display when the outside temperature
is cold enough to create icy road conditions.
KEY FOB BATTERY LOW
When this message displays, it means that the battery
in your keyless access transmitter is low. Replace
the battery in the transmitter. See “Battery Replacement”
underKeyless Access System Operation on page 2-4.
LEFT REAR DOOR AJAR
This symbol appears with
the LEFT REAR DOOR
AJAR message.
When this message displays, it means that the driver’s
side rear door was not closed completely. You should
make sure that the door is closed completely.
3-84

NO FOBS DETECTED
When this message displays, it means that the vehicle
does not detect the keyless access transmitter. The
keyless access transmitter must be in the vehicle for the
ignition to work. Make sure you have the transmitter
inside of the vehicle when using the electronic keyless
ignition with push-button start. SeeIgnition Positions
on page 2-22for more information.
If the keyless access transmitter is inside of the
vehicle while this message is displayed and the
push-button start is not working, your vehicle
may be near a strong radio antenna signal causing
the keyless access system to be jammed.If this happens, place the transmitter into the transmitter
pocket located in the center console. This will then
allow you to start the vehicle in the normal manner
using the push-button start.
NO FOB OFF OR RUN?
When this message displays, it means that the keyless
access transmitter is not detected inside of the
vehicle while you are trying to turn the ignition off. You
can either keep the car running or turn the ignition
off while you locate your keyless access transmitter.
However, if you turn the ignition off and you cannot nd
the keyless access transmitter, you will not be able
to restart the vehicle. The keyless access transmitter
needs to be inside of the vehicle in order for the vehicle
to start. SeeStarting the Engine on page 2-24for
more information.
3-85

If the keyless access transmitter is inside of the vehicle
while this message is displayed and the push-button
start is not working, your vehicle may be near a strong
radio antenna signal causing the keyless access
system to be jammed. If this happens, place the
transmitter into the transmitter pocket located in the
center console. This will then allow you to start
the vehicle in the normal manner using the push-button
start.
OIL PRESSURE LOW STOP ENGINE
A multiple chime will sound when this message is
displayed. SeeEngine Oil on page 5-15for more
information.
Notice:If you drive your vehicle while the engine
oil pressure is low, severe engine damage may
occur. If a low oil pressure warning appears on the
instrument panel cluster and/or DIC, stop the
vehicle as soon as possible. Do not drive the vehicle
until the cause of the low oil pressure is corrected.
SeeEngine Oil on page 5-15for more information.
PASSENGER DOOR AJAR
This symbol appears with
the PASSENGER DOOR
AJAR message.
When this message displays, it means that the
passenger’s side front door was not closed completely.
You should make sure that the door is closed
completely.
3-86

PRESS START AND BRAKE TO START
ENGINE
When this message displays, it means that you need to
press down on the brake pedal while pressing the
start button on the electronic keyless ignition when trying
to start your vehicle. SeeStarting the Engine on
page 2-24for more information.
RADAR CRUISE NOT READY
When this message displays, it means that the Adaptive
Cruise Control system will not activate due to a
temporary condition. Your vehicle does not require
service. This message will also display when either of
the following conditions occurs:
The driver turns off the head-up display (HUD)
while the Adaptive Cruise Control is engaged.
The driver attempts to engage the Adaptive Cruise
Control while the HUD is off.
If this message appears when you attempt to activate
the system, continue driving for several minutes
and then try activating the system again.
RIGHT REAR DOOR AJAR
This symbol appears with
the RIGHT REAR DOOR
AJAR message.
When this message displays, it means that the
passenger’s side rear door was not closed completely.
You should check to make sure that the door is
closed completely.
SERVICE AC (Air Conditioning)
SYSTEM
This message will display when the electronic sensors
that control the air conditioning and heating systems are
no longer working. Have the climate control system
serviced by your GM dealer if you notice a drop
in heating and air conditioning efficiency.
3-87

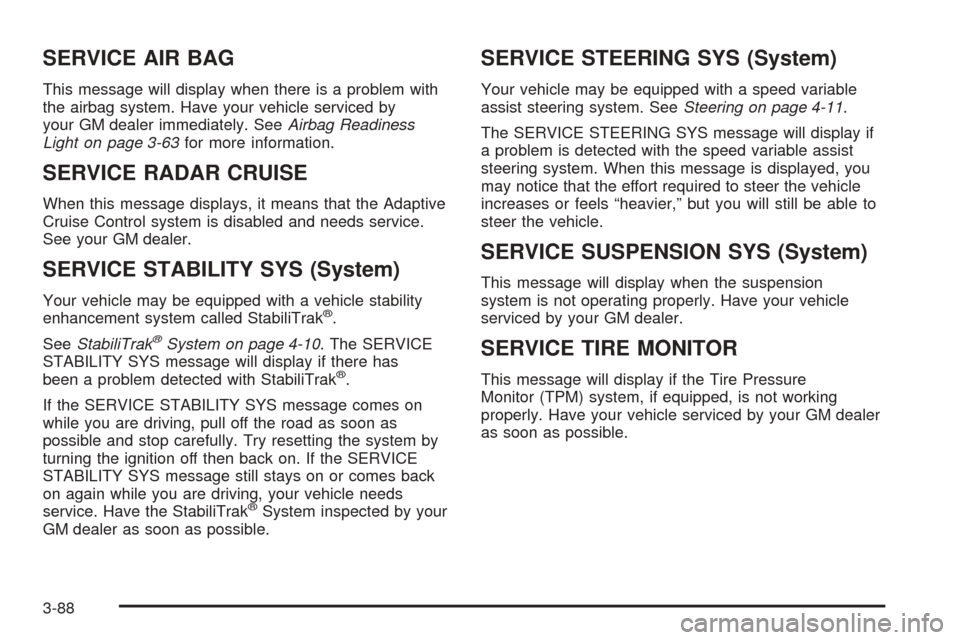

SERVICE AIR BAG
This message will display when there is a problem with
the airbag system. Have your vehicle serviced by
your GM dealer immediately. SeeAirbag Readiness
Light on page 3-63for more information.
SERVICE RADAR CRUISE
When this message displays, it means that the Adaptive
Cruise Control system is disabled and needs service.
See your GM dealer.
SERVICE STABILITY SYS (System)
Your vehicle may be equipped with a vehicle stability
enhancement system called StabiliTrak®.
SeeStabiliTrak
®System on page 4-10. The SERVICE
STABILITY SYS message will display if there has
been a problem detected with StabiliTrak
®.
If the SERVICE STABILITY SYS message comes on
while you are driving, pull off the road as soon as
possible and stop carefully. Try resetting the system by
turning the ignition off then back on. If the SERVICE
STABILITY SYS message still stays on or comes back
on again while you are driving, your vehicle needs
service. Have the StabiliTrak
®System inspected by your
GM dealer as soon as possible.
SERVICE STEERING SYS (System)
Your vehicle may be equipped with a speed variable
assist steering system. SeeSteering on page 4-11.
The SERVICE STEERING SYS message will display if
a problem is detected with the speed variable assist
steering system. When this message is displayed, you
may notice that the effort required to steer the vehicle
increases or feels “heavier,” but you will still be able to
steer the vehicle.
SERVICE SUSPENSION SYS (System)
This message will display when the suspension
system is not operating properly. Have your vehicle
serviced by your GM dealer.
SERVICE TIRE MONITOR
This message will display if the Tire Pressure
Monitor (TPM) system, if equipped, is not working
properly. Have your vehicle serviced by your GM dealer
as soon as possible.
3-88

SERVICE THEFT SYSTEM
This message will display when there is a problem with
the hood open and closed switches. The switches
may need to be replaced. When this message is
displayed, the theft-deterrent system will still be
protecting the interior of the vehicle, however, the hood
area will not be protected at this time. Also, the
remote start function will not work when this message
appears. See your GM dealer for service.
SERVICE TRANSMISSION
This message will display when there is a problem with
the transmission of your vehicle. Have your vehicle
serviced by your GM dealer.
SERVICE VEHICLE SOON
This message will display when a non-emissions related
malfunction occurs. Have your vehicle serviced by
your GM dealer as soon as possible.
SPEED LIMITED TO XXX
This message will display when your vehicle speed is
limited to XXX (mph in English mode and km/h in Metric
mode) because the vehicle detects a problem in the
suspension system. Have your vehicle serviced by your
GM dealer.
STABILITY SYS (System) ACTIVE
The STABILITY SYS ACTIVE message will display
any time StabiliTrak®is actively assisting you with
directional control of the vehicle. Slippery road
conditions may exist when this message is displayed,
so adjust your driving accordingly. This message
may stay on for a few seconds after StabiliTrak
®stops
assisting you with directional control of the vehicle.
SeeStabiliTrak
®System on page 4-10for more
information.
STABILITY SYS (System) NOT READY
The STABILITY SYS NOT READY message will
display if StabiliTrak®is not ready. Two conditions may
cause this message to display.
The rst condition may be that the vehicle needs to be
driven in a straight line for approximately 30-40 ft
(9-12 m) until the sensors are centered. Once the
sensors are centered, the StabiliTrak
®system will be
ready and the STABILITY SYS READY message
will display.
The second condition that may cause this message to
display is when you rst start your vehicle and drive
away during cold winter weather. This is normal.
The system needs to warm up. You can acknowledge
this message by pressing the reset button.
3-89

The StabiliTrak®performance is affected until the
STABILITY SYS READY message is displayed in the
DIC. SeeStabiliTrak
®System on page 4-10for
more information.
STABILITY SYS (System) OFF
The STABILITY SYS OFF message will display any
time you turn off StabiliTrak®using the TC (traction
control) on/off button. SeeTraction Control System
(TCS) on page 4-8for more information. When
this message has been displayed, StabiliTrak
®is no
longer available to assist you with directional control of
the vehicle. Adjust your driving accordingly. See
StabiliTrak
®System on page 4-10for more information.
STABILITY SYS (System) READY
The STABILITY SYS READY message will display any
time you turn back on StabiliTrak®using the TC
(traction control) on/off button. SeeTraction Control
System (TCS) on page 4-8for more information. When
this message has been displayed, StabiliTrak
®is
ready to assist you with directional control of the vehicle
if needed. SeeStabiliTrak
®System on page 4-10for
more information.
STARTING DISABLED THEFT
PROBLEM
This message will display when incorrect conditions
exist within the theft-deterrent system. See your
GM dealer for service.
STARTING DISABLED THROTTLE
PROBLEM
This message will display when your vehicle’s throttle
system is not functioning properly. Have your vehicle
serviced by your GM dealer.
THEFT ATTEMPTED
This symbol appears with
the THEFT ATTEMPTED
message.
This message will display if the theft-deterrent system
has detected a break-in attempt while you were
away from your vehicle.
3-90
