Power Lumbar
The driver’s and
passenger’s seatback
lumbar support switches
are located on the
outboard sides of
the seats.
Use the power seat controls rst to get the proper
position, then continue with the lumbar adjustment.
Use the top lumbar switch to adjust support to the
middle seatback and the bottom lumbar switch to adjust
support to the lower seatback. Press the front of the
switch to increase support and the rear of the switch
to decrease support.
Keep in mind that as your seating position changes,
as it may during long trips, so should the position of your
lumbar support. Adjust the seat as needed.
Heated Seats
Your vehicle may have
heated front seats. The
buttons are located on the
climate control panel.
z(Heated Seat and Seatback):This button is for the
heated seat and seatback. Press the up arrow once
to turn on the heated seat at the highest setting. Press
the down arrow once to turn on the heated seat at
the lowest setting.
Pressing the up or down arrows a second time will raise
or lower the setting. To turn off the heated seat keep
pressing the down arrow until the indicator for heated
seat on the climate control display is off.
The heated seat will automatically shut off when the
vehicle is turned off.
1-3

Heated and Ventilated Seats
Your vehicle may have
heated and ventilated front
seats. The buttons are
located on the climate
control panel.
z(Heated Seat and Seatback):This button is for the
heated seat and seatback.
{(Ventilated Seat):This button is for the
ventilated seat.
There are three settings for each feature. A light bar in
the climate control display shows the setting; high,
medium or low. The longest bar shows the high range
and the shortest bar shows the low range.
Pressing either the heated seat or ventilated seat
button will start that feature at the highest setting. Each
time you press the button, the feature will decrease
one setting.
To turn the feature off, keep pressing the button until
the display lights turn off.
The heated or ventilated seats will automatically shut off
when the vehicle is turned off.
1-4

Rear Seats
Heated Seats
Your vehicle may have this feature. The buttons used to
control the heated rear seats are located on the back
of the center console. The engine must be running
for the heated seat feature to work.
z(Heated Seat and Seatback):Press this button to
turn the heated seat feature on. When you press the
button, the feature will turn on at the highest setting. Each
time you press the button, the feature will go down one
temperature setting. A light next to the button will indicate
the setting; 3 is the highest, 1 is the lowest. To turn the
feature off, keep pressing the button until the indicator
light goes off.
The heated rear seats will shut off automatically when
the ignition is turned off.
Rear Seat Pass-Through Door
Your vehicle has a pass-through door that provides
access to the trunk from the rear seats. See “Rear Seat
Pass-Through Door” underTrunk on page 2-14.
1-7

Matching Transmitter(s) to Your
Vehicle
Each Keyless Access System is coded to allow only
transmitters programmed to your vehicle to work.
If a transmitter is lost or stolen, a replacement can be
purchased and programmed through your GM
dealer. Your GM dealer can reprogram your vehicle so
lost or stolen transmitters no longer work with your
vehicle. Each vehicle can have a maximum of
four transmitters matched to it.
To match a new transmitter to your vehicle when you
have a recognized transmitter, do the following.
Two recognized transmitters are required for Canadian
owners.
1. The vehicle must be off.
2. Have the recognized transmitter and the new,
unrecognized transmitter(s) with you.
3. Insert the vehicle key into the key lock cylinder
located on the outside of the driver’s door.
4. Turn the key to the unlock position ve times within
ve seconds.
5. The Driver Information Center (DIC) will display
READY FOR FOB #X, where X can be 2, 3 or 4.6. Place the new, unrecognized transmitter into the
transmitter pocket with the transmitter buttons
facing the front of the vehicle. The transmitter
pocket is inside the console bin located between
the driver and front passenger seats.
7. Once the transmitter is programmed, a beep will
sound. The DIC will display READY FOR #X,
where X can be 3 or 4, or MAX # FOBS LEARNED.
8. Remove the transmitter from the transmitter pocket
and press the unlock button on the keyless access
transmitter two times.
2-6

The Canadian immobilizer standard requires Canadian
owners to see their GM dealer for matching new
transmitters when a recognized transmitter is not
available. United States Owners are permitted to match
a new transmitter to their vehicle when a recognized
transmitter is not available. The procedure will require
three, ten minute cycles to complete the matching
process. Do the following:
1. The vehicle must be off.
2. Place the new, unrecognized transmitter into the
transmitter pocket with the transmitter buttons
facing the front of the vehicle. The transmitter
pocket is inside the console bin located between
the driver and front passenger seats.3. Insert the vehicle key into the key lock cylinder
located on the driver’s door.
4. Turn the key to the unlock position ve times within
ve seconds.
5. The DIC message will display OFF-ACCESSORY
TO LEARN.
6. Press the OFF/ACC button (ignition switch).
7. The DIC will read WAIT 10 MINUTES and will
count down to zero, one minute at a time.
8. The DIC will display OFF-ACCESSORY TO
LEARN again.
9. Press the OFF/ACC button (ignition switch) again.
10. The DIC will again read WAIT 10 MINUTES
and will count down to zero, one minute at a time.
11. The DIC will display OFF-ACCESSORY TO
LEARN again.
12. Press the OFF/ACC button (ignition switch) again.
13. The DIC will again read WAIT 10 MINUTES
and will count down to zero, one minute at a time.
14. A beep will sound and the DIC will read READY
FOR FOB #1. At this time, all previously known
transmitters have been erased.
15. Once the transmitter is recognized and
programmed, a beep will sound and the DIC will
display READY FOR FOB #2.
16. Remove the keyless access transmitter and press
the unlock button twice to initialize it.
2-7

If you have additional transmitters to program, this
process can be repeated until four transmitters have been
programmed. The DIC will then display MAX # FOBS
LEARNED and will exit the programming mode.
When you are done programming transmitters, press
the unlock button on each keyless access transmitter
twice. After performing this process, transmitters
previously programmed will no longer work with your
vehicle and must be reprogrammed.
Battery Replacement
Under normal use, the battery in your keyless access
transmitter should last about three years.
You can tell the battery is weak if the transmitter will not
work at the normal range in any location. If you have
to get close to your vehicle before the transmitter works,
it is probably time to change the battery. The DIC
may display KEY FOB BATTERY LOW.
A weak battery may also cause the DIC to display
NO FOBS DETECTED when you try to start the vehicle.
If this happens, place the transmitter in the console
bin transmitter pocket with the buttons facing to the
front of the vehicle. Then, with the vehicle in PARK (P)
or NEUTRAL (N), press the brake pedal and the
start button. SeeStarting the Engine on page 2-24,
for additional information about your vehicle’s
electronic keyless ignition with push button start.Although this will start the vehicle, it is recommended
that you replace the transmitter battery as soon as
possible.
Notice:When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.
To replace the battery, do the following:
1. Insert a coin or similar object into the slot on the
back of the transmitter and carefully pry apart the
front and back.
2. Carefully pull the battery out of the transmitter.
2-8

HomeLink®Wireless Control
System Operation
Do not use the HomeLink®Transmitter with any garage
door opener that does not have the “stop and reverse”
feature. This includes any garage door opener model
manufactured before April 1, 1982. If you have a newer
garage door opener with rolling codes, please be
sure to follow Steps 6 through 8 to complete the
programming of your HomeLink
®Transmitter.
Read the instructions completely before attempting to
program the HomeLink
®Transmitter. Because of
the steps involved, it may be helpful to have another
person available to assist you in programming the
transmitter.
Keep the original transmitter for use in other vehicles as
well as for future HomeLink
®programming. It is also
recommended that upon the sale of the vehicle, the
programmed HomeLink
®buttons should be erased for
security purposes. Refer to “Erasing HomeLink®Buttons”
or, for assistance, contact HomeLink®on the Internet
at: www.homelink.com or by calling 1-800-355-3515.
Be sure that people and objects are clear of the garage
door or gate operator you are programming. When
programming a garage door, it is advised to park outside
of the garage.It is recommended that a new battery be installed in
your hand-held transmitter for quicker and more
accurate transmission of the radio frequency.
Programming HomeLink®
Your vehicle’s engine should be turned off while
programming the transmitter. Follow these steps to
program up to three channels:
1. Press and hold down the two outside buttons,
releasing only when the indicator light begins to
ash, after 20 seconds. Do not hold down the
buttons for longer than 30 seconds and do not
repeat this step to program a second and/or third
transmitter to the remaining two HomeLink
®buttons.
2. Position the end of your hand-held transmitter about
1 to 3 inches (3 to 8 cm) away from the HomeLink
®
buttons while keeping the indicator light in view.
3. Simultaneously press and hold both the desired
button on HomeLink
®and the hand-held transmitter
button. Do not release the buttons until Step 4
has been completed.
Some entry gates and garage door openers may
require you to substitute Step 3 with the procedure
noted in “Gate Operator and Canadian
Programming” later in this section.
2-42

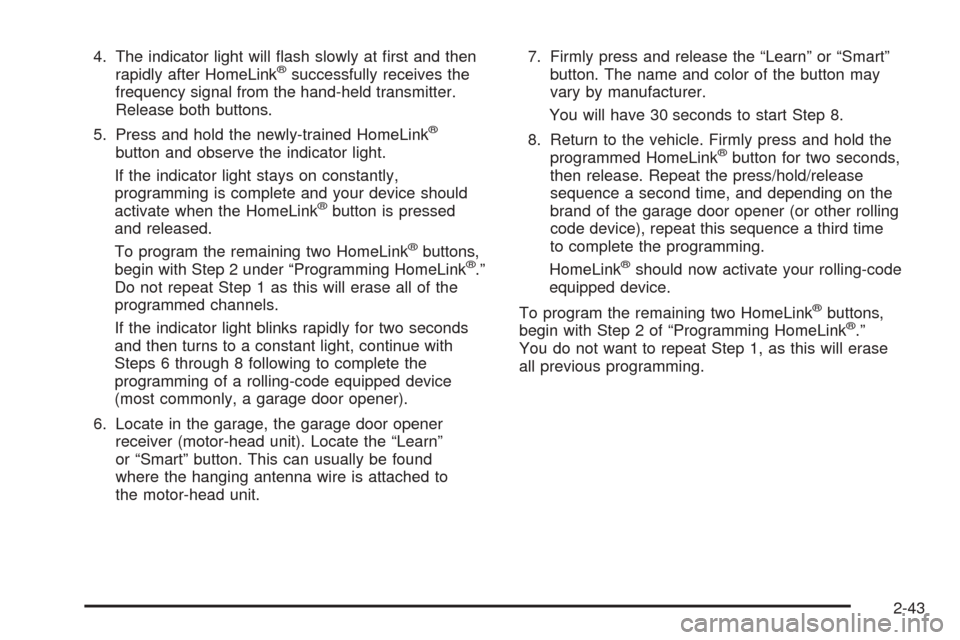

4. The indicator light will ash slowly at rst and then
rapidly after HomeLink®successfully receives the
frequency signal from the hand-held transmitter.
Release both buttons.
5. Press and hold the newly-trained HomeLink
®
button and observe the indicator light.
If the indicator light stays on constantly,
programming is complete and your device should
activate when the HomeLink
®button is pressed
and released.
To program the remaining two HomeLink
®buttons,
begin with Step 2 under “Programming HomeLink®.”
Do not repeat Step 1 as this will erase all of the
programmed channels.
If the indicator light blinks rapidly for two seconds
and then turns to a constant light, continue with
Steps 6 through 8 following to complete the
programming of a rolling-code equipped device
(most commonly, a garage door opener).
6. Locate in the garage, the garage door opener
receiver (motor-head unit). Locate the “Learn”
or “Smart” button. This can usually be found
where the hanging antenna wire is attached to
the motor-head unit.7. Firmly press and release the “Learn” or “Smart”
button. The name and color of the button may
vary by manufacturer.
You will have 30 seconds to start Step 8.
8. Return to the vehicle. Firmly press and hold the
programmed HomeLink
®button for two seconds,
then release. Repeat the press/hold/release
sequence a second time, and depending on the
brand of the garage door opener (or other rolling
code device), repeat this sequence a third time
to complete the programming.
HomeLink
®should now activate your rolling-code
equipped device.
To program the remaining two HomeLink
®buttons,
begin with Step 2 of “Programming HomeLink®.”
You do not want to repeat Step 1, as this will erase
all previous programming.
2-43

Gate Operator and Canadian
Programming
Canadian radio-frequency laws require transmitter
signals to “time out” or quit after several seconds of
transmission. This may not be long enough for
HomeLink
®to pick up the signal during programming.
Similarly, some U.S. gate operators are manufactured
to “time out” in the same manner.
If you live in Canada, or you are having difficulty
programming a gate operator by using the
“Programming HomeLink
®” procedures (regardless of
where you live), replace Step 3 under “Programming
HomeLink
®” with the following:
Continue to press and hold the HomeLink
®button
while you press and release every two seconds (cycle)
your hand-held transmitter until the frequency signal
has been successfully accepted by HomeLink
®.
The indicator light will ash slowly at rst and then
rapidly. Proceed with Step 4 under “Programming
HomeLink
®” to complete.
Using HomeLink®
Press and hold the appropriate HomeLink®button for
at least half of a second. The indicator light will come
on while the signal is being transmitted.
Erasing HomeLink®Buttons
To erase programming from the three buttons do the
following:
1. Press and hold down the two outside buttons until
the indicator light begins to ash, after 20 seconds.
Do not hold the two outside buttons for longer
than 30 seconds.
2. Release both buttons.
HomeLink
®is now in the train (learning) mode and can
be programmed at any time beginning with Step 2
under “Programming HomeLink
®” shown earlier in this
section.
Individual buttons cannot be erased, but they can
be reprogrammed. See “Reprogramming a Single
HomeLink
®Button” following this section.
2-44

Reprogramming a Single HomeLink®
Button
To program a device to HomeLink®using a HomeLink®
button previously trained, follow these steps:
1. Press and hold the desired HomeLink
®button.
Do not release the button.
2. The indicator light will begin to ash after
20 seconds. While still holding the HomeLink
®
button, proceed with Step 2 under “Programming
HomeLink®” shown earlier in this section.
Resetting Defaults
To reset HomeLink®to default settings do the following:
1. Hold down the two outside buttons for about
20 seconds until the indicator light begins to ash.
2. Continue to hold both buttons until the HomeLink
®
indicator light turns off.
3. Release both buttons.
For questions or comments, contact HomeLink
®
at 1-800-355-3515, or on the Internet at
www.homelink.com.
Storage Areas
Glove Box
To open the glove box, lift up on the lever. The glove
box has a light inside.
Cupholder(s)
Your vehicle has two cupholders in the center
console area.
Center Console Storage Area
Your vehicle has a center console storage area located
between the front seats. It includes storage areas, and
accessory power outlet(s) on the rear of the console.
Convenience Net
If your vehicle has a convenience net, the convenience
net attaches to the oor or back wall of the rear of
the vehicle using six anchor points. The net can be used
like a hammock across the rear of the vehicle or
hooked on the oor. Put small loads, like grocery bags,
behind the net. It can help keep them from falling
over during sharp turns or quick starts and stops.
The net is not for larger, heavier loads. Store them in
the rear of the vehicle as far forward as you can.
2-45
