If the Light Is Flashing
The following may prevent more serious damage
to your vehicle:
Reducing vehicle speed
Avoiding hard accelerations
Avoiding steep uphill grades
If the light stops ashing and remains on steady,
see “If the Light Is On Steady” following.
If the light continues to ash, when it is safe to do
so, stop the vehicle. Find a safe place to park
your vehicle. Turn the engine off, wait at
least 10 seconds and restart the engine. If the
light remains on steady, see “If the Light Is
On Steady” following. If the light is still ashing,
follow the previous steps, and see your dealer for
service as soon as possible.
If the Light Is On Steady
You also may be able to correct the emission
system malfunction by considering the following:
Did you recently put fuel into your vehicle?
If so, reinstall the fuel cap, making sure to fully
install the cap. SeeFilling the Tank on page 369.
The diagnostic system can determine if the
fuel cap has been left off or improperly installed. A
loose or missing fuel cap will allow fuel to
evaporate into the atmosphere. A few driving trips
with the cap properly installed should turn the
light off.
Did you just drive through a deep puddle of
water?
If so, your vehicle’s electrical system may be wet.
The condition will usually be corrected when
the electrical system dries out. A few driving trips
should turn the light off.
198

Here are ve things that some owners ask about.
All these things are normal and do not indicate
that anything is wrong with the fuel gage.
At the gas station, the gas pump shuts off
before the gage reads the full symbol.
It takes more (or less) fuel to ll up than the
gage reads. For example, the gage reads
half full, but it took more (or less) than half of
the tank’s capacity to t it.
The gage pointer may move while cornering,
braking or speeding up.
The gage may not indicate the tank is empty
when the ignition is turned off.
The gage reading may change slightly within
the rst several minutes after starting the
vehicle.
You can use the Driver Information Center (DIC)
to display more detailed fuel information. While
scrolling through the DIC, you will also nd:
AVERAGE XX.X MPG (Average Miles Per
Gallon):The fuel economy calculated for
the last 20 gallons (76 L) of fuel used, or since
you last reset the display.
INST XX.X MPG (Instantaneous Miles Per
Gallon):The fuel economy calculated for
your current driving conditions.
RANGE XXX MI:The approximate distance
you can drive before refueling.
SeeDIC Controls and Displays on page 204for
more information.
You should reset the fuel information display every
time you refuel. To reset AVERAGE, use the
information up or down button to scroll to AVE
FUEL ECON and hold the reset button. RANGE
will automatically reset.
Driver Information Center (DIC)
This display gives you the status of many of
your vehicle’s systems. The DIC is also used to
display driver personalization features and
warning/status messages. All messages will
appear in the DIC display, located at the bottom of
the instrument panel cluster.
203

BUCKLE PASSENGER
This message reminds you to buckle the
passenger’s safety belt.
This message displays and a chime sounds when
the ignition is on, the driver’s safety belt is
buckled, the passenger’s safety belt is unbuckled
with the passenger airbag enabled, and the
vehicle is in motion. You should have the
passenger buckle their safety belt.
The reminder will be repeated if the ignition is on,
the vehicle is in motion, the driver is buckled
and the passenger is still unbuckled, and
the passenger airbag is enabled. If the
passenger’s safety belt is already buckled, this
message and chime will not come on.
BUCKLE SEAT BELT
This message reminds you to buckle the driver’s
safety belt.
This message displays and a chime sounds when
the ignition is on, the driver’s safety belt is
unbuckled, and the vehicle is in motion. You
should buckle your safety belt.If the driver remains unbuckled when the ignition
is on and the vehicle is in motion, the reminder
will be repeated. If the driver’s safety belt is
already buckled, this message and chime will not
come on.
This message is an additional reminder to the
Safety Belt Reminder Light in the instrument panel
cluster. SeeSafety Belt Reminder Light on
page 187for more information.
CHANGE OIL NOW
This message displays when the life of the engine
oil has expired. SeeScheduled Maintenance on
page 465. After an oil change, the Oil Life Indicator
must be reset. SeeOil Life Indicator on page 224
andEngine Oil Life System on page 380.
CHARGE SYSTEM FAULT
This message displays when a problem with the
charging system has been detected. Have
your vehicle serviced by your dealer.
CHECK GAS CAP
This message displays if the fuel cap has not
been fully tightened. Check the fuel cap to make
sure that it is on properly.
207

Certication Label
A vehicle specic Certication label is attached to
the rear edge of the driver’s door. It tells you
the gross weight capacity of your vehicle, called
the Gross Vehicle Weight Rating (GVWR).
The GVWR includes the weight of the vehicle, all
occupants, fuel, and cargo. Never exceed the
GVWR for your vehicle, or the Gross Axle Weight
Rating (GAWR) for either the front or rear axle.
And, if you do have a heavy load, you should
spread it out.
{CAUTION:
Do not load your vehicle any heavier than
the Gross Vehicle Weight Rating (GVWR),
or either the maximum front or rear Gross
Axle Weight Rating (GAWR). If you do,
parts on your vehicle can break, and it
can change the way your vehicle handles.
These could cause you to lose control
and crash. Also, overloading can shorten
the life of your vehicle.
Notice:Overloading your vehicle may cause
damage. Repairs would not be covered by your
warranty. Do not overload your vehicle.
If you put things inside your vehicle — like
suitcases, tools, packages, or anything else — they
will go as fast as the vehicle goes. If you have to
stop or turn quickly, or if there is a crash, they will
keep going.
358

Service........................................................ 363
Accessories and Modications................... 363
California Proposition 65 Warning.............. 364
Doing Your Own Service Work.................. 364
Adding Equipment to the Outside of Your
Vehicle................................................... 365
Fuel............................................................. 365
Gasoline Octane........................................ 366
Gasoline Specications.............................. 366
California Fuel........................................... 367
Additives................................................... 367
Fuels in Foreign Countries........................ 368
Filling the Tank......................................... 369
Filling a Portable Fuel Container............... 371
Checking Things Under the Hood.............. 372
Hood Release........................................... 373
Engine Compartment Overview.................. 374
Engine Oil................................................. 377
Engine Oil Life System.............................. 380
Supercharger Oil....................................... 382
Engine Air Cleaner/Filter............................ 382
Automatic Transmission Fluid.................... 384
Engine Coolant.......................................... 385
Coolant Surge Tank Pressure Cap.............. 388Engine Overheating................................... 388
Overheated Engine Protection
Operating Mode..................................... 390
Cooling System......................................... 391
Power Steering Fluid ................................. 396
Windshield Washer Fluid........................... 397
Brakes...................................................... 399
Battery...................................................... 402
Jump Starting............................................ 403
Rear Axle.................................................... 407
Headlamp Aiming........................................ 408
Headlamp Vertical Aiming.......................... 410
Bulb Replacement....................................... 412
Windshield Replacement............................ 412
Windshield Wiper Blade Replacement....... 412
Tires............................................................ 413
Winter Tires (XLR-V) ................................. 414
Tire Sidewall Labeling............................... 415
Tire Terminology and Denitions............... 417
Run-Flat Tires........................................... 420
Ination - Tire Pressure............................. 422
Tire Pressure Monitor System................... 423
Tire Inspection and Rotation...................... 426
Section 6 Service and Appearance Care
361

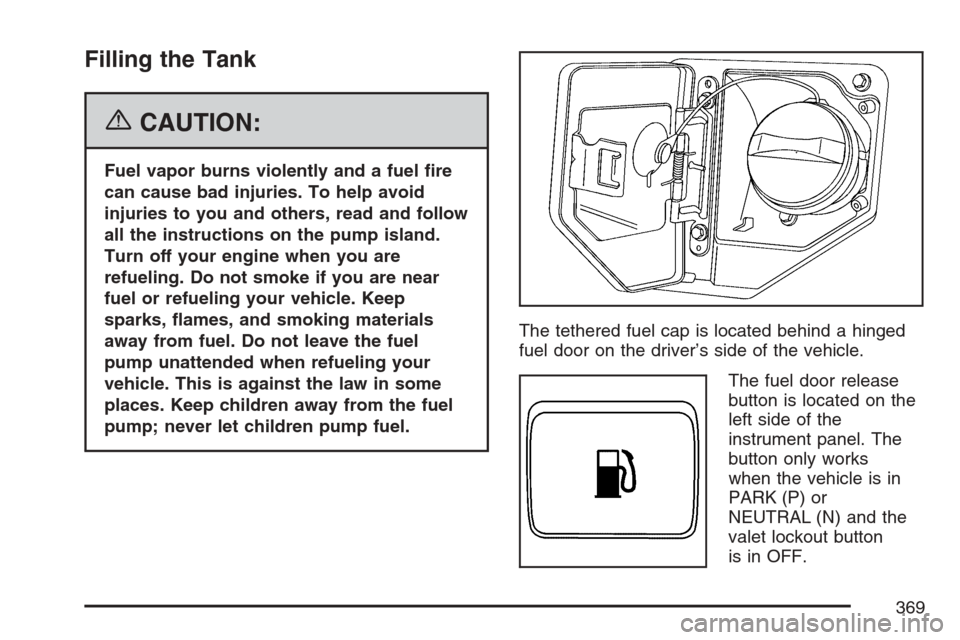

Filling the Tank
{CAUTION:
Fuel vapor burns violently and a fuel re
can cause bad injuries. To help avoid
injuries to you and others, read and follow
all the instructions on the pump island.
Turn off your engine when you are
refueling. Do not smoke if you are near
fuel or refueling your vehicle. Keep
sparks, ames, and smoking materials
away from fuel. Do not leave the fuel
pump unattended when refueling your
vehicle. This is against the law in some
places. Keep children away from the fuel
pump; never let children pump fuel.The tethered fuel cap is located behind a hinged
fuel door on the driver’s side of the vehicle.
The fuel door release
button is located on the
left side of the
instrument panel. The
button only works
when the vehicle is in
PARK (P) or
NEUTRAL (N) and the
valet lockout button
is in OFF.
369

An alternate fuel door
release is located inside
the trunk behind a
panel on the driver’s
side of the vehicle. Pull
the handle to release
the fuel door.
To remove the fuel cap, turn it slowly
counterclockwise. The fuel cap has a spring in it; if
the cap is released too soon, it will spring back
to the right.

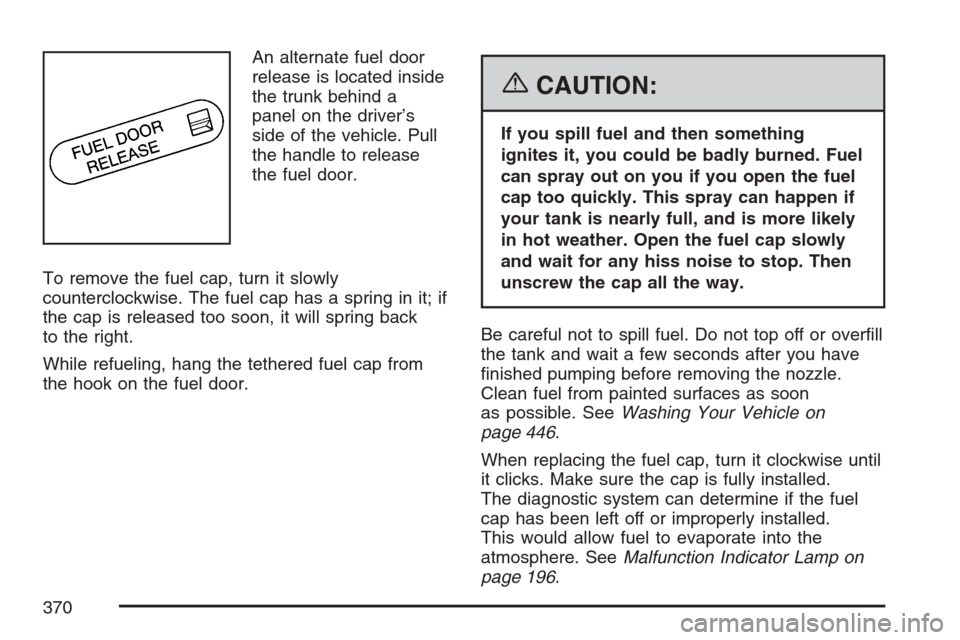

While refueling, hang the tethered fuel cap from
the hook on the fuel door.
{CAUTION:
If you spill fuel and then something
ignites it, you could be badly burned. Fuel
can spray out on you if you open the fuel
cap too quickly. This spray can happen if
your tank is nearly full, and is more likely
in hot weather. Open the fuel cap slowly
and wait for any hiss noise to stop. Then
unscrew the cap all the way.
Be careful not to spill fuel. Do not top off or overll
the tank and wait a few seconds after you have
nished pumping before removing the nozzle.
Clean fuel from painted surfaces as soon
as possible. SeeWashing Your Vehicle on
page 446.
When replacing the fuel cap, turn it clockwise until
it clicks. Make sure the cap is fully installed.
The diagnostic system can determine if the fuel
cap has been left off or improperly installed.
This would allow fuel to evaporate into the
atmosphere. SeeMalfunction Indicator Lamp on
page 196.
370

The CHECK GAS CAP message in the Driver
Information Center (DIC) will be displayed if
the fuel cap is not properly installed.
{CAUTION:
If a re starts while you are refueling, do
not remove the nozzle. Shut off the ow of
fuel by shutting off the pump or by
notifying the station attendant. Leave the
area immediately.
Notice:If you need a new fuel cap, be sure to
get the right type. Your dealer can get one
for you. If you get the wrong type, it may not
t properly. This may cause your malfunction
indicator lamp to light and may damage
your fuel tank and emissions system. See
Malfunction Indicator Lamp on page 196.
Filling a Portable Fuel Container
{CAUTION:
Never ll a portable fuel container while it
is in your vehicle. Static electricity
discharge from the container can ignite the
gasoline vapor. You can be badly burned
and your vehicle damaged if this occurs.
To help avoid injury to you and others:
Dispense gasoline only into approved
containers.
Do not ll a container while it is inside a
vehicle, in a vehicle’s trunk, pickup
bed, or on any surface other than the
ground.
Bring the ll nozzle in contact with the
inside of the ll opening before
operating the nozzle. Contact should
be maintained until the lling is
complete.
Do not smoke while pumping gasoline.
371

A. Battery. SeeBattery on page 402.
B. Passenger Compartment Air Filter. See
Passenger Compartment Air Filter on page 184.
C. Underhood Fuse Block. SeeUnderhood
Fuse Block on page 455.
D. Power Steering Fluid. SeePower Steering
Fluid on page 396.
E. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 382.
F. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 377.
G. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 377.
H. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 399.
I. Engine Coolant Surge Tank and Pressure Cap.
SeeCoolant Surge Tank Pressure Cap on
page 388.
J. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 397.Engine Oil
If the LOW OIL LEVEL or LOW OIL PRESSURE
message on the Driver Information Center
(DIC) appears, it means you need to check the
engine oil level right away. For more information,
see LOW OIL LEVEL and LOW OIL PRESSURE
underDIC Warnings and Messages on page 206.
You should check the engine oil level regularly;
this is an added reminder.
Checking Engine Oil
It is a good idea to check the engine oil every time
you get fuel. In order to get an accurate reading,
the oil must be warm and the vehicle must be
on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 374
for the location of the engine oil dipstick.
1. Turn off the engine and give the oil several
minutes to drain back into the oil pan. If you
do not do this, the oil dipstick might not
show the actual level.
2. Pull out the dipstick and clean it with a paper
towel or cloth, then push it back in all the
way. Remove it again, keeping the tip down,
and check the level.
377
