relay CHERY TIGGO 2009 Service Workshop Manual

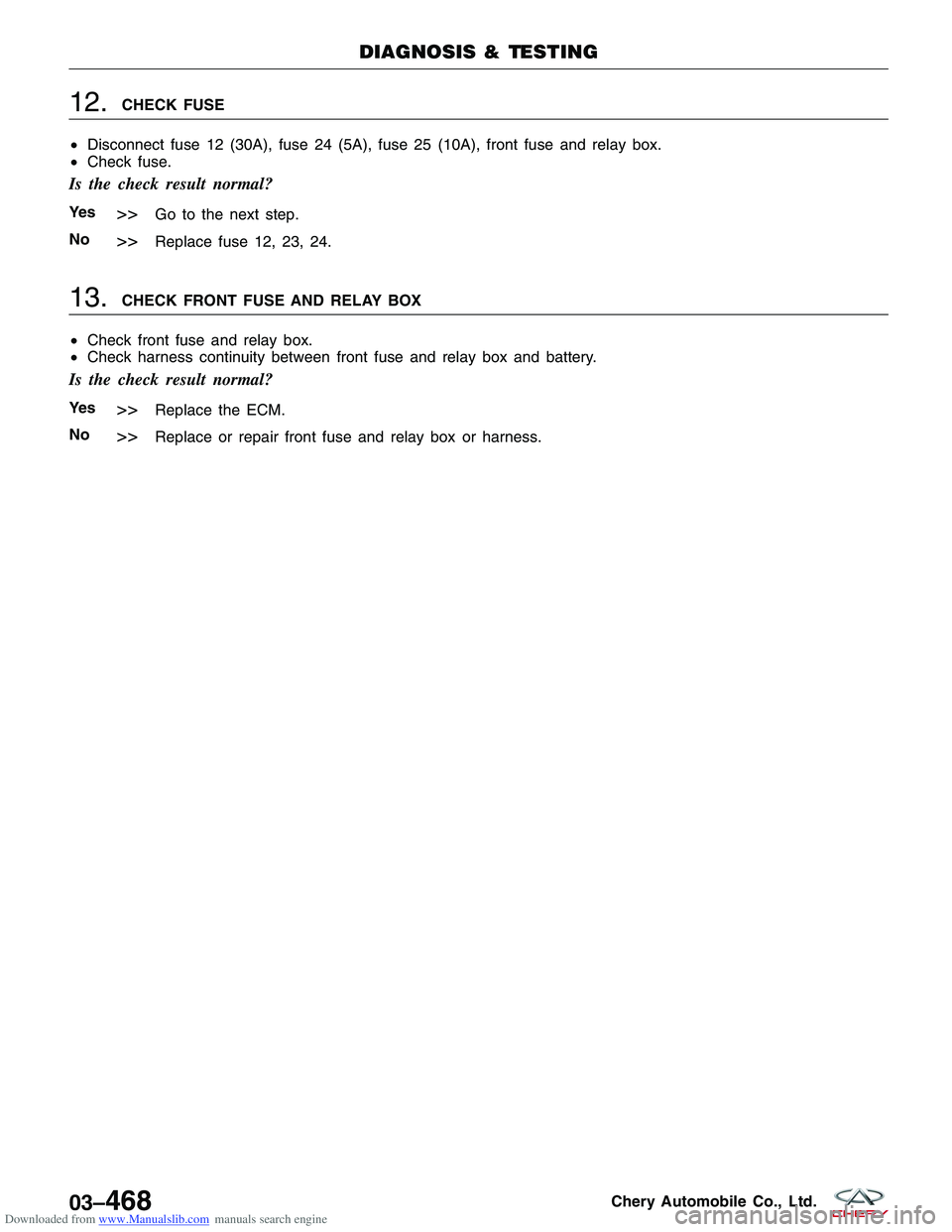

Downloaded from www.Manualslib.com manuals search engine 12.CHECK FUSE
• Disconnect fuse 12 (30A), fuse 24 (5A), fuse 25 (10A), front fuse and relay box.
• Check fuse.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace fuse 12, 23, 24.
13.CHECK FRONT FUSE AND RELAY BOX
• Check front fuse and relay box.
• Check harness continuity between front fuse and relay box and battery.
Is the check result normal?
Ye s>>Replace the ECM.
No
>>Replace or repair front fuse and relay box or harness.
DIAGNOSIS & TESTING
03–468Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 7.DETECT MALFUNCTIONING PART
• Check the following:
Fuse 25, Fuse 12, Fuse 24
Front fuse and relay box H5
Harness connectors A-102, E-105
Harness open or short between O
2sensor and fuse
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace malfunctioning parts.
8.CHECK O2SENSOR HEATER CONTROL CIRCUIT FOR AN OPEN AND SHORT
• Turn ignition switch off.
• Check harness continuity between ECM terminal and O
2sensor terminal.
COMPONENTS ECMO2SENSOR
TERMINAL 523
• Continuity should exist.
• Check harness short to power supply circuit and ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair the circuit for an open or short to power supply circuit or ground in harness or connectors.
9.CHECK O2SENSOR HEATER
• Check resistance between O
2sensor terminals.
TERMINAL NO. RESISTANCE
2 & 3 (including cable and
connector) Approximately 9

1&2and1&3 (Continuity should notexist)
4&2and4&3
Is the check result normal?
Ye s>>Go to the next step.
No
>>Replace O2sensor.
DIAGNOSIS & TESTING
03–474Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 2.CHECK AIR FLOW SENSOR ELECTRICAL CONNECTOR
• Turn ignition switch off.
• Disconnect the air flow sensor electrical connector.
• Inspect the electrical connector for damage.
Is the electrical connector OK?
Ye s>>Go to the next step.
No
>>Repair or replace the electrical connector as necessary.
3.CHECK AIR FLOW SENSOR POWER SUPPLY CIRCUIT
• Turn ignition switch on.
• Check supply voltage between air flow sensor ter-
minal 4 and ground in the air flow sensor electrical
connector E-058.
• Battery voltage should exist.
Is the check result normal?
Ye s>>Go to step 5.
No
>>Go to the next step.
4.DETECT MALFUNCTIONING PART
• Check the following:
Harness connectors A-102, E-105
Front fuse and relay box H3
Fuse 22, Fuse 12
Harness open or short between air flow sensor and fuse
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace malfunctioning parts.
5.CHECK MAF SENSOR REFERENCE VOLTAGE
• Check reference voltage between air flow sensor terminal 7 and ground in the air flow sensor electrical connec-
tor E-058.
• 4.8 - 5.2 V should exist.
Is the check result normal?
Ye s>>Go to step 7.
No
>>Go to the next step.
DIAGNOSIS & TESTING
LTSMD030004
03–478Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 2.CHECK CRANKSHAFT POSITION (CKP) SENSOR ELECTRICAL CONNECTOR
• Disconnect the CKP electrical connector (1).
• Inspect the electrical connector for damage.
Is the electrical connector OK?
Ye s>>Go to the next step.
No
>>Repair or replace the electrical connector
as necessary.
3.CHECK CRANKSHAFT POSITION (CKP) SENSOR POWER SUPPLY CIRCUIT FOR AN OPEN OR SHORT
• Turn ignition switch on.
• Check supply voltage between CKP sensor terminal
3 and ground in the CKP sensor electrical connec-
tor E-055.
• Battery voltage should exist.
Is the check result normal?
Ye s>>Go to step 5.
No
>>Go to the next step.
4.DETECT MALFUNCTIONING PART
• Check the following:
Fuse 22, Fuse 12
Front fuse and relay box H3
Harness connectors A-102, E-105
Harness open or short between CKP sensor and fuse
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace malfunctioning parts.
DIAGNOSIS & TESTING
LTSMD030079
LTSMD030012
03–500Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 4.DETECT MALFUNCTIONING PART
• Check the following:
Fuse 22, Fuse 12
Front fuse and relay box H3
Harness connectors A-102, E-105
Harness open or short between CMP sensor and fuse
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace malfunctioning parts.
5.CHECK THE CMP SENSOR GROUND CIRCUIT FOR AN OPEN
• Turn ignition switch off.
• Check harness continuity between following terminals.
CKP
SENSOR
TERMINAL TERMINAL CONTINUITY
1
Ground Yes
• Continuity should exist.
Is the check result normal?
Ye s>>Go to step 7.
No
>>Go to the next step.
6.DETECT MALFUNCTIONING PART
• Check harness for open or short between CMP sensor and ground.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the circuit for an open or short in harness or connectors.
DIAGNOSIS & TESTING
03
03–507Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 6.CHECK INJECTOR POWER SUPPLY CIRCUIT FOR OPEN OR SHORT
• Turn ignition switch on.
• Check injector supply voltage between sensor ter-
minal 1 and ground in the electrical connector.
• Battery voltage should exist.
Is the check result normal?
Ye s>>Go to step 8.
No
>>Go to the next step.
7.DETECT MALFUNCTIONING PART
• Disconnect injector harness connector.
• Check the following:
Harness connectors A-102, E-105
Front fuse and relay box H3
Fuse 22, Fuse 12
Harness for open or short between injector and fuse
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace malfunctioning part.
8.CHECK INJECTOR CONTROL CIRCUITS FOR AN OPEN AND SHORT
• Turn ignition switch off.
• Disconnect ECM harness connector.
• Check harness continuity between following terminals.
INJECTOR
NO. ECM
TERMINAL INJECTOR
TERMINAL
112
21 42
322
41 52
DIAGNOSIS & TESTING
LTSMD030019
03–522Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 5.CHECK IGNITION COIL ELECTRICAL CONNECTOR
• Turn ignition switch off.
• Disconnect the ignition coil electrical connector (1).
• Inspect the electrical connector for damage.
Is the electrical connector OK?
Ye s>>Go to the next step.
No
>>Repair or replace the electrical connector
as necessary.
6.CHECK IGNITION COIL POWER SUPPLY CIRCUIT FOR AN OPEN OR SHORT
• Turn ignition switch on.
• Check supply voltage between ignition coil terminal
1 and ground in the ignition coil electrical connec-
tor.
• Battery voltage should exist.
Is the check result normal?
Ye s>>Go to step 8.
No
>>Go to the next step.
7.DETECT MALFUNCTIONING PART
• Check the following:
Fuse 15
Front fuse and relay box B8
Harness connectors A-102, E-105
Harness open or short between ignition coil and fuse
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace malfunctioning parts.
DIAGNOSIS & TESTING
LTSM030017
LTSMD030022
03–528Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Engine Cranks Normal But Will Not Start
The following conditions apply to this symptom:
•The engine cranks at normal speed.
• The engine will not start.
• The battery is fully charged.
1.PRELIMINARY CHECKS
CAUTION:
Extended cranking because of a No Start can load the exhaust system with raw fuel, damaging the
catalytic converter after the engine starts.
•Carry out the following preliminary checks:
Fuel quality
Electrical connections
Intake air tube integrity
Fuses and relays
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair as necessary.
Verify the symptom no longer exists.
2.CHECK DTC
• Turn the ignition switch on.
• With the scan tool X-431, select view DTC.
Are there any DTCs present?
Ye s>>See the Diagnostic Trouble Code (DTC) List.
Go to the specific diagnostic test to troubleshoot the DTC.
No
>>Go to the next step.
3.TRY TO START THE ENGINE WITH THE THROTTLE CLOSED
• Attempt to start the engine.
Does the engine start now with the throttle closed?
Ye s>>Verify the symptom no longer exists.
No
>>Go to the next step.
4.CHECK EXHAUST SYSTEM
• Inspect the vehicles exhaust system for restriction.
Is there a restriction in the exhaust system?
Ye s>>Repair as necessary.
No
>>Go to the next step.
ELECTRONIC ENGINE CONTROLS - 2.4L ENGINE SYMPTOM DIAGNOSIS
03
03–545Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine Engine Will Not Crank
The following conditions apply to this symptom:
•The engine will not crank.
1.PRELIMINARY CHECKS
• Carry out the following preliminary vehicle inspection:
Fuel quality
Battery connections
Starter relay connections
Manual transmission clutch fully depressed
Engine immobilizer activated
Fuses/Fuse links
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair as necessary.
Verify the symptom no longer exists.
•
2.LISTEN FOR STARTER RELAY CLICKING
• Attempt to start the engine.
Is a clicking sound heard from the starter relay when the ignition key is turned to START?
Ye s>>Go to the next step.
No
>>Go to step 5.
3.CHECK STARTING SYSTEM
• Check the starter, starter ground, starter relay cable to starter and battery.
Is a fault indicated?
Ye s>>Repair as necessary.
No
>>Go to the next step.
4.CHECK OPERATION OF OTHER ELECTRICAL ACCESSORIES
• Check all accessories.
Do any other electrical accessories work?
Ye s>>Go to the next step.
No
>>Check the charging system.
ELECTRONIC ENGINE CONTROLS - 2.4L ENGINE SYMPTOM DIAGNOSIS
03
03–547Chery Automobile Co., Ltd.

Downloaded from www.Manualslib.com manuals search engine 5.CHECK DTC
• Turn the ignition switch on.
• With the scan tool X-431, read the DTC.
Are there any DTCs present?
Ye s>>Check for cause.
No
>>Go to the next step.
6.CHECK STARTING SYSTEM PRIMARY CIRCUITS
• Check the starting system primary circuits as follows:
Starter relay
Ignition switch
Are components/systems OK?
Ye s>>Ensure customer’s concern has been resolved.
No
>>Repair as necessary.
ELECTRONIC ENGINE CONTROLS - 2.4L ENGINE SYMPTOM DIAGNOSIS
03–548Chery Automobile Co., Ltd.
