ESP inoperative CHERY TIGGO 2009 Service Repair Manual

Downloaded from www.Manualslib.com manuals search engine INSTRUMENT CLUSTER15-52
Description 15-52
Operation 15-52
Specifications 15-53
Special Tools 15-53
Electrical Schematics 15-54
Instrument Cluster Connector Pin-Out
Table 15-62
DIAGNOSIS & TESTING15-64
Clearing Service Monitor Lamp 15-64
Diagnostic Help 15-64
Intermittent DTC Troubleshooting 15-64
Ground Inspection 15-64
Diagnostic Tools 15-65
Diagnostic Trouble Code (DTC) List 15-65
Instrument Cluster DTC List 15-65
Diagnostic Trouble Code (DTC) Tests 15-66
U029C - Battery Over Voltage Error,
U029C - Battery Under Voltage Error 15-66
U040F - Temperature Sensor Shorted
To Supply, U040F - Temperature
Sensor Shorted To Ground (With
Mitsubishi 2.4L Engine System) 15-72
U050F - EEPROM Checksum Error 15-77
U0303 - Fuel Sensor Open Circuit Or
Shorted To Supply, U0303 - Fuel
Sensor Short To Ground 15-79
ON-VEHICLE SERVICE15-84
Instrument Cluster 15-84
Removal & Installation 15-84
INTERIOR LAMPS15-85
Description 15-85
Operation 15-85
Electrical Schematics 15-86
Front Room Lamp 15-91
Removal & Installation 15-91
Middle/Rear Courtesy/Dome Lamp 15-91
Removal & Installation 15-91
Key Hole Lamp 15-92
Removal & Installation 15-92
POWER OUTLET15-93
Description 15-93
Operation 15-93
Electrical Schematics 15-94
Removal & Installation 15-95
POWER WINDOW15-96
Description 15-96
Operation 15-96
Electrical Schematics 15-97
Power Window Switch 15-100
Removal & Installation 15-100
Power Window Motor 15-100
Removal & Installation 15-100
Power Window Motor Inspection 15-103
SEATS15-104
General Information 15-104
Description 15-104
Operation 15-104
Electrical Schematics 15-105
Front Seat 15-106
Removal & Installation 15-106
Rear Seats 15-107
Removal & Installation 15-107
Heated Seat Switch 15-109
Removal & Installation 15-109
Heated Seat Element 15-109
Removal & Installation 15-109
IMMOBILIZER CONTROL MODULE15-110
Description 15-110
Operation 15-110
Electrical Schematics 15-111
Immobilizer Control Module Connector
Pin-Out Table 15-112
DIAGNOSIS & TESTING15-113
Diagnostic Help 15-113
Intermittent DTC Troubleshooting 15-113
Ground Inspection 15-113
Diagnostic Tools 15-113
Diagnostic Trouble Code (DTC) List 15-114
Immobilizer Control Module DTC List 15-114
Remote Keyless Entry (RKE)
Inoperative 15-115
No Response From Remote Keyless
Entry (RKE) Transmitter 15-115
15–2Chery Automobile Co., Ltd.

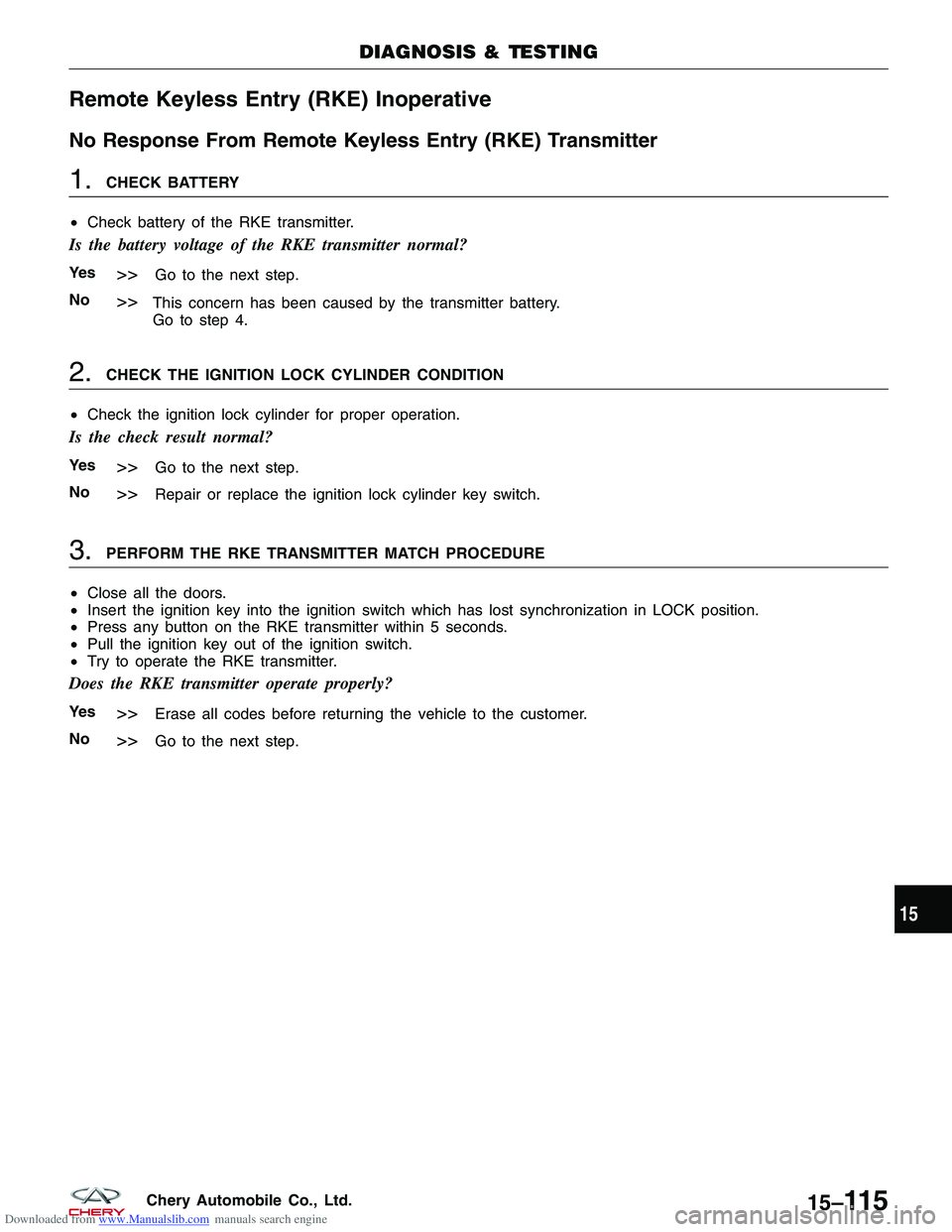

Downloaded from www.Manualslib.com manuals search engine Remote Keyless Entry (RKE) Inoperative
No Response From Remote Keyless Entry (RKE) Transmitter
1.CHECK BATTERY
• Check battery of the RKE transmitter.
Is the battery voltage of the RKE transmitter normal?
Ye s>>Go to the next step.
No
>>This concern has been caused by the transmitter battery.
Go to step 4.
2.CHECK THE IGNITION LOCK CYLINDER CONDITION
• Check the ignition lock cylinder for proper operation.
Is the check result normal?
Ye s>>Go to the next step.
No
>>Repair or replace the ignition lock cylinder key switch.
3.PERFORM THE RKE TRANSMITTER MATCH PROCEDURE
• Close all the doors.
• Insert the ignition key into the ignition switch which has lost synchronization in LOCK position.
• Press any button on the RKE transmitter within 5 seconds.
• Pull the ignition key out of the ignition switch.
• Try to operate the RKE transmitter.
Does the RKE transmitter operate properly?
Ye s>>Erase all codes before returning the vehicle to the customer.
No
>>Go to the next step.
DIAGNOSIS & TESTING
15
15–11 5Chery Automobile Co., Ltd.
