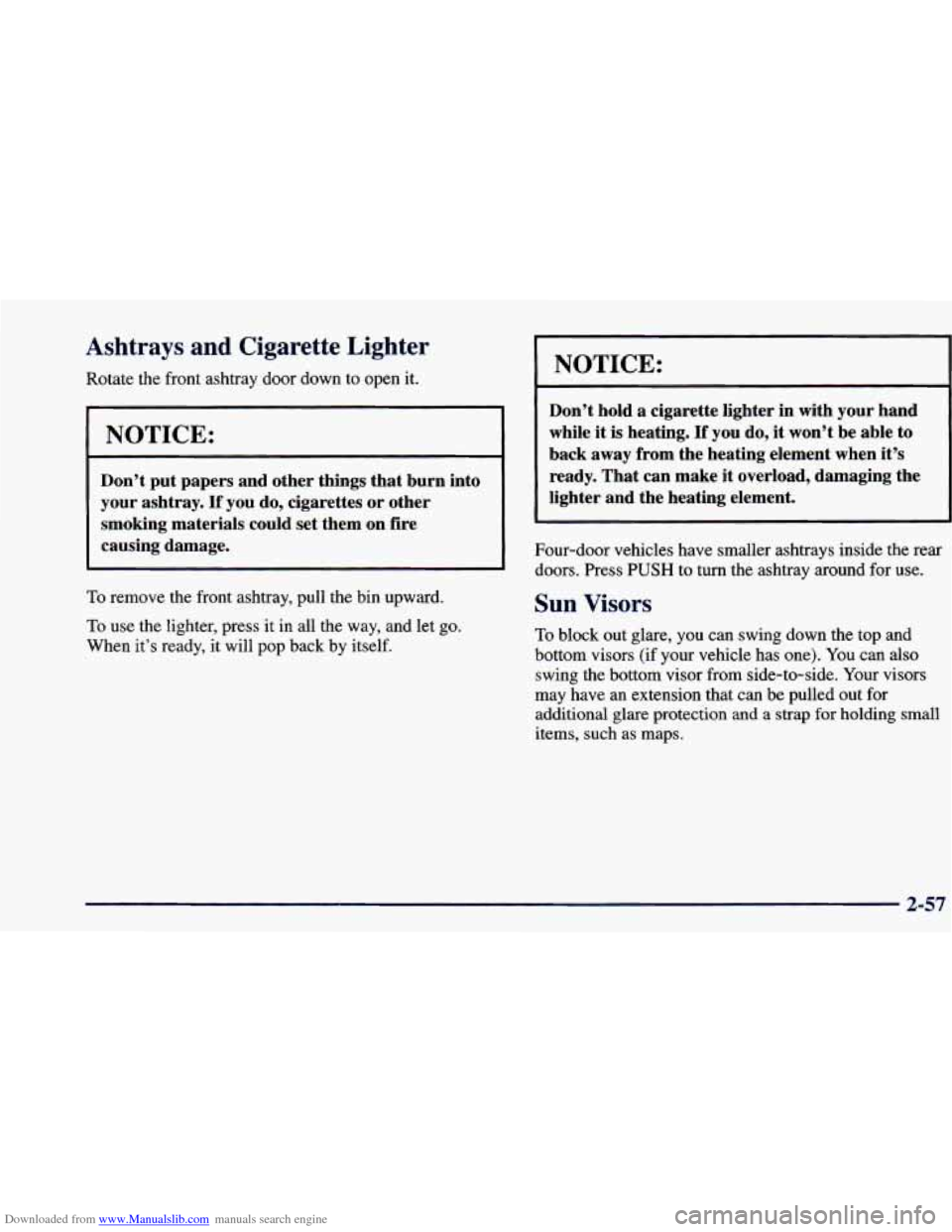

Downloaded from www.Manualslib.com manuals search engine Ashtrays and Cigarette Lighter
Rotate the front ashtray door down to open it.
I NOTICE:
~
Don’t put papers and other things that burn into
your ashtray.
If you do, cigarettes or other
smoking materials could set them on fire
causing damage.
To remove the front ashtray, pull the bin upward.
To use the lighter, press it in all the way, and let go.
When it’s ready, it will pop back by itself.
I NOTICE:
Don’t hold a cigarette lighter in with your hand
while
it is heating. If you do, it won’t be able to
back away from the heating element when it’s
ready. That can make it overload, damaging the
lighter and the heating element.
Four-door vehicles have smaller ashtrays inside the rear
doors. Press
PUSH to turn the ashtray around for use.
Sun Visors
To block out glare, you can swing down the top and
bottom visors
(if your vehicle has one). You can also
swing the bottom visor from side-to-side. Your visors
may have an extension that
can be pulled out for
additional glare protection and a strap for holding small
items, such as maps.
2-57

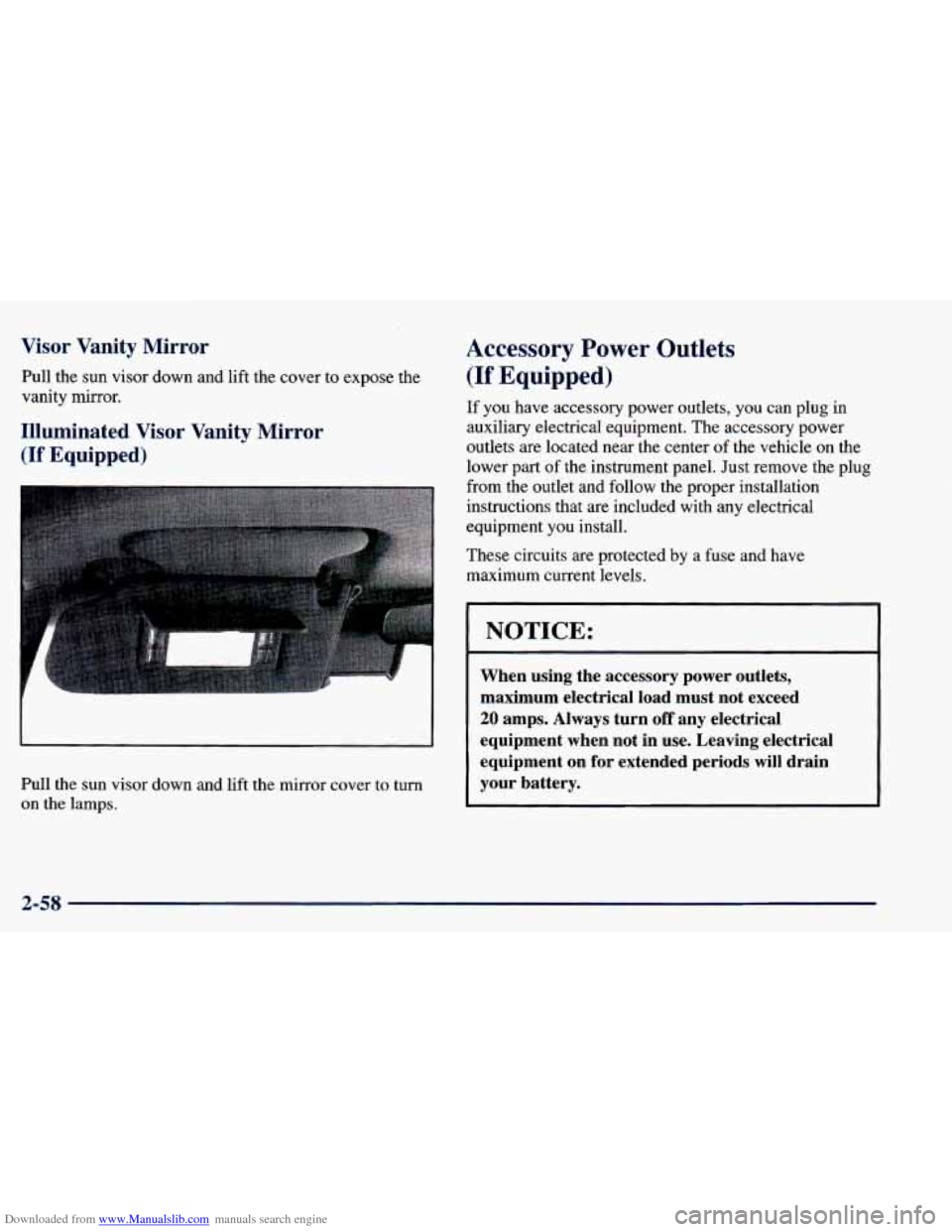

Downloaded from www.Manualslib.com manuals search engine Visor Vanity Mirror
Pull the sun visor down and lift the cover to expose the
vanity mirror.
Illuminated Visor Vanity Mirror
(If Equipped)
Pull the sun visor down and lift the mirror cover to turn
on the lamps.
Accessory Power Outlets
(If Equipped)
If you have accessory power outlets, you can plug in
auxiliary electrical equipment. The accessory power
outlets are located near the center of the vehicle
on the
lower part of the instrument panel.
Just remove the plug
from the outlet and follow the proper installation
instructions that are included with any electrical
equipment you install.
These circuits are protected by a fuse and have
maximum current levels.
I NOTICE:
When using the accessory power outlets,
maximum electrical load must not exceed
20 amps. Always turn off any electrical
equipment when not in use. Leaving electrical
equipment on for extended periods will drain
your battery.
2-58

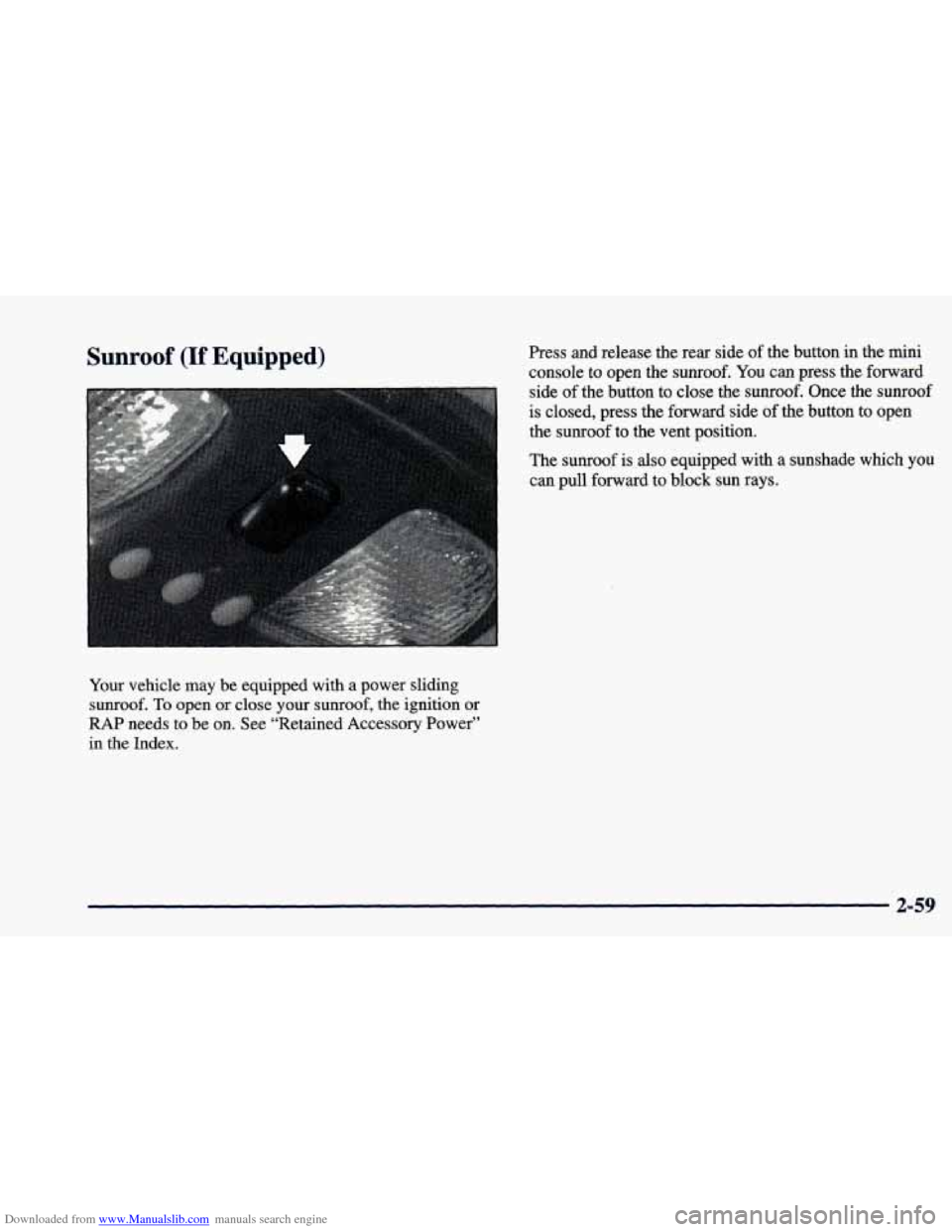

Downloaded from www.Manualslib.com manuals search engine Sunroof (If Equipped)
Your vehicle may be equipped with a power sliding
sunroof.
To open or close your sunroof, the ignition or
RAP needs to be on. See “Retained Accessory Power”
in the Index. Press and
release
the rear side of the button in the mini
console to open the sunroof. You can press the forward
side of the button to close the
sunroof. Once the sunroof
is closed, press the forward side of the button
to open
the sunroof
to the vent position.
The sunroof is also equipped with a sunshade
which you
can pull forward to block sun rays.
2-59

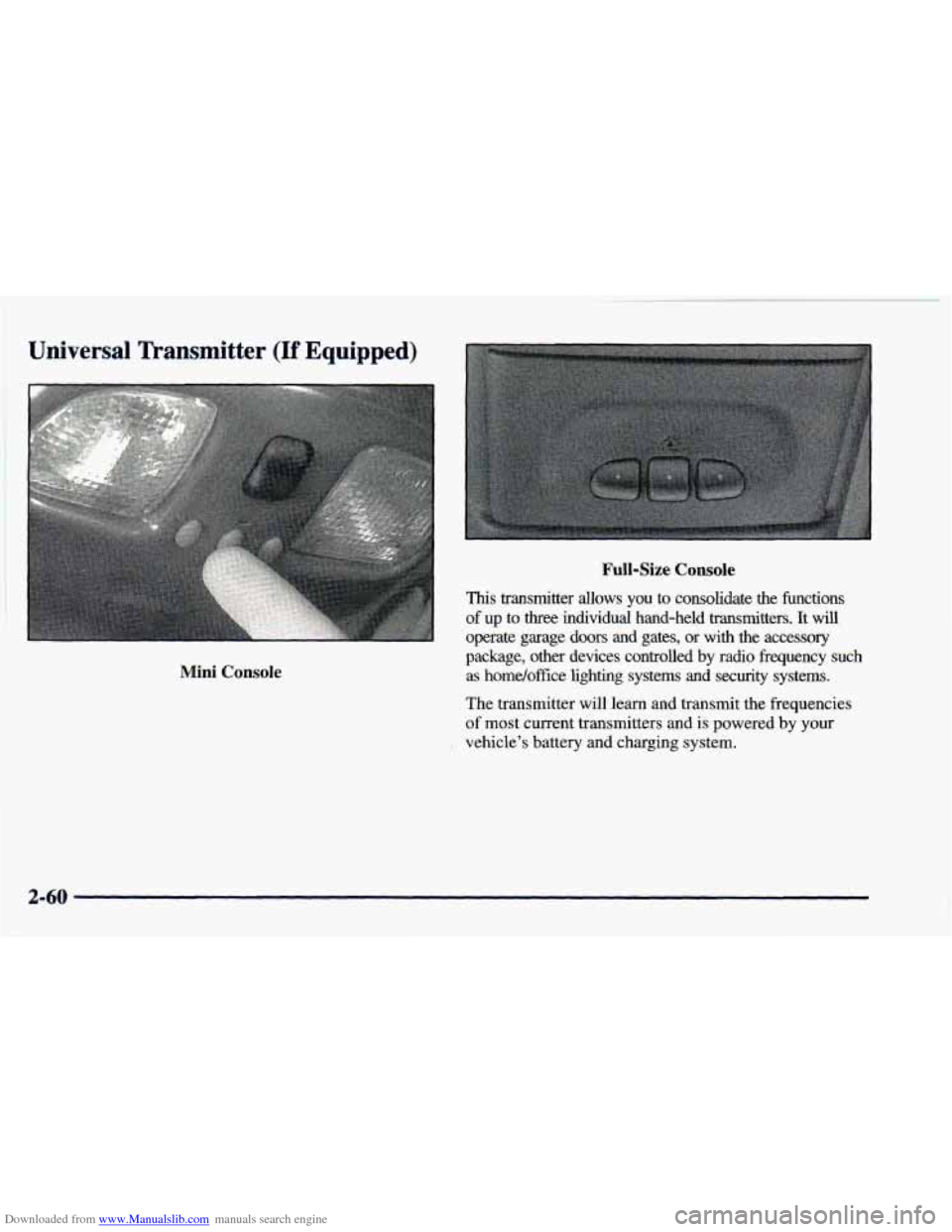

Downloaded from www.Manualslib.com manuals search engine Universal Transmitter (If Equipped)
Mini Console
Full-Size Console
This transmitter allows you to consolidate the functions
of up to three individual hand-held transmitters. It will
operate garage doors and gates,
or with the accessory
package, other devices controlled by radio frequency such
as home/offke lighting systems and
security systems.
The transmitter will learn and transmit the frequencies
of most current transmitters and is powered by your
. vehicle’s battery and charging system.

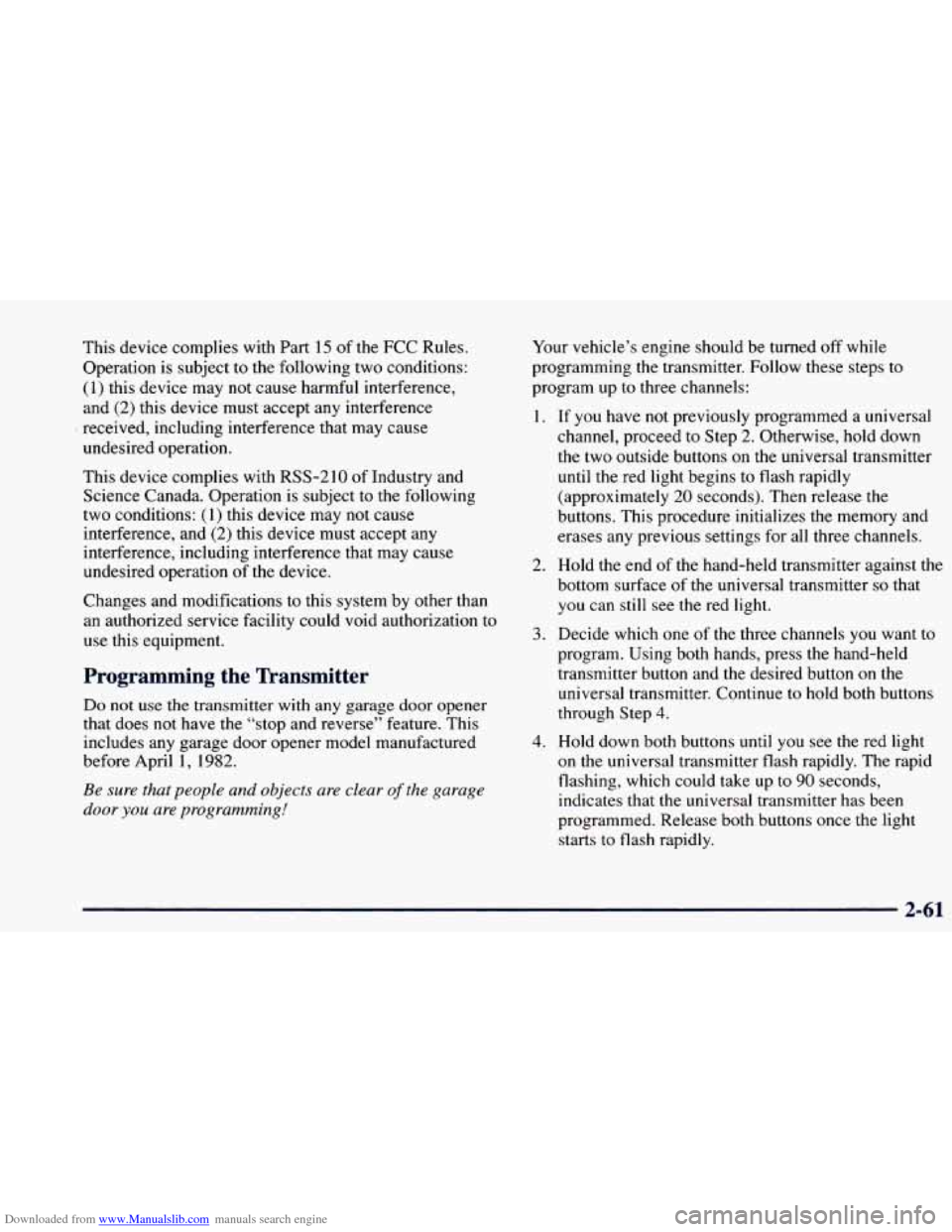

Downloaded from www.Manualslib.com manuals search engine This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with
RSS-2 10 of Industry and
Science Canada. Operation is subject to the following
two conditions:
(1) this device may not cause
interference, and (2) this device must accept any
interference, including interference that may cause
undesired operation of the device.
Changes and modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
Programming the Transmitter
Do not use the transmitter with any garage door opener
that does not have the “stop and reverse” feature. This
includes any garage door opener model manufactured
before April
1, 1982.
Be sure that people and objects are clear of the garage
door
you are programming!
Your vehicle’s engine should be turned off while
programming the transmitter. Follow these steps
to
program up to three channels:
1. If you have not previously programmed a universal
channel, proceed to Step
2. Otherwise, hold down
the two outside buttons on the universal transmitter
until the red light begins to
flash rapidly
(approximately
20 seconds). Then release the
buttons. This procedure initializes the memory and
erases any previous settings for all three channels.
2. Hold the end of the hand-held transmitter against the
bottom surface of the universal transmitter
so that
you can still see the red light.
3. Decide which one of the three channels you want to
program. Using both hands, press the hand-held
transmitter button and the desired button on the
universal transmitter. Continue to hold both buttons
through Step
4.
4.
Hold down both buttons until you see the red light
on the universal transmitter flash rapidly. The rapid
flashing, which could take up to
90 seconds,
indicates that the universal transmitter has been
programmed. Release both buttons once the light
starts
to flash rapidly.
2-61

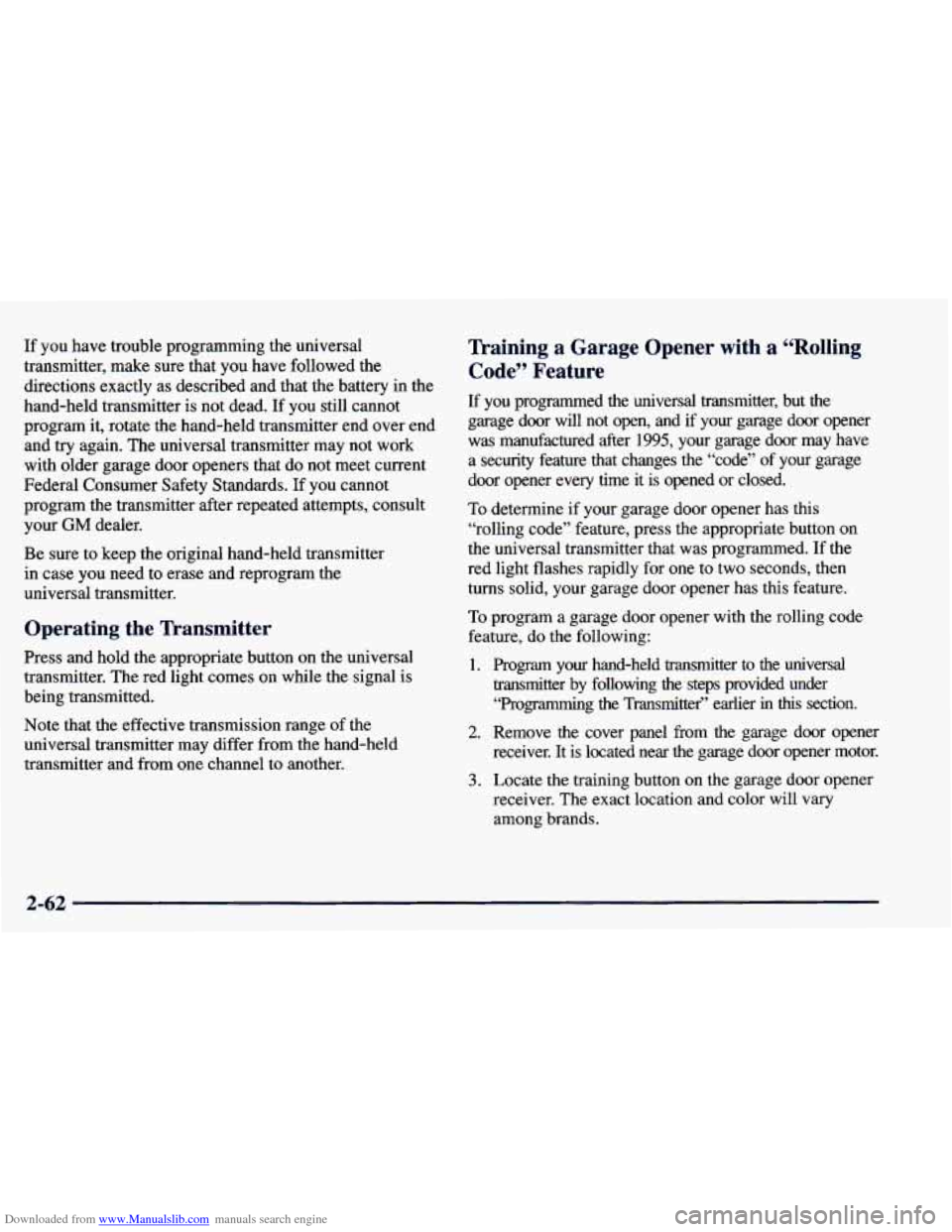

Downloaded from www.Manualslib.com manuals search engine If you have trouble programming the universal
transmitter, make sure that you have followed the
directions exactly as described and that the battery in the
hand-held transmitter is not dead. If you still cannot
program it, rotate the hand-held transmitter end over end
and
try again. The universal transmitter may not work
with older garage door openers that do not meet current
Federal Consumer Safety Standards. If you cannot
program the transmitter after repeated attempts, consult
your
GM dealer.
Be sure to keep the original hand-held transmitter
in case you need to erase and reprogram the
universal transmitter.
Operating the Transmitter
Press and hold the appropriate button on the universal
transmitter. The red light comes on while the signal is
being transmitted.
Note that the effective transmission range of the
universal transmitter may differ from the hand-held
transmitter and from one channel to another.
Training a Garage Opener with a “Rolling
If you programmed the universal transmitter, but the
garage door will not open, and if your garage door opener
was manufactured after 1995, your garage door may have
a
security feature that changes the “code” of your garage
door opener every time it is opened or closed.
To determine if your garage door opener has this
“rolling code” feature, press the appropriate button
on
the universal transmitter that was programmed. If the
red light flashes rapidly for one to two seconds, then
turns solid, your garage door opener has this feature.
To program
a garage door opener with the rolling code
feature, do the following:
1.
2.
3.
Program your hand-held transmitter to the universal
transmitter by following the steps provided under “Programming the Transmitte?’ earlier
in this section.
Remove the cover panel from the garage door opener
receiver.
It is located near the garage door opener motor.
Locate the training button on the garage door opener
receiver. The exact location and color will vary
among brands.
2-62

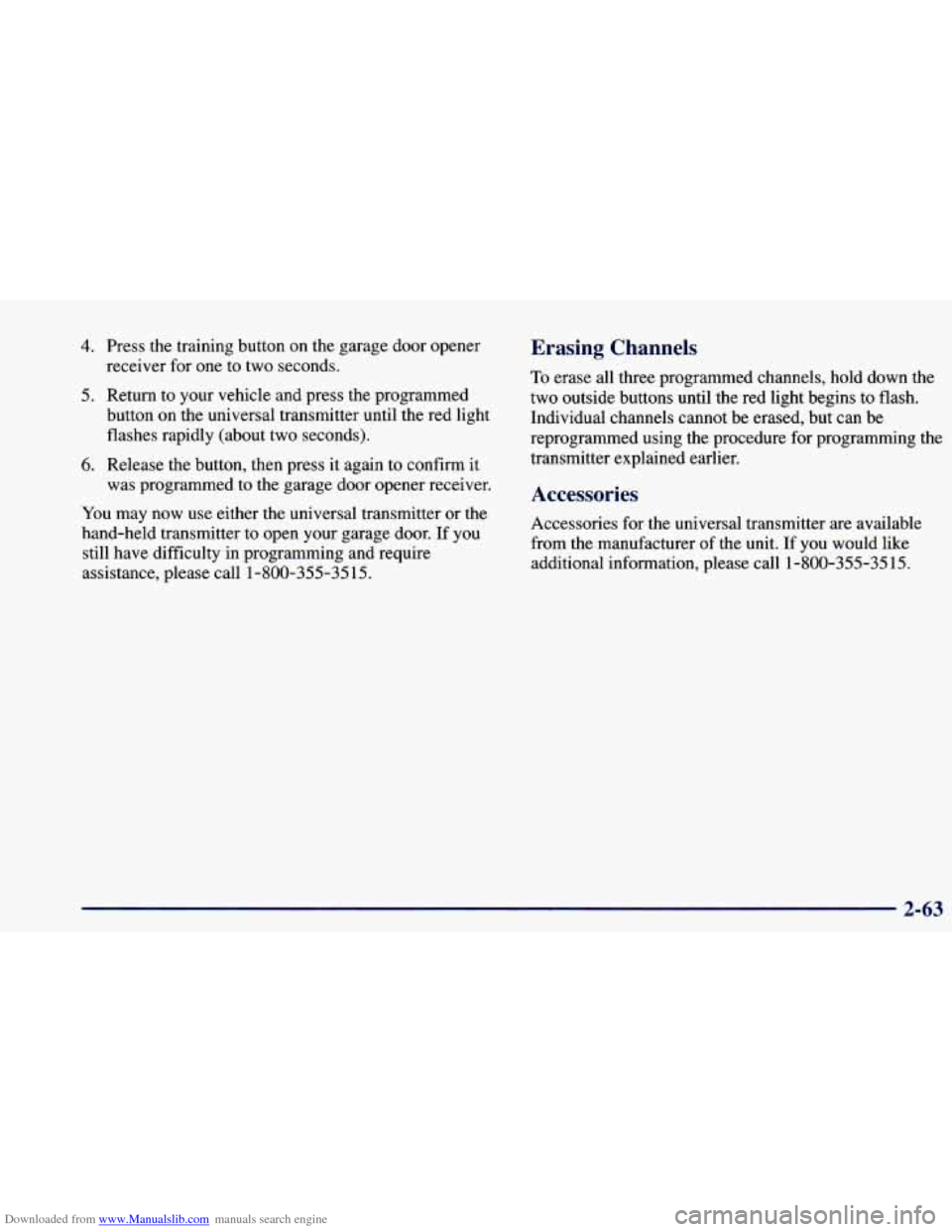

Downloaded from www.Manualslib.com manuals search engine 4.
5.
6.
Press the training button on the garage door opener
receiver for one to two seconds.
Return to your vehicle and press the programmed
button
on the universal transmitter until the red light
flashes rapidly (about two seconds).
Release the button, then press it again to confirm
it
was programmed to the garage door opener receiver.
You may now use either the universal transmitter or the
hand-held transmitter to open your garage door.
If you
still have difficulty in programming and require
assistance, please call 1-800-355-35
15.
Erasing Channels
To erase all three programmed channels, hold down the
two outside buttons until the red light begins to flash.
Individual channels cannot be erased, but can be
reprogrammed using the procedure for programming the
transmitter explained earlier.
Accessories
Accessories for the universal transmitter are available
from
the manufacturer of the unit. If you would like
additional information, please call 1-800-355-35 15.
2-63

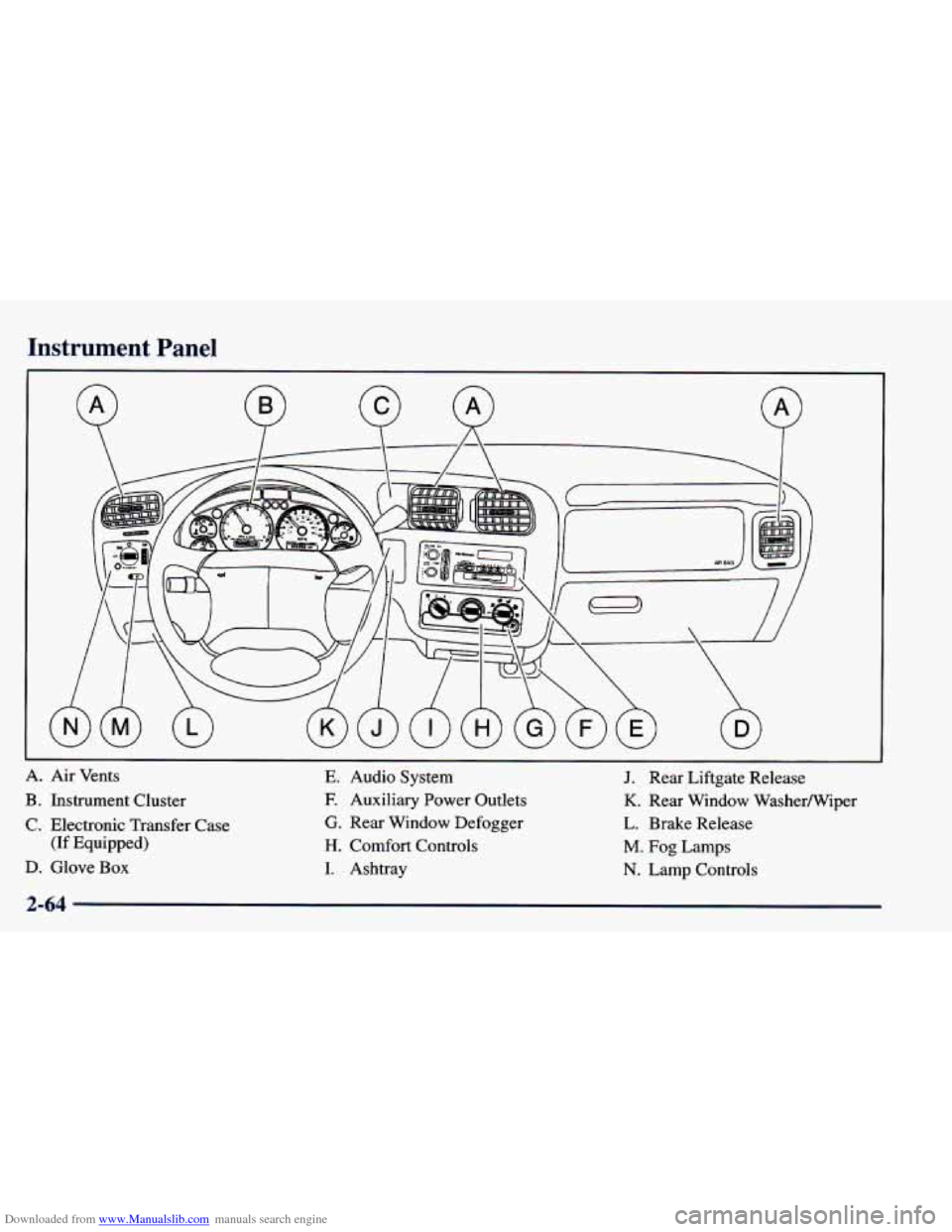

Downloaded from www.Manualslib.com manuals search engine Instrument Panel
A. Air Vents E. Audio System J. Rear Liftgate Release
B. Instrument Cluster E Auxiliary Power Outlets K. Rear Window Washermiper
C. Electronic Transfer Case G. Rear Window Defogger L. Brake Release
(If Equipped)
H. Comfort Controls M. Fog Lamps
D. Glove Box I. Ashtray N. Lamp Controls
2-64

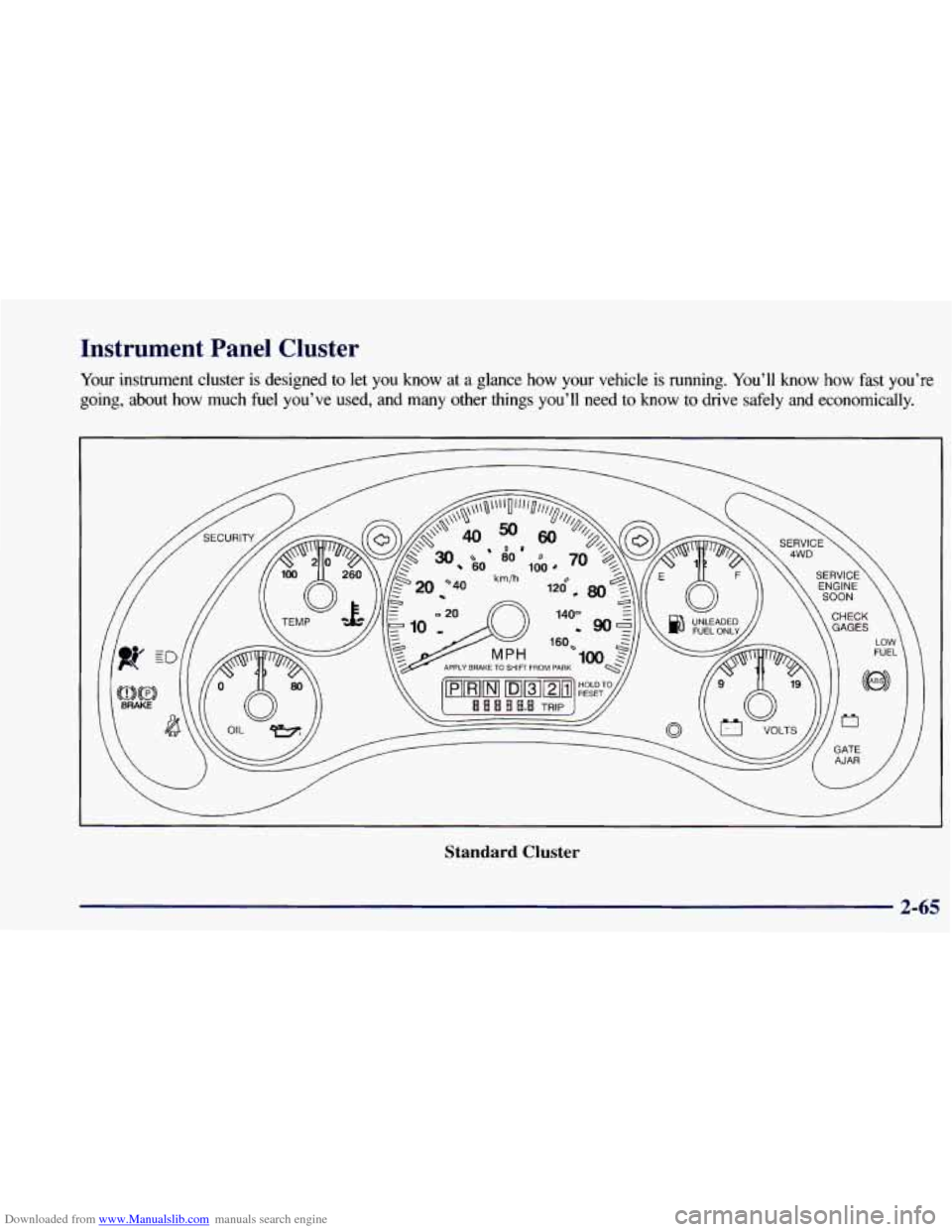

Downloaded from www.Manualslib.com manuals search engine Instrument Panel Cluster
Your instrument cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re
going, about how much fuel you’ve used, and
many other things you’ll need to know to drive safely and economically.
Standard Cluster
2-65
