CHEVROLET CAMARO 1982 Repair Guide

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 231

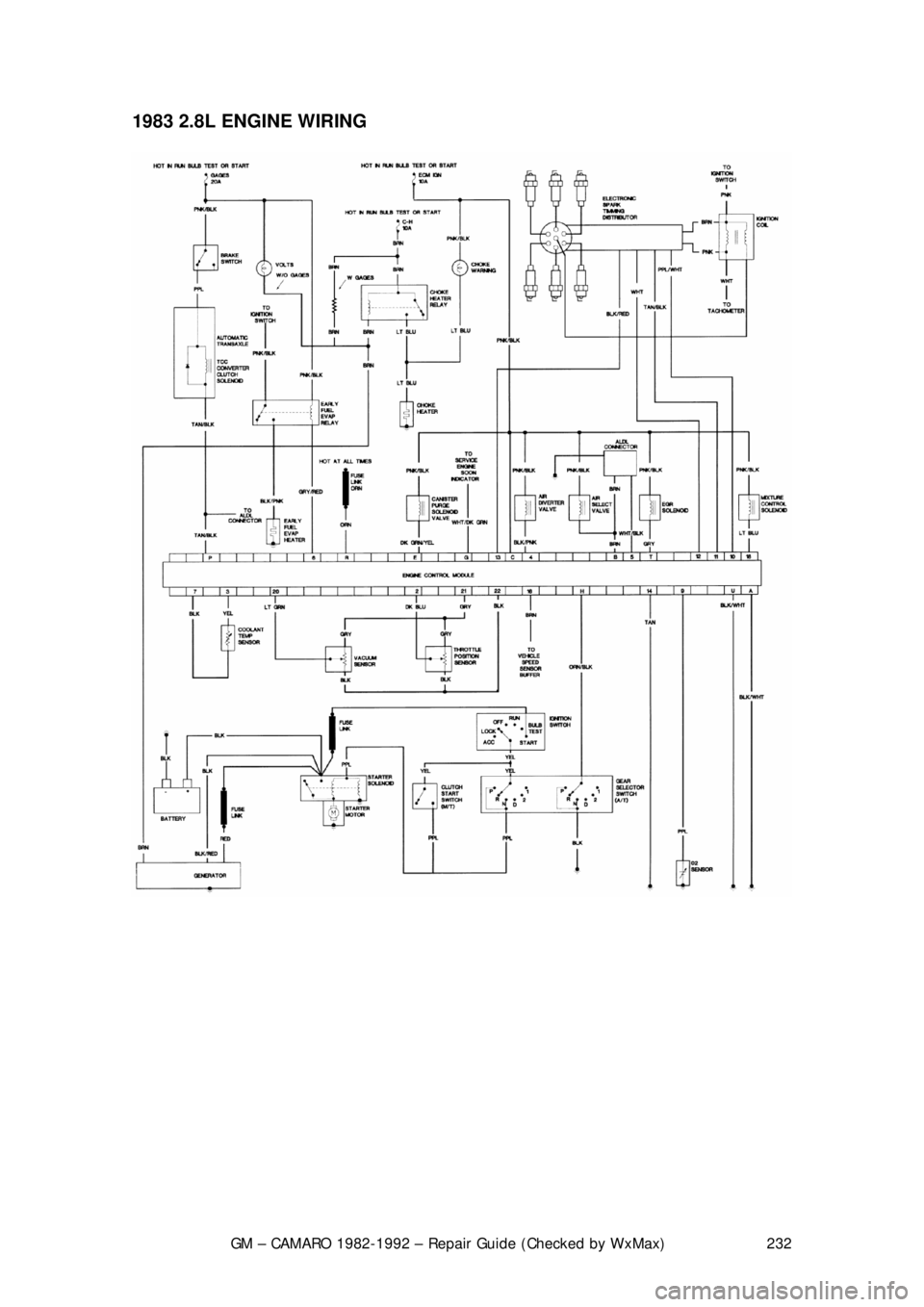

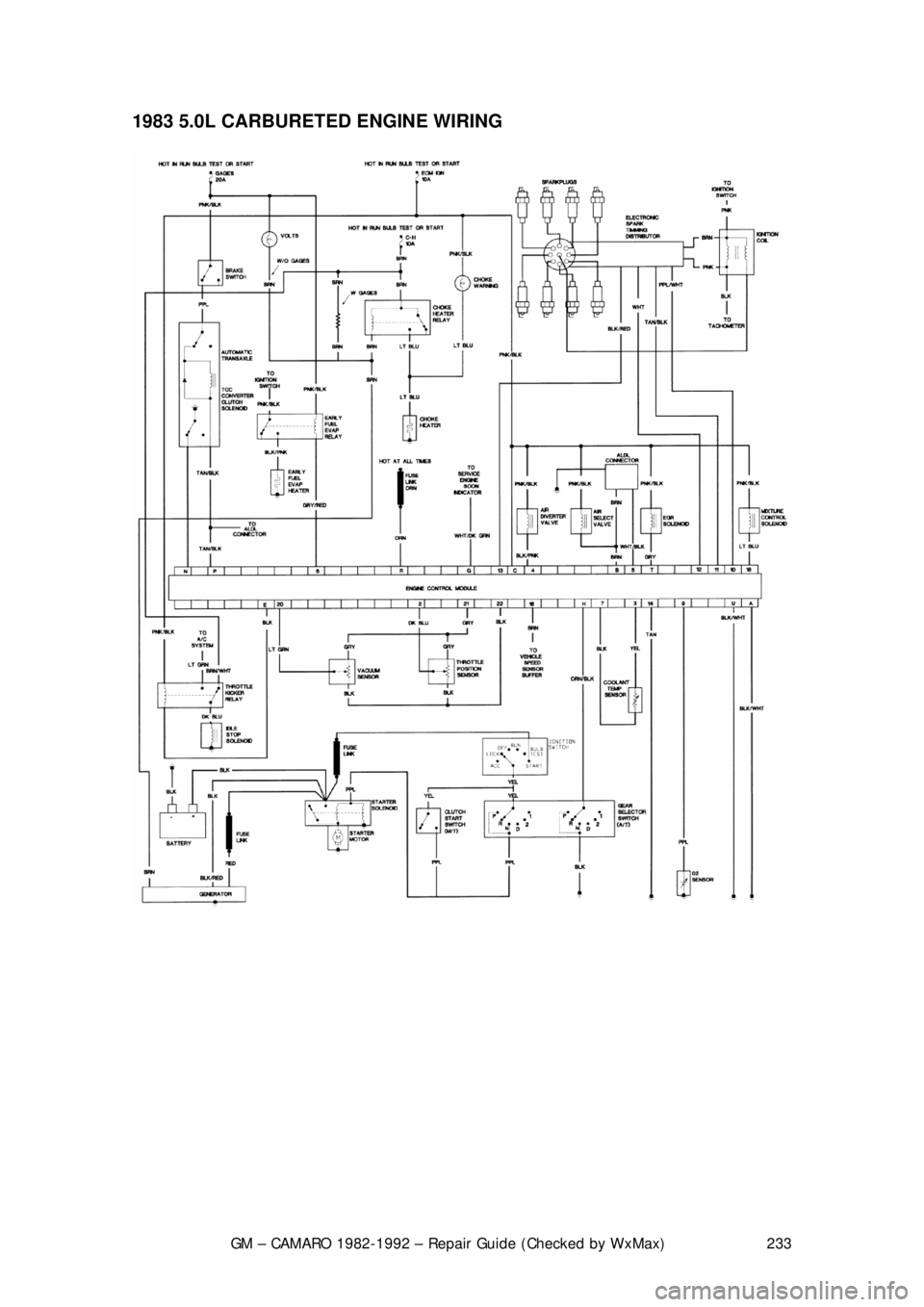

1983 2.5L ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 232
1983 2.8L ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 233

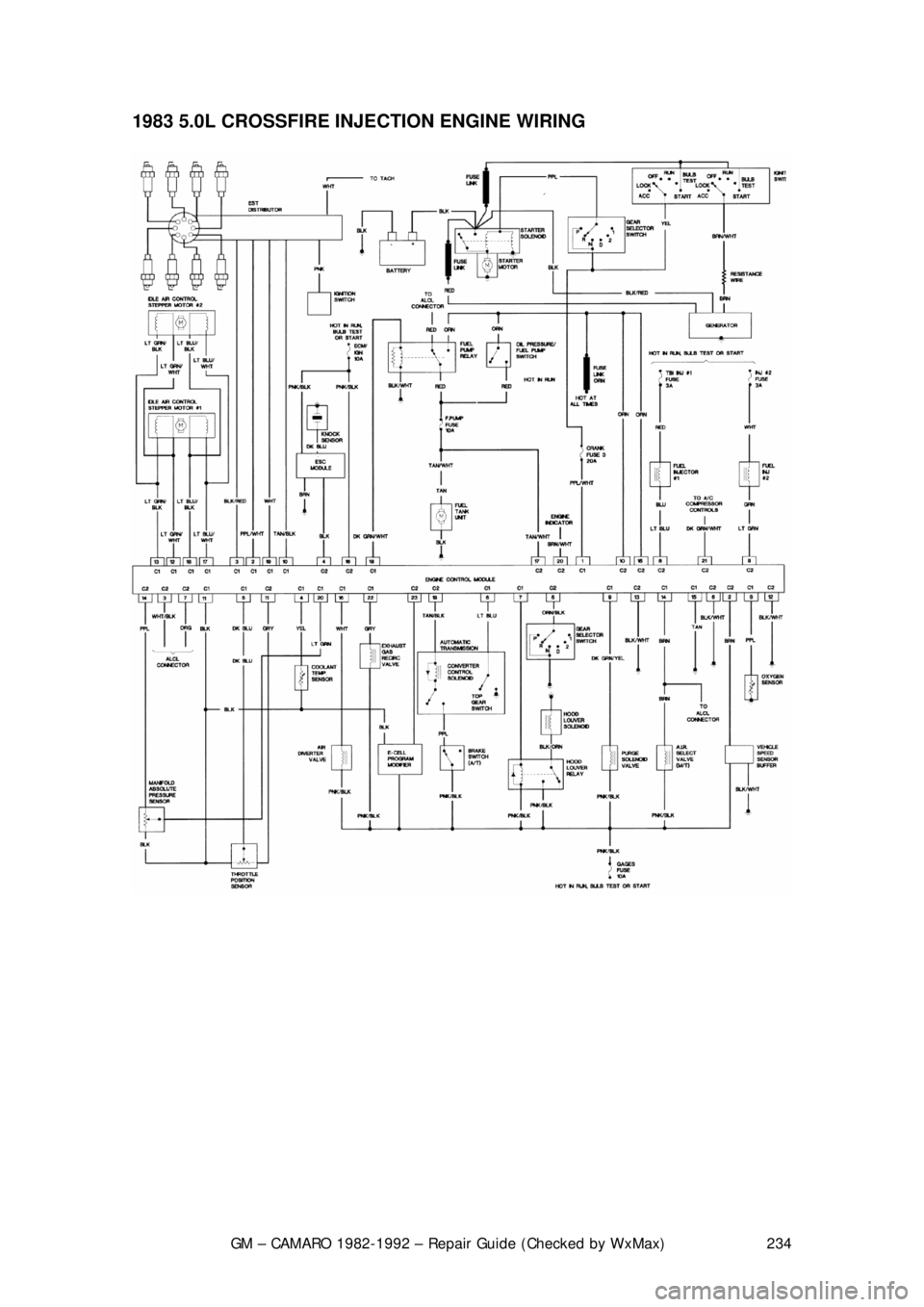

1983 5.0L CARBURETED
ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 234

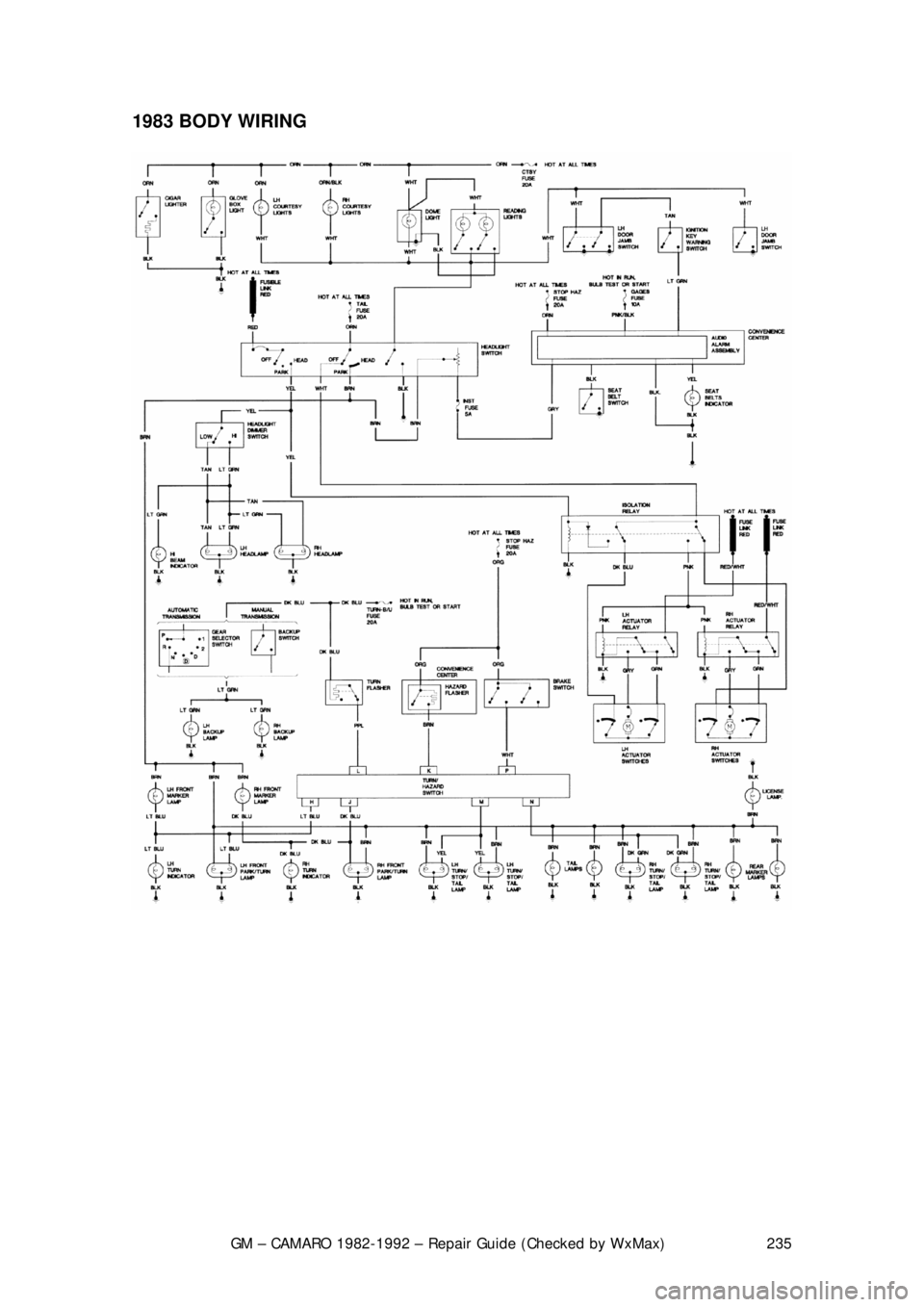

1983 5.0L CROSSFIRE INJECTION ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 235

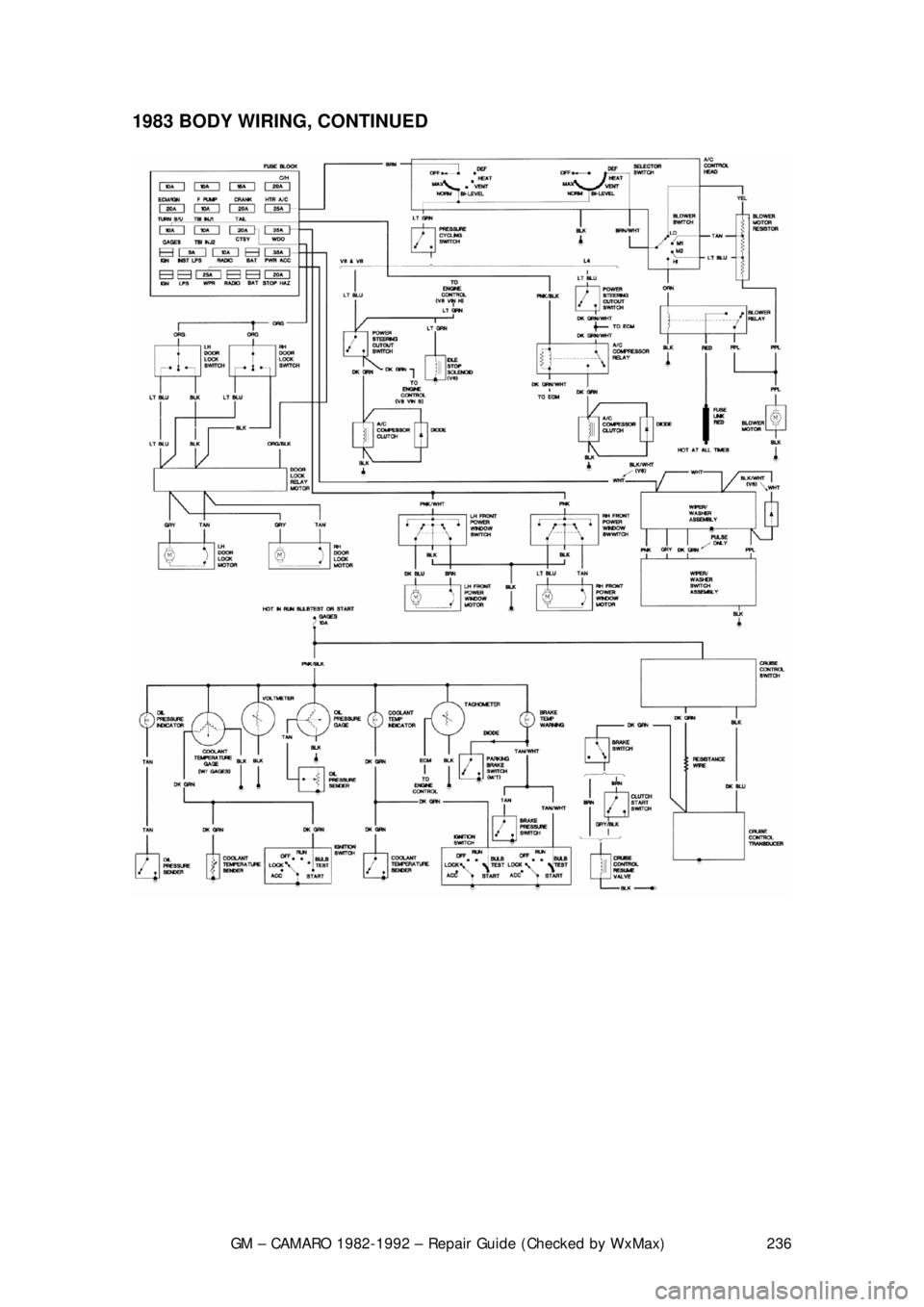

1983 BODY WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 236
1983 BODY WIRING, CONTINUED

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 237

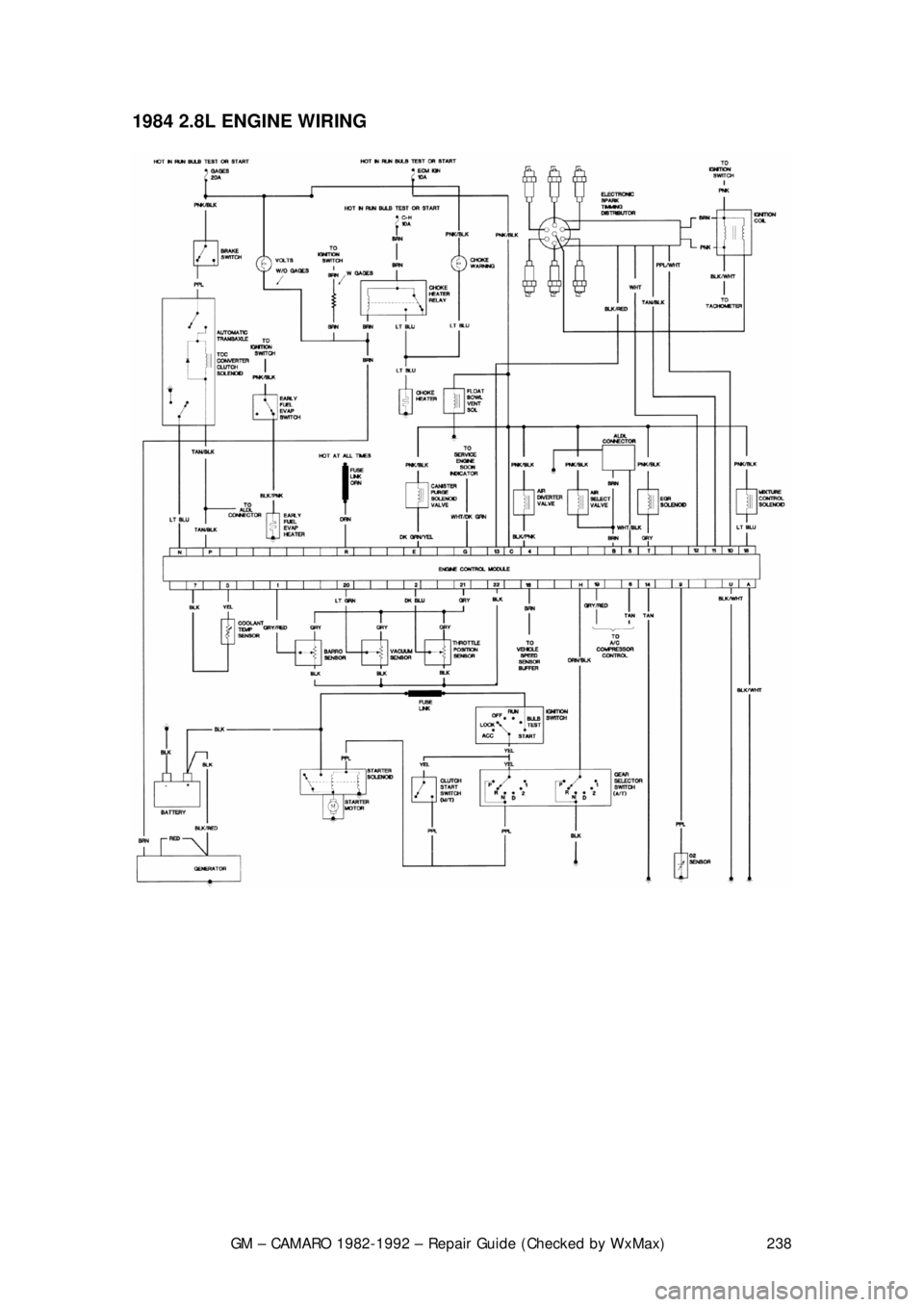

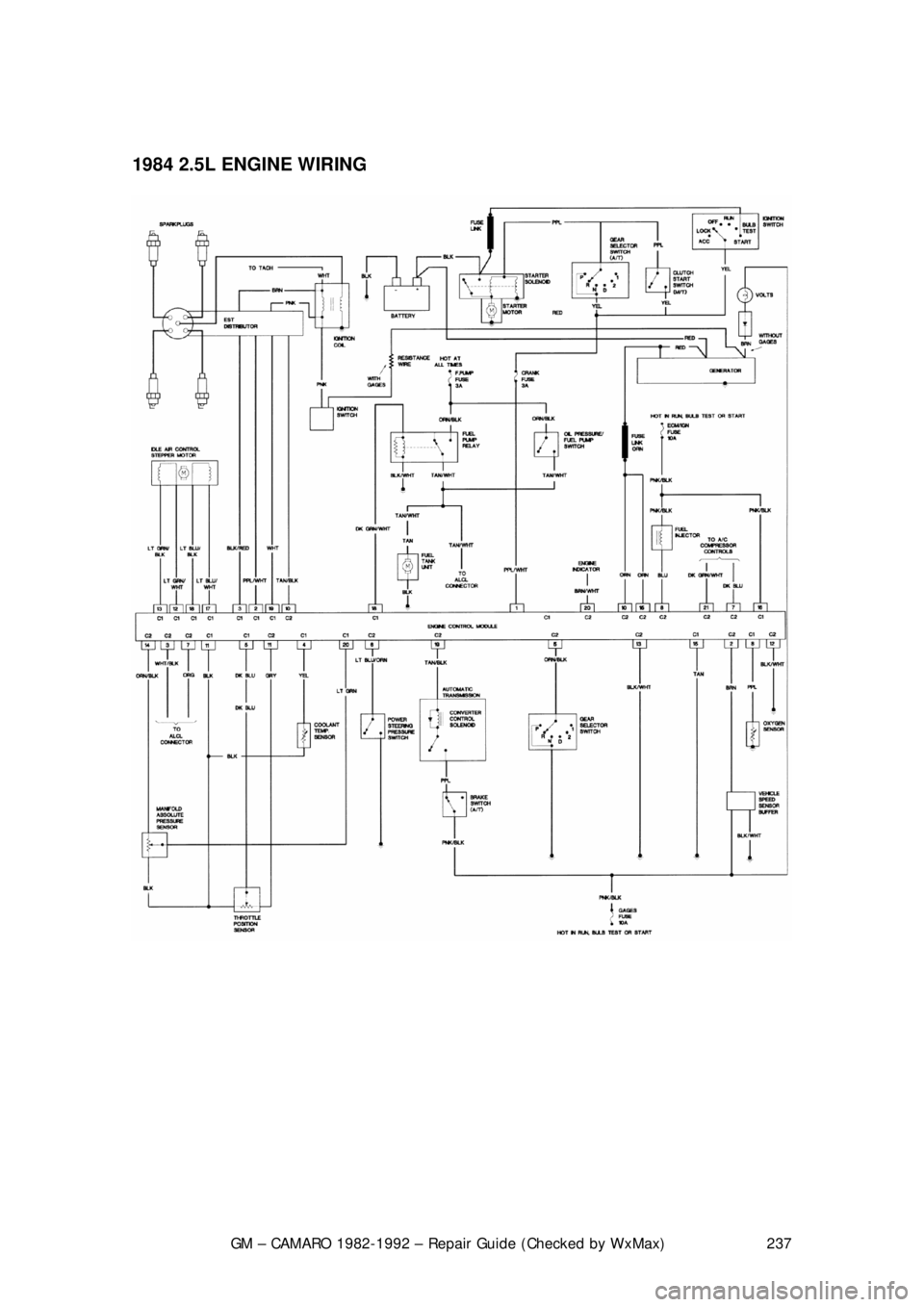

1984 2.5L ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 238

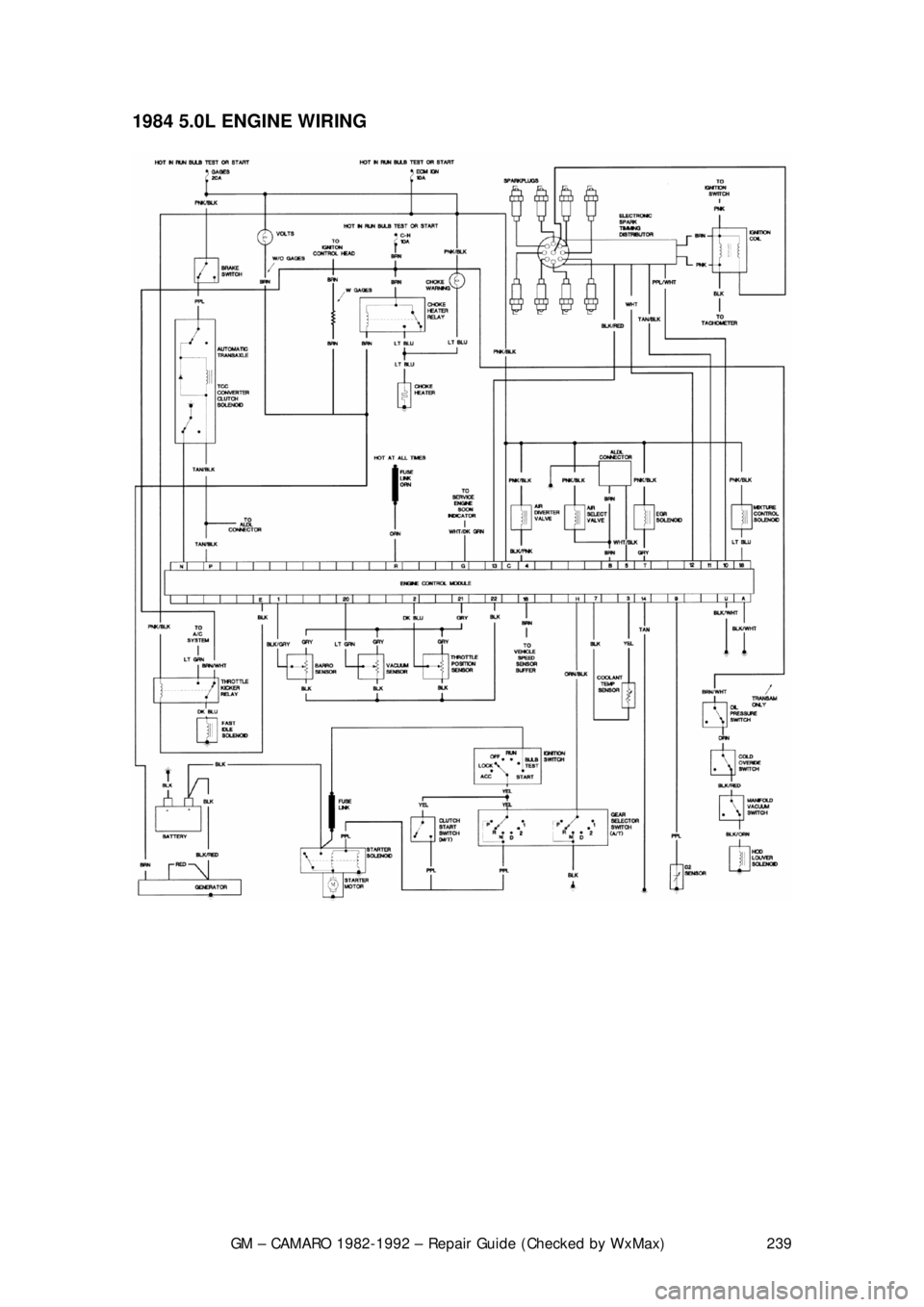

1984 2.8L ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 239
1984 5.0L ENGINE WIRING

GM – CAMARO 1982-1992 – Repair Guide (Checked by WxMax) 240
1984 BODY WIRING
