Window Indexing
This automatically lowers the
window a small amount when the
door is opened. When the door
is closed, the window will raise fully.
If the vehicle loses power or the
window freezes, this feature may not
work. From outside the vehicle,
close the door and push the window
inward so that the glass goes
under the molding.
If the “Open, Then Close Driver
Window” or “Open, Then Close
Passenger Window” messages are
displayed on the Driver Information
Center (DIC), follow the procedure
for Programming the Power
Windows later in this section.
See alsoDriver Information
Center (DIC) on page 4-27.
Express Window Operation
The front window switches have an
express-up or down feature that
lowers or raises the window without
holding the switch. Pull the switch
up or press it down all the way and
release it. Stop the window by
pressing or pulling the switch.
Express Window Anti-Pinch
Feature
When express-up is active, the
window will auto-reverse if there is
an obstruction or severe icing.
The window returns to normal
operation after the obstruction or
condition is removed.
{WARNING
If express override is activated,
the window will not reverse
automatically. You or others could
be injured and the window could
be damaged. Before you use
express override, make sure that
all people and obstructions are
clear of the window path.
Express Window Anti-Pinch
Override
The anti-pinch feature can be
overridden by holding the window
switch all the way down. The
window will lower for as long as the
switch is held. Once the switch is
released, the express mode is
re-activated. In this mode, the
window can still close on an object
in its path. Use care when using
the override mode.
Keys, Doors and Windows 1-15
Page 22 of 372
Programming the Power
Windows
If the battery on the vehicle has
been recharged, disconnected,
or is not working, you will need to
reprogram each front power window
for the express-up feature to work.
Before reprogramming, replace
or recharge the vehicle’s battery.
To program each front window,
follow these steps:
1. With the ignition in ACC/
ACCESSORY, ON/RUN,
or when Retained Accessory
Power (RAP) is active, close
all doors.
2. Press and hold the power
window switch until the window
is fully open.3. Pull the power window switch up
until the window is fully closed.
4. Continue holding the switch up
for approximately two seconds
after the window is completely
closed.
The window is now reprogrammed.
Repeat the process for the other
windows.
Sun Visors
Pull the sun visor toward you or
move it to the side to reduce glare.
Roof
Sunroof
On vehicles with a sunroof, the
switch is located on the overhead
console.
The sunroof only operates
when the ignition is in ON/RUN,
ACC/ACCESSORY, or if Retained
Accessory Power (RAP) is
active. SeeRetained Accessory
Power (RAP) on page 8-19.
1-16 Keys, Doors and Windows
Page 23 of 372
Express Sunroof Operation
The sunroof can be opened without
holding the switch down. Push the
switch in the open direction until the
second pause. The sunroof will
fully open.
To stop the sunroof from moving,
press either the open or close
sunroof switch.Press and release the back of the
switch to open the sunroof to
the vent position. Press it again
to express-open the sunroof.
To stop the sunroof from opening,
press the switch again.
A deflector automatically raises
when the sunroof is opened and
retracts while the sunroof closes.
If the sunshade is closed, it
opens automatically when the
sunroof opens past the vented
position.
Notice:Forcing the sunshade
forward of the sliding glass panel
may cause damage and the
sunroof may not operate properly.
Always close the glass panel
before closing the sunshade.To close the sunroof, press the front
of the switch and hold it until the
sunroof is closed. The sunroof
will stop if the switch is released.
Close the sunshade by hand.
The sunroof glass panel cannot be
opened or closed if the vehicle
has an electrical failure.
Keys, Doors and Windows 1-17
Page 24 of 372
✍NOTES
1-18 Keys, Doors and Windows
Page 25 of 372
Seats and
Restraints
Head RestraintsHead Restraints....................2-2
Front SeatsSeat Adjustment....................2-3
Power Seat Adjustment..........2-4
Reclining Seatbacks..............2-4
Seatback Latches..................2-5
Heated Front Seats...............2-6
Rear SeatsRear Seats...........................2-6
Safety BeltsSafety Belts..........................2-6
How to Wear Safety Belts
Properly............................2-10
Lap-Shoulder Belt................2-16
Safety Belt Use During
Pregnancy........................2-19Safety Belt Extender............2-20
Safety System Check...........2-20
Safety Belt Care..................2-20
Replacing Safety Belt
System Parts After
a Crash............................2-21
Airbag SystemAirbag System....................2-21
Where Are the Airbags?.......2-23
When Should an Airbag
Inflate?.............................2-25
What Makes an Airbag
Inflate?.............................2-26
How Does an Airbag
Restrain?..........................2-27
What Will You See After
an Airbag Inflates?.............2-27
Passenger Sensing
System.............................2-28
Servicing the
Airbag-Equipped Vehicle.....2-32
Adding Equipment to
the Airbag-Equipped
Vehicle.............................2-33
Airbag System Check...........2-34
Replacing Airbag System
Parts After a Crash............2-34
Child RestraintsOlder Children.....................2-35
Infants and Young
Children............................2-37
Child Restraint Systems........2-39
Where to Put the
Restraint...........................2-41
Lower Anchors and
Tethers for Children
(LATCH System)................2-43
Replacing LATCH System
Parts After a Crash............2-48
Securing Child Restraints
(Rear Seat).......................2-48
Securing Child Restraints
(Right Front Seat)..............2-50
Seats and Restraints 2-1
Page 26 of 372

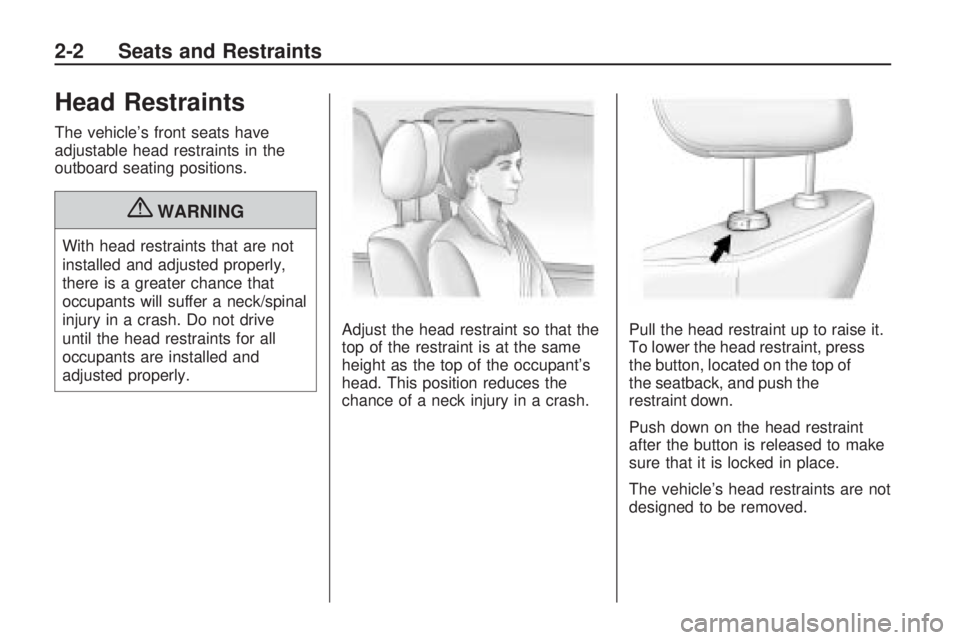

Head Restraints
The vehicle’s front seats have
adjustable head restraints in the
outboard seating positions.
{WARNING
With head restraints that are not
installed and adjusted properly,
there is a greater chance that
occupants will suffer a neck/spinal
injury in a crash. Do not drive
until the head restraints for all
occupants are installed and
adjusted properly.Adjust the head restraint so that the
top of the restraint is at the same
height as the top of the occupant’s
head. This position reduces the
chance of a neck injury in a crash.Pull the head restraint up to raise it.
To lower the head restraint, press
the button, located on the top of
the seatback, and push the
restraint down.
Push down on the head restraint
after the button is released to make
sure that it is locked in place.
The vehicle’s head restraints are not
designed to be removed.
2-2 Seats and Restraints
Page 27 of 372
Front Seats
Seat Adjustment
{WARNING
You can lose control of the
vehicle if you try to adjust a
manual driver’s seat while the
vehicle is moving. The sudden
movement could startle and
confuse you, or make you push
a pedal when you do not want to.
Adjust the driver’s seat only when
the vehicle is not moving.To adjust a manual seat:
1. Lift the handle under the seat to
unlock it.
2. Slide the seat and release the
handle.
3. Try to move the seat to be sure
it is locked in place.
Seat Height Adjustment
To manually raise or lower the seat,
move the lever repeatedly upward
or downward.
Seats and Restraints 2-3
Page 28 of 372
Power Seat Adjustment
•Move the seat forward or
rearward by moving the control
forward or rearward.
•Move the whole seat up or down
by moving the control up or down.
•Tilt the seat by turning the control
forward or rearward.
Reclining Seatbacks
{WARNING
You can lose control of the
vehicle if you try to adjust the
seat while the vehicle is moving.
The sudden movement could
startle and confuse you, or make
you push a pedal when you do
not want to. Adjust the driver’s
seat only when the vehicle is
not moving.
{WARNING
Sitting in a reclined position when
the vehicle is in motion can be
dangerous. Even when buckled
up, the safety belts cannot do
their job when reclined like this.
The shoulder belt cannot do its
job because it will not be against
your body. Instead, it will be in
front of you. In a crash, you could
go into it, receiving neck or other
injuries.
The lap belt cannot do its job
either. In a crash, the belt could go
up over your abdomen. The belt
forces would be there, not at your
pelvic bones. This could cause
serious internal injuries.
For proper protection when the
vehicle is in motion, have the
seatback upright. Then sit well
back in the seat and wear the
safety belt properly.
2-4 Seats and Restraints
Page 29 of 372
Power Reclining Seatbacks
On vehicles with power reclining
seatbacks the control is located
on the outboard side of the seat.
•To recline the seatback,
move the control toward
the rear of the vehicle.
•To raise the seatback, move the
control toward the front of the
vehicle.
Seatback Latches
To access the rear seats pull up on
the latch, located on the rear of the
driver or front passenger seatback.
Fold the seatback forward.
{WARNING
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
Lift the seatback to return it to the
upright position. Push and pull on the
seatback to make sure it is locked.
Seats and Restraints 2-5
Page 30 of 372
Heated Front Seats
On vehicles with heated front
seats, the controls are on the
center console. The engine
must be running.
L(Heated Seat):Press to turn on
the heated seat.
A light indicates that the feature is
working. The number of lights shows
the level of heat selected: one or
two for a low or high setting. Press
the button to cycle through the
temperature settings and to turn
the heated seat feature off.
Rear Seats
The rear seat has two designated
seating positions and can be folded
for more cargo space. Fold only
when the vehicle is parked.
To fold the seatback down:
1. Pull on the strap located on the
top of the of the rear seatback.
2. Fold the seatback down.
Lift the seatback up to raise it, and
push it back to lock it into place.
Make sure the safety belt is not
twisted or caught in the seatback.
Safety Belts
This section of the manual describes
how to use safety belts properly.
It also describes some things not
to do with safety belts.
{WARNING
Do not let anyone ride where
a safety belt cannot be worn
properly. In a crash, if you or your
passenger(s) are not wearing
safety belts, the injuries can be
much worse. You can hit things
inside the vehicle harder or be
ejected from the vehicle. You and
your passenger(s) can be seriously
injured or killed. In the same crash,
you might not be, if you are
buckled up. Always fasten your
safety belt, and check that your
passenger(s) are restrained
properly too.
2-6 Seats and Restraints
