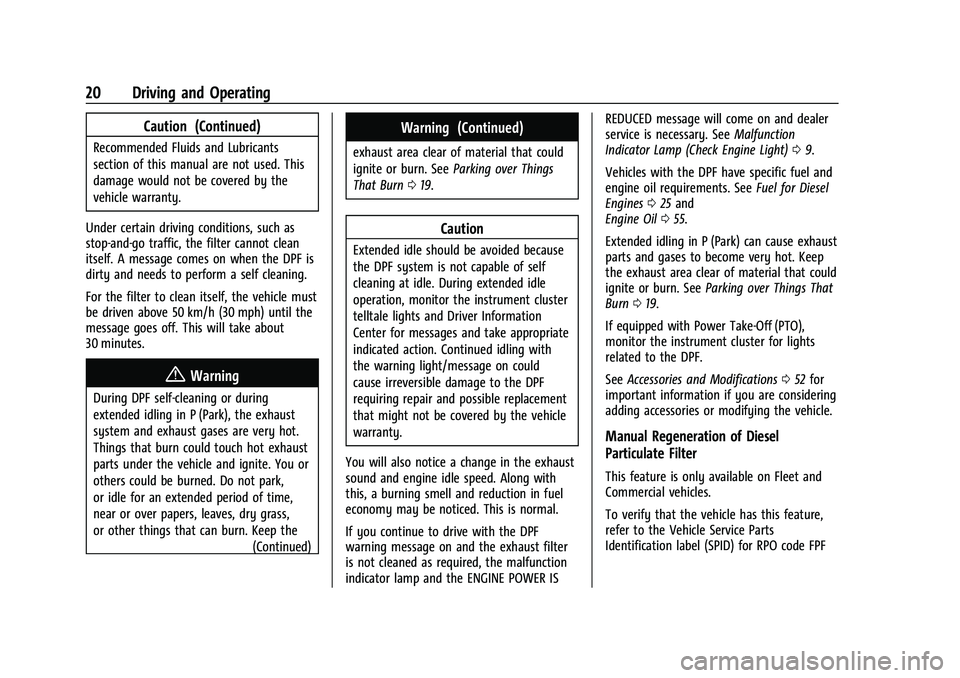

20 Driving and Operating
Caution (Continued)
Recommended Fluids and Lubricants
section of this manual are not used. This
damage would not be covered by the
vehicle warranty.
Under certain driving conditions, such as
stop-and-go traffic, the filter cannot clean
itself. A message comes on when the DPF is
dirty and needs to perform a self cleaning.
For the filter to clean itself, the vehicle must
be driven above 50 km/h (30 mph) until the
message goes off. This will take about
30 minutes.
{Warning
During DPF self-cleaning or during
extended idling in P (Park), the exhaust
system and exhaust gases are very hot.
Things that burn could touch hot exhaust
parts under the vehicle and ignite. You or
others could be burned. Do not park,
or idle for an extended period of time,
near or over papers, leaves, dry grass,
or other things that can burn. Keep the (Continued)
Warning (Continued)
exhaust area clear of material that could
ignite or burn. SeeParking over Things
That Burn 019.
Caution
Extended idle should be avoided because
the DPF system is not capable of self
cleaning at idle. During extended idle
operation, monitor the instrument cluster
telltale lights and Driver Information
Center for messages and take appropriate
indicated action. Continued idling with
the warning light/message on could
cause irreversible damage to the DPF
requiring repair and possible replacement
that might not be covered by the vehicle
warranty.
You will also notice a change in the exhaust
sound and engine idle speed. Along with
this, a burning smell and reduction in fuel
economy may be noticed. This is normal.
If you continue to drive with the DPF
warning message on and the exhaust filter
is not cleaned as required, the malfunction
indicator lamp and the ENGINE POWER IS REDUCED message will come on and dealer
service is necessary. See
Malfunction
Indicator Lamp (Check Engine Light) 09.
Vehicles with the DPF have specific fuel and
engine oil requirements. See Fuel for Diesel
Engines 025 and
Engine Oil 055.
Extended idling in P (Park) can cause exhaust
parts and gases to become very hot. Keep
the exhaust area clear of material that could
ignite or burn. See Parking over Things That
Burn 019.
If equipped with Power Take-Off (PTO),
monitor the instrument cluster for lights
related to the DPF.
See Accessories and Modifications 052 for
important information if you are considering
adding accessories or modifying the vehicle.
Manual Regeneration of Diesel
Particulate Filter
This feature is only available on Fleet and
Commercial vehicles.
To verify that the vehicle has this feature,
refer to the Vehicle Service Parts
Identification label (SPID) for RPO code FPF
Page 22 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
Driving and Operating 21
or see www.gmupfitter.com to contact the
GM Upfitter Integration Group for
assistance.
If equipped, this feature allows for manual
cleaning/regeneration of the DPF when it is
unable to clean itself. It may be necessary
to perform a manual regeneration if driving
conditions—such as extended slow speed,
stop-and-go traffic, extended idles, short
drive cycles, or stationary PTO operation —
prevent DPF self-cleaning.
Manual regeneration can only be used when
the DPF has become at least 90% full. At
100% full, it will attempt to automatically
self-clean if proper driving conditions are
met. The DPF will clean itself if the vehicle
can be driven above 50 km/h (30 mph) for
about 30 minutes.
A Driver Information Center (DIC) message
displays when manual regeneration is
possible.
Scroll through the DIC pages to find the
Exhaust Cleaning menu. Depending on
whether the vehicle has a base or uplevel
cluster, it may be under the Settings menu.
If the vehicle cannot be stopped when the
DIC message first indicates cleaning is
available, automatic self-cleaning may have begun. If conditions cannot be met for
self-cleaning to complete, and manual
regeneration is selected, it may take up to
four minutes for the system to switch to
manual regeneration. When the switch
occurs, a DIC message prompts to start the
cleaning process.
{Warning
Do not leave the vehicle during the
regeneration.
Make sure that there are no flammables
near the muffler, DPF and exhaust pipe
which may result in a fire.
Remember that the temperature of
exhaust gases is high enough to burn
you. You and others could be seriously
injured.
Before starting the manual regeneration,
make sure all of the following safety
conditions are met:
.The vehicle is parked on level ground,
away from any flammable materials.
.The vehicle is parked outdoors, away
from any walls or buildings.
.The vehicle is at least 3 m (10 ft) from
any obstructions or materials that may
combust or melt.
.The shift lever is in P (Park).
.The fuel tank is at least one-eighth full.
.All fluids are at the proper level.
.No diagnostic trouble codes have been
set, and the malfunction indicator lamp is
not on.
.The engine coolant temperature is above
71 °C (160 °F).
After making sure all of the safety
conditions have been met, press the trip
odometer reset stem or
Von the steering
wheel control for at least one second to
select Start on the infotainment display.
Follow the instructions in the DIC messages.
Touch ACCEPT to acknowledge that all of
these safety conditions have been met and
to activate regeneration.
If the infotainment display returns to the
previous screen, then one or more of the
necessary operating conditions has not been
met. If you cannot determine which
condition has not been met, see
www.gmupfitter.com to contact the GM
Upfitter Integration Group for assistance.
Page 23 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
22 Driving and Operating
Continue to follow the instructions in the
DIC messages. Hold the exhaust brake
switch on the center stack below the climate
controls for more than three seconds, and
then release it, to begin the regeneration
process.
If the EXHAUST BRAKE ON message displays,
then the switch was released too soon.
Press it again to turn off the exhaust brake,
then try again when the DIC message
prompts.
When manual regeneration begins, the
engine speed increases, the engine cooling
fan sound increases, and a DIC message
indicates that cleaning is in progress.
A DIC message will display when cleaning
has completed. The message will remain as
long as cleaning is not necessary. Cleaning
could take up to 30 minutes. Upon
completion, the engine will return to normal
idle, but exhaust components will remain
hot for several minutes. Do not move the
vehicle until the exhaust has had time to
cool. Manual regeneration can be canceled
at any time by pressing the brake pedal or
turning the engine off. Unusual noises may
be heard if regeneration is interrupted.Diesel Exhaust Fluid{
Warning
Avoid getting Diesel Exhaust Fluid (DEF)
on your skin or in your eyes as it could
cause irritation. For more safety,
handling, and storage information, see
the Diesel Exhaust Fluid container label.
Caution
Use only DEF that is GM approved,
or fluid containing the API certified or ISO
22241 label. The use of other fluids could
damage the system, requiring costly
repairs that will not be covered by the
vehicle warranty.
Caution
Do not mix fuel with DEF, and do not put
DEF in the fuel tank. This could lead to
costly repairs that might not be covered
by the vehicle warranty.
Diesel Exhaust Fluid (DEF) is used with diesel
engines to reduce the amount of regulated
emissions produced. Products such as AdBlue are types of DEF, and are approved for use
in the vehicle as long as they have an API
certification label or meet ISO 22241. The
fluid level in the DEF tank must be
maintained for the vehicle to run properly.
DEF is not a fuel additive. DEF should not be
mixed with or added to diesel fuel. DEF
freezes when exposed to temperatures
below
−11 °C (12 °F). For DEF tank capacity
see Capacities and Specifications 082.
It is normal to hear the DEF system purge
fluid back into the tank after the vehicle is
shut off.
Locating Diesel Exhaust Fluid
DEF can be purchased at your dealer.
Additionally, some diesel truck fueling
stations or retailers may have DEF for
purchase. For vehicles with an active OnStar
or connected services plan, OnStar can help
to locate a DEF retailer. See “Customer
Assistance Offices” in the owner’s manual
for phone numbers to assist in contacting a
GM dealer. See Recommended Fluids and
Lubricants 078.
Page 24 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
Driving and Operating 23
Filling the DEF Tank
DEF Fill–Van Model Shown, 4-Cylinder
Pickups Similar
The blue DEF cap is behind the fuel/DEF
door. Do not remove the fuel and DEF caps
at the same time. Fill diesel fuel and DEF
independently. Turn the DEF cap
counterclockwise to remove.
In cold conditions DEF can freeze in the DEF
fill pipe opening. If this prevents the filling
of the DEF tank, place the vehicle in a warm
garage overnight.
Fill the DEF tank on level ground and with
the vehicle off. When adding DEF, it is
recommended to fully fill the DEF tank. For DEF tank capacity see
Capacities and
Specifications 082. When adding DEF to an
empty or very low tank, always add at least
7.5L (2 gal) of fluid to release the vehicle
from speed limitation.
When fluid reaches the top of the DEF fill
pipe, stop filling. Do not top off the DEF
tank. If using a bottle or jug to refill DEF,
follow the instructions on the container
label and use a dedicated fill aid.
Caution
Do not overfill the DEF tank and do not
allow DEF to contact the finished surfaces
of the vehicle, as it could damage the
vehicle finish. If DEF is spilled during
filling, wipe any affected surface with a
damp cloth.
Make sure the cap is fully installed.
Push the fuel/DEF door closed.
DEF Low
As the DEF level drops, warnings will
automatically be displayed in the Driver
Information Center (DIC). Select Vehicle
Information in the DIC to view DEF level
status. See Driver Information Center (DIC)
0 10. Refill the DEF tank at the first opportunity
after a low warning indication to avoid
vehicle speed limitations.
It may take some time for the vehicle to
detect that DEF has been added. If there
was a vehicle speed limitation, it will be
removed gradually and it may take several
kilometers/miles for the DIC message to
update.
If DEF is added under freezing conditions,
especially if DEF level is low and frozen, up
to several hours of drive time may be
required to remove the speed limitation.
It is recommended to ensure the DEF tank
level is 30% or higher during winter time.
The DEF range DIC message first displays at
approximately 1 600 km (1,000 mi). This
message appears again at approximately
500 km (300 mi) of remaining range before
the exhaust fluid tank becomes empty.
As the fluid level nears empty, these
messages appear every time the vehicle is
started.
If the DEF low warnings are ignored and the
DEF tank becomes empty, the DIC will
display messages that describe the action
needed and distance until vehicle speed is
Page 25 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20

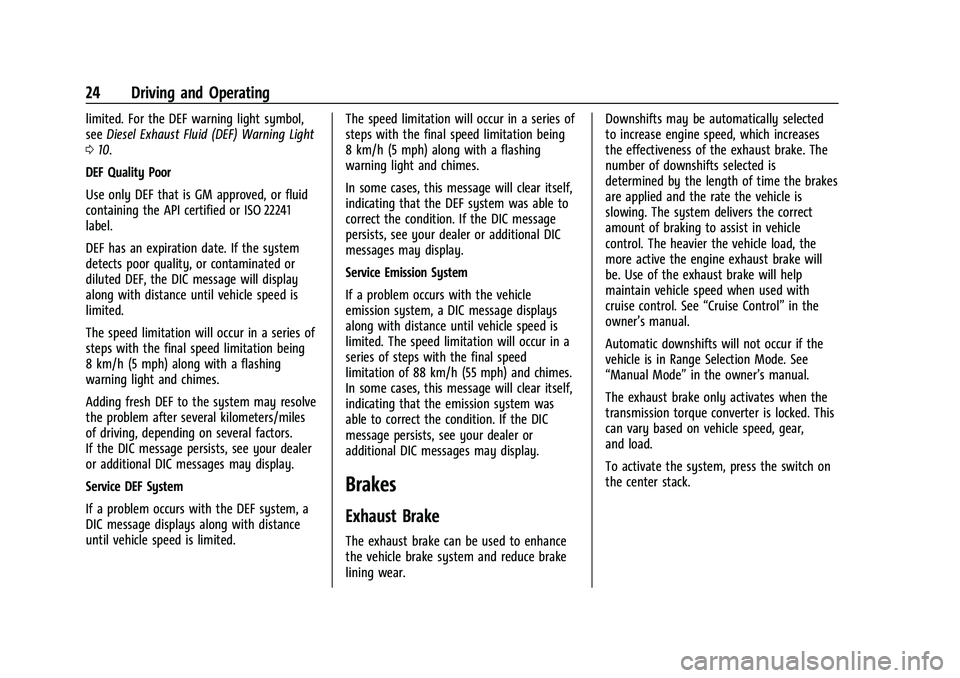

24 Driving and Operating
limited. For the DEF warning light symbol,
seeDiesel Exhaust Fluid (DEF) Warning Light
0 10.
DEF Quality Poor
Use only DEF that is GM approved, or fluid
containing the API certified or ISO 22241
label.
DEF has an expiration date. If the system
detects poor quality, or contaminated or
diluted DEF, the DIC message will display
along with distance until vehicle speed is
limited.
The speed limitation will occur in a series of
steps with the final speed limitation being
8 km/h (5 mph) along with a flashing
warning light and chimes.
Adding fresh DEF to the system may resolve
the problem after several kilometers/miles
of driving, depending on several factors.
If the DIC message persists, see your dealer
or additional DIC messages may display.
Service DEF System
If a problem occurs with the DEF system, a
DIC message displays along with distance
until vehicle speed is limited. The speed limitation will occur in a series of
steps with the final speed limitation being
8 km/h (5 mph) along with a flashing
warning light and chimes.
In some cases, this message will clear itself,
indicating that the DEF system was able to
correct the condition. If the DIC message
persists, see your dealer or additional DIC
messages may display.
Service Emission System
If a problem occurs with the vehicle
emission system, a DIC message displays
along with distance until vehicle speed is
limited. The speed limitation will occur in a
series of steps with the final speed
limitation of 88 km/h (55 mph) and chimes.
In some cases, this message will clear itself,
indicating that the emission system was
able to correct the condition. If the DIC
message persists, see your dealer or
additional DIC messages may display.
Brakes
Exhaust Brake
The exhaust brake can be used to enhance
the vehicle brake system and reduce brake
lining wear.Downshifts may be automatically selected
to increase engine speed, which increases
the effectiveness of the exhaust brake. The
number of downshifts selected is
determined by the length of time the brakes
are applied and the rate the vehicle is
slowing. The system delivers the correct
amount of braking to assist in vehicle
control. The heavier the vehicle load, the
more active the engine exhaust brake will
be. Use of the exhaust brake will help
maintain vehicle speed when used with
cruise control. See
“Cruise Control”in the
owner’s manual.
Automatic downshifts will not occur if the
vehicle is in Range Selection Mode. See
“Manual Mode” in the owner’s manual.
The exhaust brake only activates when the
transmission torque converter is locked. This
can vary based on vehicle speed, gear,
and load.
To activate the system, press the switch on
the center stack.
Page 26 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
Driving and Operating 25
Pickups
Vans

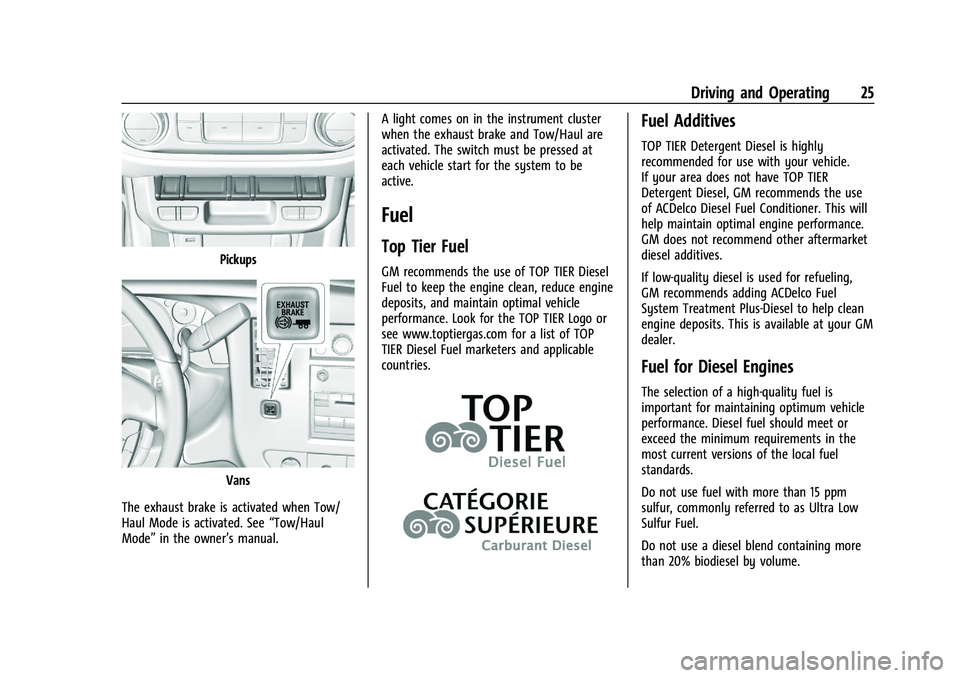

The exhaust brake is activated when Tow/
Haul Mode is activated. See “Tow/Haul
Mode” in the owner’s manual. A light comes on in the instrument cluster
when the exhaust brake and Tow/Haul are
activated. The switch must be pressed at
each vehicle start for the system to be
active.
Fuel
Top Tier Fuel
GM recommends the use of TOP TIER Diesel
Fuel to keep the engine clean, reduce engine
deposits, and maintain optimal vehicle
performance. Look for the TOP TIER Logo or
see www.toptiergas.com for a list of TOP
TIER Diesel Fuel marketers and applicable
countries.
Fuel Additives
TOP TIER Detergent Diesel is highly
recommended for use with your vehicle.
If your area does not have TOP TIER
Detergent Diesel, GM recommends the use
of ACDelco Diesel Fuel Conditioner. This will
help maintain optimal engine performance.
GM does not recommend other aftermarket
diesel additives.
If low-quality diesel is used for refueling,
GM recommends adding ACDelco Fuel
System Treatment Plus-Diesel to help clean
engine deposits. This is available at your GM
dealer.
Fuel for Diesel Engines
The selection of a high-quality fuel is
important for maintaining optimum vehicle
performance. Diesel fuel should meet or
exceed the minimum requirements in the
most current versions of the local fuel
standards.
Do not use fuel with more than 15 ppm
sulfur, commonly referred to as Ultra Low
Sulfur Fuel.
Do not use a diesel blend containing more
than 20% biodiesel by volume.
Page 27 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
26 Driving and Operating
Caution
Use of fuel that does not comply with
the required technical standards can lead
to engine power loss, increased wear,
or engine damage and may void your
warranty.
Some improper fuels are:
.Diesel fuel with the addition of
gasoline.
.Diesel fuel mixed with engine oil or
automatic transmission fluid.
.Triglyceride fuels, such as raw
vegetable oil or animal fat, in any
form, including with blends of diesel
or biodiesel.
.Marine diesel fuel and fuel oils.
.Diesel-water emulsions, such as
Aquazole.
.Aftermarket diesel fuel additives,
which contain alcohols, organo-metallic
additives, or water emulsifiers.
Caution
If the vehicle is accidentally refueled with
gasoline, do not continue driving the
vehicle. Driving the vehicle will damage
the fuel system. Have the vehicle towed
to a qualified technician to have the
gasoline removed from the tank and fuel
system. Refuel with Ultra Low Sulfur
Diesel fuel. It is also recommended to
have the fuel system flushed with Ultra
Low Sulfur Diesel, to ensure all gasoline
is removed.

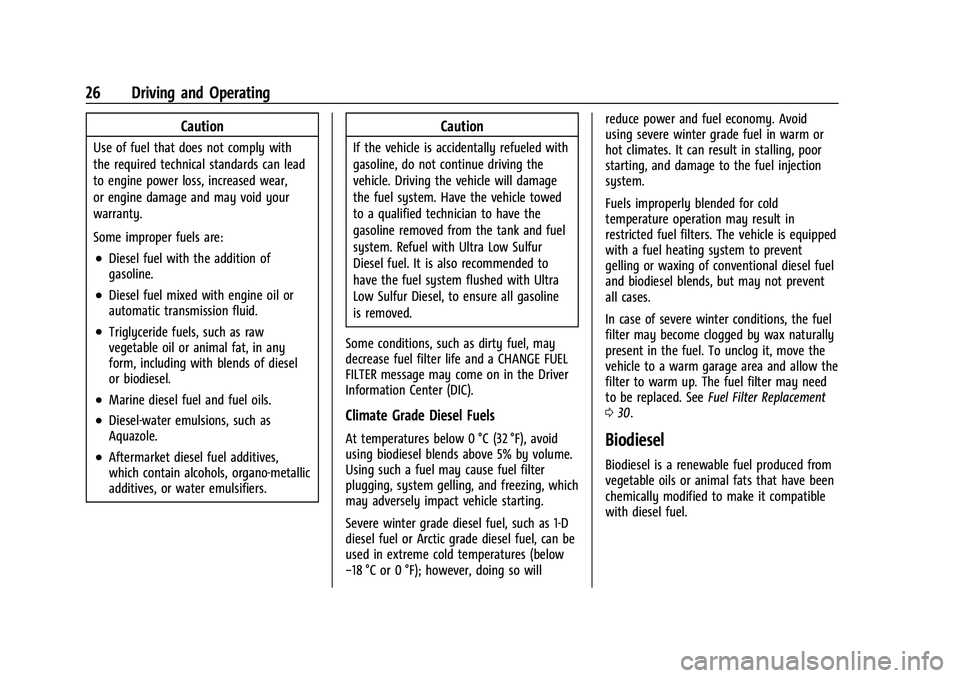

Some conditions, such as dirty fuel, may
decrease fuel filter life and a CHANGE FUEL
FILTER message may come on in the Driver
Information Center (DIC).
Climate Grade Diesel Fuels
At temperatures below 0 °C (32 °F), avoid
using biodiesel blends above 5% by volume.
Using such a fuel may cause fuel filter
plugging, system gelling, and freezing, which
may adversely impact vehicle starting.
Severe winter grade diesel fuel, such as 1-D
diesel fuel or Arctic grade diesel fuel, can be
used in extreme cold temperatures (below
−18 °C or 0 °F); however, doing so will reduce power and fuel economy. Avoid
using severe winter grade fuel in warm or
hot climates. It can result in stalling, poor
starting, and damage to the fuel injection
system.
Fuels improperly blended for cold
temperature operation may result in
restricted fuel filters. The vehicle is equipped
with a fuel heating system to prevent
gelling or waxing of conventional diesel fuel
and biodiesel blends, but may not prevent
all cases.
In case of severe winter conditions, the fuel
filter may become clogged by wax naturally
present in the fuel. To unclog it, move the
vehicle to a warm garage area and allow the
filter to warm up. The fuel filter may need
to be replaced. See
Fuel Filter Replacement
0 30.Biodiesel
Biodiesel is a renewable fuel produced from
vegetable oils or animal fats that have been
chemically modified to make it compatible
with diesel fuel.
Page 28 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
Driving and Operating 27

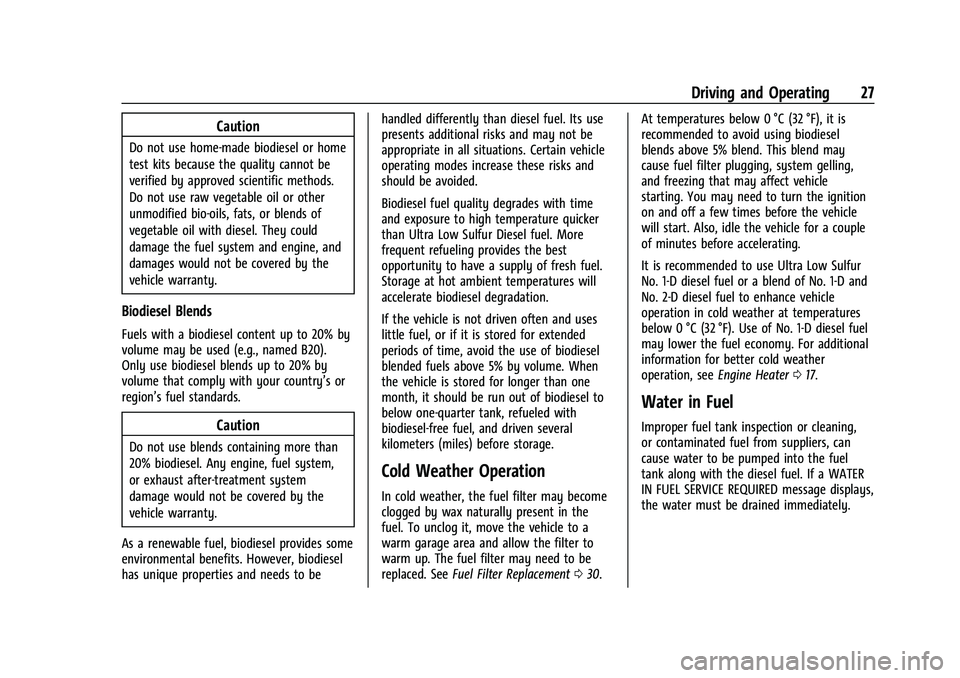

Caution
Do not use home-made biodiesel or home
test kits because the quality cannot be
verified by approved scientific methods.
Do not use raw vegetable oil or other
unmodified bio-oils, fats, or blends of
vegetable oil with diesel. They could
damage the fuel system and engine, and
damages would not be covered by the
vehicle warranty.
Biodiesel Blends
Fuels with a biodiesel content up to 20% by
volume may be used (e.g., named B20).
Only use biodiesel blends up to 20% by
volume that comply with your country’s or
region’s fuel standards.
Caution
Do not use blends containing more than
20% biodiesel. Any engine, fuel system,
or exhaust after-treatment system
damage would not be covered by the
vehicle warranty.
As a renewable fuel, biodiesel provides some
environmental benefits. However, biodiesel
has unique properties and needs to be handled differently than diesel fuel. Its use
presents additional risks and may not be
appropriate in all situations. Certain vehicle
operating modes increase these risks and
should be avoided.
Biodiesel fuel quality degrades with time
and exposure to high temperature quicker
than Ultra Low Sulfur Diesel fuel. More
frequent refueling provides the best
opportunity to have a supply of fresh fuel.
Storage at hot ambient temperatures will
accelerate biodiesel degradation.
If the vehicle is not driven often and uses
little fuel, or if it is stored for extended
periods of time, avoid the use of biodiesel
blended fuels above 5% by volume. When
the vehicle is stored for longer than one
month, it should be run out of biodiesel to
below one-quarter tank, refueled with
biodiesel-free fuel, and driven several
kilometers (miles) before storage.
Cold Weather Operation
In cold weather, the fuel filter may become
clogged by wax naturally present in the
fuel. To unclog it, move the vehicle to a
warm garage area and allow the filter to
warm up. The fuel filter may need to be
replaced. See
Fuel Filter Replacement 030. At temperatures below 0 °C (32 °F), it is
recommended to avoid using biodiesel
blends above 5% blend. This blend may
cause fuel filter plugging, system gelling,
and freezing that may affect vehicle
starting. You may need to turn the ignition
on and off a few times before the vehicle
will start. Also, idle the vehicle for a couple
of minutes before accelerating.
It is recommended to use Ultra Low Sulfur
No. 1-D diesel fuel or a blend of No. 1-D and
No. 2-D diesel fuel to enhance vehicle
operation in cold weather at temperatures
below 0 °C (32 °F). Use of No. 1-D diesel fuel
may lower the fuel economy. For additional
information for better cold weather
operation, see
Engine Heater017.
Water in Fuel
Improper fuel tank inspection or cleaning,
or contaminated fuel from suppliers, can
cause water to be pumped into the fuel
tank along with the diesel fuel. If a WATER
IN FUEL SERVICE REQUIRED message displays,
the water must be drained immediately.
Page 29 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20
28 Driving and Operating

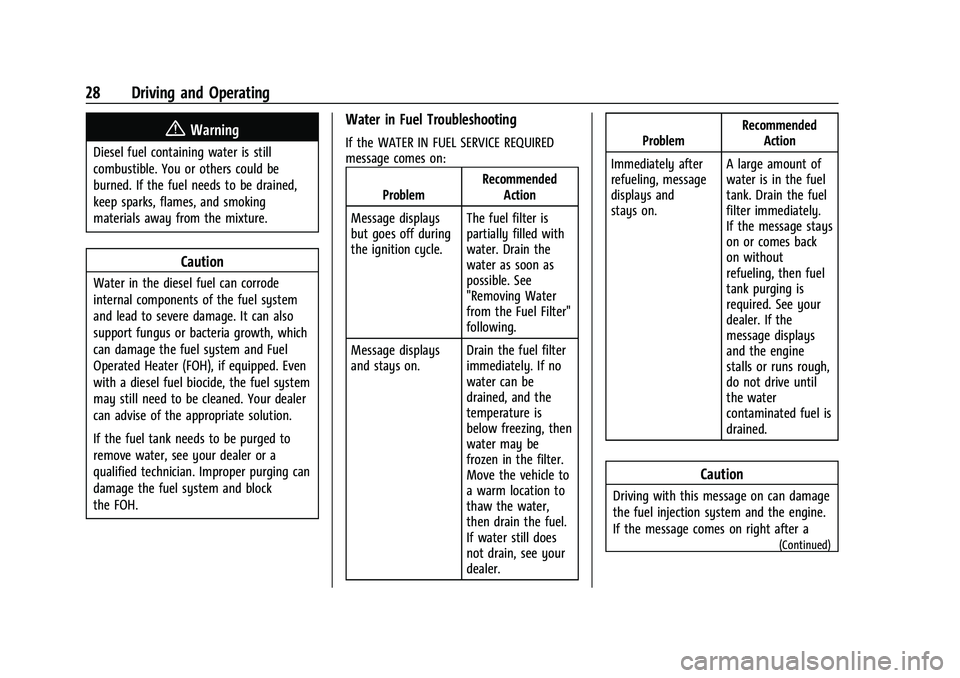

{Warning
Diesel fuel containing water is still
combustible. You or others could be
burned. If the fuel needs to be drained,
keep sparks, flames, and smoking
materials away from the mixture.
Caution
Water in the diesel fuel can corrode
internal components of the fuel system
and lead to severe damage. It can also
support fungus or bacteria growth, which
can damage the fuel system and Fuel
Operated Heater (FOH), if equipped. Even
with a diesel fuel biocide, the fuel system
may still need to be cleaned. Your dealer
can advise of the appropriate solution.
If the fuel tank needs to be purged to
remove water, see your dealer or a
qualified technician. Improper purging can
damage the fuel system and block
the FOH.
Water in Fuel Troubleshooting
If the WATER IN FUEL SERVICE REQUIRED
message comes on:Problem Recommended
Action
Message displays
but goes off during
the ignition cycle. The fuel filter is
partially filled with
water. Drain the
water as soon as
possible. See
"Removing Water
from the Fuel Filter"
following.
Message displays
and stays on. Drain the fuel filter
immediately. If no
water can be
drained, and the
temperature is
below freezing, then
water may be
frozen in the filter.
Move the vehicle to
a warm location to
thaw the water,
then drain the fuel.
If water still does
not drain, see your
dealer. Problem
Recommended
Action
Immediately after
refueling, message
displays and
stays on. A large amount of
water is in the fuel
tank. Drain the fuel
filter immediately.
If the message stays
on or comes back
on without
refueling, then fuel
tank purging is
required. See your
dealer. If the
message displays
and the engine
stalls or runs rough,
do not drive until
the water
contaminated fuel is
drained.
Caution
Driving with this message on can damage
the fuel injection system and the engine.
If the message comes on right after a
(Continued)
Page 30 of 89
Chevrolet/GMC 2.8L Duramax Diesel Engine Supplement (GMNA-Localizing-
U.S./Canada-14465442) - 2021 - CRC - 2/3/20

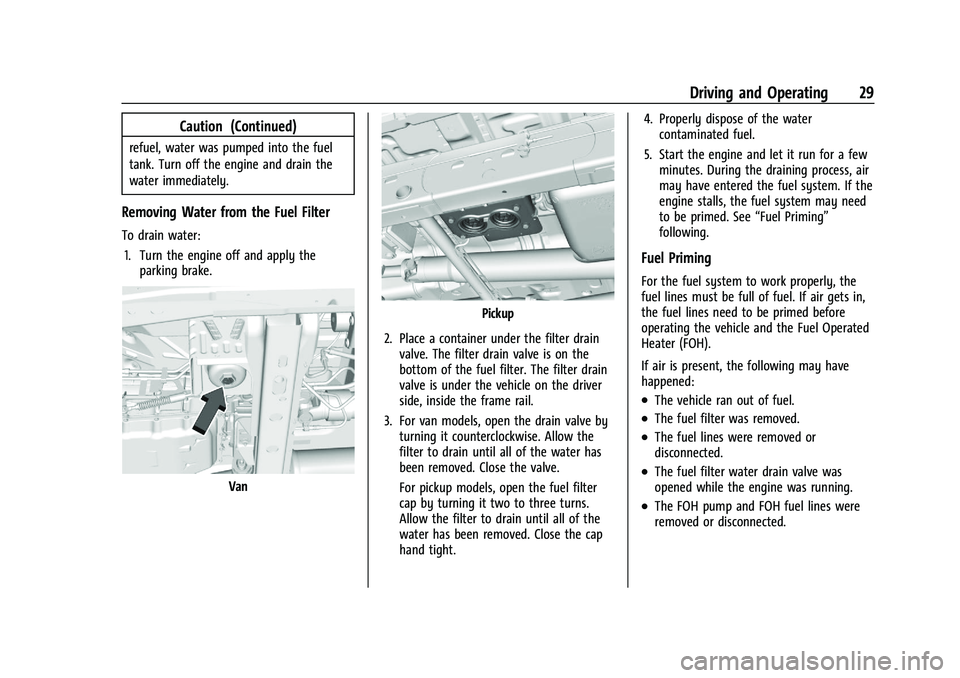

Driving and Operating 29
Caution (Continued)
refuel, water was pumped into the fuel
tank. Turn off the engine and drain the
water immediately.
Removing Water from the Fuel Filter
To drain water:1. Turn the engine off and apply the parking brake.
Van
Pickup
2. Place a container under the filter drain valve. The filter drain valve is on the
bottom of the fuel filter. The filter drain
valve is under the vehicle on the driver
side, inside the frame rail.
3. For van models, open the drain valve by turning it counterclockwise. Allow the
filter to drain until all of the water has
been removed. Close the valve.
For pickup models, open the fuel filter
cap by turning it two to three turns.
Allow the filter to drain until all of the
water has been removed. Close the cap
hand tight. 4. Properly dispose of the water
contaminated fuel.
5. Start the engine and let it run for a few minutes. During the draining process, air
may have entered the fuel system. If the
engine stalls, the fuel system may need
to be primed. See “Fuel Priming”
following.
Fuel Priming
For the fuel system to work properly, the
fuel lines must be full of fuel. If air gets in,
the fuel lines need to be primed before
operating the vehicle and the Fuel Operated
Heater (FOH).
If air is present, the following may have
happened:
.The vehicle ran out of fuel.
.The fuel filter was removed.
.The fuel lines were removed or
disconnected.
.The fuel filter water drain valve was
opened while the engine was running.
.The FOH pump and FOH fuel lines were
removed or disconnected.
