CHEVROLET CORVETTE 1997 5.G Owners Manual

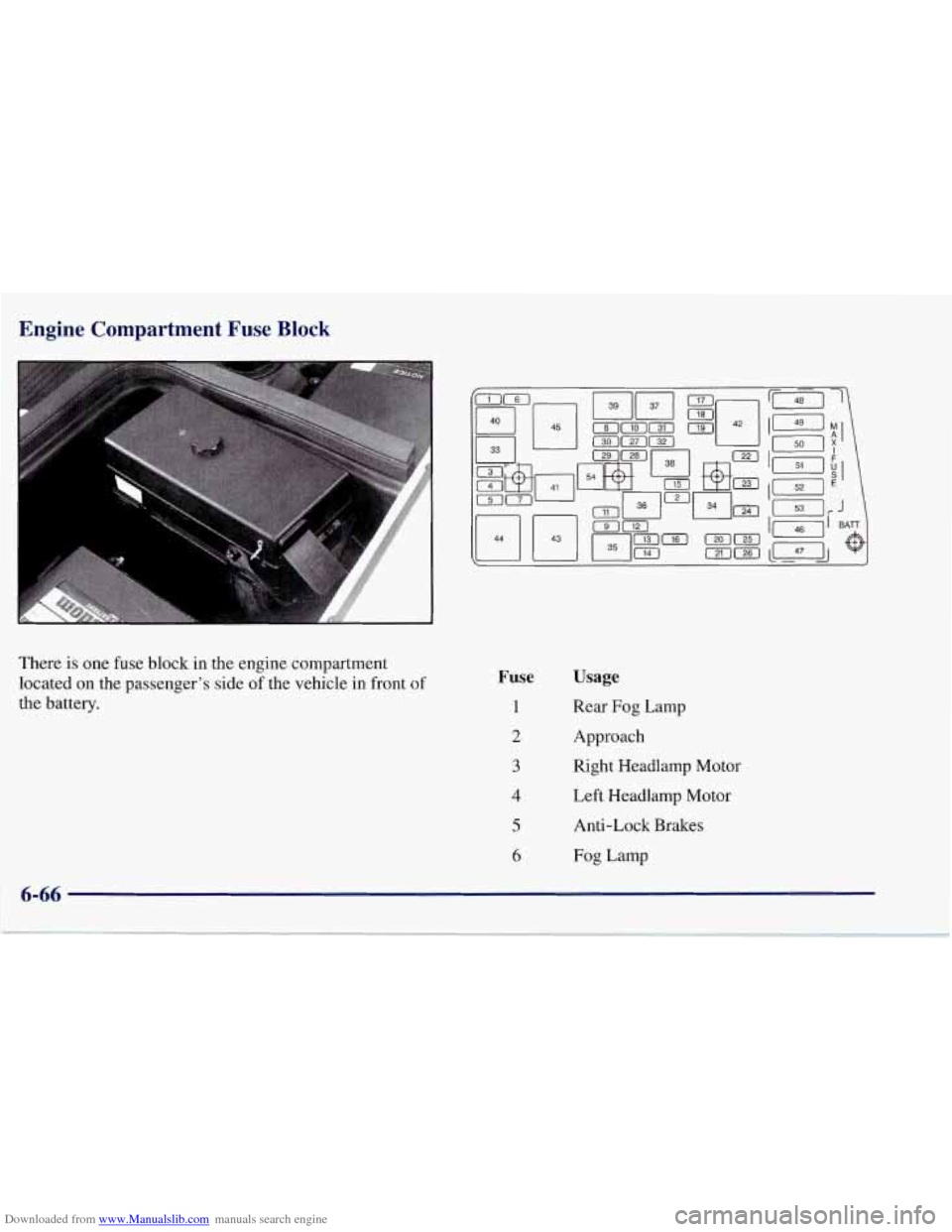

Downloaded from www.Manualslib.com manuals search engine Engine Compartment Fuse Block
There is one fuse block in the engine compartment
located on the passenger’s side of the vehicle in front
of
the battery.
J
i EATT
J
Fuse
1
2
3
4
5
6
Usage
Rear Fog Lamp
Approach
Right Headlamp Motor
Left Headlamp Motor
Anti-Lock Brakes
Fog Lamp
‘ 6-66

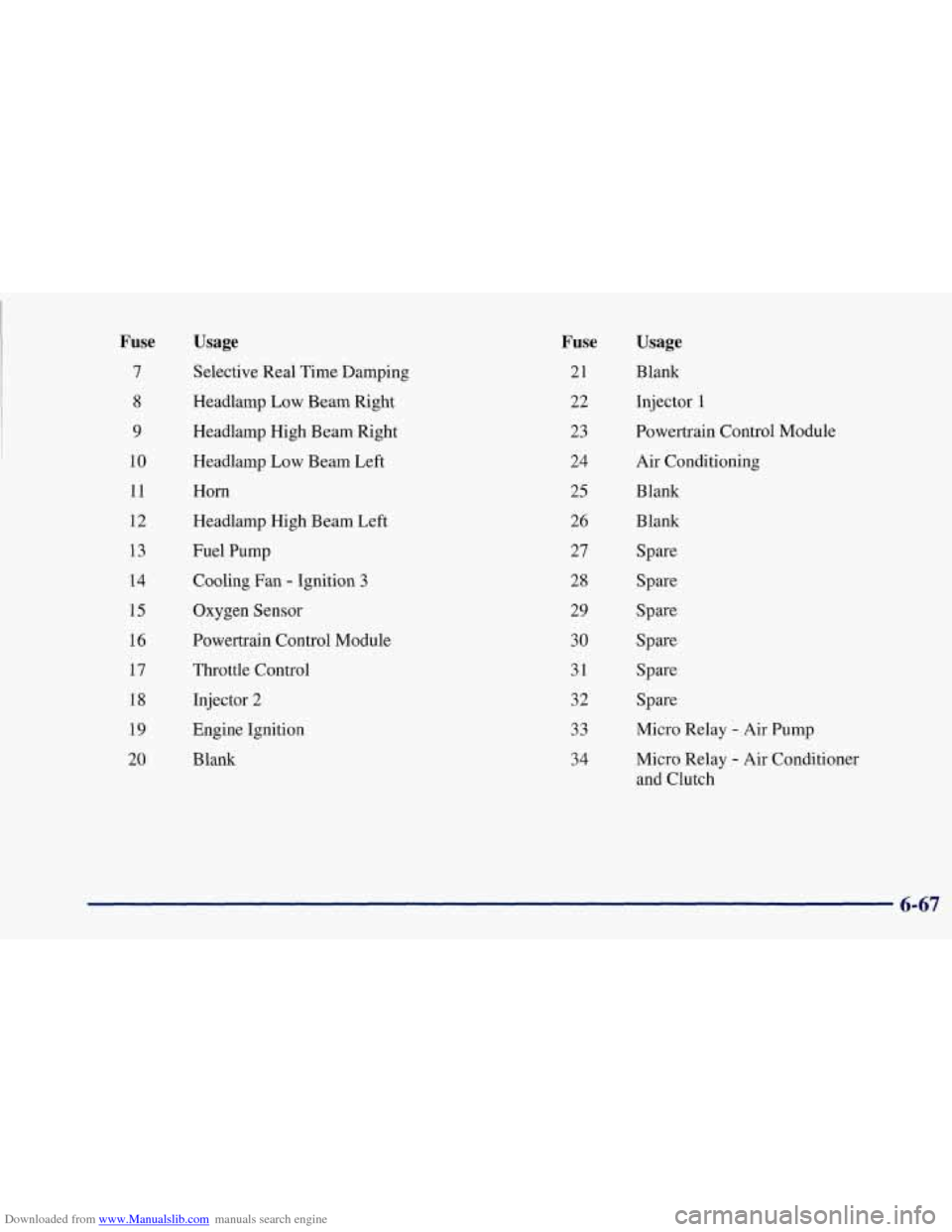

Downloaded from www.Manualslib.com manuals search engine Fuse
7
8
9
10 11
12
13
14
15
16
17
18
19
20
Usage
Selective Real Time Damping
Headlamp
Low Beam Right
Headlamp High Beam Right
Headlamp
Low Beam Left
Horn
Headlamp High Beam Left
Fuel Pump Cooling Fan
- Ignition 3
Oxygen Sensor
Powertrain Control Module
Throttle Control
Injector 2
Engine Ignition
Blank
Fuse
21
22
23
24
25
26 27
28
29
30 31
32
33
34
Usage
Blank
Injector
1
Powertrain Control Module
Air Conditioning
Blank
Blank
Spare Spare
Spare
Spare
Spare
Spare
Micro Relay
- Air Pump
Micro Relay
- Air Conditioner
and Clutch
6-67

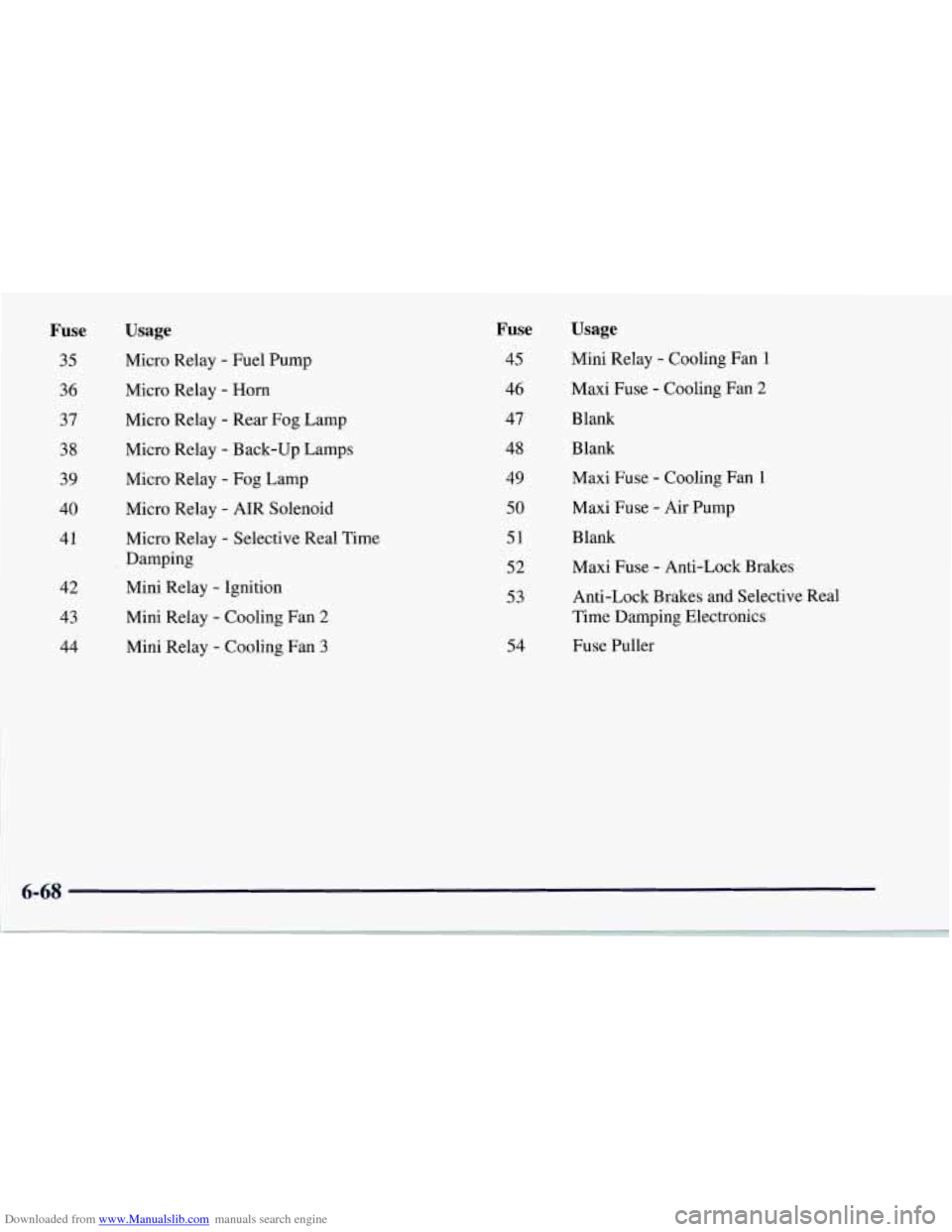

Downloaded from www.Manualslib.com manuals search engine Fuse
35
36
37
38 39
40
41
42
43
44
Usage
Micro Relay - Fuel Pump
Micro Relay
- Horn
Micro Relay - Rear Fog Lamp
Micro Relay
- Back-up Lamps
Micro Relay
- Fog Lamp
Micro Relay
- AIR Solenoid
Micro Relay
- Selective Real Time
Damping
Mini Relay
- Ignition
Mini Relay
- Cooling Fan 2
Mini Relay
- Cooling Fan 3
Fuse
45
46
47
48
49
50
51
52
53
54
Usage
Mini Relay - Cooling Fan 1
Maxi Fuse - Cooling Fan 2
Blank
Blank
Maxi Fuse
- Cooling Fan 1
Maxi Fuse - Air Pump
Blank
Maxi Fuse
- Anti-Lock Brakes
Anti-Lock Brakes and Selective Real
Time Damping Electronics
Fuse Puller

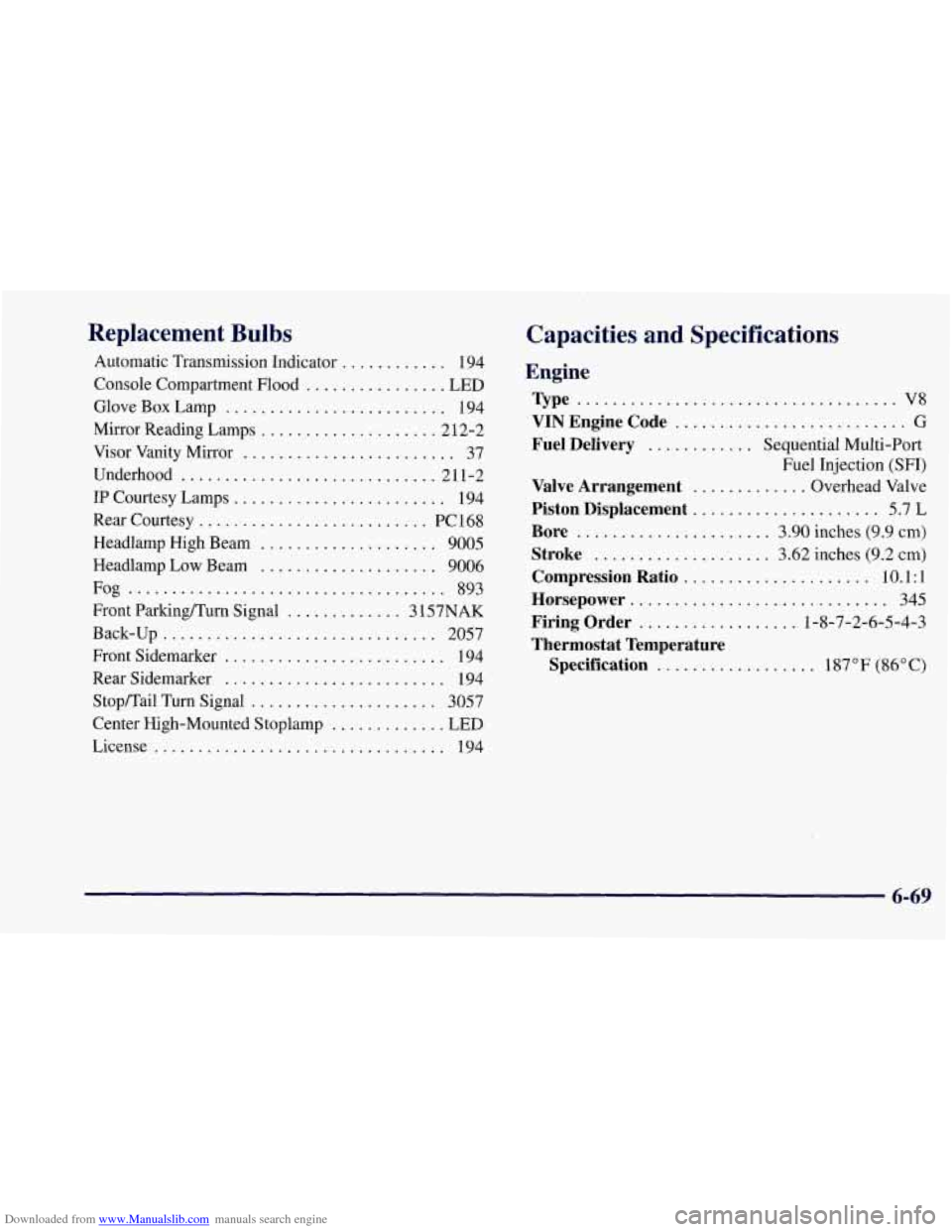

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Automatic Transmission Indicator ............ 194
Console Compartment Flood
................ LED
Glove Box Lamp ......................... 194
Mirror Reading Lamps
.................... 212-2
Visor Vanity Mirror
........................ 37
Underhood
............................. 211-2
IP Courtesy Lamps
........................ 194
Headlamp High Beam
.................... 9005
Headlamp Low Beam .................... 9006
Fog .................................... 893
Rear Courtesy .......................... PC168
Front ParlunglTurn Signal
............. 3 157NAK
Back-up
............................... 2057
Front Sidemarker
......................... 194
Rear Sidemarker
......................... 194
Stopflail Turn Signal
..................... 3057
Center High-Mounted Stoplamp
............. LED
License
................................. 194
Capacities and Specifications
Engine
Type .................................... V8
Fuel Delivery ............ Sequential Multi-Port
VIN Engine Code .......................... G
Fuel Injection (SFI)
Valve Arrangement ............. Overhead Valve
Piston Displacement ..................... 5.7 L
Bore ...................... 3.90 inches (9.9 cm)
Stroke .................... 3.62 inches (9.2 cm)
Compression Ratio ..................... 10.1 : 1
Horsepower ............................. 345
Firing Order .................. 1-8-7-2-6-5-4-3
Thermostat Temperature
Specification
.................. 1 87 O F (86 O C)
6-69

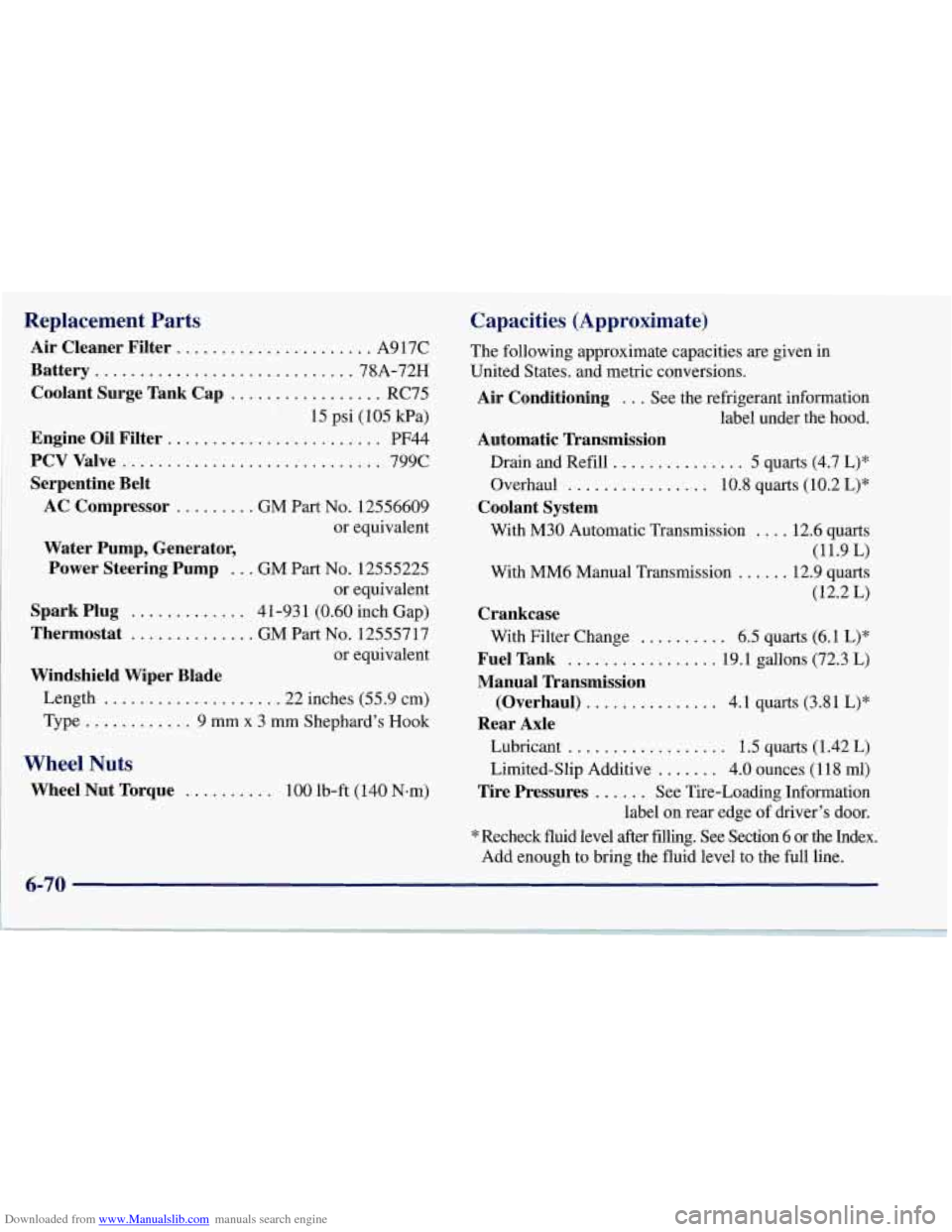

Downloaded from www.Manualslib.com manuals search engine Replacement Parts
Air Cleaner Filter ...................... A917C
Battery ............................. 78A-72H
Coolant Surge Tank Cap ................. RC75
Engine Oil Filter ........................ PF44
15
psi (105
kPa)
PCV Valve ............................. 799C
Serpentine Belt
AC Compressor
......... GM Part No. 12556609
or equivalent
Water Pump, Generator, Power Steering Pump
... GM Part No. 12555225
or equivalent
Thermostat .............. GM Part No. 125557 17
or equivalent
Windshield Wiper Blade Spark Plug
............. 4 1-93 1 (0.60 inch Gap)
Length
................... .22 inches (55.9 cm)
Type
............ 9 mm x 3 mm Shephard’s Hook
Wheel Nuts
Wheel Nut Torque .......... 100 lb-ft (140 Nsm)
Capacities (Approximate)
The following approximate capacities are given in
United States. and metric conversions.
Air Conditioning ... See the refrigerant information
label under the hood.
Automatic Transmission
Drain and Refill ............... 5 quarts (4.7 L)*
Overhaul
................ 10.8 quarts (10.2 L)*
With M30 Automatic Transmission
.... 12.6 quarts
With MM6 Manual Transmission
...... 12.9 quarts
(12.2 L)
With Filter Change
.......... 6.5 quarts (6.1 L)*
Fuel Tank ................. 19.1 gallons (72.3 L)
Coolant System
(11.9 L)
Crankcase
Manual Transmission Rear Axle (Overhaul)
................ 4.1 quarts
(3.81 L)*
Lubricant
.................. 1.5 quarts (1.42 L)
Limited-Slip Additive
....... 4.0 ounces (1 18 ml)
Tire Pressures ...... See Tire-Loading Information
label on rear edge of driver’s door.
*Recheck fluid level after filling. See Section
6 or the Index.
Add enough to bring the fluid level to the full line.

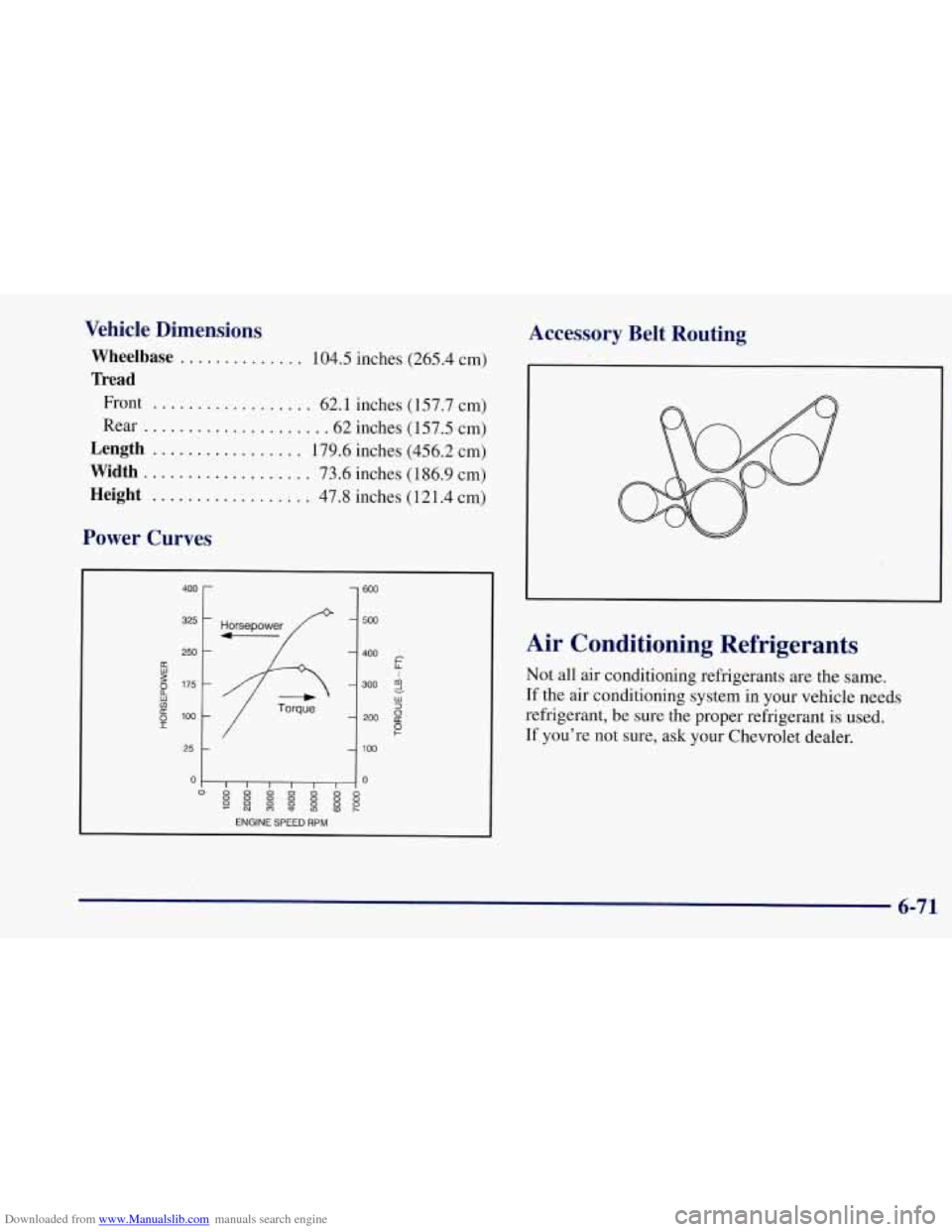

Downloaded from www.Manualslib.com manuals search engine Vehicle Dimensions
Wheelbase .............. 104.5 inches (265.4 cm)
Tread
Front .................. 62.1 inches (157.7 cm)
Rear
.................... .62 inches (1 57.5 cm)
Length ................. 179.6 inches (456.2 cm)
Width ................... 73.6 inches (1 86.9 cm)
Height .................. 47.8 inches (1 21.4 cm)
Power Curves
I 400
325
250
-
a
g ' 175 -
w v) U
I 0 100 -
- Horsepower
Torque
25 t
600
500
400 E I 300 5
UI 3 200 8
P
1 loo
Accessory Belt Routing
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If you're not sure, ask your Chevrolet dealer.
6-71

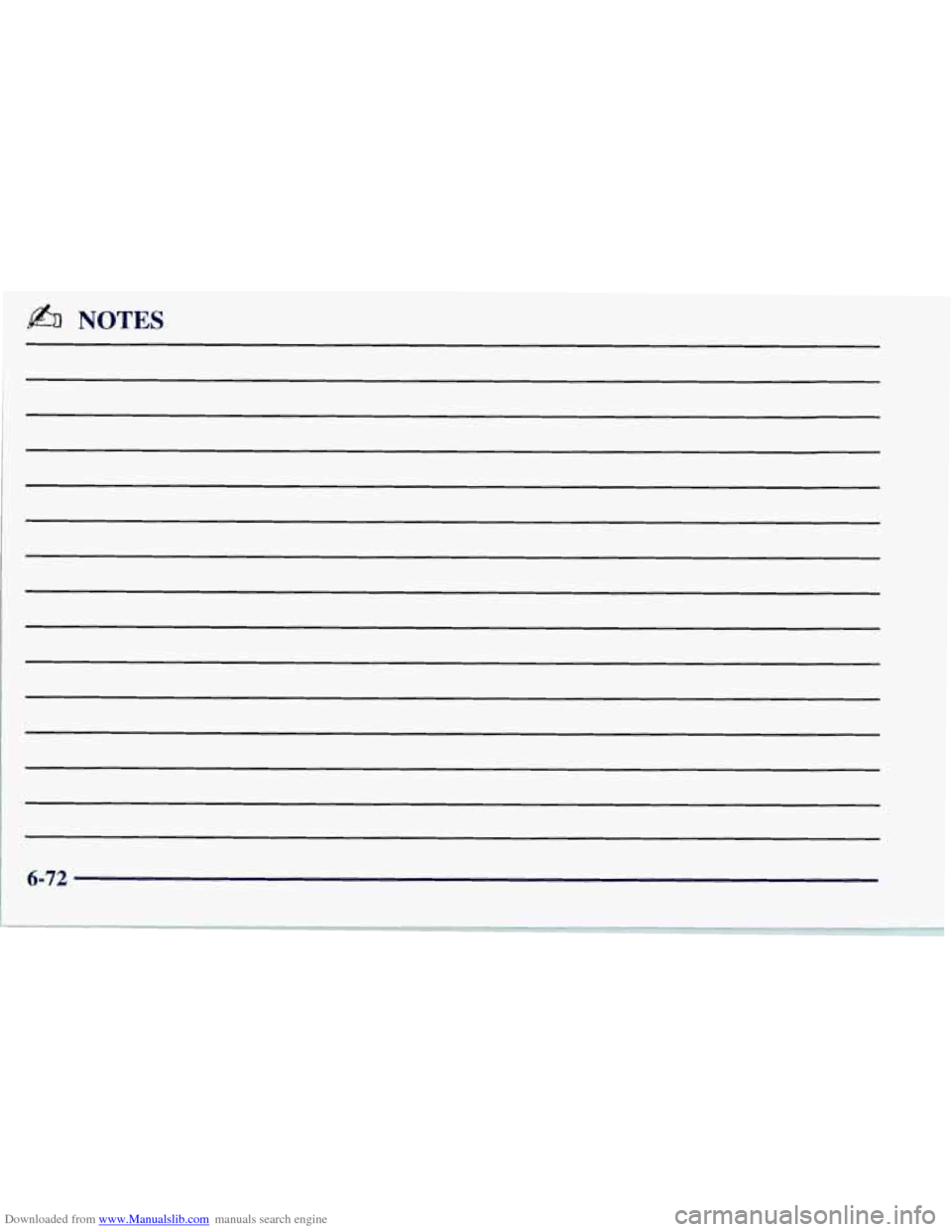

Downloaded from www.Manualslib.com manuals search engine b NOTES
6-72

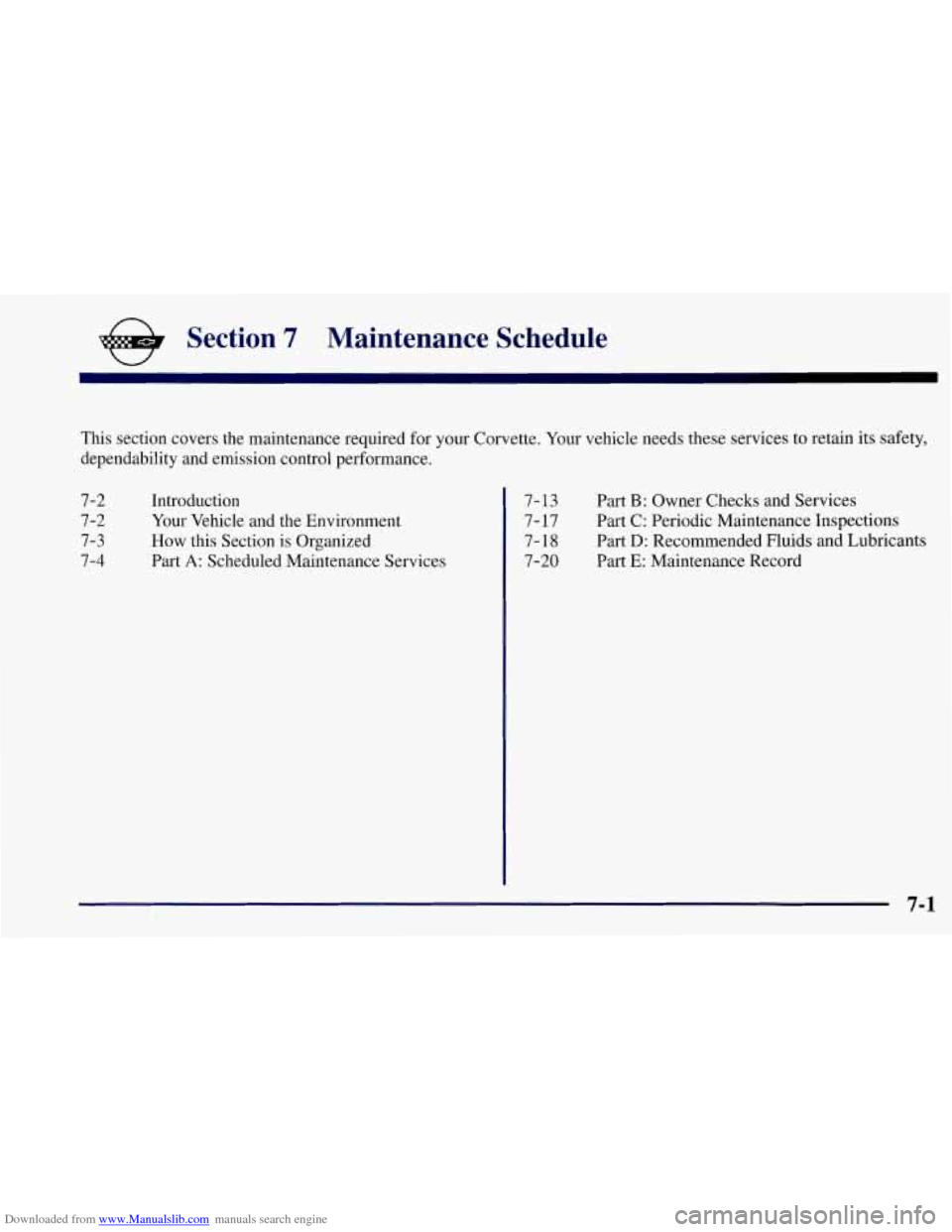

Downloaded from www.Manualslib.com manuals search engine e Section 7 Maintenance Schedule
This section covers the maintenance required for your Corvette. Your vehicle needs these services to retain its safety,
dependability and emission control performance.
7-2
7-2
7-3
7-4 Introduction
Your Vehicle
and the Environment
How this Section is Organized
Part
A: Scheduled Maintenance Services 7-
13
7- 17
7-18
7-20 Part
B: Owner Checks and
Services
Part C: Periodic Maintenance Inspections
Part
D: Recommended Fluids and Lubricants
Part E: Maintenance Record
7-1

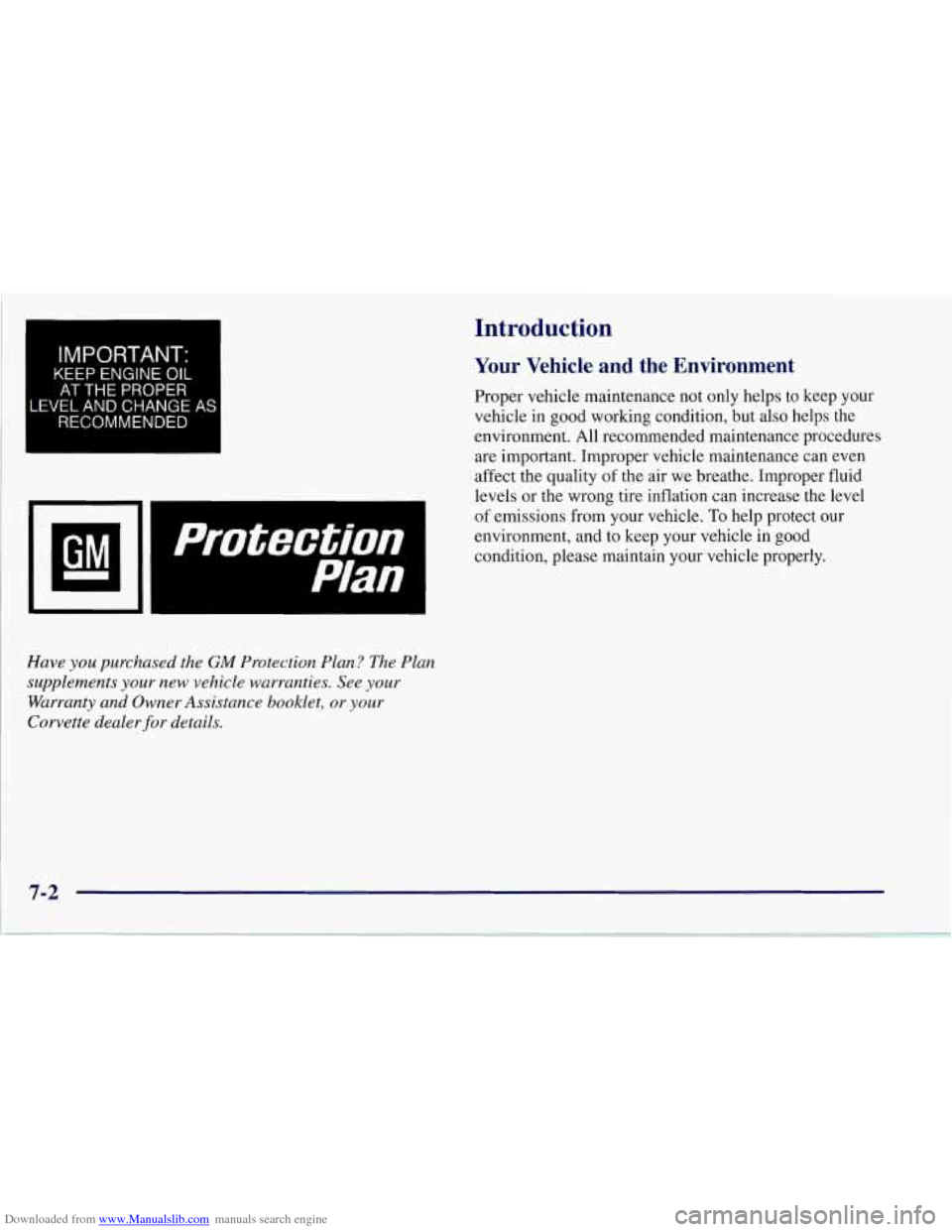

Downloaded from www.Manualslib.com manuals search engine IMPORTANT:
KEEP ENGINE OIL
AT THE PROPER
LEVEL AND CHANGE AS I
RECOMMENDED
I
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle
in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance can even
affect the quality
of the air we breathe. Improper fluid
levels or the wrong tire inflation can increase the level
of emissions from your vehicle. To help protect our
environment, and to keep your vehicle in good
condition, please maintain your vehicle properly.
Have you purchased the GM Protection Plan? The Plan
supplements
your new vehicle warranties. See your
Warranty and Owner Assistance booklet, or your
Corvette dealer for details.

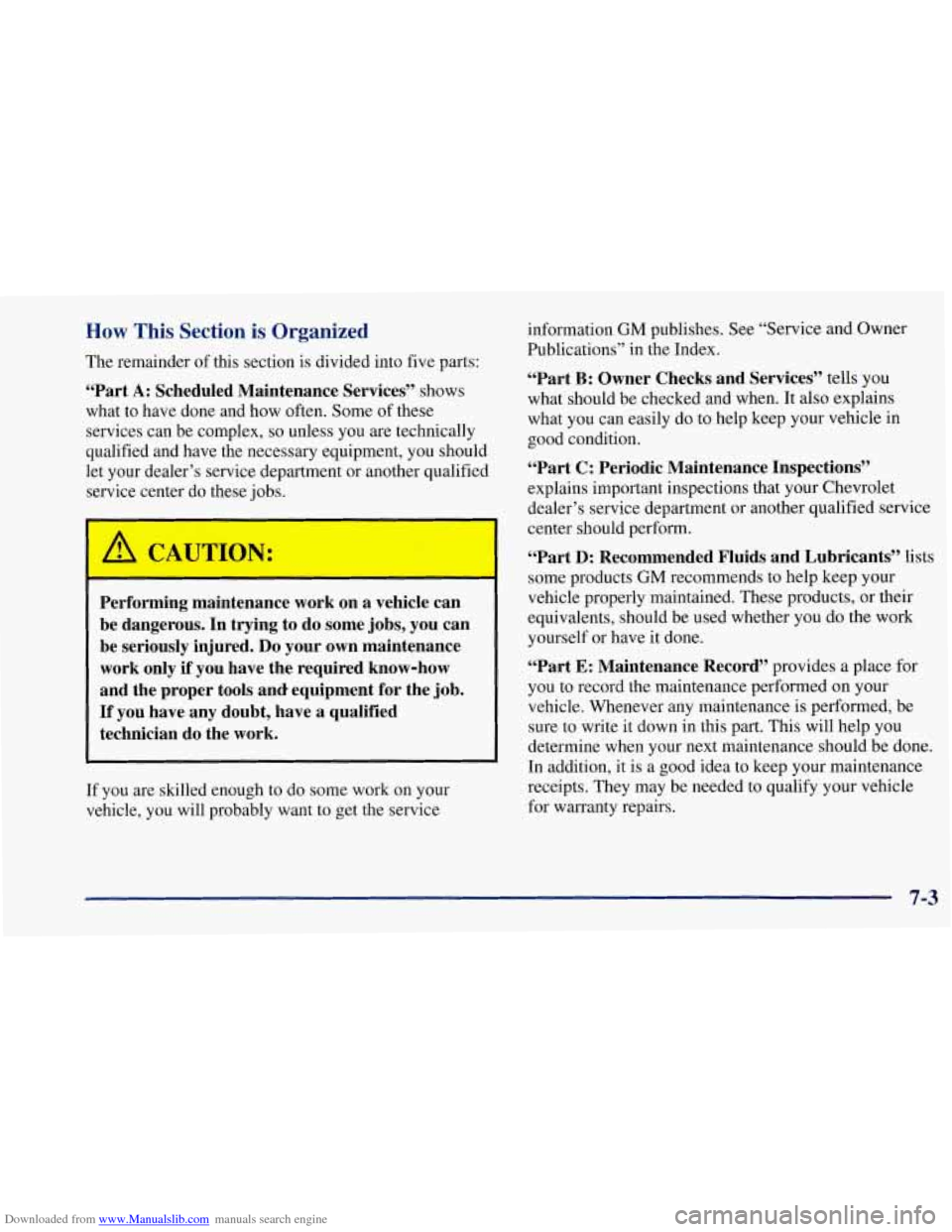

Downloaded from www.Manualslib.com manuals search engine How This Section is Organized
The remainder of this section is divided into five parts:
“Part A: Scheduled Maintenance Services” shows
what to have done and how often. Some of these
services can be complex,
so unless you are technically
qualified and have the necessary equipment, you should
let your dealer’s service department or another qualified
service center do these jobs.
I
Performing maintenance work on a vehicle can
be dangerous. In trying to do some jobs, you can
be seriously injured.
Do your own maintenance
work only
if you have the required know-how
and the proper
tools an& equipment for the job.
If you have any doubt, have a qualified
technician
do the work.
If you are skilled enough to do some work on your
vehicle, you will probably want to get the service information
GM publishes.
See “Service and Owner
Publications” in the Index.
“Part B: Owner Checks and Services” tells you
what should be checked and when. It also explains
what you can easily do to help keep your vehicle
in
good condition.
“Part C : Periodic Maintenance Inspections”
explains important inspections that your Chevrolet
dealer’s service department or another qualified service
center should perform.
“Part D: Recommended Fluids and Lubricants” lists
some products
GM recommends to help keep your
vehicle properly maintained. These products, or their
equivalents, should be used whether you do the work
yourself or have it done.
“Part E: Maintenance Record” provides a place for
you to record the maintenance performed on your
vehicle. Whenever any maintenance is performed, be
sure to write
it down in this part. This will help you
determine when your next maintenance should be done.
In addition, it is a good idea to keep your maintenance
receipts. They may be needed to qualify your vehicle
for warranty repairs.
7-3
