CHEVROLET CORVETTE 2007 6.G Repair Manual

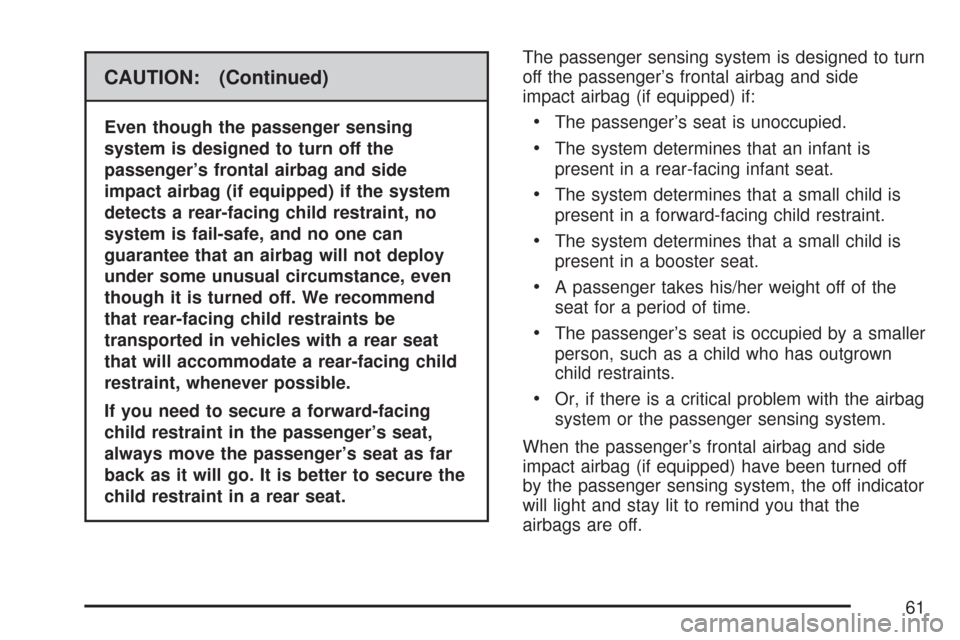

CAUTION: (Continued)
Even though the passenger sensing
system is designed to turn off the
passenger’s frontal airbag and side
impact airbag (if equipped) if the system
detects a rear-facing child restraint, no
system is fail-safe, and no one can
guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend
that rear-facing child restraints be
transported in vehicles with a rear seat
that will accommodate a rear-facing child
restraint, whenever possible.
If you need to secure a forward-facing
child restraint in the passenger’s seat,
always move the passenger’s seat as far
back as it will go. It is better to secure the
child restraint in a rear seat.The passenger sensing system is designed to turn
off the passenger’s frontal airbag and side
impact airbag (if equipped) if:The passenger’s seat is unoccupied.
The system determines that an infant is
present in a rear-facing infant seat.
The system determines that a small child is
present in a forward-facing child restraint.
The system determines that a small child is
present in a booster seat.
A passenger takes his/her weight off of the
seat for a period of time.
The passenger’s seat is occupied by a smaller
person, such as a child who has outgrown
child restraints.
Or, if there is a critical problem with the airbag
system or the passenger sensing system.
When the passenger’s frontal airbag and side
impact airbag (if equipped) have been turned off
by the passenger sensing system, the off indicator
will light and stay lit to remind you that the
airbags are off.
61

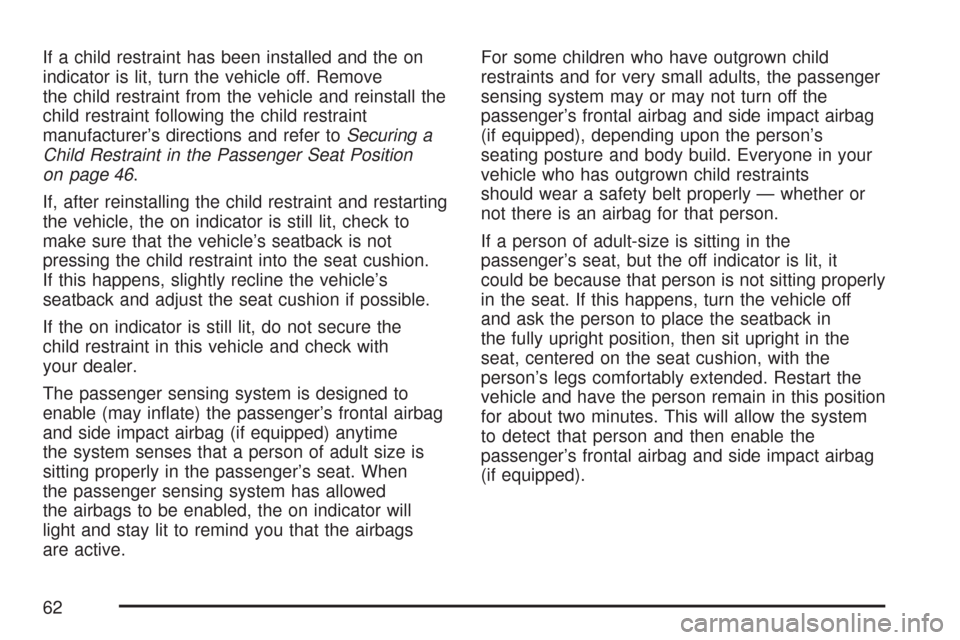

If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall the
child restraint following the child restraint
manufacturer’s directions and refer toSecuring a
Child Restraint in the Passenger Seat Position
on page 46.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion.
If this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
If the on indicator is still lit, do not secure the
child restraint in this vehicle and check with
your dealer.
The passenger sensing system is designed to
enable (may inate) the passenger’s frontal airbag
and side impact airbag (if equipped) anytime
the system senses that a person of adult size is
sitting properly in the passenger’s seat. When
the passenger sensing system has allowed
the airbags to be enabled, the on indicator will
light and stay lit to remind you that the airbags
are active.For some children who have outgrown child
restraints and for very small adults, the passenger
sensing system may or may not turn off the
passenger’s frontal airbag and side impact airbag
(if equipped), depending upon the person’s
seating posture and body build. Everyone in your
vehicle who has outgrown child restraints
should wear a safety belt properly — whether or
not there is an airbag for that person.
If a person of adult-size is sitting in the
passenger’s seat, but the off indicator is lit, it
could be because that person is not sitting properly
in the seat. If this happens, turn the vehicle off
and ask the person to place the seatback in
the fully upright position, then sit upright in the
seat, centered on the seat cushion, with the
person’s legs comfortably extended. Restart the
vehicle and have the person remain in this position
for about two minutes. This will allow the system
to detect that person and then enable the
passenger’s frontal airbag and side impact airbag
(if equipped).
62

{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something may
be wrong with the airbag system. If this
ever happens, have the vehicle serviced
promptly, because an adult-size person
sitting in the right front passenger’s seat
may not have the protection of an airbag.
SeeAirbag Readiness Light on page 191
for more on this, including important safety
information.
63

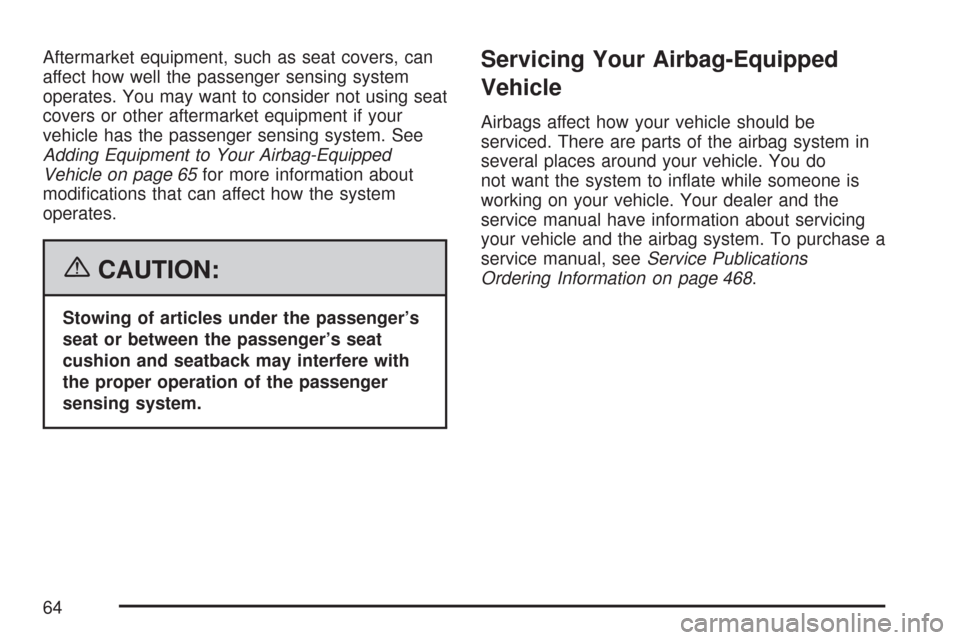

Aftermarket equipment, such as seat covers, can
affect how well the passenger sensing system
operates. You may want to consider not using seat
covers or other aftermarket equipment if your
vehicle has the passenger sensing system. See
Adding Equipment to Your Airbag-Equipped
Vehicle on page 65for more information about
modications that can affect how the system
operates.
{CAUTION:
Stowing of articles under the passenger’s
seat or between the passenger’s seat
cushion and seatback may interfere with
the proper operation of the passenger
sensing system.
Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be
serviced. There are parts of the airbag system in
several places around your vehicle. You do
not want the system to inate while someone is
working on your vehicle. Your dealer and the
service manual have information about servicing
your vehicle and the airbag system. To purchase a
service manual, seeService Publications
Ordering Information on page 468.
64

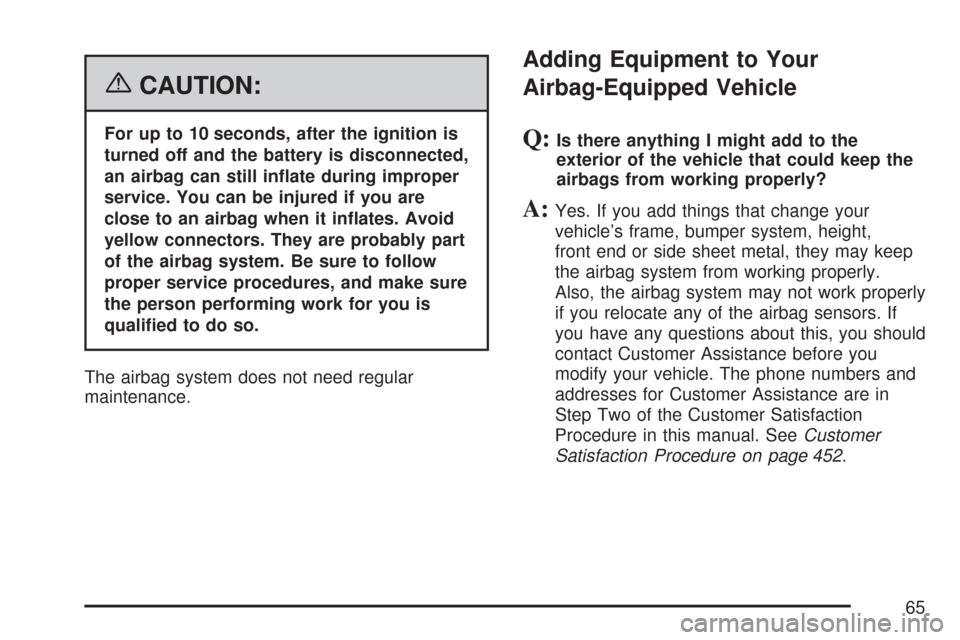

{CAUTION:
For up to 10 seconds, after the ignition is
turned off and the battery is disconnected,
an airbag can still inate during improper
service. You can be injured if you are
close to an airbag when it inates. Avoid
yellow connectors. They are probably part
of the airbag system. Be sure to follow
proper service procedures, and make sure
the person performing work for you is
qualied to do so.
The airbag system does not need regular
maintenance.
Adding Equipment to Your
Airbag-Equipped Vehicle
Q:Is there anything I might add to the
exterior of the vehicle that could keep the
airbags from working properly?
A:Yes. If you add things that change your
vehicle’s frame, bumper system, height,
front end or side sheet metal, they may keep
the airbag system from working properly.
Also, the airbag system may not work properly
if you relocate any of the airbag sensors. If
you have any questions about this, you should
contact Customer Assistance before you
modify your vehicle. The phone numbers and
addresses for Customer Assistance are in
Step Two of the Customer Satisfaction
Procedure in this manual. SeeCustomer
Satisfaction Procedure on page 452.
65

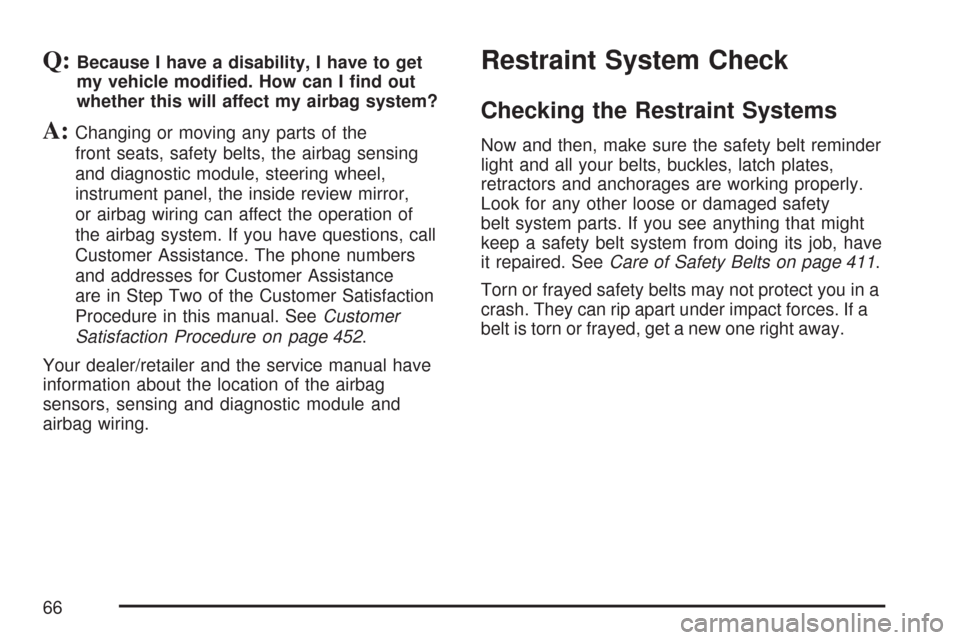

Q:Because I have a disability, I have to get
my vehicle modied. How can I nd out
whether this will affect my airbag system?
A:Changing or moving any parts of the
front seats, safety belts, the airbag sensing
and diagnostic module, steering wheel,
instrument panel, the inside review mirror,
or airbag wiring can affect the operation of
the airbag system. If you have questions, call
Customer Assistance. The phone numbers
and addresses for Customer Assistance
are in Step Two of the Customer Satisfaction
Procedure in this manual. SeeCustomer
Satisfaction Procedure on page 452.
Your dealer/retailer and the service manual have
information about the location of the airbag
sensors, sensing and diagnostic module and
airbag wiring.
Restraint System Check
Checking the Restraint Systems
Now and then, make sure the safety belt reminder
light and all your belts, buckles, latch plates,
retractors and anchorages are working properly.
Look for any other loose or damaged safety
belt system parts. If you see anything that might
keep a safety belt system from doing its job, have
it repaired. SeeCare of Safety Belts on page 411.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If a
belt is torn or frayed, get a new one right away.
66

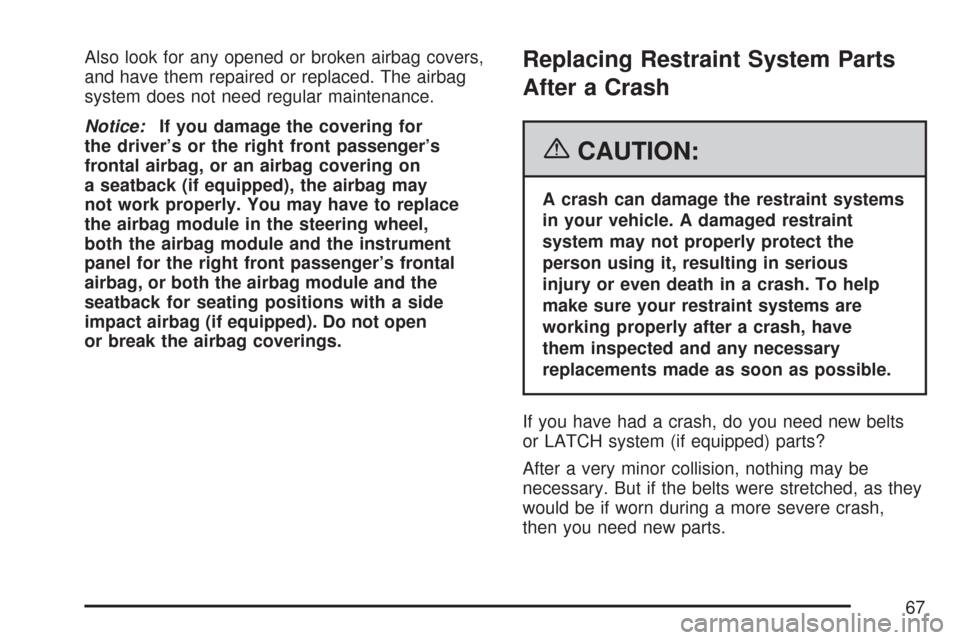

Also look for any opened or broken airbag covers,
and have them repaired or replaced. The airbag
system does not need regular maintenance.
Notice:If you damage the covering for
the driver’s or the right front passenger’s
frontal airbag, or an airbag covering on
a seatback (if equipped), the airbag may
not work properly. You may have to replace
the airbag module in the steering wheel,
both the airbag module and the instrument
panel for the right front passenger’s frontal
airbag, or both the airbag module and the
seatback for seating positions with a side
impact airbag (if equipped). Do not open
or break the airbag coverings.Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the
person using it, resulting in serious
injury or even death in a crash. To help
make sure your restraint systems are
working properly after a crash, have
them inspected and any necessary
replacements made as soon as possible.
If you have had a crash, do you need new belts
or LATCH system (if equipped) parts?
After a very minor collision, nothing may be
necessary. But if the belts were stretched, as they
would be if worn during a more severe crash,
then you need new parts.
67

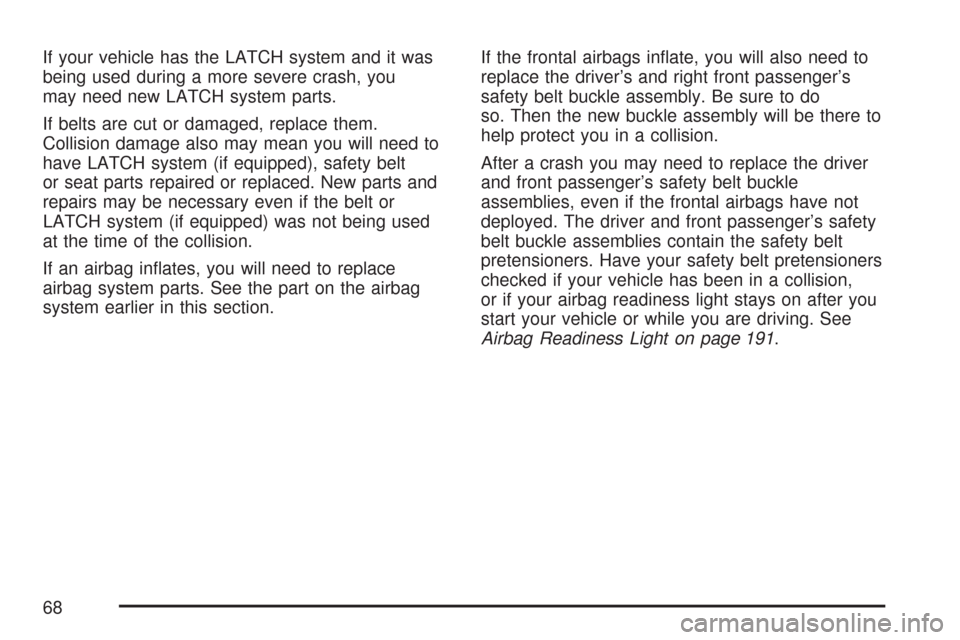

If your vehicle has the LATCH system and it was
being used during a more severe crash, you
may need new LATCH system parts.
If belts are cut or damaged, replace them.
Collision damage also may mean you will need to
have LATCH system (if equipped), safety belt
or seat parts repaired or replaced. New parts and
repairs may be necessary even if the belt or
LATCH system (if equipped) was not being used
at the time of the collision.
If an airbag inates, you will need to replace
airbag system parts. See the part on the airbag
system earlier in this section.If the frontal airbags inate, you will also need to
replace the driver’s and right front passenger’s
safety belt buckle assembly. Be sure to do
so. Then the new buckle assembly will be there to
help protect you in a collision.
After a crash you may need to replace the driver
and front passenger’s safety belt buckle
assemblies, even if the frontal airbags have not
deployed. The driver and front passenger’s safety
belt buckle assemblies contain the safety belt
pretensioners. Have your safety belt pretensioners
checked if your vehicle has been in a collision,
or if your airbag readiness light stays on after you
start your vehicle or while you are driving. See
Airbag Readiness Light on page 191.
68

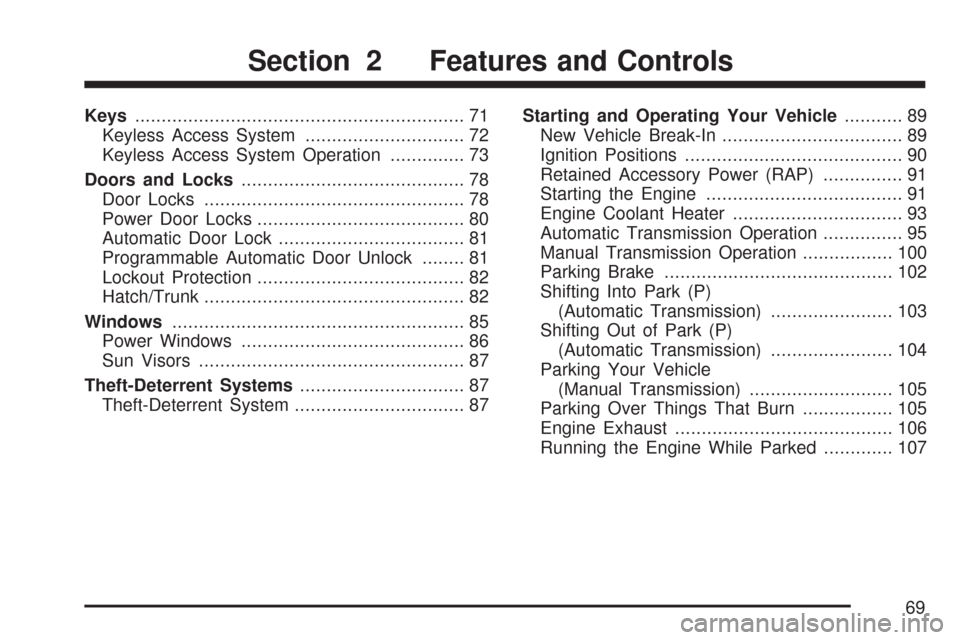

Keys.............................................................. 71
Keyless Access System.............................. 72
Keyless Access System Operation.............. 73
Doors and Locks.......................................... 78
Door Locks................................................. 78
Power Door Locks....................................... 80
Automatic Door Lock................................... 81
Programmable Automatic Door Unlock........ 81
Lockout Protection....................................... 82
Hatch/Trunk................................................. 82
Windows....................................................... 85
Power Windows.......................................... 86
Sun Visors.................................................. 87
Theft-Deterrent Systems............................... 87
Theft-Deterrent System................................ 87Starting and Operating Your Vehicle........... 89
New Vehicle Break-In.................................. 89
Ignition Positions......................................... 90
Retained Accessory Power (RAP)............... 91
Starting the Engine..................................... 91
Engine Coolant Heater................................ 93
Automatic Transmission Operation............... 95
Manual Transmission Operation................. 100
Parking Brake........................................... 102
Shifting Into Park (P)
(Automatic Transmission)....................... 103
Shifting Out of Park (P)
(Automatic Transmission)....................... 104
Parking Your Vehicle
(Manual Transmission)........................... 105
Parking Over Things That Burn................. 105
Engine Exhaust......................................... 106
Running the Engine While Parked............. 107

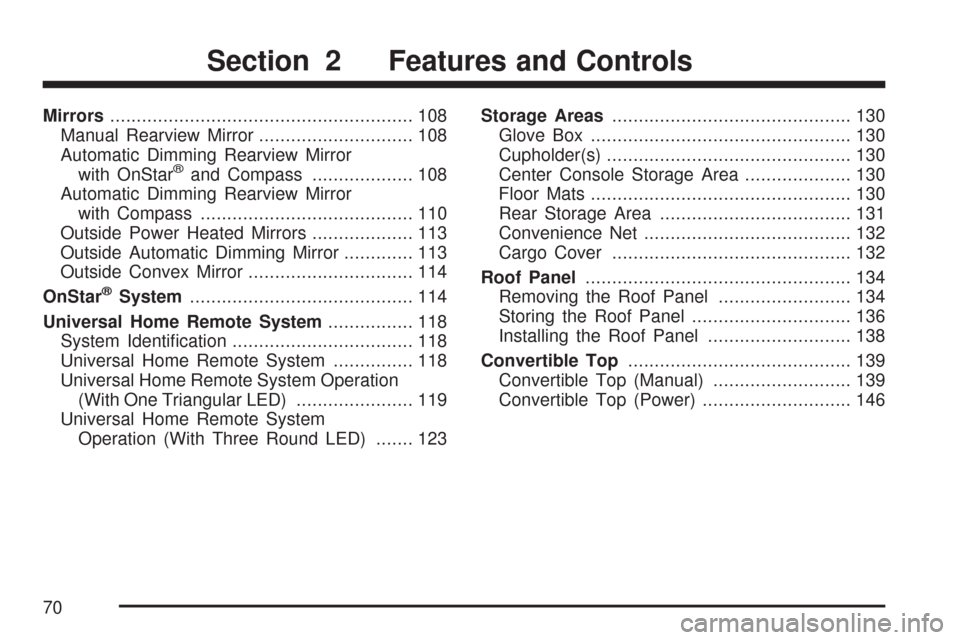

Section 2 Features and Controls
69

Mirrors......................................................... 108
Manual Rearview Mirror............................. 108
Automatic Dimming Rearview Mirror
with OnStar
®and Compass................... 108
Automatic Dimming Rearview Mirror
with Compass........................................ 110
Outside Power Heated Mirrors................... 113
Outside Automatic Dimming Mirror............. 113
Outside Convex Mirror............................... 114
OnStar
®System.......................................... 114
Universal Home Remote System................ 118
System Identication.................................. 118
Universal Home Remote System............... 118
Universal Home Remote System Operation
(With One Triangular LED)...................... 119
Universal Home Remote System
Operation (With Three Round LED)....... 123Storage Areas............................................. 130
Glove Box................................................. 130
Cupholder(s).............................................. 130
Center Console Storage Area.................... 130
Floor Mats................................................. 130
Rear Storage Area.................................... 131
Convenience Net....................................... 132
Cargo Cover............................................. 132
Roof Panel.................................................. 134
Removing the Roof Panel......................... 134
Storing the Roof Panel.............................. 136
Installing the Roof Panel........................... 138
Convertible Top.......................................... 139
Convertible Top (Manual).......................... 139
Convertible Top (Power)............................ 146
Section 2 Features and Controls
70
