CHEVROLET CORVETTE 2008 6.G Owners Manual
Manufacturer: CHEVROLET, Model Year: 2008, Model line: CORVETTE, Model: CHEVROLET CORVETTE 2008 6.GPages: 432, PDF Size: 2.4 MB
Page 1 of 432

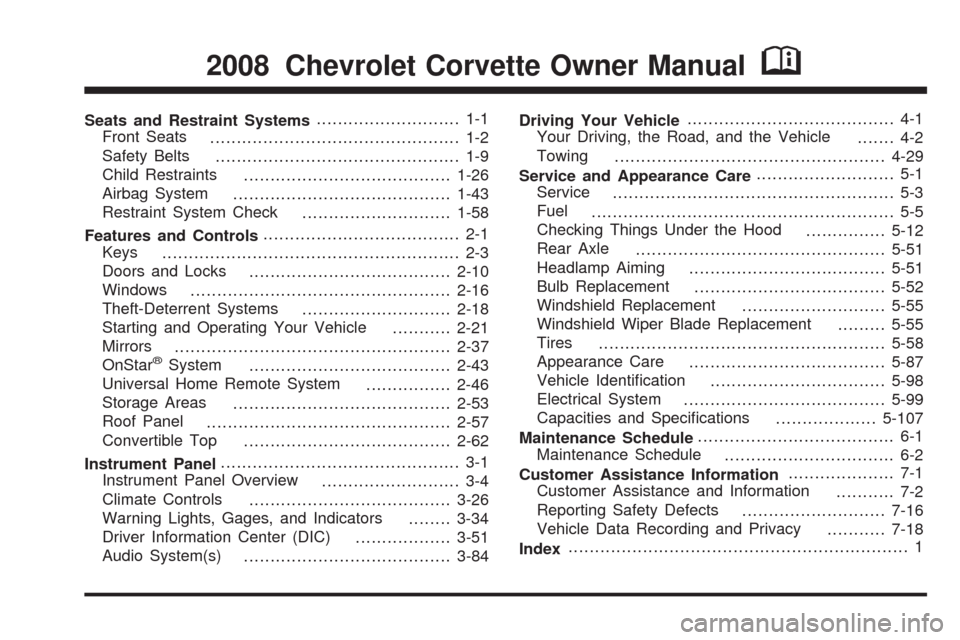

Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Safety Belts
.............................................. 1-9
Child Restraints
.......................................1-26
Airbag System
.........................................1-43
Restraint System Check
............................1-58
Features and Controls..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
......................................2-10
Windows
.................................................2-16
Theft-Deterrent Systems
............................2-18
Starting and Operating Your Vehicle
...........2-21
Mirrors
....................................................2-37
OnStar
®System
......................................2-43
Universal Home Remote System
................2-46
Storage Areas
.........................................2-53
Roof Panel
..............................................2-57
Convertible Top
.......................................2-62
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-26
Warning Lights, Gages, and Indicators
........3-34
Driver Information Center (DIC)
..................3-51
Audio System(s)
.......................................3-84Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and the Vehicle
....... 4-2
Towing
...................................................4-29
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-12
Rear Axle
...............................................5-51
Headlamp Aiming
.....................................5-51
Bulb Replacement
....................................5-52
Windshield Replacement
...........................5-55
Windshield Wiper Blade Replacement
.........5-55
Tires
......................................................5-58
Appearance Care
.....................................5-87
Vehicle Identi cation
.................................5-98
Electrical System
......................................5-99
Capacities and Speci cations
...................5-107
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance Information.................... 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-16
Vehicle Data Recording and Privacy
...........7-18
Index................................................................ 1
2008 Chevrolet Corvette Owner ManualM
Page 2 of 432

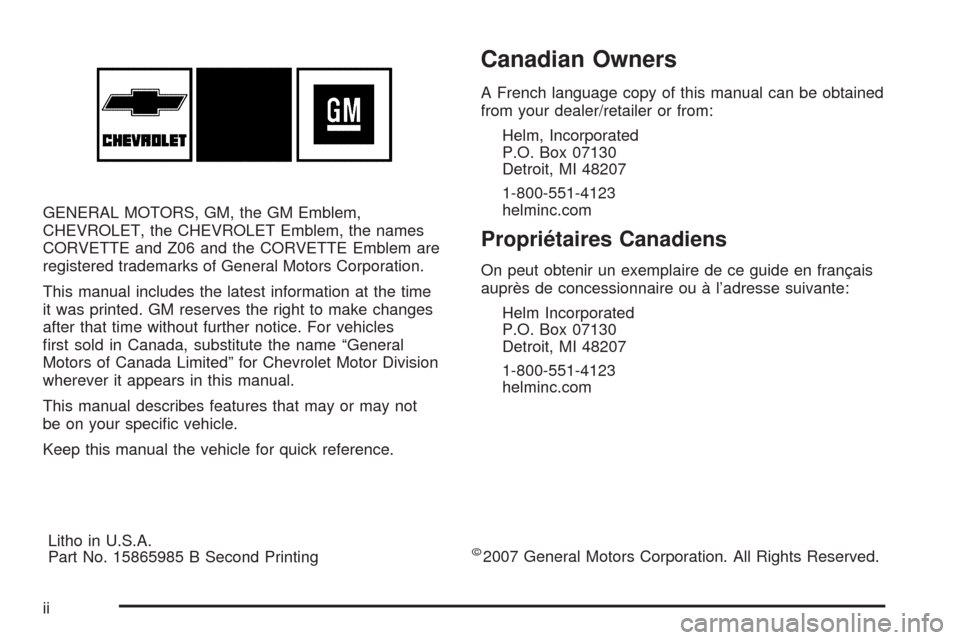

GENERAL MOTORS, GM, the GM Emblem,
CHEVROLET, the CHEVROLET Emblem, the names
CORVETTE and Z06 and the CORVETTE Emblem are
registered trademarks of General Motors Corporation.
This manual includes the latest information at the time
it was printed. GM reserves the right to make changes
after that time without further notice. For vehicles
rst sold in Canada, substitute the name “General
Motors of Canada Limited” for Chevrolet Motor Division
wherever it appears in this manual.
This manual describes features that may or may not
be on your speci c vehicle.
Keep this manual the vehicle for quick reference.
Canadian Owners
A French language copy of this manual can be obtained
from your dealer/retailer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
helminc.com
Propriétaires Canadiens
On peut obtenir un exemplaire de ce guide en français
auprès de concessionnaire ou à l’adresse suivante:
Helm Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
helminc.com
Litho in U.S.A.
Part No. 15865985 B Second Printing
©2007 General Motors Corporation. All Rights Reserved.
ii
Page 3 of 432

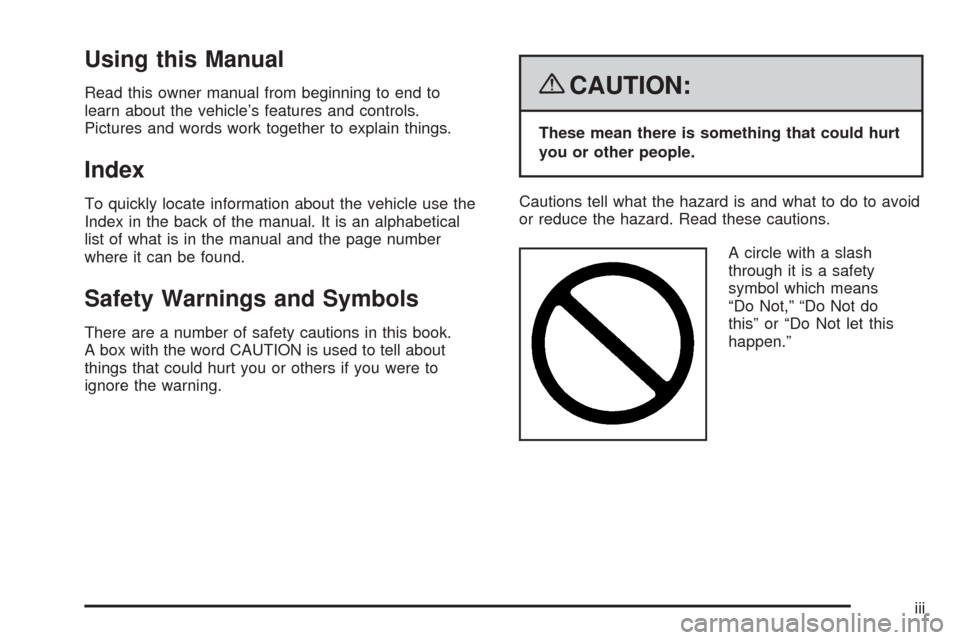

Using this Manual
Read this owner manual from beginning to end to
learn about the vehicle’s features and controls.
Pictures and words work together to explain things.
Index
To quickly locate information about the vehicle use the
Index in the back of the manual. It is an alphabetical
list of what is in the manual and the page number
where it can be found.
Safety Warnings and Symbols
There are a number of safety cautions in this book.
A box with the word CAUTION is used to tell about
things that could hurt you or others if you were to
ignore the warning.
{CAUTION:
These mean there is something that could hurt
you or other people.
Cautions tell what the hazard is and what to do to avoid
or reduce the hazard. Read these cautions.
A circle with a slash
through it is a safety
symbol which means
“Do Not,” “Do Not do
this” or “Do Not let this
happen.”
iii
Page 4 of 432

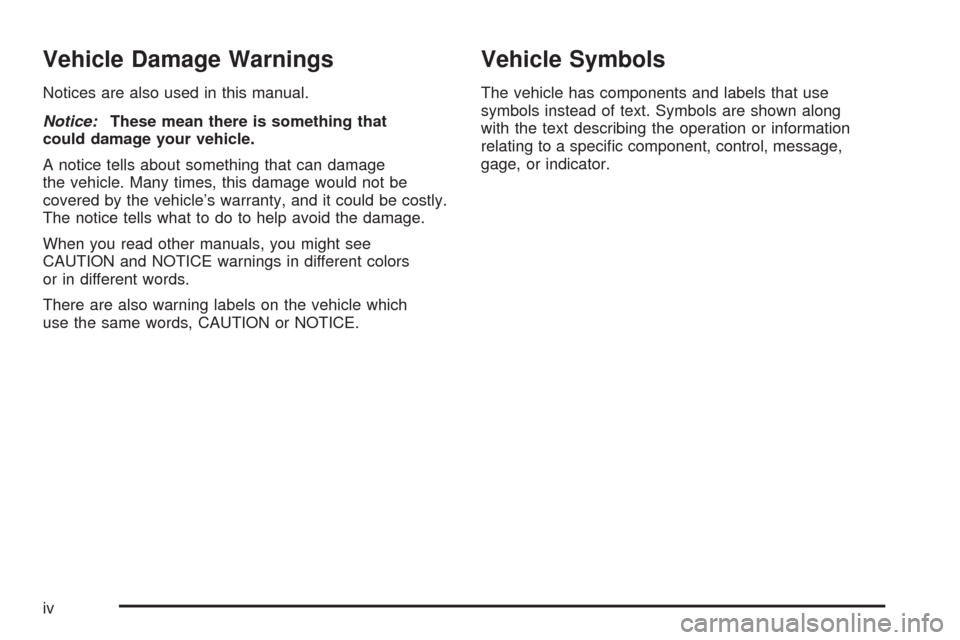

Vehicle Damage Warnings
Notices are also used in this manual.
Notice:These mean there is something that
could damage your vehicle.
A notice tells about something that can damage
the vehicle. Many times, this damage would not be
covered by the vehicle’s warranty, and it could be costly.
The notice tells what to do to help avoid the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors
or in different words.
There are also warning labels on the vehicle which
use the same words, CAUTION or NOTICE.
Vehicle Symbols
The vehicle has components and labels that use
symbols instead of text. Symbols are shown along
with the text describing the operation or information
relating to a speci c component, control, message,
gage, or indicator.
iv
Page 5 of 432

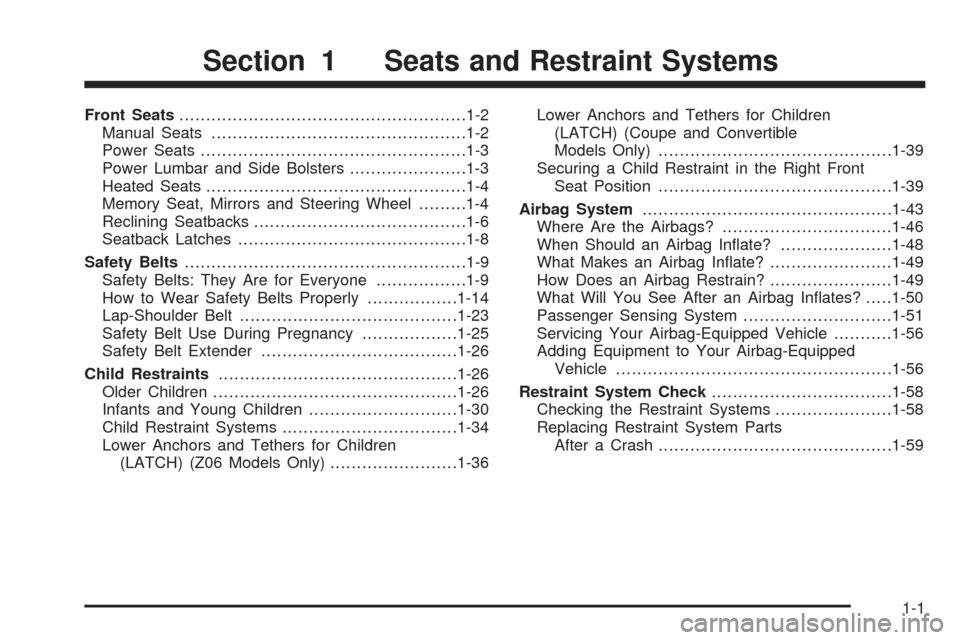

Front Seats......................................................1-2
Manual Seats................................................1-2
Power Seats..................................................1-3
Power Lumbar and Side Bolsters......................1-3
Heated Seats.................................................1-4
Memory Seat, Mirrors and Steering Wheel.........1-4
Reclining Seatbacks........................................1-6
Seatback Latches...........................................1-8
Safety Belts.....................................................1-9
Safety Belts: They Are for Everyone.................1-9
How to Wear Safety Belts Properly.................1-14
Lap-Shoulder Belt.........................................1-23
Safety Belt Use During Pregnancy..................1-25
Safety Belt Extender.....................................1-26
Child Restraints.............................................1-26
Older Children..............................................1-26
Infants and Young Children............................1-30
Child Restraint Systems.................................1-34
Lower Anchors and Tethers for Children
(LATCH) (Z06 Models Only)........................1-36Lower Anchors and Tethers for Children
(LATCH) (Coupe and Convertible
Models Only)............................................1-39
Securing a Child Restraint in the Right Front
Seat Position............................................1-39
Airbag System...............................................1-43
Where Are the Airbags?................................1-46
When Should an Airbag In ate?.....................1-48
What Makes an Airbag In ate?.......................1-49
How Does an Airbag Restrain?.......................1-49
What Will You See After an Airbag In ates?.....1-50
Passenger Sensing System............................1-51
Servicing Your Airbag-Equipped Vehicle...........1-56
Adding Equipment to Your Airbag-Equipped
Vehicle....................................................1-56
Restraint System Check..................................1-58
Checking the Restraint Systems......................1-58
Replacing Restraint System Parts
After a Crash............................................1-59
Section 1 Seats and Restraint Systems
1-1
Page 6 of 432
Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.To move a manual seat forward or rearward:
1. Lift the bar to unlock
the seat.
2. Slide the seat to the
desired position and
release the bar.
Try to move the seat with your body to be sure the
seat is locked in place.
1-2
Page 7 of 432
Power Seats
To adjust a power seat:
Move the control forward or rearward to adjust the
seat forward or rearward.
Move the front or rear of the control up or down to
adjust the height of the seat cushion.
Your seat position can be stored and recalled if you
have the memory option. SeeMemory Seat, Mirrors
and Steering Wheel on page 1-4.
Power Lumbar and Side Bolsters
On vehicles with power lumbar and side bolsters:
Move (A) forward or rearward to adjust lumbar support.
Move (B) up or down to adjust the side bolsters.
1-3
Page 8 of 432

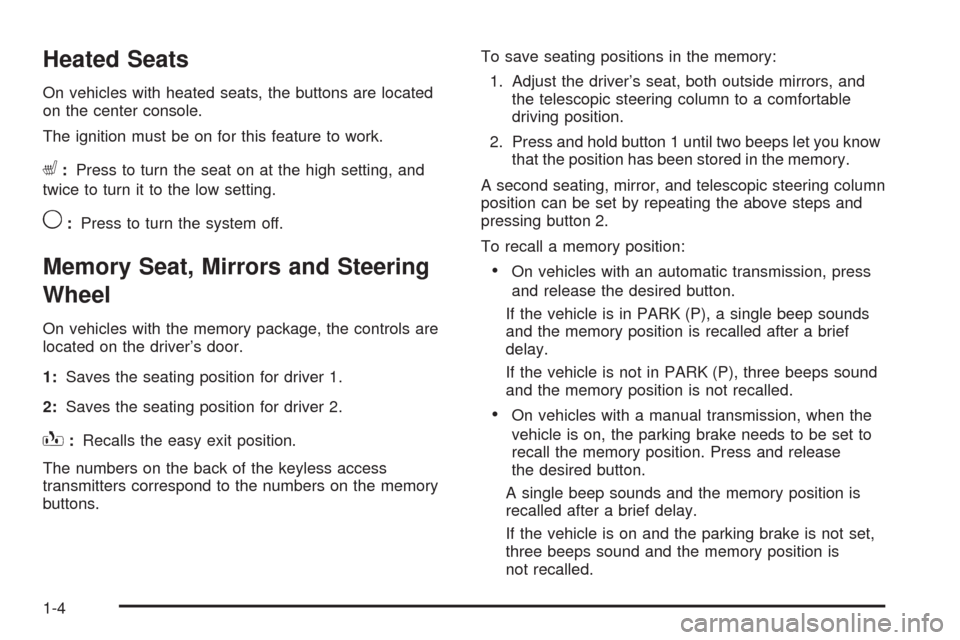

Heated Seats
On vehicles with heated seats, the buttons are located
on the center console.
The ignition must be on for this feature to work.
L:Press to turn the seat on at the high setting, and
twice to turn it to the low setting.
9:Press to turn the system off.
Memory Seat, Mirrors and Steering
Wheel
On vehicles with the memory package, the controls are
located on the driver’s door.
1:Saves the seating position for driver 1.
2:Saves the seating position for driver 2.
B:Recalls the easy exit position.
The numbers on the back of the keyless access
transmitters correspond to the numbers on the memory
buttons.To save seating positions in the memory:
1. Adjust the driver’s seat, both outside mirrors, and
the telescopic steering column to a comfortable
driving position.
2. Press and hold button 1 until two beeps let you know
that the position has been stored in the memory.
A second seating, mirror, and telescopic steering column
position can be set by repeating the above steps and
pressing button 2.
To recall a memory position:
On vehicles with an automatic transmission, press
and release the desired button.
If the vehicle is in PARK (P), a single beep sounds
and the memory position is recalled after a brief
delay.
If the vehicle is not in PARK (P), three beeps sound
and the memory position is not recalled.
On vehicles with a manual transmission, when the
vehicle is on, the parking brake needs to be set to
recall the memory position. Press and release
the desired button.
A single beep sounds and the memory position is
recalled after a brief delay.
If the vehicle is on and the parking brake is not set,
three beeps sound and the memory position is
not recalled.
1-4
Page 9 of 432

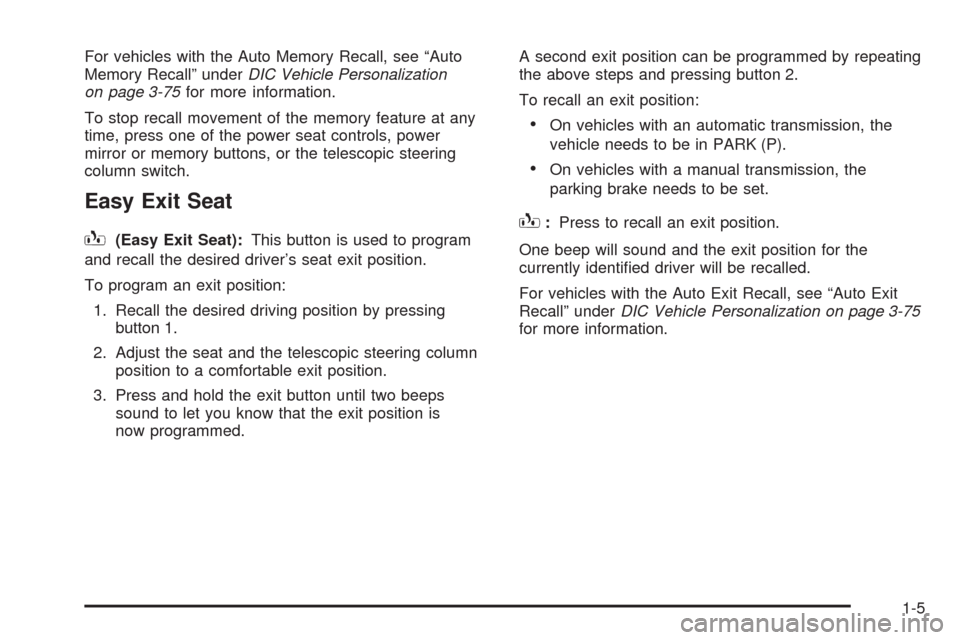

For vehicles with the Auto Memory Recall, see “Auto
Memory Recall” underDIC Vehicle Personalization
on page 3-75for more information.
To stop recall movement of the memory feature at any
time, press one of the power seat controls, power
mirror or memory buttons, or the telescopic steering
column switch.
Easy Exit Seat
B
(Easy Exit Seat):This button is used to program
and recall the desired driver’s seat exit position.
To program an exit position:
1. Recall the desired driving position by pressing
button 1.
2. Adjust the seat and the telescopic steering column
position to a comfortable exit position.
3. Press and hold the exit button until two beeps
sound to let you know that the exit position is
now programmed.A second exit position can be programmed by repeating
the above steps and pressing button 2.
To recall an exit position:
On vehicles with an automatic transmission, the
vehicle needs to be in PARK (P).
On vehicles with a manual transmission, the
parking brake needs to be set.
B:Press to recall an exit position.
One beep will sound and the exit position for the
currently identi ed driver will be recalled.
For vehicles with the Auto Exit Recall, see “Auto Exit
Recall” underDIC Vehicle Personalization on page 3-75
for more information.
1-5
Page 10 of 432
Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.The seats have manual reclining seatbacks. The lever
used to operate them is located on the outboard side of
the seats.
To adjust the seatback, lean slightly forward to lift your
weight off the seatback. Pull completely up on the
lever until it stops, and lean back to position the
seatback to where you want it. Release the lever
to lock the seatback into place.
1-6
