CHEVROLET EXPRESS 1997 1.G Owners Manual

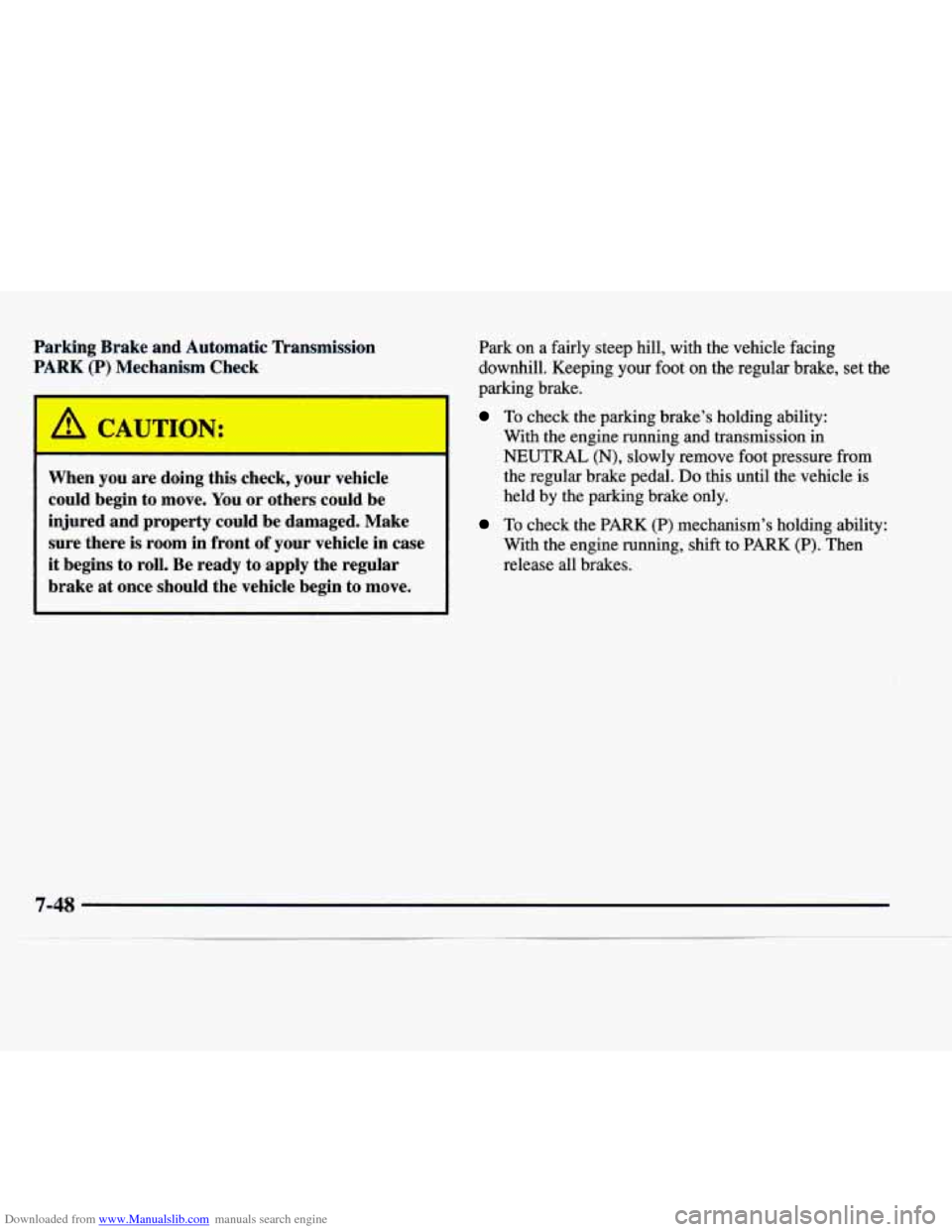

Downloaded from www.Manualslib.com manuals search engine Parking Brake and Automatic Transmission
PARK (P) Mechanism Check
I A CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room in front
of your vehicle in case
it begins to roll. Be ready to apply the regular
brake at once should the vehicle begin to move.
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot
on the regular brake, set the
parking brake.
To check the parking brake’s holding ability:
With the engine running and transmission in
NEUTRAL (N), slowly remove foot pressure from
the regular brake pedal.
Do this until the vehicle is
held by the parking brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine runnine. shift
to PARK (P). Then
release all brakes.
7-48

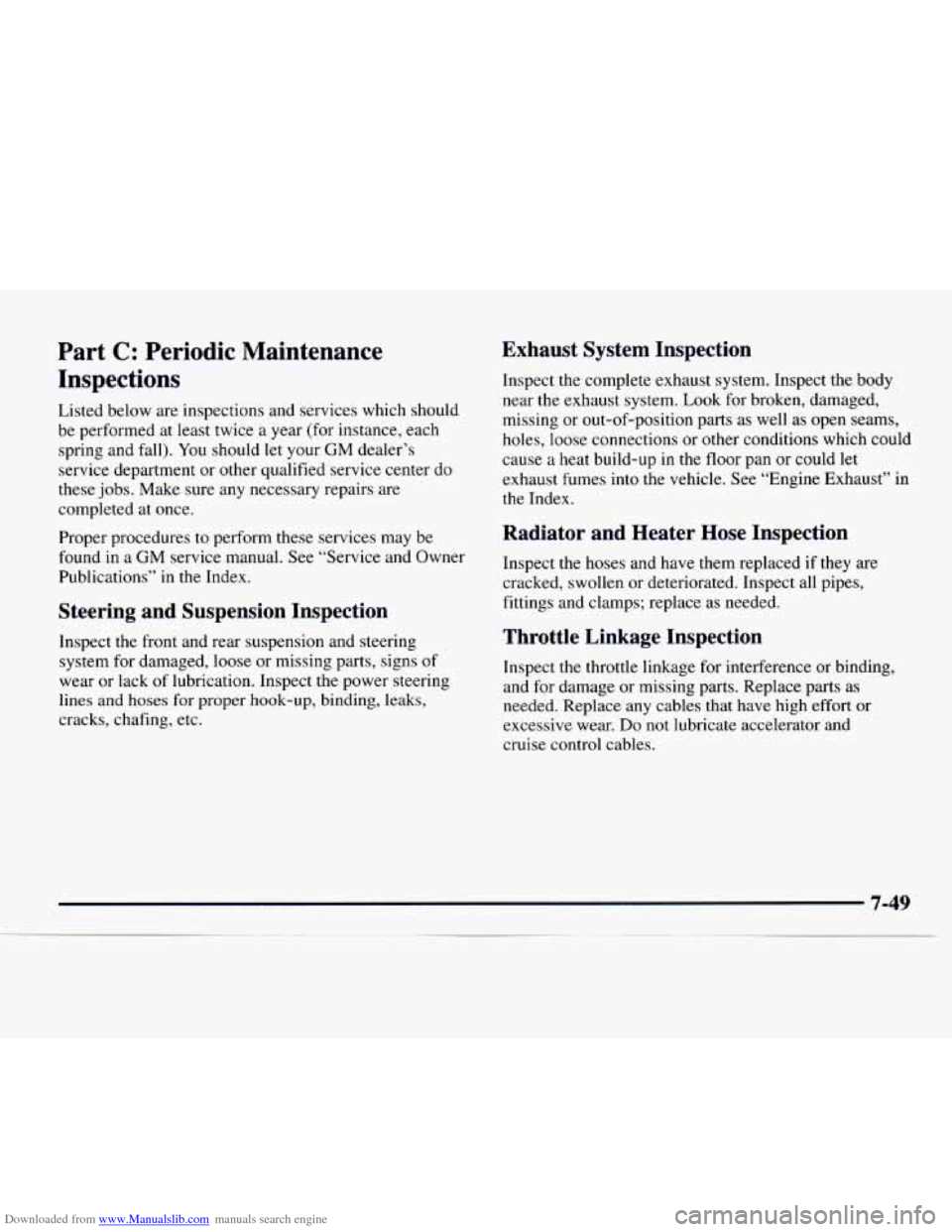

Downloaded from www.Manualslib.com manuals search engine Part C: Periodic Maintenance
Inspections
Listed below 3Elnspections and services which should
be performed at least twice
a year (for instance, each
spring and fall). You should let your
GM dealer’s
service department or other qualified service center do
these
jobs. Make sure any necessary repairs are
completed at once.
Proper procedures to perform these services may be
found in a
GM service manual. See “Service and Owner
Publications’’ in the Index.
Steering and Suspension Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear or lack of lubrication. Inspect the power steering
lines and
hoses for proper hook-up, binding, leaks,
cracks, chafing, etc.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged,
missing or out-of-position parts as well as open seams,
holes, loose connections or other conditions which could
cause a heat build-up in the floor pan or could let
exhaust fumes into the vehicle. See “Engine Exhaust” in
the Index.
Radiator and Heater Hose Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed.
Throttle Linkage Inspection
Inspect the throttle linkage for interference or binding,
and for damage or missing parts. Replace parts as
needed. Replace any cables that have high effort or
excessive wear.
Do not lubricate accelerator and
cruise control cables.

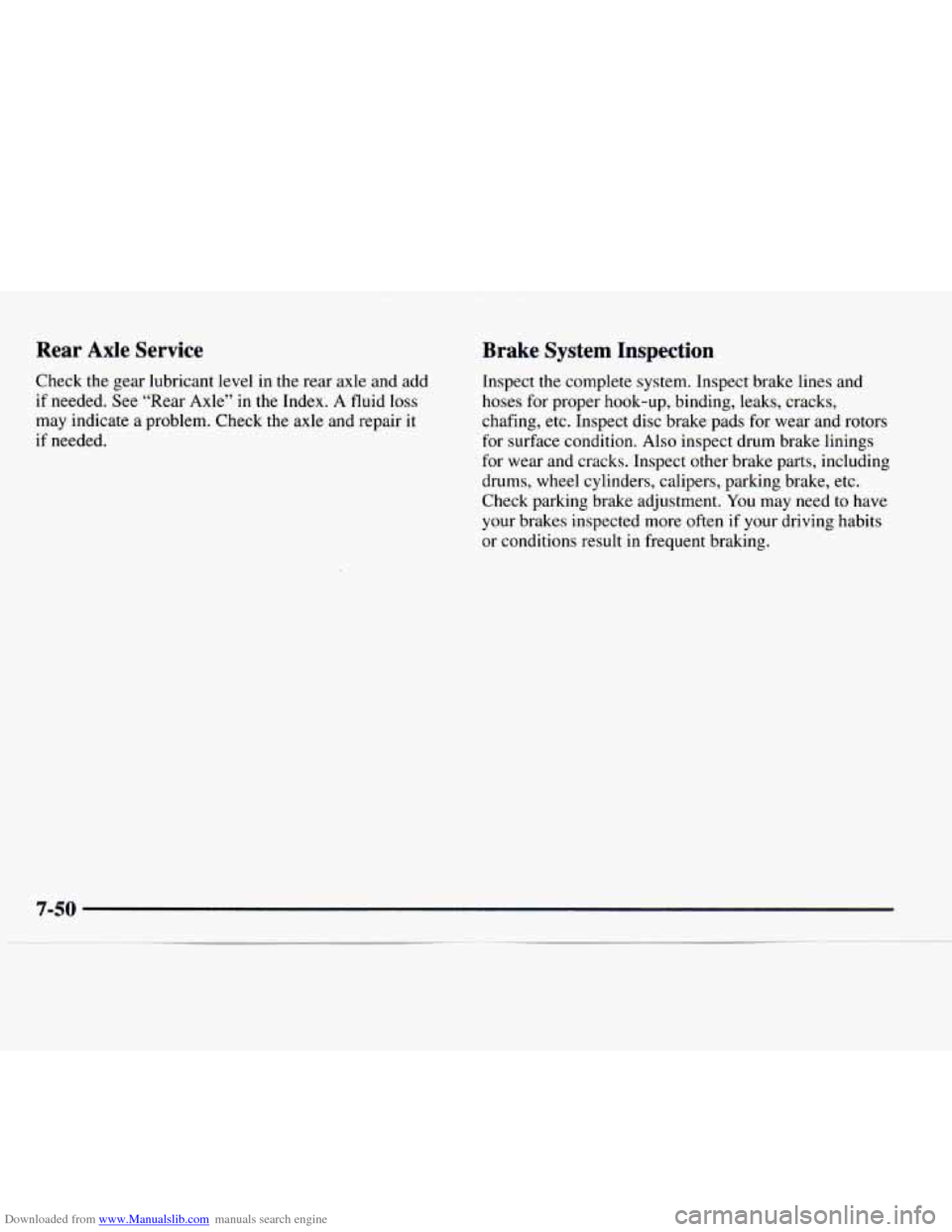

Downloaded from www.Manualslib.com manuals search engine Rear Axle Service
Check the gear lubricant level in the rear axle and add
if needed. See “Rear Axle”
in the Index. A fluid loss
may indicate a problem. Check the axle and repair it
if needed.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition. Also inspect drum brake linings
for wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc.
Check parking brake adjustment.
You may need to have
your brakes inspected more often if your driving habits
or conditions result in frequent braking.

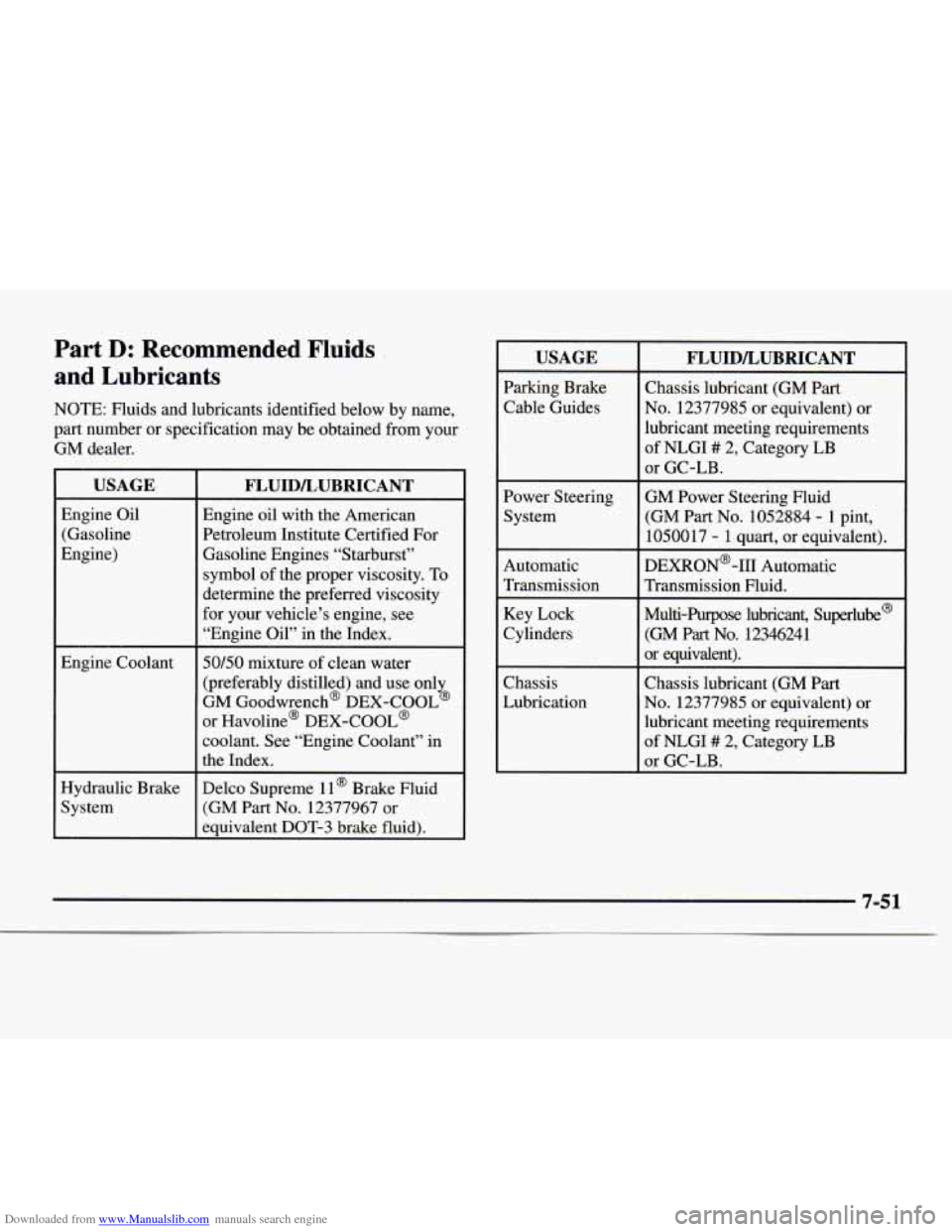

Downloaded from www.Manualslib.com manuals search engine Part D: Recommended Fluids
and Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from your
GM dealer.
I USAGE I FLUIDLUBRICANT I
Engine Oil
(Gasoline
Engine)
Engine Coolant Engine oil
with the American
Petroleum Institute Certified For
Gasoline Engines “Starburst” symbol of the proper viscosity. To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine Oil” in the Index.
50/50 mixture of clean water
(preferably distilled) and use only
GM Goodwrench@ DEX-COOL@
or Havoline@ DEX-COOL@
coolant. See “Engine Coolant” in
the Index.
Hydraulic Brake (GM Part
No. 12377967 or
System Delco
Supreme
11 @ Brake Fluid
equivalent DOT-3 brake fluid).
USAGE
Parking Brake
Cable Guides
Power Steering
System
Automatic
Transmission
Key Lock
Cylinders
Chassis
Lubrication
FLUIDLUBRICANT
Chassis lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements
of NLGI
## 2, Category LB
or GC-LB.
GM Power Steering Fluid
(GM Part
No. 1052884 - 1 pint,
10500 17
- 1 quart, or equivalent).
DEXRON@-111 Automatic
Transmission Fluid.
Multi-Purpose lubricant, Superlube@ (GM Part No. 12346241
or equivalent).
Chassis lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements
of NLGI # 2, Category LB
or GC-LB.
7-51

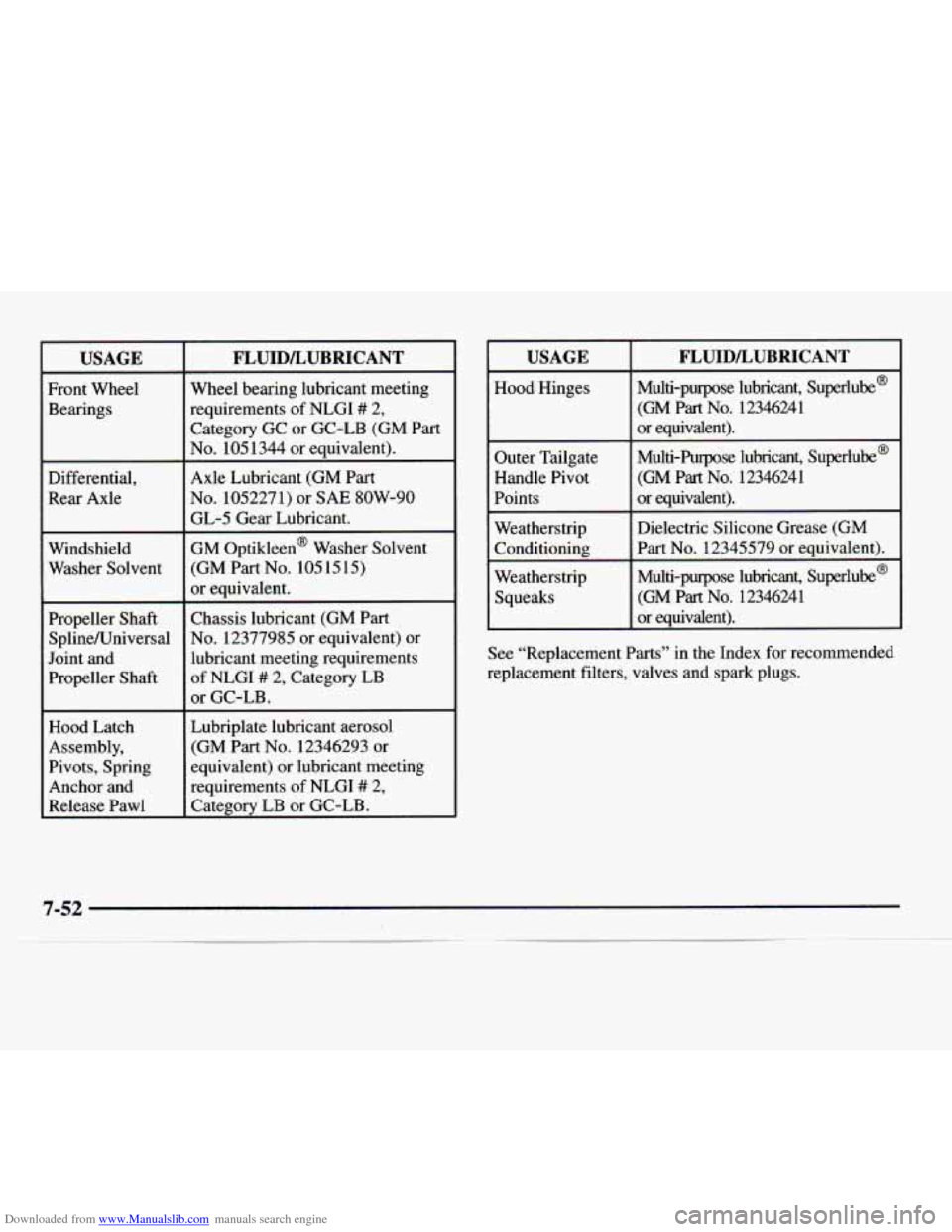

Downloaded from www.Manualslib.com manuals search engine USAGE
Front Wheel
Bearings Differential,
Rear Axle
Windshield Washer Solvent
Propeller Shaft SplineNniversal
Joint and
Propeller Shaft
~~ ~
Hood Latch
Assembly,
Pivots, Spring
Anchor
and
Release Pawl
FLUIDLUBRICANT
Wheel bearing lubricant meeting
requirements
of NLGI # 2,
Category GC or GC-LB (GM Part
No. 105 1344 or equivalent).
Axle Lubricant (GM Part
No. 1052271) or SAE 8OW-90
GL-5 Gear Lubricant.
GM Optikleen’ Washer Solvent
(GM Part
No. 1051515)
or equivalent.
Chassis lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements
of NLGI
# 2, Category LB
or GC-LB.
Lubriplate lubricant aerosol (GM Part
No. 12346293 or
equivalent) or lubricant meeting
requirements of NLGI
# 2,
Category LB or GC-LB.
USAGE
Hood Hinges
Outer Tailgate
Handle Pivot Points
Weatherstrip Conditioning
Weatherstrip
Squeaks
FLUIDLLUBRICANT
Multi-purpose lubricant, Superlube@
(GM Part No. 12346241
or equivalent).
Multi-Purpose lubricant, Superlube@ (GM
Part No. 1234624 1
or equivalent).
Dielectric Silicone Grease (GM
Part
No. 12345579 or equivalent).
Multi-purpose lubricant, Superlube@ (GM Part
No. 12346241
or equivalent).
See “Replacement Parts” in the Index for recommended
replacement filters, valves and spark plugs.

Downloaded from www.Manualslib.com manuals search engine Part E: Maintenance Record
After the scheduled services are performed, record the
date, odometer reading and who performed the service
in the boxes provided after the maintenance interval. Any additional information from “Owner Checks and
Services” or “Periodic Maintenance” can be added on
the following record pages. Also, you should retain all
maintenance receipts. Your owner information portfolio
is a convenient place to store them.
Maintenance Record
7-53

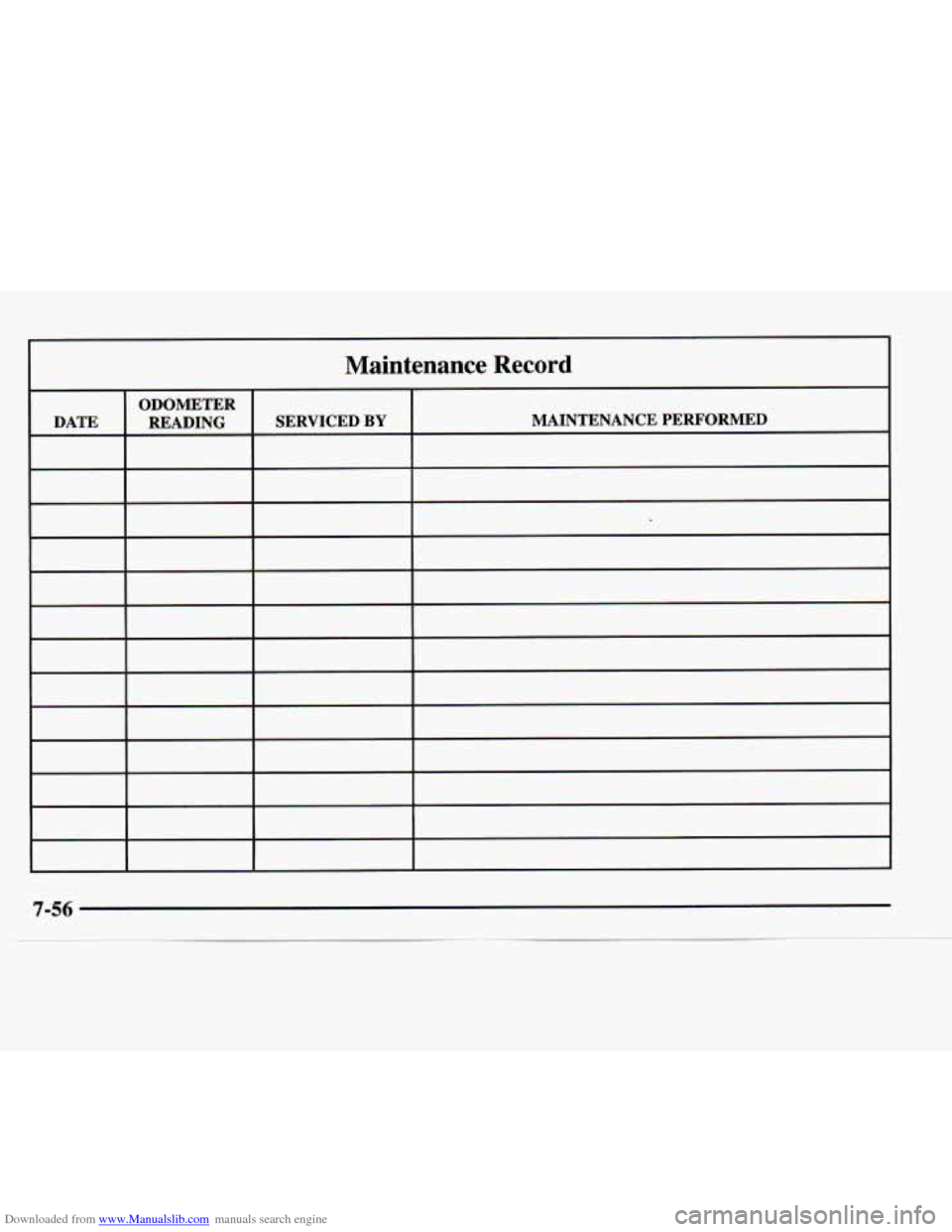

Downloaded from www.Manualslib.com manuals search engine Maintenance Record
ODOMETER
DATE READING SERVICED
BY MAINTENANCE PERFORMED
.~ .- -

Downloaded from www.Manualslib.com manuals search engine Maintenance Record
ODOMETER
DATE MAINTENANCE PERFORMED
SERVICED
BY READING

Downloaded from www.Manualslib.com manuals search engine Maintenance Record

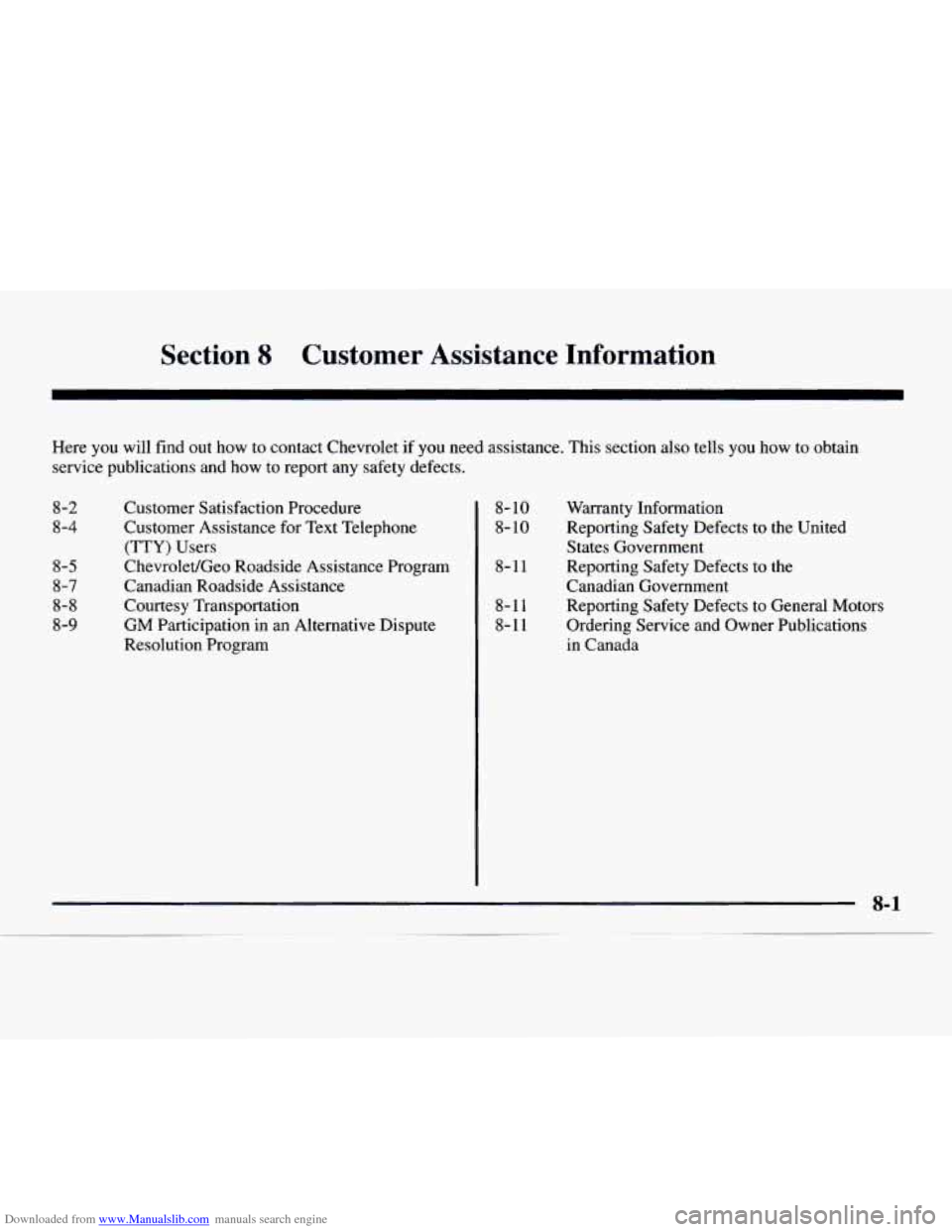

Downloaded from www.Manualslib.com manuals search engine Section 8 Customer Assistance Information
Here you will find out how to contact Chevrolet if you need assistance. This section also \
tells you how to obtain
service publications and how to report any safety defects.
8-2
8-4
8-5
8-7
8-8
8-9
Customer Satisfaction Procedure Customer Assistance for Text Telephone (TTY) Users
ChevroletIGeo Roadside Assistance Program
Canadian Roadside Assistance Courtesy Transportation
GM Participation in an Alternative Dispute
Resolution Program
8- 10
8- 10
8-11
8-1 1
8-1 1
Warranty Information Reporting Safety Defects to the United
States Government
Reporting Safety Defects to the
Canadian Government
Reporting Safety Defects to General Motors Ordering Service and Owner Publications
in Canada
