Securing a Child Restraint in a
Rear Seat Position
If your child restraint has the LATCH system,
seeLower Anchors and Tethers for Children
(LATCH) on page 54.
If your child restraint does not have the LATCH
system, you will be using the lap-shoulder
belt to secure the child restraint in this position.
Be sure to follow the instructions that came
with the child restraint. Secure the child in the
child restraint when and as the instructions say.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.3. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
61

4. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.5. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt, and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt.
62

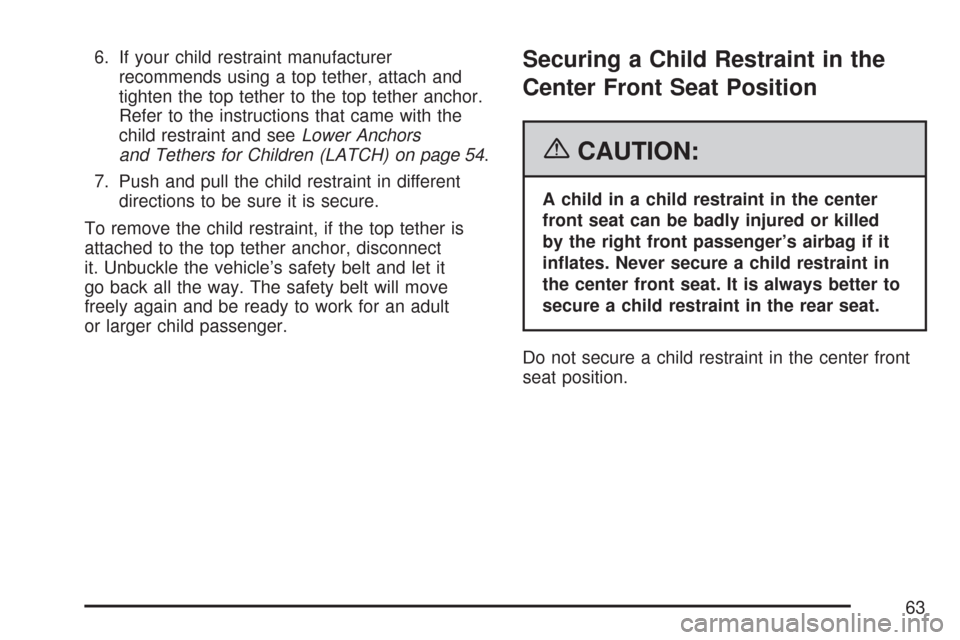

6. If your child restraint manufacturer
recommends using a top tether, attach and
tighten the top tether to the top tether anchor.
Refer to the instructions that came with the
child restraint and seeLower Anchors
and Tethers for Children (LATCH) on page 54.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, if the top tether is
attached to the top tether anchor, disconnect
it. Unbuckle the vehicle’s safety belt and let it
go back all the way. The safety belt will move
freely again and be ready to work for an adult
or larger child passenger.Securing a Child Restraint in the
Center Front Seat Position
{CAUTION:
A child in a child restraint in the center
front seat can be badly injured or killed
by the right front passenger’s airbag if it
inates. Never secure a child restraint in
the center front seat. It is always better to
secure a child restraint in the rear seat.
Do not secure a child restraint in the center front
seat position.
63

Securing a Child Restraint in the
Right Front Seat Position
Your vehicle has a right front passenger’s
airbag. A rear seat is a safer place to secure a
forward-facing child restraint. SeeWhere to
Put the Restraint on page 52.
In addition, your vehicle has a passenger sensing
system. The passenger sensing system is
designed to turn off the right front passenger’s
frontal airbag when an infant in a rear-facing
infant seat or a small child in a forward-facing
child restraint or booster seat is detected.
SeePassenger Sensing System on page 77and
Passenger Airbag Status Indicator on page 179
for more information on this including important
safety information.
A label on your sun visor says, “Never put a
rear-facing child seat in the front.” This is because
the risk to the rear-facing child is so great, if the
airbag deploys.
{CAUTION:
A child in a rear-facing child restraint
can be seriously injured or killed if the
right front passenger’s airbag inates.
This is because the back of the
rear-facing child restraint would be
very close to the inating airbag.
Even though the passenger sensing
system is designed to turn off the right
front passenger’s frontal airbag if the
system detects a rear-facing child
restraint, no system is fail-safe, and
no one can guarantee that an airbag
will not deploy under some unusual
circumstance, even though it is turned off.
We recommend that rear-facing child
restraints be secured in the rear seat,
even if the airbag is off.
CAUTION: (Continued)
64

CAUTION: (Continued)
If you need to secure a forward-facing
child restraint in the right front seat,
always move the front passenger seat
as far back as it will go. It is better to
secure the child restraint in a rear seat.
If you need to secure a forward-facing child
restraint in the right front seat position, move the
seat as far back as it will go before securing
the forward-facing child restraint. SeeManual
Passenger Seat on page 9orPower Seats
on page 9.
If your child restraint has the LATCH system,
seeLower Anchors and Tethers for Children
(LATCH) on page 54.
There is no top tether anchor at the right front
seating position. Do not secure a child restraint
in this position if a national or local law requires
that the top tether be anchored or if the
instructions that come with the child restraint
say that the top tether must be anchored.SeeLower Anchors and Tethers for Children
(LATCH) on page 54if your child restraint
has a top tether.
You will be using the lap-shoulder belt to secure
the child restraint in this position. Be sure to follow
the instructions that came with the child restraint.
Secure the child in the child restraint when and
as the instructions say.
1. Your vehicle has a right front passenger’s
frontal airbag. SeePassenger Sensing
System on page 77. We recommend that
rear-facing child restraints be secured in a
rear seat, even if the airbag is off. If your
child restraint is forward-facing, move the
seat as far back as it will go before securing
the child restraint in this seat. SeeManual
Passenger Seat on page 9orPower Seats
on page 9.
When the passenger sensing system has
turned off the right front passenger’s frontal
airbag, the off indicator in the passenger
airbag status indicator should light and
stay lit when you turn the ignition to RUN
or START. SeePassenger Airbag Status
Indicator on page 179.
65

2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.
4. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.5. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.
66

6. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt. You should not be
able to pull more of the belt from the retractor
once the lock has been set.
7. Push and pull the child restraint in different
directions to be sure it is secure.8. If the airbag is off, the off indicator on the
instrument panel will be lit and stay lit
when the key is turned to RUN or START.
If a child restraint has been installed and the
on indicator is lit, turn the vehicle off. Remove the
child restraint from the vehicle and reinstall
the child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion.
If this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.
If the on indicator is still lit, secure the child in
the child restraint in a rear seat position in
the vehicle and check with your dealer.
To remove the child restraint, just unbuckle the
vehicle’s safety belt and let it go back all the
way. The safety belt will move freely again and
be ready to work for an adult or larger child
passenger.
67

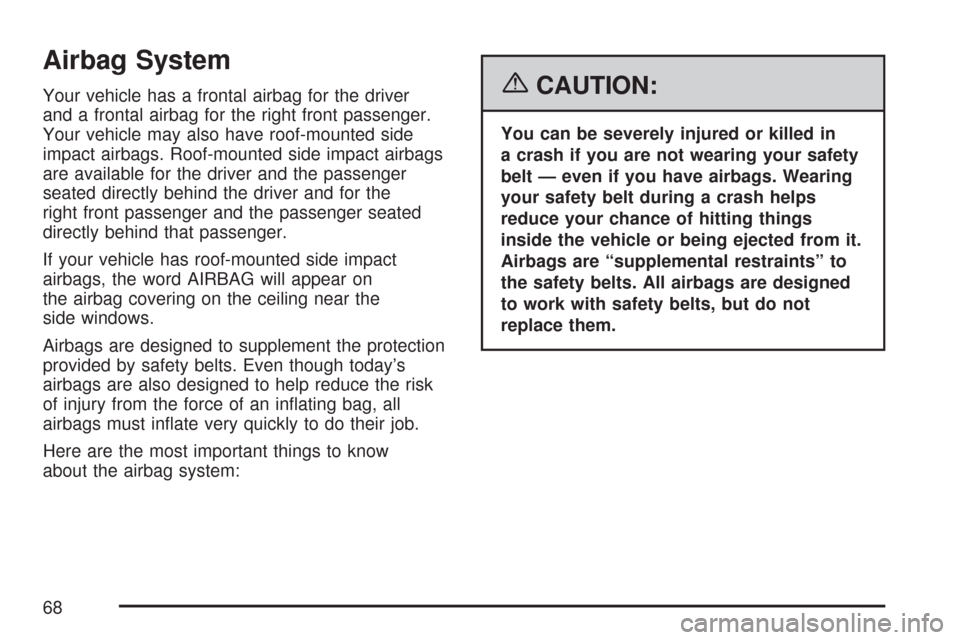

Airbag System
Your vehicle has a frontal airbag for the driver
and a frontal airbag for the right front passenger.
Your vehicle may also have roof-mounted side
impact airbags. Roof-mounted side impact airbags
are available for the driver and the passenger
seated directly behind the driver and for the
right front passenger and the passenger seated
directly behind that passenger.
If your vehicle has roof-mounted side impact
airbags, the word AIRBAG will appear on
the airbag covering on the ceiling near the
side windows.
Airbags are designed to supplement the protection
provided by safety belts. Even though today’s
airbags are also designed to help reduce the risk
of injury from the force of an inating bag, all
airbags must inate very quickly to do their job.
Here are the most important things to know
about the airbag system:{CAUTION:
You can be severely injured or killed in
a crash if you are not wearing your safety
belt — even if you have airbags. Wearing
your safety belt during a crash helps
reduce your chance of hitting things
inside the vehicle or being ejected from it.
Airbags are “supplemental restraints” to
the safety belts. All airbags are designed
to work with safety belts, but do not
replace them.
68

{CAUTION:
Frontal airbags for the driver and right
front passenger are designed to deploy
in moderate to severe frontal and near
frontal crashes. They are not designed to
inate in rollover, rear crashes, or in many
side crashes. And, for some unrestrained
occupants, frontal airbags may provide
less protection in frontal crashes than
more forceful airbags have provided in
the past.
Roof-mounted side impact airbags are
designed to inate in moderate to severe
crashes where something hits the side of
your vehicle. They are not designed to
inate in frontal, in rollover, or in rear
crashes.
Everyone in your vehicle should wear a
safety belt properly — whether or not
there is an airbag for that person.
{CAUTION:
Both frontal and side impact airbags
inate with great force, faster than the
blink of an eye. If you are too close to an
inating airbag, as you would be if you
were leaning forward, it could seriously
injure you. Safety belts help keep you in
position for airbag ination before and
during a crash. Always wear your safety
belt even with frontal airbags. The driver
should sit as far back as possible while
still maintaining control of the vehicle.
Occupants should not lean on or sleep
against the door.
69

{CAUTION:
Anyone who is up against, or very
close to, any airbag when it inates can
be seriously injured or killed. Airbags
plus lap-shoulder belts offer the best
protection for adults, but not for young
children and infants. Neither the vehicle’s
safety belt system nor its airbag system
is designed for them. Young children
and infants need the protection that a
child restraint system can provide.
Always secure children properly in
your vehicle. To read how, seeOlder
Children on page 41orInfants and
Young Children on page 43.There is an airbag
readiness light on
the instrument panel
cluster, which shows
the airbag symbol.
The system checks the airbag electrical system
for malfunctions. The light tells you if there is
an electrical problem. SeeAirbag Readiness
Light on page 178for more information.
