CHEVROLET LOW CAB FORWARD 2018 Owner's Manual

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16

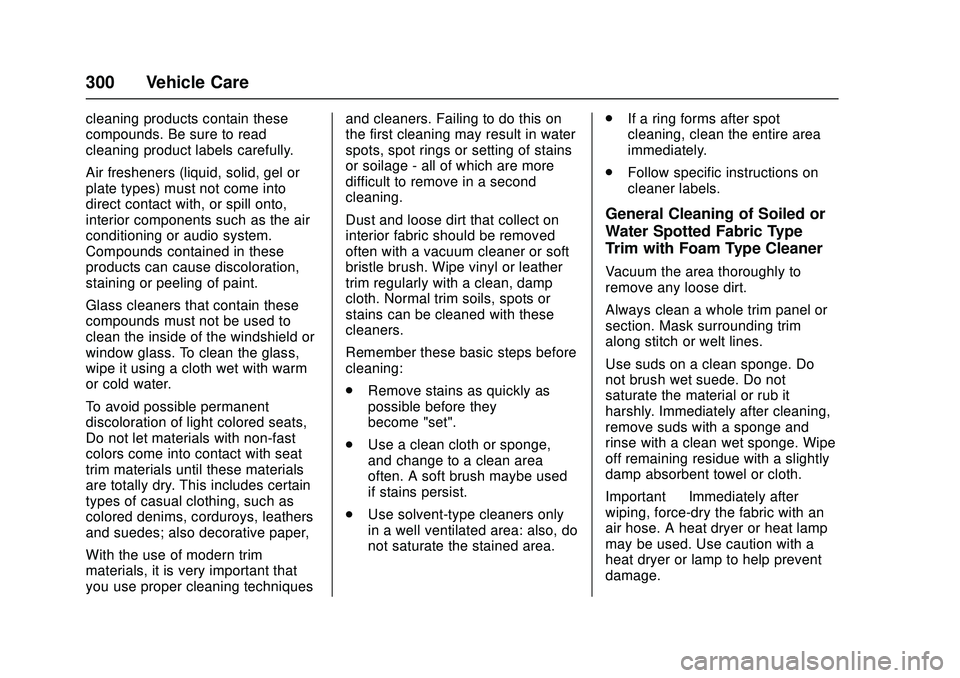

300 Vehicle Care
cleaning products contain these
compounds. Be sure to read
cleaning product labels carefully.
Air fresheners (liquid, solid, gel or
plate types) must not come into
direct contact with, or spill onto,
interior components such as the air
conditioning or audio system.
Compounds contained in these
products can cause discoloration,
staining or peeling of paint.
Glass cleaners that contain these
compounds must not be used to
clean the inside of the windshield or
window glass. To clean the glass,
wipe it using a cloth wet with warm
or cold water.
To avoid possible permanent
discoloration of light colored seats,
Do not let materials with non-fast
colors come into contact with seat
trim materials until these materials
are totally dry. This includes certain
types of casual clothing, such as
colored denims, corduroys, leathers
and suedes; also decorative paper,
With the use of modern trim
materials, it is very important that
you use proper cleaning techniquesand cleaners. Failing to do this on
the first cleaning may result in water
spots, spot rings or setting of stains
or soilage - all of which are more
difficult to remove in a second
cleaning.
Dust and loose dirt that collect on
interior fabric should be removed
often with a vacuum cleaner or soft
bristle brush. Wipe vinyl or leather
trim regularly with a clean, damp
cloth. Normal trim soils, spots or
stains can be cleaned with these
cleaners.
Remember these basic steps before
cleaning:
.
Remove stains as quickly as
possible before they
become "set".
. Use a clean cloth or sponge,
and change to a clean area
often. A soft brush maybe used
if stains persist.
. Use solvent-type cleaners only
in a well ventilated area: also, do
not saturate the stained area. .
If a ring forms after spot
cleaning, clean the entire area
immediately.
. Follow specific instructions on
cleaner labels.
General Cleaning of Soiled or
Water Spotted Fabric Type
Trim with Foam Type Cleaner
Vacuum the area thoroughly to
remove any loose dirt.
Always clean a whole trim panel or
section. Mask surrounding trim
along stitch or welt lines.
Use suds on a clean sponge. Do
not brush wet suede. Do not
saturate the material or rub it
harshly. Immediately after cleaning,
remove suds with a sponge and
rinse with a clean wet sponge. Wipe
off remaining residue with a slightly
damp absorbent towel or cloth.
Important —Immediately after
wiping, force-dry the fabric with an
air hose. A heat dryer or heat lamp
may be used. Use caution with a
heat dryer or lamp to help prevent
damage.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16

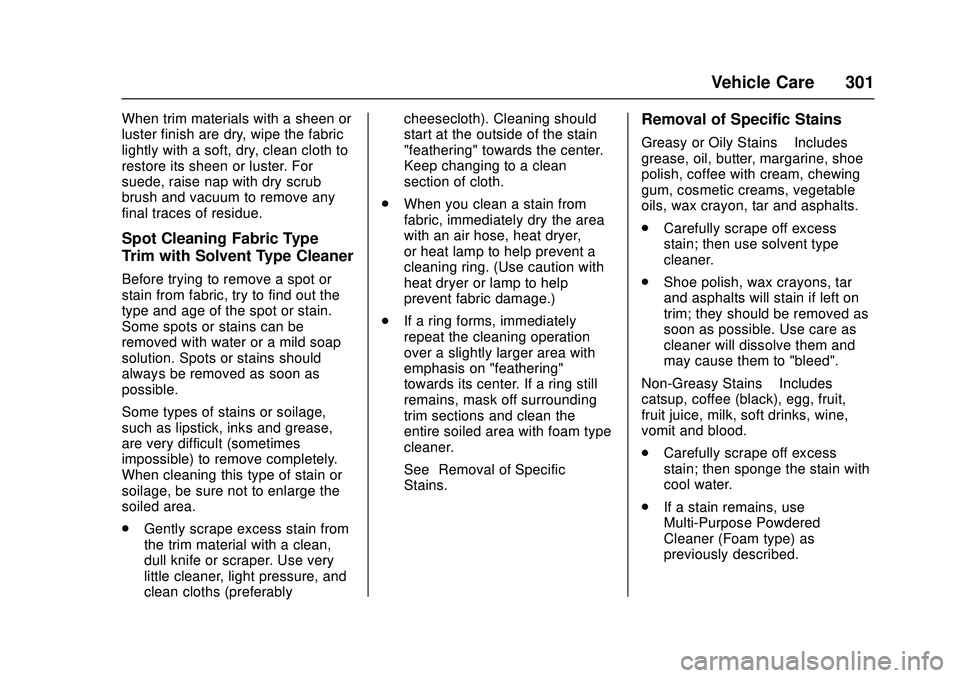

Vehicle Care 301
When trim materials with a sheen or
luster finish are dry, wipe the fabric
lightly with a soft, dry, clean cloth to
restore its sheen or luster. For
suede, raise nap with dry scrub
brush and vacuum to remove any
final traces of residue.
Spot Cleaning Fabric Type
Trim with Solvent Type Cleaner
Before trying to remove a spot or
stain from fabric, try to find out the
type and age of the spot or stain.
Some spots or stains can be
removed with water or a mild soap
solution. Spots or stains should
always be removed as soon as
possible.
Some types of stains or soilage,
such as lipstick, inks and grease,
are very difficult (sometimes
impossible) to remove completely.
When cleaning this type of stain or
soilage, be sure not to enlarge the
soiled area.
.Gently scrape excess stain from
the trim material with a clean,
dull knife or scraper. Use very
little cleaner, light pressure, and
clean cloths (preferably cheesecloth). Cleaning should
start at the outside of the stain
"feathering" towards the center.
Keep changing to a clean
section of cloth.
. When you clean a stain from
fabric, immediately dry the area
with an air hose, heat dryer,
or heat lamp to help prevent a
cleaning ring. (Use caution with
heat dryer or lamp to help
prevent fabric damage.)
. If a ring forms, immediately
repeat the cleaning operation
over a slightly larger area with
emphasis on "feathering"
towards its center. If a ring still
remains, mask off surrounding
trim sections and clean the
entire soiled area with foam type
cleaner.
See “Removal of Specific
Stains.”
Removal of Specific Stains
Greasy or Oily Stains –Includes
grease, oil, butter, margarine, shoe
polish, coffee with cream, chewing
gum, cosmetic creams, vegetable
oils, wax crayon, tar and asphalts.
. Carefully scrape off excess
stain; then use solvent type
cleaner.
. Shoe polish, wax crayons, tar
and asphalts will stain if left on
trim; they should be removed as
soon as possible. Use care as
cleaner will dissolve them and
may cause them to "bleed".
Non-Greasy Stains –Includes
catsup, coffee (black), egg, fruit,
fruit juice, milk, soft drinks, wine,
vomit and blood.
. Carefully scrape off excess
stain; then sponge the stain with
cool water.
. If a stain remains, use
Multi-Purpose Powdered
Cleaner (Foam type) as
previously described.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16

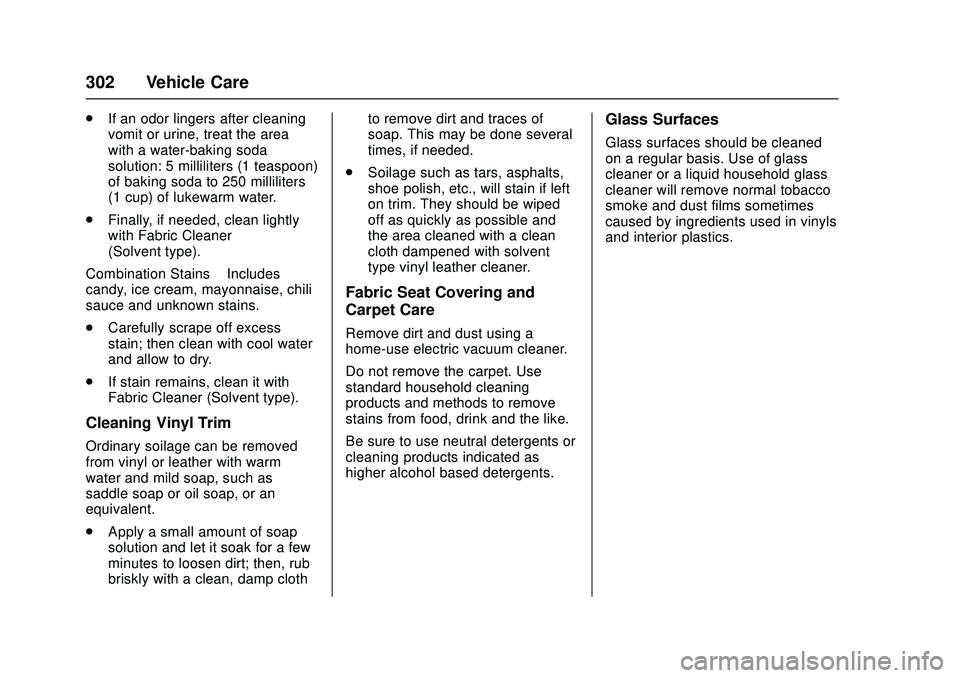

302 Vehicle Care
.If an odor lingers after cleaning
vomit or urine, treat the area
with a water-baking soda
solution: 5 milliliters (1 teaspoon)
of baking soda to 250 milliliters
(1 cup) of lukewarm water.
. Finally, if needed, clean lightly
with Fabric Cleaner
(Solvent type).
Combination Stains –Includes
candy, ice cream, mayonnaise, chili
sauce and unknown stains.
. Carefully scrape off excess
stain; then clean with cool water
and allow to dry.
. If stain remains, clean it with
Fabric Cleaner (Solvent type).
Cleaning Vinyl Trim
Ordinary soilage can be removed
from vinyl or leather with warm
water and mild soap, such as
saddle soap or oil soap, or an
equivalent.
.Apply a small amount of soap
solution and let it soak for a few
minutes to loosen dirt; then, rub
briskly with a clean, damp cloth to remove dirt and traces of
soap. This may be done several
times, if needed.
. Soilage such as tars, asphalts,
shoe polish, etc., will stain if left
on trim. They should be wiped
off as quickly as possible and
the area cleaned with a clean
cloth dampened with solvent
type vinyl leather cleaner.
Fabric Seat Covering and
Carpet Care
Remove dirt and dust using a
home-use electric vacuum cleaner.
Do not remove the carpet. Use
standard household cleaning
products and methods to remove
stains from food, drink and the like.
Be sure to use neutral detergents or
cleaning products indicated as
higher alcohol based detergents.
Glass Surfaces
Glass surfaces should be cleaned
on a regular basis. Use of glass
cleaner or a liquid household glass
cleaner will remove normal tobacco
smoke and dust films sometimes
caused by ingredients used in vinyls
and interior plastics.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Service and Maintenance 303
Service and
Maintenance
Maintenance Schedule
Maintenance Schedule . . . . . . . 303
Owner Checks and Services
Owner Checks andServices . . . . . . . . . . . . . . . . . . . . 317
Additional Maintenance
and Care
Additional Maintenanceand Care . . . . . . . . . . . . . . . . . . . . 323
Recommended Fluids,
Lubricants, and Parts
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 326
Maintenance Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . 328
Maintenance
Schedule
Make sure the vehicle is inspected
at regular intervals. Inspections and
maintenance enable you to use the
vehicle with peace of mind. They
also extend the vehicle's
service life.
For safe and economical driving, we
recommend that you have your
vehicle inspected and serviced
regularly according to the schedule
indicated in this chapter.
To drive your vehicle safely and at
minimum cost, it is essential to have
your vehicle regularly inspected and
serviced at your dealer as per the
specified maintenance schedule.
Contact your dealer for inspection
that requires disassembly and/or
special equipment.
The Maintenance Schedule in this
manual and a Warranty Information
Booklet are supplied with your
vehicle. Read all publications for a
full understanding of your vehicle's
maintenance needs. The quality of maintenance your
new vehicle receives is as important
as the regularity with which it is
serviced. Authorized dealers provide
nationwide quality in customer
service. The program includes the
training of dealer technicians
throughout the country and is
supported with a continuous
follow-up of publications and other
service information. The use of
genuine parts and accessories,
which have the same high quality
standards as original equipment
parts, and the use of factory
approved tools developed and
tested for use by the authorized
dealer also contribute to the high
quality of service.
If you have any questions on how to
keep your truck or chassis in good
condition, see your authorized
dealer, the place many truck owners
choose to have their maintenance
work done. Your authorized dealer
can be relied upon to use proper
parts and practices.
Some of these services can be
complex, so unless you are
technically qualified and have the

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
304 Service and Maintenance
necessary equipment, you should
let your authorized dealer's service
department or another qualified
service center do these jobs.
The schedule includes general
maintenance which you or a
qualified technician should perform
periodically.
Explanation of Vehicle
Maintenance and Log
The following is a brief explanation
of normal vehicle use.
NORMAL VEHICLE USE—The
maintenance instructions contained
in this section are based on the
assumption that your vehicle will be
used as designed:
.To carry passengers and cargo
with the limitations indicated on
the vehicle VIN and GVW plate.
. On reasonable road surfaces
within legal operating limits.
. On a daily basis, as a general
rule, for at least several miles/
kilometers. Unusual operating conditions, such
as driving in dusty areas (sweeper,
agricultural or off-road vehicles),
extended idling (refrigeration
vehicles), or vehicles operated for
frequent short trips, will require
more frequent vehicle maintenance.
The log groups items according to
mile/kilometer service intervals. Use
the item codes (letter and number)
to find the description of the
maintenance and the time intervals.
Follow whichever interval comes
first, time or miles/kilometers.
After the maintenance services are
performed, insert the month, day
and mileage/ kilometers in the area
provided next to the serviced item.
The services shown up to
176 000 km (110,000 miles) are to
be repeated after the initial
176 000 km (110,000 miles) at the
same intervals.
Severe Driving Conditions
A vehicle operated under severe
conditions (see list below) requires
more frequent maintenance.
.
Frequent short trips of less than
6 kilometers (4 miles) in
moderate temperatures
. Frequent short trips of less than
16 kilometers (10 miles) in sub-
freezing temperatures
. Frequent and extended low-
speed engine operation (door-
to- door deliveries, stop- and- go
traffic, etc.)
. Driving on unpaved roads with
heavy dust
. Towing a trailer

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Service and Maintenance 305
Preventive Maintenance
As any mechanical device operates,
a certain amount of wear occurs.
The amount of wear depends on
certain variables–type and method
of operation and the schedule of
maintenance. These variables may
be emphasized as critical to
malfunction but each is dependent
upon the other. For example, if a
vehicle is repeatedly overloaded,
driven at excessive speed or
improperly shifted, no schedule of
maintenance can prevent
malfunction. Also, if a preventive
maintenance schedule is not
followed, or is improperly carried
out, no amount of correct vehicle
operation will prevent malfunction.
If vehicle application, operation and
preventive maintenance schedules
and procedures are followed and
properly carried out, the life of the
vehicle will be greatly extended. For example, regular attention to the
engine oil is essential. The oil level
must be periodically checked and oil
added whenever needed. Also, the
oil should be changed at the
intervals specified with the proper
quality and viscosity of oil. If your
engine should run excessively low
on oil or if the oil has lost its
lubricating qualities because of old
age, serious engine damage could
occur.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
306 Service and Maintenance
Maintenance Schedule Table
Letters Used to Indicate Maintenance Service Types
I :Inspect then clean, repair or replace as necessary
A : Adjust
R : Replace
T : Tighten to the specified torque
L : Lubricate
C : Clean
No. Service Interval
16 000 km/10,000 mi
24 000 km/15,000 mi
32 000 km/20,000 mi
48 000 km/30,000 mi
64 000 km/40,000 mi
72 000 km/45,000 mi
80 000 km/50,000 mi
96 000 km/60,000 mi
112 000 km/70,000 mi
120 000 km/75,000 mi
128 000 km/80,000 mi
144 000 km/90,000 mi
160 000 km/100,000 mi
168 000 km/105,000 mi
176 000 km/110,000 mi
Service intervals
months or
kilometers
(miles)
whichever
occurs first (1)
1 Engine noise check I - I I I - I I I - I I I - I
2 Valve lash - - - A - - - A - - - A - - - or every
12 months
3 Engine oil and oil filter (2) R - R R R - R R R - R R R - R or every
12 months
4 Fuel filter - R - R - R - R - R - R - R - or every
24 months

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Service and Maintenance 307
No. Service Interval16 000 km/10,000 mi
24 000 km/15,000 mi
32 000 km/20,000 mi
48 000 km/30,000 mi
64 000 km/40,000 mi
72 000 km/45,000 mi
80 000 km/50,000 mi
96 000 km/60,000 mi
112 000 km/70,000 mi
120 000 km/75,000 mi
128 000 km/80,000 mi
144 000 km/90,000 mi
160 000 km/100,000 mi
168 000 km/105,000 mi
176 000 km/110,000 mi
Service intervals
months or
kilometers
(miles)
whichever
occurs first (1)
5 Pre-fuel filter/water
separator
- R - R - R - R - R - R - R - or every
24 months
6 Air cleaner filter - - - - - - - - - - - - - - - indicator (3)
7 Damage to air intake
ducts and hoses - I - I - I - I - I - I - I - or every
12 months
8 Drive belts I - I I I - I I I - I I I - I or every
12 months
9 Engine bolt torques - - - - - - I - - - - - I - -
10 Rotate tires Every 10 400 km (6,500 miles)
11 Engine cooling system I - I I I - I I I - I I I - I or every
12 months
12 Engine coolant Every 12 months: I
Every 24 months: R (when dealer recommended coolant is used)
13 Exhaust system I - I I I - I I I - I I I - I
14 DPF (clean filter) - - - - - - - - - - - - C - - or every
3,000 hours

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16

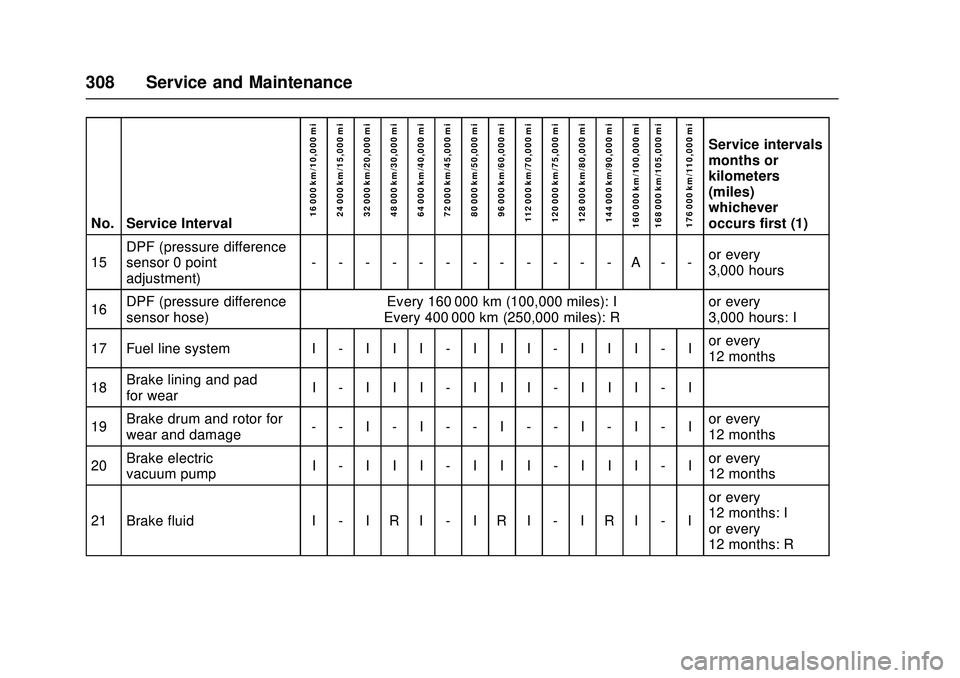

308 Service and Maintenance
No. Service Interval16 000 km/10,000 mi
24 000 km/15,000 mi
32 000 km/20,000 mi
48 000 km/30,000 mi
64 000 km/40,000 mi
72 000 km/45,000 mi
80 000 km/50,000 mi
96 000 km/60,000 mi
112 000 km/70,000 mi
120 000 km/75,000 mi
128 000 km/80,000 mi
144 000 km/90,000 mi
160 000 km/100,000 mi
168 000 km/105,000 mi
176 000 km/110,000 mi
Service intervals
months or
kilometers
(miles)
whichever
occurs first (1)
15 DPF (pressure difference
sensor 0 point
adjustment) - - - - - - - - - - - - A - -
or every
3,000 hours
16 DPF (pressure difference
sensor hose) Every 160 000 km (100,000 miles): I
Every 400 000 km (250,000 miles): R or every
3,000 hours: I
17 Fuel line system I - I I I - I I I - I I I - I or every
12 months
18 Brake lining and pad
for wear
I - I I I - I I I - I I I - I
19 Brake drum and rotor for
wear and damage - - I - I - - I - - I - I - I or every
12 months
20 Brake electric
vacuum pump
I - I I I - I I I - I I I - I or every
12 months
21 Brake fluid I - I R I - I R I - I R I - I or every
12 months: I
or every
12 months: R

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Service and Maintenance 309
No. Service Interval16 000 km/10,000 mi
24 000 km/15,000 mi
32 000 km/20,000 mi
48 000 km/30,000 mi
64 000 km/40,000 mi
72 000 km/45,000 mi
80 000 km/50,000 mi
96 000 km/60,000 mi
112 000 km/70,000 mi
120 000 km/75,000 mi
128 000 km/80,000 mi
144 000 km/90,000 mi
160 000 km/100,000 mi
168 000 km/105,000 mi
176 000 km/110,000 mi
Service intervals
months or
kilometers
(miles)
whichever
occurs first (1)
22 Hydraulic brake booster
(HBB) fluid (5500HD
5500XD models) - - - R - - - R - - - R - - -
or every
24 months
23 Brake line and hoses - - I - I - - I - - I - I - I or every
12 months
24 Parking brake cable I - I I I - I I I - I I I - I or every
12 months
25 Automatic transmission
fluid
I - I R I - I R I - I R I - I or every
12 months
26 Differential gear oil I - I R I - I R I - I R I - I or every
24 months
27 Power steering fluid - - - R - - - R - - - R - - - or every
24 months
28 Power steering oil hoses - - - - - - R - - - - - R - - or every
24 months
29 Steering wheel free
play (4) Every 10 400 km (6,500 miles): I
