60 Storage
Load Cargo Correctly
{Warning
Overloading can result in an
accident because it places too
much strain on the wheel studs
with the result that they break and
the wheels come off.
The weight of the payload must
be limited within the gross vehicle
weight (GVW) rating and
distributed over the front and rear
axles so as not to exceed the
axle capacities.(Continued)
Warning (Continued)
It is extremely dangerous to
overload the vehicle or to load the
vehicle with the cargo positioned
on one side. Load the vehicle
correctly, observing the maximum
loading capacity.
Incorrect loading can make the
cargo unstable. It can also cause
an overload condition confined to
a small area, resulting in damage
to the cargo bed and frame.
Overloading places undue strain
on vehicle parts. It can shorten
the vehicle's service life and
cause an accident. You and
others could be seriously injured.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Storage 61

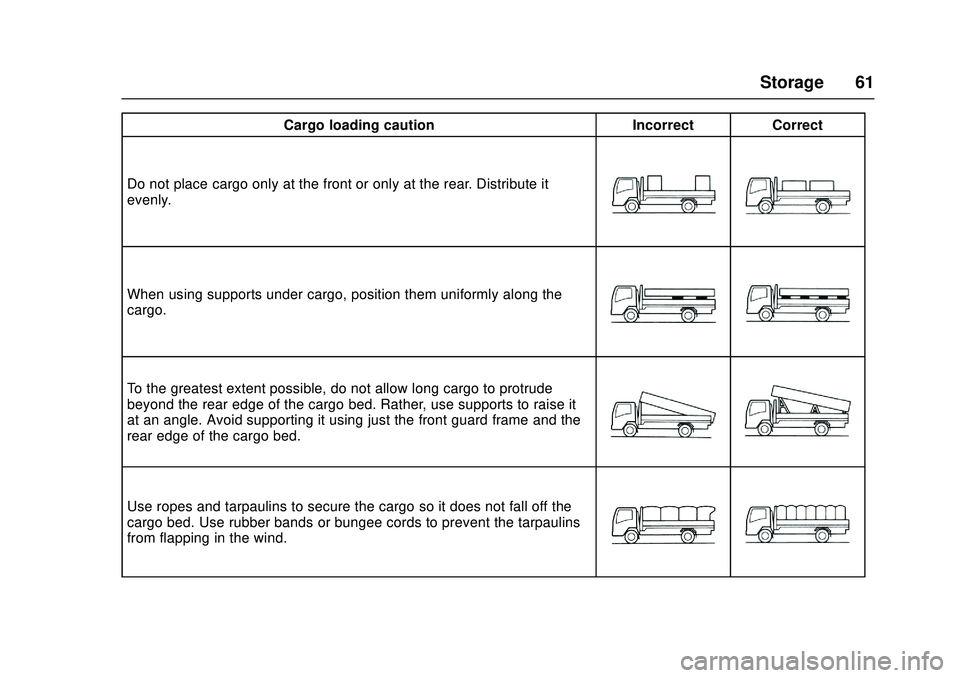

Cargo loading cautionIncorrectCorrect
Do not place cargo only at the front or only at the rear. Distribute it
evenly.
When using supports under cargo, position them uniformly along the
cargo.
To the greatest extent possible, do not allow long cargo to protrude
beyond the rear edge of the cargo bed. Rather, use supports to raise it
at an angle. Avoid supporting it using just the front guard frame and the
rear edge of the cargo bed.
Use ropes and tarpaulins to secure the cargo so it does not fall off the
cargo bed. Use rubber bands or bungee cords to prevent the tarpaulins
from flapping in the wind.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
62 Storage
Cargo loading cautionIncorrectCorrect
Avoid loading cargo too high. It can cause the vehicle to tip sideways
when it catches sidewinds and when turning the vehicle.
Loading Farm Equipment
Do not load farm equipment from
the rear of the cargo bed. The frame
may become deformed when farm
equipment is loaded from the rear of
the cargo bed. In addition, the frame may become deformed even when
loading farm equipment that has a
weight under the maximum loading
capacity.
When loading farming equipment, a
device for securing the cargo bed is
required. Use a car carrier or attach
a rear support stand. If you have
any questions, contact your dealer.
Make Sure There is No Flammable
Material between the Cab and
Cargo Bed
Caution
Be careful not to allow the ends of
ropes or edges of tarpaulins to
come lower than the heat
protector at the back of the cab.
During vehicle operation, the
engine's heat could set them on
fire. Carefully secure the ends of
ropes and edges of tarpaulins.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Storage 63

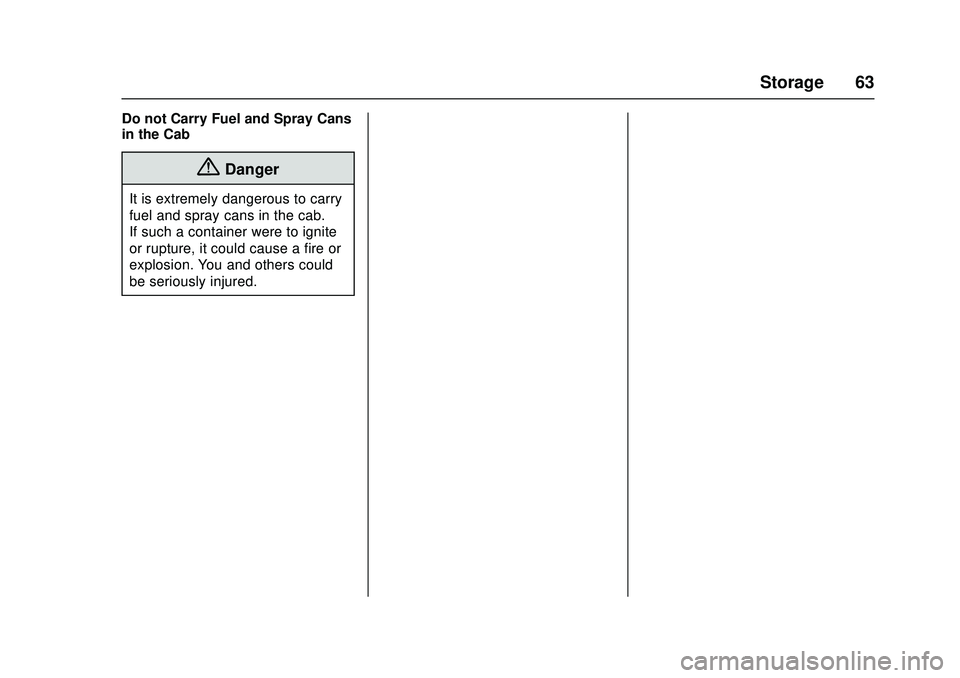

Do not Carry Fuel and Spray Cans
in the Cab
{Danger
It is extremely dangerous to carry
fuel and spray cans in the cab.
If such a container were to ignite
or rupture, it could cause a fire or
explosion. You and others could
be seriously injured.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
64 Instruments and Controls
Instruments and
Controls
Controls
Steering Wheel Adjustment . . . . 65
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Windshield Wiper/Washer . . . . . . 66
Power Outlets . . . . . . . . . . . . . . . . . 67
Cigarette Lighter . . . . . . . . . . . . . . . 67
Ashtrays . . . . . . . . . . . . . . . . . . . . . . . 68
Warning Lights, Gauges, and
Indicators
Warning Lights, Gauges, andIndicators . . . . . . . . . . . . . . . . . . . . 69
Instrument Cluster . . . . . . . . . . . . . 70
Speedometer . . . . . . . . . . . . . . . . . . 71
Odometer . . . . . . . . . . . . . . . . . . . . . . 71
Trip Odometer . . . . . . . . . . . . . . . . . 71
Tachometer . . . . . . . . . . . . . . . . . . . . 72
Fuel Gauge . . . . . . . . . . . . . . . . . . . . 72
Engine Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . . . 72
Diesel Exhaust Fluid (DEF) Gauge . . . . . . . . . . . . . . . . . . . . . . . . 73
Seat Belt Reminders . . . . . . . . . . . 73
Battery Warning Light . . . . . . . . . . 73
Malfunction Indicator Lamp (Check Engine Light) . . . . . . . . . 74 Service Vehicle Soon Light . . . . 74
Brake System Warning Light
(Parking Brake Light) . . . . . . . . . 75
Antilock Brake System (ABS) Warning Light . . . . . . . . . . . . . . . . 77
Exhaust Brake Light . . . . . . . . . . . 78
Service Transmission Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . 78
Automatic Transmission Fluid Temperature Warning Light . . . 78
Overdrive Off Light . . . . . . . . . . . . . 79
Wait-to-Start Light . . . . . . . . . . . . . 79
Engine Oil Pressure Light . . . . . . 79
Engine Oil Level Indicator Light . . . . . . . . . . . . . . . . . . . . . . . . . 80
Diesel Exhaust Fluid (DEF) Warning Light . . . . . . . . . . . . . . . . 80
Engine Shutdown Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . 80
Idle Shutdown Light . . . . . . . . . . . . 81
Reduced Engine Power Light . . . . . . . . . . . . . . . . . . . . . . . . . 81
High-Beam On Light . . . . . . . . . . . 81
Daytime Running Lamps (DRL) Indicator Light . . . . . . . . . . . . . . . . 82
Cruise Control Light . . . . . . . . . . . 82
Information Displays
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . 82
Vehicle Messages
Vehicle Messages . . . . . . . . . . . . . 86
Warning Buzzers . . . . . . . . . . . . . . 91

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Instruments and Controls 65
Controls
Steering Wheel
Adjustment
{Warning
.Adjust the position of the
steering wheel before you
start driving.
. To reduce the risk of
personal injury, apply force
to the steering wheel to
make certain the steering
column is firmly locked
before driving. Also, do not
try to tilt or adjust the
steering wheel while the
vehicle is moving. If these
steps are not followed, the
steering column could move
suddenly while the vehicle
is in motion which could
cause a temporary loss of
steering control which may
result in personal injury or
death.
The steering wheel is adjustable up
and down as well as forward and
backward.
Before adjusting, position the seat
as desired.
1. Lift the lock lever toward you to unlock the steering column.
2. Sit in the correct driving position, and then move the
steering wheel up and down
and forward and backward to
select the optimum steering
wheel position. 3. Firmly lock the steering wheel
at the selected position by
moving the lock lever to the
lock position.
Horn
To sound the horn, press the pad
with a horn symbol on the steering
wheel.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
66 Instruments and Controls
Windshield Wiper/Washer
To use the windshield wiper and
washer switches, the engine control
switch must be in the ON position.
The windshield wiper switch has the
following positions, which
correspond to the states of the
wiper.
9:Stopped.
3:Intermittent, light rain.
Low Speed : Low speed,
moderate rain.
High Speed : High speed,
heavy rain. If the wiper frequently stops during
operation, contact your nearest
Dealer.
Before operating the wiper, ensure
that the wiper rubber is not stuck on
to the windshield. If the wiper rubber
is stuck to the windshield and you
still operate the wiper, the wiper
may break or the wiper motor
may fail.
Clear ice or packed snow from the
wiper blades before using the
wipers. Carefully loosen or thaw
wipers that are frozen to the
windshield.
Do not operate the wiper on a dry
windshield surface. Otherwise, the
windshield surface may sustain
damage.
Windshield Washer
{Warning
At extremely low temperatures,
washer fluid may freeze on the
windshield after being sprayed,
obstructing your forward view. In
(Continued)
Warning (Continued)
such a case, warm up the
windshield before using the
windshield washer.
Windshield washer fluid is sprayed
over the windshield when this switch
is pressed. At the same time, the
windshield wiper operates.
To spray washer fluid on the
windshield, push the button on the
end of the combination switch lever.
The spray will continue as long as
you hold in the button.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Instruments and Controls 67
If windshield washer fluid does not
come out in sufficient quantity,
immediately release the switch.
Otherwise, the windshield surface
may sustain damage.
If windshield washer fluid does not
come out, release the windshield
washer switch immediately.
Otherwise the motor may seize up.
Do not hold the switch pressed for
more than 30 seconds. Otherwise,
the washer pump may sustain
damage.
Check the washer fluid level
regularly. Do it often when the
weather is bad.
Use a good quality windshield
antifreeze to help prevent freezing
damage, and for better cleaning.
When the vehicle is used in a
cold-climate region or during the
winter:
.Use washer fluid with
appropriate concentration for the
season to prevent frozen fluid. .
Fill the washer fluid reservoir
only 3/4 full to allow for
expansion if the temperature
should fall low enough to freeze
the solution.
See Washer Fluid 0241 for
information on filling the windshield
washer fluid reservoir.
Power Outlets
You can plug in auxiliary electrical
equipment. Just flip the outlet cover
open from the left edge of the cover
and follow the proper installation
instructions that are included with
any electrical equipment you install. These circuits are protected by a
fuse and have maximum current
loads.
When using accessory power
outlets, total maximum electrical
load must not exceed 120W. Always
turn off any electrical equipment
when not in use.
Leaving electrical equipment on for
extended periods will drain your
battery.
Cigarette Lighter
The cigarette lighter can be used
when the engine control switch is in
the ACC or ON position.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
68 Instruments and Controls
1. Push the lighter in until it locks.
2. When the heater elementbecomes hot, the lighter pops
out to the original position. Pull
out and use it.
{Warning
.As the lighter's element can
become extremely hot, take
due precautions against
burns.
. Do not leave your finger on
the cigarette lighter once it
has been pushed in. The
lighter will overheat and be
damaged or cause a fire.
. If the cigarette lighter does
not pop out after more than
20 seconds, the lighter is
defective. Pull out the lighter
by hand immediately.
. Do not bend the cigarette
lighter. A bent lighter does
not function properly and is
dangerous.
. You and others could be
seriously injured. Do not use the cigarette lighter as
an accessory outlet.
If the cigarette lighter has to be
replaced, use a Chevrolet genuine
GM part. Do not use other cigarette
lighters.
When cleaning the cigarette lighter,
do not use too much force. It may
become bent.
Keep the cigarette lighter socket
and the heater free of ash and dirt.
Ashtrays
{Warning
.
Do not put any paper trash
or other flammable material
in the ashtray.
. After using the ashtray, be
sure to close it. If a cigarette
butt has not been
extinguished completely,
other butts in the ashtray
may catch fire.
(Continued)
Warning (Continued)
.Do not leave the ashtray full
of cigarette butts.
. Put matches and cigarette
butts in the ashtray only
after they are fully
extinguished.
. You and others could be
seriously injured.
Driver ’s and Passenger ’s Ashtray
Open the lid to use the ashtray.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Instruments and Controls 69
Put out lit cigarettes on the
crush-out tab. To empty the ashtray,
hold the lid and pull the ashtray up
and out.
Rear Ashtray (Crew CabModel Only)
Pull the ashtray towards you to use
it. Put out lit cigarettes on the
crush-out tab. The ashtray cannot
be removed. To empty the ashtray,
turn it down while pushing the
crush-out tab to remove cigarette
butts into an appropriate container.
Warning Lights,
Gauges, and
Indicators
Warning lights and gauges can
signal that something is wrong
before it becomes serious enough
to cause an expensive repair or
replacement. Paying attention to the
warning lights and gauges could
prevent injury.
Some warning lights come on briefly
when the engine is started to
indicate they are working. When
one of the warning lights comes on
and stays on while driving, or when
one of the gauges shows there may
be a problem, check the section that
explains what to do. Waiting to do
repairs can be costly and even
dangerous.
For safety reasons, do not place
packages, tools, or other items in
the driver ’s area that may restrict
access to the controls or sight of the
gauges.
