336 Service and Maintenance
3. Engine Oil and Oil Filter :
Change at interval noted below
depending upon driving conditions.
•Normal Service —Change every
16 000 km (10,000 miles) or
12 months whichever occurs first.
• Severe Service —Change every
8 000 km (5,000 miles) or 3 months
if you often drive under one or more
of these conditions: (a) driving in
dusty areas, (b) frequent idling or
idling for long periods, (c) driving
6 km (4 miles) or less in freezing
weather, or other short trips in cold
weather, where the engine does not
thoroughly warm up.
Change oil and filter as soon as you
can after driving in a dust storm.
When recommended oil is used, it
conforms to this maintenance
schedule. (Recommended oil: CK-4
(API designations))
4. Fuel Filter : Replace the fuel
filter every 24 000 km (15,000 miles)
or more frequently if clogged or
replace when the fuel filter indicator
light comes on (if equipped). 5. Pre-Fuel Filter/Water
separator :
Replace the fuel filter
every 24 000 km (15,000 miles) or
more frequently if clogged or
replace when the fuel filter indicator
light comes on (if equipped).
6. Air Cleaner Filter : The level of
dirt in the air cleaner element can
be checked against the indicator.
Replace the air cleaner filter when
the Driver Information Center (DIC)
shows "CHECK AIR FILTER".
7. Damage to Air Intake Ducts and
Hoses : Check for damage of air
intake ducts and hoses and that
those are correctly installed every
24 000 km (15,000 miles) or
12 months. Replace or adjust those
if necessary.
8. Drive Belts : Check belt driving
the fan, alternator or A/C
compressor every 16 000 km
(10,000 miles). Look for cracks,
fraying, wear, and proper tension.
9. Engine Bolt Torques : Loosened
bolts result in lower engine output.
Check and adjust manifold mounting, and injectors to correct
torque every 80 000 km
(50,000 miles).
10. Rotate Tires :
To equalize wear,
rotate tires and adjust tire pressures
every 10 400 km (6,500 miles). See
Tire Rotation 0307.
11. Engine Cooling System : At
12 months or 16 000 km
(10,000 miles) intervals, wash
radiator cap and filler neck with
clean water, pressure test system
and radiator cap for proper pressure
holding capacity, tighten hose
clamps and inspect condition of all
cooling and heater hoses. Replace
hoses if cracked, swollen or
otherwise deteriorated. Have the
hoses replaced by your authorized
dealer.
12. Engine Coolant : Inspect the
engine coolant every 12 months.
Replace the engine coolant every
24 months, drain the engine coolant
by opening the drain plug at the
bottom of the radiator core, flush
and refill the engine cooling system
with a new engine coolant. Refer to
"Preparing Engine Coolant" in

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
Service and Maintenance 337
Engine Coolant0253. Have the
Engine Coolant replaced by your
authorized dealer.

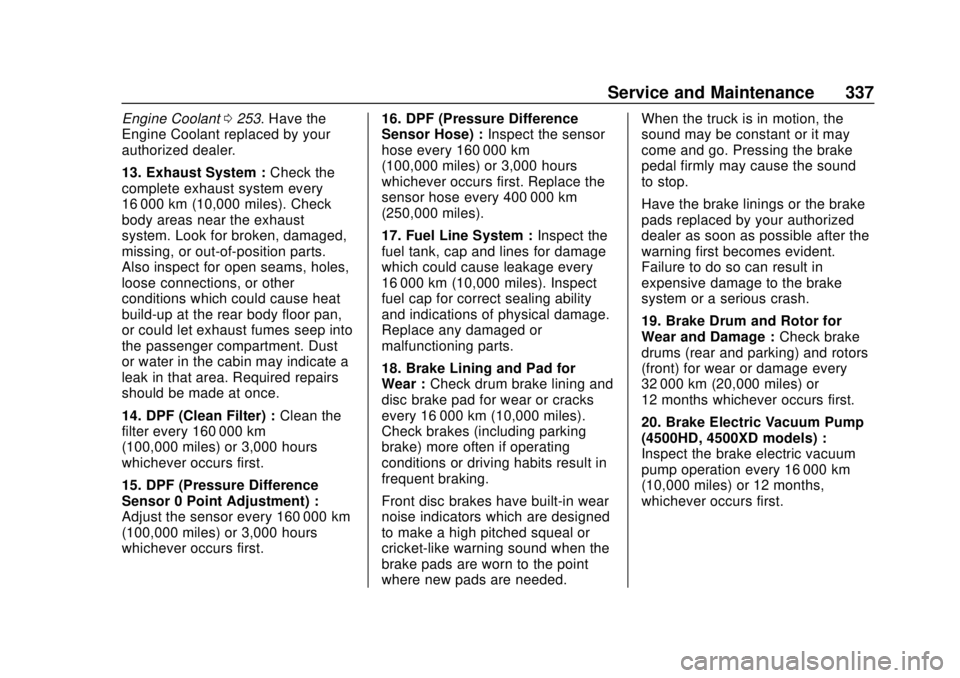

13. Exhaust System : Check the
complete exhaust system every
16 000 km (10,000 miles). Check
body areas near the exhaust
system. Look for broken, damaged,
missing, or out-of-position parts.
Also inspect for open seams, holes,
loose connections, or other
conditions which could cause heat
build-up at the rear body floor pan,
or could let exhaust fumes seep into
the passenger compartment. Dust
or water in the cabin may indicate a
leak in that area. Required repairs
should be made at once.
14. DPF (Clean Filter) : Clean the
filter every 160 000 km
(100,000 miles) or 3,000 hours
whichever occurs first.
15. DPF (Pressure Difference
Sensor 0 Point Adjustment) :
Adjust the sensor every 160 000 km
(100,000 miles) or 3,000 hours
whichever occurs first. 16. DPF (Pressure Difference
Sensor Hose) :
Inspect the sensor
hose every 160 000 km
(100,000 miles) or 3,000 hours
whichever occurs first. Replace the
sensor hose every 400 000 km
(250,000 miles).
17. Fuel Line System : Inspect the
fuel tank, cap and lines for damage
which could cause leakage every
16 000 km (10,000 miles). Inspect
fuel cap for correct sealing ability
and indications of physical damage.
Replace any damaged or
malfunctioning parts.
18. Brake Lining and Pad for
Wear : Check drum brake lining and
disc brake pad for wear or cracks
every 16 000 km (10,000 miles).
Check brakes (including parking
brake) more often if operating
conditions or driving habits result in
frequent braking.
Front disc brakes have built-in wear
noise indicators which are designed
to make a high pitched squeal or
cricket-like warning sound when the
brake pads are worn to the point
where new pads are needed. When the truck is in motion, the
sound may be constant or it may
come and go. Pressing the brake
pedal firmly may cause the sound
to stop.
Have the brake linings or the brake
pads replaced by your authorized
dealer as soon as possible after the
warning first becomes evident.
Failure to do so can result in
expensive damage to the brake
system or a serious crash.
19. Brake Drum and Rotor for
Wear and Damage :
Check brake
drums (rear and parking) and rotors
(front) for wear or damage every
32 000 km (20,000 miles) or
12 months whichever occurs first.
20. Brake Electric Vacuum Pump
(4500HD, 4500XD models) :
Inspect the brake electric vacuum
pump operation every 16 000 km
(10,000 miles) or 12 months,
whichever occurs first.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
Service and Maintenance 339
33. Leaf Spring U-bolt Torque :
Tighten the U-Bolt nuts to the
specified torque after the first
1 040 km (650 miles), thereafter
every 16 000 km (10,000 miles).Model Leaf spring U-bolt nut tightening torque
Front Rear
4500HD 127 Y
(94 lb·ft) 177
Y
(131 lb·ft)
4500XD 196 Y
(145lb·ft) 177
Y
(131 lb·ft)
5500HD, 5500XD 196
Y
(145lb·ft) 284
Y
(209 lb·ft)
34. Wheel Nut Torque : Check tires
for excessive or abnormal wear,
or damage. Also check tire inflation
pressures and adjust.
Be sure wheels are not bent or
cracked and that wheel nuts have
been tightened to the specified
torque after the first 1,040 km
(650 miles) and then every
10 400 km (6,500 miles). Note that
there are left and right hand
threads. Wheel nut tightening torque
500Y(362 lb·ft)
35. King Pin : Lubricate the grease
fitting on the king pins every
12 months or 16 000 km
(10,000 miles) whichever occurs
first.
36. Wheel Hub Bearing Grease :
Clean and repack front wheel
bearings every 24 months or
48 000 km (30,000 miles) whichever
occurs first.
37. Air Conditioner Blower
Filter : The air conditioner blower
filter should be removed and
cleaned once a month.
38. Exhaust Injector : Clean the
exhaust injector every 176,000 km
(110,000 miles).
39. DEF Supply Pump Filter
Element : Replace the DEF supply
pump filter element every
192 000 km (120,000 miles) or
24 months whichever occurs first. 40. Starter :
The color displayed by
the starter indicator light will change
from green to amber when the
number of times remaining is 0 or
below and the screen is selected.
When the indicator light (amber)
comes on, have the vehicle
inspected/serviced at the nearest
dealer.
41. Wiper Blades : Inspect wiper
blades for wear, cracking,
or contamination. Clean the
windshield and wiper blades,
if contaminated, replace wiper
blades that are worn or damaged,
or at least once a year. See Wiper
Blade Replacement 0275.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
Service and Maintenance 341
Recommended Daily
(Pre-operation) Inspections
These checks are in addition to, not
instead of, any legally required daily
inspections. See related topics
under "Maintenance Schedule",
especially if problems are found.
For safe and comfortable driving,
keep record of the distances driven
and the condition of the vehicle
during operation. Perform
inspections at appropriate intervals,
and perform maintenance in
accordance with the findings of the
inspections. If an inspection reveals
an abnormality or there was an
abnormality the previous time the
vehicle was driven, have the vehicle
repaired by the nearest dealer
before it is driven again.1. Components that showed abnormalities during the
previous operation
.Check components that
showed abnormalities
during the previous
operation 2. Checks performed at the
engine
.Fan belt looseness and
damage
. Engine oil level
. Engine coolant level
. Power steering fluid level
3. Checks performed from the driver's seat
.Brake fluid level
. Brake pedal free play
. Operation of meters,
gauges and warning/
indicator lights
. Engine startability,
abnormal noise and color of
exhaust gases
. Parking brake lever stroke
. Windshield washer fluid
spray condition and
windshield wiper
effectiveness
. Windshield washer fluid
level .
Steering wheel position and
free play
. Operation of horn and turn
signal lights
. Door lock operation
4. Checks performed during a walk around the vehicle
.Illumination, flashing,
contamination, damage and
obstruction of lights
. Contamination, damage ad
obstruction of windows,
mirrors and reflectors
. Leaf spring damage
. Oil, engine coolant, fuel,
brake fluid and power
steering fluid leaks
. Water separator
5. Checking wheels and tires .Air pressure
. Cracks and other damage
. Abnormal wear
. Tread depth

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
346 Service and Maintenance
Additional
Maintenance and Care
Owner Safety and Routine
Maintenance
Listed below are vehicle checks
which should be made periodically
by either the owner or a qualified
technician to ensure proper
performance and safety of your
vehicle. Take any problems promptly
to a technician for service advice.
For your safety and that of others,
any of the safety-related
components that may have been
damaged in a crash should be
checked and necessary repairs
performed before operating your
vehicle.
At the minimum, these routine
checks should be made every
6 months or 16,000 km
(10,000 miles), whichever comes
first. Whenever repairs are
necessary, have them completed
before operating the vehicle.A: Parking Brake :
Park on a fairly
steep hill and hold the vehicle with
the parking brake only. This checks
holding ability.
Before checking item (B) below, be
sure to have enough room around
the vehicle. Then firmly apply both
the parking brake see Parking
Brake 0220 and the regular brakes.
Do not use the accelerator pedal.
If the engine starts, be ready to turn
off the engine control switch at
once. Take these precautions
because the vehicle could move
without warning and possibly cause
injury or property damage.
B: Starter Safety Switch : Check
by trying to start the engine in each
gear. The starter should crank only
at selector position "P" or "N".
C: Transmission Shift Indicator :
Check that the indicator points to
the gear chosen.
D: Steering : Be alert for any
changes in steering action. An
inspection or service is needed
when: the steering wheel is harder to turn or has too much free play,
or when there are strange sounds
when turning or parking.
E: Wheel Alignment, Balance, and
Tires :
Check tires for abnormal
wear or damage. Also, check for
damaged wheels. A pull right or left
on a straight and level road may
show the need for a wheel
alignment. A vibration of the
steering wheel or seat at normal
highway speeds may mean a wheel
balancing is needed. Check tire
pressure when the tires are "cold,"
at least monthly, and whenever the
vehicle is serviced.
Check the pressure more often if
daily checks show it's needed.
(Refer to "Recommended Daily
(Pre-operation) Inspections" under
Owner Checks and Services 0340).
Change tire pressure as needed
when changing loads.
F: Brakes : Be alert to illumination
of the brake system warning light or
brake low vacuum warning light
(4500HD, 4500XD models) or the
tone alarm, or changes in braking
action, such as repeated pulling to

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
Service and Maintenance 347
one side, unusual sounds when
braking, increased brake pedal
travel or harder pedal. The front and
rear brakes are attached to an auto
adjuster mechanism. If there are no
defects, as the pedal travel is
properly maintained, adjustments
are not necessary. Check regularly
that the brake fluid reservoir
(left-hand side of the instrument
panel) or HBB reservoir (5500HD,
5500XD models: left side behind the
cab) is properly filled and check for
fluid leaks. Any of these conditions
could indicate the need for brake
system inspection and/or service.
G: Exhaust System :Be alert for
any changes in the sound of the
exhaust system or any smell of
fumes. These are signs the system
may be leaking. Have it checked
and/or repaired at once. (Refer to
"Engine Exhaust Emissions Caution
(Carbon Monoxide)" under Engine
Exhaust 0177).
H: Windshield Wipers and
Washers : Check operation and
condition of the wiper blades. Check
the flow of the washer spray. I: Defroster :
Turn the outlet
selector knob to "Defroster" and the
fan speed control knob to the fully
clockwise position. Then check the
airflow from the ducts at the inside
base of the windshield.
J: Rearview Mirrors and Sun
Visors : Check that friction joints
hold mirrors and sun visors in place.
K: Horn : Sound the horn, now and
then, to be sure it works.
L: Lap-Shoulder Belts : Check the
seat belt system (including webbing,
buckles, latch plates and anchors)
for proper operation, and for
damage.
M: Seat Adjusters : When
adjusting the driver's manual seat,
be sure the seat adjusters latch by
pushing the seat forward and
backward. Do not attempt to adjust
the seat when the vehicle is in
motion.
N: Lamps : Check panel lighting,
warning lamps, indicator lamps and
interior lamps. On the outside,
check: license plate lamps, side
marker lamps, reflectors on outside mirrors, headlamps, parking lamps,
identification and clearance lamps,
taillights, brake lamps, turn signals,
cornering lamps, backup lamps and
hazard warning flashers. Have
headlamp aim checked immediately
if beams seem improperly aimed.
O: Glass, Mirrors, Lights and/or
Reflectors Condition :
Look for
broken, scratched, dirty or damaged
glass, mirrors, lamps or reflectors
that could reduce the view or
visibility, or cause injury. Replace,
clean or repair promptly.
P: Door Latches : Check that doors
close, latch and lock tightly. Check
for broken, damaged or missing
parts that might prevent tight
latching.
Q :Tilt Cab (Driving Position) : Be
sure the tilt lever is down and
locked.
R: Fluid Leaks : Check for fuel,
water, oil or other fluid leaks by
looking at the surface beneath the
vehicle after it has been parked for

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
Index 377
Lamps (cont'd)License Plate . . . . . . . . . . . . . . . . . 286
Malfunction Indicator (Check
Engine) . . . . . . . . . . . . . . . . . . . . . . . 73
Roofmarker . . . . . . . . . . . . . . . . . . . 284
Sidemarker . . . . . . . . . . . . . . . . . . . 284
Lap Belt . . . . . . . . . . . . . . . . . . . . . . . . . 48
Lighting Illumination Control . . . . . . . . . . . . . 95
Lights Antilock Brake System(ABS) Warning . . . . . . . . . . . . . . . . 76
Automatic Transmission Fluid Temperature . . . . . . . . . . . . . 78
Battery Warning . . . . . . . . . . . . . . . . 73
Brake System Warning . . . . . . . . . 74
Check Engine (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . . . 73
Cruise Control . . . . . . . . . . . . . . . . . . 82
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . . . 81
Diesel Exhaust Fluid (DEF) . . . . . 80
Engine Oil Level Indicator . . . . . . 79
Engine Oil Pressure . . . . . . . . . . . . 79
Engine Shutdown Warning . . . . . 80
Exhaust Brake . . . . . . . . . . . . . . . . . . 77
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 93
High-Beam On . . . . . . . . . . . . . . . . . . 81 Lights (cont'd)
High/Low Beam Changer . . . . . . . 93
Idle Shutdown . . . . . . . . . . . . . . . . . . 80
Overdrive Off . . . . . . . . . . . . . . . . . . . 78
Reduced Engine Power . . . . . . . . 81
Seat Belt Reminders . . . . . . . . . . . . 72
Service Transmission
Warning . . . . . . . . . . . . . . . . . . . . . . . 77
Service Vehicle Soon . . . . . . . . . . . 74
Wait to Start . . . . . . . . . . . . . . . . . . . . 79
Loading the Vehicle . . . . . . . . . . . . . . 58
Locks Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Power Door . . . . . . . . . . . . . . . . . . . . . 33
M
Maintenance and CareAdditional . . . . . . . . . . . . . . . . . . . . . 346
Maintenance Schedule . . . . . . . . . 327
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 349
Malfunction Indicator Lamp . . . . . . 73
Messages Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 86
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Heated . . . . . . . . . . . . . . . . . . . . . . . . . 34
N
New Vehicle Break-In . . . . . . . . . . . 165
Noise Control System . . . . . . . . . . 272
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . 70Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . 245
Pressure Light . . . . . . . . . . . . . . . . . . 79
Online Owner Center . . . . . . . . . . . 365
Operating Temperature . . . . . . . . . 171
Outlets
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Overdrive Off . . . . . . . . . . . . . . . . . . . 215
Overdrive Off Light . . . . . . . . . . . . . . 78
Overheating, Engine . . . . . . . . . . . . 259
Owner Checks and Services . . . . 340
P
Parking
Brake . . . . . . . . . . . . . . . . . . . . . . . . . 220
Over Things That Burn . . . . . . . 176
Passenger Compartment Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Perchlorate Materials Requirements, California . . . . . . 240
