CHEVROLET MONTE CARLO 1981 4.G Owner's Guide

Downloaded from www.Manualslib.com manuals search engine CRUISE.
C~~~~L~_. --''--_=

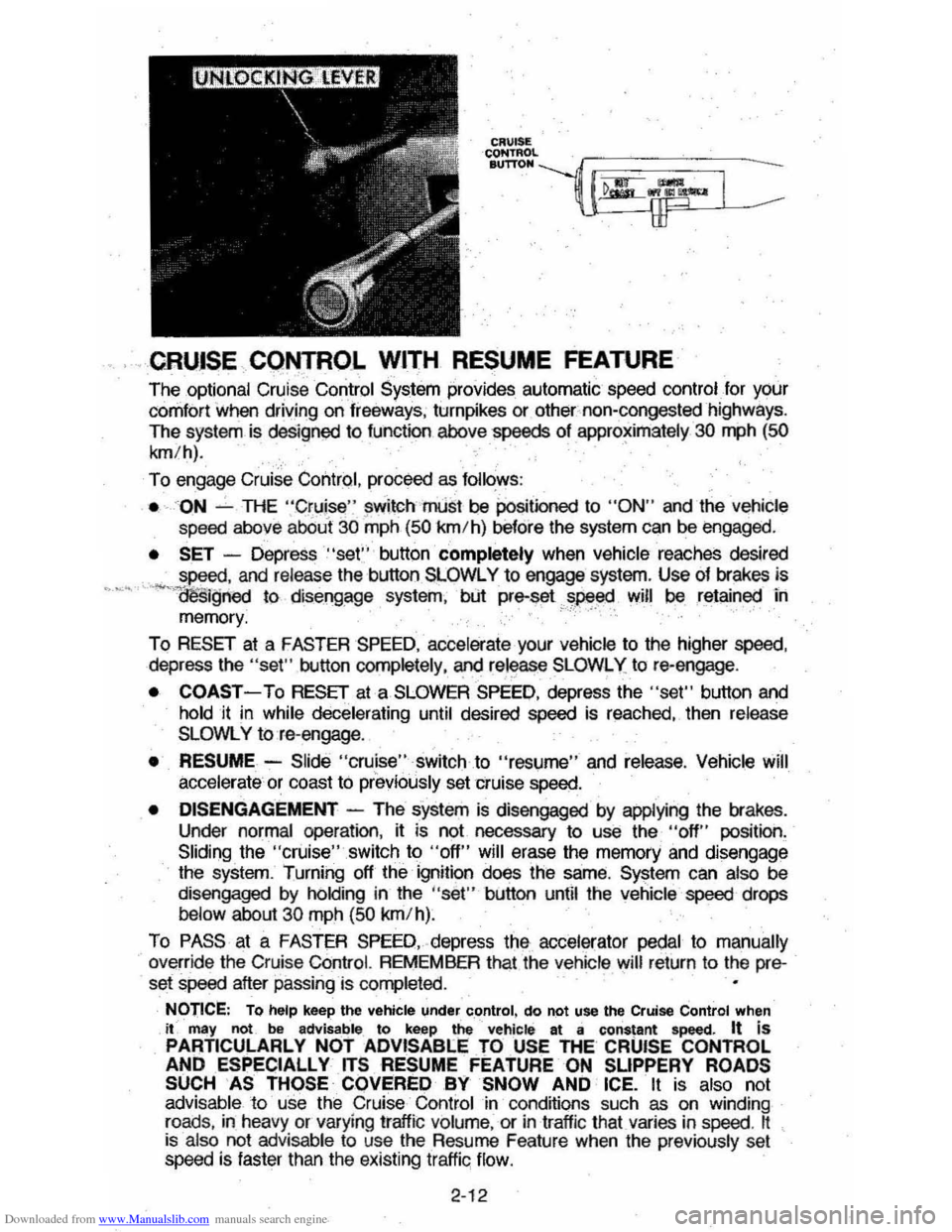

.CRUISE .CQNTROJ. WITH RESUME FEATURE
The optional Cruise Control System provides automatic speed control for your
comfort
when driving on freeways , turnpikes or othernon'congested highways.
The system is
designf;lCl to f.unction above gpeeds of approximately 30 "1'h (50 ~I~. .
To engage Cruise ContrQI, proceed as follows:
•
··ON ~ THE ' : Cruise " ~wltchmUst be Positioned to "ON" and the vehicle
speed above abOu'! 30 mph (50 km/h) before the system can be engaged.
• SET -Depress "set" button completely when vehicle reaches desired '. . speed. anc release the button SLOWLY to engage system. Use of brakes is
"-'''-'l'l/!Slgned to dis engage system, blit pre-set~peed Viill be retained in
memory. . '." ,
To RESET at a FASTER SPEED , accelerate your vehicle to the higher speed,
depress the "set" button completely , anc re",ase SLOWLy to re·engage .
•
COAST-To RESET at a SLOWER SPEED, depress the "set" button and holdi! in whil e decelerating until desired speed is reached, then release SLOWLY to re·engage .
• RESUME
-Slide "cruise"swi!ch to "resume" and release . Vehicl .e will
accelerate or coast to previously set cruise speed.
• DISENGAGEMENT -The system is disengaged by applying the brakes.
Under normal qperation, it is not necessary to use the. "off " position.
Sliding the "cruise" switch to "off" will erase the memory and disengage
the system. Turning off the ignition does the same . System can also be
disengaged by hOlding in the "set" button until the vehicle speed drops
below about
30 mph (50 km/h).
To
PASS at a FASTER SPEED, depress the accelerator pedal to manually
o verride the Cruise
COntrol. REMEMBER that the vehicle will return to the pre­set speed after passing is cO"1'leted .
NOTICE: To help keep the vehicle under control, do not use the Cruise Control when it may not be advisable to keep the·· vehicle at a constant speed. It is PARTICULARLY NOT ADVISABLE TO USE THE' CRUfSE CONTROL AND ESPECIALLY ITS RESUME FEATURE ON SUPPERY ROADS
SUCH AS THOSE COVERED BY SNOW AND ICE. It is also not advisable to use the Cruise Control in conditions such as on windin g
roads. in heavy or varying traffiC volume ; or in traffic that. varies in speed . tt is also not advisable to use the Resume Feature when the previously set
speed is faster than the existing traffic flow.
2-12

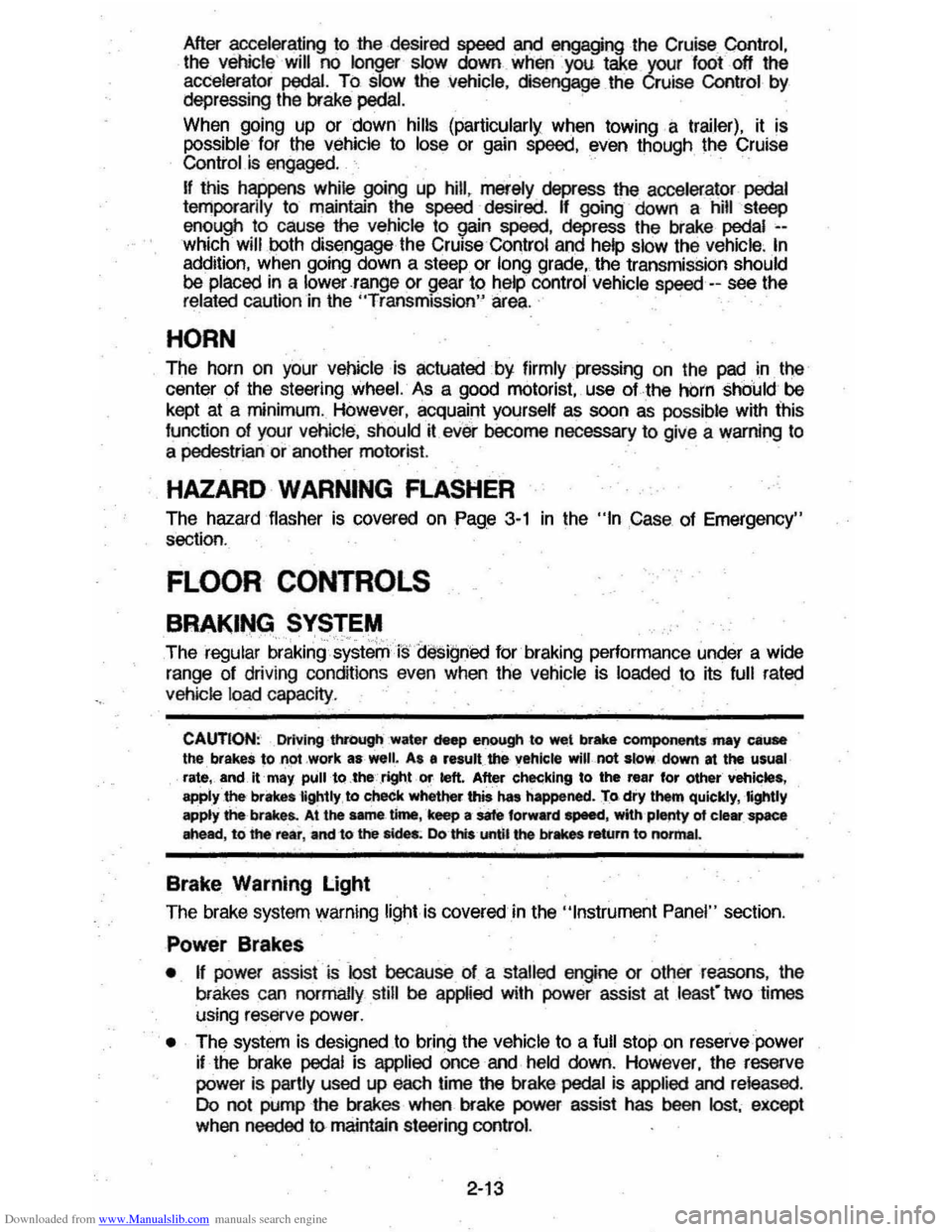

Downloaded from www.Manualslib.com manuals search engine After acceleraUng to the desired speed and engaging the Cruise Control, the vehicle ' will no longer slow down when you take your foctot! the
accelerator pedal. TO slow the vehicle , disengage the Cruise Control by
depressing the brake pedal. '
When going up or down
hills (particularl~ when towing a trailer), it is possible for the vehicle to lose or gain speed, even though the Cruise Control is engaged,
If this happens while going up hill, merely depress the accelerator pedal temporarily to maintain the speed desired, If going down a hill steep
enough to cause the vehicle to gain speed, depress the brake pedal -­which will .\)Dth disengage the Cruise Control and help slow the vehicle, In addition, when going down a steep or long grade, the transmission should be placed in a lower .range or gear to help control vehicle speed --see the r~lated caution in the "Transmission" area. '
HORN
The horn on your vehicle is actuated by firmly pressing on the pad in th.e
center of the steering wheel. As a good motorist, use of ·the hOrn should be
kept at a minimum, However,
acquaint yourself as soon as possible with ihis
function of your
vehicle, should it ever become necessary to give a warning to
a pedestrian or another motorist
HAZARD WARNING FlASHER
The hazard flasher is covered on Page 3-' in the "In .Case of Emergency" section.
FLOOR CONTROLS
BRAKING SYSTEM
The regularbraking~yst"r1'lTsdesigned for braking performance under a wide
range of driving conditions even when the
vehicle is loaded to its full rated
vehicle load capacity .
CAUTION: DriVing ttvOUgh water deep enough to wet brake componenu-,may cause the brakes to ,n ,ot .work as well. A, • result the :vehicle will not slow: down at the usual rate,. and, it 'may pull 10 ,the .righ,t , 0.:' left. After chtc;king to the rear for other vehicles, apply the brakes 'lightly , to cheek whether this has happened. 1'0 dry them quicklY,lightly apply the-brakes.. At the aame. time, keep a safe forward speed, with plenty of cle._ space ahead, to the rea" and-to the sides;. Do this- until the brllkes return to norm.l.
Brake Warning Light
The brake system warning light is covered in the "Instrument Panel" section,
Power Brake$
• If power assist is ~Iost because of a stalled engine or other reasons , the
brakes can
normally still be applied with power assist at least" two times
using reserve power.
• The system is designed .to bring the vehicle to a full stop ·on reserve power
if
the brake pedal is applied once and held down. However, the reserve
power is partly used up each time the
brake pedal is applied and released , Do not pump the brakes when brake power assist has been lost; except
when needed to maintain steering control.
2-13

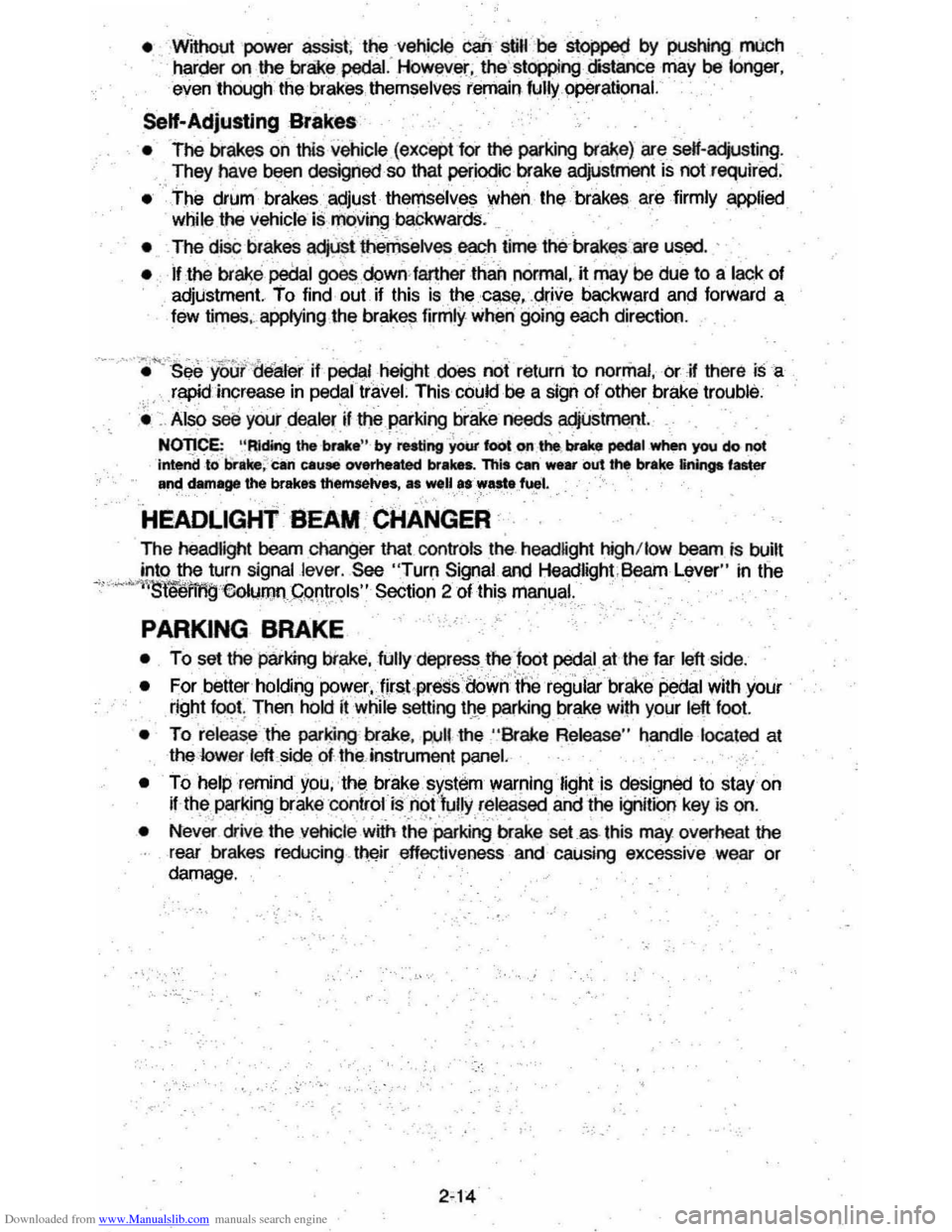

Downloaded from www.Manualslib.com manuals search engine • without power assist. the vehicle cah stiR be 'St0ppe9 by pushing mUch harl'ler on the brake pedai.' However. the' stopping distance may be lOnger.
even though the brakes. themselves remain fully operational.
Self-Adjusting Brakes
• The brakes on this vehicle (excePt fO( the parking brake) areseli-adjusting .
They have been designed so that periodic brake adjustment is not required :
• The drum brakes.llIIj~st thelliselves when the brakes are firmly applied
while the vehicle is rIlClving backwardS . .. ..
• The disC brakes adi\lSt th!!rI'Jselves each time the'brakes are used ..
• iflhe brake pedal goes down· farther tI'",n normal. it ~y be due to a lack of adjustment. To find · out if this istheclISe •. p rive backward and forward a
few times •.. app/ying the brakes firmly wheri going each direction .
~'''''''':~-,;---.. '-:.,;r!.i-- ....... ""'~.-_ , : . __ '._ -• _ • . -• • • See your ~ealer If pepalhelghtdoes not return to normal. O(Ii there Isa rapid increase in pedartravel. This could be a sign of other brake trouble.
~. Also .eEl your dealer if the parking brake needs adjustment. .
NOTICE; "Rloirog lhe rio" by resting .y.,;., t_ on .h,;. tir ... podol when you do not intend to tWake:ciiri CauM overheated br.kes. This can we., out the brake linings fnter anci damage the brakes thamsetvas, .s w.lla.~ast."f~1. .
HEADLIGHT BEAM . CHANGER
The headlight beam charlger that controls the. head'ght high/low beam is built
into the turn signal lever. See "Turn Signal an(j Headlight , Beam Lever" in the
-'''''~''1li'OOm'l!r601umnGqpt''lls'' Section 2 of this manu~I.._ .
PARKING BRAKE
• To setthepat\(mgbrake. fully depresstheioot pedalat th~ far left side
• For better holding power.first,press&ow";'~eregular·brake pedal with your
right foot; Then
hold it wliile setting tile parking brake w'fh your leltfoot.
•
To ' releasethe parking brake. Wi' ·the "Brake Release " handle located at
the lower I.eftside of. the . instrument panel.
•
To help remind YOIJ; the brake sYStem warning light is designed to stay on
if the parking brake control is noi '\ullyreleased and the igilition key is On.
• Nev';; drive the vehicle wtlh ih~' ~I damage .
2-14

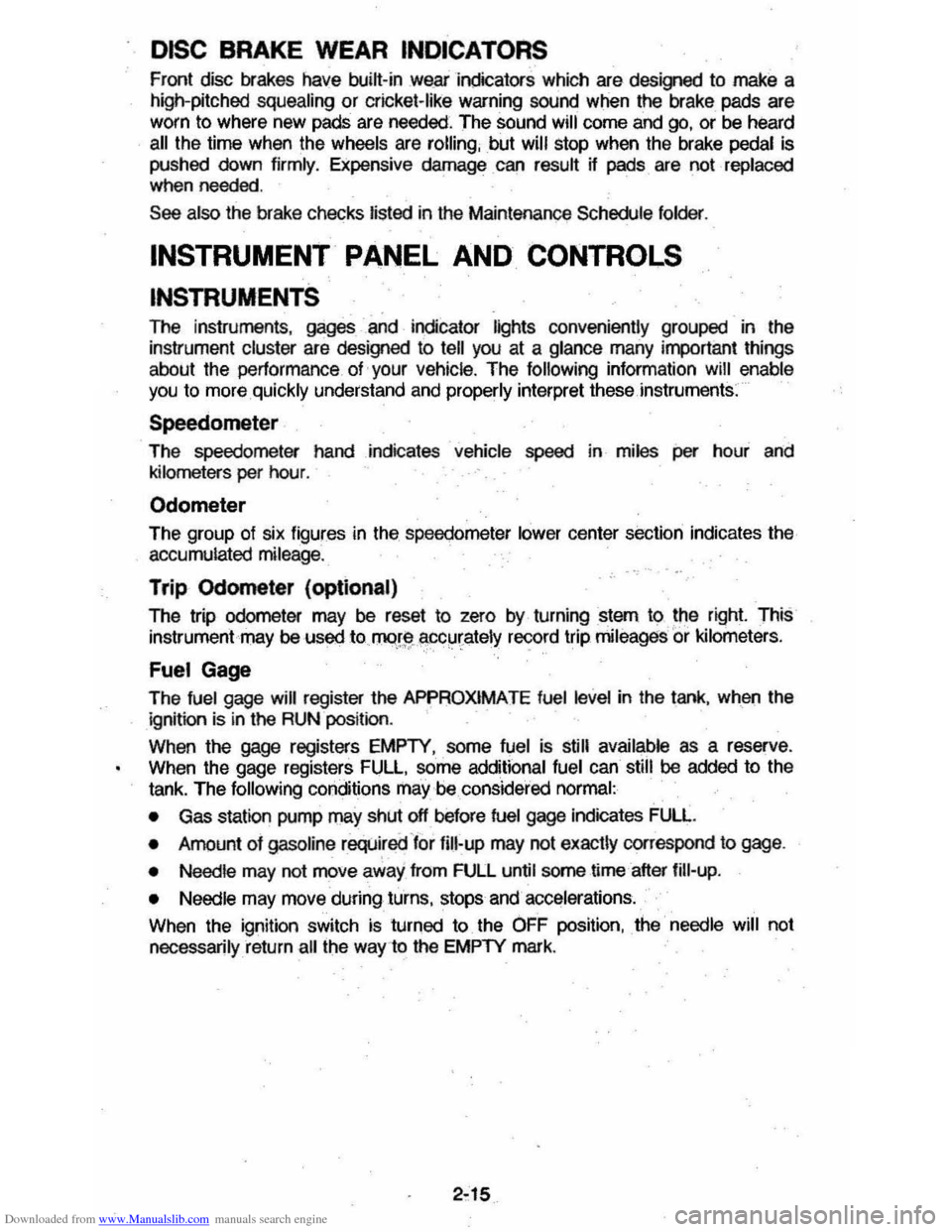

Downloaded from www.Manualslib.com manuals search engine DISC BRAKE WEAR INDICATORS
Front disc brakes have bum-in we .ar indicators which are desigled to make a
high-pitched squeating or
cricket·tike warning sound when the brake pads are
worn to where new pads are needed . The sound will come
and go. or be heard
all the time when the wheels are rolling, but will stop when the brake pedal is
pushed down
firmly. Expensive damage can result if pads are not replaced When needed .
See also the brake checks listed in the Maintenance Schedule folder.
INSTRUMENT PANEL AND CONTROLS
INSTRUMENTS
The instruments . gages and indicator lights convenienlly grouped in the
instrument cluster are designed to tell you at a glance many important things
about the perform ance of your
vehicle. The following information will enabl e
you to more quickly understand and properly interpret these instruments.
Speedometer
The speedometer hand indicates vehicle speed in miles per hour and
kilometers per hour.
Odometer
The group of six figures in the, speedometer lower center sectiori indicates the
accumulated mileage.
Trip Odometer (optional)
The trip odometer may be reset to zero by turning stem to. the right This
instrument may be used to 1TI<\':!1 .. aPC~rately record trip mileages 'or kilometers .
Fuel Gage
The fuel gage will register the APPROXIMATE fuel level in the tank. when the
ignition is in the
RUN position .
When the
gage registers EMPTY. some fuel is still available as a reserve .
When the gage registers FULL. some
additional fuel can still be added to the
tank. The following conditions maybe considered normal:
•
Gas station pump may shut off before fuel gage indicates FULL
• Amount of gasoline reqUired ior fill~up may not exaclly correspond to gage.
• Needle
may not move awa y from FULL until some time aiter fill·up .
• Needle
may move during turns. stops and accelerations.
When the ignition switch is turned to the OFF position, the needle will not
necessarily return all the way·to the EMPTY mark.
2·15

Downloaded from www.Manualslib.com manuals search engine ~

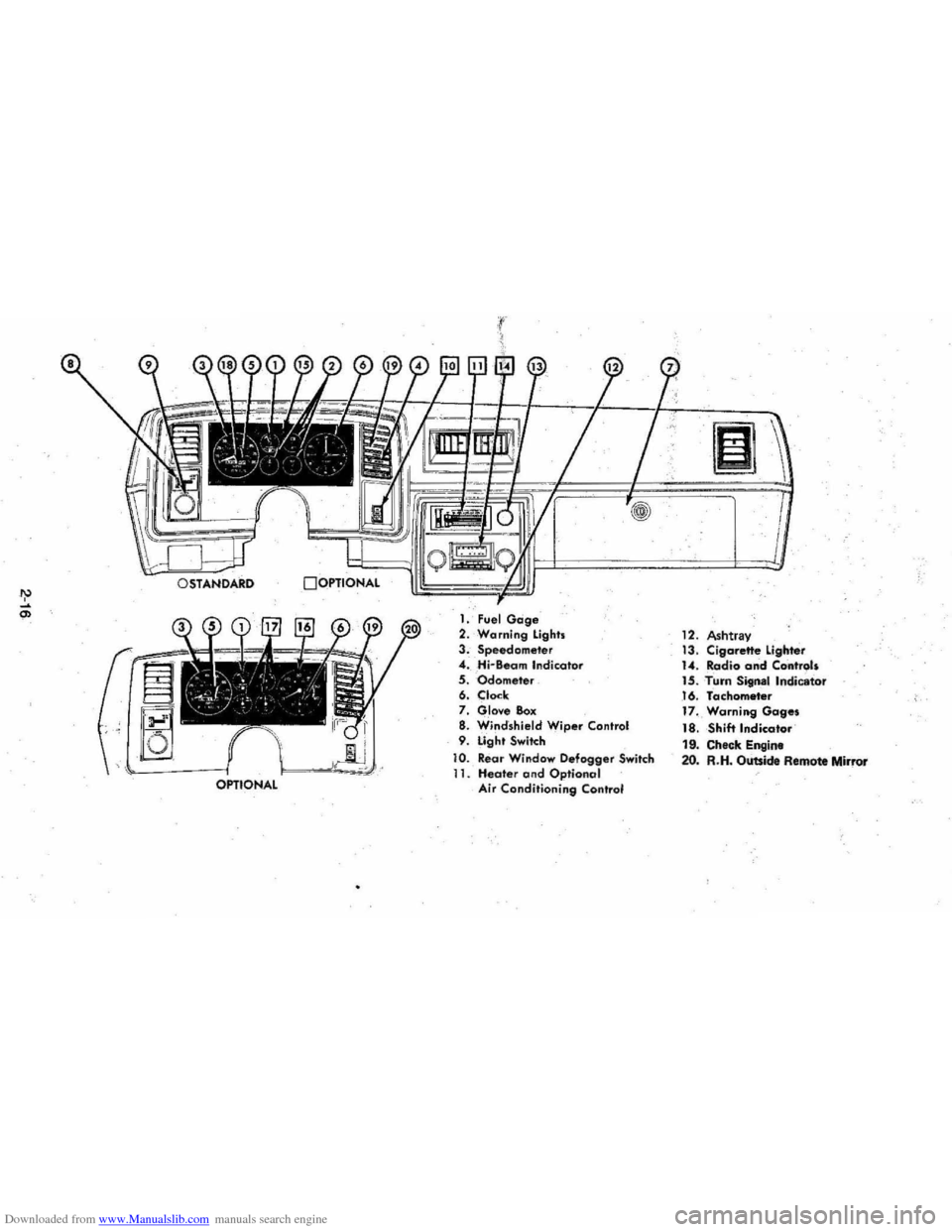

OSTANDARD OOPTIONAL
'"
OPTIONAL
r , ).
1. Fuel Gage 2. Warning Lights 3. Speedometer 4. Hi-Beam Indicotor 5, Odometer 6. Clock 7. Glove Box 8. Wind'shield Wip.r Control 9. Light Switch
10. Rea r Window Defogger Switch 11. Heater and Optionol Air Conditioning Control
m
12. Ashtray 13. Cigarette lighter U. Radio and Control. 1.5. Turn Signal Indicator 16. Tachometer 17, Warning Gages
18. Shift Indicator
19. Check Engine 20 . R.H . Outside Remote Mirror

Downloaded from www.Manualslib.com manuals search engine Oil! Choke Indicator Light
This light will come on to prov~ a "bulb check", when the ignition is turnee
on, but should go out after the engine is startee. If light fails to come on with
ignition turnee on,
it could indicate a bumee -out bulb , a defective electric
choke heater circuit or a
blown instrument lamp fuse. Have system repairee if
light
does not come on during check.
Occasionally, this light may flicker . momentarily while the engine is running but
this will· not harm ,the ' system. However, if the ,light remains on during normal
engine operation , the engine shoutd be stopped until the cause of the
trouble can be Iocatee .andcorrectee. The source of the troubte could be any of the following.
•
Loss of engine oil pressure.
• Blown "Choke Heater" or Gage fuse.
• Loss of electric choke heater vo~age.
NOTICE: Continuing to run the engine with an illuminated oil/choke pressure light can cause serious damage to the engine or unusually high exhaust system temp*'ratures which could resuh in serious d8mage to the vehicte.
Choke Warning Indicator Light
On some vehicles equippec with tlie optional .Oil pressure gage, an amber
choke warning indicator
-light replaces the red oil pressure ' indicator light in the
instrument cluster. If this light comes on, indicating loss of electric choke
heater voltage , have your authorizee
Oealer locate and correct the trouble as
soon as possible.
Generator Indicator Light
The red .light VOLT is designee to come on when the ignition.key is in the "run " pos~ion,bul t>efiJrethe 'engine;;, startee. After the engine starts, the
light should go out and remain oul.
H the light remains on when engine is
running , have your Authorized Dealer locate and correct ' the trouble as soon as
possible .
Engine Temperature Indicator Light
This indicator light is providee .in the instrument cluster to. quickly warn of an
overheated engine. 'With the ignition in the START position, the ree TEMP
indicator (hot light) will light to
let you know that it is operating properly.
When the engine is starlee,
the ree light will go out immediately. tt will light up
at no other time unless for some
reason the engine reaches a dangerously
high operating temperature. Glance .at the instrument cluster freqtJentiyas you
drive, if this light is on see
"Engine Cooing System" on page 3,3.
Brake System Warning Light
The regular braking system is a dual system designee so that one part will
provide some braking action
n there is a loss of hydraulic pressure in the other
part of the system. The system has a "Brake" warning Ught Iocatee in the
instrument · panel.
• To serve as a reminder, the "6RAKE" light is designee to stay on when
the parking brake is not fully released and the ignition key is on.

Downloaded from www.Manualslib.com manuals search engine "
• The lighl is also designed to come oi, briefly during engine starting so you . can check that the bulb is okay .
• Have the system repaired ifth'e light .d~es· not .come on during engine
. starting or when th.e Parking brake is set.
•
This warning light does not do away with the heed for brake inspection and
maintenance. The brake fluid level must be checked regularly . See your
Maintenance
Schedule folder for other brake checks.
If the light 'comes on andstavson when the ignition key is on, after the brake pedal has been firmly pushed down, it may mean that there is somelhing
'
wrongwith I?"" of the br"kesyjitem.
What to do:
1. Check to see that the parking brake hec been released . If it has been ..
2. Pull off the road and stop carefully, And remember that:
" .• " Stopping ,distances may be longer.
•
You may have to push harder on the pedal.
•
The pedal may go down farther than normal.
3, Try out the brakes by starting and stopping on the road shoulder--then:
• If you judge it to be safe, drive cautiously at a safe speed to the .near,est dealer for ,repair, or
• Have vooicle t6w~ to the nearest dealer for repair.
Continued driving without getting necessary repairs could be dangerous .
"'''''''~''., ENGINE" LIGHT
All gasoline"~~gine VehiCles sold in ttwl,lnited States (aridsorne ' vehidle. sok:!
in Canada) have the Computer Command Control sYstem, (canadian owners
should
also ' read the Nole on the. inside front cover of this manual. )
If your vehicle has thElCoTP\Jter :,eommand:'ContrOI-system, ,a , "CHECK
ENGINE" light
on the instrument panel is designed to come on during engine
starting to let you know the bulb is working ; (The light will stay on a short time .
after
the engine starts,) If the light comes on while driving, service to the
Computer , Command
Control system may be required , Although. the. v.ehicle
may still be drivable, see , your Chevrolet dealer as soon as possible . for an inspection of the system , (Some vehicles sold in Canada, DO NOT HAVE the
Computer Command Controtsystem ,
ILyeur vehicle does not have a "Check
Engine " light, then it does not have the Computer Command Control system,)
Continued, driving without having the Computer Command Control system
serviced
could cause damegeto' the emission control system, It could also affect fuel economy and drivability, .
See also "Computer
Command Control' system" in "Service and Maintenance," Section: 5 of this manual.
Tachometer
The optional tachometer i. ndicates the speed of the engine in revolutions per
minute, The' indicated num,ber, times 100, gives the engine speed, Operating
the engine
with. the tachometer . reading .in the colQr-coded high-speed area could lead to seriOUS engine damage,

Downloaded from www.Manualslib.com manuals search engine When the ignition key is turned to the OFF position, the pointer may nO\". necessarily return to the 0 RPM position. For the tachometer to regster 0 RPM .
the key
must be in the RUN position and engine not running.
Engine Temperature Gage
This gage indicates coolant temperature which will vary with air temperature
and operating
cond~ions. The ignition must be on for accurate readings. Hard
driving
or prolonged idling in very hot weather will cause the pointer to move
beyond the center of the band. Should pcinter move to the line at the "H" end
of the band , see "Engine Cooling
System" on page 3-3.
Voltmeter
When the engine is operating, the voltmeter indicates the electrical system
voltage. During minimum electrical load, the pointer will read
to the right of the
center. As the electrical load is
increaSed, or in stop-and-go driving, the pointer
will rotate to the
left . A meter reading continuously in the left or right red zone
indicates an electrical system failure. Cause of the failure should be determined
and corrected.
Oil Pressure Gage
The oil pressure gage indicates the pressure at which oil is being delivered to
the various parts of the engine requiring lubrication. Pressures registered by the gage may vary according to outside air temperatures or weight of oil being
used. Oil pressure
of a cold engine being operated at a given speed will be
somewhat higher than when the engine is at normal operating temperature at
the same speed. Prolonged high speed operation on a hot day at the given
speed will result
in somewhat lower oil pressure readings. Readings of 205 to
275 kPa (30 to 40 psi) may be considered normal during moderate road
speeds of 35 to 40 mph (55 to 60 km/h) with the engine at proper operating
temperature . Gage readi'rig;rwhich are ·consistently high or low under these
conditions may indicate lubrication system and/or engine malfunction.
Windshield Wiper and Washer
The windshield wiping system operates at two speeds and is designed to wipe
clear
specijic areas of the windshield under most inclement weather conditions.
The windshield wipers work electrically and are not affected by engine
operation .
Push the control lever to the right to start
the electric windshield wiper. The
two-speed electric wiper has both a "low " and a "high " speed position .
2-19

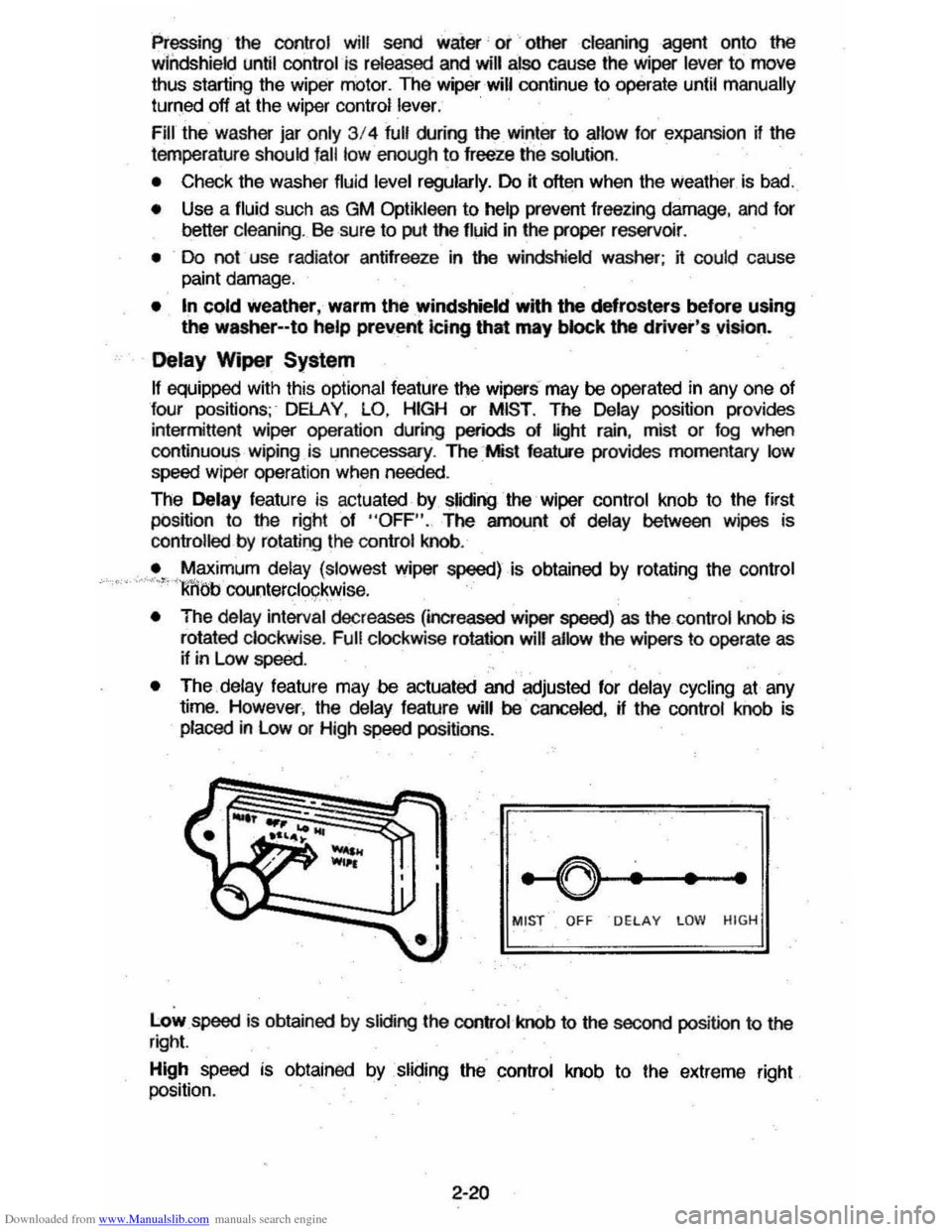

Downloaded from www.Manualslib.com manuals search engine Pressing the control will send waier' or 'other cleaning agent onto the
wlildshield until control is released and will also cause the wiper lever to move
thus starting the wiper mOtOL The wiper will continue to operate until manually
turned off at the wiper
control lever.
Fill the washer jar only 3/4 full during the winter to allow for expanson iI the
temperature
should fall low enough to freeze the solution.
• Check the washer fluid level regularly. Do it ofIen when the weattier . is bad.
• Use a fluid such as GM Optikleen to help prevent freezing damage, and for
better cleaning . Be sure to put the fluid in the proper reservoiL
• Do not use radiator antifreeze in the windshield washer; it could cause
paint damage.
• In cQld weather, warm the windshield with the defrosters before using the wesher--to help prevent Icing that may block the driver's vision.
Delay Wiper System
If equipped with this optional feature the wipers may be operated in anyone of
four positions;
DELAY , LO, HIGH or MIST . The Delay position provides
intermittent wiper operation during periods of light rain, mist or fog when
continuous Wiping.
is unnecessary . The 'Mist feallJe provides momentary low
speed wiper operation when needed .
The
Delay feature is actuated by sliding the wiper control knob to the first pOsition to the right of "OFF" .. The amount of delay between wipes is controlled by rotating the control knob .
.• , Maximum delay (slowest wiper speed) is obtained by rotating the control " .. ",. 'l •
The delay interval decreases (increased wiper speed) as the control knob is rotated clockwise. Full clockwise rotation will allow the wipers to operate as if in Low speed.
• The delay feature may be actuated and adjusted for delay cycling at any
time. However , the delay feature will be canceled, ij the control knob is
placed in Low or High speed positions,
MIST OFF DELAY LOW HIGH
Low speed is obtained by sliding the control knob to the second position to the right.
High speed is obtained by sliding the control knob to the extreme right position.
2-20

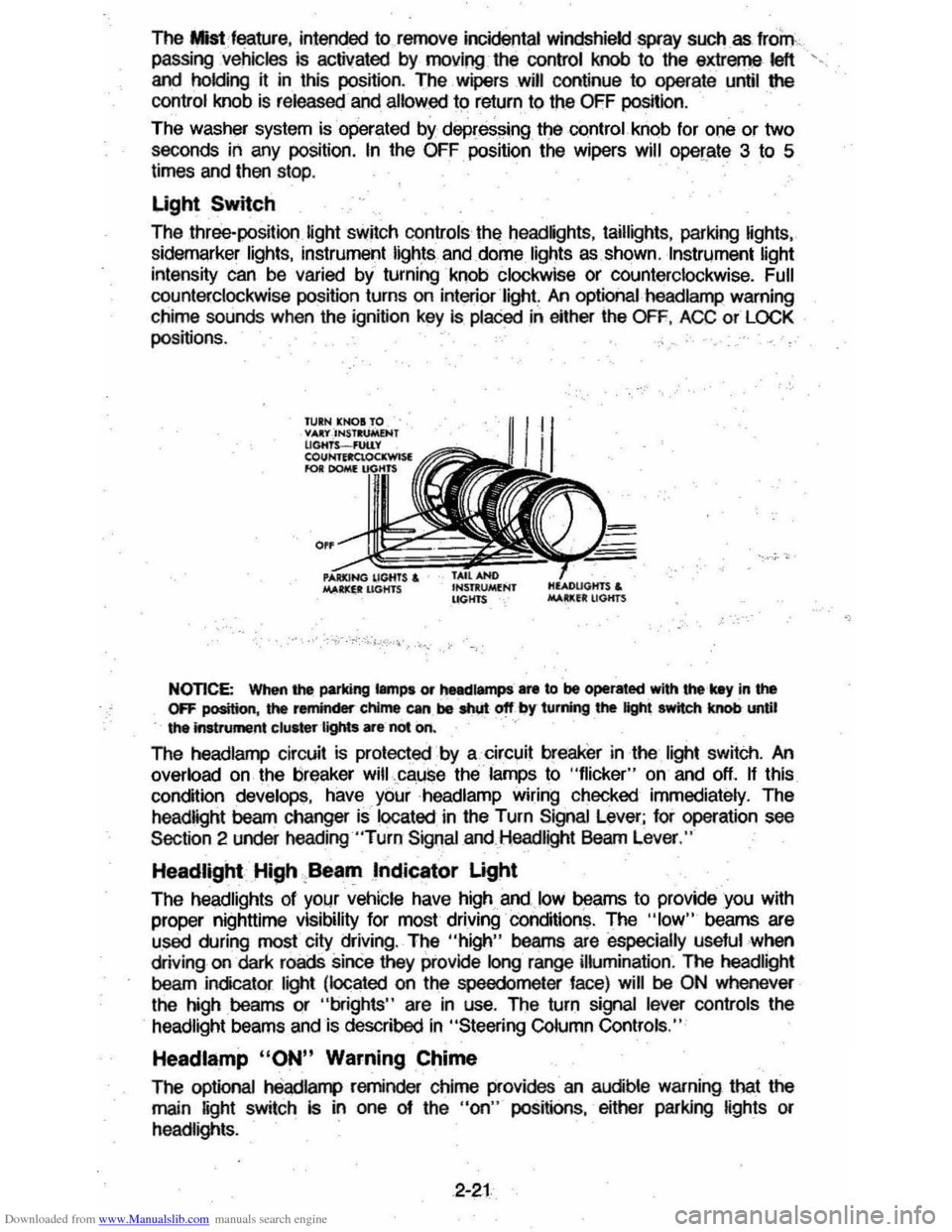

Downloaded from www.Manualslib.com manuals search engine The Mist feature, intended to remove incidental windshield spray such as from."
passing vehicles is activated by moving the control knob to the extreme left ,­
and holding it in this posnion. The wipers will continue to operate until tile
control knob is released and allowed to return to the OFF position . .
The washer system is operated by depressing the control knob for one or two
seconds in any position.
In the OFF position the wipers will oper,ate 3 to 5
times and then stop .
Ught Switch
The three-position light switch controls the headlights, taillights, parking ~ghts, sidemarker lights, instrument lights. and dome lights as shown. Instrument light
intensity can
be varied by turning knob clockwise or counterclockwise. Full
counterclockwise position turns on interior light An optional head lamp warning
chime sounds when the ignition key is. placed in either the OFF, ACC or LOCK
positions. , ....
. ,-"",,.
NOTICE: When the parking lamps or t)Hd1ampS .... to be operated with the key in the OFF position, the reminder-chime can be shUt-Of' by turning the light switch knob until the instrument elu.1er Ifghts are not on. '
The headlarnp circuit is protected by a circuit breaker in the light switch. An
overload on the breaker will,cau$e the lamps to "flicker" on and off. If this
condnion develops , have your ·headlamp wiring checked immediately. The
headlight beam changer is located in the Turn Signal Lever; for operation see
Section 2 under heading "Turo Signal and Headlight Beam Lever."
Headlight High ,Beam Indicator Ught
The he!).dlights of your vehicle have high and ... loW beams to provide you with
proper nighttime visibility for most driving condnions. The "low" beams are
used during most city driving . The
"high" beams are especially useful when
driving on dark roads sinCe they provide long range illumination . The headlight
beam indicator light (located on the speedometer face) will be
ON whenever
the high beams or "brights " are in use. The turn signal l headlight beams and is described in "Steering Column Controls ."
Headlamp "ON" Warning Chime
The optional headlarrl> reminder chime provides' an audible warning thai the
main
light switch is in one 0/ the "on" posnions, either parking lights or
headlights. .
2-21
