Page 11 of 588
Black plate (5,1)Chevrolet Silverado Owner Manual - 2011
In Brief 1-5
2NOTES
Page 12 of 588
Black plate (6,1)Chevrolet Silverado Owner Manual - 2011
1-6 In Brief

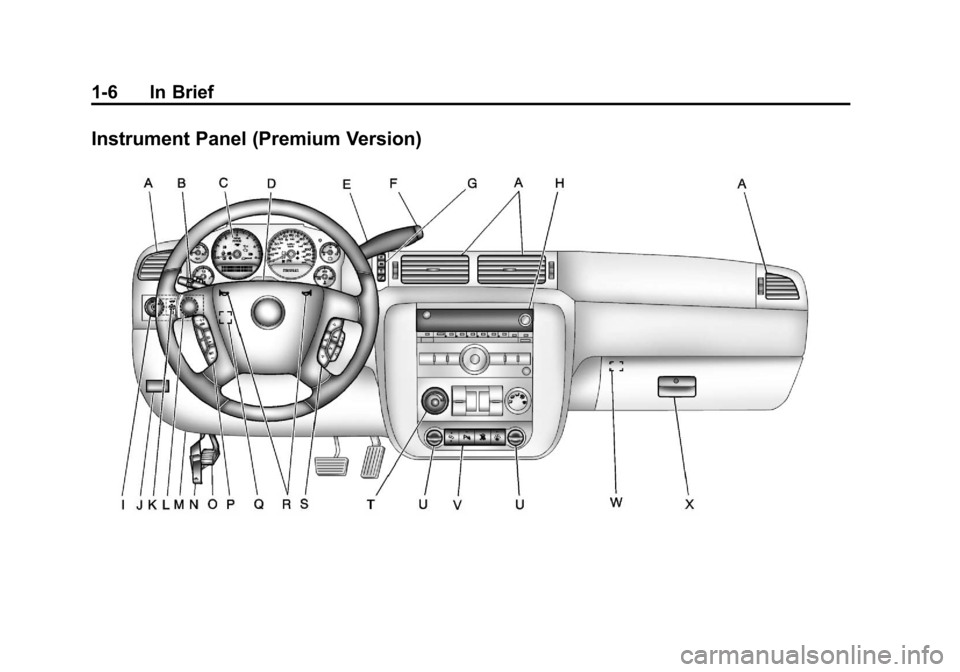

Instrument Panel (Premium Version)
Page 13 of 588
Black plate (7,1)Chevrolet Silverado Owner Manual - 2011
In Brief 1-7
A.Air Vents on page 8‑11.
B. Turn and Lane-Change Signals
on page 6‑6.
Windshield Wiper/Washer
on
page 5‑5.
C. Instrument Cluster
on
page 5‑13.
D. Hazard Warning Flashers
on
page 6‑5.
E. Shift Lever. See Automatic
Transmission on page 9‑43.
F. Tow/Haul Mode
on page 9‑49(If Equipped).
G. Driver Information Center (DIC) Buttons. See Driver Information
Center (DIC) on page 5‑34.
H. AM-FM Radio on page 7‑8.
I. Exterior Lamp Controls
on
page 6‑1.
J. Integrated Trailer Brake Controller (If Equipped).
See Trailer Towing
on
page 9‑94. K.
Dome Lamps
on page 6‑8.
L. Automatic Transfer Case Control. (If Equipped).
See Four-Wheel Drive
on
page 10‑32.
M. Data Link Connector (DLC). See Malfunction Indicator Lamp
on page 5‑27.
N. Hood on page 10‑5.
O. Parking Brake on page 9‑68.
P. Cruise Control on page 9‑73.
Q. Steering Wheel Adjustment
on
page 5‑2.
R. Horn on page 5‑5.
S. Steering Wheel Controls
on
page 5‑3.
T. Climate Control Systems (with
Air Conditioning)
on page 8‑1orClimate Control Systems
(with Heater Only)on
page 8‑4(If equipped).
Dual Automatic Climate
Control System
on page 8‑5(If Equipped). U.
Power Outlets on page 5‑10.
Cigarette Lighter (If Equipped).
See Ashtrays
on page 5‑12andCigarette Lighteron
page 5‑11.
V. StabiliTrak
®Systemon
page 9‑70(If Equipped).
Pedal Adjust Button
(If Equipped). See Adjustable
Throttle and Brake Pedal
on
page 9‑32.
Ultrasonic Parking Assist
on
page 9‑76(If Equipped).
Exhaust Brake (If Equipped).
See "Brakes" in the Duramax
Diesel Supplement.
W. Passenger Airbag Off Control (If Equipped). See Airbag
On-Off Switch on page 3‑39.
X. Glove Box on page 4‑1.
Page 14 of 588
Black plate (8,1)Chevrolet Silverado Owner Manual - 2011
1-8 In Brief

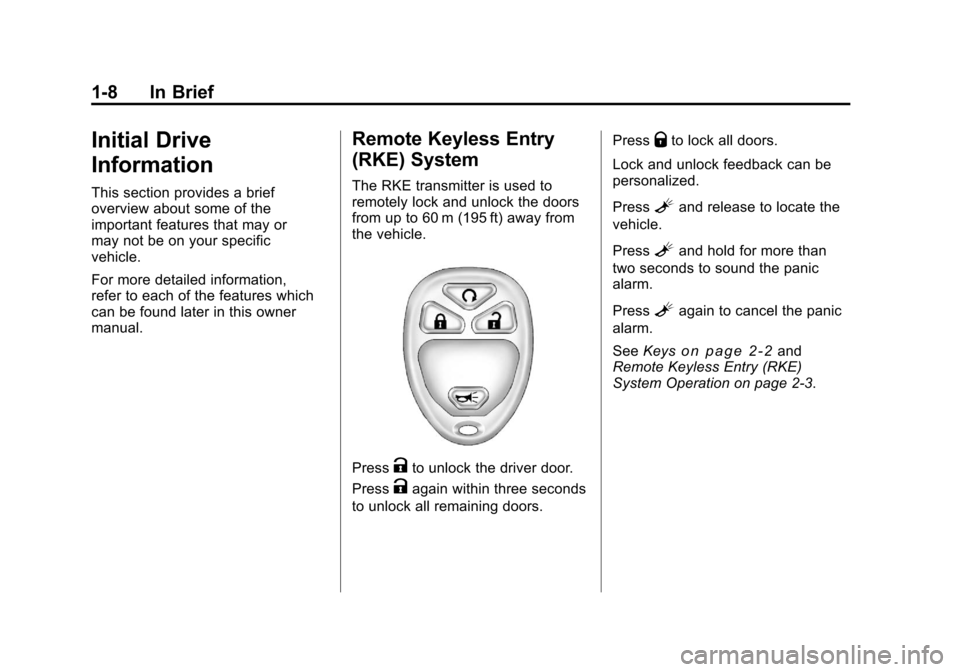

Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or
may not be on your specific
vehicle.
For more detailed information,
refer to each of the features which
can be found later in this owner
manual.
Remote Keyless Entry
(RKE) System
The RKE transmitter is used to
remotely lock and unlock the doors
from up to 60 m (195 ft) away from
the vehicle.
PressKto unlock the driver door.
Press
Kagain within three seconds
to unlock all remaining doors. Press
Qto lock all doors.
Lock and unlock feedback can be
personalized.
Press
Land release to locate the
vehicle.
Press
Land hold for more than
two seconds to sound the panic
alarm.
Press
Lagain to cancel the panic
alarm.
See Keys
on page 2‑2and
Remote Keyless Entry (RKE)
System Operation on page 2‑3.
Page 15 of 588
Black plate (9,1)Chevrolet Silverado Owner Manual - 2011
In Brief 1-9
Remote Vehicle Start
With this feature the engine can be
started from outside of the vehicle.
Starting the Vehicle
1. Aim the RKE transmitter at thevehicle.
2. Press
Q.
3. Immediately after completing Step 2, press and hold
/until
the turn signal lamps flash.
When the vehicle starts, the parking
lamps will turn on and remain on
as long as the engine is running.
The doors will be locked and the
climate control system may
come on. The engine will continue to run for
10 minutes. Repeat the steps for a
10-minute time extension. Remote
start can be extended only once.
Canceling a Remote Start
To cancel a remote start:
.Aim the RKE transmitter at
the vehicle and press and
hold
/until the parking lamps
turn off.
.Turn on the hazard warning
flashers.
.Turn the ignition on and then
back off.
See Remote Vehicle Start
on
page 2‑5.
Door Locks
There are several ways to lock and
unlock the vehicle.
From outside, use the Remote
Keyless Entry (RKE) transmitter
or the key in the driver door. From
inside, use the power door locks or
the manual door locks. To lock or
unlock the door with the manual
locks, push down or pull up on
the manual lock knob.
Power Door Locks
If available, these switches are
located on the front doors.
K: Press to unlock the doors.
Q:Remove the key from the
ignition and press to lock the doors.
For more information, see:
.Automatic Door Lockson
page 2‑9.
.Safety Locks on page 2‑9.
Page 16 of 588
Black plate (10,1)Chevrolet Silverado Owner Manual - 2011
1-10 In Brief
Windows
Turn the hand crank on each door
to manually raise or lower the
manual windows.
Power Windows
Crew Cab Shown
If available, the power window
switches are located on each of the
side doors in the front and rear. The driver door has a switch for
the passenger window and rear
windows.
Press the switch to lower the
window. Pull the switch up to
raise it.
For more information, see:
.Windows on page 2‑20.
.Power Windows on page 2‑20.
Power Sliding Rear Window
On vehicles with a power sliding
rear window, the switch is located
in the overhead console. See
Rear
Windows on page 2‑21.
The power sliding rear window
cannot be operated manually. Push
or pull the switch to open or close
the window.
Page 17 of 588
Black plate (11,1)Chevrolet Silverado Owner Manual - 2011
In Brief 1-11
Seat Adjustment
Front Seats
Manual Seats
On vehicles with a manual seat, it
can be moved forward or rearward.
1. Lift the bar to unlock the seat.
2. Slide the seat to the desiredposition and release the bar. Try to move the seat with your body
to be sure the seat is locked in
place.
See
Seat Adjustment
on page 3‑3for more information.
Power Seats
On vehicles with power seats, the
controls are on the outboard side of
the front seats. Move the seat forward or rearward
by sliding the control forward or
rearward.
Raise or lower the front or rear part
of the cushion by moving the front
or rear part of the control up
or down.
Raise or lower the entire seat by
moving the entire control up
or down.
See
Power Seat Adjustment
on
page 3‑5for more information.
Page 18 of 588
Black plate (12,1)Chevrolet Silverado Owner Manual - 2011
1-12 In Brief
Manual Lumbar
On vehicles with manual lumbar,
the knob is on the outboard side of
the seat.
Increase or decrease lumbar
support by turning the knob forward
or rearward.
SeeLumbar Adjustment
on
page 3‑7for more information. Power Lumbar
On vehicles with power lumbar, the
control is on the outboard side of
the seat.
On vehicles with two-way lumbar,
press and hold the top of the
control to increase lumbar support.
To decrease, press and hold the
bottom of the control.
On vehicles with four-way lumbar,
press and hold the front of the
control to increase lumbar support.
To decrease, press and hold the
rear of the control. To raise the
height of the support, press and
hold the top of the control. To lower,
press and hold the bottom of the
control.
See
Lumbar Adjustment
on
page 3‑7for more information.
Page 19 of 588
Black plate (13,1)Chevrolet Silverado Owner Manual - 2011
In Brief 1-13
Manual Reclining Seatbacks
On vehicles with manual reclining
seatbacks, the lever is on the
outboard side of the seat.
To recline the seatback:
1. Lift the recline lever.
2. Move the seatback to thedesired position, then release
the lever to lock the seatback
in place.
3. Push and pull on the seatback to make sure it is locked. See
Reclining Seatbacks
on
page 3‑9for more information.
Power Reclining Seatbacks
On vehicles with power reclining
seatbacks, the control is on the
outboard side of the seat.
To recline the seatback, tilt the top
of the control rearward.
To bring the seatback forward, tilt
the top of the control forward.
See Reclining Seatbacks
on
page 3‑9for more information.
Memory Features
On vehicles with the memory
feature, the controls on the driver
door are used to program and recall
memory settings for the driver seat,
outside mirrors, and the adjustable
throttle and brake pedals, if the
vehicle has this feature.
Page 20 of 588
Black plate (14,1)Chevrolet Silverado Owner Manual - 2011
1-14 In Brief
Storing Memory Positions
To save into memory:
1. Adjust the driver seat andseatback recliner, both outside
mirrors, and the throttle and
brake pedals, if available.
See Power Mirrors
on
page 2‑16and Adjustable
Throttle and Brake Pedalon
page 9‑32for more information.
Not all mirrors and adjustable
throttles and brake pedals will
have the ability to save and
recall their positions.
2. Press and hold “1”until
two beeps sound.
3. Repeat for a second driver position using “2.”
To recall the memory positions,
press and release “1”or“2.” The
vehicle must be in P (Park). A single
beep will sound. The seat, outside mirrors, and adjustable throttle and
brake pedals, if available, will move
to the position previously stored for
the identified driver.
See
“Memory Seat, Mirrors,
and Pedals” underPower Seat
Adjustment
on page 3‑5and
Vehicle Personalization (with DIC
Buttons)
on page 5‑53for more
information.
Easy Exit Driver Seat
The easy exit driver seat feature
can move the seat rearward to allow
extra room to exit the vehicle.
B: Press to recall the easy exit
seat position. The vehicle must be
in P (Park).
See “Memory Seat, Mirrors,
and Pedals” underPower Seat
Adjustment
on page 3‑5and
Vehicle Personalization (with DIC
Buttons)
on page 5‑53for more
information.
Heated Seats
On vehicles with heated front seats,
the controls are located on the
driver and passenger doors.
I: Press to heat the
seatback only.
J: Press to heat the seat and
seatback.
The light on the button will come
on to indicate that the feature is
working. Press the button to cycle
through the temperature settings of
high, medium, and low and to turn
the heat to the seat off. Indicator
lights will show the level of heat
selected: three for high, two for
medium, and one for low.
See Heated Front Seats
on
page 3‑11.
