Page 11 of 486

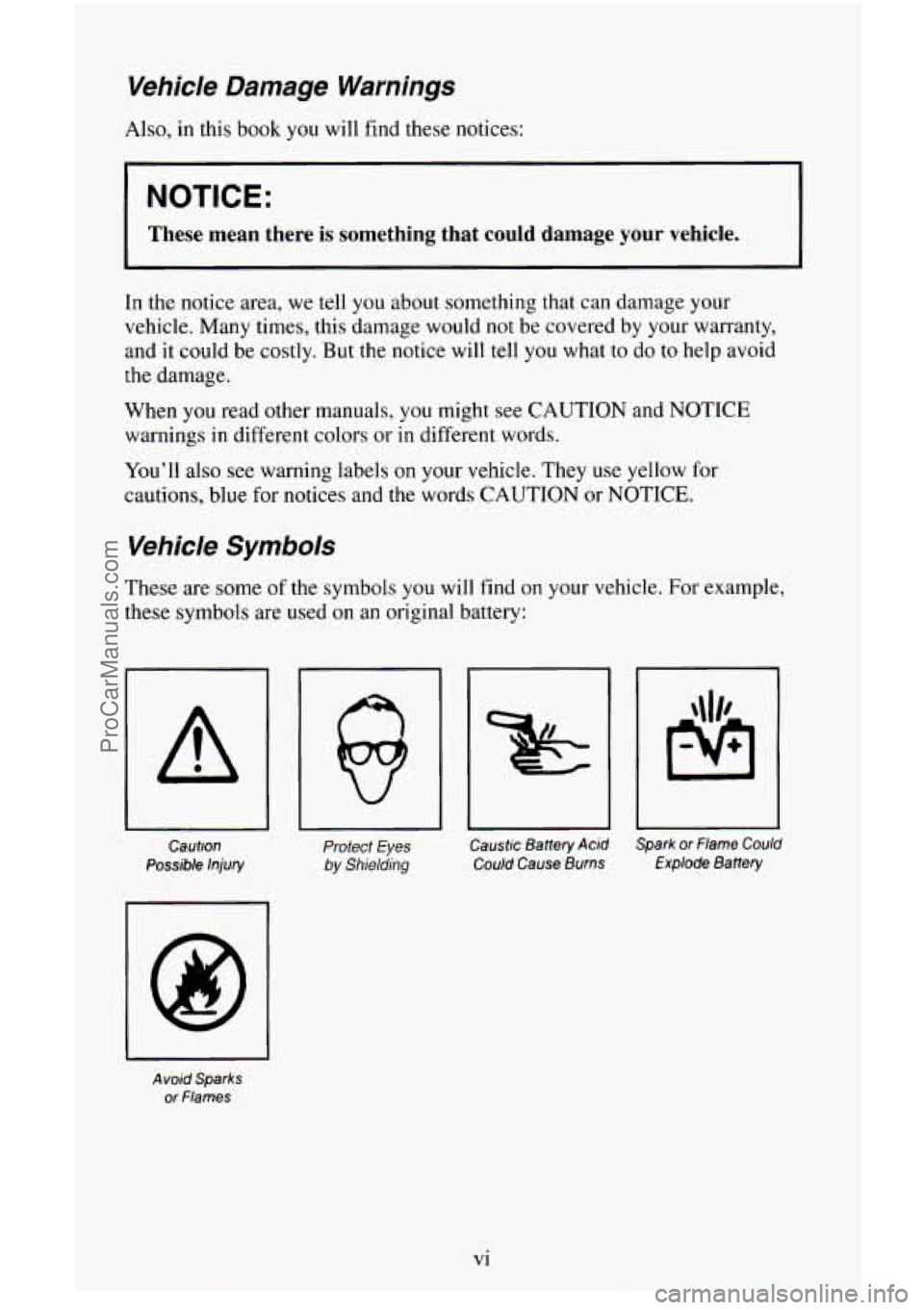

Vehicle Damage Warnings
Also, in this book you will find these notices:
NOTICE:
I These mean there is something that could damage your vehicle.
In the notice area, we tell you about something that can damage your
vehicle. Many times, this damage would
not be covered by your warranty,
and it could be costly. But the notice will
tell you what to do to help avoid
the damage.
When you read other manuals, you might
see CAUTION and NOTICE
warnings in different colors or
in different words.
You'll also see warning labels on your vehicle. They use yellow for
cautions, blue for notices and the words CAUTION or NOTICE.
Vehicle Symbols
These are some of the symbols you will find on your vehicle. For example,
these symbols are used on an original battery:
Caution
Possible injury
Avoid
Sparks
or Flames
Protect Eyes Caustic Battery Acid Spark or Name Could
by Shielding Could Cause Burns fxpiode Battery
vi
ProCarManuals.com
Page 12 of 486

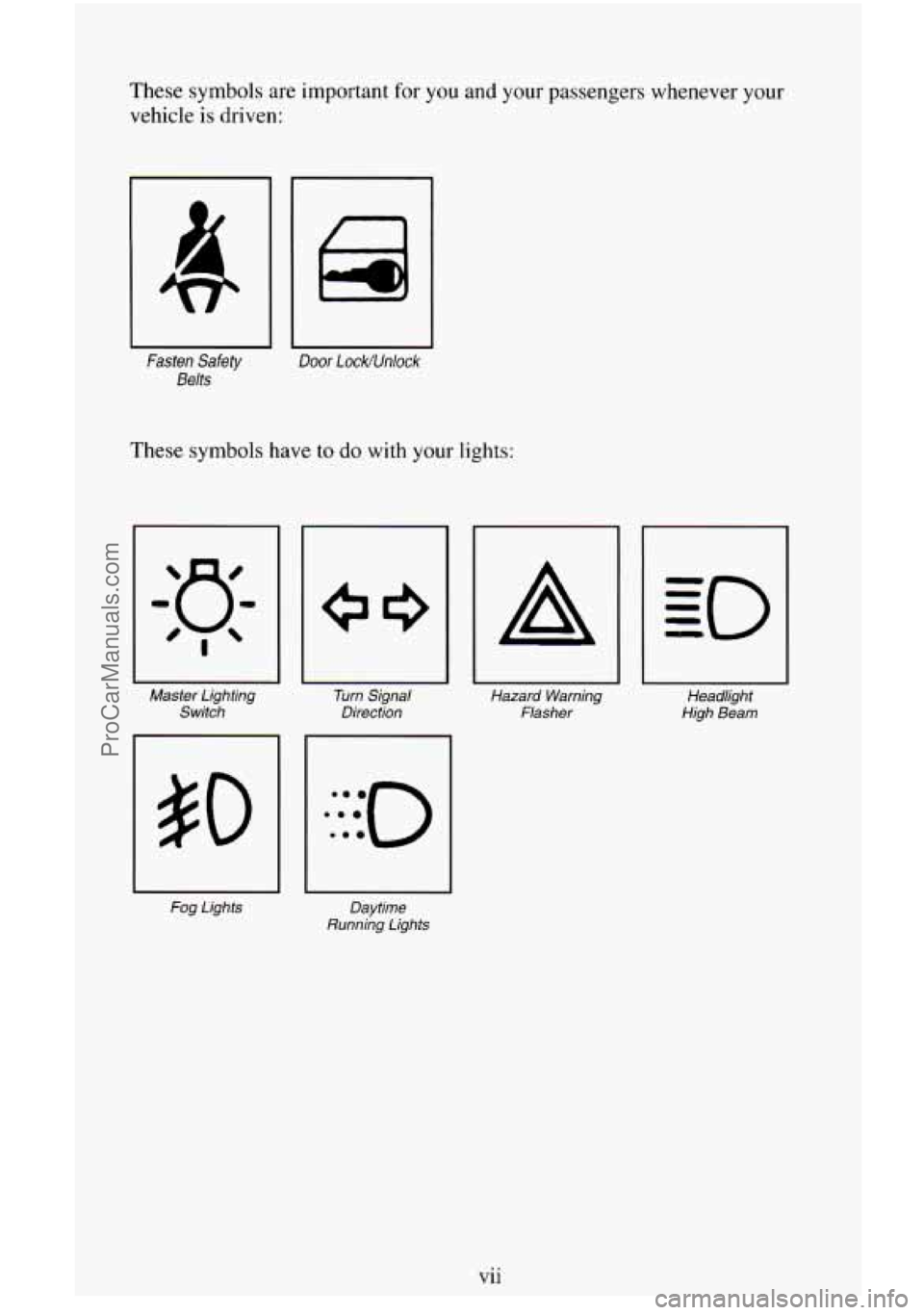

These symbols are important for you and your passengers whenever your
vehicle
is driven:
Fasten Safety Door LocWUnlock
Belts
These symbols have to do with your lights:
Master Lighting
Switch
-
Turn Signal Direction Hazard Warning
Flasher
Fog Lights Daytime
Running Lights
Vii
Headlight
High Beam
ProCarManuals.com
Page 13 of 486

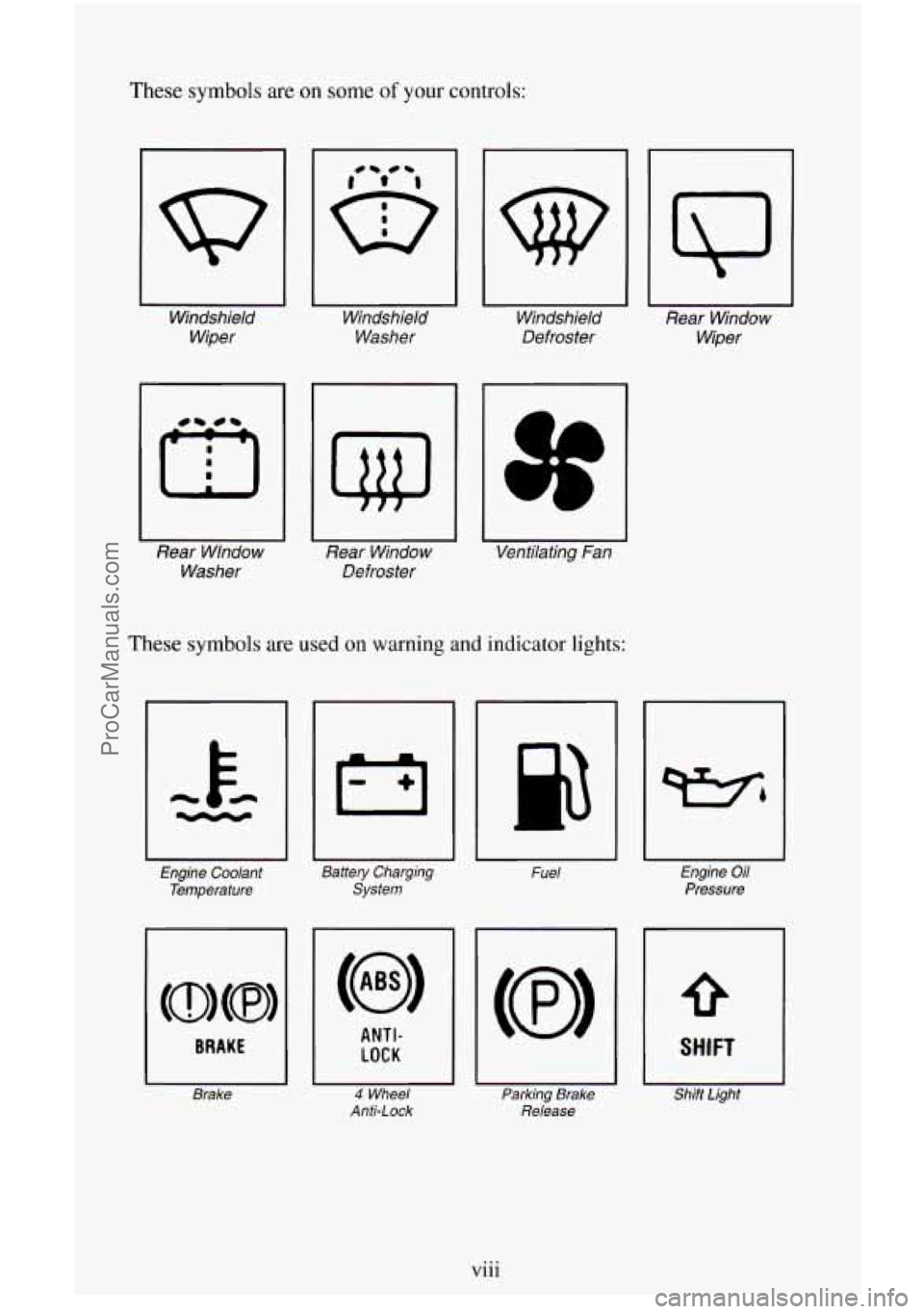

These symbols are on some of your controls:
I
Windshield
Wiper Windshield
Washer
Rear Wlndow Washer
I
Rear Window
Defroster
w
I
Windshield
Defroster
U
Ventilating Fan
These symbols are used on warning and indicator lights:
I -k 4cccy
Engine Coolant
Temperature
BRAKE
I Brake
I I
Battery Charging
System
ANTI-
I LOCK
I I 4 Wheel
Anti-Lock
Fuel
Parking Brake Release
I\J
Rear Window
Wiper
Engine Oil
Pressure
SHIFT
Shift Light
viii
. ~ .. ProCarManuals.com
Page 14 of 486

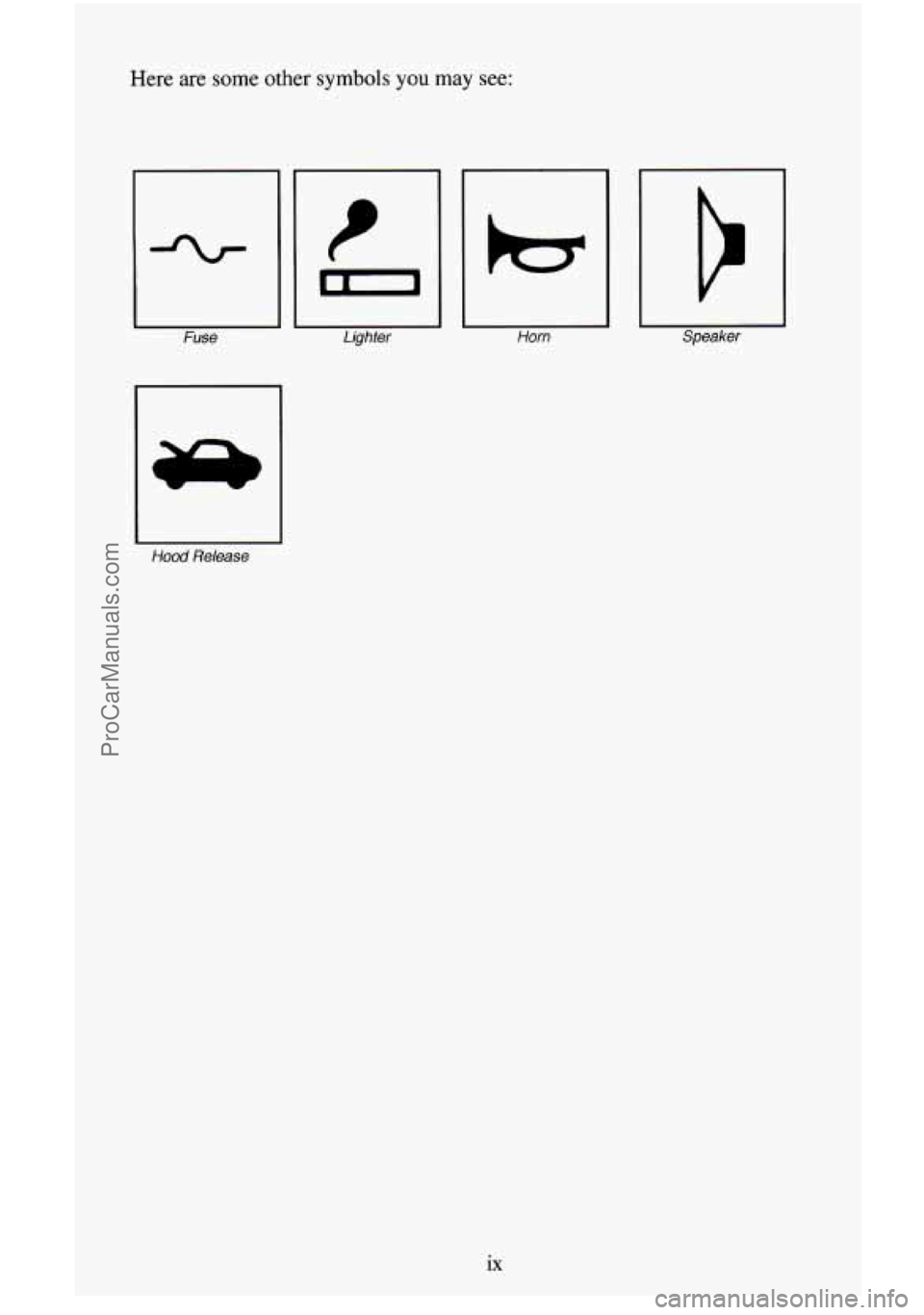

Here are some other symbols you may see:
H Fuse
El Hood Release Lighter
Horn Er Speaker
ix
ProCarManuals.com
Page 15 of 486

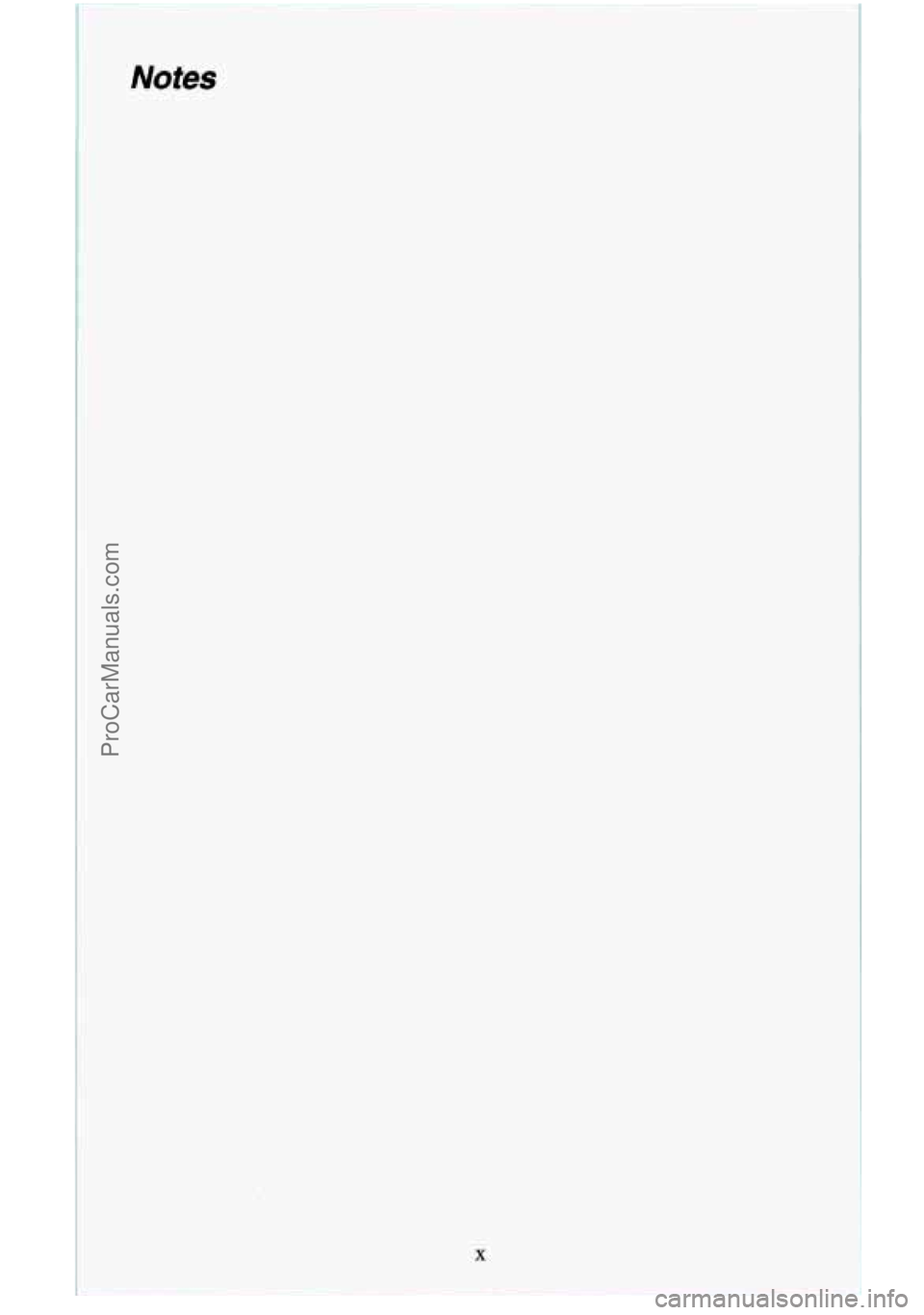

Notes
X
ProCarManuals.com
Page 16 of 486

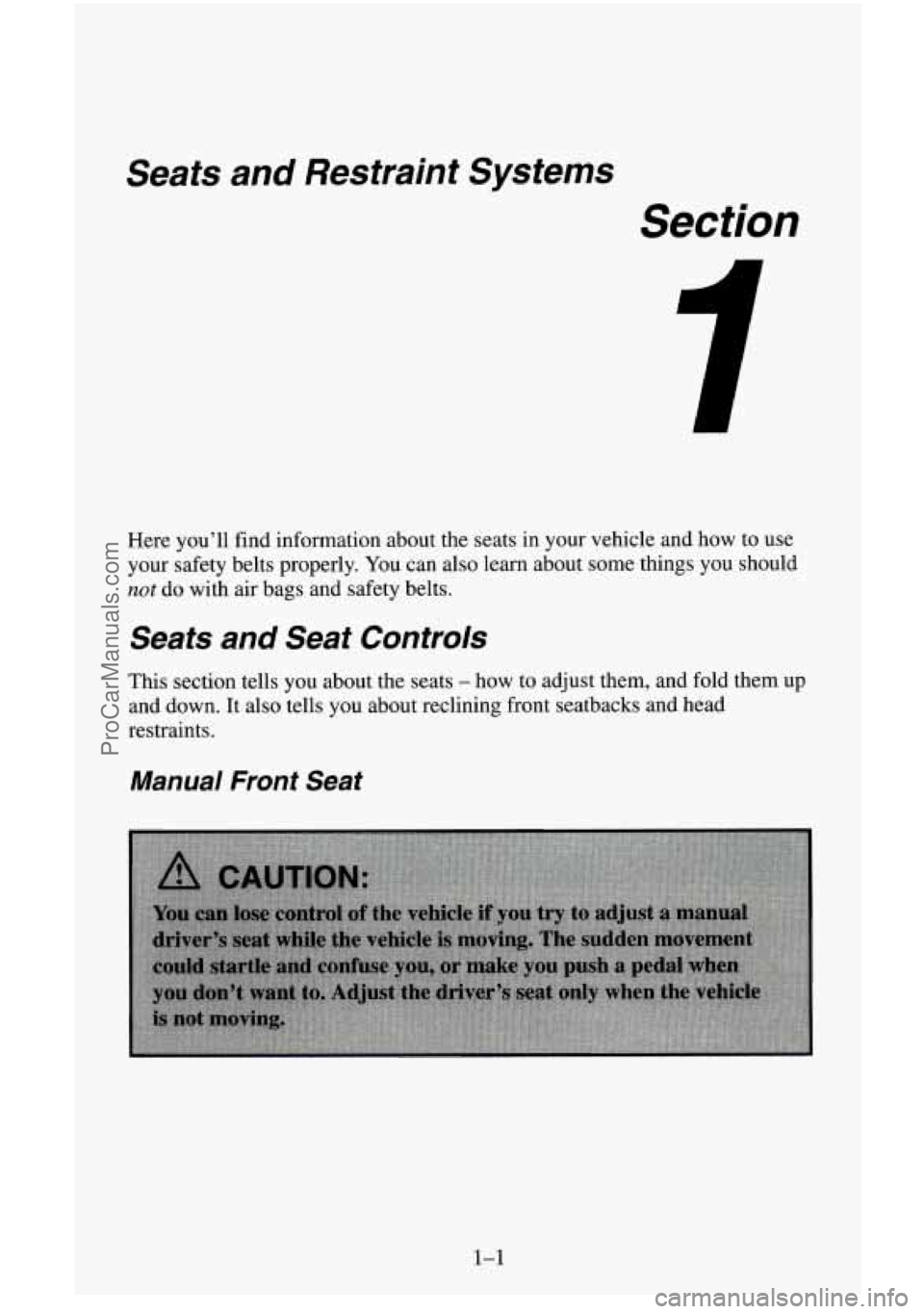

Seats and Restraint Systems
Section
Here you’ll find information about the seats in your vehicle and how to use
your safety belts properly. You can also learn about some things you should
not do with air bags and safety belts.
Seats and Seat Controls
This section tells you about the seats - how to adjust them, and fold them up
and down. It also tells you about reclining front seatbacks and head
restraints.
Manual Front Seat
1-1
ProCarManuals.com
Page 17 of 486

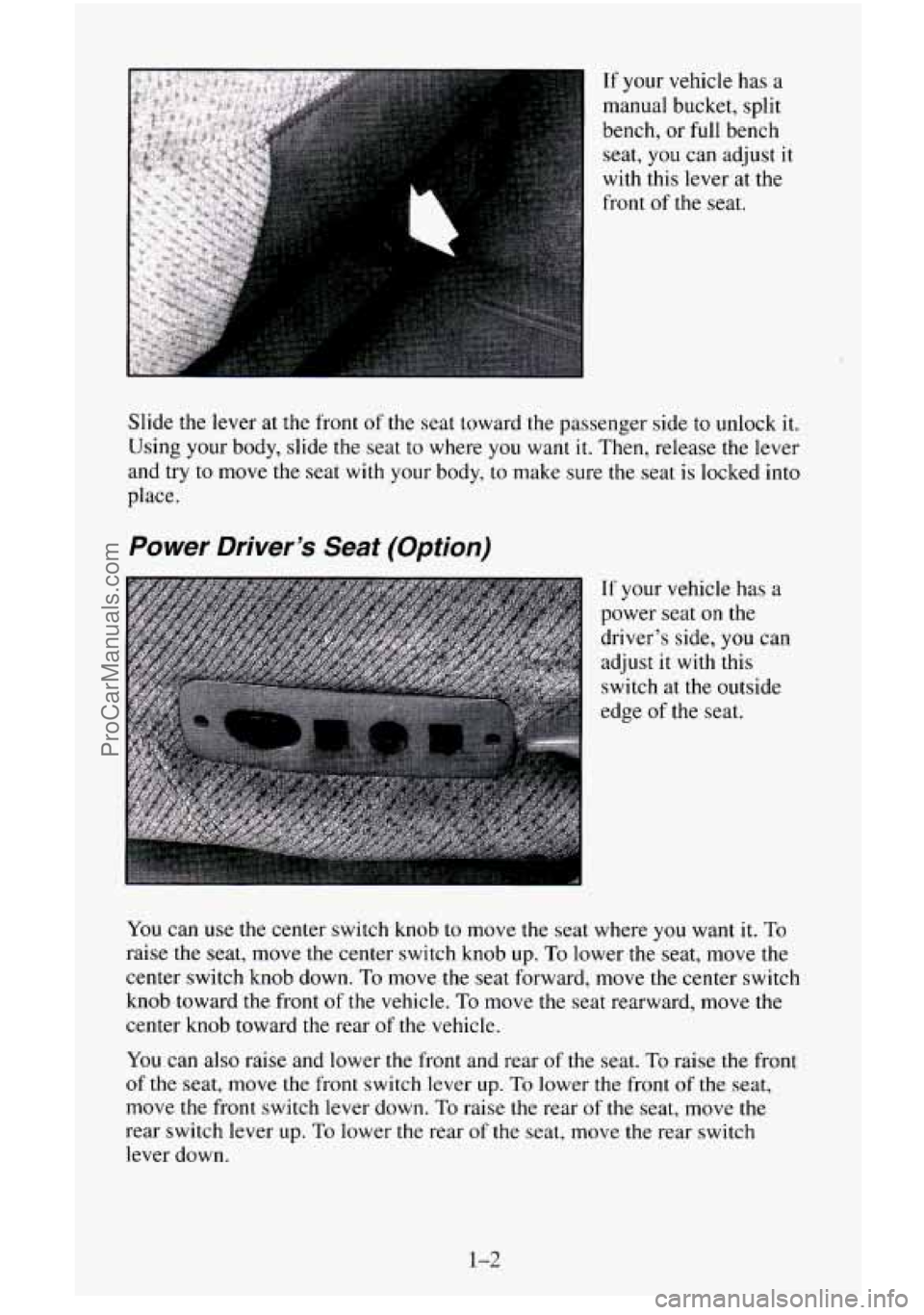

If your vehicle has a
manual bucket, split
bench, or
full bench
seat, you can adjust it
with this lever
at the
front of
the seat.
Slide the lever at the front
of the seat toward the passenger side to unlock it.
Using your body, slide the seat to where you want it. Then, release the lever
and try to move the seat with your body, to make sure the seat is locked into
place.
Power Driver’s Seat (Option)
If your vehicle has a
power seat
on the
driver’s side,
you can
adjust it with this
switch at the outside
edge of the seat.
You can use the center switch knob to move the seat where you want it. To
raise the seat, move the center switch knob up. To lower the seat, move the
center switch knob down.
To move the seat forward, move the center switch
knob toward the front of the vehicle. To move the seat rearward, move the
center knob toward
the rear of the vehicle.
You can also raise and lower the front and rear of the seat. To raise the front
of the seat, move the front switch lever up. To lower the front of the seat,
move the front switch lever down.
To raise the rear of the seat, move the
rear switch lever up.
To lower the rear of the seat, move the rear switch
lever down.
ProCarManuals.com
Page 18 of 486

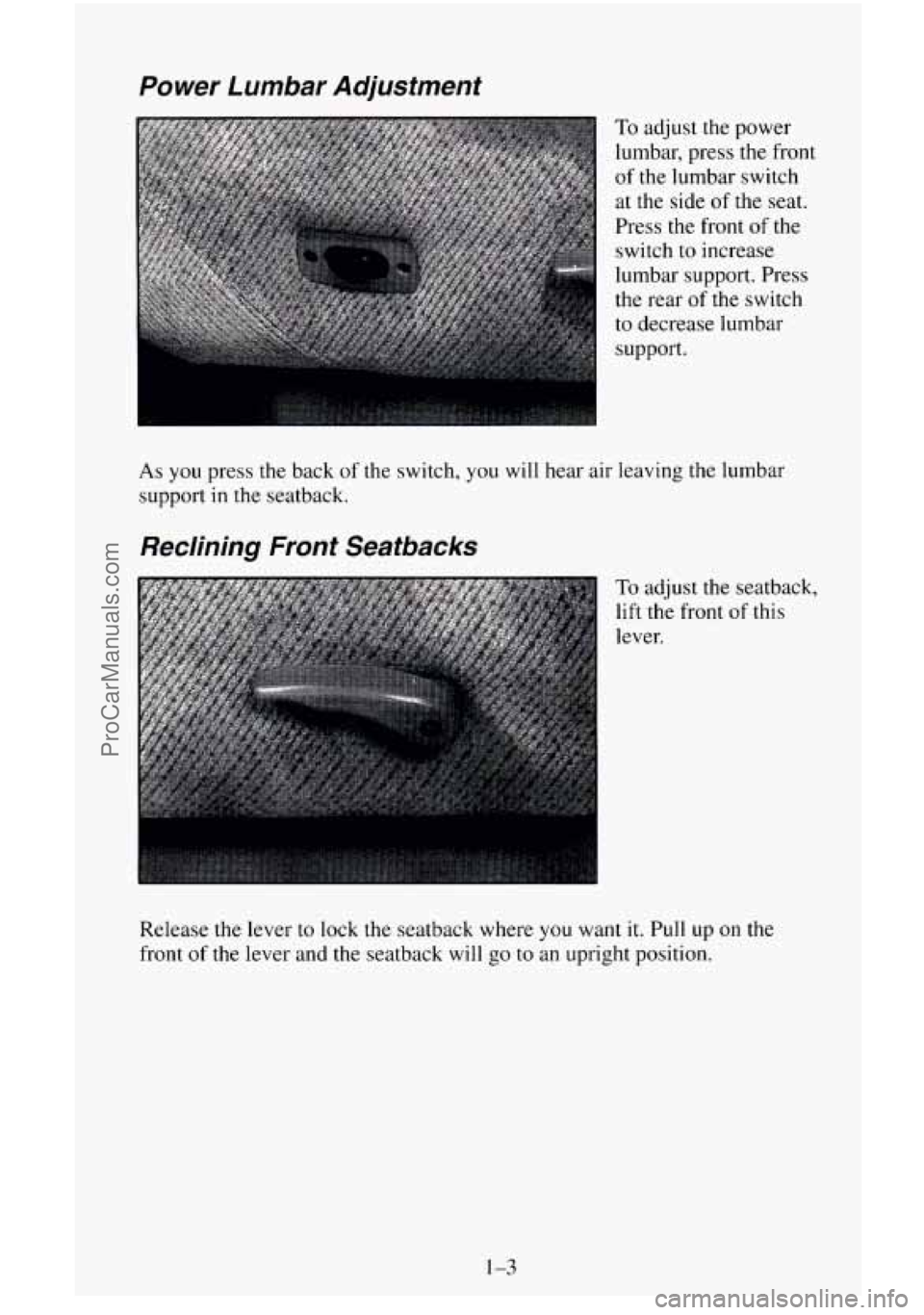

Power Lumbar Adjustment
C
To adjust the power
lumbar, press
the front
of the lumbar switch
at the side of the seat.
Press the front
of the
switch to increase
lumbar support. Press
the rear of the switch
to decrease lumbar
support.
As you press the back of the switch, you will hear air leaving the lumbar
support in the seatback.
Reclining Front Seatbacks
To adjust the seatback,
lift
the front of this
lever.
Release
the lever to lock the seatback where you want it. Pull up on the
front
of the lever and the seatback will go to an upright position.
ProCarManuals.com
Page 19 of 486
But don’t have a seatback reclined if your vehicle is moving.
Seatback Latches (All Except Base Level Bench Seat)
The front seatback folds forward to let you access the rear of the cab.
1-4
ProCarManuals.com
Page 20 of 486

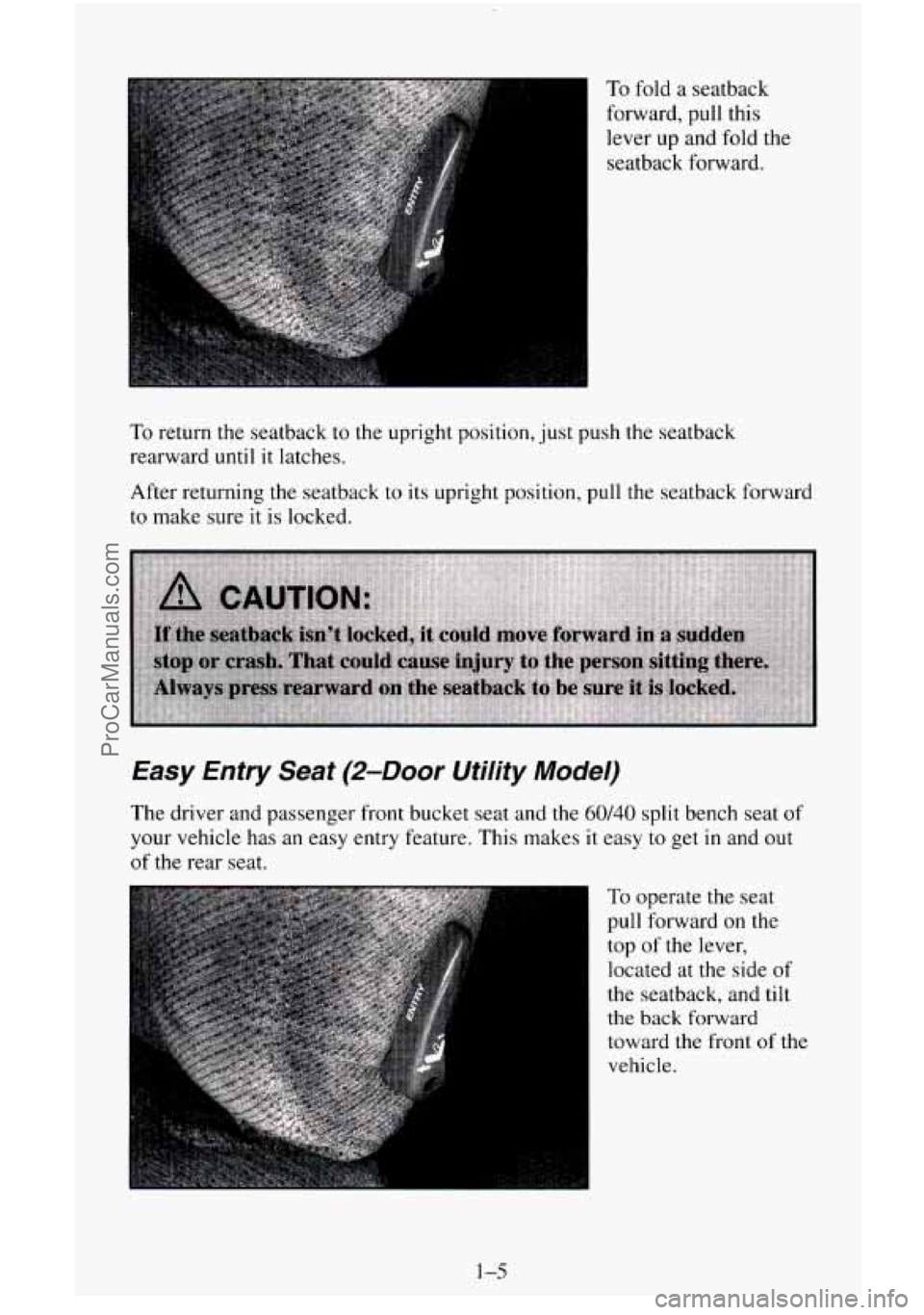

I To fold a seatback
, forward, pull this
~ lever up and fold the
i seatback forward.
~
To return the seatback to the upright position, just push the seatback
rearward
until it latches.
After returning
the seatback to its upright position, pull the seatback forward
to make sure it is locked.
Easy Entry Seat (%Door Uti/ity Model)
The driver and passenger front bucket seat and the 60/40 split bench seat of
your vehicle has an easy entry feature. This makes it easy to get in and out
of
the rear seat.
To operate the seat
pull forward on the
top of the lever,
located at the side
of
the seatback, and tilt
the back forward
toward the front of the
vehicle.
1-5
