Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle has to have
extra wiring.
The arrows on your instrument panel will ash
whenever you signal a turn or lane change.
Properly hooked up, the trailer lamps will also
ash, telling other drivers you are about to turn,
change lanes, or stop.
When towing a trailer, the arrows on your
instrument panel will ash for turns even if the bulbs
on the trailer are burned out. Thus, you may think
drivers behind you are seeing your signal when
they are not. It is important to check occasionally to
be sure the trailer bulbs are still working.
Driving on Grades
Reduce speed and shift to a lower gear before
you start down a long or steep downgrade. If you
do not shift down, you might have to use your
brakes so much that they would get hot and
no longer work well.
If you are towing a trailer that weighs more than
1,000 lbs (450 kg), you may prefer to drive in
THIRD (3) instead of DRIVE (D) or, as you need
to, a lower gear. This will minimize heat build-up
and extend the life of your transaxle.
Parking on Hills
{CAUTION:
You really should not park your vehicle,
with a trailer attached, on a hill. If
something goes wrong, your rig could
start to move. People can be injured, and
both your vehicle and the trailer can be
damaged.
But if you ever have to park your rig on a hill, do
the following:
1. Apply your regular brakes, but do not shift
into PARK (P).
2. Have someone place chocks under the trailer
wheels.
3. When the wheel chocks are in place, release
the regular brakes until the chocks absorb
the load.
4. Reapply the regular brakes. Then apply your
parking brake, and shift into PARK (P).
5. Release the regular brakes.
421

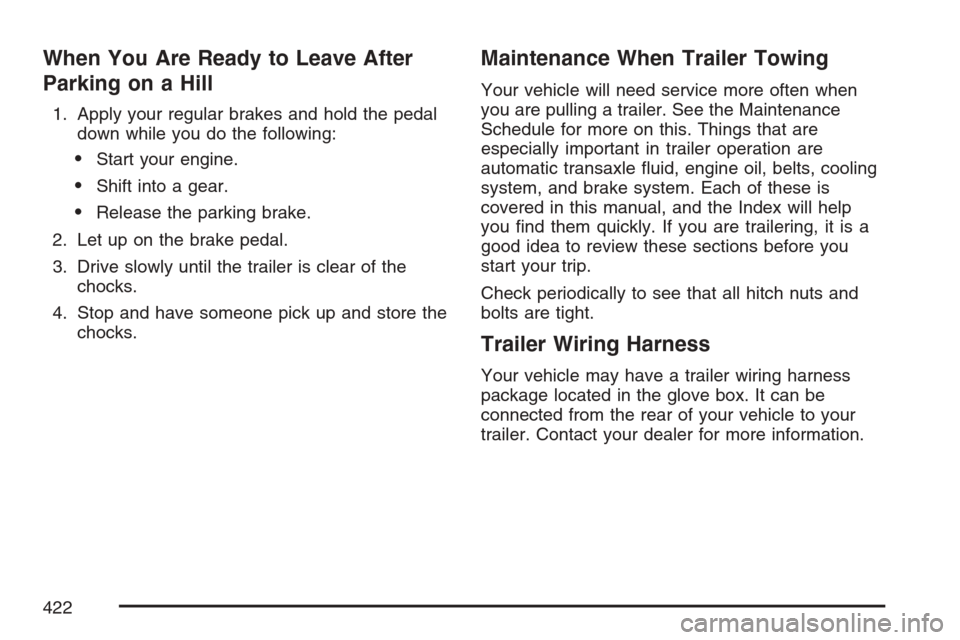

When You Are Ready to Leave After
Parking on a Hill
1. Apply your regular brakes and hold the pedal
down while you do the following:
Start your engine.
Shift into a gear.
Release the parking brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the
chocks.
4. Stop and have someone pick up and store the
chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when
you are pulling a trailer. See the Maintenance
Schedule for more on this. Things that are
especially important in trailer operation are
automatic transaxle uid, engine oil, belts, cooling
system, and brake system. Each of these is
covered in this manual, and the Index will help
you nd them quickly. If you are trailering, it is a
good idea to review these sections before you
start your trip.
Check periodically to see that all hitch nuts and
bolts are tight.
Trailer Wiring Harness
Your vehicle may have a trailer wiring harness
package located in the glove box. It can be
connected from the rear of your vehicle to your
trailer. Contact your dealer for more information.
422

Service........................................................ 426
Accessories and Modications................... 426
California Proposition 65 Warning.............. 427
Doing Your Own Service Work.................. 427
Adding Equipment to the Outside of
Your Vehicle.......................................... 428
Fuel............................................................. 428
Gasoline Octane........................................ 429
Gasoline Specications.............................. 429
California Fuel........................................... 429
Additives................................................... 430
Fuel E85 (85% Ethanol)............................ 431
Fuels in Foreign Countries........................ 432
Filling the Tank......................................... 433
Filling a Portable Fuel Container............... 435
Checking Things Under the Hood.............. 436
Hood Release........................................... 437
Engine Compartment Overview.................. 438
Engine Oil................................................. 439
Engine Oil Life System.............................. 442
Engine Air Cleaner/Filter............................ 444Automatic Transaxle Fluid......................... 445
Engine Coolant.......................................... 448
Radiator Pressure Cap.............................. 451
Engine Overheating................................... 451
Overheated Engine Protection
Operating Mode..................................... 453
Cooling System......................................... 454
Power Steering Fluid ................................. 459
Windshield Washer Fluid........................... 460
Brakes...................................................... 462
Battery...................................................... 465
Jump Starting............................................ 466
Bulb Replacement....................................... 471
Halogen Bulbs........................................... 471
Headlamps and Sidemarker Lamps........... 471
Front Turn Signal, Parking and Daytime
Running Lamps (DRL)........................... 473
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps...................................... 473
License Plate Lamp................................... 475
Replacement Bulbs................................... 475
Section 5 Service and Appearance Care
423

Windshield Wiper Blade Replacement....... 476
Tires............................................................ 477
Tire Sidewall Labeling............................... 478
Tire Terminology and Denitions............... 482
Ination - Tire Pressure............................. 485
High-Speed Operation............................... 486
Tire Inspection and Rotation...................... 487
When It Is Time for New Tires.................. 489
Buying New Tires...................................... 490
Different Size Tires and Wheels................ 492
Uniform Tire Quality Grading..................... 493
Wheel Alignment and Tire Balance............ 494
Wheel Replacement.................................. 494
Tire Chains............................................... 496
Accessory Inator...................................... 496
If a Tire Goes Flat.................................... 499
Changing a Flat Tire................................. 500
Removing the Spare Tire and Tools.......... 501
Removing the Flat Tire and Installing the
Spare Tire............................................. 504
Secondary Latch System........................... 511
Storing a Flat or Spare Tire and Tools...... 513
Compact Spare Tire.................................. 516Appearance Care........................................ 517
Cleaning the Inside of Your Vehicle.......... 517
Fabric/Carpet............................................. 518
Leather...................................................... 519
Instrument Panel, Vinyl, and Other
Plastic Surfaces..................................... 520
Child Restraint Pad................................... 520
Care of Safety Belts and Built-in Child
Restraint Harness.................................. 520
Weatherstrips............................................ 521
Washing Your Vehicle............................... 521
Cleaning Exterior Lamps/Lenses................ 521
Finish Care............................................... 522
Windshield, Backglass, and Wiper
Blades................................................... 522
Aluminum Wheels...................................... 523
Tires......................................................... 523
Sheet Metal Damage................................. 524
Finish Damage.......................................... 524
Underbody Maintenance............................ 524
Chemical Paint Spotting............................ 524
Vehicle Care/Appearance Materials............ 525
Section 5 Service and Appearance Care
424

Vehicle Identication.................................. 526
Vehicle Identication Number (VIN)........... 526
Service Parts Identication Label............... 526
Electrical System........................................ 526
Add-On Electrical Equipment..................... 526
Headlamp Wiring....................................... 527
Windshield Wiper Fuses............................ 527Power Windows and Other Power
Options.................................................. 527
Fuses and Circuit Breakers....................... 527
Instrument Panel Fuse Block..................... 528
Underhood Fuse Block.............................. 530
Capacities and Specications.................... 533
Section 5 Service and Appearance Care
425

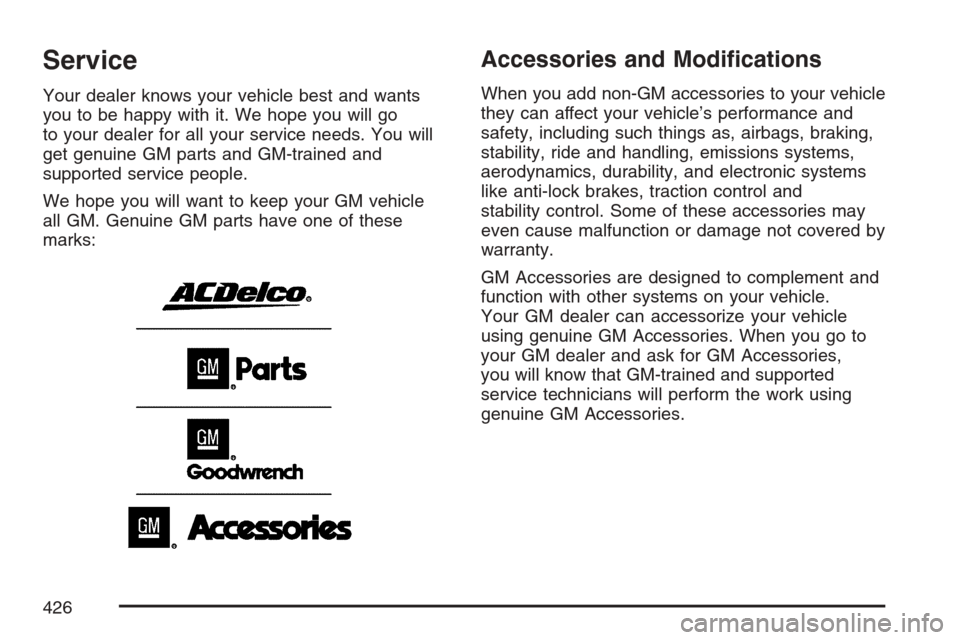

Service
Your dealer knows your vehicle best and wants
you to be happy with it. We hope you will go
to your dealer for all your service needs. You will
get genuine GM parts and GM-trained and
supported service people.
We hope you will want to keep your GM vehicle
all GM. Genuine GM parts have one of these
marks:
Accessories and Modications
When you add non-GM accessories to your vehicle
they can affect your vehicle’s performance and
safety, including such things as, airbags, braking,
stability, ride and handling, emissions systems,
aerodynamics, durability, and electronic systems
like anti-lock brakes, traction control and
stability control. Some of these accessories may
even cause malfunction or damage not covered by
warranty.
GM Accessories are designed to complement and
function with other systems on your vehicle.
Your GM dealer can accessorize your vehicle
using genuine GM Accessories. When you go to
your GM dealer and ask for GM Accessories,
you will know that GM-trained and supported
service technicians will perform the work using
genuine GM Accessories.
426

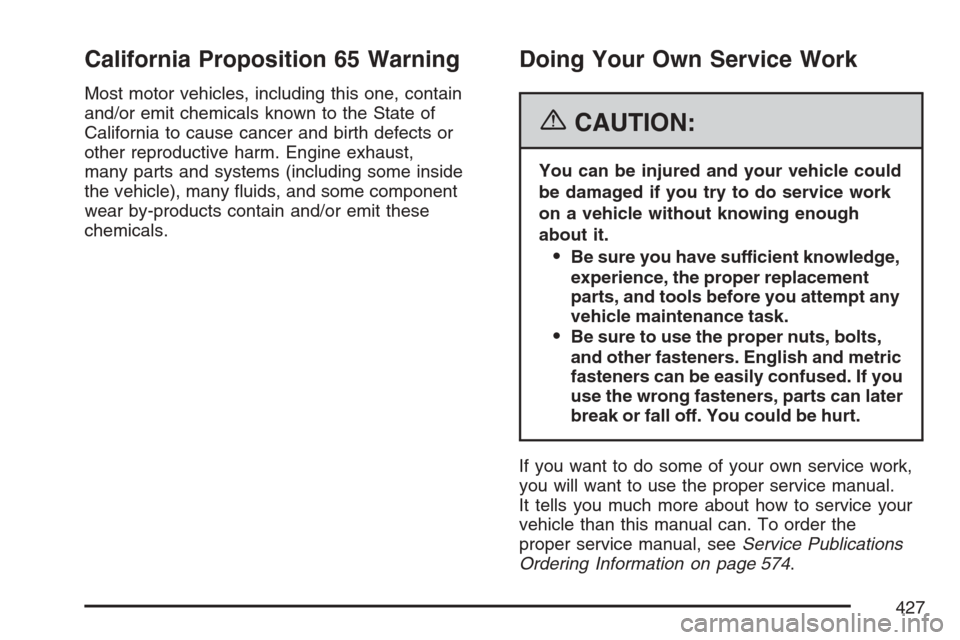

California Proposition 65 Warning
Most motor vehicles, including this one, contain
and/or emit chemicals known to the State of
California to cause cancer and birth defects or
other reproductive harm. Engine exhaust,
many parts and systems (including some inside
the vehicle), many uids, and some component
wear by-products contain and/or emit these
chemicals.
Doing Your Own Service Work
{CAUTION:
You can be injured and your vehicle could
be damaged if you try to do service work
on a vehicle without knowing enough
about it.
Be sure you have sufficient knowledge,
experience, the proper replacement
parts, and tools before you attempt any
vehicle maintenance task.
Be sure to use the proper nuts, bolts,
and other fasteners. English and metric
fasteners can be easily confused. If you
use the wrong fasteners, parts can later
break or fall off. You could be hurt.
If you want to do some of your own service work,
you will want to use the proper service manual.
It tells you much more about how to service your
vehicle than this manual can. To order the
proper service manual, seeService Publications
Ordering Information on page 574.
427

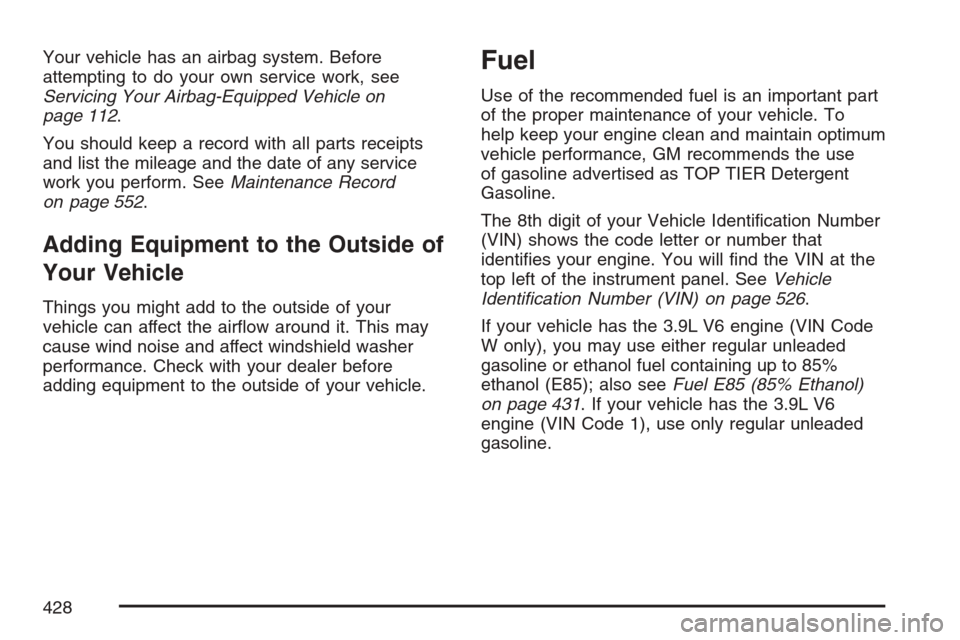

Your vehicle has an airbag system. Before
attempting to do your own service work, see
Servicing Your Airbag-Equipped Vehicle on
page 112.
You should keep a record with all parts receipts
and list the mileage and the date of any service
work you perform. SeeMaintenance Record
on page 552.
Adding Equipment to the Outside of
Your Vehicle
Things you might add to the outside of your
vehicle can affect the airow around it. This may
cause wind noise and affect windshield washer
performance. Check with your dealer before
adding equipment to the outside of your vehicle.
Fuel
Use of the recommended fuel is an important part
of the proper maintenance of your vehicle. To
help keep your engine clean and maintain optimum
vehicle performance, GM recommends the use
of gasoline advertised as TOP TIER Detergent
Gasoline.
The 8th digit of your Vehicle Identication Number
(VIN) shows the code letter or number that
identies your engine. You will nd the VIN at the
top left of the instrument panel. SeeVehicle
Identication Number (VIN) on page 526.
If your vehicle has the 3.9L V6 engine (VIN Code
W only), you may use either regular unleaded
gasoline or ethanol fuel containing up to 85%
ethanol (E85); also seeFuel E85 (85% Ethanol)
on page 431. If your vehicle has the 3.9L V6
engine (VIN Code 1), use only regular unleaded
gasoline.
428

Gasoline Octane
Use regular unleaded gasoline with a posted
octane rating of 87 or higher. If the octane rating
is less than 87, you may notice an audible
knocking noise when you drive, commonly referred
to as spark knock. If this occurs, use a gasoline
rated at 87 octane or higher as soon as possible.
If you are using gasoline rated at 87 octane or
higher and you hear heavy knocking, your engine
needs service.
Gasoline Specications
At a minimum, gasoline should meet ASTM
specication D 4814 in the United States or
CAN/CGSB-3.5 in Canada. Some gasolines may
contain an octane-enhancing additive called
methylcyclopentadienyl manganese tricarbonyl
(MMT). General Motors recommends against the
use of gasolines containing MMT. SeeAdditives
on page 430for additional information.
California Fuel
If your vehicle is certied to meet California
Emissions Standards, it is designed to operate on
fuels that meet California specications. See
the underhood emission control label. If this fuel is
not available in states adopting California
emissions standards, your vehicle will operate
satisfactorily on fuels meeting federal
specications, but emission control system
performance may be affected. The malfunction
indicator lamp may turn on and your vehicle may
fail a smog-check test. SeeMalfunction Indicator
Lamp on page 242. If this occurs, return to
your authorized GM dealer for diagnosis. If it is
determined that the condition is caused by the type
of fuel used, repairs may not be covered by
your warranty.
429

Additives
To provide cleaner air, all gasolines in the United
States are now required to contain additives
that will help prevent engine and fuel system
deposits from forming, allowing your emission
control system to work properly. In most cases,
you should not have to add anything to your fuel.
However, some gasolines contain only the
minimum amount of additive required to meet U.S.
Environmental Protection Agency regulations.
To help keep fuel injectors and intake valves clean,
or if your vehicle experiences problems due to
dirty injectors or valves, look for gasoline that is
advertised as TOP TIER Detergent Gasoline. Also,
your GM dealer has additives that will help
correct and prevent most deposit-related problems.
Gasolines containing oxygenates, such as
ethers and ethanol, and reformulated gasolines
may be available in your area. General Motors
recommends that you use these gasolines if they
comply with the specications described earlier.
However, E85 (85% ethanol) and other fuels
containing more than 10% ethanol must not be
used in vehicles that were not designed for
those fuels.Notice:Your vehicle was not designed for
fuel that contains methanol. Do not use
fuel containing methanol. It can corrode metal
parts in your fuel system and also damage
the plastic and rubber parts. That damage
would not be covered under your warranty.
Some gasolines that are not reformulated for low
emissions may contain an octane-enhancing
additive called methylcyclopentadienyl manganese
tricarbonyl (MMT); ask the attendant where you
buy gasoline whether the fuel contains MMT.
General Motors recommends against the use of
such gasolines. Fuels containing MMT can reduce
the life of spark plugs and the performance of
the emission control system may be affected. The
malfunction indicator lamp may turn on. If this
occurs, return to your authorized GM dealer
for service.
430
