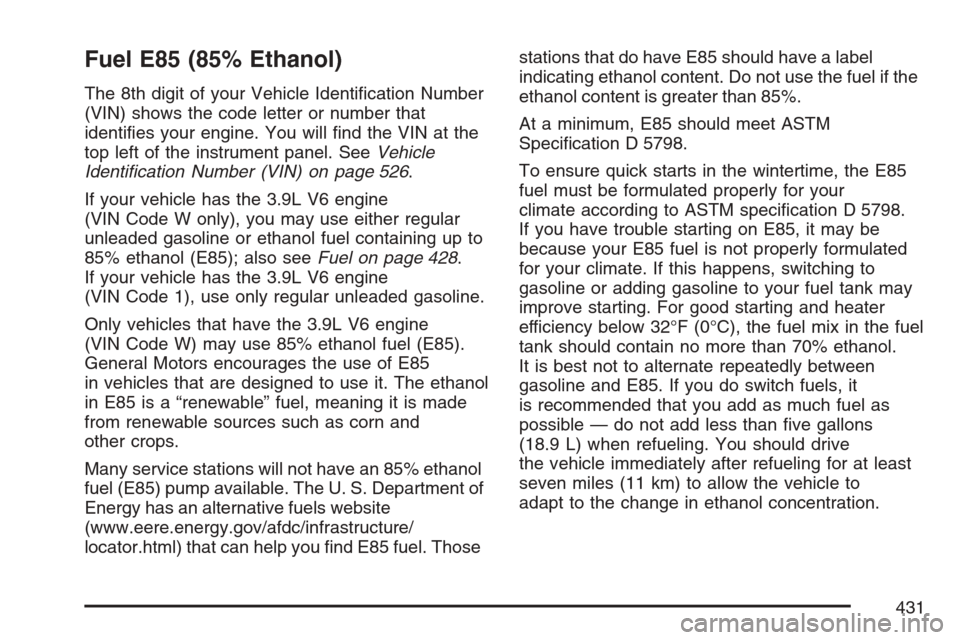

Fuel E85 (85% Ethanol)
The 8th digit of your Vehicle Identication Number
(VIN) shows the code letter or number that
identies your engine. You will nd the VIN at the
top left of the instrument panel. SeeVehicle
Identication Number (VIN) on page 526.
If your vehicle has the 3.9L V6 engine
(VIN Code W only), you may use either regular
unleaded gasoline or ethanol fuel containing up to
85% ethanol (E85); also seeFuel on page 428.
If your vehicle has the 3.9L V6 engine
(VIN Code 1), use only regular unleaded gasoline.
Only vehicles that have the 3.9L V6 engine
(VIN Code W) may use 85% ethanol fuel (E85).
General Motors encourages the use of E85
in vehicles that are designed to use it. The ethanol
in E85 is a “renewable” fuel, meaning it is made
from renewable sources such as corn and
other crops.
Many service stations will not have an 85% ethanol
fuel (E85) pump available. The U. S. Department of
Energy has an alternative fuels website
(www.eere.energy.gov/afdc/infrastructure/
locator.html) that can help you nd E85 fuel. Thosestations that do have E85 should have a label
indicating ethanol content. Do not use the fuel if the
ethanol content is greater than 85%.
At a minimum, E85 should meet ASTM
Specication D 5798.
To ensure quick starts in the wintertime, the E85
fuel must be formulated properly for your
climate according to ASTM specication D 5798.
If you have trouble starting on E85, it may be
because your E85 fuel is not properly formulated
for your climate. If this happens, switching to
gasoline or adding gasoline to your fuel tank may
improve starting. For good starting and heater
efficiency below 32°F (0°C), the fuel mix in the fuel
tank should contain no more than 70% ethanol.
It is best not to alternate repeatedly between
gasoline and E85. If you do switch fuels, it
is recommended that you add as much fuel as
possible — do not add less than ve gallons
(18.9 L) when refueling. You should drive
the vehicle immediately after refueling for at least
seven miles (11 km) to allow the vehicle to
adapt to the change in ethanol concentration.
431

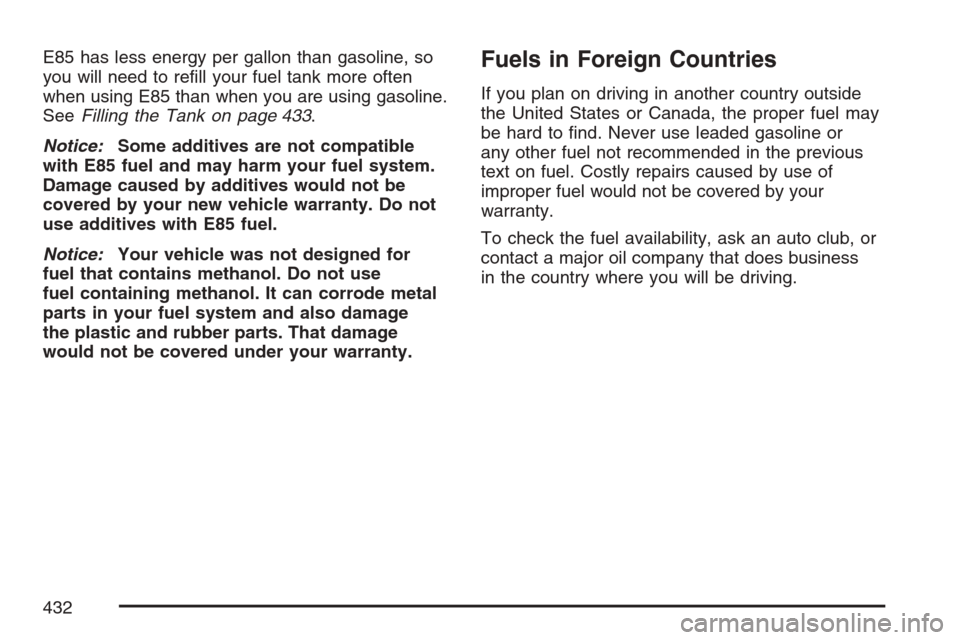

E85 has less energy per gallon than gasoline, so
you will need to rell your fuel tank more often
when using E85 than when you are using gasoline.
SeeFilling the Tank on page 433.
Notice:Some additives are not compatible
with E85 fuel and may harm your fuel system.
Damage caused by additives would not be
covered by your new vehicle warranty. Do not
use additives with E85 fuel.
Notice:Your vehicle was not designed for
fuel that contains methanol. Do not use
fuel containing methanol. It can corrode metal
parts in your fuel system and also damage
the plastic and rubber parts. That damage
would not be covered under your warranty.Fuels in Foreign Countries
If you plan on driving in another country outside
the United States or Canada, the proper fuel may
be hard to nd. Never use leaded gasoline or
any other fuel not recommended in the previous
text on fuel. Costly repairs caused by use of
improper fuel would not be covered by your
warranty.
To check the fuel availability, ask an auto club, or
contact a major oil company that does business
in the country where you will be driving.
432

Filling the Tank
{CAUTION:
Fuel vapor burns violently and a fuel re
can cause bad injuries. To help avoid
injuries to you and others, read and follow
all the instructions on the pump island.
Turn off your engine when you are
refueling. Do not smoke if you are near
fuel or refueling your vehicle. Keep
sparks, ames, and smoking materials
away from fuel. Do not leave the fuel
pump unattended when refueling your
vehicle. This is against the law in some
places. Keep children away from the fuel
pump; never let children pump fuel.The tethered fuel cap is located behind a hinged
fuel door on the driver’s side of the vehicle. If
the vehicle has E85 fuel capability, a yellow cap
with the words “E85 or gasoline” can be seen.
When the fuel door is opened on a vehicle
with dual sliding doors, the driver’s side sliding
door will only open partway.
433

While refueling, let the fuel cap hang by the tether.
{CAUTION:
If you spill fuel and then something
ignites it, you could be badly burned. Fuel
can spray out on you if you open the fuel
cap too quickly. This spray can happen if
your tank is nearly full, and is more likely
in hot weather. Open the fuel cap slowly
and wait for any hiss noise to stop. Then
unscrew the cap all the way.
Be careful not to spill fuel. Do not top off or overll
the tank and wait a few seconds after you have
nished pumping before removing the nozzle.
Clean fuel from painted surfaces as soon
as possible. SeeWashing Your Vehicle on
page 521.
When replacing the fuel cap, turn it clockwise until
it clicks. Make sure the cap is fully installed.
The diagnostic system can determine if the fuel
cap has been left off or improperly installed.This would allow fuel to evaporate into the
atmosphere. SeeMalfunction Indicator Lamp on
page 242.
The CHECK GAS CAP message will be displayed
in the Driver Information Center (DIC) if the fuel
cap is not properly installed. SeeDIC Warnings
and Messages on page 256for more information.
{CAUTION:
If a re starts while you are refueling, do
not remove the nozzle. Shut off the ow of
fuel by shutting off the pump or by
notifying the station attendant. Leave the
area immediately.
Notice:If you need a new fuel cap, be sure to
get the right type. Your dealer can get one
for you. If you get the wrong type, it may not
t properly. This may cause your malfunction
indicator lamp to light and may damage
your fuel tank and emissions system. See
Malfunction Indicator Lamp on page 242.
434

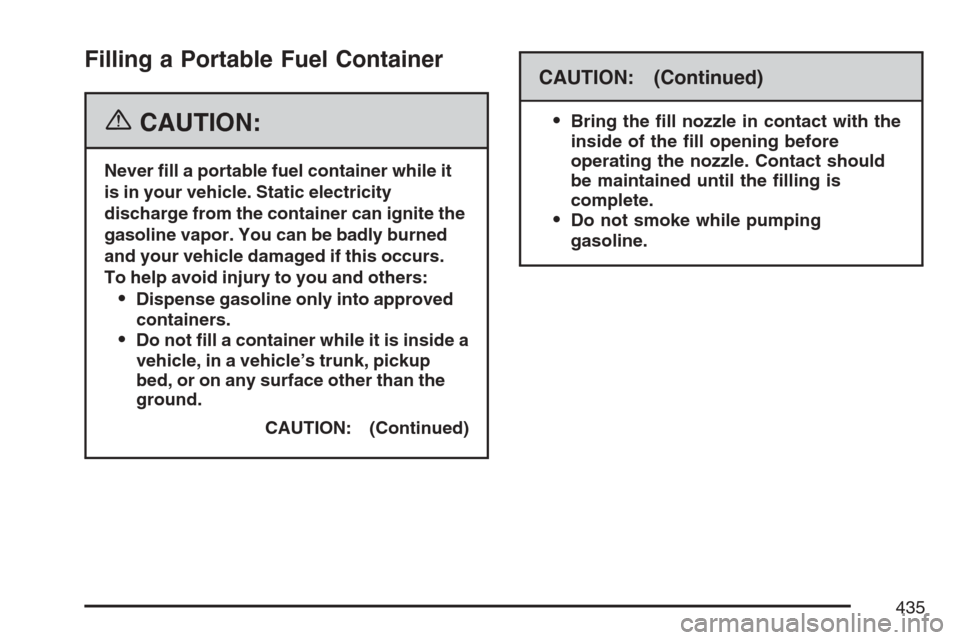

Filling a Portable Fuel Container
{CAUTION:
Never ll a portable fuel container while it
is in your vehicle. Static electricity
discharge from the container can ignite the
gasoline vapor. You can be badly burned
and your vehicle damaged if this occurs.
To help avoid injury to you and others:
Dispense gasoline only into approved
containers.
Do not ll a container while it is inside a
vehicle, in a vehicle’s trunk, pickup
bed, or on any surface other than the
ground.
CAUTION: (Continued)
CAUTION: (Continued)

Bring the ll nozzle in contact with the
inside of the ll opening before
operating the nozzle. Contact should
be maintained until the lling is
complete.
Do not smoke while pumping
gasoline.
435

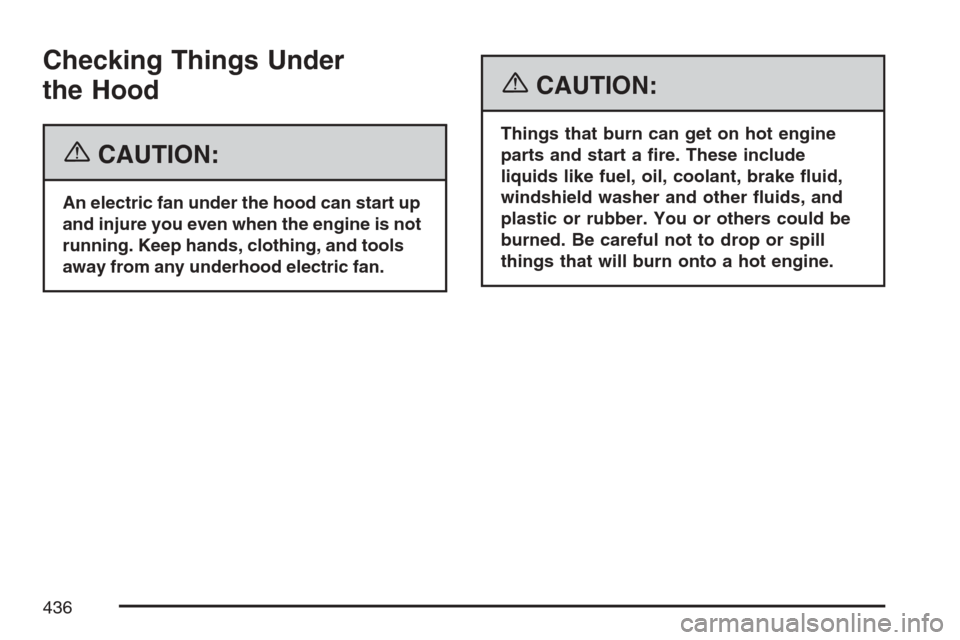

Checking Things Under
the Hood
{CAUTION:
An electric fan under the hood can start up
and injure you even when the engine is not
running. Keep hands, clothing, and tools
away from any underhood electric fan.
{CAUTION:
Things that burn can get on hot engine
parts and start a re. These include
liquids like fuel, oil, coolant, brake uid,
windshield washer and other uids, and
plastic or rubber. You or others could be
burned. Be careful not to drop or spill
things that will burn onto a hot engine.
436

Hood Release
To open the hood, do the following:
1. Pull the hood
release handle with
this symbol on it.
It is located
under the instrument
panel on the
driver’s side.
2. Go to the front of the vehicle and push the
underhood release to the right. It is located
near the center of the hood, above the grille.
3. Lift the hood.4. Pull up on the hood prop to release it from its
storage clip.
The hood prop may be hot due to increased
engine temperatures under the hood, so
be careful when handling it. Use your hood
prop sleeve when handling the hood prop.
5. Put the end of the hood prop into the slot in
the underside of the hood, on the driver’s
side of the vehicle. It is marked by an arrow.
Before closing the hood, be sure all the ller caps
are on properly. Lift the hood to relieve pressure
on the hood prop. Remove the hood prop from the
slot in the hood and return the prop to its
retainer. Then let the hood down and close it
rmly.
437

Engine Compartment Overview
When you open the hood on the 3.9L V6 engine, here is what you will see:
438

A. Underhood Fuse Block. SeeUnderhood Fuse
Block on page 530.
B. Remote Positive (+) Terminal. SeeJump
Starting on page 466.
C. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 460.
D. Radiator Pressure Cap. SeeRadiator Pressure
Cap on page 451.
E. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 459.
F. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 439.
G. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 439.
H. Automatic Transaxle Fluid Dipstick. See
“Checking the Fluid Level” underAutomatic
Transaxle Fluid on page 445.
I. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 462.
J. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 444.
K. Engine Coolant Recovery Tank. SeeCooling
System on page 454.Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil every time
you get fuel. In order to get an accurate reading,
the oil must be warm and the vehicle must be
on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 438
for the location of the engine oil dipstick.
1. Turn off the engine and give the oil several
minutes to drain back into the oil pan. If you
do not do this, the oil dipstick might not
show the actual level.
2. Pull out the dipstick and clean it with a paper
towel or cloth, then push it back in all the
way. Remove it again, keeping the tip down,
and check the level.
439

When to Add Engine Oil
If the oil is below the cross-hatched area at the tip
of the dipstick, you will need to add at least one
quart/liter of oil. But you must use the right
kind. This section explains what kind of oil to use.
For engine oil crankcase capacity, seeCapacities
and Specications on page 533.
Notice:Do not add too much oil. If the engine
has so much oil that the oil level gets above
the cross-hatched area that shows the
proper operating range, the engine could be
damaged.SeeEngine
Compartment Overview
on page 438for the
location of the engine oil
ll cap.
Be sure to add enough oil to put the level
somewhere in the proper operating range in the
cross-hatched area. Push the dipstick all the
way back in when you are through.
