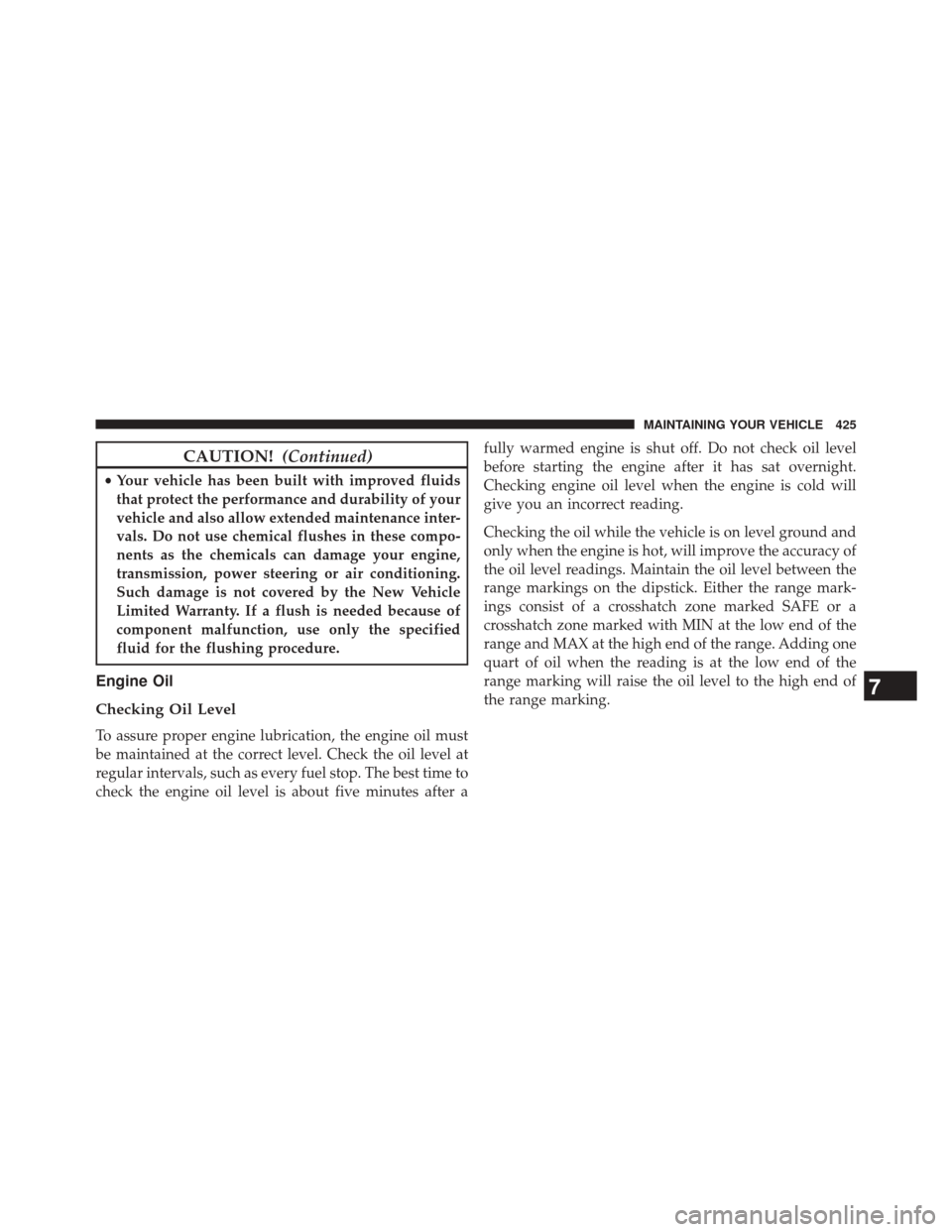

Page 427 of 516
CAUTION!(Continued)
•Your vehicle has been built with improved fluids
that protect the performance and durability of your
vehicle and also allow extended maintenance inter-
vals. Do not use chemical flushes in these compo-
nents as the chemicals can damage your engine,
transmission, power steering or air conditioning.
Such damage is not covered by the New Vehicle
Limited Warranty. If a flush is needed because of
component malfunction, use only the specified
fluid for the flushing procedure.
Engine Oil
Checking Oil Level
To assure proper engine lubrication, the engine oil must
be maintained at the correct level. Check the oil level at
regular intervals, such as every fuel stop. The best time to
check the engine oil level is about five minutes after a fully warmed engine is shut off. Do not check oil level
before starting the engine after it has sat overnight.
Checking engine oil level when the engine is cold will
give you an incorrect reading.
Checking the oil while the vehicle is on level ground and
only when the engine is hot, will improve the accuracy of
the oil level readings. Maintain the oil level between the
range markings on the dipstick. Either the range mark-
ings consist of a crosshatch zone marked SAFE or a
crosshatch zone marked with MIN at the low end of the
range and MAX at the high end of the range. Adding one
quart of oil when the reading is at the low end of the
range marking will raise the oil level to the high end of
the range marking.
7
MAINTAINING YOUR VEHICLE 425

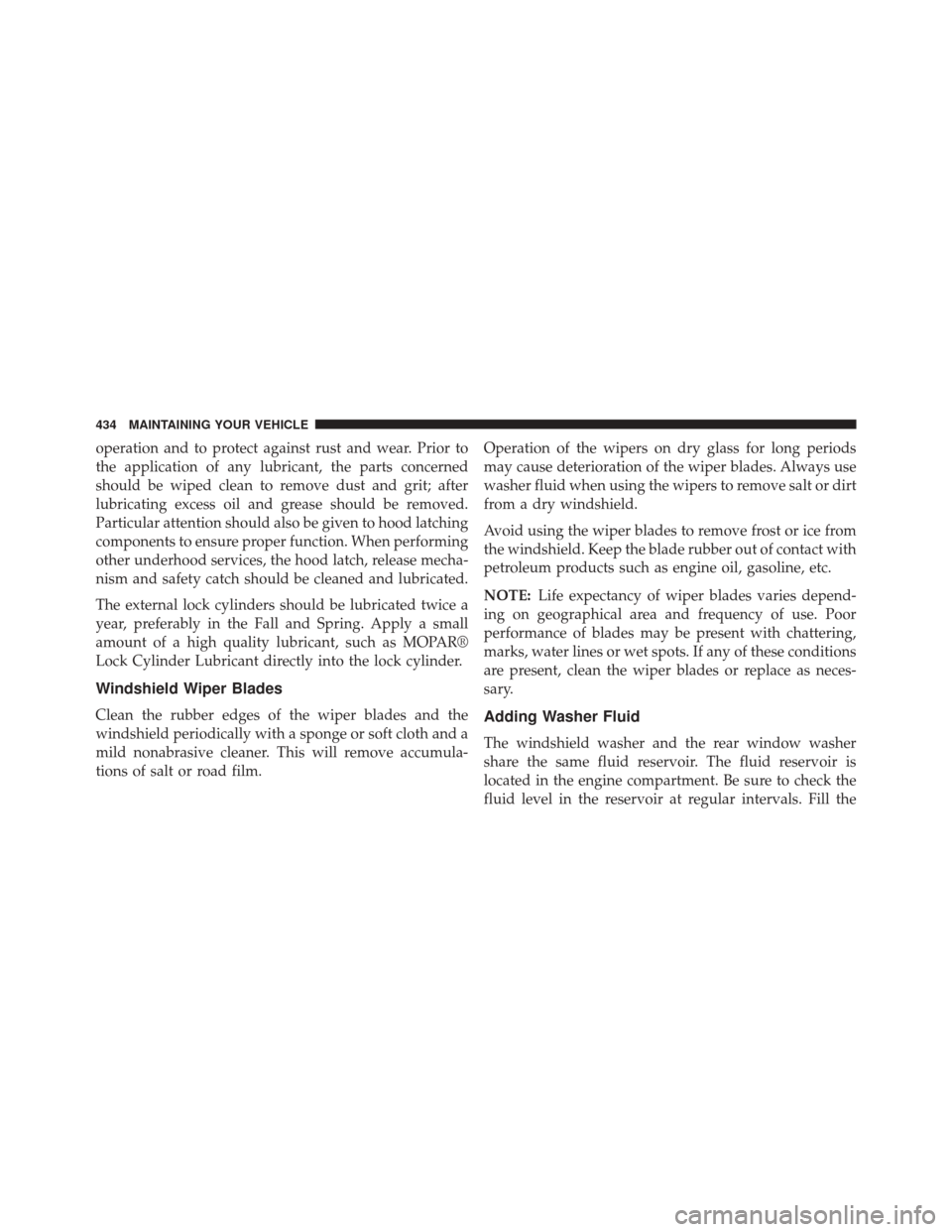

Page 436 of 516
operation and to protect against rust and wear. Prior to
the application of any lubricant, the parts concerned
should be wiped clean to remove dust and grit; after
lubricating excess oil and grease should be removed.
Particular attention should also be given to hood latching
components to ensure proper function. When performing
other underhood services, the hood latch, release mecha-
nism and safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR®
Lock Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as neces-
sary.Adding Washer Fluid
The windshield washer and the rear window washer
share the same fluid reservoir. The fluid reservoir is
located in the engine compartment. Be sure to check the
fluid level in the reservoir at regular intervals. Fill the
434 MAINTAINING YOUR VEHICLE

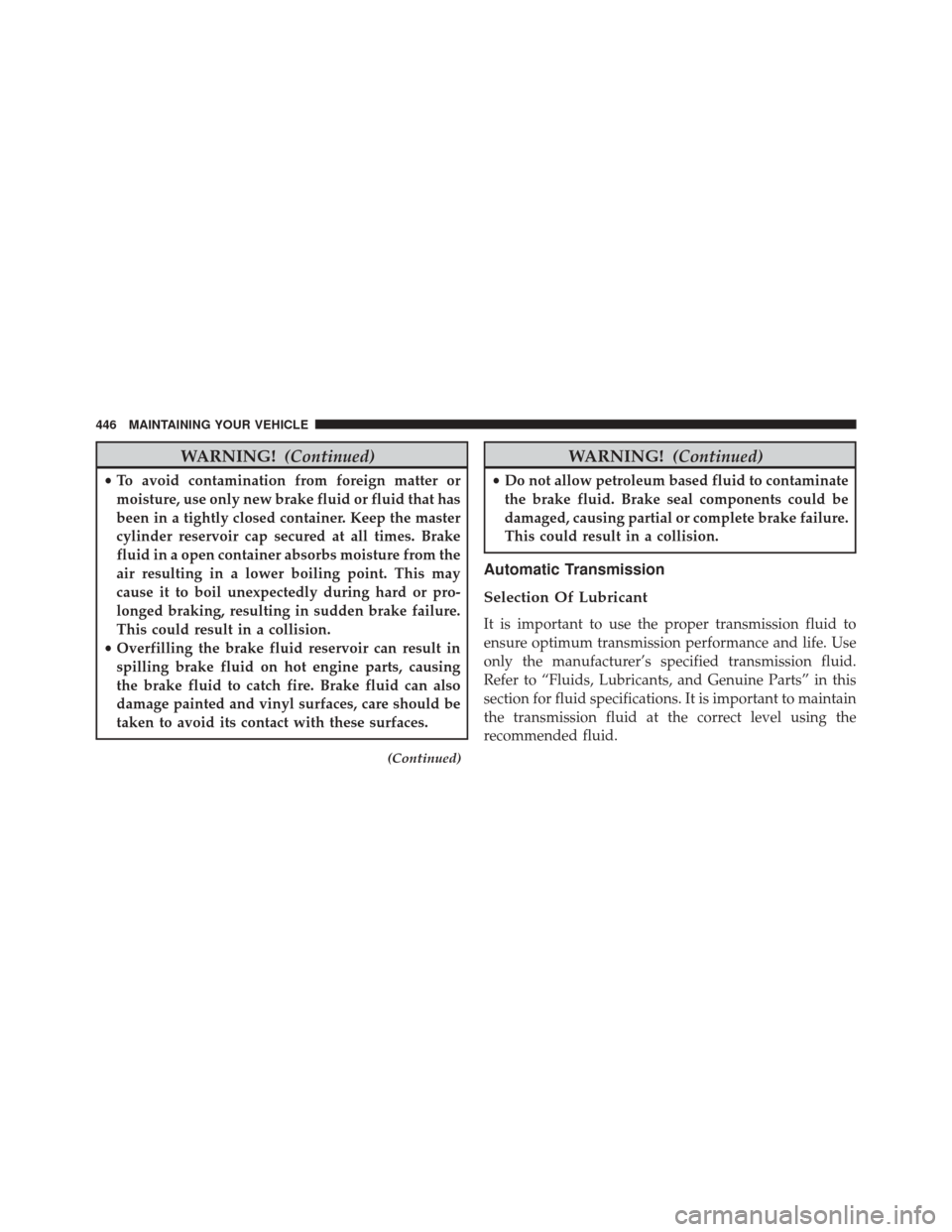

Page 448 of 516
WARNING!(Continued)
•To avoid contamination from foreign matter or
moisture, use only new brake fluid or fluid that has
been in a tightly closed container. Keep the master
cylinder reservoir cap secured at all times. Brake
fluid in a open container absorbs moisture from the
air resulting in a lower boiling point. This may
cause it to boil unexpectedly during hard or pro-
longed braking, resulting in sudden brake failure.
This could result in a collision.
• Overfilling the brake fluid reservoir can result in
spilling brake fluid on hot engine parts, causing
the brake fluid to catch fire. Brake fluid can also
damage painted and vinyl surfaces, care should be
taken to avoid its contact with these surfaces.
(Continued)
WARNING! (Continued)
•Do not allow petroleum based fluid to contaminate
the brake fluid. Brake seal components could be
damaged, causing partial or complete brake failure.
This could result in a collision.
Automatic Transmission
Selection Of Lubricant
It is important to use the proper transmission fluid to
ensure optimum transmission performance and life. Use
only the manufacturer’s specified transmission fluid.
Refer to “Fluids, Lubricants, and Genuine Parts” in this
section for fluid specifications. It is important to maintain
the transmission fluid at the correct level using the
recommended fluid.
446 MAINTAINING YOUR VEHICLE

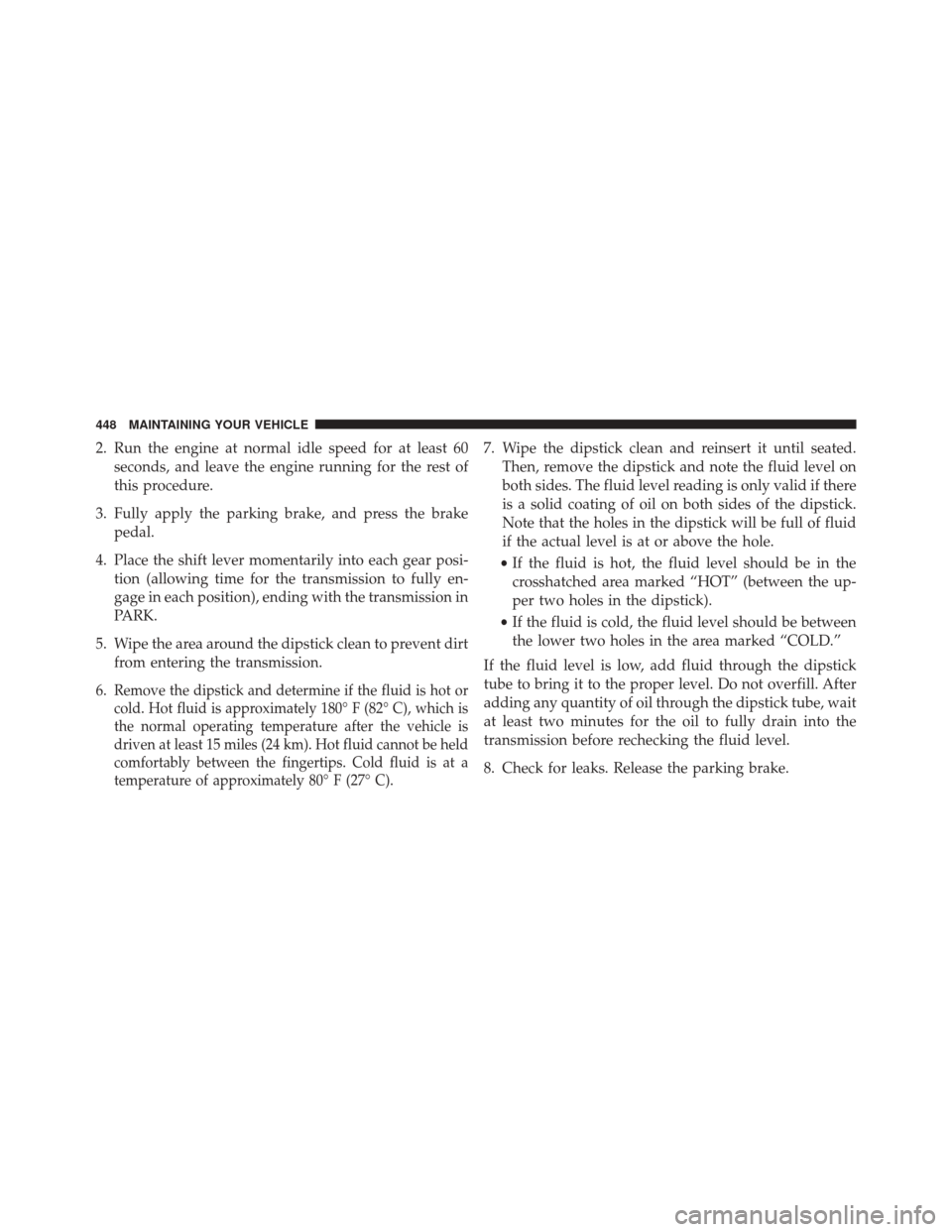

Page 450 of 516
2. Run the engine at normal idle speed for at least 60seconds, and leave the engine running for the rest of
this procedure.
3. Fully apply the parking brake, and press the brake pedal.
4. Place the shift lever momentarily into each gear posi- tion (allowing time for the transmission to fully en-
gage in each position), ending with the transmission in
PARK.
5. Wipe the area around the dipstick clean to prevent dirt from entering the transmission.
6.
Remove the dipstick and determine if the fluid is hot or
cold. Hot fluid is approximately 180° F (82° C), which is
the normal operating temperature after the vehicle is
driven at least 15 miles (24 km). Hot fluid cannot be held
comfortably between the fingertips. Cold fluid is at a
temperature of approximately 80° F (27° C).
7. Wipe the dipstick clean and reinsert it until seated. Then, remove the dipstick and note the fluid level on
both sides. The fluid level reading is only valid if there
is a solid coating of oil on both sides of the dipstick.
Note that the holes in the dipstick will be full of fluid
if the actual level is at or above the hole.
• If the fluid is hot, the fluid level should be in the
crosshatched area marked “HOT” (between the up-
per two holes in the dipstick).
• If the fluid is cold, the fluid level should be between
the lower two holes in the area marked “COLD.”
If the fluid level is low, add fluid through the dipstick
tube to bring it to the proper level. Do not overfill. After
adding any quantity of oil through the dipstick tube, wait
at least two minutes for the oil to fully drain into the
transmission before rechecking the fluid level.
8. Check for leaks. Release the parking brake.
448 MAINTAINING YOUR VEHICLE

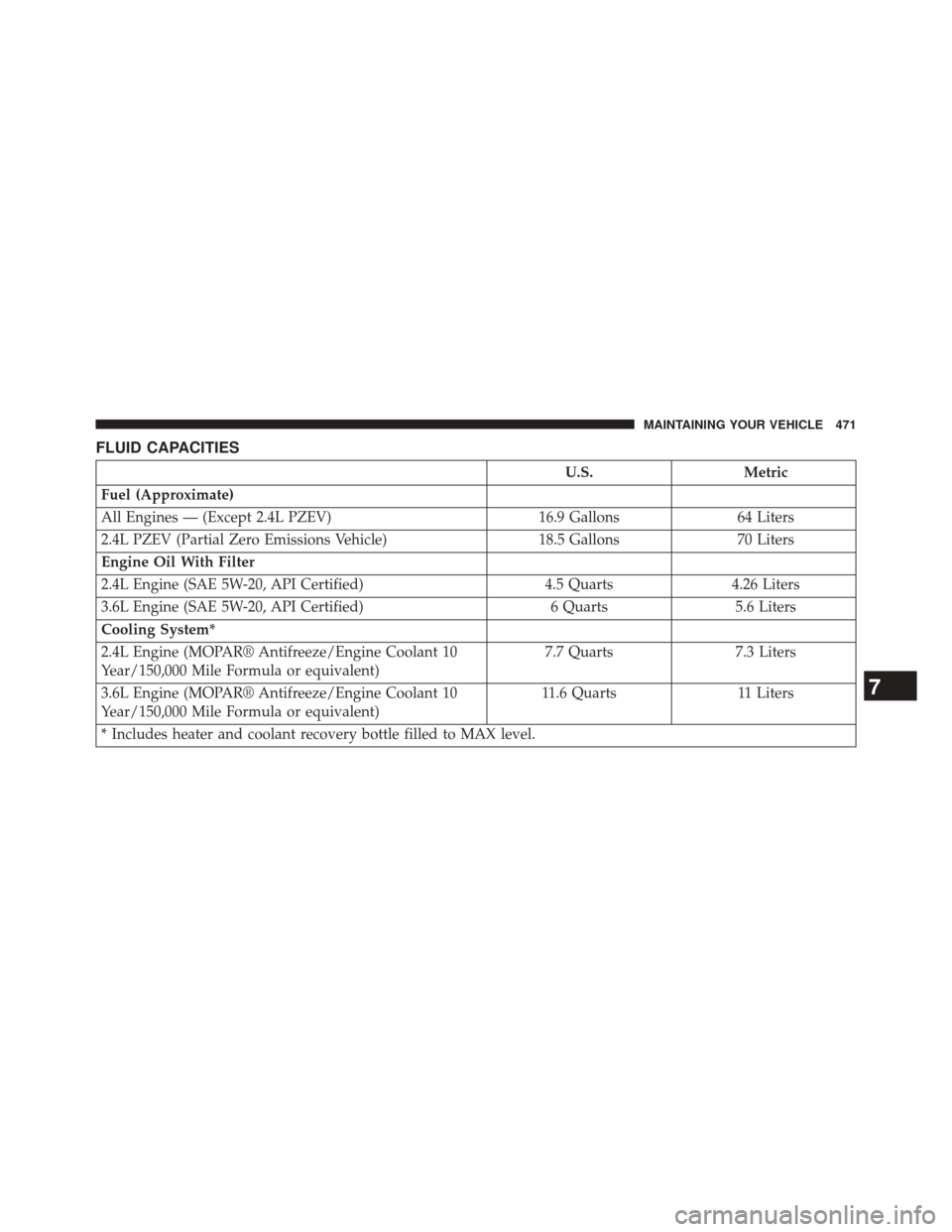

Page 473 of 516
FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
All Engines — (Except 2.4L PZEV) 16.9 Gallons64 Liters
2.4L PZEV (Partial Zero Emissions Vehicle) 18.5 Gallons70 Liters
Engine Oil With Filter
2.4L Engine (SAE 5W-20, API Certified) 4.5 Quarts4.26 Liters
3.6L Engine (SAE 5W-20, API Certified) 6 Quarts5.6 Liters
Cooling System*
2.4L Engine (MOPAR® Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula or equivalent) 7.7 Quarts
7.3 Liters
3.6L Engine (MOPAR® Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula or equivalent) 11.6 Quarts
11 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 471

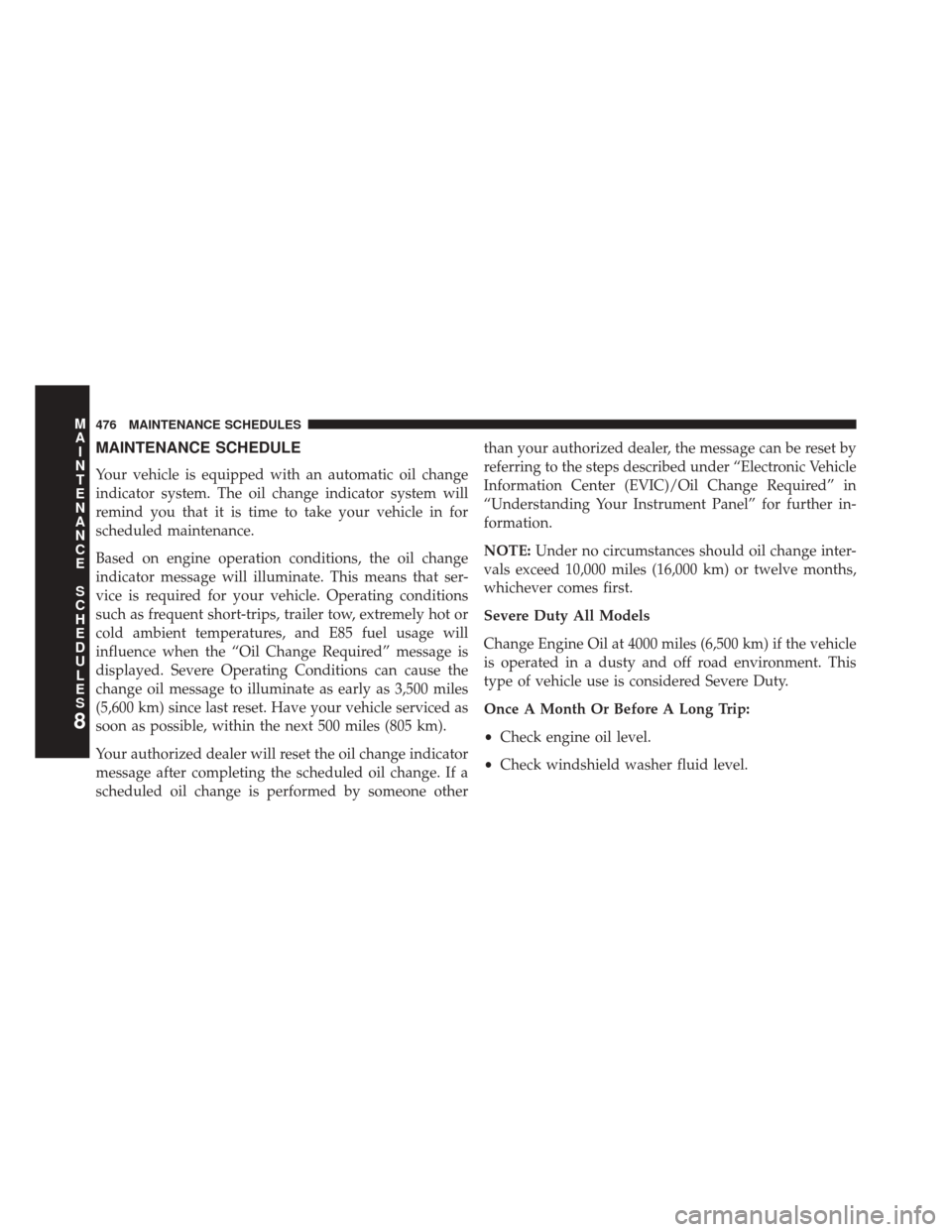

Page 478 of 516
MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Oil Change Required” message is
displayed. Severe Operating Conditions can cause the
change oil message to illuminate as early as 3,500 miles
(5,600 km) since last reset. Have your vehicle serviced as
soon as possible, within the next 500 miles (805 km).
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone otherthan your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)/Oil Change Required” in
“Understanding Your Instrument Panel” for further in-
formation.
NOTE:
Under no circumstances should oil change inter-
vals exceed 10,000 miles (16,000 km) or twelve months,
whichever comes first.
Severe Duty All Models
Change Engine Oil at 4000 miles (6,500 km) if the vehicle
is operated in a dusty and off road environment. This
type of vehicle use is considered Severe Duty.
Once A Month Or Before A Long Trip:
• Check engine oil level.
• Check windshield washer fluid level.
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S476 MAINTENANCE SCHEDULES

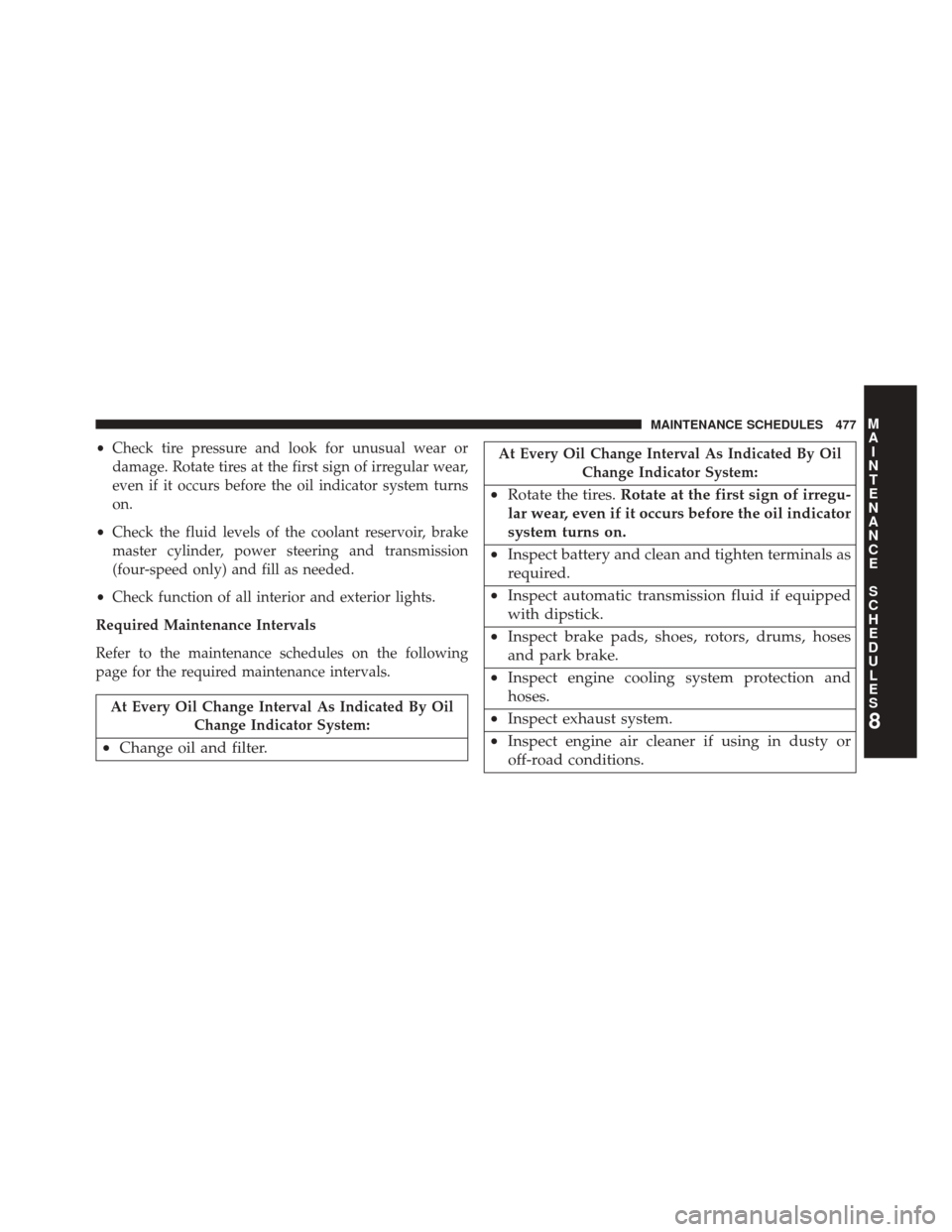

Page 479 of 516
•Check tire pressure and look for unusual wear or
damage. Rotate tires at the first sign of irregular wear,
even if it occurs before the oil indicator system turns
on.
• Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering and transmission
(four-speed only) and fill as needed.
• Check function of all interior and exterior lights.
Required Maintenance Intervals
Refer to the maintenance schedules on the following
page for the required maintenance intervals.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
•Change oil and filter.
At Every Oil Change Interval As Indicated By Oil
Change Indicator System:
•Rotate the tires. Rotate at the first sign of irregu-
lar wear, even if it occurs before the oil indicator
system turns on.
• Inspect battery and clean and tighten terminals as
required.
• Inspect automatic transmission fluid if equipped
with dipstick.
• Inspect brake pads, shoes, rotors, drums, hoses
and park brake.
• Inspect engine cooling system protection and
hoses.
• Inspect exhaust system.
• Inspect engine air cleaner if using in dusty or
off-road conditions.
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 477
Page 497 of 516
Adding Fluid......................... .447
Fluid and Filter Changes ..................450
Fluid Level Check ...................... .447
Fluid Type ........................... .446
Gear Ranges .......................... .299
Special Additives ...................... .447
Autostick .............................. .314
Auto Unlock, Doors ........................33
Auto Up Power Windows ....................38
Battery ................................ .429
Keyless Transmitter Replacement (RKE) ........26
Location ............................. .429
Belts, Seat ...............................96
Body Mechanism Lubrication .................433
B-Pillar Location ......................... .337
Brake Assist System ...................... .326
Brake, Parking .......................... .320
Brake System ........................... .444Anti-Lock (ABS)
....................... .322
Fluid Check .......................... .444
Master Cylinder ....................... .444
Parking ............................. .320
Warning Light .........................211
Brake/Transmission Interlock .................298
Bulb Replacement ........................ .463
Bulbs, Light ..............................99
Calibration, Compass ..................... .230
Capacities, Antifreeze (Engine Coolant) ...........21
Capacities, Fluid ......................... .471
Caps, Filler Fuel ................................ .372
Oil (Engine) .......................... .419
Power Steering ........................ .319
Radiator (Coolant Pressure) ................441
Carbon Monoxide Warning ...................95
Car Washes ............................ .451
10
INDEX 495
Page 500 of 516

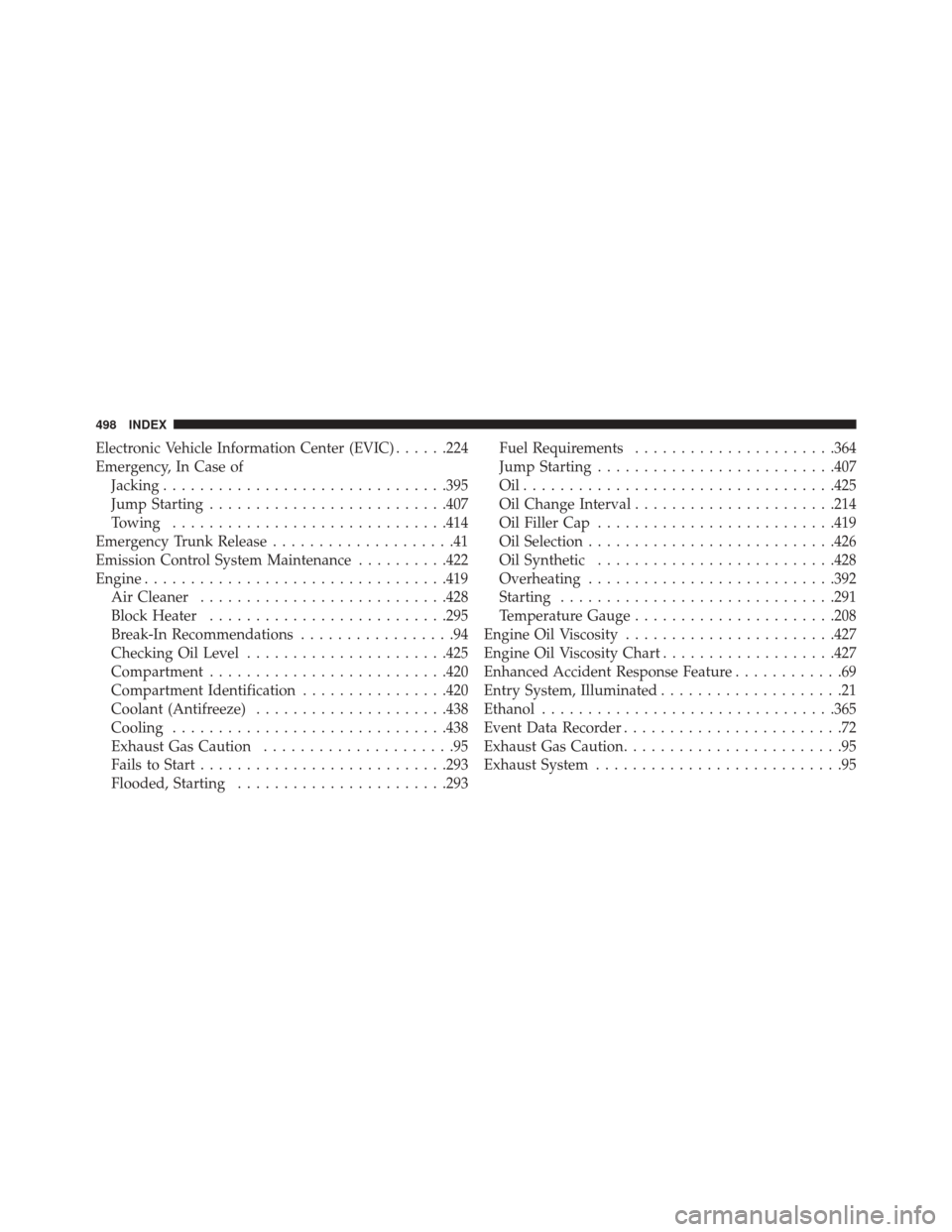

Electronic Vehicle Information Center (EVIC)......224
Emergency, In Case of Jacking .............................. .395
Jump Starting ......................... .407
Towing ............................. .414
Emergency Trunk Release ....................41
Emission Control System Maintenance ..........422
Engine ................................ .419
Air Cleaner .......................... .428
Block Heater ......................... .295
Break-In Recommendations .................94
Checking Oil Level ..................... .425
Compartment ......................... .420
Compartment Identification ................420
Coolant (Antifreeze) .....................438
Cooling ............................. .438
Exhaust Gas Caution .....................95
Fails to Start .......................... .293
Flooded, Starting ...................... .293Fuel Requirements
..................... .364
Jump Starting ......................... .407
Oil................................. .425
Oil Change Interval ..................... .214
Oil Filler Cap ......................... .419
Oil Selection .......................... .426
Oil Synthetic ......................... .428
Overheating .......................... .392
Starting ............................. .291
Temperature Gauge ..................... .208
Engine Oil Viscosity ...................... .427
Engine Oil Viscosity Chart ...................427
Enhanced Accident Response Feature ............69
Entry System, Illuminated ....................21
Ethanol ............................... .365
Event Data Recorder ........................72
Exhaust Gas Caution ........................95
Exhaust System ...........................95
498 INDEX
Page 501 of 516
Exterior Lights............................99
Fabric Care ............................. .454
FCC General Information (Remote Keyless Entry) . . .27
FCC General Information (Sentry Key) ...........18
Filler Location Fuel ....................... .208
Filters Air Cleaner .......................... .428
Air Conditioning ...................... .285
Engine Oil ........................... .428
Engine Oil Disposal .....................428
Flashers ............................... .392
Hazard Warning ....................... .392
Turn Signal ............................99
Flash-To-Pass ........................... .166
Flexible Fuel Vehicles Cruising Range ........................ .371
Engine Oil ........................... .370
Fuel Requirements ..................... .368Maintenance
.......................... .371
Replacement Parts ...................... .371
Starting ............................. .371
Flooded Engine Starting ....................293
Fluid Capacities ......................... .471
Fluid Leaks ..............................99
Fluid Level Checks Automatic Transmission ..................447
Brake ............................... .444
Cooling System ........................ .438
Engine Oil ........................... .425
Power Steering ........................ .319
Fluids, Lubricants and Genuine Parts ...........472
Fog Lights ............................. .166
Fog Light Service ........................ .468
Folding Rear Seat ........................ .159
Freeing A Stuck Vehicle .....................412
Fuel .................................. .364
Adding ............................. .372
10
INDEX 499
