Page 111 of 702

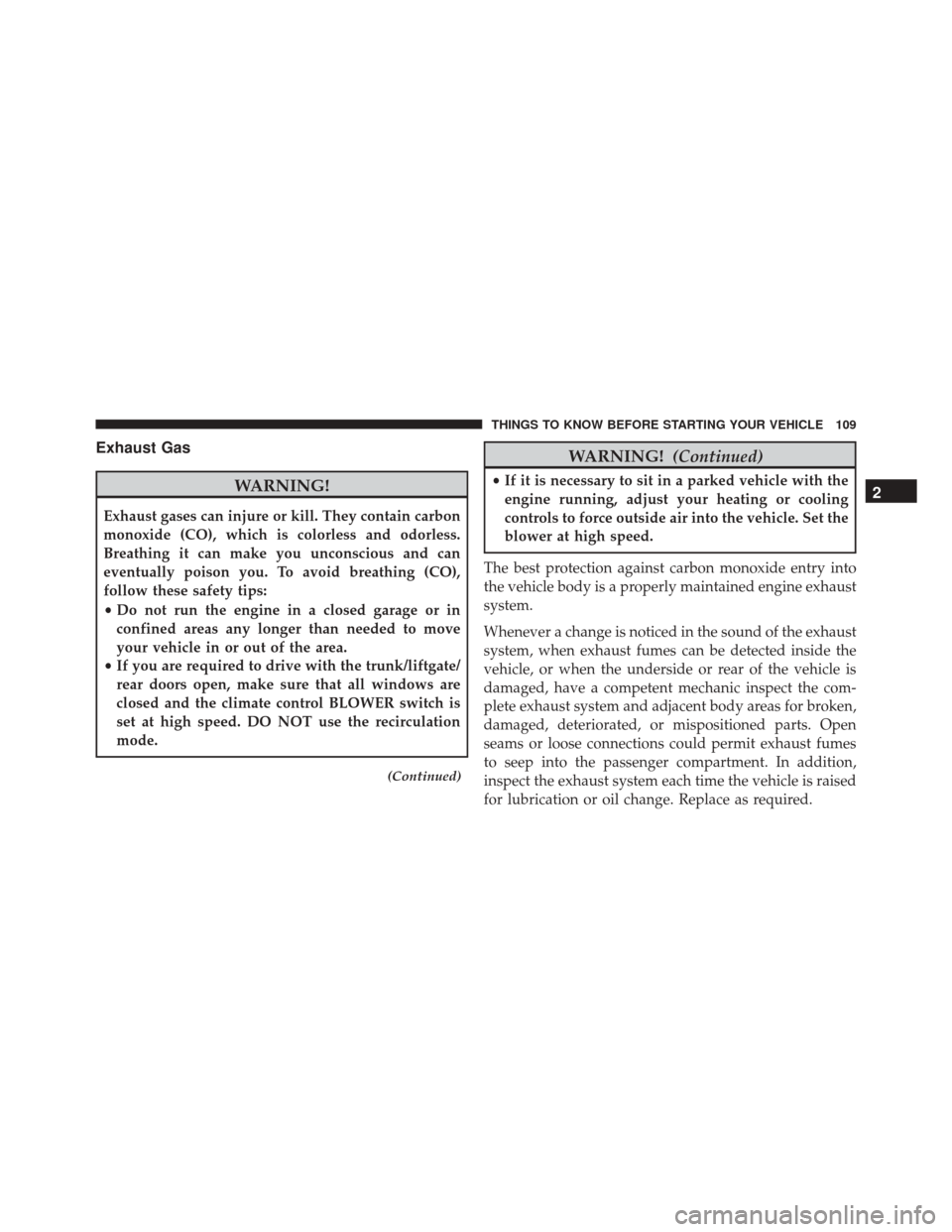

Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO), which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO),
follow these safety tips:
•Do not run the engine in a closed garage or in
confined areas any longer than needed to move
your vehicle in or out of the area.
• If you are required to drive with the trunk/liftgate/
rear doors open, make sure that all windows are
closed and the climate control BLOWER switch is
set at high speed. DO NOT use the recirculation
mode.
(Continued)
WARNING! (Continued)
•If it is necessary to sit in a parked vehicle with the
engine running, adjust your heating or cooling
controls to force outside air into the vehicle. Set the
blower at high speed.
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the com-
plete exhaust system and adjacent body areas for broken,
damaged, deteriorated, or mispositioned parts. Open
seams or loose connections could permit exhaust fumes
to seep into the passenger compartment. In addition,
inspect the exhaust system each time the vehicle is raised
for lubrication or oil change. Replace as required.2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 109

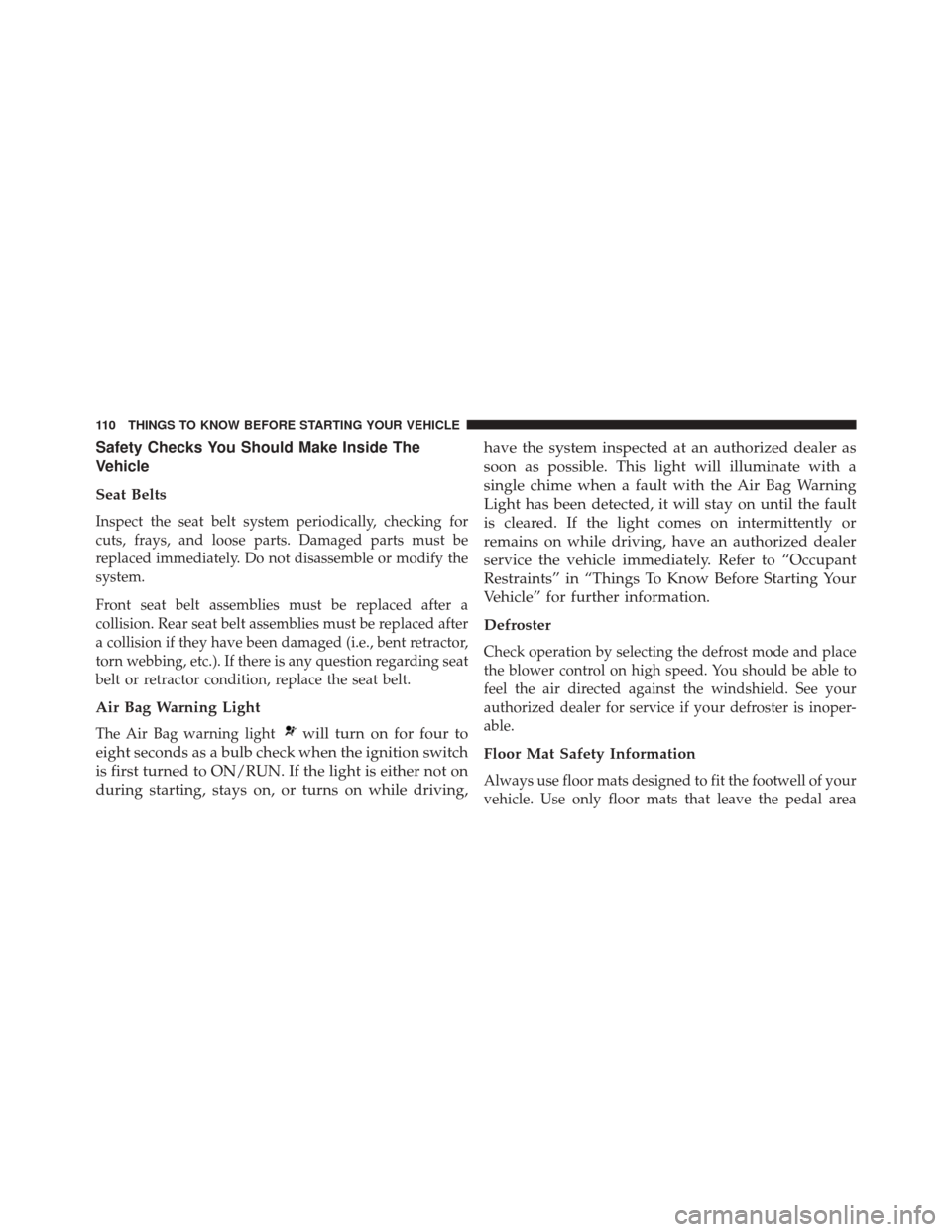

Page 112 of 702
Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the seat belt system periodically, checking for
cuts, frays, and loose parts. Damaged parts must be
replaced immediately. Do not disassemble or modify the
system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding seat
belt or retractor condition, replace the seat belt.
Air Bag Warning Light
The Air Bag warning lightwill turn on for four to
eight seconds as a bulb check when the ignition switch
is first turned to ON/RUN. If the light is either not on
during starting, stays on, or turns on while driving, have the system inspected at an authorized dealer as
soon as possible. This light will illuminate with a
single chime when a fault with the Air Bag Warning
Light has been detected, it will stay on until the fault
is cleared. If the light comes on intermittently or
remains on while driving, have an authorized dealer
service the vehicle immediately. Refer to “Occupant
Restraints” in “Things To Know Before Starting Your
Vehicle” for further information.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is inoper-
able.
Floor Mat Safety Information
Always use floor mats designed to fit the footwell of your
vehicle. Use only floor mats that leave the pedal area
110 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 113 of 702

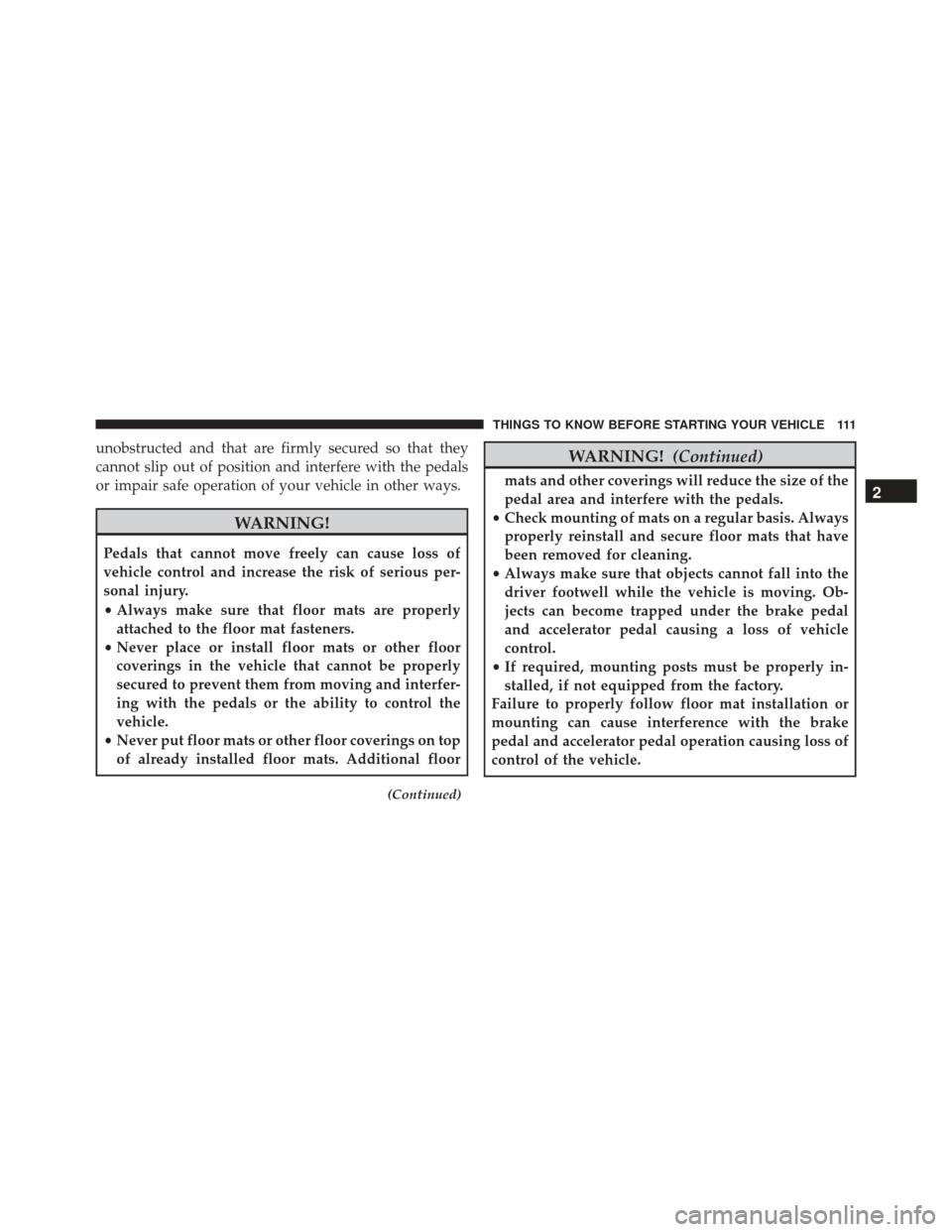

unobstructed and that are firmly secured so that they
cannot slip out of position and interfere with the pedals
or impair safe operation of your vehicle in other ways.
WARNING!
Pedals that cannot move freely can cause loss of
vehicle control and increase the risk of serious per-
sonal injury.
•Always make sure that floor mats are properly
attached to the floor mat fasteners.
• Never place or install floor mats or other floor
coverings in the vehicle that cannot be properly
secured to prevent them from moving and interfer-
ing with the pedals or the ability to control the
vehicle.
• Never put floor mats or other floor coverings on top
of already installed floor mats. Additional floor
(Continued)
WARNING! (Continued)
mats and other coverings will reduce the size of the
pedal area and interfere with the pedals.
• Check mounting of mats on a regular basis. Always
properly reinstall and secure floor mats that have
been removed for cleaning.
• Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Ob-
jects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
• If required, mounting posts must be properly in-
stalled, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss of
control of the vehicle.2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 111
Page 114 of 702

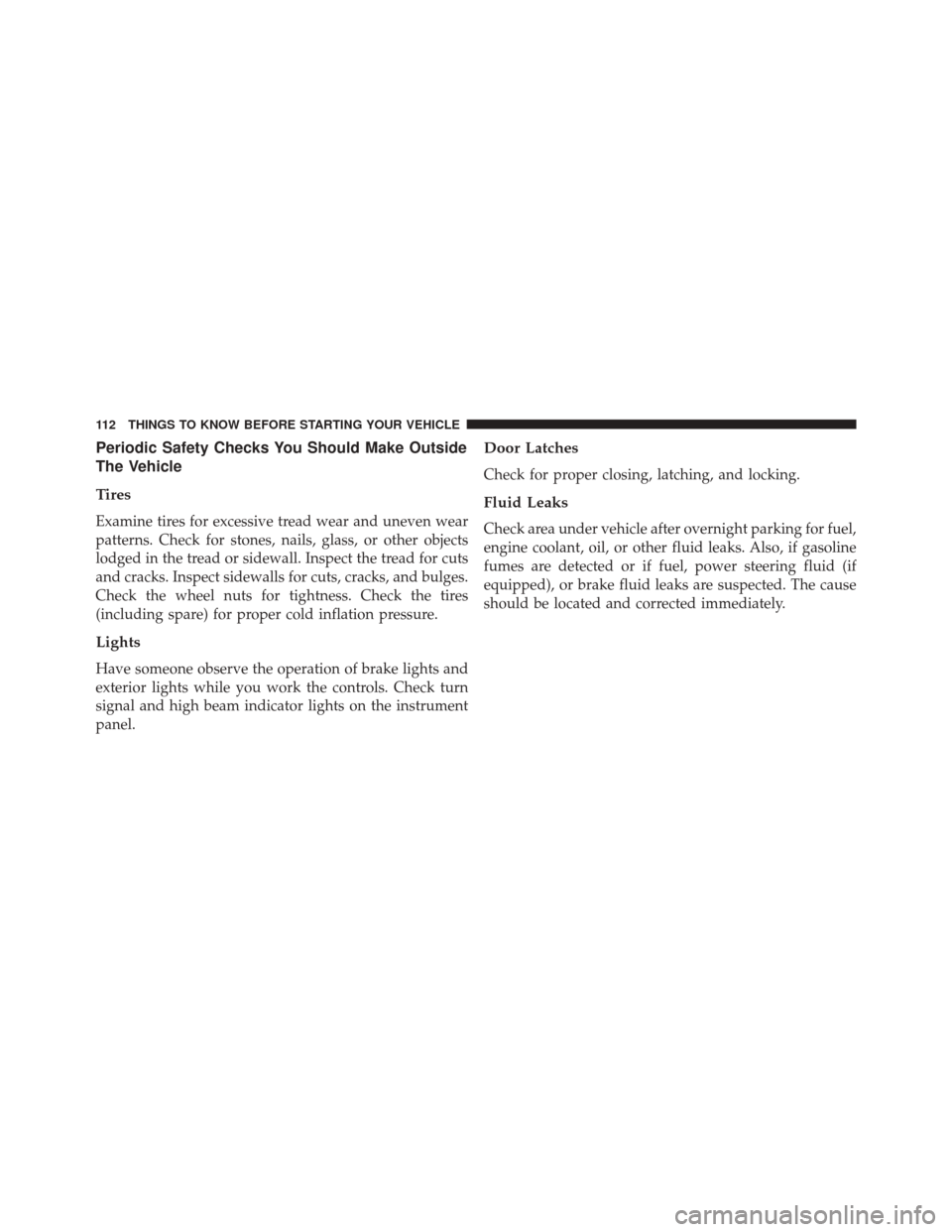

Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks, and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid (if
equipped), or brake fluid leaks are suspected. The cause
should be located and corrected immediately.
112 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 115 of 702

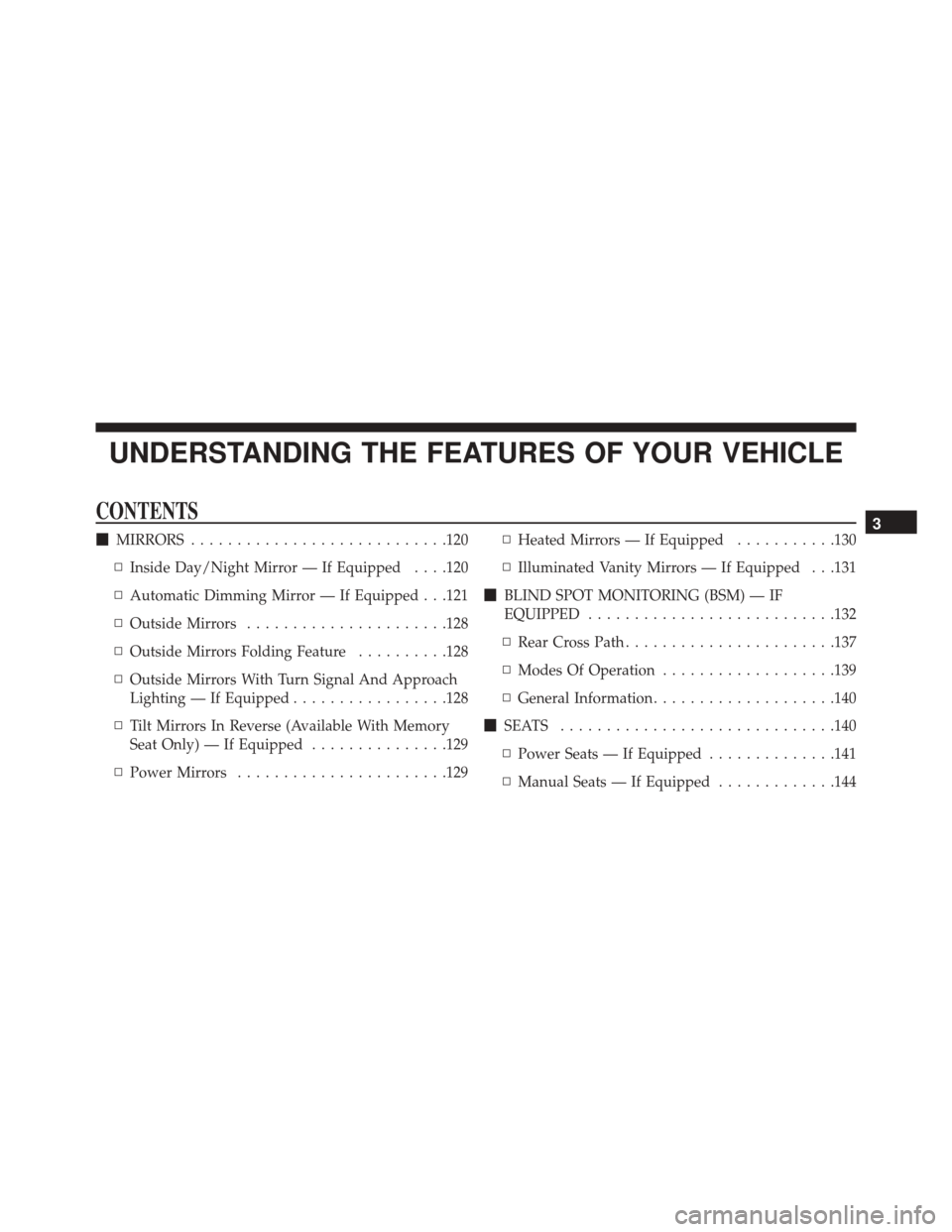

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS ........................... .120
▫ Inside Day/Night Mirror — If Equipped . . . .120
▫ Automatic Dimming Mirror — If Equipped . . .121
▫ Outside Mirrors ..................... .128
▫ Outside Mirrors Folding Feature ..........128
▫ Outside Mirrors With Turn Signal And Approach
Lighting — If Equipped .................128
▫ Tilt Mirrors In Reverse (Available With Memory
Seat Only) — If Equipped ...............129
▫ Power Mirrors ...................... .129▫
Heated Mirrors — If Equipped ...........130
▫ Illuminated Vanity Mirrors — If Equipped . . .131
BLIND SPOT MONITORING (BSM) — IF
EQUIPPED .......................... .132
▫ Rear Cross Path ...................... .137
▫ Modes Of Operation ...................139
▫ General Information ....................140
SEATS ............................. .140
▫ Power Seats — If Equipped ..............141
▫ Manual Seats — If Equipped .............1443
Page 116 of 702

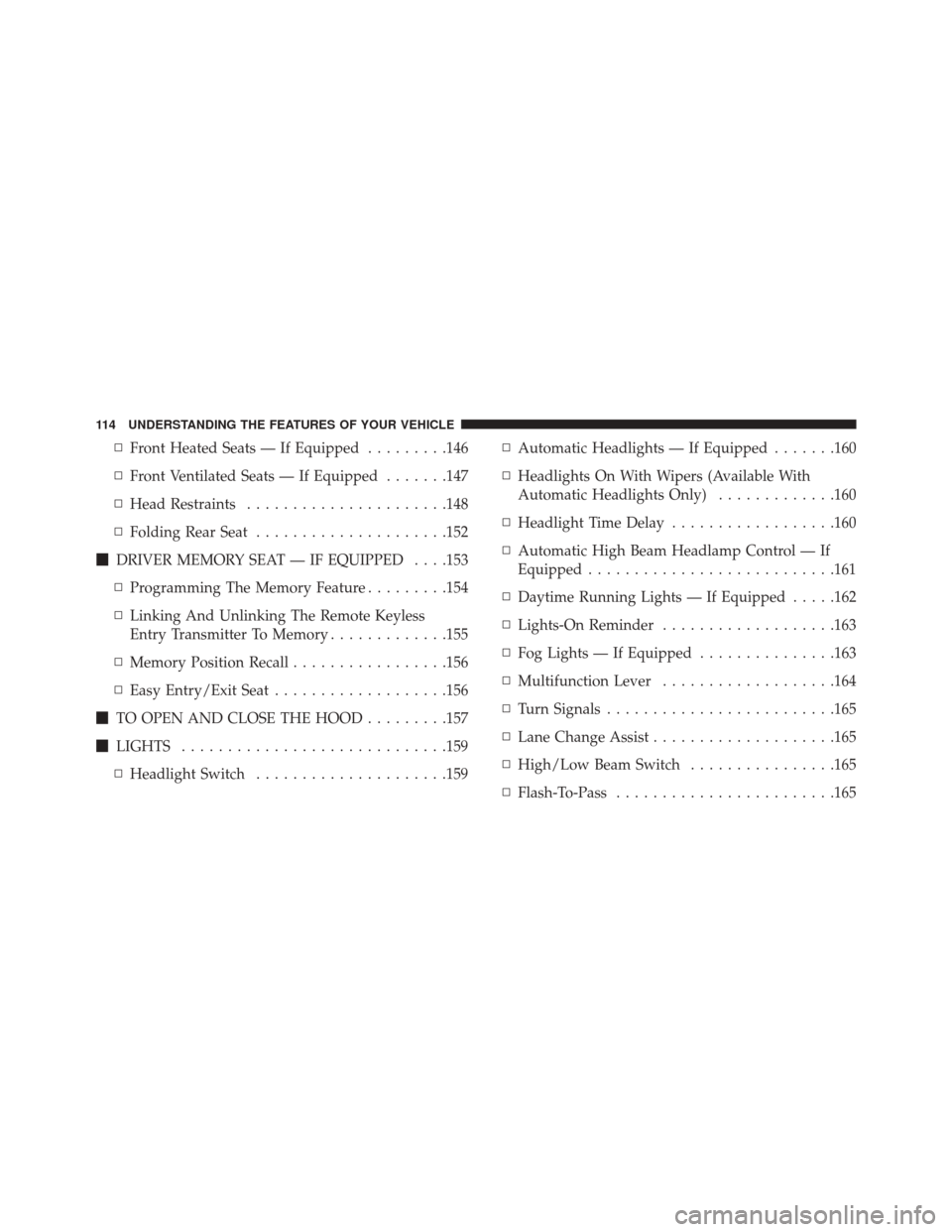

▫Front Heated Seats — If Equipped .........146
▫ Front Ventilated Seats — If Equipped .......147
▫ Head Restraints ..................... .148
▫ Folding Rear Seat .....................152
DRIVER MEMORY SEAT — IF EQUIPPED . . . .153
▫ Programming The Memory Feature .........154
▫ Linking And Unlinking The Remote Keyless
Entry Transmitter To Memory .............155
▫ Memory Position Recall .................156
▫ Easy Entry/Exit Seat ...................156
TO OPEN AND CLOSE THE HOOD .........157
LIGHTS ............................ .159
▫ Headlight Switch .....................159 ▫
Automatic Headlights — If Equipped .......160
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) .............160
▫ Headlight Time Delay ..................160
▫ Automatic High Beam Headlamp Control — If
Equipped .......................... .161
▫ Daytime Running Lights — If Equipped .....162
▫ Lights-On Reminder ...................163
▫ Fog Lights — If Equipped ...............163
▫ Multifunction Lever ...................164
▫ Turn Signals ........................ .165
▫ Lane Change Assist ....................165
▫ High/Low Beam Switch ................165
▫ Flash-To-Pass ....................... .165
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 117 of 702

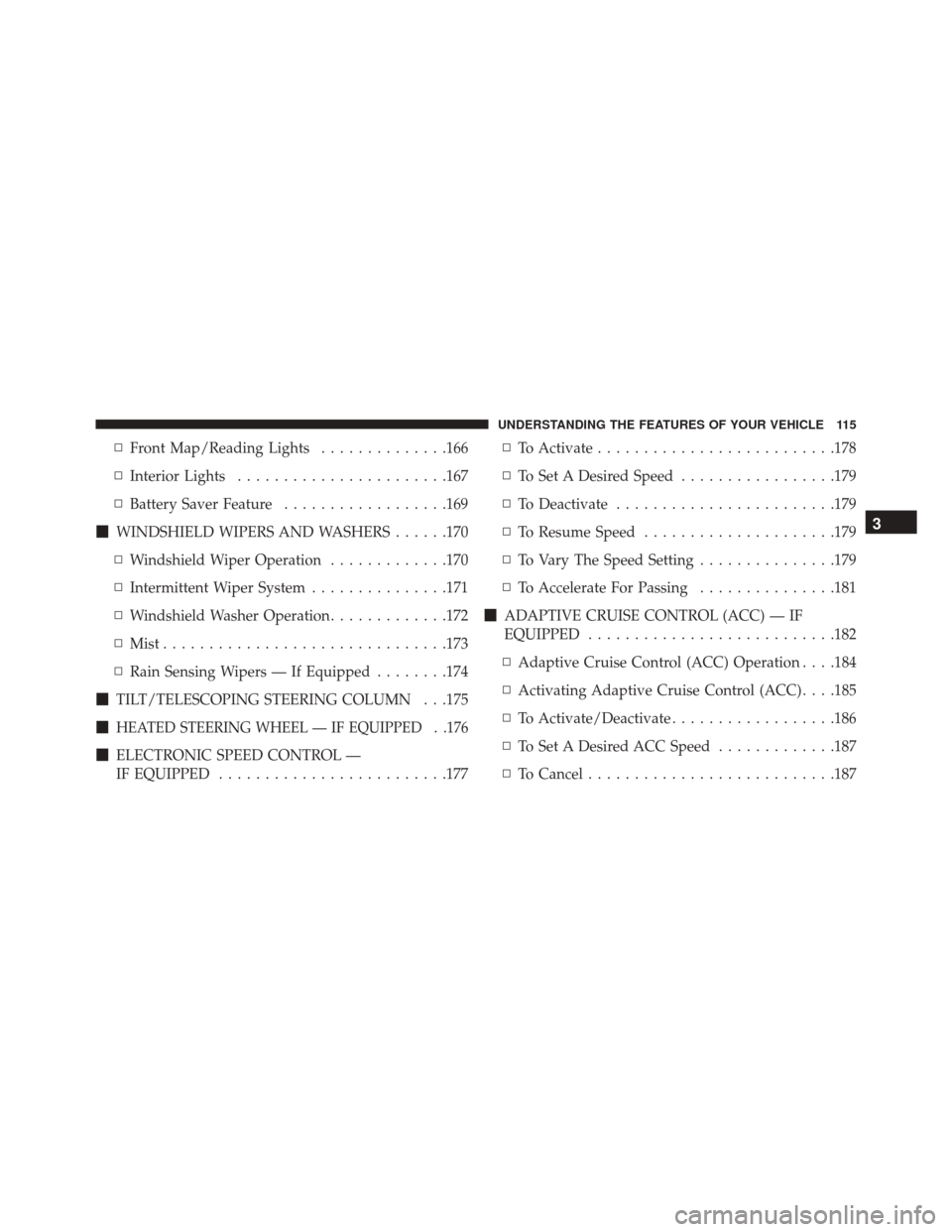

▫Front Map/Reading Lights ..............166
▫ Interior Lights ...................... .167
▫ Battery Saver Feature ..................169
WINDSHIELD WIPERS AND WASHERS ......170
▫ Windshield Wiper Operation .............170
▫ Intermittent Wiper System ...............171
▫ Windshield Washer Operation .............172
▫ Mist .............................. .173
▫ Rain Sensing Wipers — If Equipped ........174
TILT/TELESCOPING STEERING COLUMN . . .175
HEATED STEERING WHEEL — IF EQUIPPED . .176
ELECTRONIC SPEED CONTROL —
IF EQUIPPED ........................ .177▫
To Activate ......................... .178
▫ To Set A Desired Speed .................179
▫ To Deactivate ....................... .179
▫ To Resume Speed .....................179
▫ To Vary The Speed Setting ...............179
▫ To Accelerate For Passing ...............181
ADAPTIVE CRUISE CONTROL (ACC) — IF
EQUIPPED .......................... .182
▫ Adaptive Cruise Control (ACC) Operation . . . .184
▫ Activating Adaptive Cruise Control (ACC) . . . .185
▫ To Activate/Deactivate ..................186
▫ To Set A Desired ACC Speed .............187
▫ To Cancel .......................... .187
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115
Page 118 of 702
▫ToTurnOff......................... .188
▫ To Resume ......................... .188
▫ To Vary The Speed Setting ...............189
▫ Setting The Following Distance In ACC ......191
▫ Overtake Aid ....................... .195
▫ ACC Operation At Stop .................195
▫ Adaptive Cruise Control (ACC) Menu .......196
▫ Display Warnings And Maintenance ........197
▫ Precautions While Driving With ACC .......200
▫ General Information ....................204
▫ Normal (Fixed Speed) Electronic Speed
Control Mode ....................... .205
FORWARD COLLISION WARNING (FCW) WITH
MITIGATION — IF EQUIPPED ............209▫
Forward Collision Warning (FCW) With
Mitigation Operation ...................209
▫ Turning FCW ON Or OFF ...............211
▫ Changing FCW And Active Braking Status. . . .212
▫ FCW Limited Warning ..................213
▫ Service FCW Warning ..................213
LANESENSE — IF EQUIPPED .............214
▫ LaneSense Operation ...................214
▫ Turning LaneSense ON Or OFF ............215
▫ LaneSense Warning Message ..............216
▫ Changing LaneSense Status ..............220
PARKSENSE REAR PARK ASSIST —
IF EQUIPPED ........................ .220
▫ ParkSense Sensors .....................221
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 119 of 702
▫ParkSense Warning Display ..............221
▫ ParkSense Display .....................222
▫ Enabling And Disabling ParkSense .........226
▫ Service The ParkSense Rear Park Assist
System ............................ .227
▫ Cleaning The ParkSense System ...........227
▫ ParkSense System Usage Precautions ........227
PARKSENSE FRONT AND REAR PARK
ASSIST — IF EQUIPPED .................229
▫ ParkSense Sensors .....................231
▫ ParkSense Warning Display ..............232
▫ ParkSense Display .....................232
▫ Enabling And Disabling ParkSense .........241
▫ Service The ParkSense Park Assist System . . . .242 ▫
Cleaning The ParkSense System ...........243
▫ ParkSense System Usage Precautions ........243
PARKSENSE ACTIVE PARK ASSIST
SYSTEM —
IF EQUIPPED ........................ .245
▫ Enabling And Disabling The ParkSense Active
Park Assist System .....................246
▫ Parallel Parking Space Assistance
Operation/Display .....................248
▫ Perpendicular Parking Space Assistance
Operation/Display .....................258
PARKVIEW REAR BACK UP CAMERA —
IF EQUIPPED ........................ .268
OVERHEAD CONSOLE ..................271
▫ Front Map/Reading Lights ..............272
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117
Page 120 of 702
▫Sunglass Bin Door ....................273
GARAGE DOOR OPENER — IF EQUIPPED . . .274
▫ Before You Begin Programming HomeLink . . .276
▫ Programming A Rolling Code .............277
▫ Programming A Non-Rolling Code .........279
▫ Canadian/Gate Operator Programming ......280
▫ Using HomeLink .....................282
▫ Security ........................... .282
▫ Troubleshooting Tips ...................282
▫ General Information ....................283
POWER SUNROOF — IF EQUIPPED ........284
▫ Opening Sunroof — Express ..............285
▫ Opening Sunroof — Manual Mode .........286▫
Closing Sunroof — Express ...............286
▫ Closing Sunroof — Manual Mode ..........286
▫ Pinch Protect Feature ...................286
▫ Venting Sunroof — Express ..............286
▫ Sunshade Operation ....................287
▫ Wind Buffeting ...................... .287
▫ Sunroof Maintenance ...................287
▫ Ignition Off Operation ..................287
POWER SUNROOF WITH POWER SHADE —
IF EQUIPPED ........................ .288
▫ Opening Sunroof — Express ..............289
▫ Opening Sunroof — Manual Mode .........289
▫ Closing Sunroof — Express ...............290
▫ Closing Sunroof — Manual Mode ..........290
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
