Page 461 of 517

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IO

Page 462 of 517

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual LIGHT BULBS – ExteriorBulb No.
Bi-Halogen Headlamp .................... HIR2
Front Turn Signal Lamp ................3157NAK
Front Park Lamp ........................ LED
(Serviced at Authorized Deale

Page 463 of 517

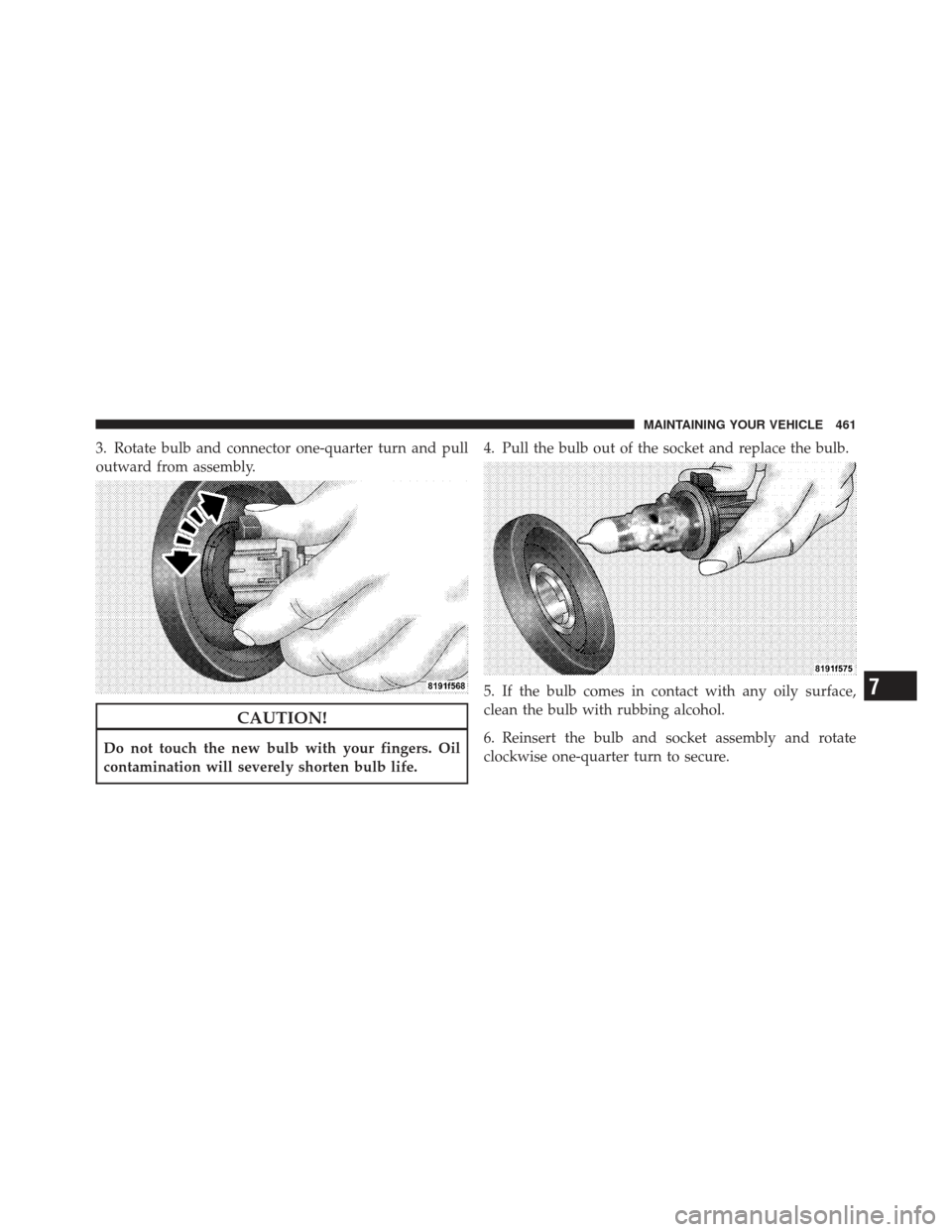

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual 3. Rotate bulb and connector one-quarter turn and pull
outward from assembly.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life.4. Pull the bulb o

Page 464 of 517

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual Front Turn Signal
1. Raise and prop open the hood.
2. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the headlamp
housing.
3. Remove the bulb from the co

Page 465 of 517

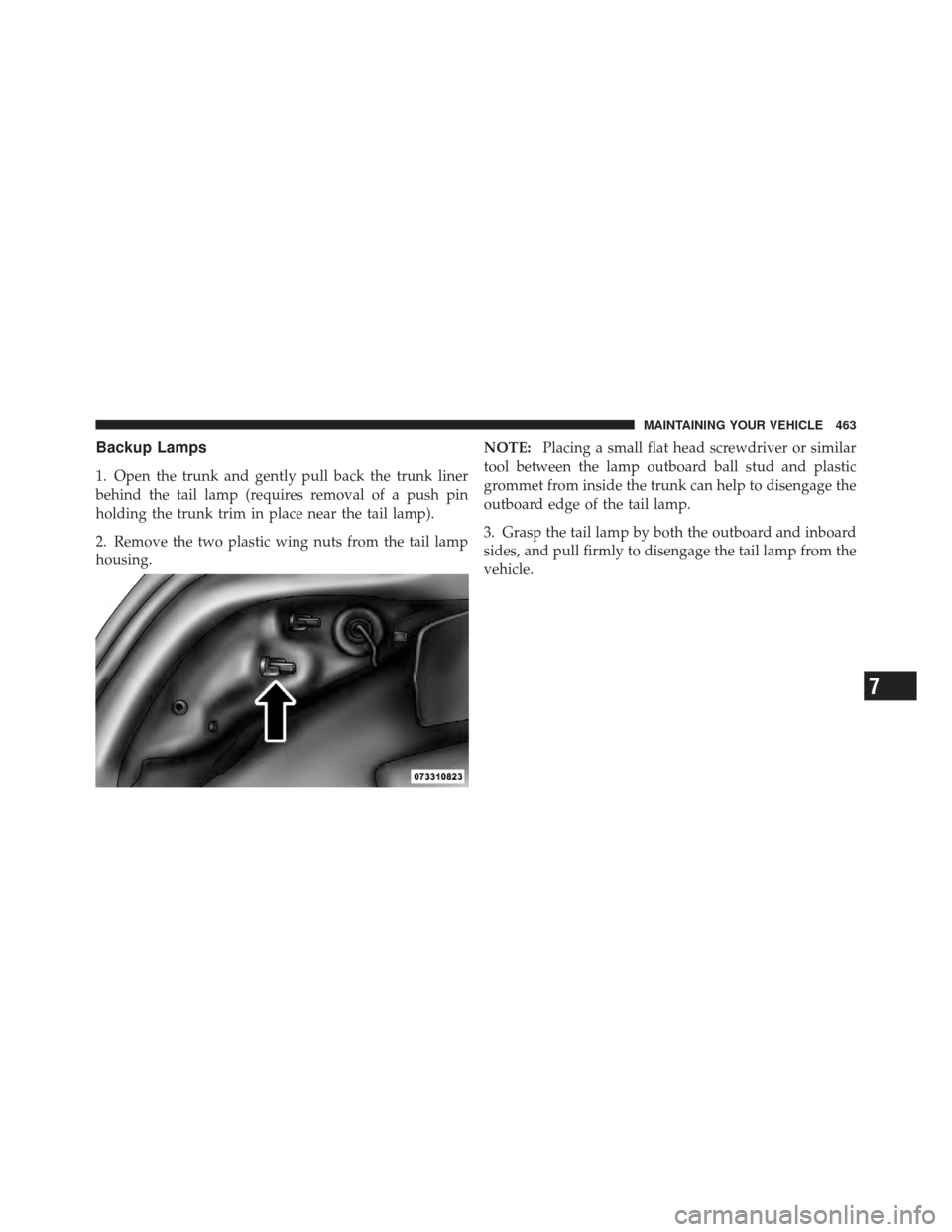

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual Backup Lamps
1. Open the trunk and gently pull back the trunk liner
behind the tail lamp (requires removal of a push pin
holding the trunk trim in place near the tail lamp).
2. Remove the two plastic

Page 466 of 517

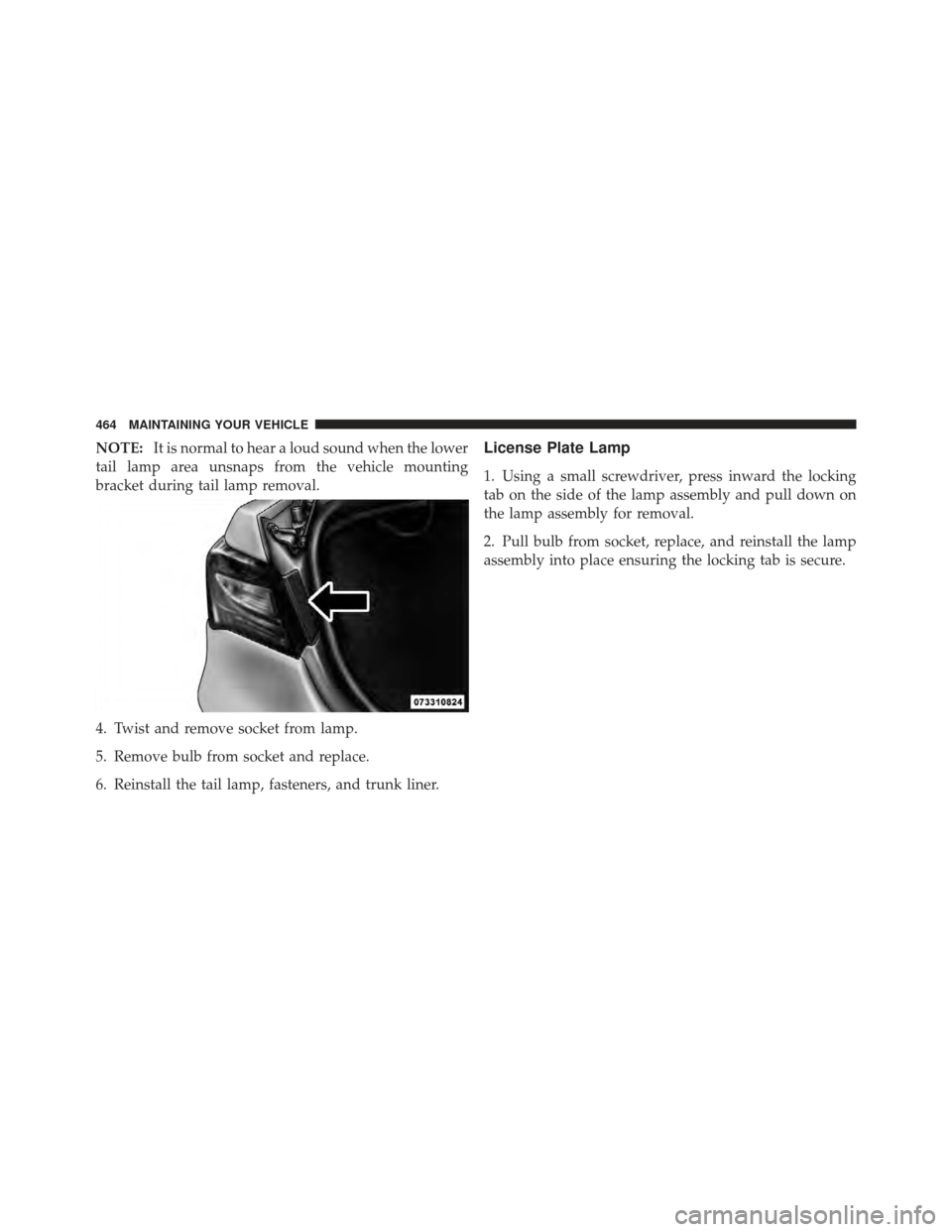

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual NOTE:It is normal to hear a loud sound when the lower
tail lamp area unsnaps from the vehicle mounting
bracket during tail lamp removal.
4. Twist and remove socket from lamp.
5. Remove bulb from socke

Page 467 of 517

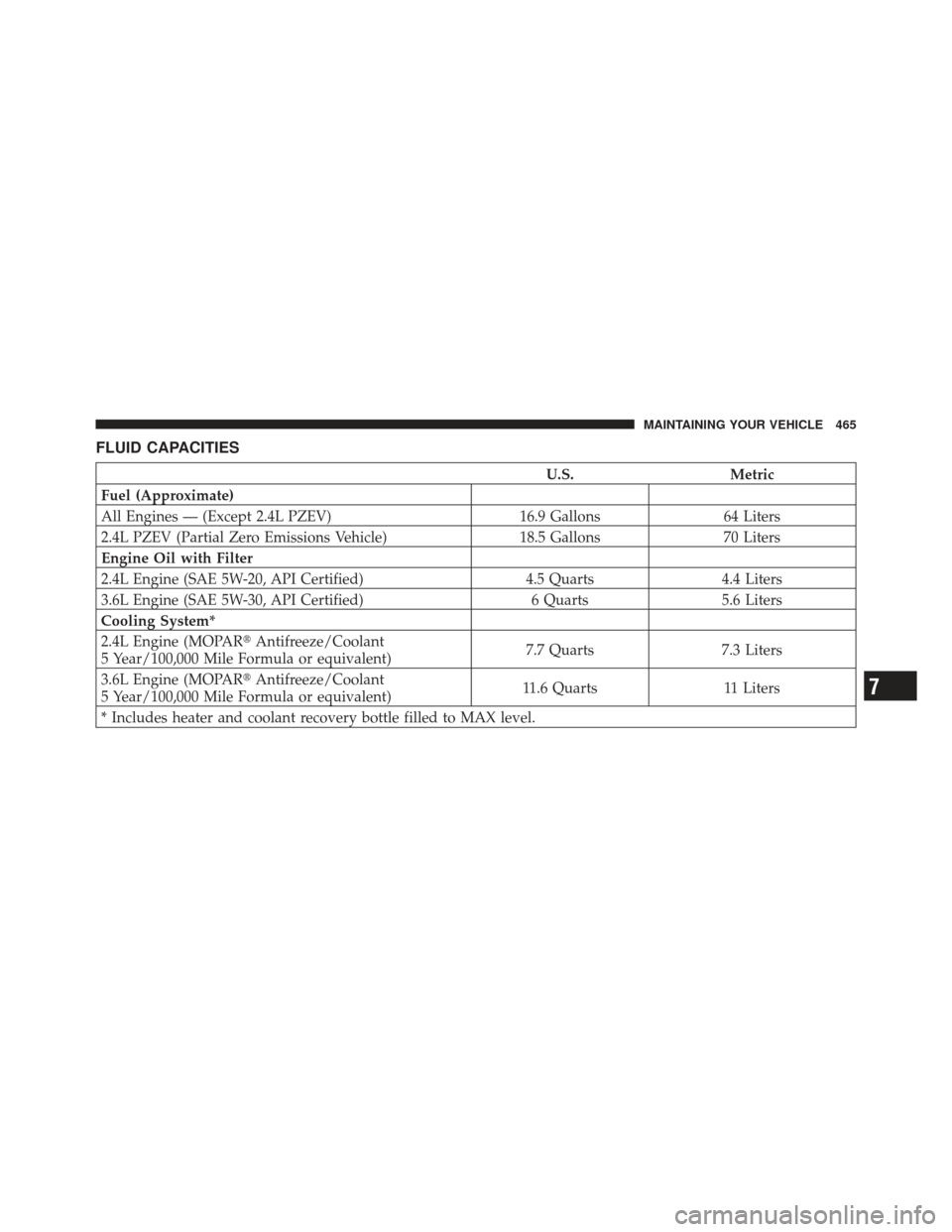

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
All Engines — (Except 2.4L PZEV) 16.9 Gallons64 Liters
2.4L PZEV (Partial Zero Emissions Vehicle) 18.5 Gallons70 Liters
Engine Oil with Filter
2.4L Eng

Page 468 of 517

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPAR
Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid
Organic Additive Technology) o

Page 469 of 517

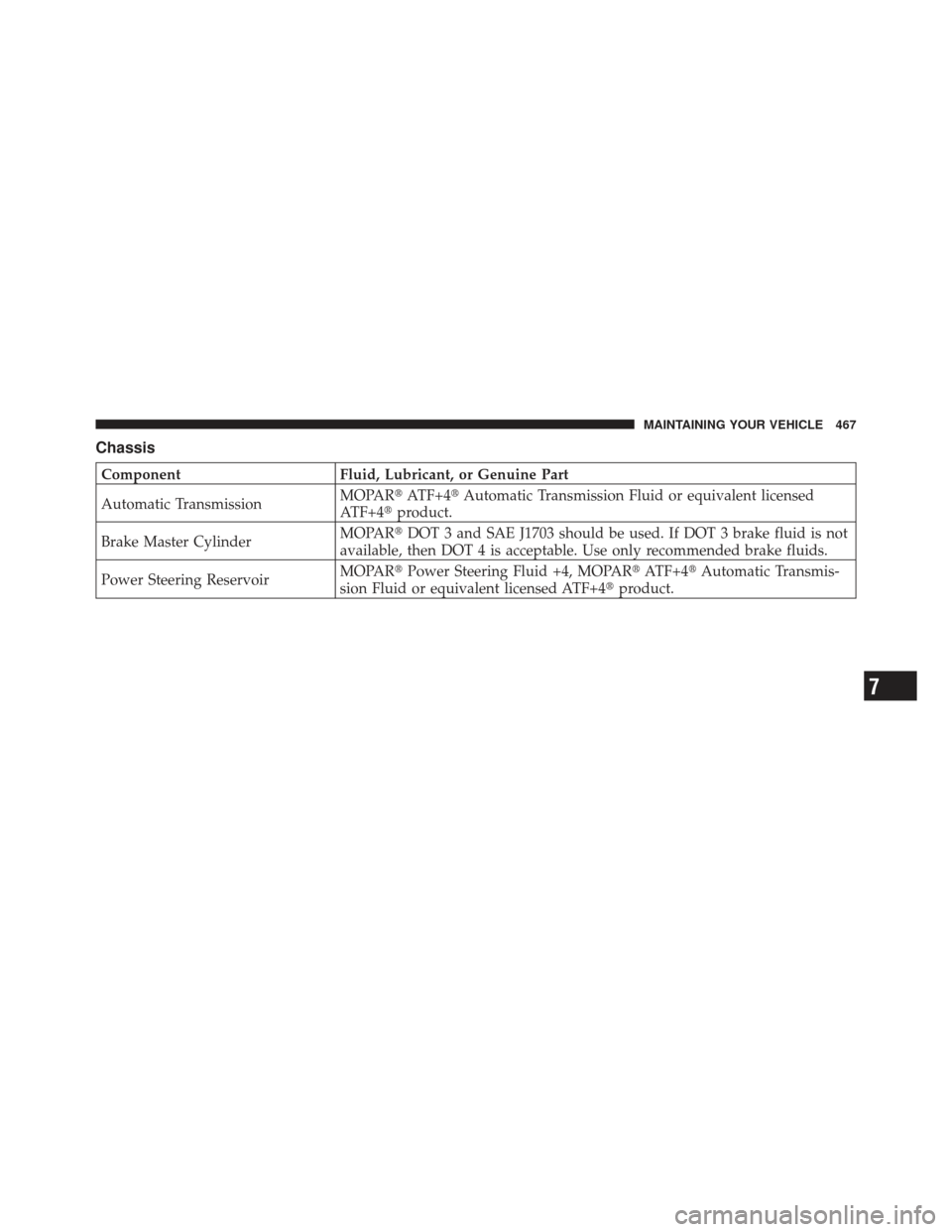

CHRYSLER 200 CONVERTIBLE 2012 1.G Owners Manual Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission MOPAR
ATF+4Automatic Transmission Fluid or equivalent licensed
ATF+4 product.
Brake Master Cylinder MOPAR
DOT 3 and SAE J1

Page 470 of 517
