key CHRYSLER CARAVAN 2000 Owners Manual

TEST NS-1AREPAIRING A NO CRANK CONDITION
Perform TEST NS-SEL Before Proceeding
*Perform Verification TEST VER-1A. **Check connectors - Clean / repair as necessary.
NOTE: BATTERY MUST
START TEST BE FULLY CHARGED
NS-1A. BEFORE DIAGNOSING
A NO-START
CONDITION.
NOTE: BEFORE VEHICLE THEFT DIAGNOSE
CONTINUING, BE (SKIM) SYSTEM FOR ARE ANY CODES YES TROUBLE CODE
SURE TO CHECK DIAGNOSTIC TROUBLE PRESENT? BEFORE
ENGINE SYSTEM CODES. CONTINUING.]
AND...
NO
INSPECT BATTERY
CABLES FOR IS THERE EVIDENCE YES REPAIR AS
TURN IGNITION OFF. CORROSION, OF PROBLEMS? NECESSARY.*
LOOSENESS OR OTHER
PROBLEMS.
NO
TURN IGNITION OFF. KEY ON. WITH A REPAIR THE STARTER
VOLTMETER, MEASURE IS THE VOLTAGE YES RELAY CONTROL
DISCONNECT THE ECM THE STARTER RELAY ABOVE 1.0 VOLT? CIRCUIT FOR A
HARNESS CONTROL CKT. SHORT TO VOLTAGE.*
CONNECTORS.** FIG.1
NO
KEY OFF. USING A FULLY DEPRESS THE
JUMPER WIRE CONNECT CLUTCH PEDAL. DID THE ENGINE YES REPLACE THE ENGINE
THE STARTER RELAY CRANK? CONTROL MODULE.*
CONTROL CKT TO ATTEMPT TO CRANK
GROUND. FIG.1 THE ENGINE.
NO
WITH A VOLTMETER,
DISCONNECT THE MEASURE THE FUSED IS THE VOLTAGE NO REPAIR OPEN FUSED
STARTER RELAY FROM B(+) CIRCUIT. ABOVE 11.6 VOLTS? BATTERY CIRCUIT.*
THE PDC.**
FIG.1
YES
WARNING: THE TRANS WARNING: THE ENGINE BRIEFLY CONNECT A
MUST BE IN NEUTRAL MAY BE CRANKED IN JUMPER WIRE BETWEEN CONTINUE TEST
AND THE PARKING THE NEXT STEP. KEEP THE STARTER RLY NS-1A ON THE
BRAKE MUST BE ON AWAY FROM MOVING OUTPUT AND FUSED NEXT PAGE.
FOR THE NEXT STEP. ENGINE PARTS. B(+) CKTS. FIG.1
N
O
S
T
A
R
T
T
E
S
T
S
395
ProCarManuals.com

TEST NS-1ACONTINUED - REPAIRING A NO CRANK CONDITION
*Perform Verification TEST VER-1A. **Check connectors - Clean / repair as necessary.
TEST NS-1A KEY OFF. WITH AN IS THE RESISTANCE
CONTINUED FROM OHMMETER, MEASURE BETWEEN NO REPLACE THE
THE PREVIOUS THE STARTER RELAY 60.0 AND 90.0 STARTER RELAY.*
PAGE. TERMINALS 85 AND 86. OHMS?
FIG.1
YES
KEY ON. USING A AT THE ECM HARNESS REPAIR THE STARTER
VOLTMETER, MEASURE CONNECTOR. IS THE VOLTAGE YES RELAY CONTROL CKT
STARTER RELAY ABOVE 1.0 VOLT? FOR A SHORT TO
CONTROL CKT... VOLTAGE.*
FIG.2
NO
WITH AN OHMMETER, BETWEEN THE ECM
MEASURE RESISTANCE HARNESS CONNECTOR IS THE RESISTANCE YES REPAIR THE OPEN
OF THE STARTER AND THE PDC ABOVE 5.0 OHMS? STARTER RELAY
RELAY CONTROLCONTROL CIRCUIT.*
CIRCUIT... FIG.2
NO
KEY ON. USING A WITH THE CLUTCH
VOLTMETER, MEASURE WHILE DEPRESSING DEPRESSED, IS THE YES REPLACE THE
THE CLUTCH THE CLUTCH. VOLTAGE ABOVE 10.0 STARTER RELAY.*
INTERLOCK SWITCH VOLTS?
CKT AT THE PDC)...
NO
KEY OFF. DISCONNECT MEASURE CLUTCH
THE CLUTCH INTERLOCK INTERLOCK SWITCH IS THE VOLTAGE NO REPAIR OPEN CLUTCH
SWITCH HARNESS HARNESS CONNECTOR ABOVE 10.0 VOLTS? INTERLOCK SWITCH
CONNECTOR. KEY ON. CAVITY 1. BATTERY SUPPLY.*
USING A VOLTMETER... FIG.3
YES
CONNECT A JUMPER PROBE THE CLUTCH
WIRE ACROSS THE INTERLOCK SWITCH IS THE VOLTAGE YES ADJUST OR REPLACE
CLUTCH INTERLOCK OUTPUT CKT. IN THE ABOVE 10.0 VOLTS? THE CLUTCH
SWITCH HARNESS PDC. INTERLOCK SWITCH.*
CONNECTOR. FIG.2
NO
REPAIR OPEN
CIRCUIT BETWEEN
STARTER RELAY AND
CLUTCH INTERLOCK
SWITCH.*
N
O
S
T
A
R
T
T
E
S
T
S
399
ProCarManuals.com

TEST NS-2AREPAIRING A NO RESPONSE CONDITION
Perform TEST NS-SEL Before Proceeding
*Perform Verification TEST VER-1A. **Check connectors - Clean / repair as necessary.
START TEST DOES THE VEHICLE YES PERFORM TEST
NS-2A. START? NS-2B.
NO
KEY OFF. WITH AN OHMMETER, IS THE RESISTANCE
MEASURE RESISTANCE ABOVE 5.0 OHMS FOR YES REPAIR THE OPEN
DISCONNECT THE ECM OF THE PCM GND CKTS ANY OF THE ECM GROUND.*
HARNESS AT HARNESS CAVITIES MEASUREMENTS?
CONNECTORS.** 1 AND 27. FIG.1
NO
KEY ON. USING A AT ECM HARNESS REPAIR OPEN OR
VOLTMETER, MEASURE CONNECTOR CAVITY 47. IS THE VOLTAGE NO SHORT TO GROUND IN
THE FUSED IGNITION ABOVE 10.0 VOLTS? THE FUSED IGNITION
SWITCH OUTPUT SWITCH OUTPUT
CIRCUIT... FIG.1 CIRCUIT.*
YES
KEY OFF. USING A VOLTMETER REPAIR OPEN FUSE
REMOVE THE DIESEL PROBE DIESEL POWER IS THE VOLTAGE NO OR FUSED BATTERY
POWER RELAY. RELAY CONNECTOR ABOVE 10.0 VOLTS? CIRCUIT TO DIESEL
CAVITY 30 (IN PDC). POWER RELAY.*
KEY ON. FIG.2
YES
KEY OFF. CONNECT A MEASURE VOLTAGE AT IS THE VOLTAGE
JUMPER WIRE ACROSS ECM HARNESS ABOVE 10.0 VOLTS NO REPAIR OPEN DIESEL
RELAY CONNECTOR CONNECTOR CAVITIES FOR EACH POWER RELAY OUTPUT
CAVATIES 30 AND 87. 2 AND 28. MEASUREMENT? CIRCUIT(S).*
FIG. 1 AND 2
YES
KEY OFF. RECONNECT WITH JUMPER WIRE
THE ENGINE CONTROL STILL CONNECTED, DOES THE VEHICLE NO REPLACE THE ENGINE
MODULE HARNESS ATTEMPT TO START START? CONTROL MODULE.*
CONNECTORS. VEHICLE.
YES
CONTINUE TEST
NS-2A ON THE
NEXT PAGE.
N
O
R
E
S
P
O
N
S
E
T
E
S
T
401
ProCarManuals.com

TEST NS-2BREPAIRING A NO RESPONSE CONDITION
Perform TEST NS-2A Before Proceeding
*Perform Verification TEST VER-1A. **Check connectors - Clean / repair as necessary.
WAS THE IGNITION TURN IGNITION ON
START TEST ON WHEN THE "NO NO TO GET A RESPONSE.
NS-2B. RESPONSE" MESSAGE
WAS DISPLAYED? TEST COMPLETE.
YES
KEY ON. PROBE THE
ISO K-LINE CIRCUIT IS THE TEST LIGHT YES REPAIR THE ISO
USE A TEST LIGHT AT THE DLC. ON? K-LINE FOR A SHORT
IN THE FOLLOWINGTO VOLTAGE.*
STEP. FIG.1
NO
KEY OFF.
DISCONNECT DRB
DISCONNECT THE ECM FROM THE DATA LINK
HARNESS CONNECTOR.
CONNECTORS.**
MEASURE THE
USE AN OHMMETER IN RESISTANCE OF THE IS THE RESISTANCE YES REPAIR THE ISO
THE FOLLOWING ISO K-LINE AT THE BELOW 5.0 OHMS? K-LINE CIRCUIT FOR
STEPS. DLC CONNECTOR TO A SHORT TO GROUND.
GROUND FIG.1
NO
MEASURE THE
RESISTANCE OF THE IS THE RESISTANCE NO REPAIR THE OPEN
ISO K-LINE AT THE BELOW 5.0 OHMS? ISO K-LINE
DLC CONN. TO THE CIRCUIT.
ECM CONN. FIG.2
YES
MEASURE BETWEEN THE DLC CAVITIES REPAIR THE GROUND
CHASSIS GROUND AND 4 AND 5. IS THE RESISTANCE NO CIRCUIT(S) THAT
THE GROUND BELOW 5.0 OHMS FOR MEASURED ABOVE 5.0
CIRCUITS AT... EACH MEASUREMENT? OHMS FOR AN OPEN.*
FIG.1
YES
CONTINUE TEST
NS-2B ON THE
NEXT PAGE.
N
O
R
E
S
P
O
N
S
E
T
E
S
T
407
ProCarManuals.com

TEST NS-3BCONTINUED - REPAIRING - NO START
*Perform Verification TEST VER-1A. **Check connectors - Clean / repair as necessary.
TEST NS-3B TURN IGNITION OFF.
CONTINUED FROM RECONNECT THE
THE PREVIOUS ENGINE CONTROL
PAGE. MODULE HARNESS
CONNECTORS.
KEY ON. MEASURE
USE AN AMMETER IN AMPERAGE FROM BCM IS THE AMPERAGE NO REPLACE THE ENGINE
THE FOLLOWING HARNESS CONNECTOR BETWEEN 1.0 AND CONTROL MODULE.*
STEP. CAVITY 72 TO GROUND. 1.4 MA?
FIG.1
YES
RECONNECT THE BODY USING THE DRB
CONTROL MODULE OSCILLOSCOPE
HARNESS FUNCTION, SELECT
CONNECTORS. "LAB SCOPE".
SET VOLTAGE RANGE TO KEY ON. USING
+20.0V. SET TIME OSCILLOSCOPE LEAD,
RANGE TO 0.1S/DIV. BACKPROBE ECM
SET PROBE TO X10. HARNESS CONNECTOR
FIG.2 CAVITY 38. FIG.1
NOTE: AN IMMOBILIZER DOES THE DRB DISPLAY
SIGNAL WILL CYCLE HI SHOW THE 12 VOLT YES REPLACE THE ENGINE
TO LO SIMILAR TO THE IMMOBILIZER SIGNAL CONTROL MODULE.*
PATTERN SHOWN IN CYCLING HI AND LO?
FIG.2 FIG.2
NO
REPLACE THE BODY
CONTROL MODULE.*
N
O
S
T
A
R
T
T
E
S
T
S
417
ProCarManuals.com

TEST NS-5ACHECKING THE ENGINE MECHANICAL SYSTEMS
Perform TEST NS-SEL Before Proceeding
*Perform Verification TEST VER-1A. **Check connectors - Clean / repair as necessary.
KEY OFF. USING
START TEST SERVICE MANUAL IS THE VALVE NO REPAIR VALVE
NS-5A. PROCEDURES, CHECK TIMING WITHIN TIMING AS
ENGINE VALVE SPECIFICATIONS? NECESSARY.
TIMING.
YES
USING SERVICE
MANUAL PROCEDURES, IS ENGINE NO REPAIR THE ENGINE
CHECK ENGINE COMPRESSION WITHIN AS NECESSARY.
COMPRESSION. SPECIFICATIONS?
YES
USING SERVICE
MANUAL IS INJECTION PUMP NO REPAIR INJECTION
PROCEEDURES, CHECK TIMING WITHIN PUMP TIMING AS
INJECTION PUMP SPECIFICATIONS? NECESSARY.
TIMING.
YES
TEST COMPLETED.
N
O
S
T
A
R
T
T
E
S
T
S
421
ProCarManuals.com

TEST VER-1ANO START VERIFICATION
Important Note:
If the Engine Control Module, Sentry Key Immobilizer Module or Body Control Module have been
changed the Vehicle Identification Number (VIN) and Secret Key data must be updated to enable the
vehicle to start and run. Refer to GENERAL INFORMATION SECITON 8.0 for programming
procedures.
Inspect the vehicle to ensure that all engine components are connected. Reassemble and reconnect
components as necessary.
Inspect the engine oil for contamination. If it is contaminated, change the oil and filter.
Using the DRB, clear all diagnostic trouble codes (DTC's).
Turn the ignition off for 10 seconds.
Attempt to start the vehicle.
If the engine isunableto start, look for any Technical Service Bulletins that may relate to this
condition. Return toDTC TESTif necessary.
The repair is now complete.
V
E
R
I
F
I
C
A
T
I
O
N
T
E
S
T
422
ProCarManuals.com

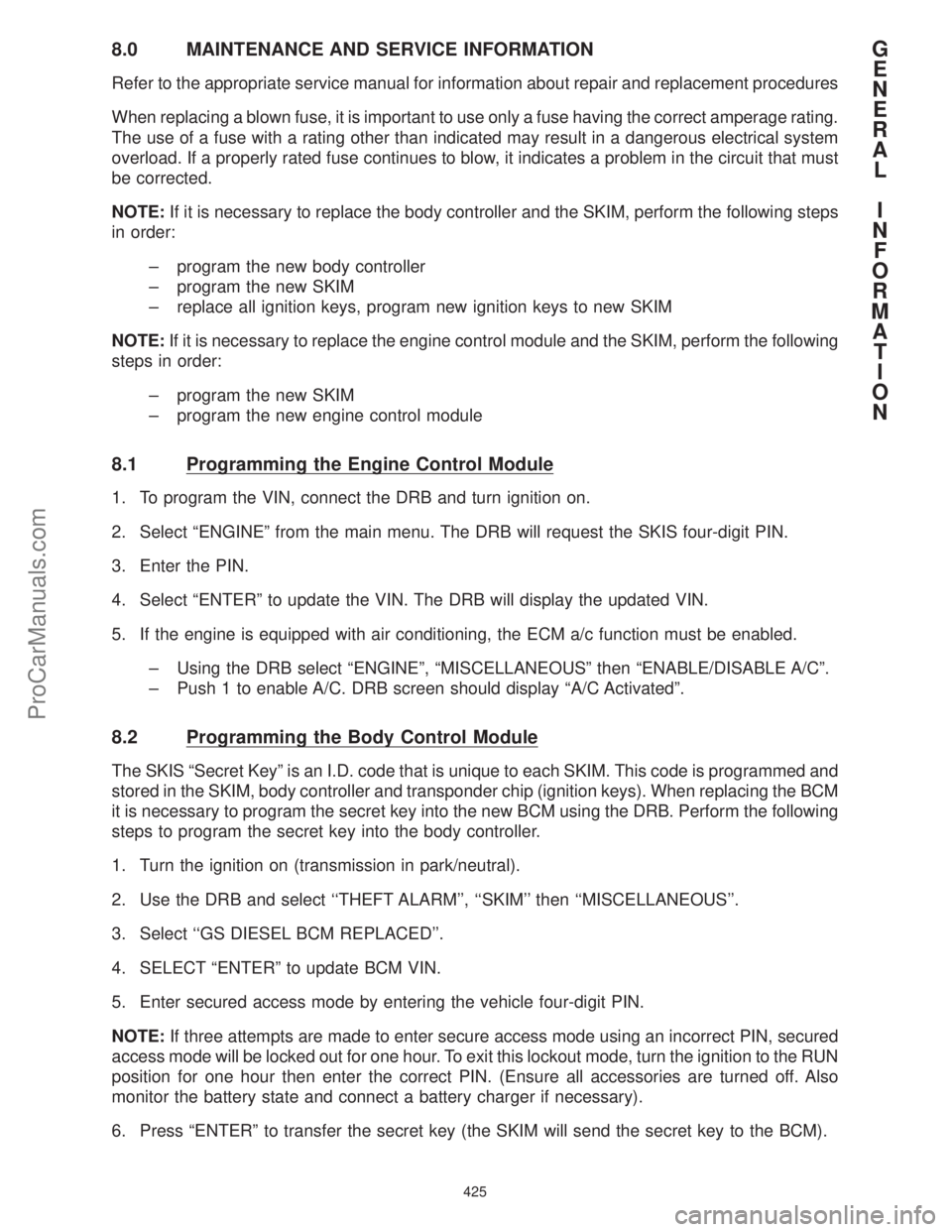

8.0 MAINTENANCE AND SERVICE INFORMATION
Refer to the appropriate service manual for information about repair and replacement procedures
When replacing a blown fuse, it is important to use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated may result in a dangerous electrical system
overload. If a properly rated fuse continues to blow, it indicates a problem in the circuit that must
be corrected.
NOTE:If it is necessary to replace the body controller and the SKIM, perform the following steps
in order:
± program the new body controller
± program the new SKIM
± replace all ignition keys, program new ignition keys to new SKIM
NOTE:If it is necessary to replace the engine control module and the SKIM, perform the following
steps in order:
± program the new SKIM
± program the new engine control module
8.1 Programming the Engine Control Module
1. To program the VIN, connect the DRB and turn ignition on.
2. Select ªENGINEº from the main menu. The DRB will request the SKIS four-digit PIN.
3. Enter the PIN.
4. Select ªENTERº to update the VIN. The DRB will display the updated VIN.
5. If the engine is equipped with air conditioning, the ECM a/c function must be enabled.
± Using the DRB select ªENGINEº, ªMISCELLANEOUSº then ªENABLE/DISABLE A/Cº.
± Push 1 to enable A/C. DRB screen should display ªA/C Activatedº.
8.2 Programming the Body Control Module
The SKIS ªSecret Keyº is an I.D. code that is unique to each SKIM. This code is programmed and
stored in the SKIM, body controller and transponder chip (ignition keys). When replacing the BCM
it is necessary to program the secret key into the new BCM using the DRB. Perform the following
steps to program the secret key into the body controller.
1. Turn the ignition on (transmission in park/neutral).
2. Use the DRB and select ``THEFT ALARM'', ``SKIM'' then ``MISCELLANEOUS''.
3. Select ``GS DIESEL BCM REPLACED''.
4. SELECT ªENTERº to update BCM VIN.
5. Enter secured access mode by entering the vehicle four-digit PIN.
NOTE:If three attempts are made to enter secure access mode using an incorrect PIN, secured
access mode will be locked out for one hour. To exit this lockout mode, turn the ignition to the RUN
position for one hour then enter the correct PIN. (Ensure all accessories are turned off. Also
monitor the battery state and connect a battery charger if necessary).
6. Press ªENTERº to transfer the secret key (the SKIM will send the secret key to the BCM).
G
E
N
E
R
A
L
I
N
F
O
R
M
A
T
I
O
N
425
ProCarManuals.com

8.3 Programming the Sentry Key Immobilizer Module
1. Turn the ignition on (transmission in park/neutral).
2. Use the DRB and select ``THEFT ALARM'', ``SKIM'' then ``MISCELLANEOUS''.
3. Select ``SKIM REPLACED (DIESEL)''.
4. Program the vehicle four-digit PIN into SKIM.
5. Select ªCOUNTRY CODEº and enter the correct country.
NOTE:Be sure to enter the correct country code. If the incorrect country code is programmed into
SKIM, the SKIM must be replaced.
6. Select ªUPDATE VINº (the skim will learn the VIN from the BCM).
7. Press ªENTERº to transfer the secret key (the BCM will send the secret key to the SKIM).
8. Program ignition keys to SKIM (for programming procedure, refer toGENERAL INFORMA-
TION SECTION 8.3).
NOTE:If the BCM and the SKIM are replaced at the same time, all vehicle keys will need to be
replaced and programmed to the new SKIM.
8.4 Programming Ignition Keys to the Sentry Key Immobilizer Module
1. Turn the ignition on (transmission in park/neutral).
2. Use the DRB and select ªTHEFT ALARMº, ªSKIMº then ªMISCELLANEOUSº.
3. Select ªPROGRAM IGNITION KEY'Sº.
4. Enter secured access mode by entering the vehicle four-digit PIN.
NOTE:A maximum of eight keys can be learned to each SKIM. Once a key is learned to a SKIM
it (the key) cannot be transferred to another vehicle.
If ignition key programming is unsuccessful, the DRB will display one of the following messages:
Programming Not Attempted - The DRB attempts to read the programmed key status and there
are no keys programmed into SKIM memory.
Programming Key Failed (Possible Used Key From Wrong Vehicle) - SKIM is unable to program
key due to one of the following:
± faulty ignition key transponder
± ignition key is programmed to another vehicle.
8 Keys Already Learned, Programming Not Done - SKIM transponder ID memory is full.
1. Obtain ignition keys to be programmed from cluster (8 keys maximum)
2. Using the DRB, erase all ignition keys by selecting ªMISCELLANEOUSº and ªERASE ALL
CURRENT IGN. KEYSº
3. Program all ignition keys.
Learned Key In Ignition - Ignition key transponder ID is currently programmed in SKIM memory.
G
E
N
E
R
A
L
I
N
F
O
R
M
A
T
I
O
N
426
ProCarManuals.com

rough,
un-stable or
erratic idle
stallingThe engine runs unevenly at idle and causes the engine to shake if it is
severe enough. The engine idle rpm may vary (called ``hunting''). This
condition may cause stalling if it is severe enough.
SKIMSentry key immobilizer module
SKISSentry key immobilizer system
start and
stallThe engine starts but immediately dies.
surgeengine rpm fluctuation without corresponding change in throttle position
sensor
SRCsignal range check
VSSvehicle speed sensorG
E
N
E
R
A
L
I
N
F
O
R
M
A
T
I
O
N
429
ProCarManuals.com
