REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Hoist vehicle or support on jack stands.
(3) Disconnect the hose from the nozzle inlet. To
disconnect the headlamp washer hose, push down on
the latch with slight force and pull apart.
(4) Apply a regulated 20 psi of compressed air to
the inlet, so as to fully extend the telescopic unit.
WARNING: IF MORE THAN 20 PSI IS APPLIED TO
THE WASHER INLET, WASHER FLUID MAY SPRAY
OUT OF THE HEADLAMP WASHER. WEAR SAFETY
GLASSES AND DO NOT HAVE AIMING DIRECTLY
TOWARD FACE.
(5) Unsnap cover from telescopic assembly.
(6) Disconnect air supply from washer inlet to fully
retract the telescopic unit.
(7) Remove two screws holding the nozzle assem-
bly to the front fascia.
(8) Remove the nozzle assembly from behind fas-
cia.
INSTALLATION
(1) Place the nozzle assembly in behind the fascia.
(2) Install the two screws holding the nozzle
assembly to the front fascia.
(3) Snap cover onto telescopic assembly.
WARNING: IF MORE THAN 20 PSI IS APPLIED TO
THE WASHER INLET, WASHER FLUID MAY SPRAY
OUT OF THE HEADLAMP WASHER. WEAR SAFETY
GLASSES AND DO NOT HAVE AIMING DIRECTLY
TOWARD FACE.
On the new washer unit, there is a white tab with
pull ring holding the telescopic unit up approxi-
mately an inch. This is to ease the installation pro-
cess. Once cover is snapped on, you may either pull
up on the unit to remove the tab, or apply regulated
compressed air.
(4) Apply a regulated 20 psi of compressed air the
inlet, so as to fully extend the telescopic unit.
(5) With unit extended, pull white tab out from the
bottom of the telescopic unit and discard.
(6) Remove the air supply from the washer unit.
(7) Connect the washer hose to the telescopic unit.
Press firmly until snap is heard.
(8) Remove vehicle from hoist or jack stands.
(9) Connect the battery negative cable.
(10) Verify vehicle and system operation.
HEADLAMP WASHER HOSE -
EXPORT
REMOVAL
The headlamp washer hose is a special high pres-
sure hose with specific fittings, and must be replaced
as a unit.
(1) Disconnect and isolate the battery negative
cable.
(2) Hoist vehicle or support on jack stands.
(3) Remove parts as necessary to replace high
pressure headlamp washer hose. When disconnecting
hose, press down firmly on latch at headlamp washer
pump motor and telescopic washer assembly and pull
apart.
INSTALLATION
The headlamp washer hose is a special high pres-
sure hose with specific fittings, and must be replaced
as a unit.
(1) Install the new high pressure headlamp
washer hose assembly. Push fitting on until a snap is
heard.
(2) Install the parts that were removed to replace
high pressure headlamp washer hose.
(3) Remove vehicle from hoist or jack stands.
(4) Connect the battery negative cable.
(5) Verify vehicle and system operation.
HEADLAMP WASHER PUMP
MOTOR - EXPORT
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the engine fresh air housing inside the
engine compartment (Refer to 9 - ENGINE/AIR
INTAKE SYSTEM/AIR CLEANER HOUSING -
REMOVAL).
(3) Disconnect the washer hose at the in-line con-
nector forward of the cowl grille so that the in-line
connector remains with the washer hose from the
fresh air plenum.
(4) Disconnect the washer hose from the hose clip
located on the front fender side shield.
(5) Remove the filler tube screw.
(6) Hoist and support vehicle on hoist or jack
stands.
(7) Remove the right front wheel and tire assembly
(Refer to 22 - TIRES/WHEELS - REMOVAL).
(8) Disconnect the left right front wheelhouse
splash shield and move aside (Refer to 23 - BODY/
EXTERIOR/WHEELHOUSE SPLASH SHIELD -
REMOVAL).
RSWIPERS/WASHERS8R-13
HEADLAMP WASHERS - EXPORT (Continued)
ProCarManuals.com
Page 651 of 2399
(9) Drain washer fluid from the reservoir and into
a suitable clean container. This can be done by dis-
connecting the windshield washer hose from the
front (outboard) washer pump and allowing the
washer fluid to drain into a container through a tem-
porary jumper hose connected to the front washer
pump.
(10) Disconnect the rear washer pump hose from
washer pump.
(11) Disconnect the high pressure headlamp
washer pump hose by pressing down firmly on latch
and pulling hose off.
(12) Disconnect the electrical body harness connec-
tors to the washer pump motors and the fluid level
sensor. Slide the red lock on the connector to the
release position, then, depress the black tab and pull
the connector off the pump or sensor.
(13) Remove the two reservoir mounting screws.
(14) Disconnect the reservoir from the body mount
by raising the reservoir upward slightly and then
down so that the reservoir filler neck and front
washer hose pull through the opening in the front
fender side shield.
(15) Remove pump from reservoir by pulling pump
up and away from reservoir cavity and out of mount-
ing grommet. Do not damage reservoir/pump sealing
surface or puncture reservoir during removal.
(16) Remove pump grommet and discard.
INSTALLATION
(1) Use new grommet when installing a new pump
assembly.
(2) Assure pump upper retention tab is pressed
into reservoir slot and assure the pump is aligned to
and fully seated in the reservoir cavity.
(3) Push filler neck and front washer hose through
the opening in the front fender side shield. Connect
the reservoir to the body mount by lowering the res-
ervoir down.
(4) Install the two reservoir mounting screws.
Torque screws to 8.5 - 11.3 N´m (75 - 100 in. lbs.).
(5) Connect the electrical body harness connectors
to the washer pump motors and the fluid level sen-
sor. Slide the red lock on the connector to the closed
or locked position.
(6) Connect front and rear washer pump hoses and
assure that they are properly routed to prevent
pinching and possible inoperative washers.
(7) Connect the high pressure headlamp washer
hose by firmly pushing hose onto inlet until a snap is
heard.
(8) Connect the left right front wheelhouse splash
shield and move aside (Refer to 23 - BODY/EXTERI-
OR/WHEELHOUSE SPLASH SHIELD - INSTALLA-
TION).(9) Install the right front wheel and tire assembly
(Refer to 22 - TIRES/WHEELS - INSTALLATION).
(10) lower vehicle from hoist or jack stands.
(11) Install the filler tube screw. Torque screw to
8.5 - 11.3 N´m (75 - 100 in. lbs.).
(12) Connect the washer hose to the hose clip
located on the front fender side shield.
(13) Connect the washer hose at the in-line con-
nector forward of the cowl grille.
(14) Install the engine fresh air housing inside the
engine compartment (Refer to 9 - ENGINE/AIR
INTAKE SYSTEM/AIR CLEANER HOUSING -
INSTALLATION).
(15) Connect the battery negative cable.
(16) Verify vehicle and system operation.
REAR WASHER PUMP MOTOR
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the engine fresh air housing inside the
engine compartment (Refer to 9 - ENGINE/AIR
INTAKE SYSTEM/AIR CLEANER HOUSING -
REMOVAL).
(3) Disconnect the washer hose at the in-line con-
nector forward of the cowl grille so that the in-line
connector remains with the washer hose from the
fresh air plenum.
(4) Disconnect the washer hose from the hose clip
located on the front fender side shield.
(5) Remove the filler tube screw.
(6) Hoist and support vehicle on hoist or jack
stands.
(7) Remove the right front wheel and tire assembly
(Refer to 22 - TIRES/WHEELS - REMOVAL).
(8) Disconnect the left right front wheelhouse
splash shield and move aside (Refer to 23 - BODY/
EXTERIOR/WHEELHOUSE SPLASH SHIELD -
REMOVAL).
(9) Drain washer fluid from the reservoir and into
a suitable clean container. This can be done by dis-
connecting the windshield washer hose from the
front (outboard) washer pump and allowing the
washer fluid to drain into a container through a tem-
porary jumper hose connected to the front washer
pump.
(10) Disconnect the electrical body harness connec-
tors to the washer pump motors and the fluid level
sensor. Slide the red lock on the connector to the
release position, then, depress the black tab and pull
the connector off the pump or sensor.
(11) Remove the two reservoir mounting screws.
8R - 14 WIPERS/WASHERSRS
HEADLAMP WASHER PUMP MOTOR - EXPORT (Continued)
ProCarManuals.com
Page 652 of 2399
(12) Disconnect the reservoir from the body mount
by raising the reservoir upward slightly and then
down so that the reservoir filler neck and front
washer hose pull through the opening in the front
fender side shield.
(13) Remove pump from reservoir by pulling pump
upper retention tab away from reservoir cavity and
then lifting pump up from mounting grommet. Do
not damage reservoir/pump sealing surface or punc-
ture reservoir during removal.
(14) Remove pump grommet and discard.
INSTALLATION
(1) Use new grommet when installing a new pump
assembly.
(2) Assure pump upper retention tab is pressed
into reservoir slot and that pump is rotated flat
against the reservoir and that pump connector is fac-
ing up in the fully seated position. Assure the pump
is aligned to and fully seated in the reservoir cavity.
(3) Push filler neck and front washer hose through
the opening in the front fender side shield. Connect
the reservoir to the body mount by lowering the res-
ervoir down.
(4) Install the two reservoir mounting screws.
Torque screws to 8.5 - 11.3 N´m (75 - 100 in. lbs.).
(5) Connect the electrical body harness connectors
to the washer pump motors and the fluid level sen-
sor. Slide the red lock on the connector to the closed
or locked position.
(6) Assure that washer hose is properly routed to
prevent pinching and possible inoperative washers.
(7) Connect the left right front wheelhouse splash
shield and move aside (Refer to 23 - BODY/EXTERI-
OR/WHEELHOUSE SPLASH SHIELD - INSTALLA-
TION).
(8) Install the right front wheel and tire assembly
(Refer to 22 - TIRES/WHEELS - INSTALLATION).
(9) lower vehicle from hoist or jack stands.
(10) Install the filler tube screw. Torque screw to
8.5 - 11.3 N´m (75 - 100 in. lbs.).
(11) Connect the washer hose to the hose clip
located on the front fender side shield.
(12) Connect the washer hose at the in-line con-
nector forward of the cowl grille.(13) Install the engine fresh air housing inside the
engine compartment (Refer to 9 - ENGINE/AIR
INTAKE SYSTEM/AIR CLEANER HOUSING -
INSTALLATION).
(14) Connect the battery negative cable.
(15) Verify system operation.
REAR WIPER ARM
REMOVAL
(1) Lift and hold wiper blade away from rear win-
dow.
(2) Lift lock holding wiper arm to wiper pivot
upward.
(3) Allow wiper arm to rest against lock.
(4) Pull wiper from pivot by rocking back and forth
(Fig. 5).
INSTALLATION
(1) Position arm on pivot.
(2) Pull up on arm and release lock
(3) Allow wiper arm to rest on rear window.

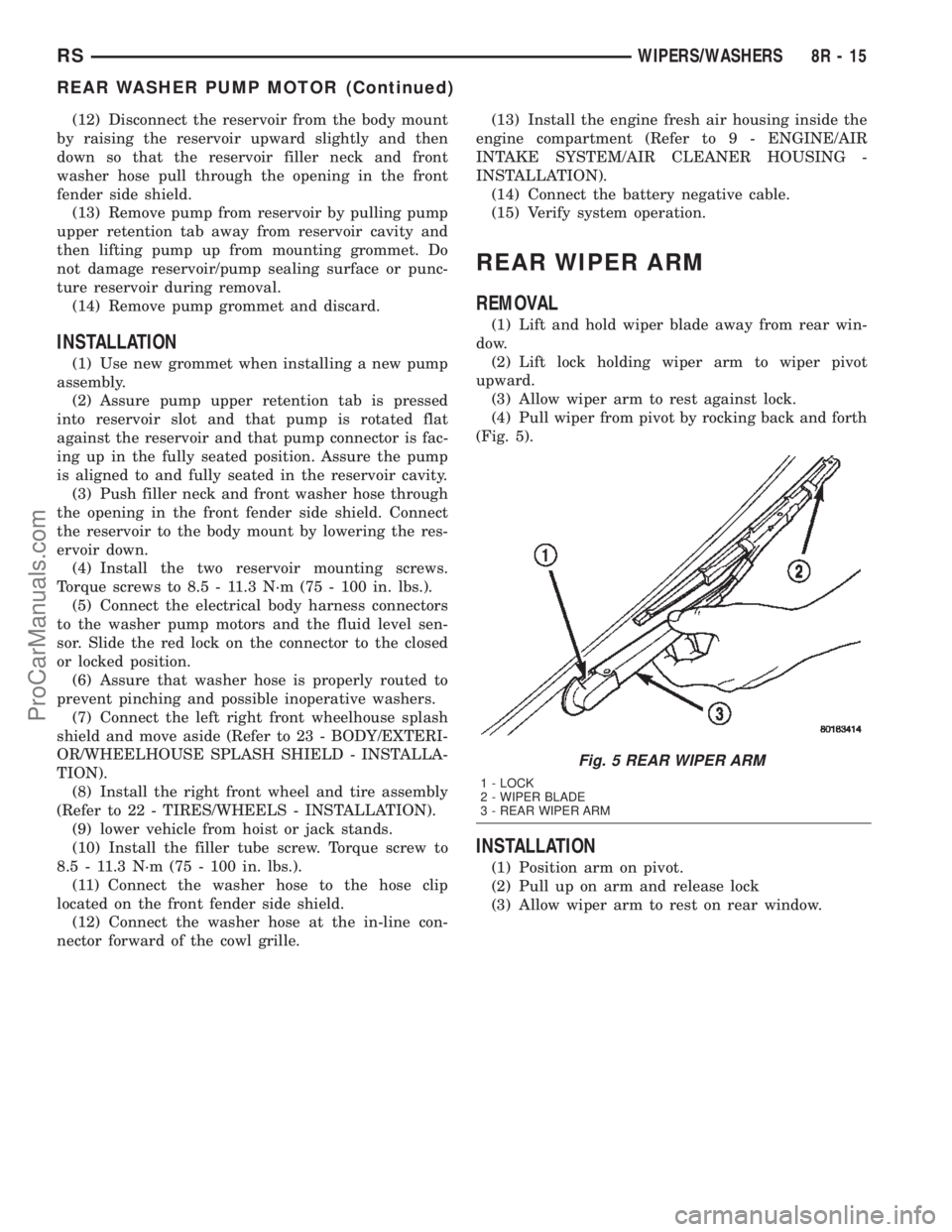

Fig. 5 REAR WIPER ARM
1 - LOCK
2 - WIPER BLADE
3 - REAR WIPER ARM
RSWIPERS/WASHERS8R-15
REAR WASHER PUMP MOTOR (Continued)
ProCarManuals.com
Page 653 of 2399
REAR WIPER MOTOR
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Remove rear wiper arm. (Refer to 8 - ELEC-
TRICAL/WIPERS/WASHERS/REAR WIPER ARM -
REMOVAL) in this section.
(3) Open liftgate.
(4) Remove liftgate trim panel. (Refer to 23 -
BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/
TRIM PANEL - REMOVAL).
(5) Disconnect wire connector from rear wiper
motor.
(6) Remove screws holding rear wiper motor to lift-
gate (Fig. 6).
(7) Remove wiper motor from liftgate.
INSTALLATION
(1) Position the wiper motor in the liftgate.
(2) Install the retaining screws.
(3) Connect the wire harness connector.
(4) Install the liftgate trim panel. (Refer to 23 -
BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/
TRIM PANEL - INSTALLATION).
(5) Connect wire connector to rear wiper motor.
(6) Install the screws holding rear wiper motor to
liftgate (Fig. 6).
(7) Install the wiper motor to the liftgate (Fig. 6).
(8) Close the liftgate.
(9) Install the wiper arm. (Refer to 8 - ELECTRI-
CAL/WIPERS/WASHERS/REAR WIPER ARM -
INSTALLATION) in this section.
(10) Connect the battery negative cable.
REAR WIPER/WASHER
SWITCH
DESCRIPTION
The rear window wiper/washer switches are
located on the center bezel with the hazard and
heated seat switches (Fig. 7). They are not service-
able separately from the hazard and heated seat
switches. If defective, the entire switch assembly
must be replaced.
OPERATION
Refer to the vehicle Owner's Manual for operating
instructions for the rear window wiper and washer.
WASHER FLUID LEVEL
SWITCH
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the engine fresh air housing inside the
engine compartment (Refer to 9 - ENGINE/AIR
INTAKE SYSTEM/AIR CLEANER HOUSING -
REMOVAL).
(3) Disconnect the washer hose at the in-line con-
nector forward of the cowl grille so that the in-line
connector remains with the washer hose from the
fresh air plenum.
(4) Disconnect the washer hose from the hose clip
located on the front fender side shield.
(5) Remove the filler tube screw.
Fig. 6 REAR WINDOW WIPER MOTOR
1 - REAR WINDOW
2 - REAR WIPER MOTOR
3 - CHMSL
4 - WELL NUTS
Fig. 7 HVAC CONTROL PANEL
1 - TRIM BEZEL
2 - IN CAR TEMPERATURE SENSOR
3 - A/C REQUEST SWITCH
4 - REAR WINDOW DEFOGGER/HEATED MIRRORS SWITCH
COMBO
5 - FRONT WINDOW DEFROSTER MODE SELECTOR
8R - 16 WIPERS/WASHERSRS
ProCarManuals.com
Page 654 of 2399
(6) Hoist and support vehicle on hoist or jack
stands.
(7) Remove the right front wheel and tire assembly
(Refer to 22 - TIRES/WHEELS - REMOVAL).
(8) Disconnect the left right front wheelhouse
splash shield and move aside (Refer to 23 - BODY/
EXTERIOR/WHEELHOUSE SPLASH SHIELD -
REMOVAL).
(9) Drain washer fluid from the reservoir and into
a suitable clean container. This can be done by dis-
connecting the windshield washer hose from the
front (outboard) washer pump and allowing the
washer fluid to drain into a container through a tem-
porary jumper hose connected to the front washer
pump.
(10) Disconnect the electrical body harness connec-
tors to the washer pump motors and the fluid level
sensor. Slide the red lock on the connector to the
release position, then, depress the black tab and pull
the connector off the pump or sensor.
(11) Remove the two reservoir mounting screws.
(12) Disconnect the reservoir from the body mount
by raising the reservoir upward slightly and then
down so that the reservoir filler neck and front
washer hose pull through the opening in the front
fender side shield.
(13) Remove the sensor from reservoir by using a
side foot to gently pry the sensor from the body of
the reservoir. Do not damage the reservoir/sensor
sealing surface or puncture reservoir during removal.
CAUTION: To avoid damage to the sensor, assure
the reservoir is in an upright position before remov-
ing the sensor from the reservoir. Do not rotate the
sensor during removal.
INSTALLATION
(1) Use a new grommet when installing a new sen-
sor assembly.
(2) Assure that the flat of the sensor is aligned
under the ridge of the reservoir and that the sensor
connector is facing down in the fully seated position.
This will allow for proper operation of the sensor
float switch.
(3) Push filler neck and front washer hose through
the opening in the front fender side shield. Connect
the reservoir to the body mount by lowering the res-
ervoir down.
(4) Install the two reservoir mounting screws.
Torque screws to 8.5 - 11.3 N´m (75 - 100 in. lbs.).(5) Connect the electrical body harness connectors
to the washer pump motors and the fluid level sen-
sor. Slide the red lock on the connector to the closed
or locked position.
(6) Assure that washer hose is properly routed to
prevent pinching and possible inoperative washers.
(7) Connect the left right front wheelhouse splash
shield and move aside (Refer to 23 - BODY/EXTERI-
OR/WHEELHOUSE SPLASH SHIELD - INSTALLA-
TION).
(8) Install the right front wheel and tire assembly
(Refer to 22 - TIRES/WHEELS - INSTALLATION).
(9) lower vehicle from hoist or jack stands.
(10) Install the filler tube screw. Torque screw to
8.5 - 11.3 N´m (75 - 100 in. lbs.).
(11) Connect the washer hose to the hose clip
located on the front fender side shield.
(12) Connect the washer hose at the in-line con-
nector forward of the cowl grille.
(13) Install the engine fresh air housing inside the
engine compartment (Refer to 9 - ENGINE/AIR
INTAKE SYSTEM/AIR CLEANER HOUSING -
INSTALLATION).
(14) Connect the battery negative cable.
(15) Verify system operation.
WASHER HOSES
REMOVAL
(1) Remove washer reservoir from vehicle (Refer to
8 - ELECTRICAL/WIPERS/WASHERS/WASHER
RESERVOIR - REMOVAL).
(2) Disconnect washer hose front the reservoir cav-
ity.
(3) Disconnect the washer hose from the reservoir
pump.
(4) Remove parts as necessary to replace washer
hose (engine compartment, interior components, etc.).
INSTALLATION
(1) Install parts as necessary to after replacing
washer hose (engine compartment, interior compo-
nents, etc.).
(2) Connect the washer hose to the reservoir
pump.
(3) Connect washer hose to the reservoir cavity.
(4) Install the washer reservoir into vehicle (Refer
to 8 - ELECTRICAL/WIPERS/WASHERS/WASHER
RESERVOIR - INSTALLATION).
RSWIPERS/WASHERS8R-17
WASHER FLUID LEVEL SWITCH (Continued)
ProCarManuals.com
Page 655 of 2399
WASHER RESERVOIR
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the engine fresh air housing inside the
engine compartment (Refer to 9 - ENGINE/AIR
INTAKE SYSTEM/AIR CLEANER HOUSING -
REMOVAL).
(3) Disconnect the washer hose at the in-line con-
nector forward of the cowl grille so that the in-line
connector remains with the washer hose from the
fresh air plenum.
(4) Disconnect the washer hose from the hose clip
located on the front fender side shield.
(5) Remove the filler tube screw.
(6) Hoist and support vehicle on hoist or jack
stands.
(7) Remove the right front wheel and tire assembly
(Refer to 22 - TIRES/WHEELS - REMOVAL).
(8) Disconnect the left right front wheelhouse
splash shield and move aside (Refer to 23 - BODY/
EXTERIOR/WHEELHOUSE SPLASH SHIELD -
REMOVAL).
(9) Drain washer fluid from the reservoir and into
a suitable clean container. This can be done by dis-
connecting the windshield washer hose from the
front (outboard) washer pump and allowing the
washer fluid to drain into a container through a tem-
porary jumper hose connected to the front washer
pump.
(10) Disconnect the electrical body harness connec-
tors to the washer pump motors and the fluid level
sensor. Slide the red lock on the connector to the
release position, then, depress the black tab and pull
the connector off the pump or sensor.
(11) Remove the two reservoir mounting screws.
(12) Disconnect the reservoir from the body mount
by raising the reservoir upward slightly and then
down so that the reservoir filler neck and front
washer hose pull through the opening in the front
fender side shield.
INSTALLATION
(1) Push filler neck and front washer hose through
the opening in the front fender side shield. Connect
the reservoir to the body mount by lowering the res-
ervoir down.
(2) Install the two reservoir mounting screws.
Torque screws to 8.5 - 11.3 N´m (75 - 100 in. lbs.).
(3) Connect the electrical body harness connectors
to the washer pump motors and the fluid level sen-
sor. Slide the red lock on the connector to the closed
or locked position.
(4) Assure that washer is properly routed to pre-
vent pinching and possible inoperative washers.(5)
Connect the left right front wheelhouse splash
shield and move aside (Refer to 23 - BODY/EXTERIOR/
WHEELHOUSE SPLASH SHIELD - INSTALLATION).
(6) Install the right front wheel and tire assembly
(Refer to 22 - TIRES/WHEELS - INSTALLATION).
(7) lower vehicle from hoist or jack stands.
(8) Install the filler tube screw. Torque screw to 8.5
- 11.3 N´m (75 - 100 in. lbs.).
(9) Connect the washer hose to the hose clip
located on the front fender side shield.
(10) Connect the washer hose at the in-line con-
nector forward of the cowl grille.
(11) Install the engine fresh air housing inside the
engine compartment (Refer to 9 - ENGINE/AIR
INTAKE SYSTEM/AIR CLEANER HOUSING -
INSTALLATION).
(12) Connect the battery negative cable.
(13) Verify system operation.
WIPER BLADES
REMOVAL
(1) Lift the wiper arm away from the glass.
(2) Disengage the release tab holding the wiper
blade to the wiper arm and remove the wiper blade
from the wiper arm (Fig. 8) and (Fig. 9).
Fig. 8 WINDSHIELD WIPER BLADE
1 - RELEASE TAB
Fig. 9 REAR WIPER
1 - WIPER ARM
2 - BLADE LATCH
8R - 18 WIPERS/WASHERSRS
ProCarManuals.com
Page 678 of 2399
8W-10 POWER DISTRIBUTION
Component Page
A/C Compressor Clutch....... 8W-10-22, 24, 45, 47
A/C Compressor Clutch
Relay................ 8W-10-22, 24, 44, 45, 47
Accessory Relay................ 8W-10-16, 31, 64
Adjustable Pedals Module........... 8W-10-40, 46
Airbag Control Module............. 8W-10-63, 68
Ambient Temp Sensor................. 8W-10-61
Auto Shut Down Relay............. 8W-10-21, 41
Auto Temp Control................... 8W-10-40
Back-Up Lamp Switch................ 8W-10-65
Battery................. 8W-10-13, 14, 15, 41, 47
Blower Motor Resistor.............. 8W-10-19, 38
Body Control Module...... 8W-10-25, 40, 45, 48, 49,
51, 53, 54, 55, 56, 68
Brake Fluid Level Switch.............. 8W-10-64
Brake Lamp Switch............. 8W-10-26, 51, 66
Brake Transmission Shift Interlock
Solenoid......................... 8W-10-62
Cabin Heater Assist............. 8W-10-23, 43, 59
Camshaft Position Sensor.............. 8W-10-44
Center High Mounted Stop Lamp........ 8W-10-66
Clockspring........................ 8W-10-60
Clutch Pedal Interlock
Switch............... 8W-10-18, 37, 53, 54, 60
Clutch Pedal Interlock Switch
Jumper............... 8W-10-18, 37, 53, 54, 60
Controller Antilock
Brake.......... 8W-10-18, 25, 37, 49, 55, 61, 66
Crank Case Ventilation Heater.......... 8W-10-48
Data Link Connector............... 8W-10-36, 68
Defogger Relay.............. 8W-10-19, 20, 39, 63
Diagnostic Junction Port............... 8W-10-61
Driver Door Lock Switch............ 8W-10-33, 35
Driver Heated Seat Module............. 8W-10-49
Driver Power Seat Switch.............. 8W-10-49
Driver Power Window Switch........ 8W-10-34, 35
ECM/PCM Relay.................. 8W-10-23, 43
EGR Solenoid.................... 8W-10-44, 46
Electric Wiper De-Icer................. 8W-10-33
Engine Control Module . . 8W-10-18, 23, 24, 37, 43, 44,
47, 48, 65, 66
Floor Console Lamp.................. 8W-10-32
Floor Console Power Outlet.......... 8W-10-32, 36
Front Blower Module............... 8W-10-19, 38
Front Blower Motor Relay..... 8W-10-18, 19, 38, 63
Front Cigar Lighter................ 8W-10-16, 32
Front Control Module..... 8W-10-15, 16, 17, 18, 19,
20, 22, 24, 26, 27, 28, 29,
30, 31, 36, 37, 38, 39, 45,
47, 52, 53, 54, 57, 58, 59,
60, 61, 62, 63, 64, 65, 66, 68
Front Fog Lamp Relay........... 8W-10-15, 27, 63
Component Page
Front Washer Pump Motor........ 8W-10-16, 31, 68
Front Wiper Hi/Low Relay........ 8W-10-16, 30, 64
Front Wiper On/Off Relay........ 8W-10-16, 30, 59
Fuel Heater........................ 8W-10-48
Fuel Heater Relay.............. 8W-10-24, 47, 64
Fuel Injector No. 1................... 8W-10-42
Fuel Injector No. 2................... 8W-10-42
Fuel Injector No. 3................... 8W-10-42
Fuel Injector No. 4................... 8W-10-42
Fuel Injector No. 5................... 8W-10-42
Fuel Injector No. 6................... 8W-10-42
Fuel Pressure Solenoid................ 8W-10-44
Fuel Pump Module................ 8W-10-22, 45
Fuel Pump Relay............... 8W-10-22, 45, 64
Fuse 1....................... 8W-10-15, 16, 27
Fuse 2....................... 8W-10-15, 28, 29
Fuse 3....................... 8W-10-15, 28, 29
Fuse 4.................... 8W-10-15, 16, 17, 30
Fuse 5.......................... 8W-10-16, 31
Fuse 6.......................... 8W-10-16, 31
Fuse 8.......................... 8W-10-17, 36
Fuse 9.................... 8W-10-17, 18, 19, 37
Fuse 10......................... 8W-10-19, 38
Fuse 11......................... 8W-10-16, 31
Fuse 12......................... 8W-10-19, 38
Fuse 13......................... 8W-10-20, 39
Fuse 14................ 8W-10-20, 21, 23, 39, 59
Fuse 15........... 8W-10-20, 21, 22, 23, 24, 41, 43
Fuse 16................... 8W-10-21, 23, 41, 43
Fuse 17.............. 8W-10-21, 22, 23, 24, 45, 47
Fuse 18................ 8W-10-22, 24, 25, 45, 47
Fuse 19................ 8W-10-22, 24, 25, 26, 49
Fuse 20......................... 8W-10-25, 49
Fuse 21......................... 8W-10-25, 49
Fuse 22......................... 8W-10-25, 49
Fuse 23...................... 8W-10-25, 53, 54
Fuse 24......................... 8W-10-25, 51
Fuse 26...................... 8W-10-25, 26, 51
Fuse 27......................... 8W-10-26, 51
Fuse 28......................... 8W-10-16, 31
Fuse 30......................... 8W-10-26, 52
Fuse 31......................... 8W-10-26, 52
Fuse 32......................... 8W-10-26, 52
Fuse 33......................... 8W-10-16, 31
Fuselink........................ 8W-10-13, 14
G100............................. 8W-10-55
G101........................... 8W-10-41, 47
G103............................. 8W-10-68
G300........................... 8W-10-57, 58
Generator................. 8W-10-13, 14, 42, 44
Glow Plug Relay.................. 8W-10-13, 44
Headlamp Switch................. 8W-10-29, 62
RS8W-10 POWER DISTRIBUTION8W-10-1
ProCarManuals.com
Page 679 of 2399
Component Page
Headlamp Washer Pump Motor....... 8W-10-26, 52
Headlamp Washer Relay......... 8W-10-26, 52, 63
High Note Horn..................... 8W-10-36
Horn Relay................... 8W-10-17, 36, 59
Ignition Coil........................ 8W-10-42
Ignition Switch . . 8W-10-18, 25, 37, 45, 46, 48, 53, 54,
60
Instrument Cluster................ 8W-10-25, 51
Integrated Power Module . . . 8W-10-3, 4, 5, 13, 15, 16,
17, 18, 19, 20, 21, 22, 23,
24, 25, 26, 27, 28, 29, 30,
31, 32, 33, 36, 37, 38, 39,
40, 41, 42, 43, 44, 45, 46,
47, 48, 49, 51, 52, 53, 54,
55, 56, 57, 58, 59, 60, 61,
62, 63, 64, 65, 66, 68
Leak Detection Pump................. 8W-10-46
Left B-Pillar Switch.................. 8W-10-33
Left Combination Relay............... 8W-10-67
Left Fog Lamp................... 8W-10-15, 27
Left Front Park/Turn Signal
Lamp................... 8W-10-15, 28, 56, 65
Left Headlamp...................... 8W-10-57
Left Headlamp Leveling Motor..... 8W-10-29, 62, 65
Left High Beam Lamp................ 8W-10-58
Left Low Beam Lamp................. 8W-10-58
Left Park Lamp................... 8W-10-29, 65
Left Power Mirror.................... 8W-10-39
Left Rear Lamp Assembly . . . 8W-10-28, 29, 65, 66, 67
Left Repeater Lamp.................. 8W-10-51
Left Side Impact Airbag Control Module . . . 8W-10-62
Left Sliding Door Control Module........ 8W-10-52
Left Stop/Turn Signal Relay............ 8W-10-67
Left Turn Signal Lamp................ 8W-10-56
License Lamp................. 8W-10-28, 29, 65
Lift Pump Motor.................. 8W-10-23, 43
Lift Pump Relay.................. 8W-10-23, 43
Low Note Horn...................... 8W-10-36
Mass Air Flow Sensor................. 8W-10-44
Memory Seat/Mirror Module............ 8W-10-49
Message Center..................... 8W-10-51
Name Brand Speaker Relay....... 8W-10-20, 39, 59
Overhead Console.................... 8W-10-40
Oxygen Sensor 1/1 Upstream........... 8W-10-42
Oxygen Sensor 1/2 Downstream......... 8W-10-42
Park Lamp Relay............ 8W-10-15, 28, 29, 59
Park/Neutral Position Switch........... 8W-10-65
Passenger Door Lock Switch......... 8W-10-31, 33
Passenger Folding Mirror Relay . 8W-10-22, 24, 45, 47
Passenger Heated Seat Module.......... 8W-10-50
Passenger Power Seat Switch........... 8W-10-50
Passenger Power Window Switch........ 8W-10-31
Power Liftgate Module............. 8W-10-26, 52
Power Mirror Switch......... 8W-10-22, 24, 46, 47
Power Outlet....................... 8W-10-36
Component Page
Power Seat Circuit Breaker.......... 8W-10-25, 49
Power Window Circuit Breaker....... 8W-10-16, 31
Power Window Switch................. 8W-10-34
Powertrain Control
Module.... 8W-10-18, 21, 22, 37, 41, 42, 45, 46, 55
PTC4 .......................... 8W-10-20, 39
PTC7 .................... 8W-10-16, 17, 18, 36
Radiator Fan Relay............. 8W-10-26, 51, 55
Radiator Fan Relay No. 1........... 8W-10-13, 44
Radiator Fan Relay No. 2......... 8W-10-26, 44, 51
Radiator Fan Relay No. 3.............. 8W-10-44
Radio.......................... 8W-10-32, 40
Radio Choke..................... 8W-10-20, 39
Rear A/C-Heater Unit.............. 8W-10-19, 38
Rear Blower Motor Power Module..... 8W-10-19, 38
Rear Blower Motor Relay...... 8W-10-19, 20, 38, 63
Rear Power Outlet.............. 8W-10-16, 31, 32
Rear Washer Pump Motor........ 8W-10-16, 31, 68
Rear Window Defogger Grid......... 8W-10-20, 39
Rear Wiper Motor.................... 8W-10-33
Remote Keyless Entry Module........... 8W-10-40
Right B-Pillar Switch................. 8W-10-33
Right Combination Relay.............. 8W-10-67
Right Fog Lamp.................. 8W-10-15, 27
Right Front Park/Turn Signal
Lamp................... 8W-10-15, 28, 56, 60
Right Headlamp..................... 8W-10-57
Right Headlamp Leveling Motor.... 8W-10-29, 60, 62
Right High Beam Lamp............... 8W-10-58
Right Low Beam Lamp................ 8W-10-58
Right Park Lamp................. 8W-10-29, 60
Right Power Mirror................... 8W-10-39
Right Rear Lamp Assembly.... 8W-10-15, 28, 29, 66
Right Repeater Lamp................. 8W-10-51
Right Side Impact Airbag Control Module . . 8W-10-62
Right Sliding Door Control Module....... 8W-10-52
Right Stop/Turn Signal Relay........... 8W-10-67
Right Turn Signal Lamp............... 8W-10-56
Sentry Key Immobilizer
Module............... 8W-10-40, 46, 48, 53, 54
Solenoid/Pressure Switch Assy.......... 8W-10-41
Starter Motor............... 8W-10-13, 14, 18, 37
Starter Motor Relay.......... 8W-10-18, 37, 53, 54
Thatcham Alarm Module...... 8W-10-46, 48, 54, 68
Torque Converter Clutch Solenoid........ 8W-10-46
Trailer Tow Connector.............. 8W-10-28, 65
Transmission Control
Module............ 8W-10-18, 21, 37, 41, 61, 62
Transmission Control Relay.......... 8W-10-21, 41
Transmission Range Sensor............. 8W-10-65
TXV Solenoid....................... 8W-10-38
Vehicle Speed Sensor................. 8W-10-43
Washer Fluid Level Switch............. 8W-10-60
Wiper Module................. 8W-10-16, 30, 59
8W - 10 - 2 8W-10 POWER DISTRIBUTIONRS
ProCarManuals.com
Page 746 of 2399
8W-15 GROUND DISTRIBUTION
Component PageA/C Compressor Clutch...................8W-15-7, 8
A/C- Heater Control....................8W-15-9, 11
Adjustable Pedals Module..................8W-15-17
Airbag Control Module....................8W-15-12
Auto Temp Control.......................8W-15-9
Automatic Day/Night Mirror.................8W-15-21
Autostick Switch........................8W-15-10
Back-Up Lamp Switch....................8W-15-3, 7
Battery.............................8W-15-2, 3
Body Control Module.....................8W-15-22
Brake Fluid Level Switch...................8W-15-17
Brake Lamp Switch......................8W-15-17
Cabin Heater Assist.......................8W-15-8
Center Dome Lamp......................8W-15-21
Center High Mounted Stop Lamp..............8W-15-26
Clutch Pedal Upstop Switch.................8W-15-18
Controller Antilock Brake..................8W-15-2, 3
Crank Case Ventilation Heater................8W-15-8
Crankshaft Position Sensor..................8W-15-3
Data Link Connector..................8W-15-2, 3, 17
Dosing Pump...........................8W-15-8
Driver Door Courtesy Lamp...............8W-15-15, 20
Driver Door Lock Switch.................8W-15-15, 20
Driver Heated Seat Cushion.................8W-15-11
Driver Heated Seat Module.................8W-15-11
Driver Power Seat Switch..................8W-15-11
Driver Power Window Switch..............8W-15-15, 20
Engine Control Module.....................8W-15-3
Floor Console Lamp......................8W-15-25
Floor Console Power Outlet.................8W-15-25
Front Blower Module.....................8W-15-11
Front Cigar Lighter.......................8W-15-9
Front Control Module..................8W-15-7, 8, 18
Front Reading Lamps/Switch................8W-15-21
Fuel Heater...........................8W-15-25
Fuel Heater Relay........................8W-15-3
Fuel Pump Module.......................8W-15-25
G100..............................8W-15-2, 3
G101..............................8W-15-2, 3
G102.............................8W-15-4, 5, 6
G103..............................8W-15-7, 8
G200...........................8W-15-9, 10, 11
G201...............................8W-15-12
G202...............................8W-15-13
G300........................8W-15-14, 16, 17, 18
G301........................8W-15-19, 20, 21, 22
G302...........................8W-15-23, 24, 25
G400.............................8W-15-25, 26
Glove Box Lamp........................8W-15-10
Halo Lamp............................8W-15-10
Headlamp Switch........................8W-15-9
Headlamp Washer Pump Motor................8W-15-6
High Note Horn........................8W-15-5, 6
Hood Ajar Switch........................8W-15-18
Instrument Cluster.......................8W-15-9
Instrument Panel Switch Bank...............8W-15-10
Integrated Power Module............8W-15-2, 3, 7, 8, 18
Left B-Pillar Switch......................8W-15-17
Left Cinch/Release Motor...................8W-15-14
Left Combination Relay....................8W-15-24
Left Cylinder Lock Switch................8W-15-15, 16
Left Door Speaker.......................8W-15-13
Left Fog Lamp........................8W-15-5, 6
Left Front Door Ajar Switch.................8W-15-16
Left Front Door Lock Motor/Ajar Switch.......8W-15-15, 16
Left Front Park/Turn Signal Lamp..............8W-15-5
Left Full Open Switch.....................8W-15-14
Left Headlamp.........................8W-15-18
Left Headlamp Leveling Motor................8W-15-6
Left High Beam Lamp....................8W-15-18
Left Liftgate Flood Lamp...................8W-15-26
Left Low Beam Lamp.....................8W-15-18
Left Mid Reading Lamp....................8W-15-21
Left Park Lamp.........................8W-15-18
Left Power Mirror.......................8W-15-10
Left Rear Lamp Assembly..................8W-15-24
Left Rear Reading Lamp...................8W-15-21
Left Side Impact Airbag Control Module.........8W-15-12
Left Sliding Door Control Module..............8W-15-14
Left Sliding Door Latch Sensing Switch..........8W-15-14
Left Sliding Door Lock Motor................8W-15-14Component PageLeft Sliding Door Lock Motor/Ajar Switch.........8W-15-14
Left Sliding Door Motor....................8W-15-14
Left Stop/Turn Signal Relay.................8W-15-24
Left Turn Signal Lamp....................8W-15-18
Left Visor/Vanity Lamp....................8W-15-21
License Lamp........................8W-15-23, 26
Lift Pump Motor........................8W-15-25
Liftgate Ajar Switch......................8W-15-26
Liftgate Cinch/Release Motor................8W-15-23
Liftgate Cylinder Lock Switch................8W-15-26
Liftgate Right Pinch Sensor.................8W-15-23
Low Note Horn........................8W-15-5, 6
Memory Seat/Mirror Module.................8W-15-11
Overhead Console.......................8W-15-21
Oxygen Sensor 1/2 Downstream...............8W-15-7
Park/Neutral Position Switch.................8W-15-7
Passenger Door Courtesy Lamp............8W-15-16, 20
Passenger Door Lock Switch..............8W-15-16, 20
Passenger Heated Seat Module...............8W-15-22
Passenger Power Seat Switch................8W-15-22
Passenger Power Window Switch............8W-15-16, 20
Power Folding Mirror Switch................8W-15-11
Power Liftgate Module....................8W-15-23
Power Liftgate Motor.....................8W-15-23
Power Mirror Switch......................8W-15-11
Power Outlet...........................8W-15-9
Power Window Switch.....................8W-15-15
Powertrain Control Module..................8W-15-2
Radiator Fan No. 1.......................8W-15-4
Radiator Fan No. 2.......................8W-15-4
Radiator Fan Relay.......................8W-15-4
Radiator Fan Relay No. 3...................8W-15-4
Radio...............................8W-15-13
Rear Auto Temp Control Switch...............8W-15-17
Rear Blower Front Control Switch.............8W-15-11
Rear Blower Motor Power Module...........8W-15-11, 25
Rear Blower Rear Control Switch..............8W-15-17
Rear Dome Lamp........................8W-15-21
Rear Power Outlet.......................8W-15-25
Rear Window Defogger Grid.................8W-15-26
Rear Wiper Motor.......................8W-15-26
Remote Keyless Entry Module................8W-15-10
Right B-Pillar Switch.....................8W-15-22
Right Cinch/Release Motor..................8W-15-19
Right Combination Relay...................8W-15-24
Right Cylinder Lock Switch.................8W-15-20
Right Door Speaker......................8W-15-13
Right Fog Lamp........................8W-15-5, 6
Right Front Door Ajar Switch................8W-15-20
Right Front Door Lock Motor/Ajar Switch.........8W-15-20
Right Front Park/Turn Signal Lamp.............8W-15-5
Right Full Open Switch....................8W-15-19
Right Headlamp........................8W-15-18
Right Headlamp Leveling Motor...............8W-15-6
Right High Beam Lamp....................8W-15-18
Right Liftgate Flood Lamp..................8W-15-26
Right Low Beam Lamp....................8W-15-18
Right Mid Reading Lamp...................8W-15-21
Right Park Lamp........................8W-15-18
Right Power Mirror......................8W-15-10
Right Rear Lamp Assembly.................8W-15-25
Right Rear Reading Lamp..................8W-15-21
Right Side Impact Airbag Control Module.........8W-15-12
Right Sliding Door Control Module.............8W-15-19
Right Sliding Door Latch Sensing Switch.........8W-15-19
Right Sliding Door Lock Motor...............8W-15-19
Right Sliding Door Lock Motor/Ajar Switch........8W-15-19
Right Sliding Door Motor...................8W-15-19
Right Stop/Turn Signal Relay................8W-15-24
Right Turn Signal Lamp...................8W-15-18
Right Visor/Vanity Lamp...................8W-15-21
Sentry Key Immobilizer Module...............8W-15-10
Speed Control Servo.......................8W-15-7
Traction Control Switch....................8W-15-10
Trailer Tow Connector.....................8W-15-24
Transmission Control Module.................8W-15-2
Transmission Control Relay..................8W-15-2
Transmission Range Sensor..................8W-15-7
Washer Fluid Level Switch.................8W-15-5, 6
Wiper Module..........................8W-15-17
RS8W-15 GROUND DISTRIBUTION8W-15-1
ProCarManuals.com
Page 968 of 2399
8W-53 WIPERS
Component Page
Accessory Relay..................... 8W-53-3
Body Control Module............. 8W-53-3, 5, 6
Diagnostic Junction Port............... 8W-53-5
Front Control Module........... 8W-53-2, 3, 4, 5
Front Washer Pump Motor............. 8W-53-3
Front Wiper Hi/Low Relay............. 8W-53-2
Front Wiper On/Off Relay.............. 8W-53-2
Fuse 4............................. 8W-53-2
Fuse 11............................ 8W-53-3
Fuse 30............................ 8W-53-4
Fuse 33............................ 8W-53-3
G102.............................. 8W-53-4Component Page
G200.............................. 8W-53-6
G300.............................. 8W-53-2
G400.............................. 8W-53-3
Headlamp Washer Pump Motor......... 8W-53-4
Headlamp Washer Relay............... 8W-53-4
Instrument Panel Switch Bank.......... 8W-53-6
Integrated Power Module........ 8W-53-2, 3, 4, 5
Multi- Function Switch................ 8W-53-5
Rear Washer Pump Motor.............. 8W-53-3
Rear Wiper Motor.................... 8W-53-3
Washer Fluid Level Switch............. 8W-53-4
Wiper Module....................... 8W-53-2
RS8W-53 WIPERS8W-53-1
ProCarManuals.com
