engine CHRYSLER PT CRUISER 2008 1.G User Guide

Periodic Safety Checks You Should Make Outside
The Vehicle
TiresExamine tires for excessive tread wear or uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect tread and sidewall for cuts or
cracks. Check wheel nuts for tightness, and tires (includ-
ing spare) for proper pressure.LightsHave someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Fluid LeaksCheck area under vehicle after overnight parking for fuel,
engine coolant, oil or other fluid leaks. Also, if gasoline
fumes are detected or fuel, power steering fluid or brake
fluid leaks are suspected, the cause should be located and
corrected immediately.THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 117
2

▫Troubleshooting Tips ...................203
▫ General Information ...................203
 Power Sunroof (Sedan Only) — If Equipped ....204
▫ Express Open Feature ..................204
▫ Wind Buffeting .......................205
▫ Sunroof Maintenance ...................206
 Electrical Power Outlets ..................206
▫ Electrical Outlet Use With Engine Off .......208
 Console Features .......................208
 Storage ..............................209
▫ Center Console/Armrest Storage Bin .......209
▫ Storage Pockets .......................210
Rear Shelf Panel— If Equipped .............210
▫ Position 1 (Top) ......................211
▫ Position 2 (Middle) ....................212
▫ Position 3 (Floor) .....................212
▫ Position 4 (Vertical) ....................212
▫ Position 5 (Table) .....................213
 Roof Luggage Rack — If Equipped ..........215
 Rear Window Features ...................217
▫ Electric Rear Window Defroster ...........217
▫ Rear Wiper/Washer Switch (Sedan Models
Only) — If Equipped ...................217
▫ Adding Washer Fluid ..................218
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

training mode, follow one of the two procedures: From
outside the UConnect mode (e.g. from radio mode),•
Press and hold the ‘Voice Recognition’ button for 5
seconds until the session begins, or
•
Press the ‘Voice Recognition’ button and saySetup,
Voice Training command.
Repeat the words and phrases when prompted by the
UConnect System. For best results, the Voice Training
session should be completed when the vehicle is parked,
engine running, all windows closed, and the blower fan
switched off.
This procedure may be repeated with a new user. The
system will adapt to the last trained voice only.
To restore the Voice recognition system to factory default
settings, enter the Voice Training session via the above
procedure and follow the prompts.
Voice Recognition (VR)
•
Always wait for the beep before speaking.
•
Speak normally, without pausing, just as you would
speak to a person sitting approximately eight (8) feet
away from you.
•
Make sure that no one other than you is speaking
during a voice recognition period.
•
Performance is maximized under:•
low-to-medium blower setting,
•
low-to-medium vehicle speed,
•
low road noise,
•
smooth road surface,
•
fully closed windows,
•
dry weather condition.
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Use the hood prop rod clipped to the driver’s side of the
engine compartment to secure the hood in the open
position. Place the hood prop at the location stamped into
the inner hood surface.
To prevent possible damage, do not slam the hood to
close it. Lower the hood until it is open approximately 20
cm (8 inches) and then drop it. This should secure both
latches. Never drive your vehicle unless the hood is fully
closed, with both latches engaged.
WARNING!
If the hood is not fully latched it could fly up when
the vehicle is moving and block your forward vision.
You could have a collision. Be sure all hood latches
are fully latched before driving.
LIGHTS
Map/Reading Lights (Sedan)These lights are mounted between the sun visors above the
rear view mirror. Each light is turned ON by pressing the
button. Press the button a second time to turn the light OFF.
The lights also come on when a door is opened or the dimmer
control is turned fully upward, past the second detent.
184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To change the brightness of the instrument panel lights,
rotate the center portion of the Multi-Function Control
Lever up or down.
Daytime Running Lights (DRL) — If EquippedThe high beam lights will come on as Daytime Running
Lights (DRL) at DRL intensity (lower), whenever the
ignition is on, the engine is running, the headlight switch
is off, the parking brake is off, the turn signal is off, and
the gear shift is in any position except park.
NOTE:On this vehicle, the daytime running light will
automatically turn off when the turn signal is in opera-
tion and automatically turn back on when the turn signal
is not operating.Lights-on ReminderIf the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound to alert the driver
when the driver’s door is opened.
Dimmer Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 187
3

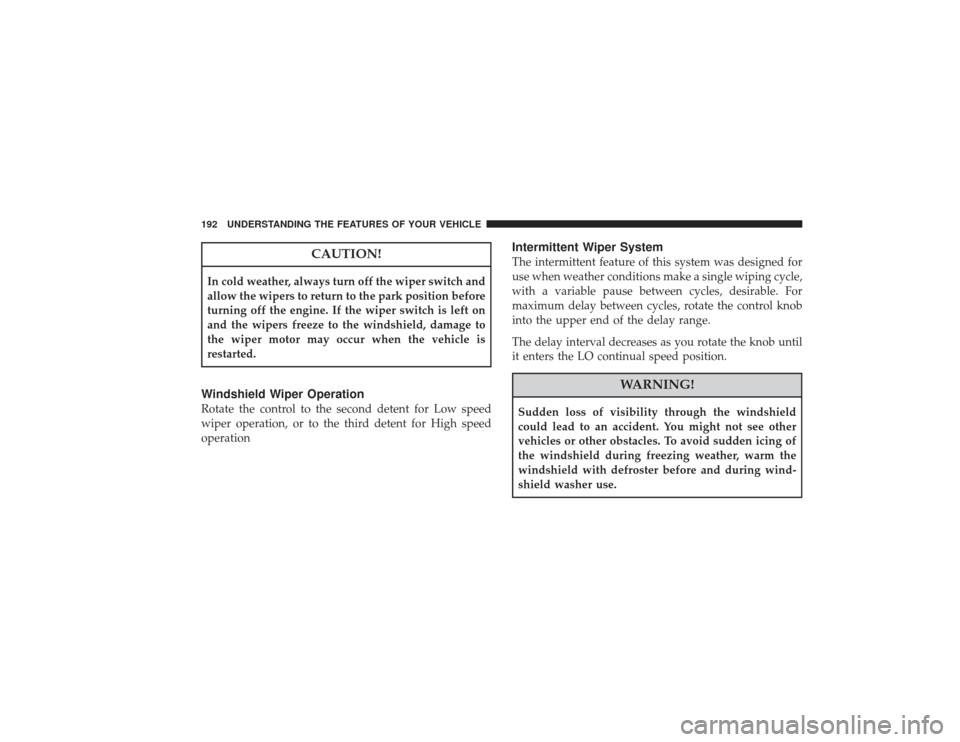

CAUTION!
In cold weather, always turn off the wiper switch and
allow the wipers to return to the park position before
turning off the engine. If the wiper switch is left on
and the wipers freeze to the windshield, damage to
the wiper motor may occur when the vehicle is
restarted.Windshield Wiper OperationRotate the control to the second detent for Low speed
wiper operation, or to the third detent for High speed
operation
Intermittent Wiper SystemThe intermittent feature of this system was designed for
use when weather conditions make a single wiping cycle,
with a variable pause between cycles, desirable. For
maximum delay between cycles, rotate the control knob
into the upper end of the delay range.
The delay interval decreases as you rotate the knob until
it enters the LO continual speed position.
WARNING!
Sudden loss of visibility through the windshield
could lead to an accident. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with defroster before and during wind-
shield washer use.
192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Tilting the steering column while the vehicle is
moving is dangerous. Without a stable steering col-
umn, you could lose control of the vehicle and have
an accident. Adjust the column only while the ve-
hicle is stopped. Be sure it is locked before driving.ELECTRONIC SPEED CONTROL — IF EQUIPPEDWhen engaged, this device takes over the accelerator
operation at approximately either 30 mph (40 km/h ) or
35 mph (56 km/h) depending on the model or engine
size. The speed control lever is located on the right side of
the steering wheel.
To Activate:Push the ON/OFF button. The CRUISE indicator in the
instrument cluster will illuminate. To turn the system
OFF, push the ON/OFF button a second time. The
CRUISE indicator will turn off. The system should be
turned OFF when not in use.
PT 7 Speed Control Ballon L or R
194 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Tapping RESUME ACCEL once will result in a 2 mph (3
km/h) speed increase. Each time the lever is tapped,
speed increases so that tapping the lever three times will
increase speed by 6 mph (10 km/h), etc.
To decrease speed while speed control is ON, push down
and hold SET DECEL. Release the lever when the desired
speed is reached, and the new speed will be set.
Tapping the SET DECELbutton once will result in a 1
mph (2 km/h) speed decrease. Each time the button is
tapped, speed decreases.Manual Transaxle:Depressing the clutch pedal will disengage the speed
control. A slight increase in engine RPM before the speed
control disengages is normal.
Vehicles equipped with manual transaxles may need to
be shifted into a lower gear to climb hills without speed
loss.
WARNING!
Speed Control can be dangerous where the system
can’t maintain a constant speed. Your vehicle could
go too fast for the conditions, and you could lose
control. An accident could be the result. Don’t use
Speed Control in heavy traffic or on roads that are
winding, icy, snow-covered, or slippery.To Accelerate For Passing:Depress the accelerator as you would normally. When the
pedal is released, the vehicle will return to the set speed.Using Speed Control On HillsNOTE:The speed control system maintains speed up
and down hills. A slight speed change on moderate hills
is normal.
196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Electrical Outlet Use With Engine Off
CAUTION!
•
Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent engine starting.
•
Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.), will degrade the
battery even more quickly. Only use these inter-
mittently and with greater caution.
•
After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
CONSOLE FEATURESThe console has two front cup holders, a removable coin
holder, 12 volt power outlet and a front storage tray.
There are three additional cup holders; one is molded in
the center of the console to hold large cups and the others
are in the rear of the console to serve passengers in the
rear seat. The floor console power outlet will also operate
a conventional cigar lighter unit (if equipped with an
optional Smoker’s Package).
208 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
•
Many accessories that can be plugged into the 12
volt power outlet, draw power from the vehicle’s
battery, even when not in use; i.e. cellular phones,
etc. Eventually, if plugged in long enough, the
vehicle’s battery will discharge sufficiently to de-
grade battery life and/or prevent engine starting.
•
Accessories that draw higher power such as cool-
ers, vacuum cleaners, lights, etc., will discharge the
battery even more quickly. Only use these inter-
mittently and with greater caution.
•
After the use of high power draw accessories, or
long periods of the vehicle not being started, (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
STORAGE
Center Console/Armrest Storage Bin
Sliding Armrest
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 209
3
