Page 412 of 538
WHAT TO DO IN EMERGENCIES
CONTENTS
Hazard Warning Flasher ................ 412
If Your Engine Overheats ................ 412
Jacking And Tire Changing ............... 413
▫ Jack Location ....................... 414
▫ Spare Tire Removal ................... 414
▫ Preparations For Jacking ............... 415
▫ Jacking Instructions ................... 416
▫ Wheel Nuts ........................ 423 ▫
Secure The Spare Tire ................. 424
Jump-Starting Procedure ................ 426
▫ Preparations For Jump-Start ............. 427
▫ Jump-Starting Procedure ............... 428
Freeing A Stuck Vehicle ................. 430
Towing A Disabled Vehicle ............... 431
▫ Towing With The Ignition Key ........... 431
6
Page 414 of 538
CAUTION!
Driving with a hot cooling system could damage
your vehicle. If temperature gauge reads “H”, pull
over and stop the vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on the
“H”, turn the engine off immediately, and call for
service.
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
JACKING AND TIRE CHANGING
WARNING!
•Getting under a jacked-up vehicle is dangerous.
The vehicle could slip off the jack and fall on you.
You could be crushed. Never get any part of your
body under a vehicle that is on a jack. If you need
to get under a raised vehicle, take it to a service
center where it can be raised on a lift.
•The jack is designed to use as a tool for changing
tires only. The jack should not be used to lift the
vehicle for service purposes. The vehicle should
be jacked on a firm level surface only. Avoid ice or
slippery areas.
•If it is necessary to retrieve the spare tire from
under the vehicle on the side of the vehicle close to
moving traffic. Pull far enough off the road to
avoid the danger of being hit.
6
WHAT TO DO IN EMERGENCIES 413

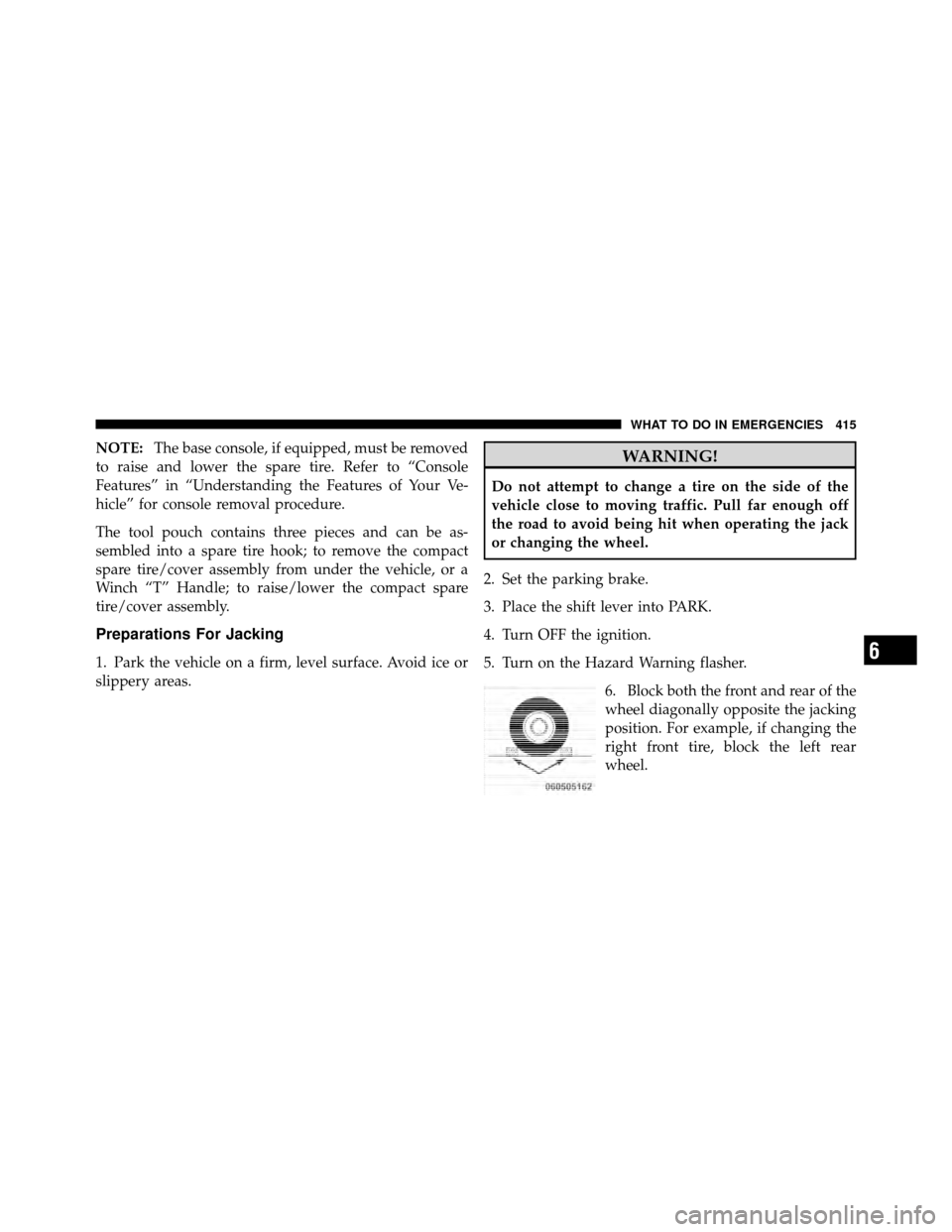

Page 416 of 538
NOTE:The base console, if equipped, must be removed
to raise and lower the spare tire. Refer to “Console
Features” in “Understanding the Features of Your Ve-
hicle” for console removal procedure.
The tool pouch contains three pieces and can be as-
sembled into a spare tire hook; to remove the compact
spare tire/cover assembly from under the vehicle, or a
Winch “T” Handle; to raise/lower the compact spare
tire/cover assembly.
Preparations For Jacking
1. Park the vehicle on a firm, level surface. Avoid ice or
slippery areas.
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid being hit when operating the jack
or changing the wheel.
2. Set the parking brake.
3. Place the shift lever into PARK.
4. Turn OFF the ignition.
5. Turn on the Hazard Warning flasher. 6. Block both the front and rear of the
wheel diagonally opposite the jacking
position. For example, if changing the
right front tire, block the left rear
wheel.
6
WHAT TO DO IN EMERGENCIES 415
Page 417 of 538
NOTE:Passengers should not remain in the vehicle
when the vehicle is being jacked.
Jacking Instructions
WARNING!
Carefully follow these tire changing warnings to
help prevent personal injury or damage to your
vehicle:
•Always park on a firm, level surface as far from
the edge of the roadway as possible before raising
the vehicle.
•Block the wheel diagonally opposite the wheel to
be raised.
•Set the parking brake firmly and set an automatic
transmission in PARK; a manual transmission in
REVERSE.
(Continued)
WARNING! (Continued)
•Never start or run the engine with the vehicle on a
jack.
•Do not let anyone sit in the vehicle when it is on a
jack.
•Do not get under the vehicle when it is on a jack.
•Only use the jack in the positions indicated and
for lifting this vehicle during a tire change.
•If working on or near a roadway, be extremely
careful of motor traffic.
•To assure that spare tires, flat or inflated, are
securely stowed, spares must be stowed with the
valve stem facing the ground.
•Turn on the Hazard Warning flasher.
416 WHAT TO DO IN EMERGENCIES

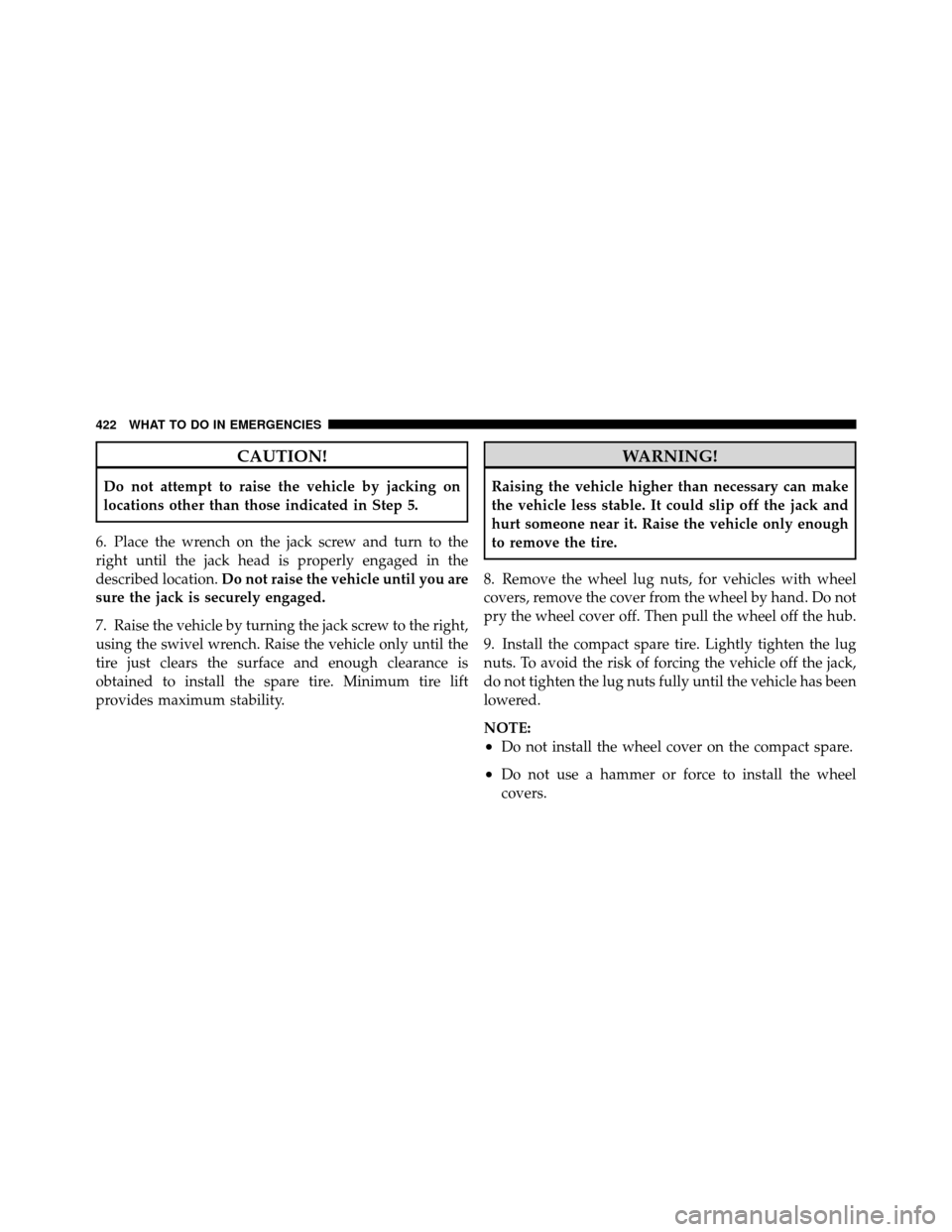

Page 423 of 538
CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in Step 5.
6. Place the wrench on the jack screw and turn to the
right until the jack head is properly engaged in the
described location. Do not raise the vehicle until you are
sure the jack is securely engaged.
7. Raise the vehicle by turning the jack screw to the right,
using the swivel wrench. Raise the vehicle only until the
tire just clears the surface and enough clearance is
obtained to install the spare tire. Minimum tire lift
provides maximum stability.
WARNING!
Raising the vehicle higher than necessary can make
the vehicle less stable. It could slip off the jack and
hurt someone near it. Raise the vehicle only enough
to remove the tire.
8. Remove the wheel lug nuts, for vehicles with wheel
covers, remove the cover from the wheel by hand. Do not
pry the wheel cover off. Then pull the wheel off the hub.
9. Install the compact spare tire. Lightly tighten the lug
nuts. To avoid the risk of forcing the vehicle off the jack,
do not tighten the lug nuts fully until the vehicle has been
lowered.
NOTE:
•Do not install the wheel cover on the compact spare.
•Do not use a hammer or force to install the wheel
covers.
422 WHAT TO DO IN EMERGENCIES
Page 523 of 538
Engine Oil........................... 444
Domelight ............................. 160
Door Locks ............................. 30
Door Locks, Automatic .................... 33
Door Opener, Garage ..................... 192
Driving On Slippery Surfaces ................... 338
Through Flowing, Rising, or Shallow Standing
Water .............................. 339
DVD Player (Video Entertainment System™) .... 298
E-85 Fuel ............................. 383
Electric Remote Mirrors ................... 114
Electrical Power Outlets ................... 201
Electronic Brake Control System ............. 347
Brake Assist System .................... 349
Electronic Stability Program ............... 350
Electronic Speed Control (Cruise Control) ...... 174
Electronic Stability Program (ESP) ............ 350Electronic Vehicle Information Center
(EVIC)
............................. 186,250
Emergency, In Case of Hazard Warning Flasher ................. 412
Jacking ........................... 413,416
Jump Starting ......................... 426
Overheating .......................... 412
Emission Control System Maintenance ......438,490
Engine ............................ 435,436
Air Cleaner .......................... 444
Block Heater ......................... 329
Break-In Recommendations ............... 100
Checking Oil Level ..................... 441
Compartment ...................... 435,436
Coolant (Antifreeze) .................... 486
Cooling ............................. 453
Exhaust Gas Caution ...............51,101,383
Flooded, Starting ...................... 328
Fuel Requirements .................. 378,485
Oil ........................... 441,485,486
522 INDEX

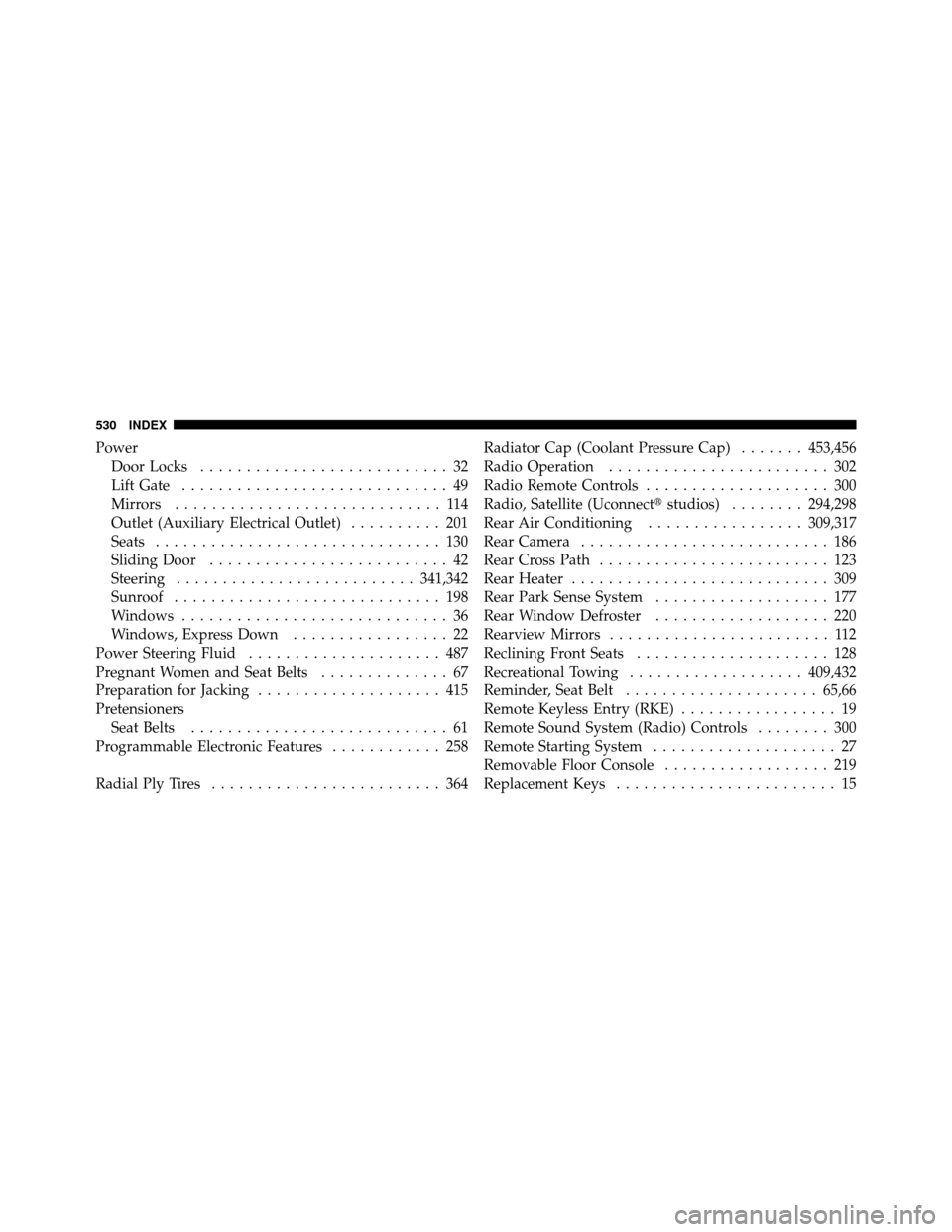

Page 531 of 538
PowerDoor Locks ........................... 32
Lift Gate ............................. 49
Mirrors ............................. 114
Outlet (Auxiliary Electrical Outlet) .......... 201
Seats ............................... 130
Sliding Door .......................... 42
Steering .......................... 341,342
Sunroof ............................. 198
Windows ............................. 36
Windows, Express Down ................. 22
Power Steering Fluid ..................... 487
Pregnant Women and Seat Belts .............. 67
Preparation for Jacking .................... 415
Pretensioners Seat Belts ............................ 61
Programmable Electronic Features ............ 258
Radial Ply Tires ......................... 364 Radiator Cap (Coolant Pressure Cap)
.......453,456
Radio Operation ........................ 302
Radio Remote Controls .................... 300
Radio, Satellite (Uconnect studios)........ 294,298
Rear Air Conditioning .................309,317
Rear Camera ........................... 186
Rear Cross Path ......................... 123
Rear Heater ............................ 309
Rear Park Sense System ................... 177
Rear Window Defroster ................... 220
Rearview Mirrors ........................ 112
Reclining Front Seats ..................... 128
Recreational Towing ................... 409,432
Reminder, Seat Belt ..................... 65,66
Remote Keyless Entry (RKE) ................. 19
Remote Sound System (Radio) Controls ........ 300
Remote Starting System .................... 27
Removable Floor Console .................. 219
Replacement Keys ........................ 15
530 INDEX
Page 534 of 538
Steering Wheel Mounted Sound System
Controls.............................. 300
Storage ............................ 207,479
Storage Bin ............................ 207
Storage, Vehicle ...................... 321,479
Storing Your Vehicle ...................... 479
Stow \bn Go (Fold in Floor) Seats ............. 136
Sun Roof .............................. 198
Sunglasses Storage ....................... 190
Sunroof Maintenance ..................... 201
Supplemental Restraint System - Airbag ........ 68
Synthetic Engine Oil ...................... 443
System, Remote Starting .................... 27
Tachometer ............................ 240
Temperature Control, Automatic (ATC) ........ 312
Temperature Gauge, Engine Coolant .......242,413
Tether Anchor, Child Restraint ............... 93
Tilt Steering Column ..................... 171 Tire and Loading Information Placard
......... 357
Tire Identification Number (TIN) ............. 355
Tire Markings .......................... 352
Tire Safety Information .................... 352
Tires ........................... 104,361,515
Aging (Life of Tires) .................... 367
Air Pressure .......................... 361
Changing ............................ 413
Compact Spare ........................ 364
Flat Changing ........................ 423
General Information .................... 361
High Speed .......................... 363
Inflation Pressures ..................... 362
Jacking ........................... 413,416
Life of Tires .......................... 367
Load Capacity ..................... 357,358
Pressure Monitor System (TPMS) ........... 370
Pressure Warning Light .................. 234
Quality Grading ....................... 515
Radial .............................. 364
10
INDEX 533
